50" LED Light Bar Mount 07-18 for JEEP JK / JKU

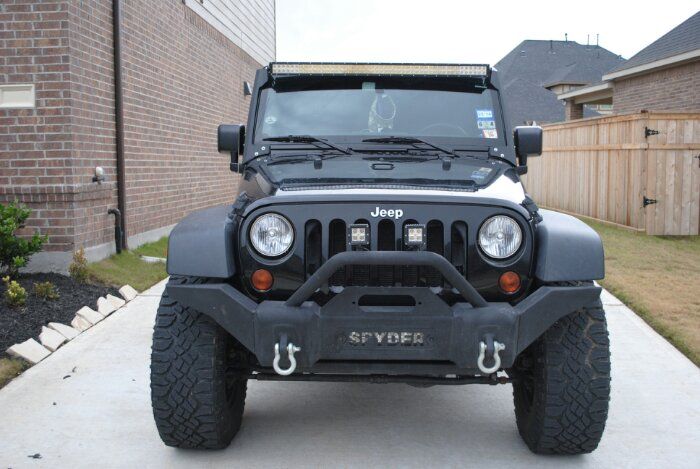

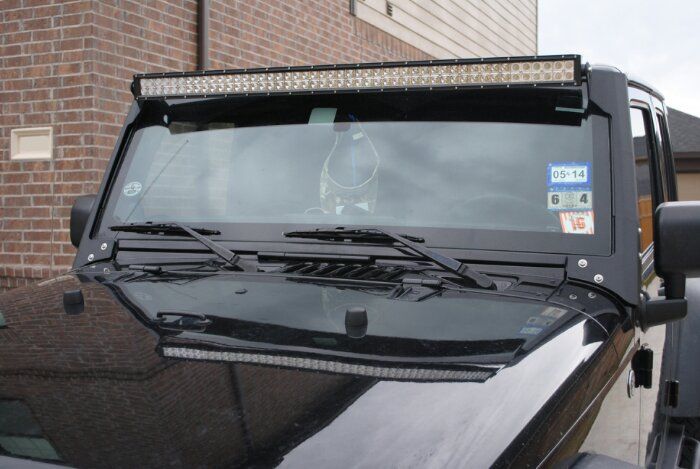

Motobilt Jeep JK 50 inch LED Light Bar mounts have many great features. Not only do they provide more protection for the windshield frame than any others on the market they also provide room to run the wiring harness behind the mounts. The Jeep JK 50 inch LED Light Bar Mount System from Motobilt was designed with function and form in mind. Often time people are puzzled on where to run the wires for the light bar and hide them from sight. When designing this bracket system this was addressed. We spaced the mounts out slightly to allow room for the wiring harness to pass behind the brackets. We do not provide wiring instructions for the LED light bar.

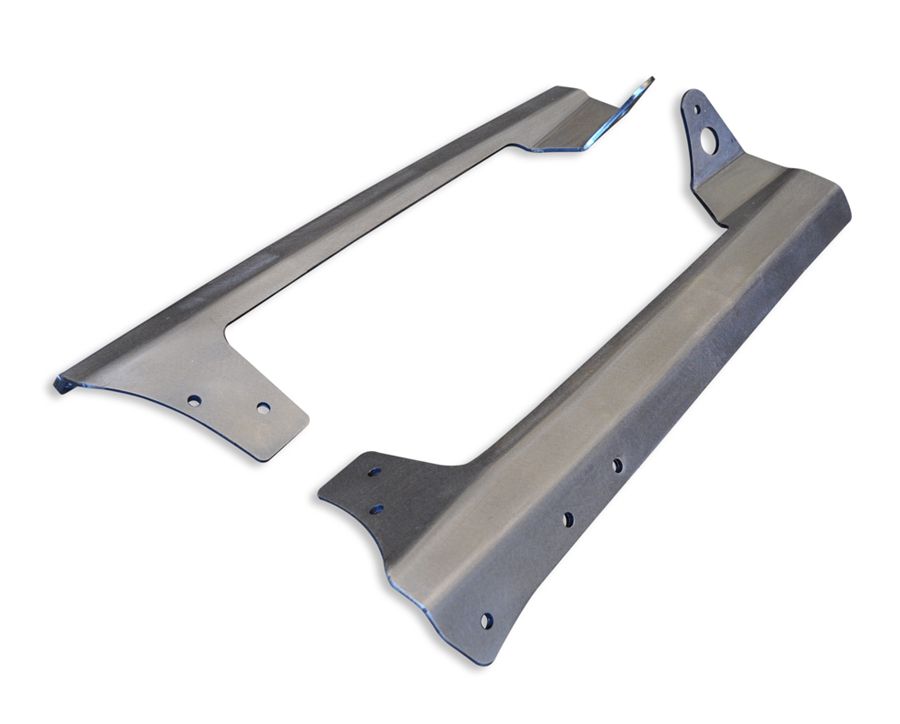

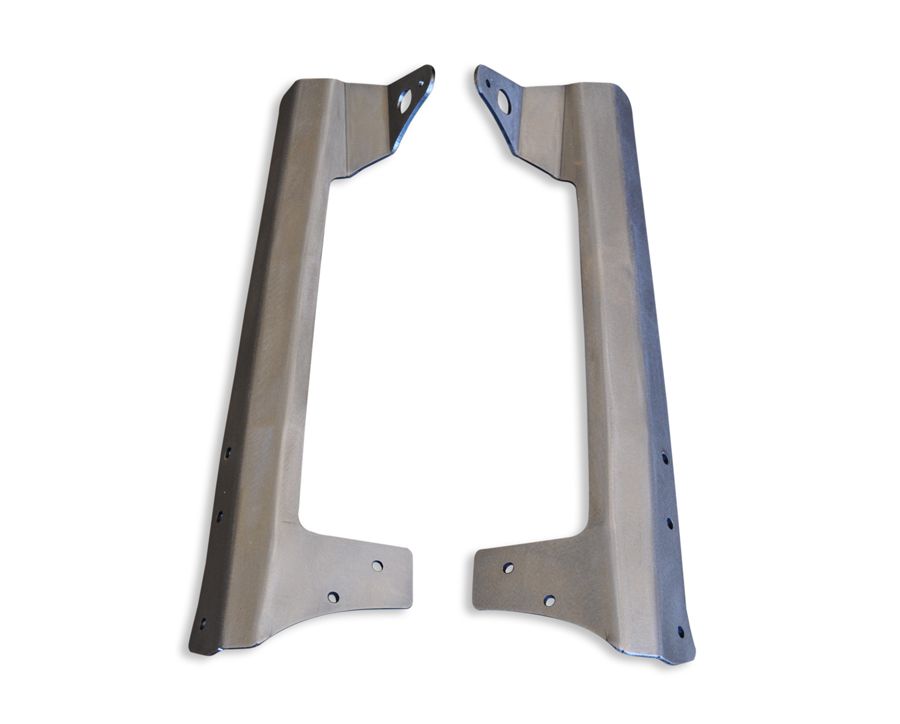

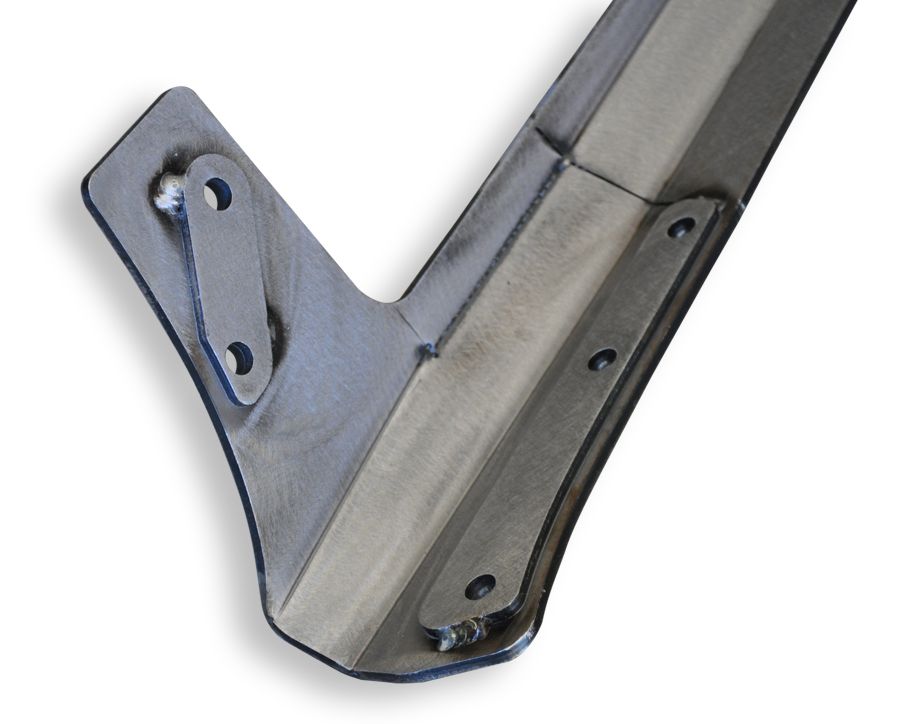

The brackets are laser cut from 3/16 inch steel plate and formed on a hydraulic press brake. They not only provde a solid mounting point for your LED light bar they also provide protection for the a-pillars of the windshield frame. Our Jeep JK LED Light Bar Mount only comes in contact with the windshield mount. They do not come in contact with the windshield frame and a rubber gasket is not needed. The light bar mounts are shipped bare steel for you to paint or powdercoat. We ship them this way because so many people want to color match their Jeep JK.

Specifications

• Jeep JK 50 inch LED light bar mounts
• Laser cut 3/16 inch steel plate
• Designed for LED lights with a mounting width of 50.25 inch wide
• Has room to run wiring harness behind the bracket
• Keeps the top of the LED light bar below the roof line for a tight fit
• Includes hardware
• Sold as Kit
• Weight: 13lbs (approx.)

Note:

• Purchase MB2023 if you want the lower cube mounts
• LED lighting is for offroad use only
• The light bar mounts are shipped bare steel. You will need to paint or powdercoat them before use
• This light bar mount is designed to fit LED light bars with a mounting width of 50.25 inch
• This light bar mount will not work with Rigid Industries 50 inch LED light bar or other wider than 50.25 inch
• We do not provide wiring instructions for the LED light bar

Product Components

Instructions

Installation Instructions
