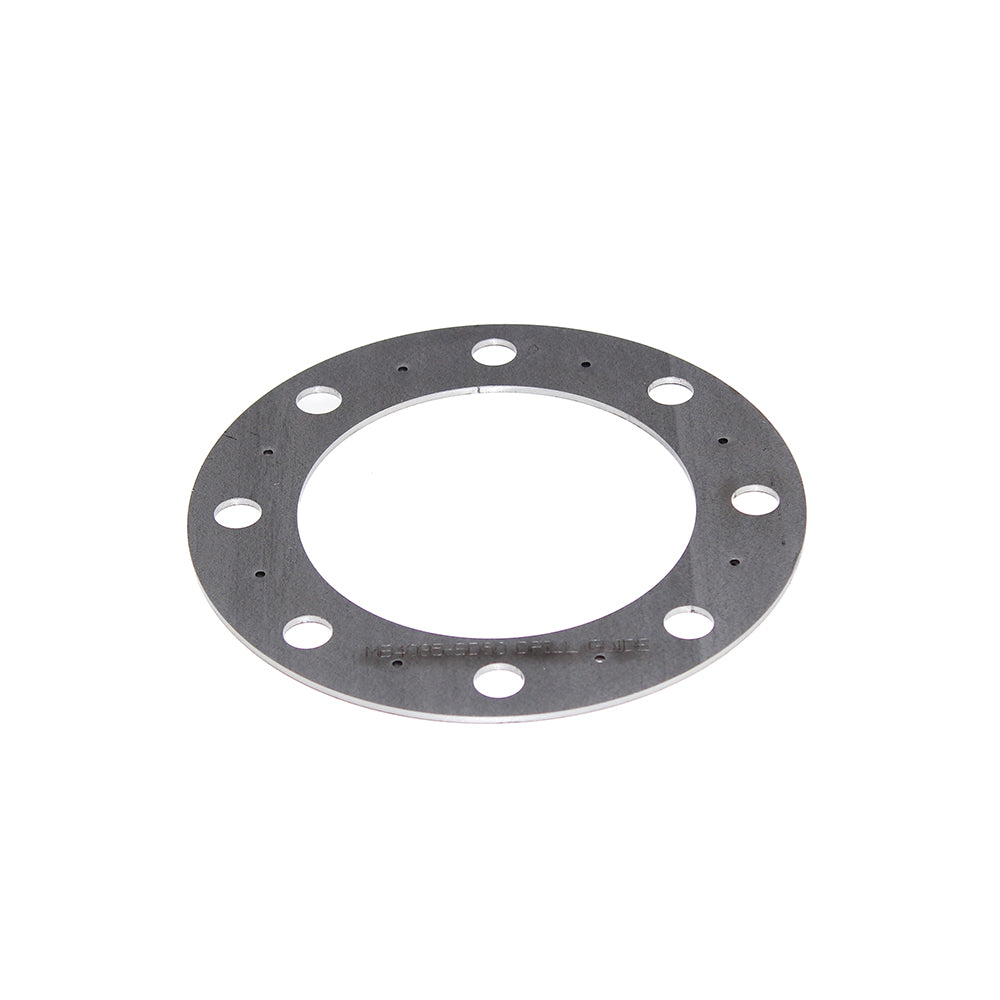

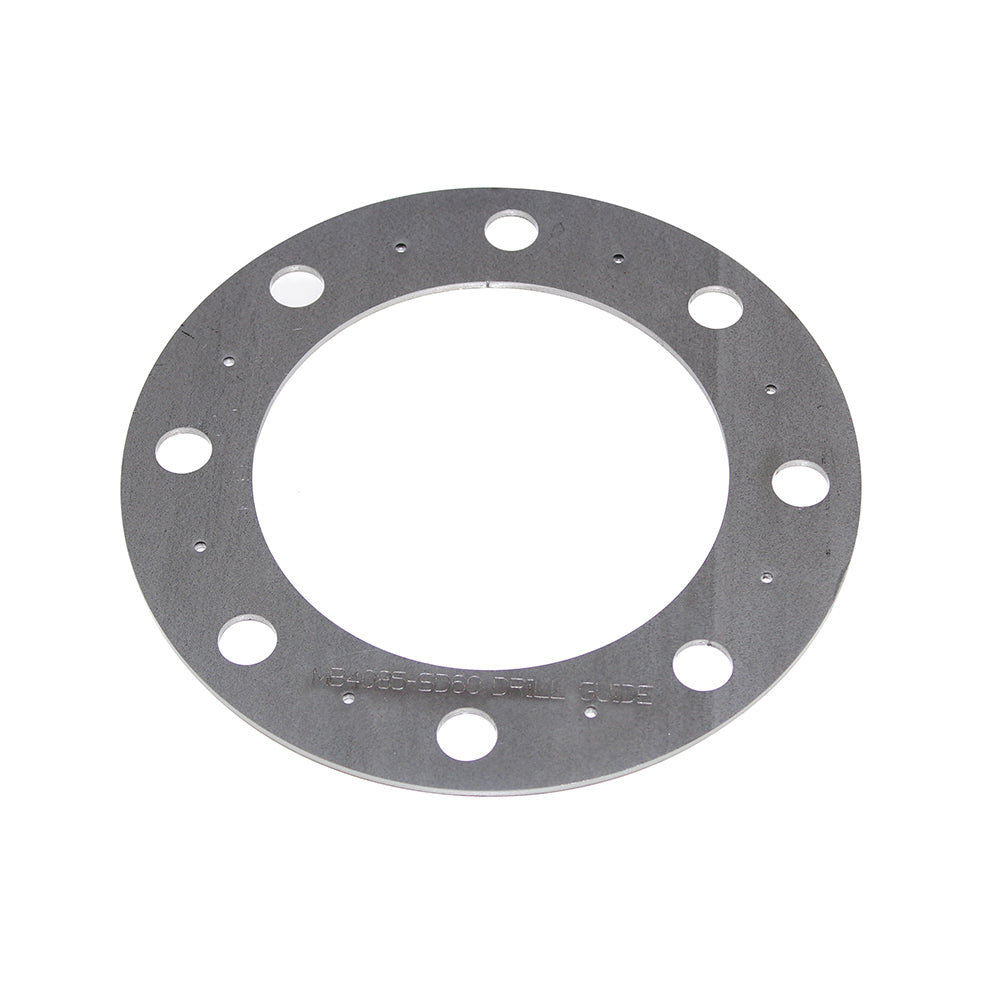

This handy drilling guide is used to mark the hole centers when converting the wheel stub bolt pattern on a Ford Super Duty front axle wheel hubs from 8 bolt on 170mm to 8 bolt on 6.5” bolt circle diameter.
Simply place the drilling guide over the stock wheel studs, then use the small holes & a punch to mark the exact centers of the new 8 bolt on 6.5” b.c.d. Drill your wheel hubs to your new desired wheel stud size & press into the wheel hub.
No guessing! Ensure your new wheel stud pattern is concentric to the wheel hub.
Constructed from 1/8” Steel & precision laser cut. Weight = 0.5 lbs
