← All axle products

Finish the axle swap

Route it. Mount it. Finish it.

Find the small parts that finish an axle build: GM 14-bolt disc-brake brackets, weld-on brake-line tabs and axle-specific ABS sensor block-off plates. Start with the job, then confirm the axle.

Motobilt GM 14-bolt full-float rear disc-brake conversion brackets.

Brake brackets, line tabs & ABS plates

Results: 7 of 7 products
Regular price$3.99Sale price$2.39

Brake Line Tab

View details
Regular price$58.00Sale price$43.50

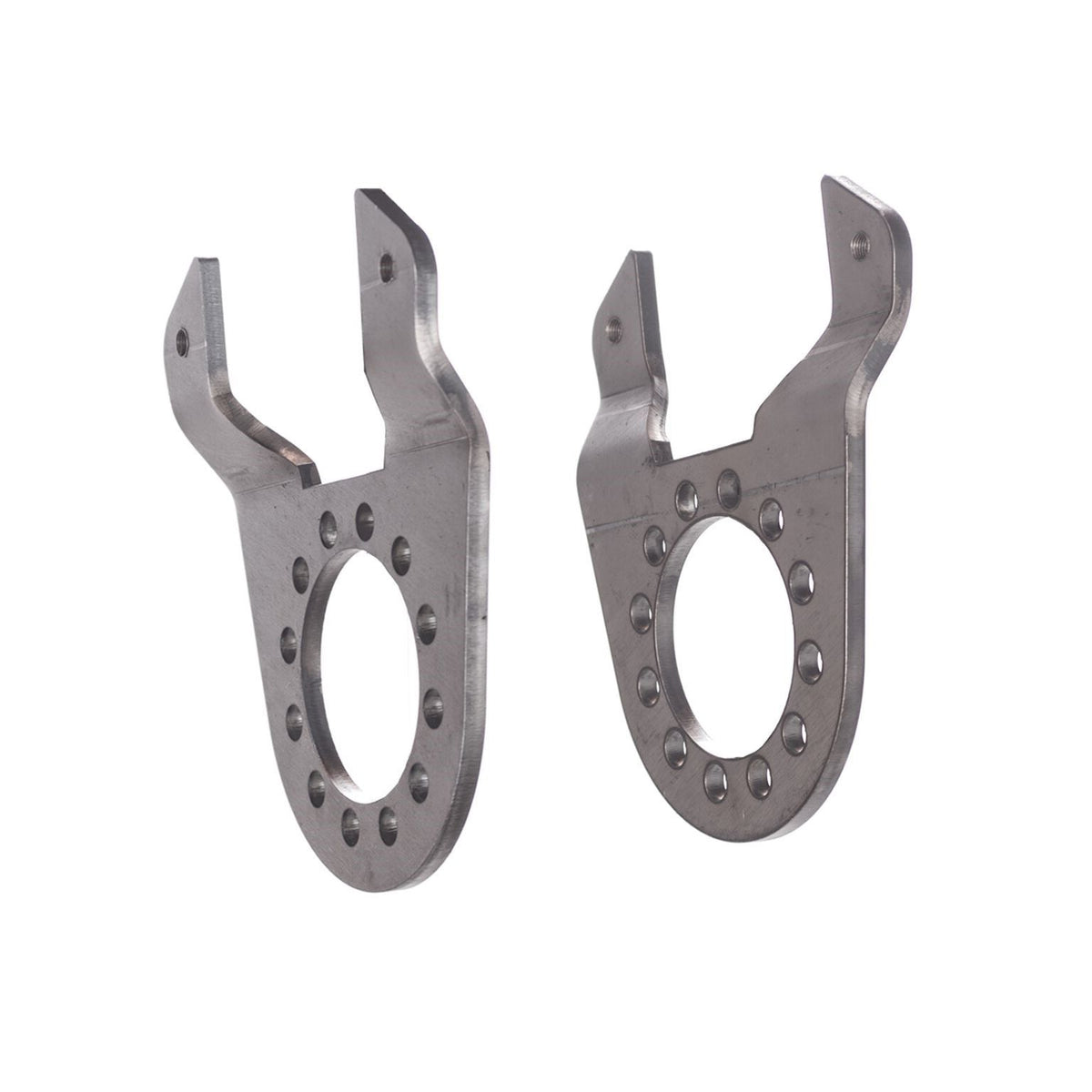

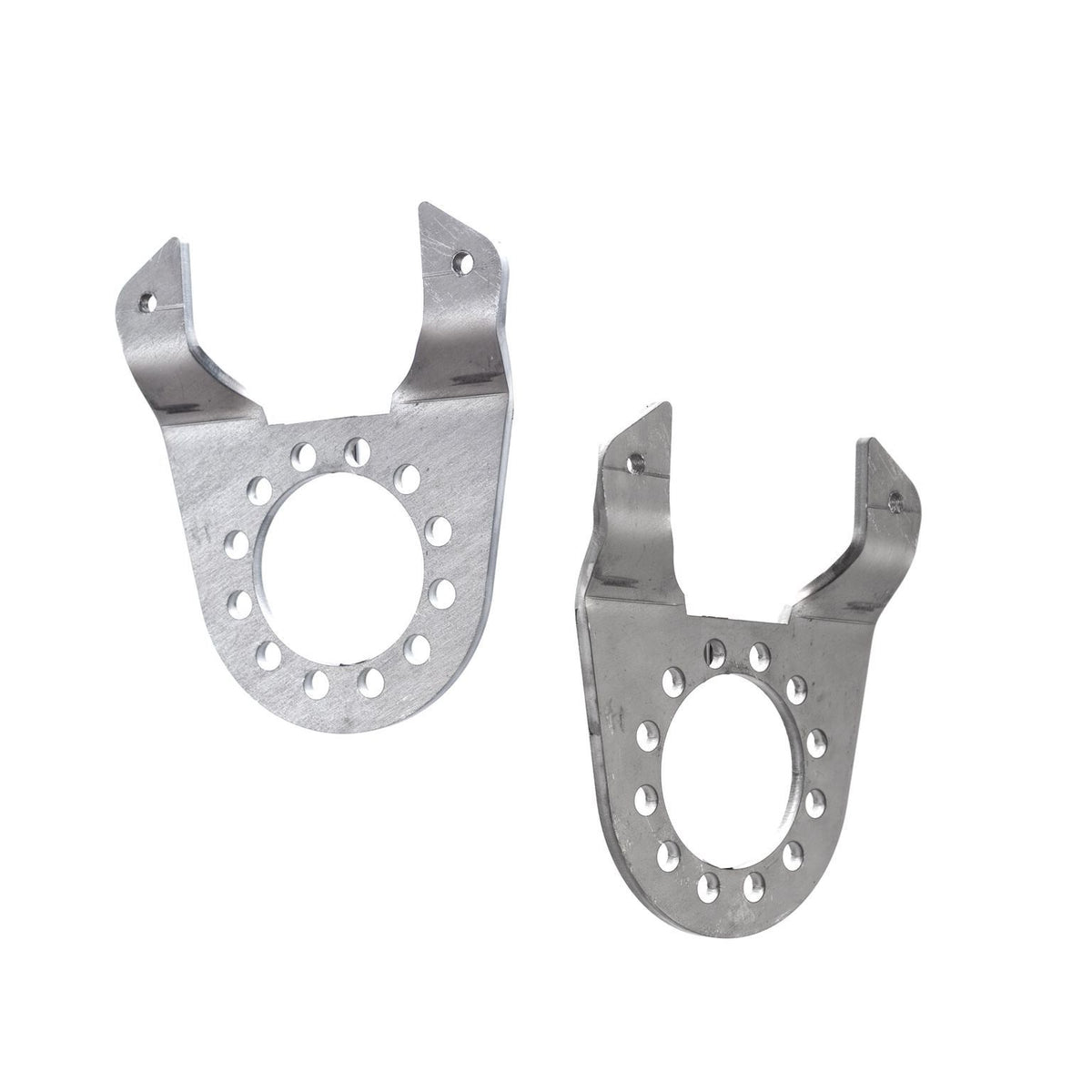

14 Bolt Full Float Disc Brake Conversion Brackets

View details
Regular price$8.00Sale price$4.80

SD Dana 60 ABS Sensor Block Off

View details
Regular price$19.00Sale price$14.25

Sterling ABS Block Off Plate With Vent

View details
Regular price$9.00Sale price$6.75

Sterling ABS Block Off Plate W/O Vent

View details
Regular price$9.00Sale price$5.40

ABS Block Off Plate W/O Vent for Ford 8.8

View details
Regular price$15.00Sale price$11.25

ABS Block Off Plate With Vent for Ford 8.8

View details

Brake & ABS Parts FAQ

Is the 14-bolt disc-brake bracket set a complete brake conversion kit?

No. MB4022 includes a pair of disc-brake brackets. The product page does not include calipers, rotors or new mounting hardware. Confirm all required brake components for your axle before starting the conversion.

Which 14-bolt axle fits the disc-brake brackets?

MB4022 specifies GM full-float rear axles from 1987 and earlier with stud-mounted hubs/drums, not slide-on drums. Check that hub and drum arrangement before ordering. The brackets have multiple holes for clocking their position.

How are the brake-line tabs installed?

The steel tabs weld to a suitable round or flat surface. They have a small radius for tube mounting and a 0.645-inch through-hole. They are sold as a set of four; check the line fitting and routing clearance for your build.

What is an ABS sensor block-off plate for?

It covers the axle sensor opening in a custom conversion where that sensor is not used. It is not an ABS repair or an electronic adapter, and it does not preserve ABS operation. Match the plate to the axle and have your installer address the complete brake and sensor system.

Should I choose a vented or non-vented plate?

Choose according to your axle vent location. The vented Ford 8.8 and Sterling plates include a tapped 1/4-inch NPT port. If a solid plate closes the existing vent location, the axle needs another vent location. The product descriptions call for RTV when installing these plates.

Are Ford 8.8, Sterling and Super Duty Dana 60 plates interchangeable?

Choose the plate named for your axle. The collection contains separate designs for each application, so do not assume one sensor plate fits every Ford axle. Confirm the opening and the product dimensions before ordering.

Need help choosing?

Tell us which axle and brake or ABS mounting job you are working on.

Ask Motobilt
