Motobilt's Custom
Red JLU
Custom Build

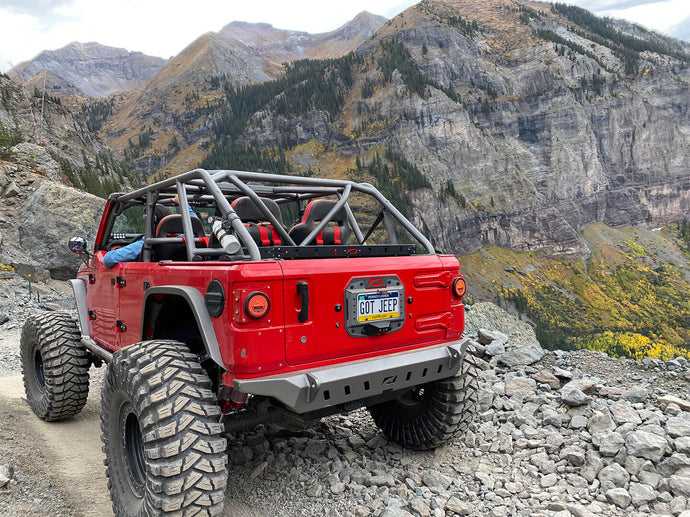

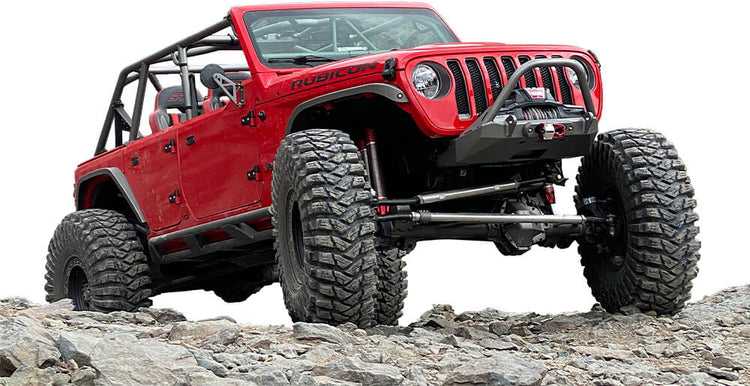

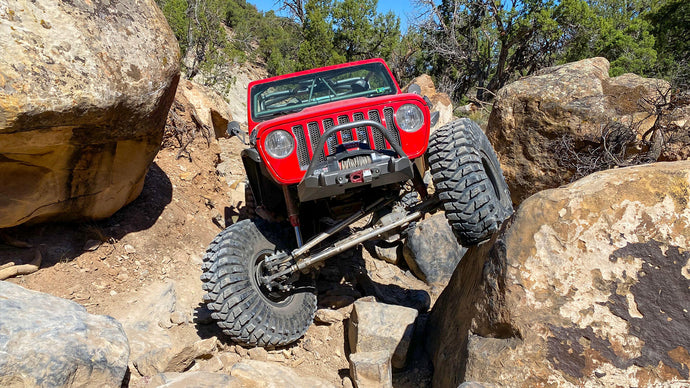

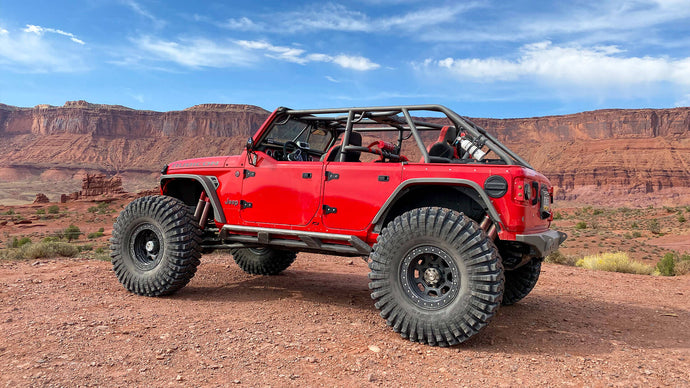

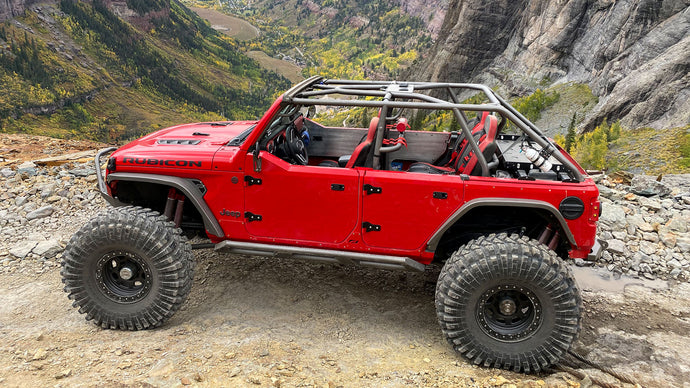

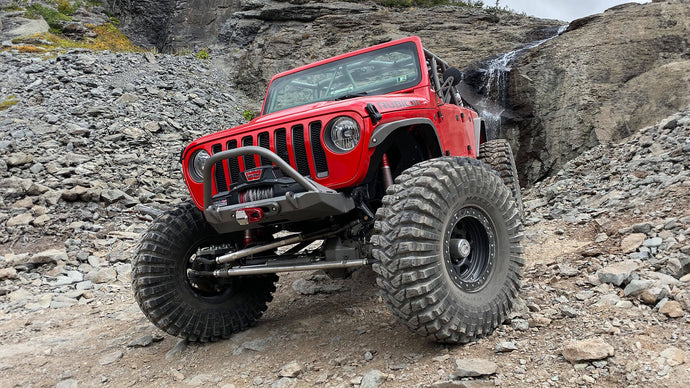

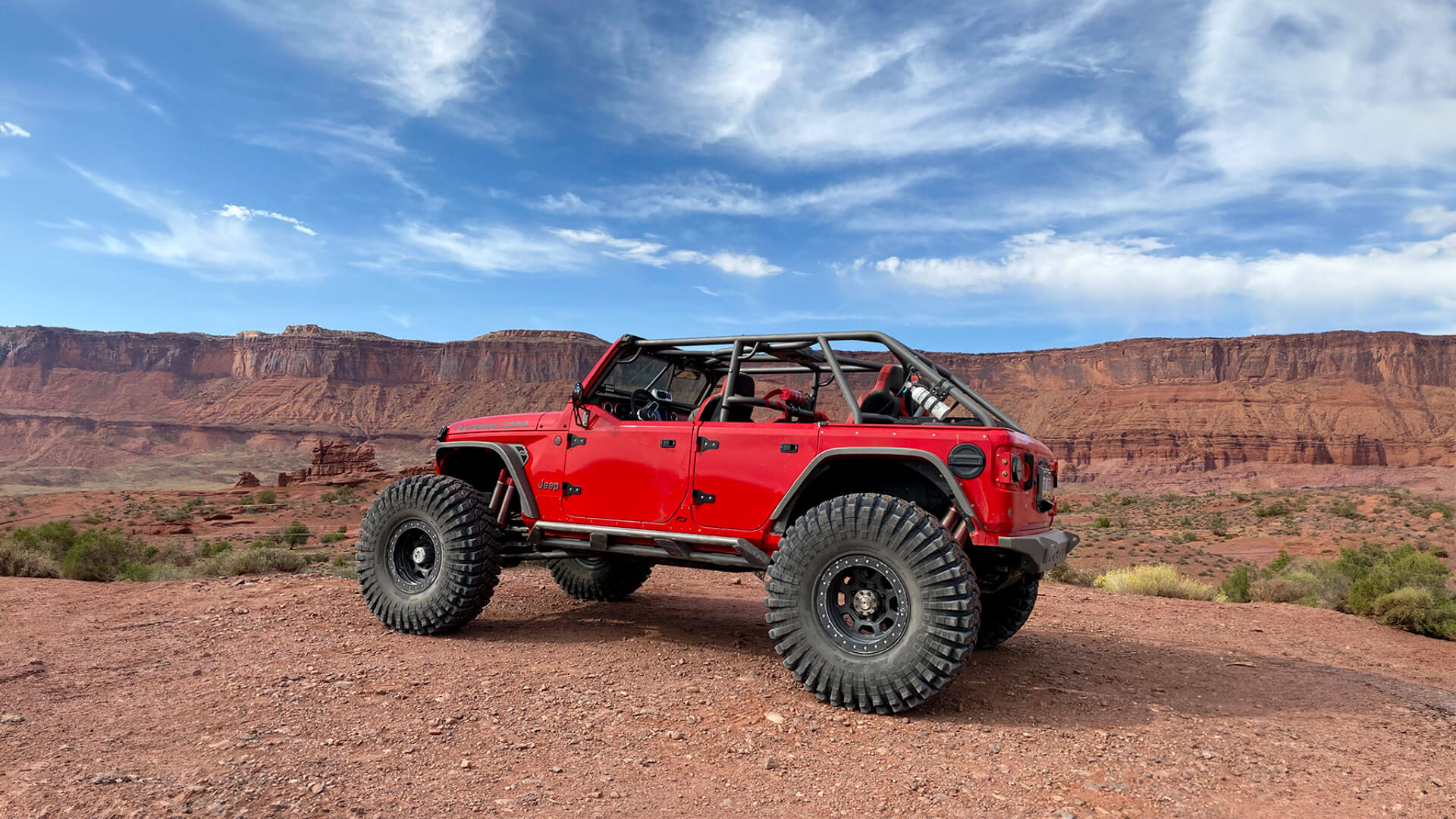

Motobilt's Red JLU

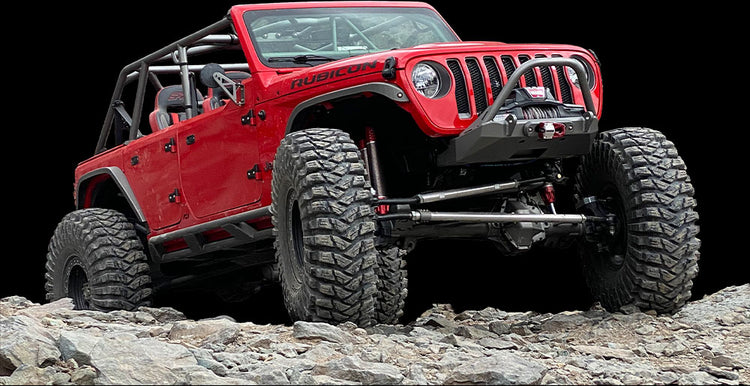

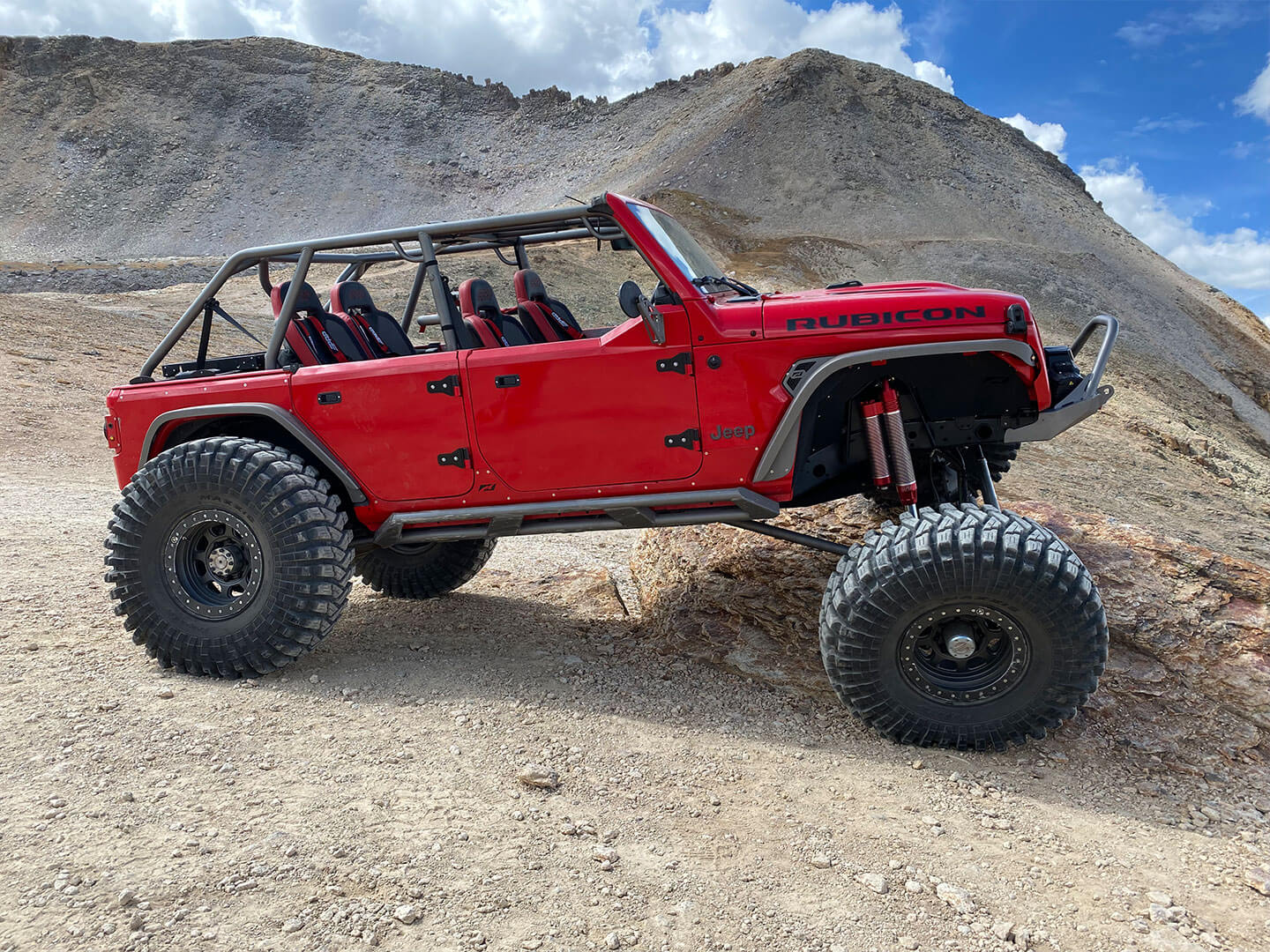

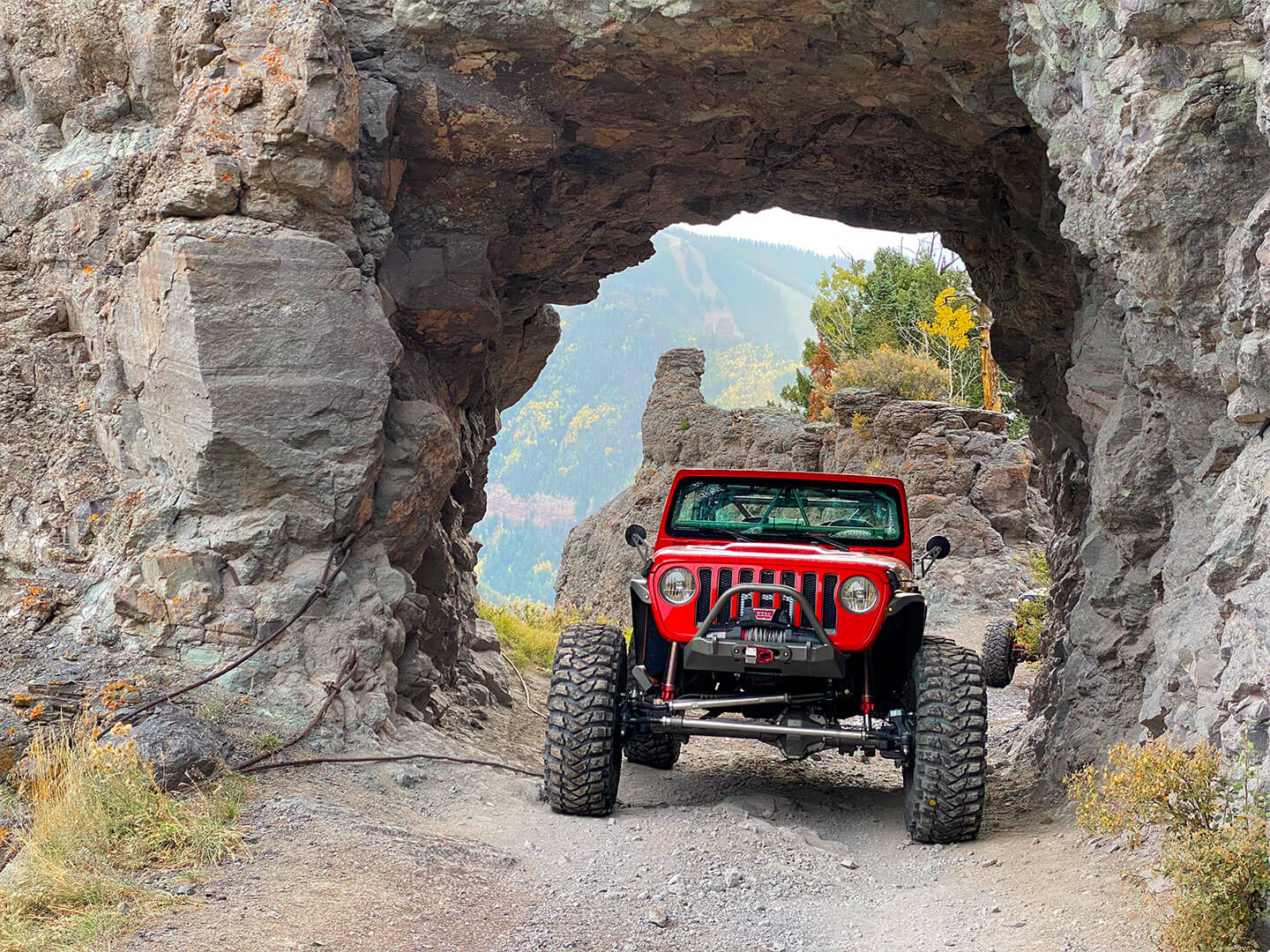

This fully equipped Motobilt Jeep JLU can conquer the most extreme rock crawling in the country or hit the highway with its highly tuned Motobilt suspension.
Tomahawk Frame Chop Front Bumper w/Bull Bar for Jeep JK, JL, JT
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick
Blackout's Specs
Find out which parts make this rig the trail boss that it is.
Drive Train
• 3.6L V6 and auto, with Atlas II transfer case.
• Fusion 4" axle tube Dana 60 Kingpin with ARB, 5.38 gears, High Steering.
• MB4080-Ulitmate Dana 60 Front Diff Cover
• Fusion 4" Axle tube GM 14 bolt 4" axle tube ARB, 5.38 gears.
• MB4094-14 Bolt Rear axle truss for 4" Dia Tubes
• MB4067-13 Bolt Diff Cover
• Adams 4x4 1350 1 ton CV drive shafts front and rear.
• PSC Big bore steering box with hydraulic assist steering.
Accessories

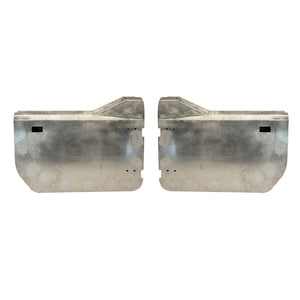

• MB3042-MB3051-Aluminum Front Half Doors for Jeep JL/JLU/JT w/Mirror Brackets

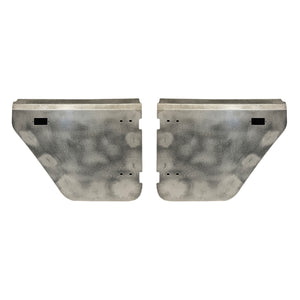

• MB3043-Aluminum Rear Half Doors for Jeep JL/JLU/JT
• MB3044-B Pillar Chop Kit for Jeep JLU
• MB3045-Jeep JLU Roll Cage Kit(Yet to be released)
• MB5018-P-Interior Cargo Rack for Jeep JL/JLU/JT/JK/JKU
• MB2152-Adjustable Front PRP Seat Mounts for Jeep JL/JLU
• MB2153-Rear Seat mounts for Jeep JLU and Jeep JKU
• PRP Enduro Seats with 4 point harness.
Frame and Suspension
• 16" ORI Struts with reservoirs front and rear.
• MB1565-Front Shock Towers for ORI Struts for JL/JLU
• MB1562-Rear Upper Shock Mounts, 16" ORI's for Jeep JLU
• MB7006-4 Link Suspension Bracket & Skid Kit for Jeep JLU
• 2 5/8" wide Johnny Joints with 2" x.250" DOM for Links.
• MB1542-175-350-Track Bar Bracket Adjustable
• MB5026-MB5033-Rear Fuel Tank & Skid for Jeep JL
• MB5027-Rear Mount Fuel Cell Access Hatch for Jeep JL
• 42x15x17 Maxxis Trepadors
• 17x9 Monster Raceline Beadlocks 3.5" Back Spacing 8x6.5
Body Armor

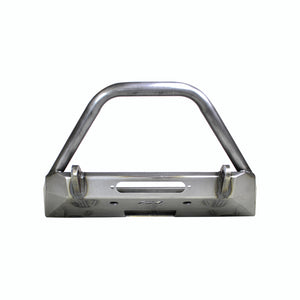

• MB1149-BB-Tomahawk Frame Chop Front Bumper w/Bull Bar
• Warn Platinum Zeon 12,000lb Winch Synthetic Rope. Factor 55 Expert Link
• MB1079-Crusher /Series Rear Bumper No Spare for Jeep JL/JLU
• MB1077-LD-PL-6-Spare Tire Delete Tag Mount/Tag Light Combo for Jeep JL/JLU
• MB1095-Unlimited Rocker Armor for Jeep JL 4 Door

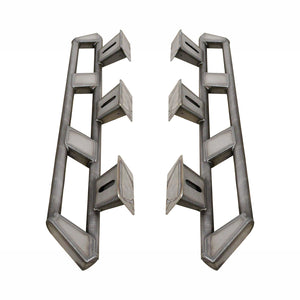

• MB1158-Frame Mounted Rocker Guards for Jeep JL 4 Door

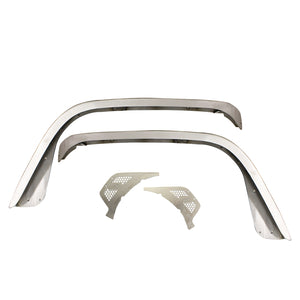

• MB1101-Front fender ?Flares for Jeep JL/JLU/JT Gladiator
• MB1150-Aluminum Blank Front Inner Fenders for Jeep JL/JLU

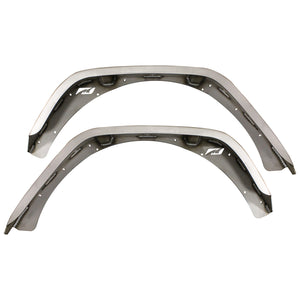

• MB1102-Rear Fender Flares for Jeep JL/JLU
Lighting
• MB5521-Round Tail Light /Conversion Kit for Jeep JL w/out Sensors
