Motobilt's Rowdy

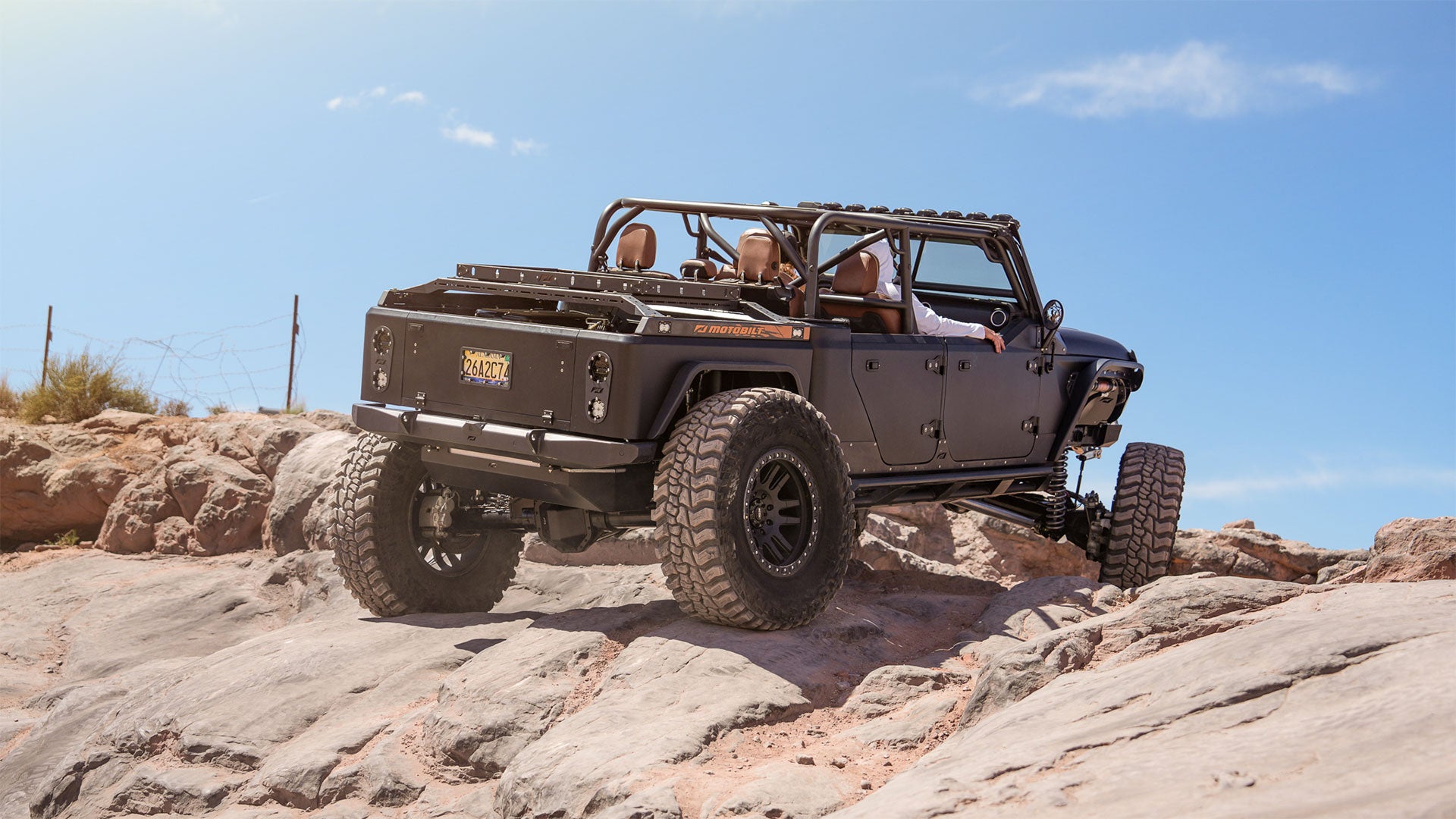

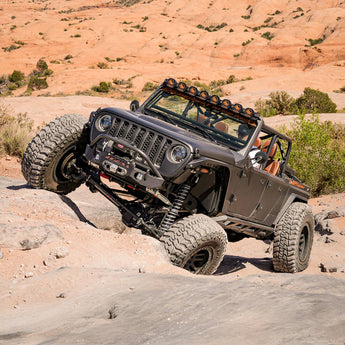

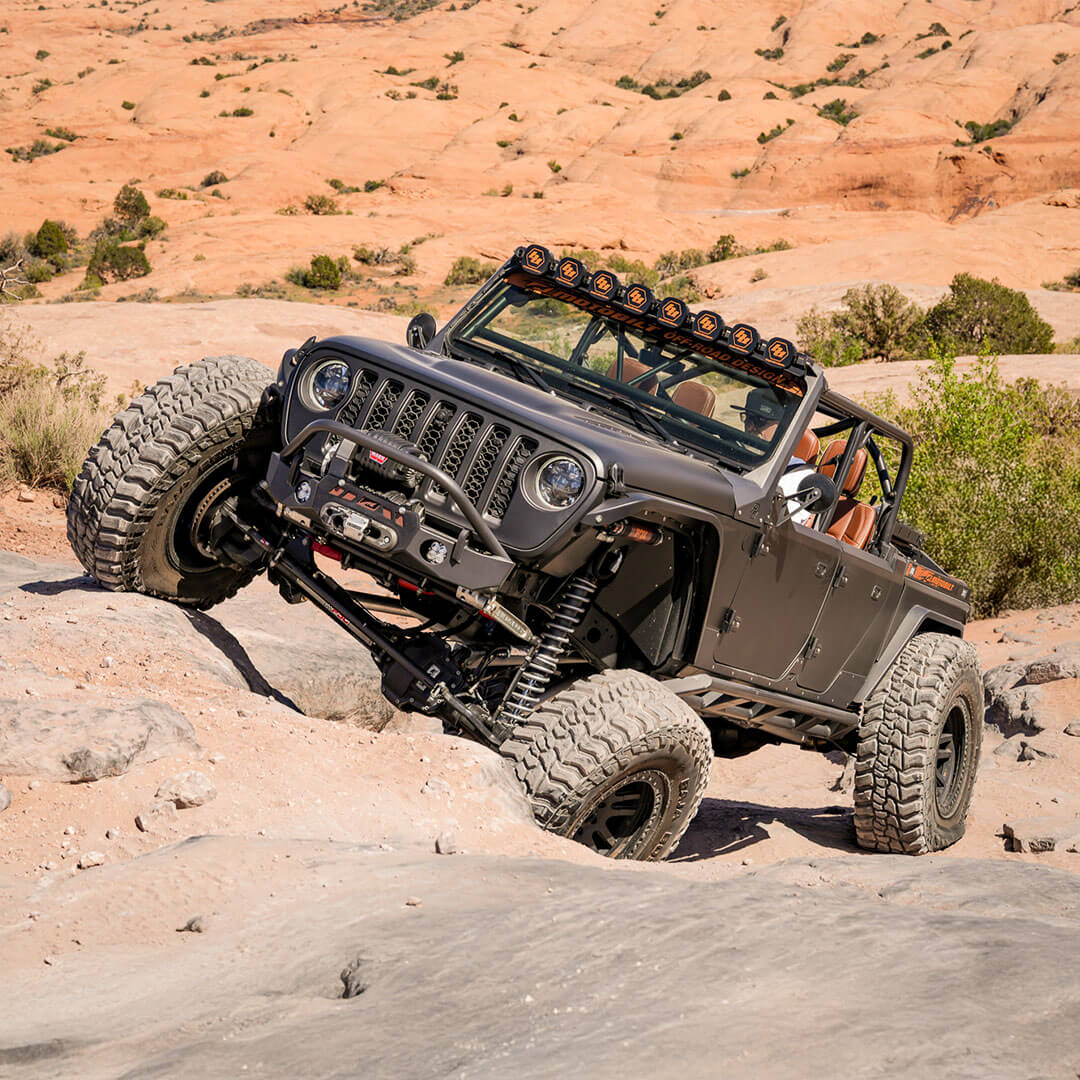

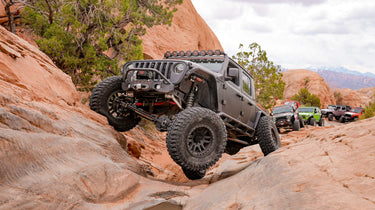

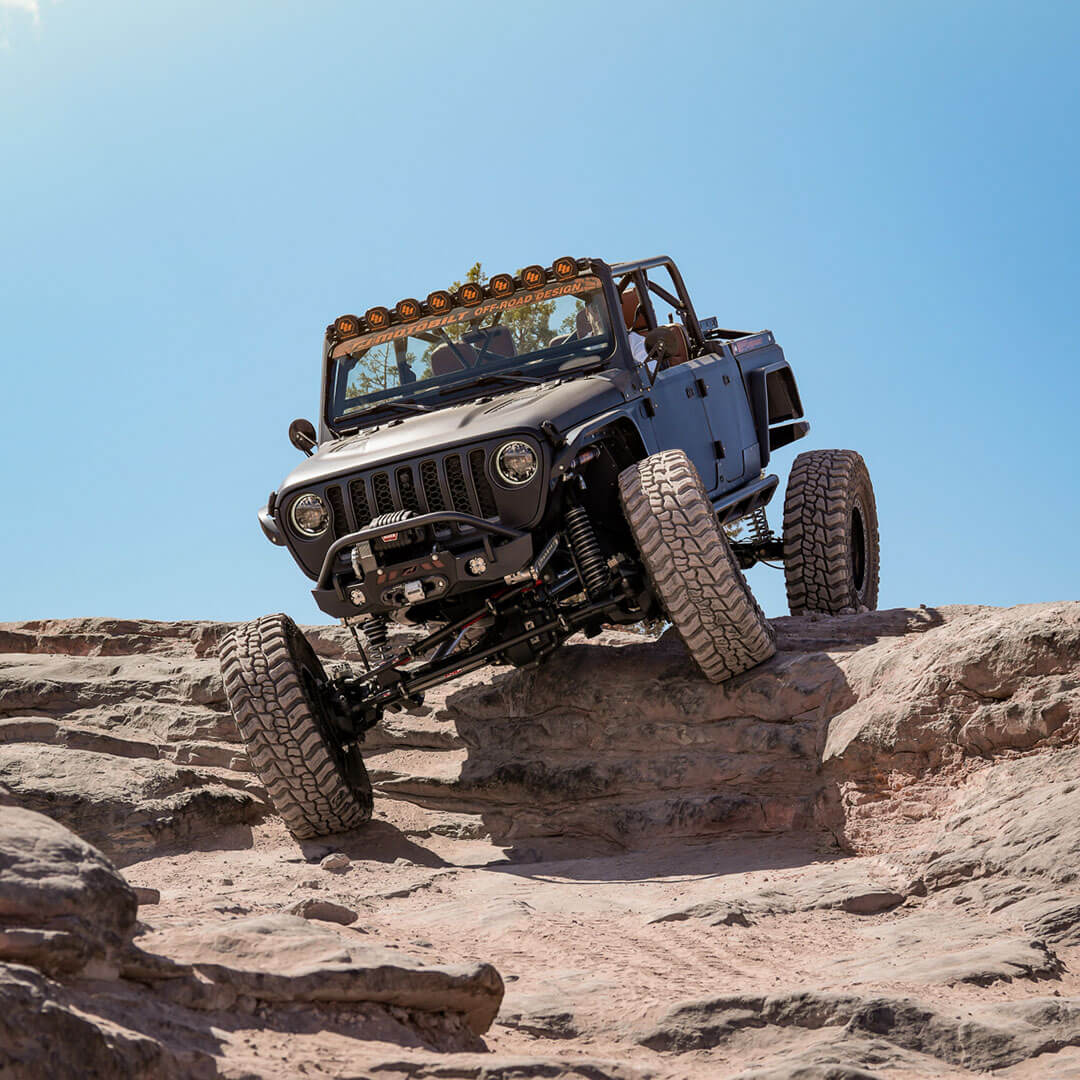

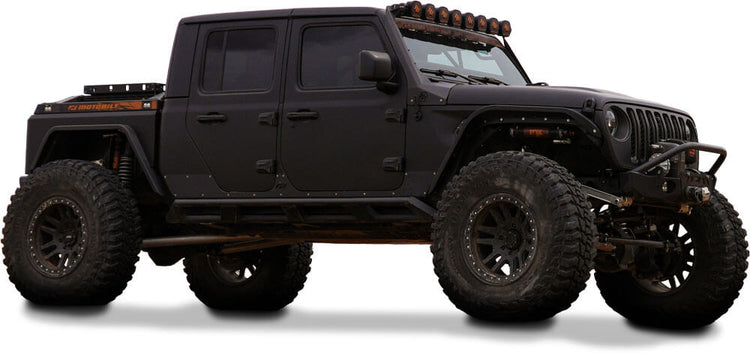

The Rowdy Jeep Gladiator is built to wheel the hardest trails and look great at the same time. With 550 horses propelling the 42” tires up the rocks, you’re still comfortable in the custom, diamond-stitched, leather seats. Unlike others, this Gladiator can do it with class.

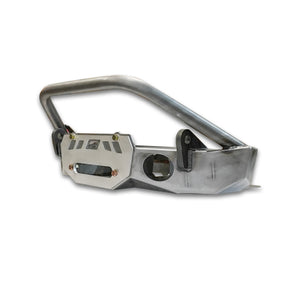

Gladius Frame Chop Bumper with Bull Bar for Jeep JK/JL/JT - fits WARN M8274
$999.00 / View Product
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick

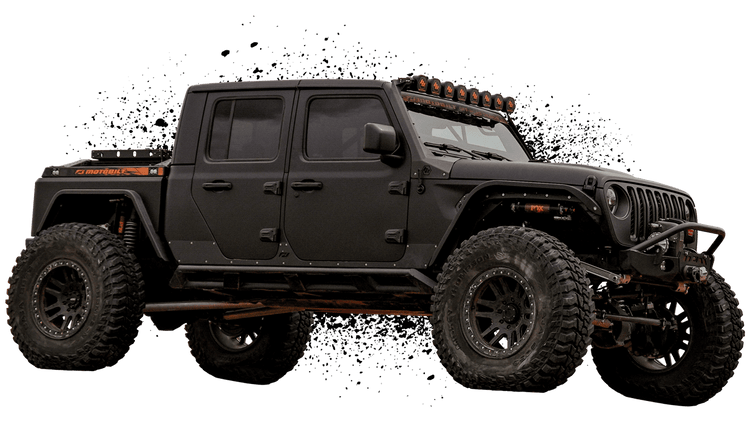

Rowdy's Specs
Find out which parts make this rig the trail boss that it is.

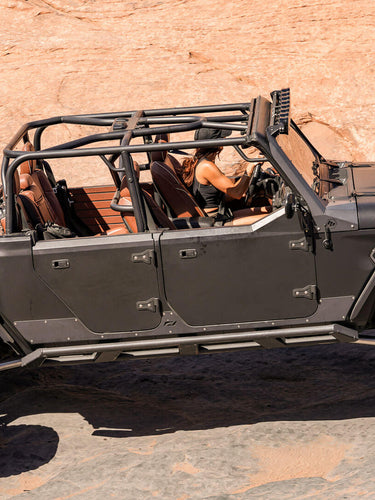

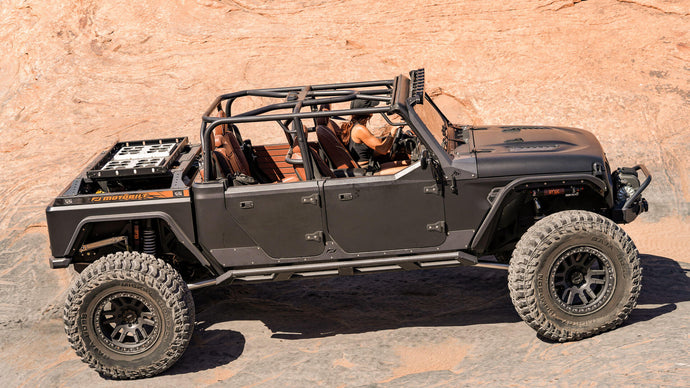

Body Armor

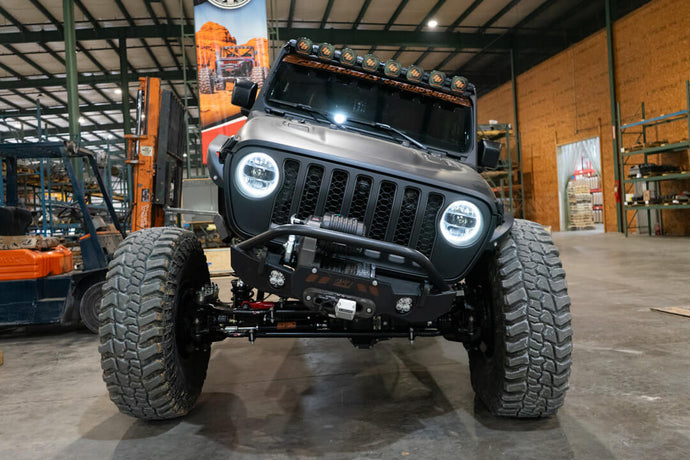

• MB1238-B - Gladius Frame Chop Front Bumper w/Bull Bar for Warn 8274 Winch
• MB3096 - Roll Cage Kit for Jeep Gladiator
• MB1196-A - Aluminum Front Highline Fenders for Jeep JL/JLU/JT

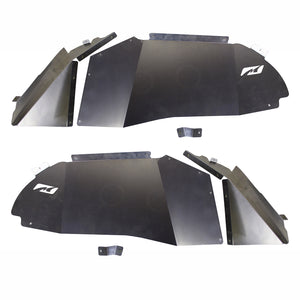

• MB150 - Aluminum Blank Front Inner Fenders for Jeep JL/JLU/JT
• MB1107-A - ALUMINUM Rocker Armor for Jeep Gladiator JT
• MB1193 - Frame Mounted Rocker Guards for Jeep JT Gladiator
• MB1178-A - Aluminum Bobbed Replacement Bed for Jeep Gladiator
• MB1191 - Bed Rails for Gladiator Bobbed Replacement Bed
• MB1216 - Aluminum Inner Fenders for Motobilt Bobbed Bed

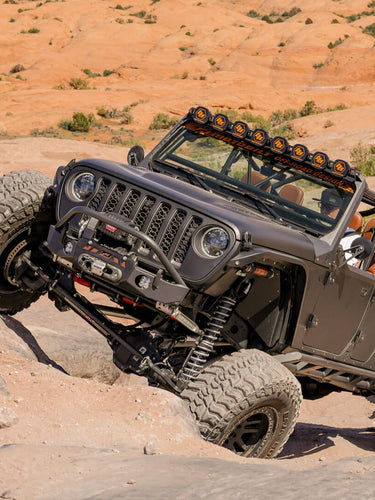

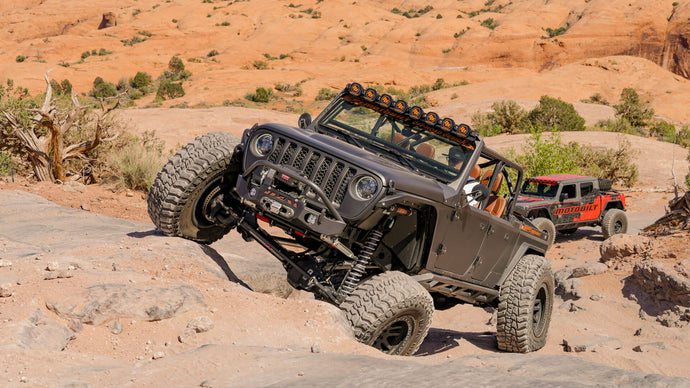

Suspension and Steering
• Double Triangulated 4 Link Rear Suspension with 3 Link Front with Full Skid Plate System
• Back Half Frame With Coil-over Towers
• Rear coil overs FOX-981-25-110-3
• Factory Race 2.5x16 Coil-Over Remote Shock - DSC Adjuster
• 25 Gallon Rear Mounted Fuel Cell with Skid Plate for Back Half Frame
• MB1565 - Front Shock Towers for ORI/Coilover Struts for JL/JLU/JT
• Front coil overs FOX-981-25-109-3
• Factory Race 2.5x14 Coil-Over Remote Shock - DSC Adjuster
• Summit Machine 2.5” solid aluminum lower links
• Summit Machine 2” upper links with rockjock4x4 Johnny Joints
• Rock Jock 4x4 Narrow Johnny Joints (RH) CE-9114N-28 | (LH) CE-9114NL-28
• RockJock4x4-Antirock Front Sway Bar Kit (Billet 7075 Aluminum Arms .850 In Bar) PN# RJ-246101-103
• RockJock4x4-Antirock Rear Sway Bar Kit (Billet 7075 Aluminum Arms 1 In. Bar) PN# RJ-256201-101 With JLU Aluminum Arms
• SteerSmarts-Yeti XD JL/JT Pro-Series Front Adjustable Track Bar (Red) PN# 750490001
• MB2132 - Upper Link Arm Bracket
• MB4015 - Dana 60 Lower Link Mount Kit
• MB2113 - Universal Form Shock Brackets for Axle Tube
• MB1569 - Universal Upper Triangulated Link Mount For Rear Axle
• MB1571 - 4 inch Tube Triangulated Lower Link Mount for Rear Axle
• MB1535 - Axle Tube Lower Coil-Over Shock Mount Kit
• SteerSmarts-Yeti XD Drag Link and Tie Rod
• PSC Cylinder Assist Steering Kit w/Big Bore XD Cylinder Assist Steering Gear 7.5" Lock to Lock

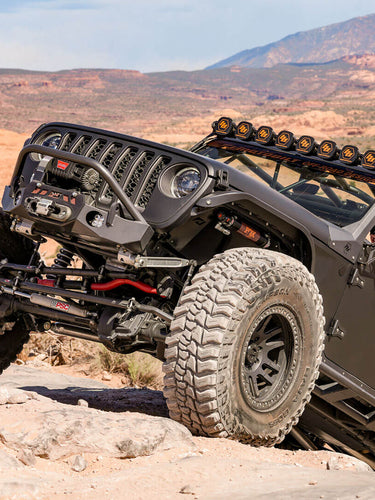

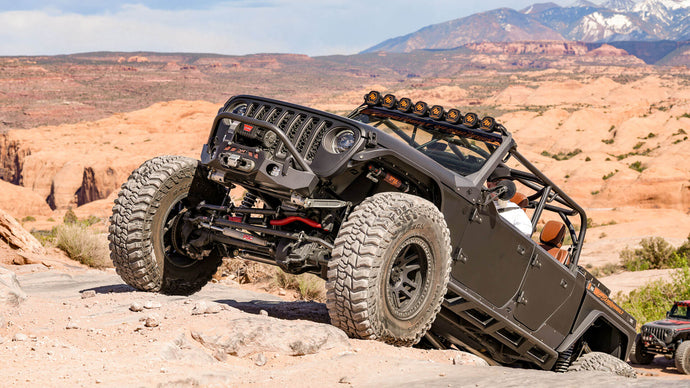

Drive Train
• 550 HP 6.6L LX3 V-8 Engine and Stronger 8 Speed Conversion-from Bruiser Conversions
• ECGS High Pinion King Pin Dana 60 Front Axle 5.38 Gears, 4" axle tubes, 71" WMS, 40 Spline w/1550 U-Joints, ARB Air Locker, Yukon Hardcore 40 spline locking hubs.
• ECGS GM High Clearance 14 Bolt 5.38 Gears, 4" axle tubes, 71" WMS, 40 Spline ARB Air Locker.
• MB4094 - 14 Bolt Rear Axle Truss for 4 inch Axle Tubes
• Adams 4x4 1350 CV 1 piece front drive shaft and rear with 1410 at rear 14 bolt yoke.
• Advance Adapters Atlas 3.0 Transfer Case

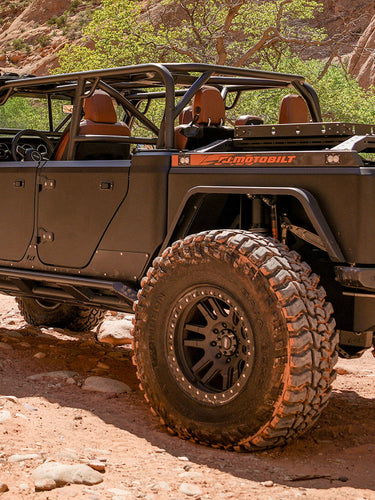

Tires and Wheels
Tires
• Mickey Thompson- Baja Boss MT 42x13.50x20
Wheels
• Dirty Life Canyon Race Bead Locks 20x10 -44 Offset 8x6.5 Bolt Pattern PN#9314-2181MB44
Accessories
• Stinger Horizon 12 Head Unit
• WARN-M8274-S 10,000LB WINCH - SYNTHETIC - PN# 106175
• Factor 55 Ultra Hook Black PN# 00250-04
• MB1212 - 8lug Motobilt 8-Lug tire carrier rack for replacement bobbed bed
• MB1213 - Motobed Tire Carrier Molle Panels
• MB5051 - ARB Compressor Enclosure
• MB2179 - Rock Light Universal Bracket
• MB5017 - Cargo Rack Interior Fits TJ/LJ, YJ and JT Bed
• MB1190 - Receiver Hitch for Bobbed Replacement
• MB5070 - Jack Mount for Bob Bed Spare Tire Carrier Rack
• Hi-Lift Jack- All Cast 48" Jack PN #HL-485
• MB8012-Switch Pro Mount for JL/JLU/JT
• MB5051- ARB Compressor Enclosure
• MB5077- Mounting Bracket for Apex Compact Reel fits Mb1212
• Apex Compact Reel System (CRS) 35'
• MB5073-02 Small Mounting Panel For Milwaukee Packout
• MB5536- Hood Vent Kit for Jeep Rubicon JL/JLU/JT
• MB0055-JL Windshield Banner for Jeep JL/JLU/JT (Custom color)
• Katzkin Custom Leather Seat Covers
Lighting
• Baja Designs- Jeep JL/JT 8XL Linkable /Roof Mount Light Kit PN# 447664 Mounted on Windshield.
• Baja Designs Squadron SAE LED Auxiliary Light Pod Pair PN# 247802 Mounted in Gladius front bumper
• Baja Designs Squadron Sport Black Led Auxiliary Light Pod Pair PN# 557805 Used in back of Bobbed bed as back up lights
• Baja Designs S2 Sport Black LED Auxiliary Light Pod's PN #540005 qty (4) Mounted in bed rails
