MB1078-B

Crusher Series Front Bumper w/ Bull Bar for Jeep JL / JT Gladiator

$799.00
Shipping calculated at checkout.

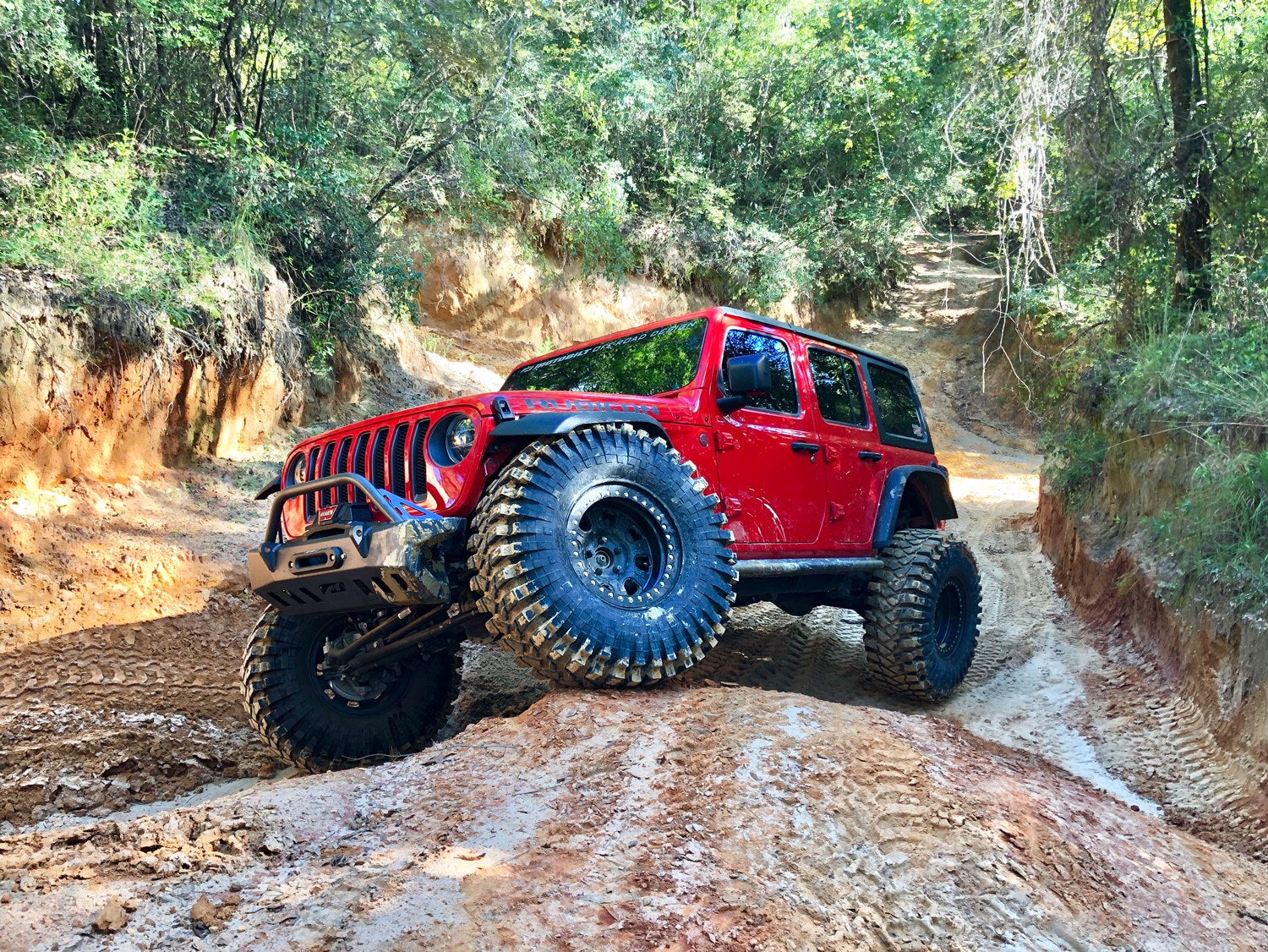

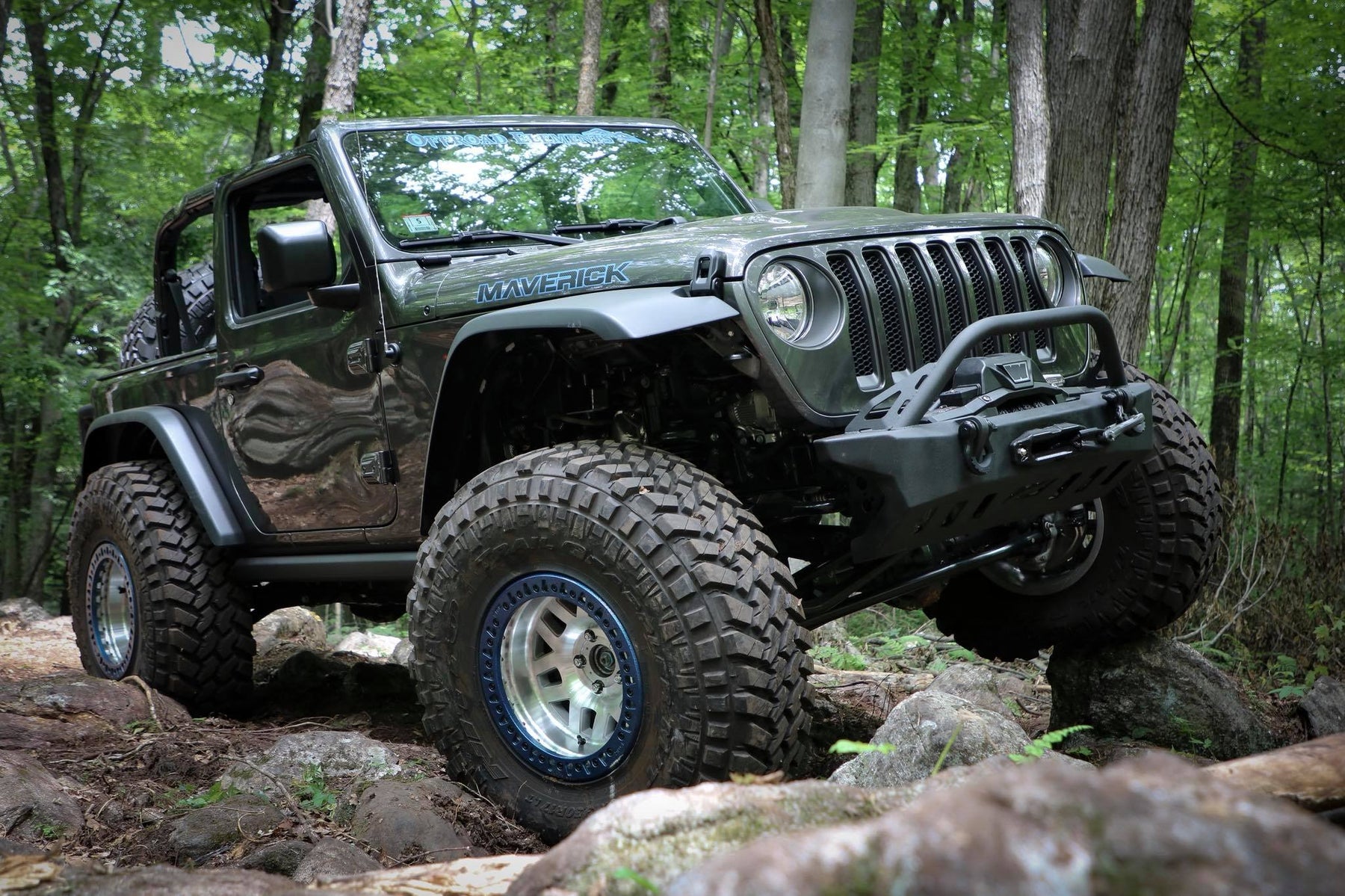

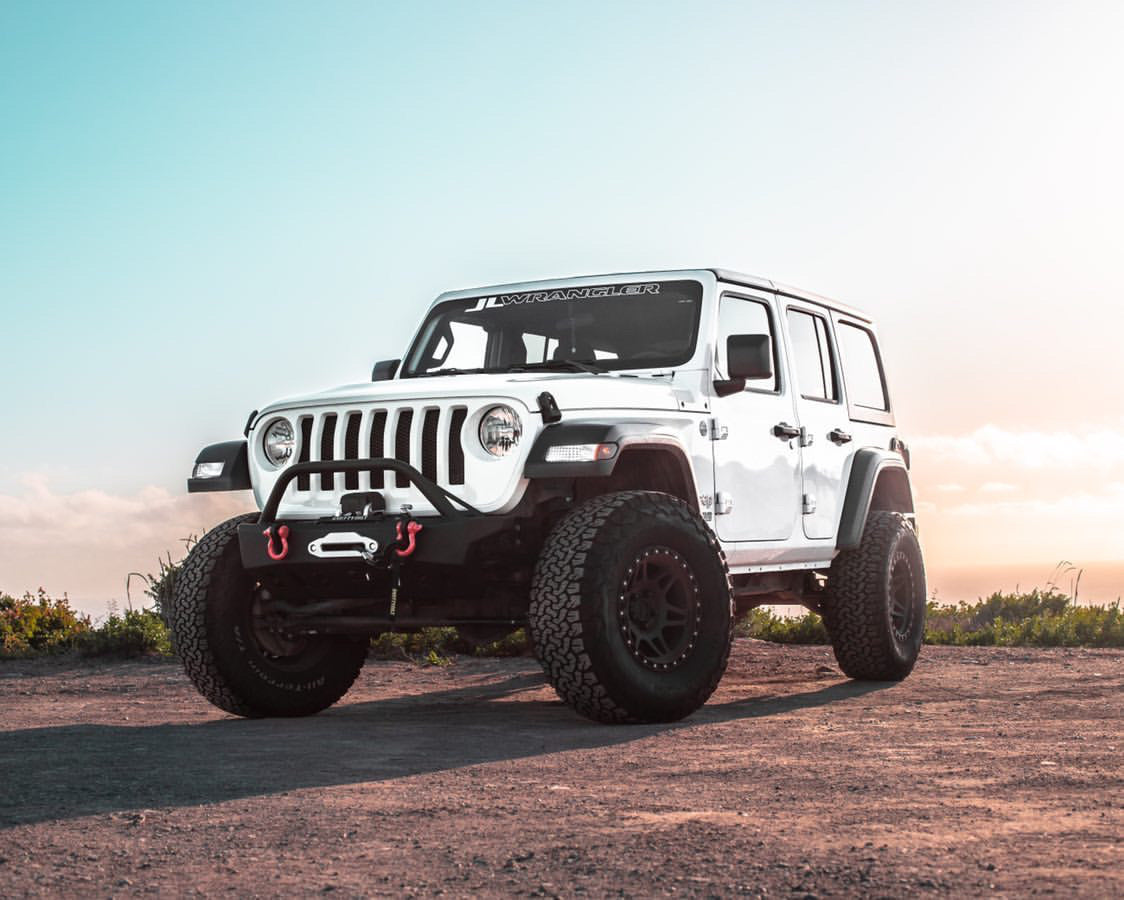

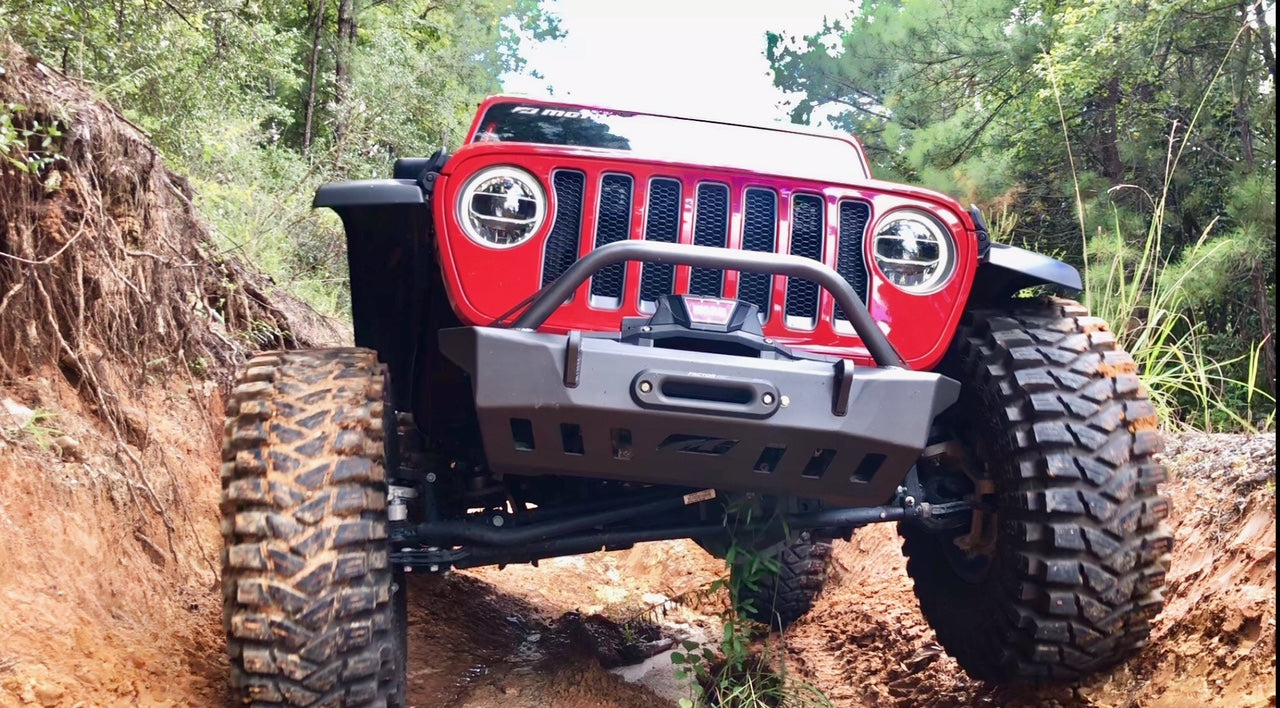

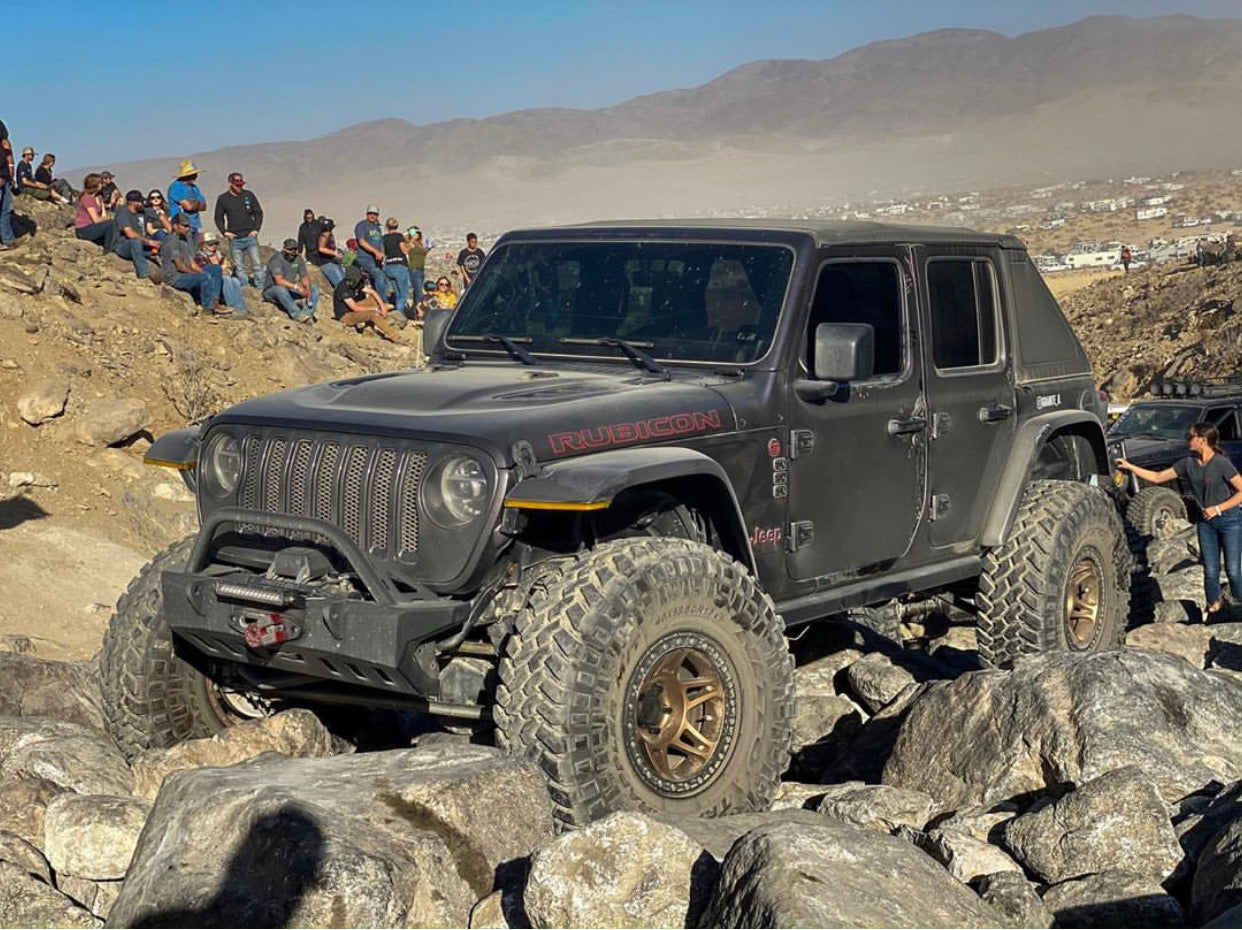

The Motobilt Jeep Wrangler JL Crusher recessed winch bumper with bull bar will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The high clearance design includes a built-in skid plate also. The bumper is made from 3/16-inch-thick steel plate that is laser cut at Motobilt HQ then CNC bent. The bumper uses 3/4-inch-thick laser cut d ring mounts that pass through the bumper and are welded both inside and out.

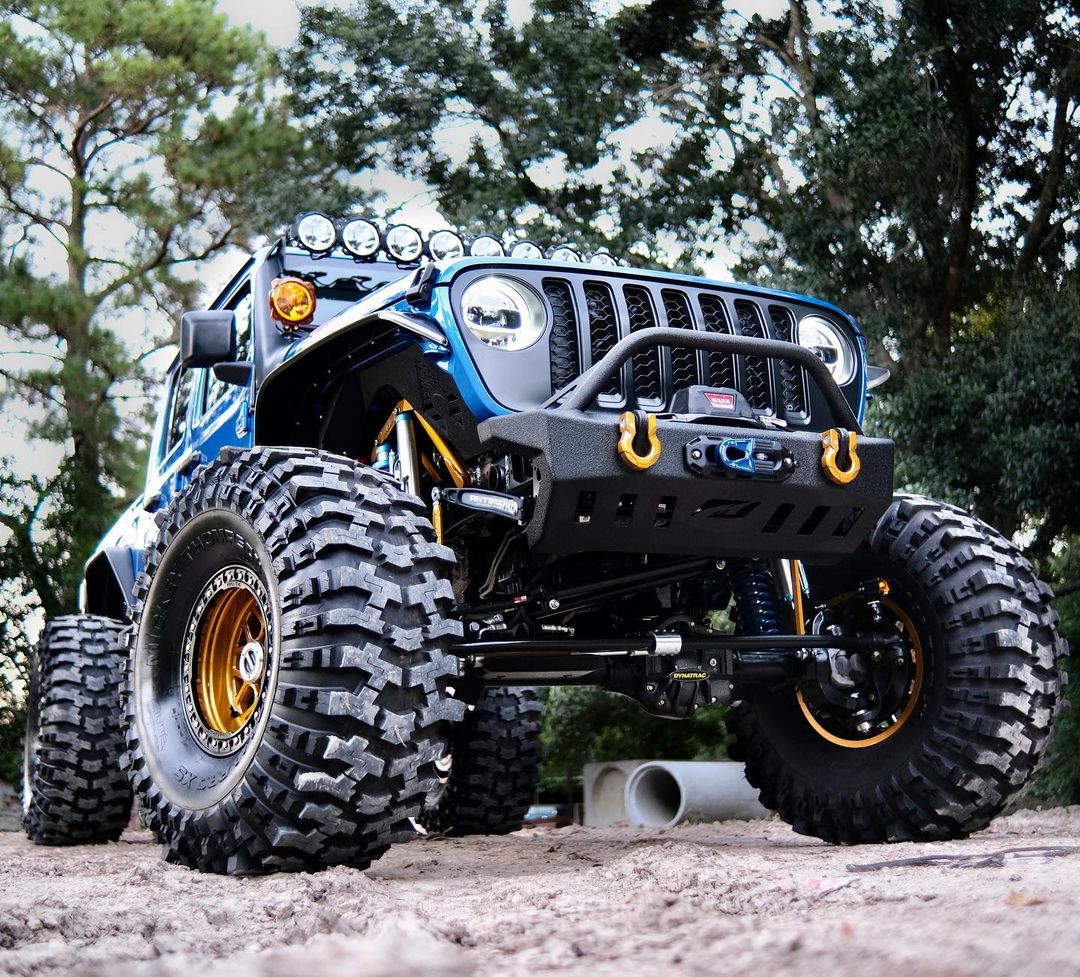

These d ring mounts accept many common sizes of recovery shackles (not included). This setup provides for superior strength.

The bull bar is made out of 1 3/4 inch DOM steel tubing. This is the same material used for roll cages and tube chassis so it is built for strength. The shorter design of the bull bar provides good looks and protects your winch.

The bumper measures in at just 46 inch at its widest point. and provides ample clearanace for 40 inch tires. The bumper will ship bare metal and comes with all the necessary mounting hardware.

Specifications

  • Jeep Wrangler JL front Crusher recessed winch bumper with bull bar

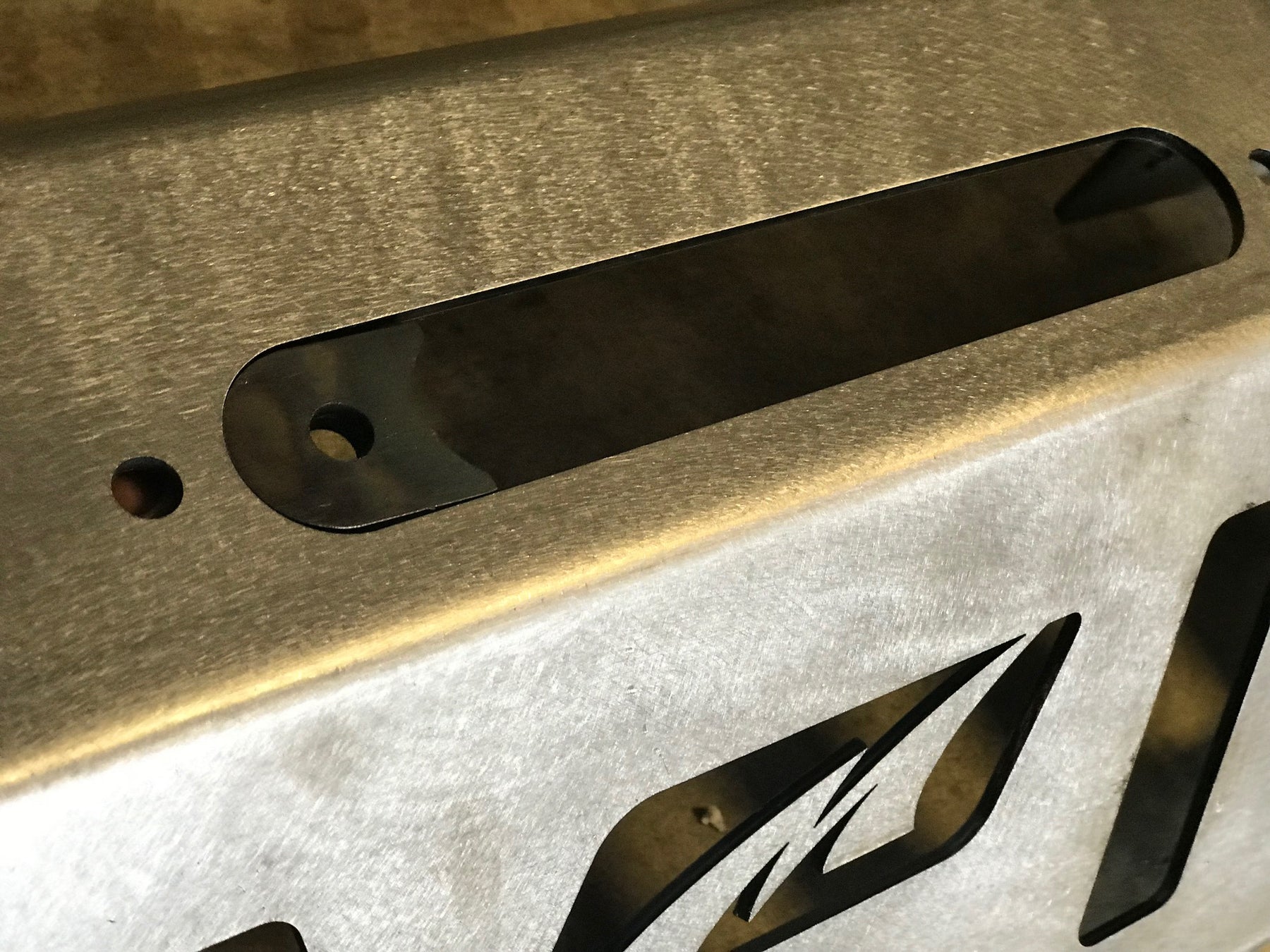

  • Recessed winch plate included.

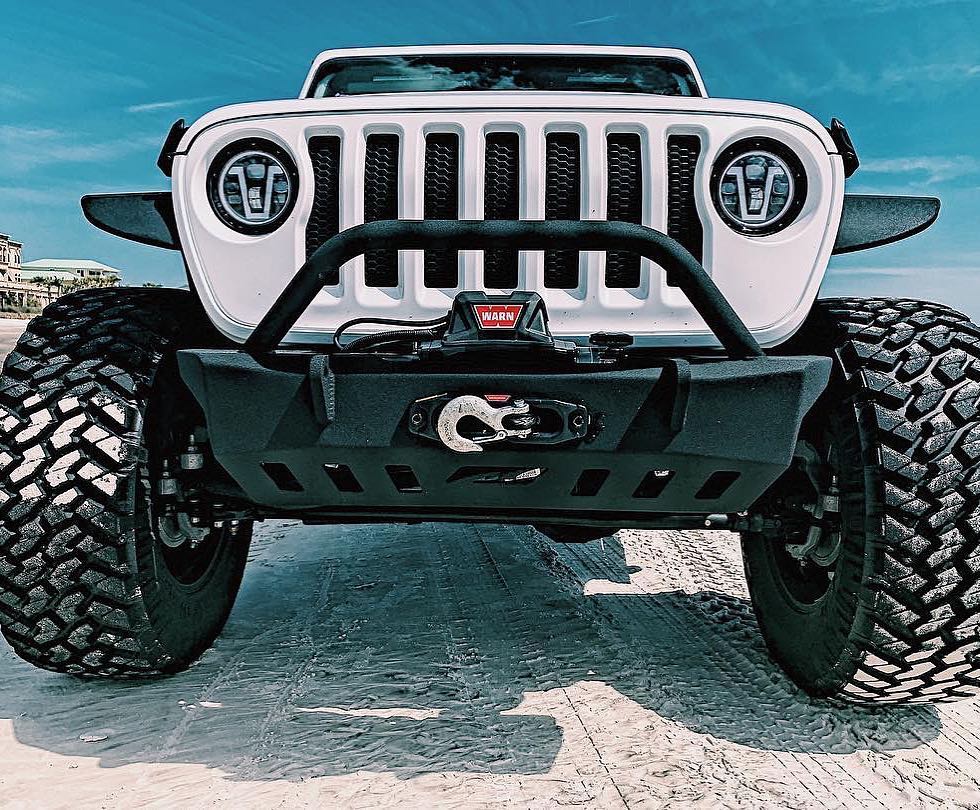

  • Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
  • Measures in at just 46 inches at its widest point
  • 3/16-inch-thick steel plate
  • 3/4-inch-thick laser cut d-ring mounts that pass through the bumper and our welded both inside and out.

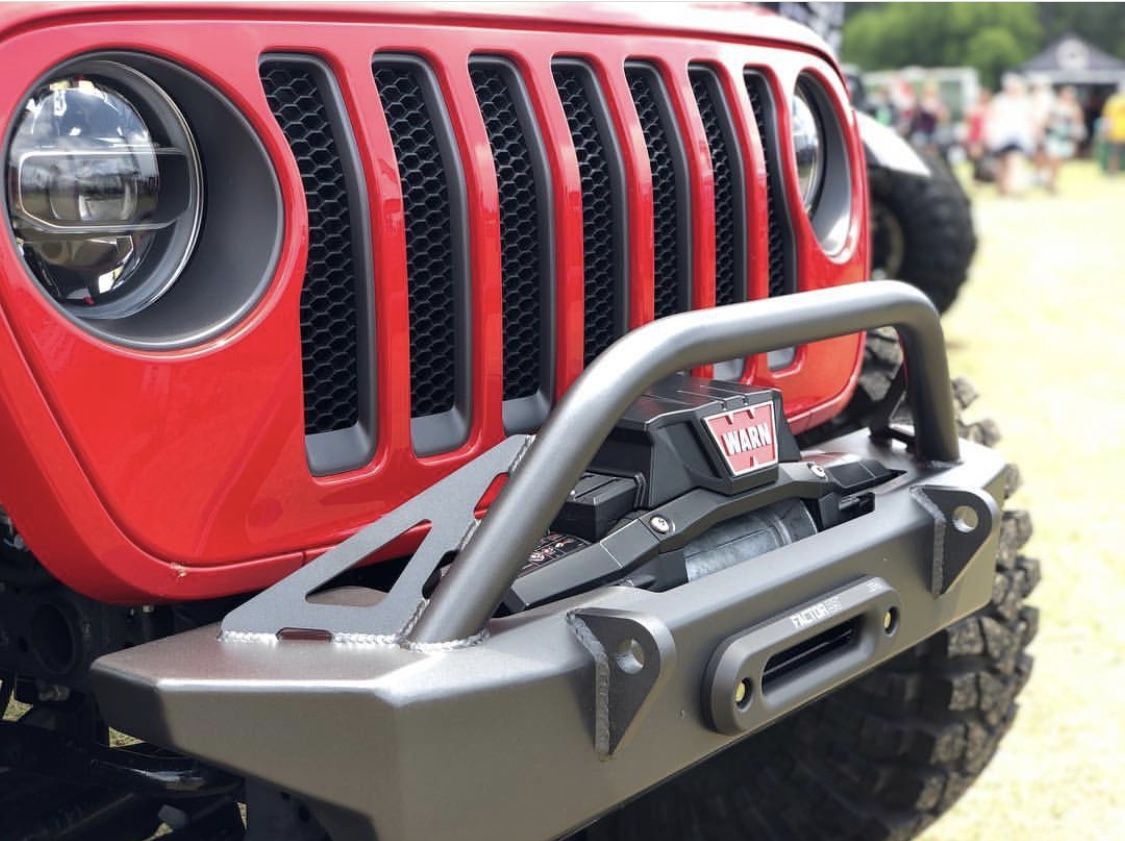

  • The bull bar is made out of 1.75-inch x .120-inch wall DOM tube and braced with laser cut gussets.
  • Includes all the necessary mounting hardware.
  • Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
  • Sold as each.
  • Weight: 86lbs (approx.)

Fits:

  • Jeep Wrangler JL / JLU 2018-Current
  • Jeep Gladiator JT 2020-Current

Note:

  • Ships raw steel.  Must be painted or powder coated to prevent rust. See (Steel-It)
  • Previous models of this bumper may ship with fairlead spacer.
  • Does NOT work with Super Winch EXP
  • Mounting holes or brackets for auxiliary light are not included but can easily be drilled upon arrival.
  • Due to manufacturing differences you may need to open up the 8 mounting holes on the Jeep frame slightly.
