MB1200-B

Crusher Series HD Front Bumper w/Tube Bull Bar for Jeep JL/JT

$849.00
Shipping calculated at checkout.

Motobilt now offers the Jeep JL Crusher HD front bumper with fog light holes and round tubing bull bar. It features built in provisions for Baja Designs Squadron-R Light Pods. The Motobilt Jeep JL Front Crusher HD Bumper is a 46.25 inch wide, sleek, tight-fitting design proudly made in the USA. Our JL Crusher HD Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JL and Jeep JT Gladiator. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The front d-ring mounts are CNC cut from 3/4 inch thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

The bull bar is made out of 1 3/4 inch DOM steel tubing. This is the same material used for roll cages and tube chassis so it is built for strength. The shorter design of the bull bar provides good looks and protects your winch.

The Crusher HD bumper has provisions to mount Baja Designs Squadron-R Light Pods. The Crusher HD bumper can be run with or without the optional skid plate. The ends of the Crusher HD bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16 inch thick high strength steel plate.

Features:

  • Fits 2018 and Newer Jeep JL 2 door and 4 door JL Unlimited and Jeep JT Gladiator 2020 and up
  • Recessed Winch plate included.
  • Fabricated From 3/16" Thick High Strength Steel Plate
  • The bull bar is made out of 1.75 inch x .120 inch wall DOM tube and braced with laser cut gussets
  • Bolt-On Design
  • 3/4" Thick Steel D-Ring Mounts
  • Pass Through D-Ring Mounts Welded to Bumper
  • Included Fog Light Holes
  • Made in the USA
  • Sold as Each
  • Weight: 65lbs (approx.)

Note:

  • Ships raw steel
  • No cutting required on the frame rails on your Jeep JL/JT
  • Skid plate sold separately. See Related Parts.
  • Does NOT work with factory fog lights.
  • Baja Designs Squadron-R Light Pods NOT included.
  • Your factory frame holes may need to be opened up to 5/8” due to tolerance differences in the factory frame rails.
  • The Apex Winch does not fit this bumper.



Specifications:

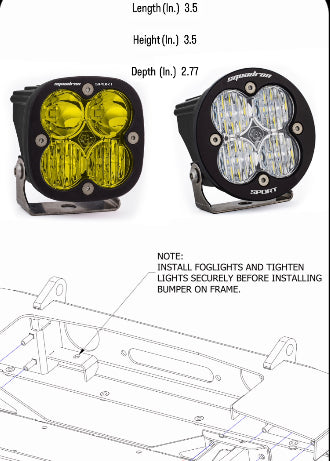

Light Dimensions:

Length (In.)   3.5

Height (In.)   3.5

Depth  (In.)   2.77

Product Components

Instructions

If using an Apple device and the instructions link does not work, then click on the link below and hold down to download the link.

Instructions
