MB1000-S

Stubby Front Bumper w/ Stinger for Jeep YJ / TJ / LJ

$439.00
Shipping calculated at checkout.

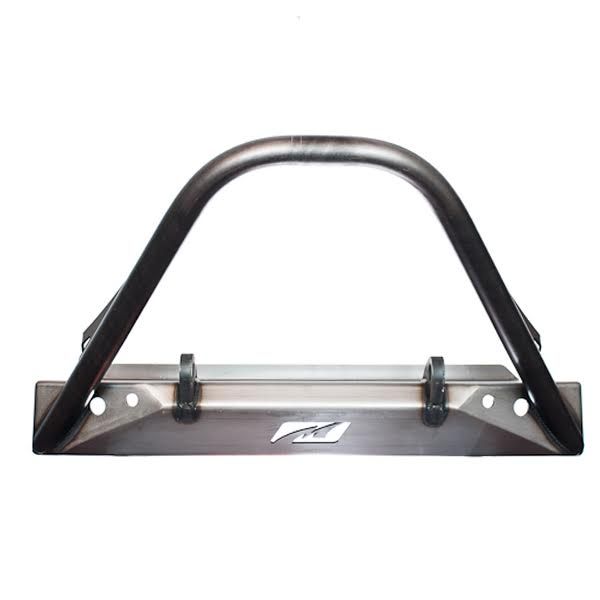

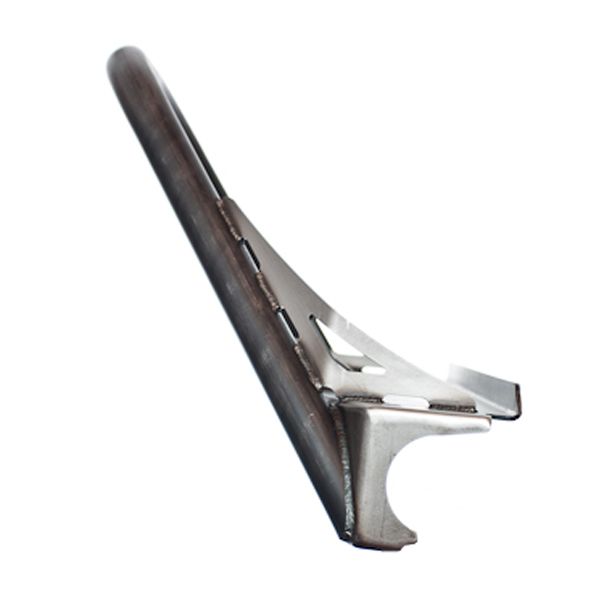

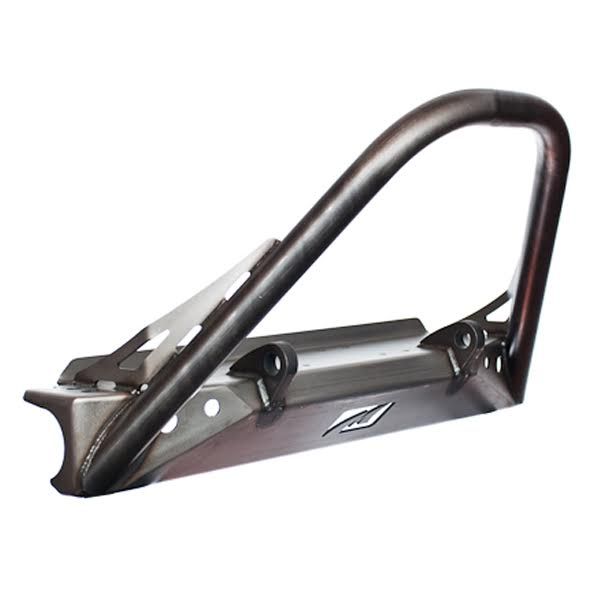

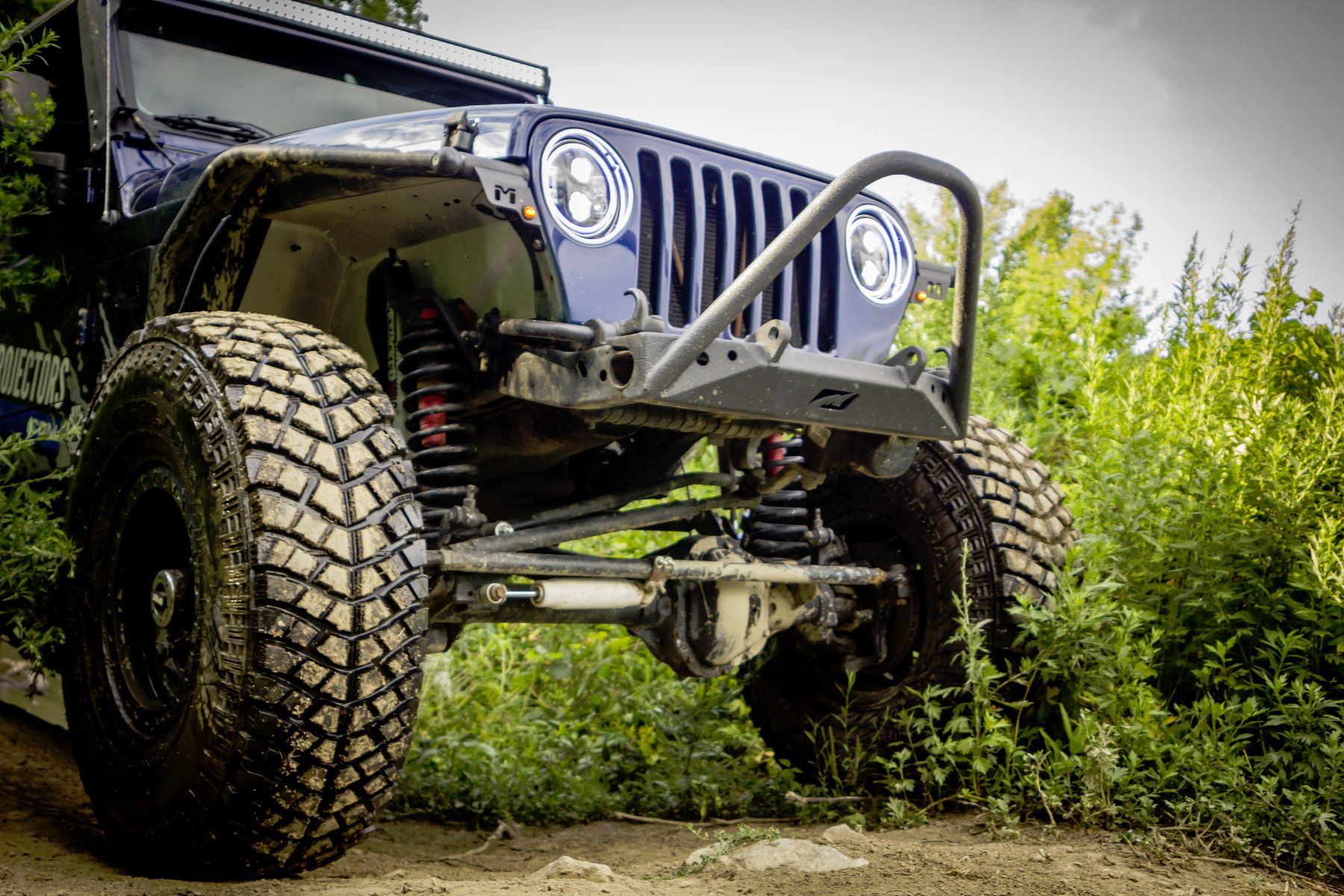

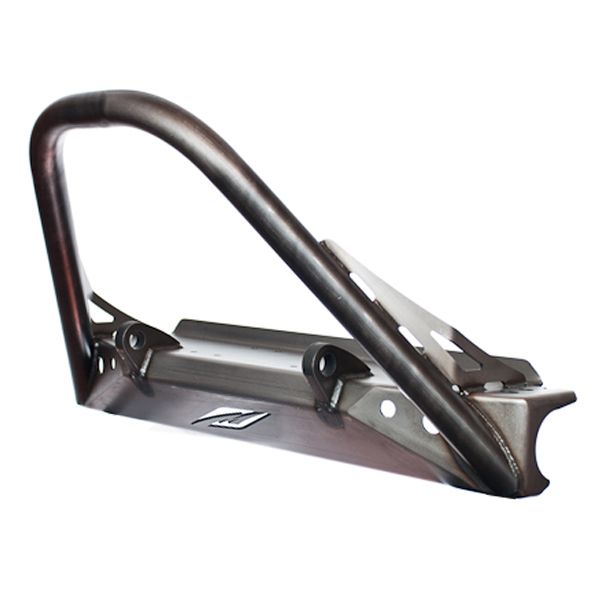

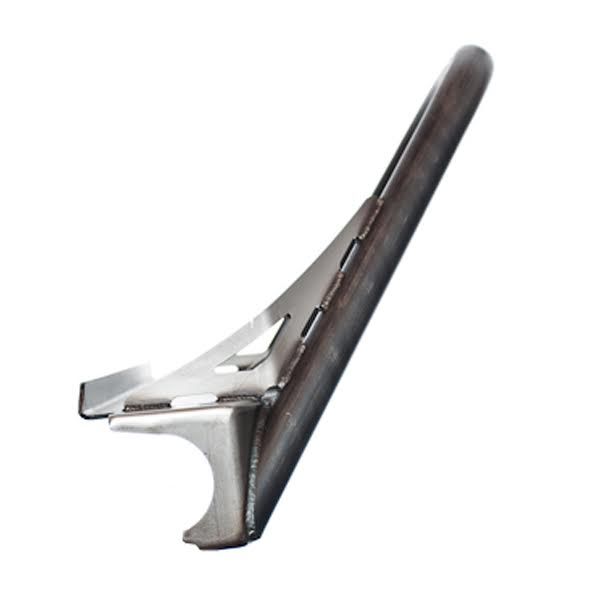

The Motobilt, Inc. Competition Stubby Front bumper with Stinger is designed to fit both the Jeep YJ and TJ Wrangler. The bumper is a stubby design that stops at the edge of the frame rails. The front bumper has an integrated winch mount with mounting holes for both full size winches and the Warn RC comp winch. The bumper is 3D CAD designed, CNC Laser Cut from 3/16 inch high strength steel plate, and precision formed on a hydraulic press brake.

The bumper will accommodate the factory sway bar on the Jeep TJ. The end caps on the bumper allow enough clearance to give access to the cross member tube at the front of the frame rail for the mounting of an aftermarket swaybar. This bumper features massive 3/4 inch thick steel d-ring mounts. The d-ring mounts pass through the bumper body to allow our welders to weld the brackets on both sides of the bumper for additional strength.

Fits:

Jeep YJ 1987-1995, Jeep TJ 1997-2006, Jeep LJ 2004-2006

Features:

  • Stubby front bumper with stinger
  • Fits all year models of Jeep YJ/TJ/LJ
  • CNC Laser Cut 3/16-inch-high strength steel plate.
  • 3/4-inch D-Ring mounts that pass through the bumper for added welding surface
  • Bumper is super narrow at 34 inch wide.
  • Ships bare metal so you can customize paint to your needs.
  • Fully welded.
  • Made in the USA
  • Sold as each.
  • Uses factory hardware.
  • Weight 40lbs (approx.)

Note:

  • If installing a winch, MB1002 fairlead mount will also need to purchased
  • Ships raw steel. Must be painted or powder coated to prevent rust.  See (Steel-It)
  • The Badlands Apex 1200 winch will not fit on this bumper as it interferes with the D-Ring mount.
  • The Warn VR and VR EVO series winch will require either a winch spacer or the D Ring mounts will need to be shaved for clearance.

Product Components

Instructions

Assembly Instructions
