The Motobilt Jeep YJ Back Half Kit is designed with function in mind. We may not be the cheapest but we certainly offer the best product on the market with years of experience to back up the product design. Motobilt is defined by high quality parts and design. The Motobilt Jeep YJ Back Half Kit was designed to meet a few different needs. The journey started about 15 years ago when Dan DuBose back halved his Jeep YJ to make more room for shocks and to gain ground clearance in the rear. Over the years the hand made design evolved into laser cut and formed parts. The design has been refined with specific goals in mind.
The Motobilt Jeep YJ Back Half Kit was 3D CAD designed in Solidworks for a precision fit. The parts are then CNC laser cut from 3/16 inch thick flat steel plate, formed on a press brake, and then welded. This design and fabrication approach allows us to do things that simple box tube parts can not. The rear bumper is integrated into the design. The bumper features a very tight fitting profile with 3/4 inch thick d-ring mounts.
Why installed the Motobilt Back Half Kit on your Jeep YJ? This kit provides room to mount coilover shocks and not hit the frame rails. We moved the frame rails from the factory location in the rear wheel well to under the rear floor board. This allows plenty of room to get your coilover shock angles set up correctly. Another reason is to gain about 7 inches of ground clearance in the rear bumper area.
This part requires extensive cutting and welding. It is recommend to have someone experienced installed this kit. It will require cutting the frame in half, cutting the body below the tailgate to allow the new frame to pass through, and welding the parts in place. Motobilt also recommends connecting your roll cage to the frame rails for added support. This kit will also require you install a fuel cell. The factory gas tank will not work with this kit.
Specifications

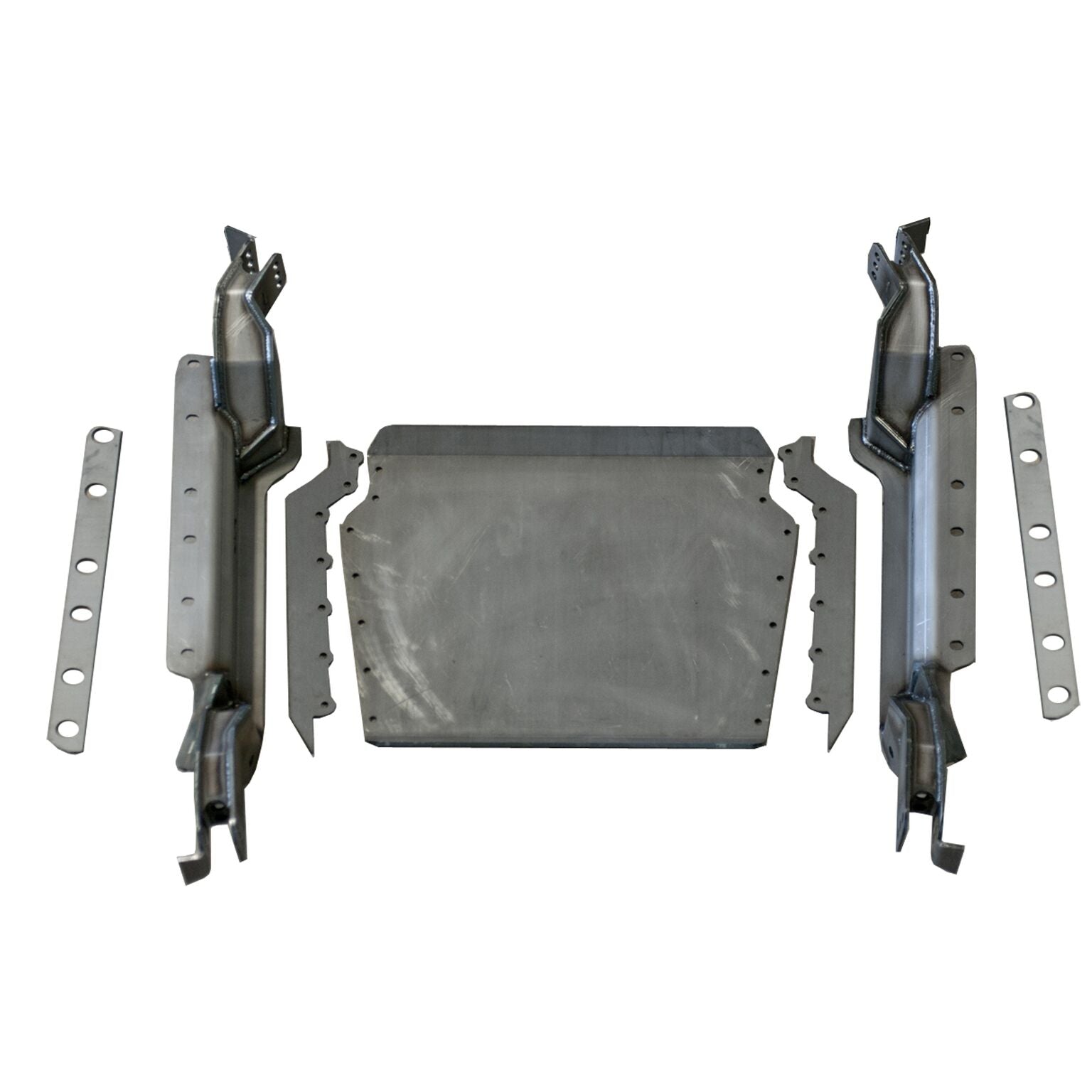

Jeep YJ Back Half Kit
Fits Jeep YJ 1987-1995
Moves frame rails under the rear floor
Improves departure angle
Increases ground clearance in the rear
Includes a built in rear bumper
Laser cut from 3/16 inch steel plate
Provides a clean place to mount air bump stops
Sold as kit
Weight = 75lbs
Note:
This part requires extensive cutting and welding. It is recommend to have someone experienced installed this kit
It will require cutting the frame in half, cutting the body below the tailgate to allow the new frame to pass through, and welding the parts in place
Motobilt also recommends connecting your roll cage to the frame rails for added support
This kit will also require you install a fuel cell. The factory gas tank will not work with this kit
When installing do not remove the body as the factory body mounts in the center of the floor board are used to locate the back half kit when installing.
The frame needs to be cut at the beginning of the bend. The frame rail section must be straight in order for the new frame rail sections to slide over the factory frame rails.
