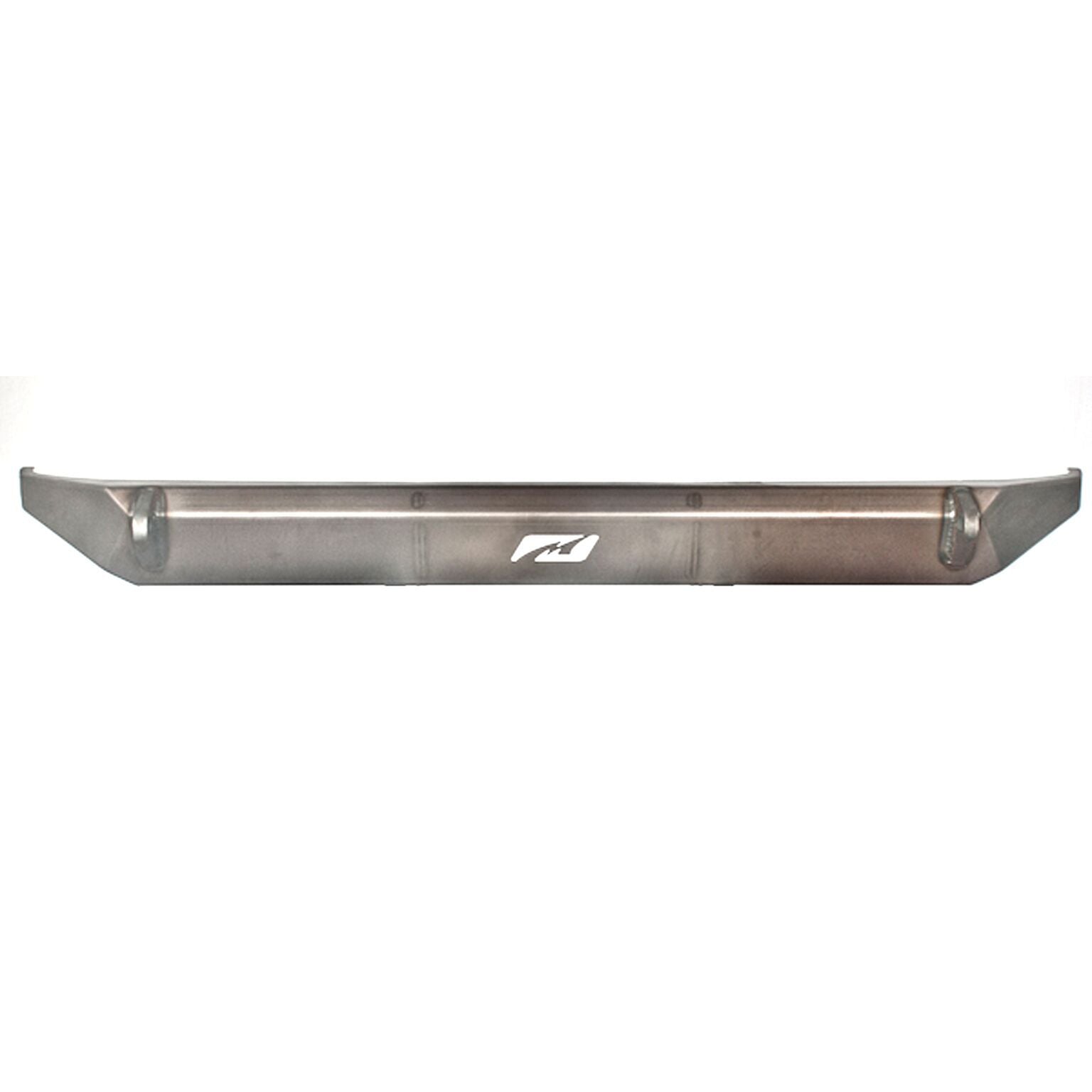

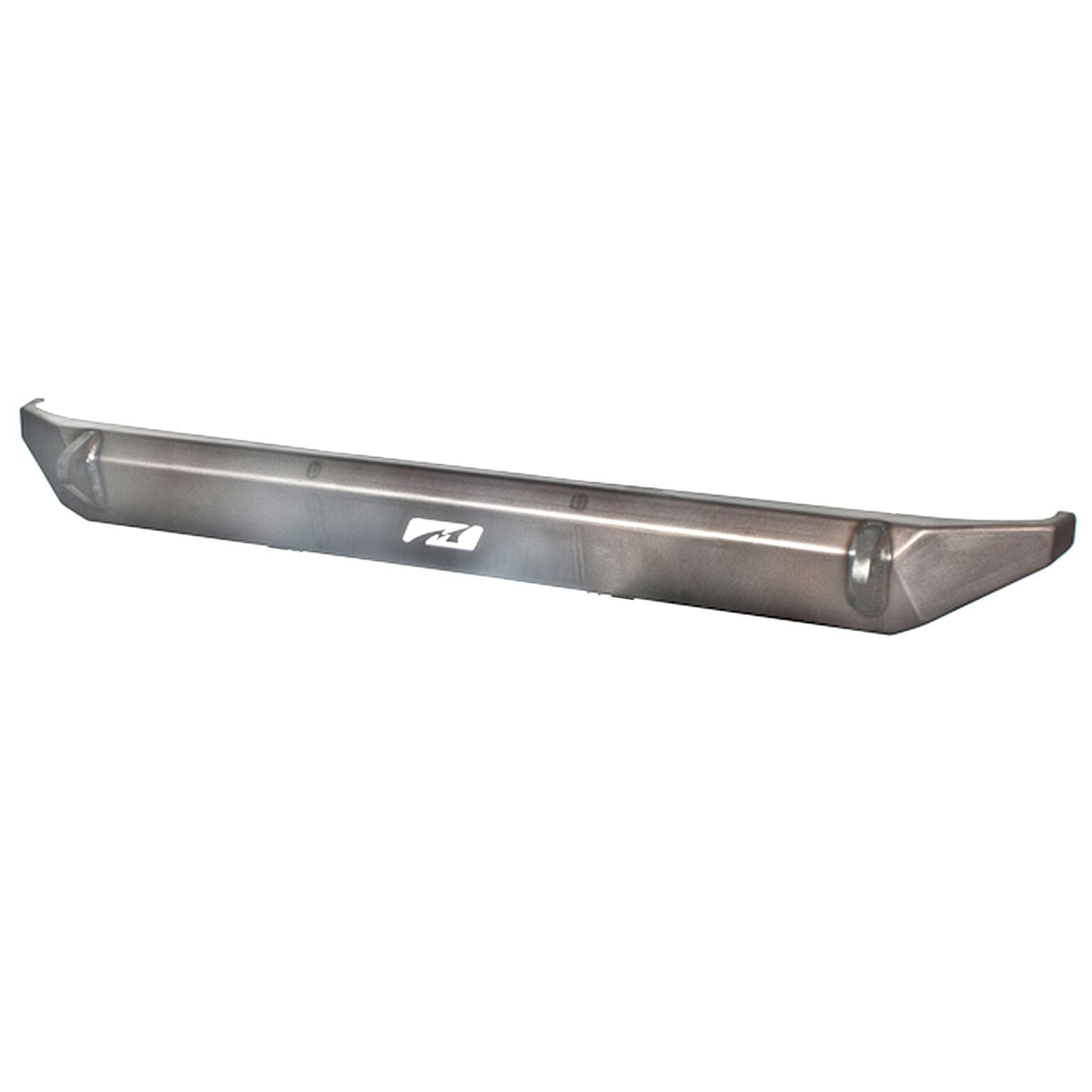

Frame Chop Rear Bumper and Cross member for Jeep JK / JKU

The Motobilt Jeep JK Rear Frame Chop Bumper allows for 5 inches of additional ground clearance over the factory receiver hitch. The additional ground clearance you gain is the same as going from a 35 inch tire to a 40 inch.

Specifications

• 3/16 inch Laser cut and CNC bent steel body

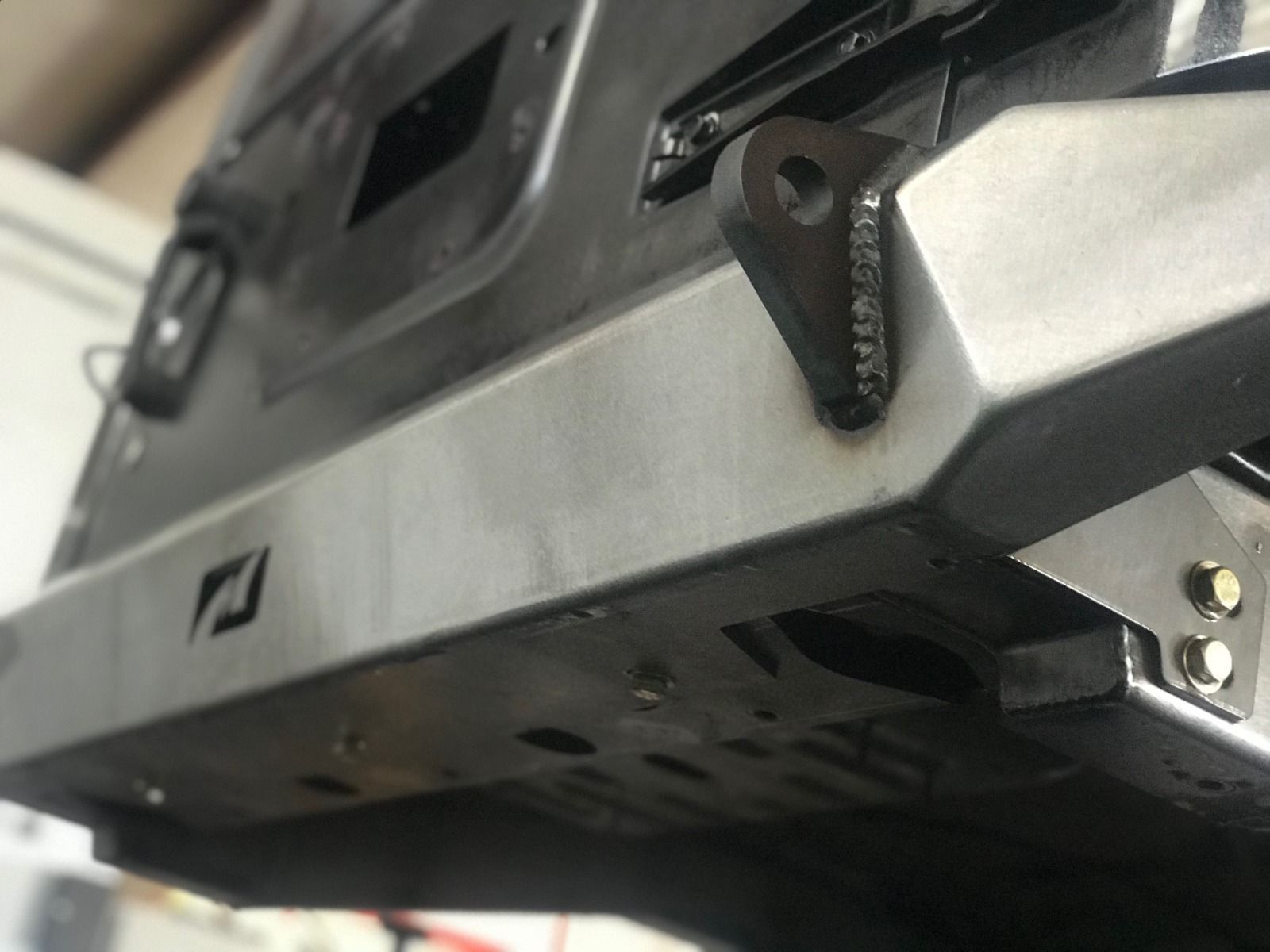

• 3/4 inch Thick laser cut D-Rings that pass through the bumper and welded inside and out
• Gain 2 3/8 inches up and 3 3/8 inches back of ground clearance
• 5 inches of additional clearance over the factory receiver hitch

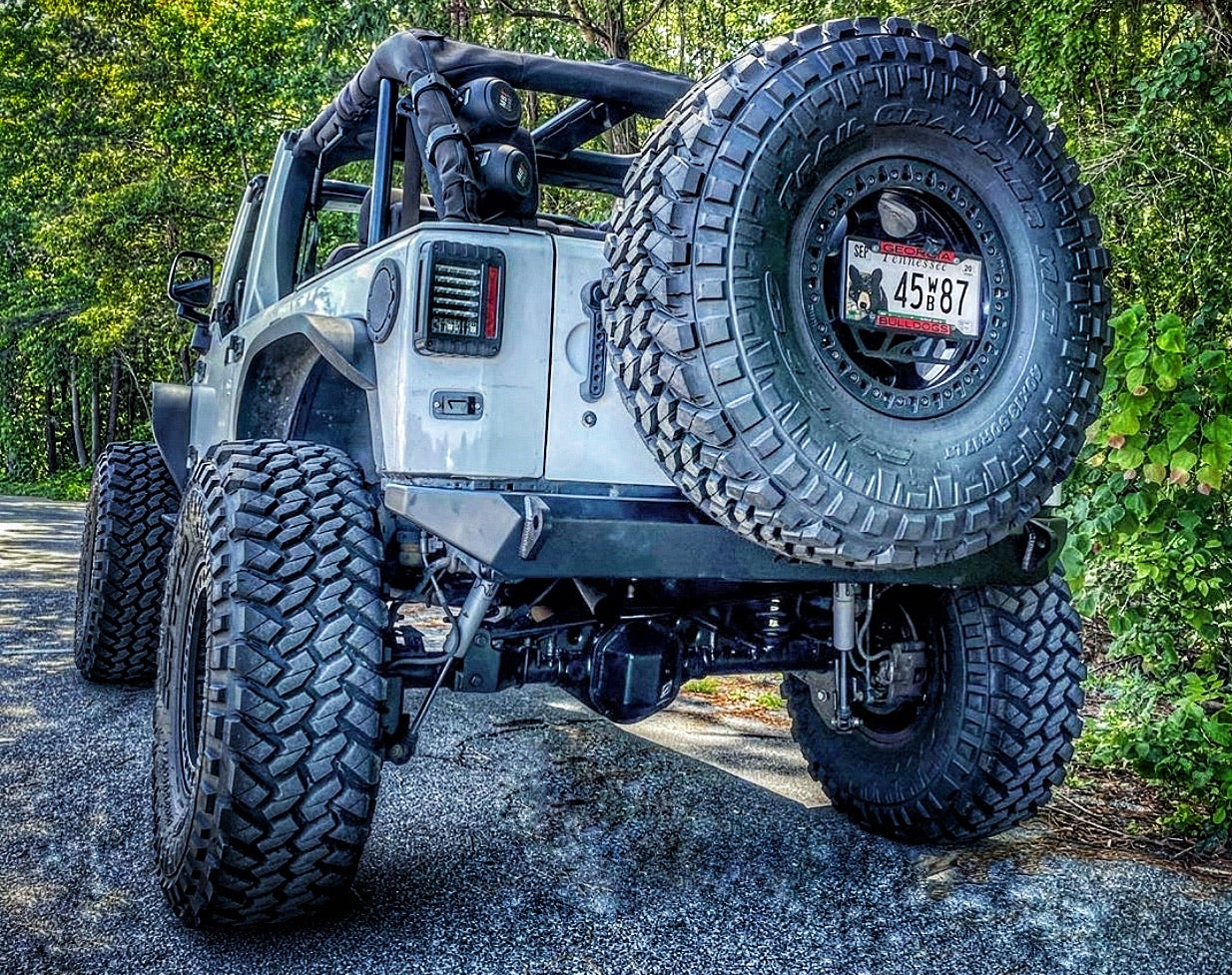

• Ultra tight design allows the use of a large spare tire
• Full protection from corner to corner

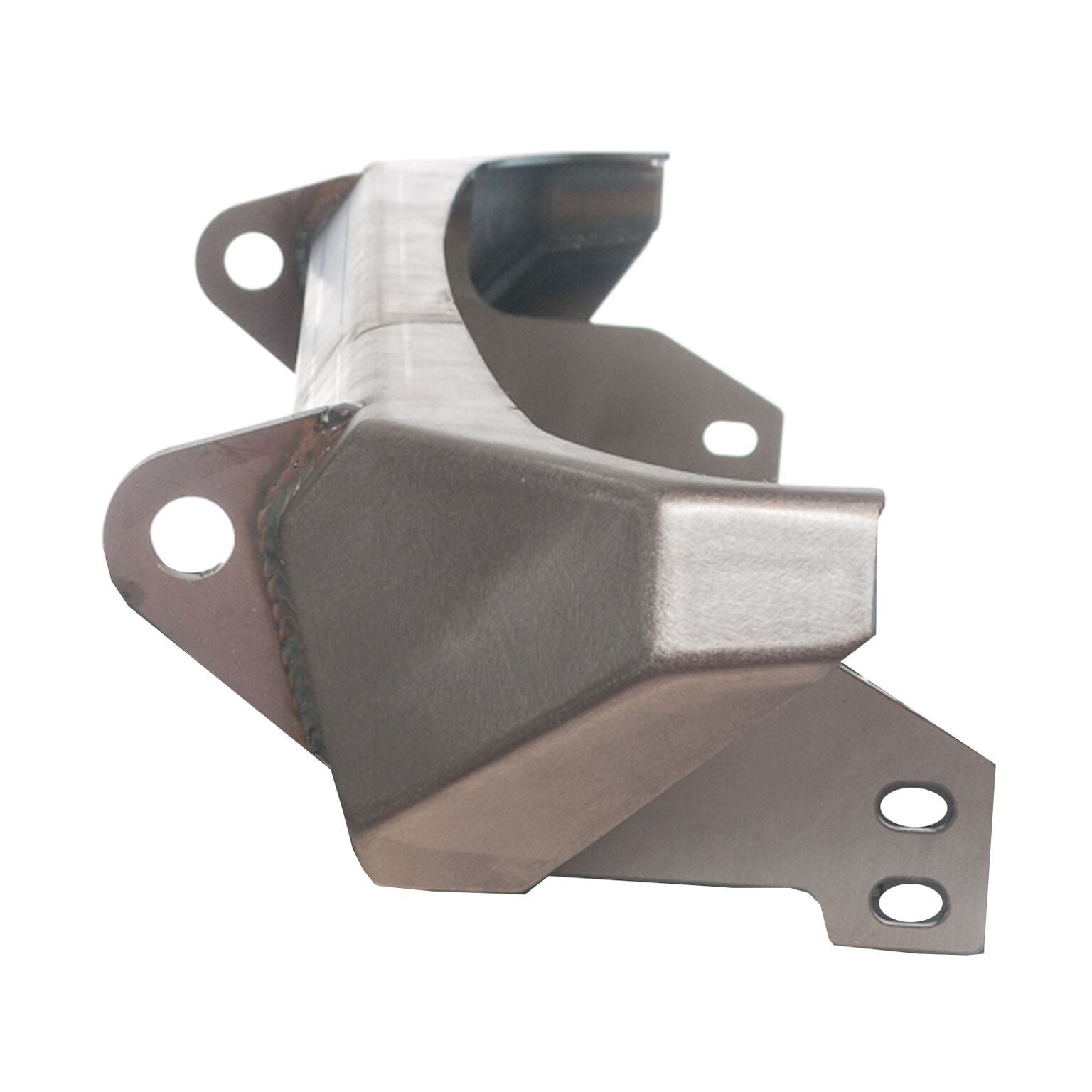

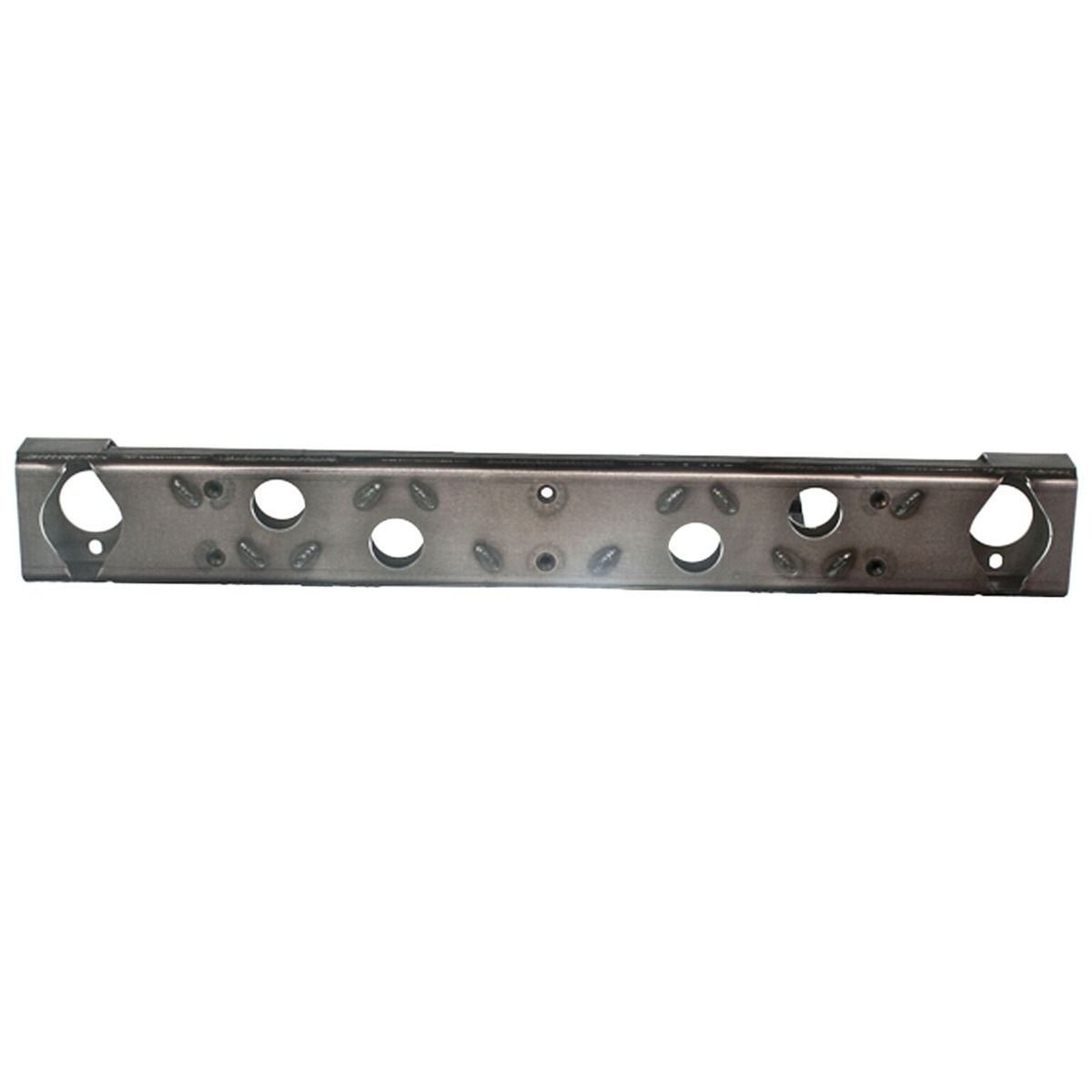

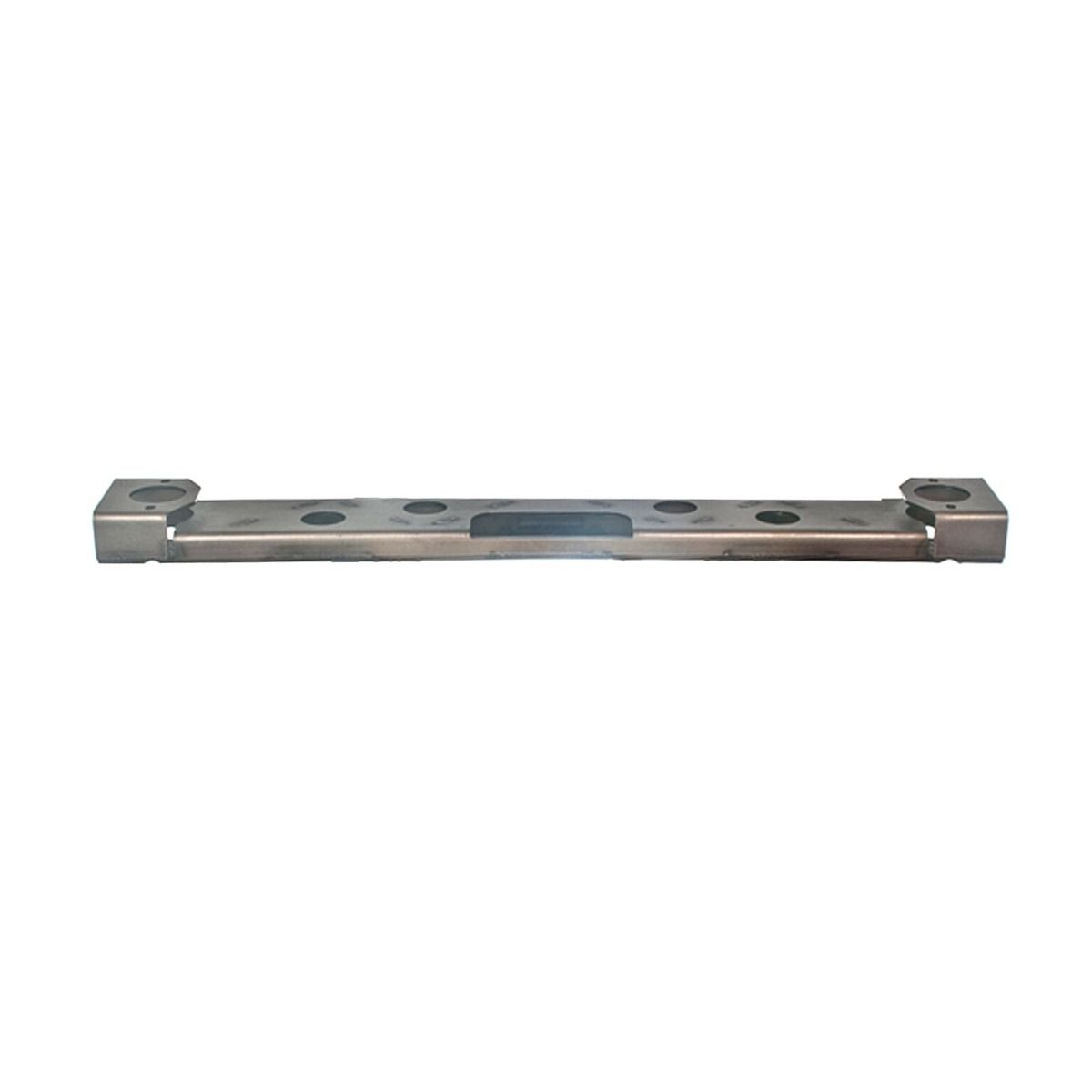

• Includes high strength cross member

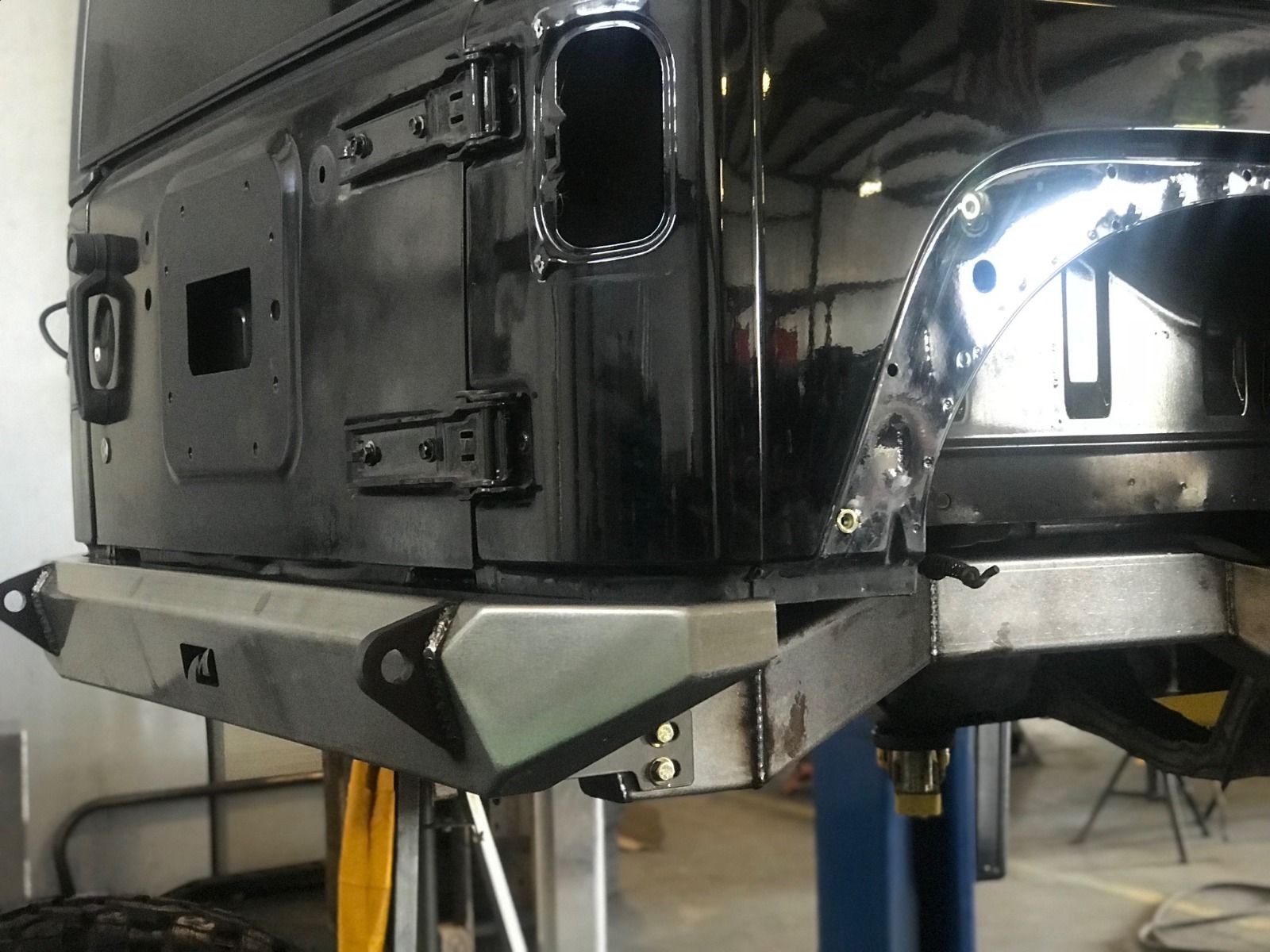

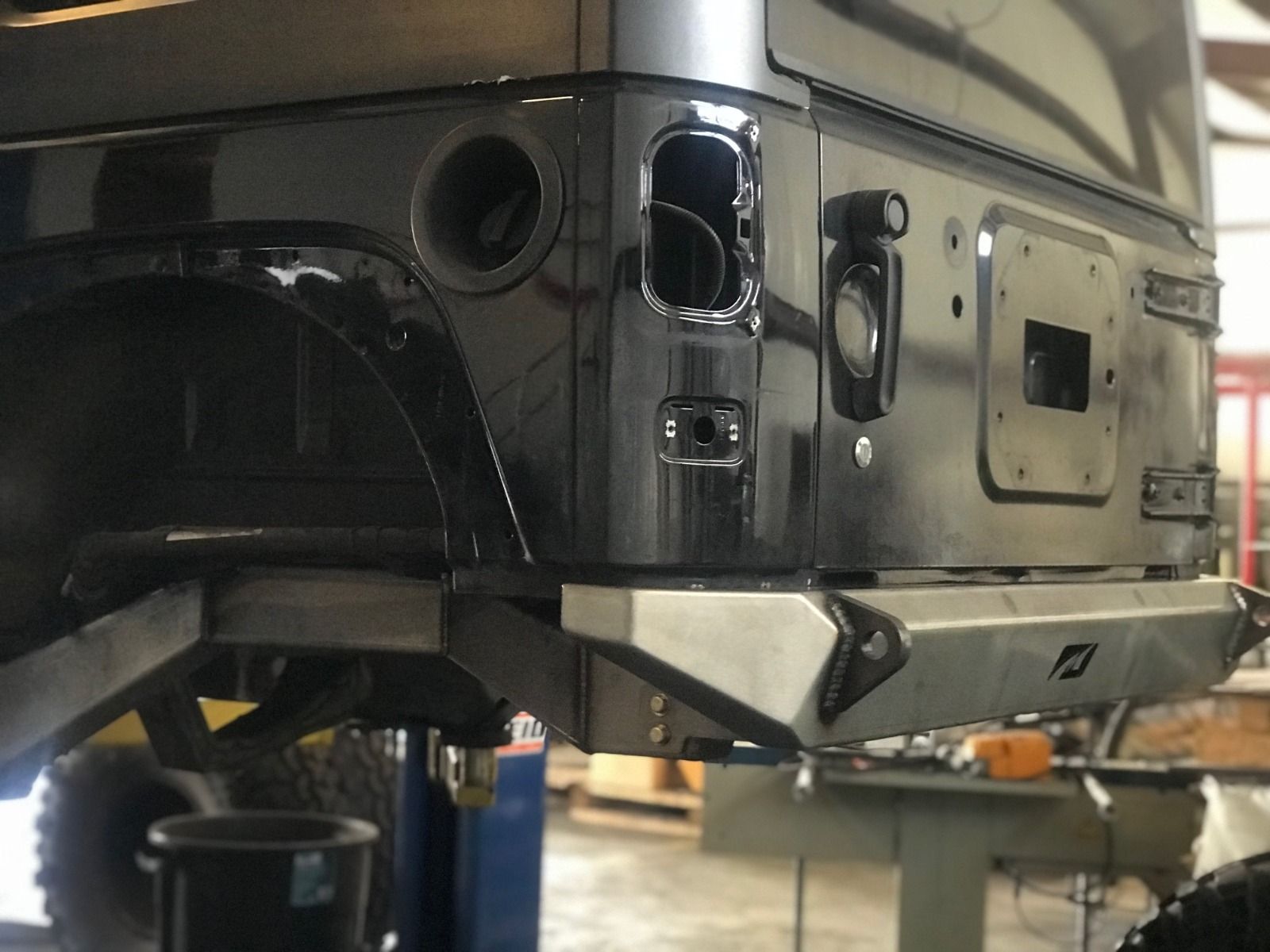

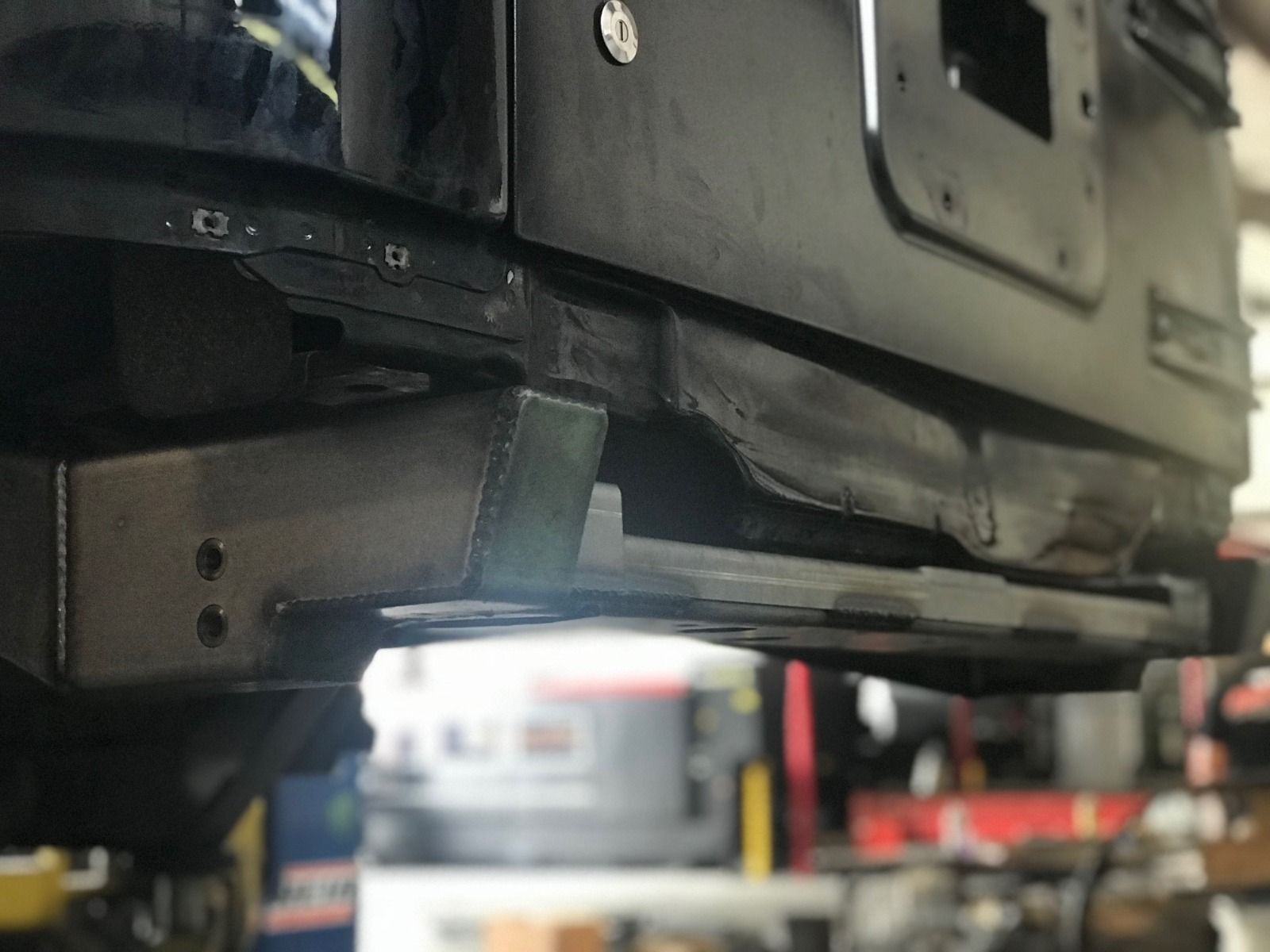

• Cross member bolts into factory body mounts then must be welded to the frame
• Works with factory frame or Motobilt jeep JK back half kit

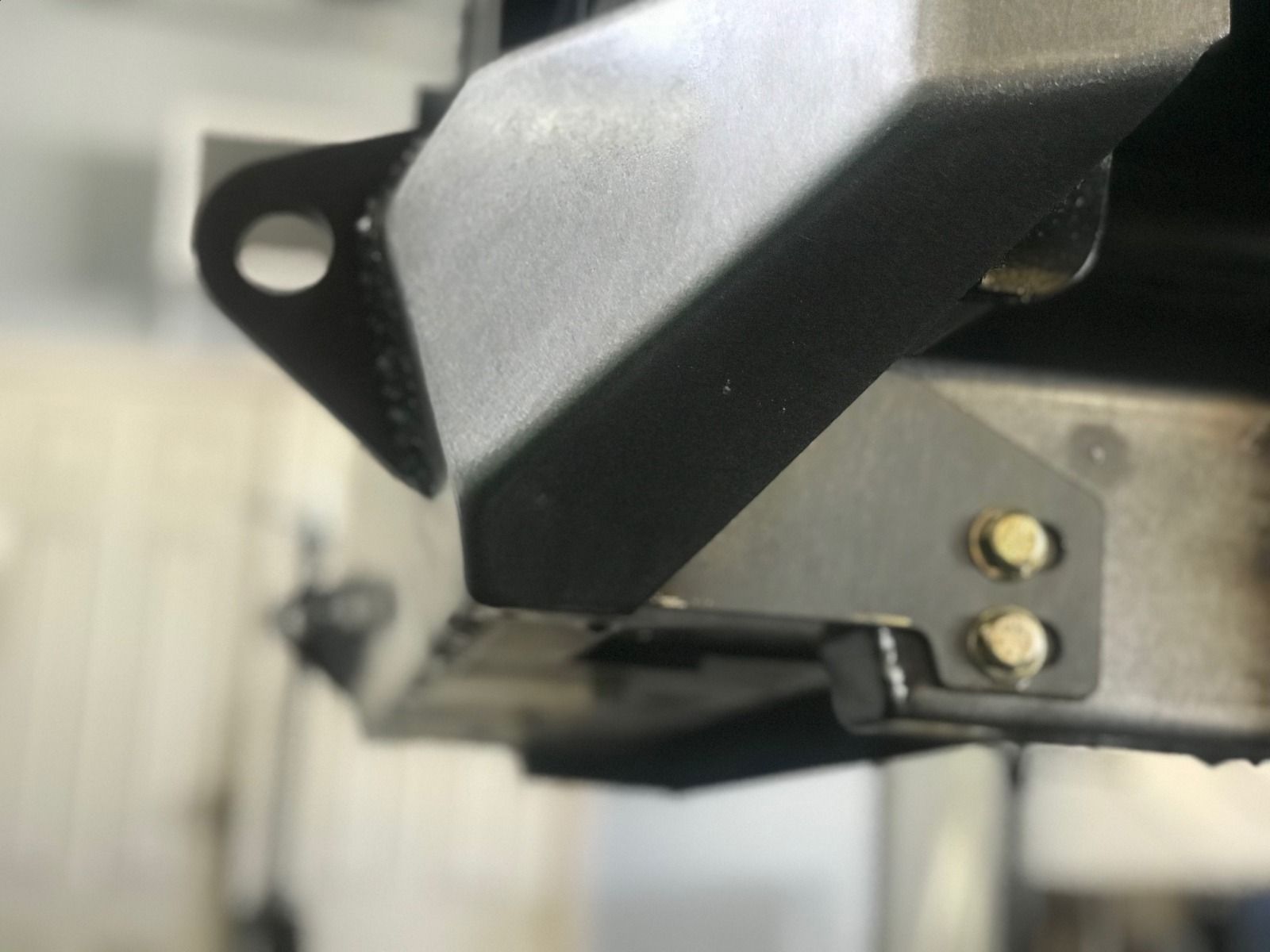

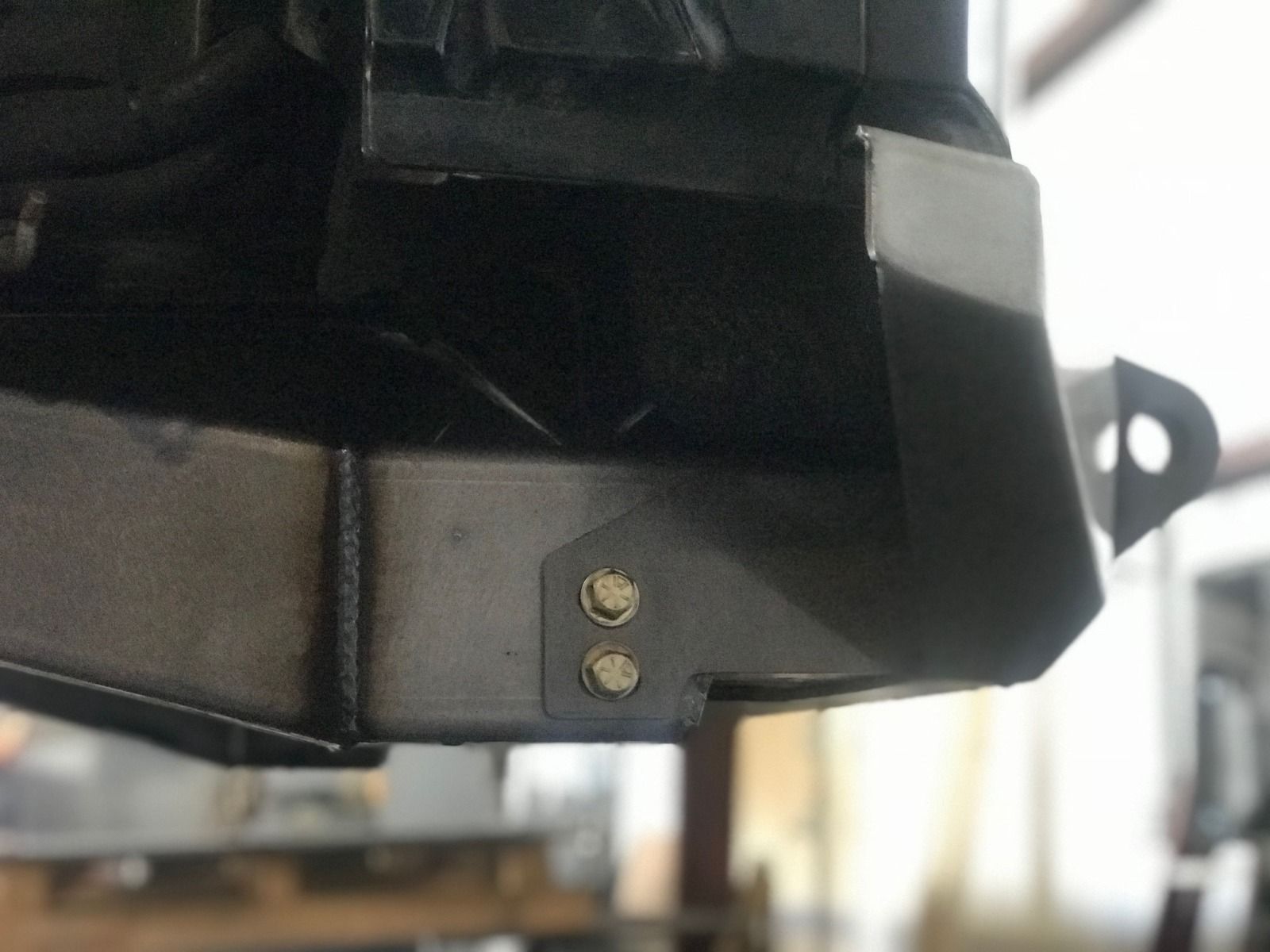

• Cross member includes pre-installed threaded inserts for mounting Motobilt JK frame chop rear bumper
• Threaded mounting holes for JK rear fuel cell skid plate also included
• Raw metal finish allows you to customize to your needs
• Installation video can be found under the Instructions tab

• Includes necessary hardware
• Weight: 80lbs (approx.)

Notes:

• Requires cutting of rear frame rails and removal of factory rear cross member

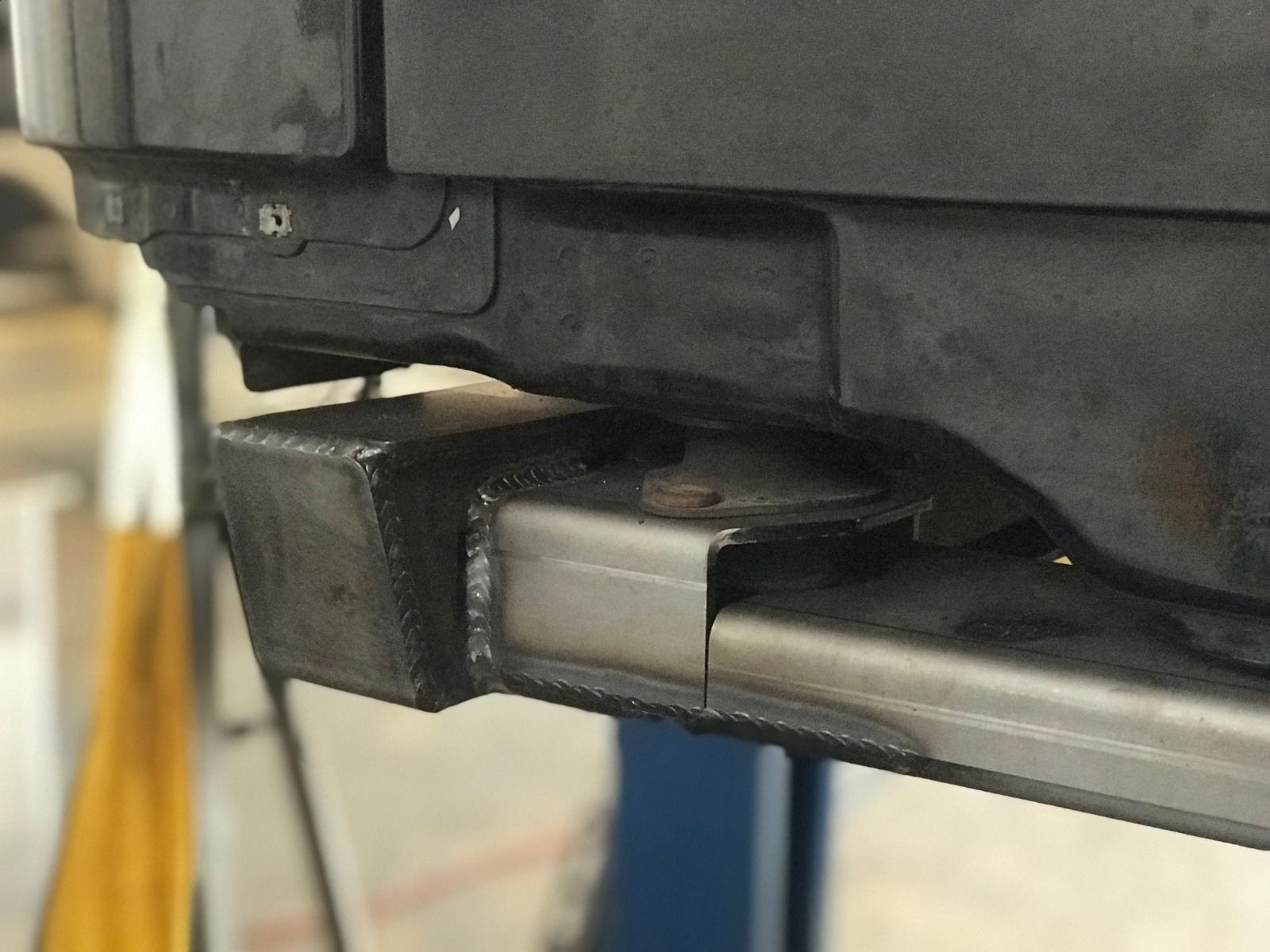

• Cross member must be welded to frame rails.
• A receiver hit will NOT work with this bumper.
