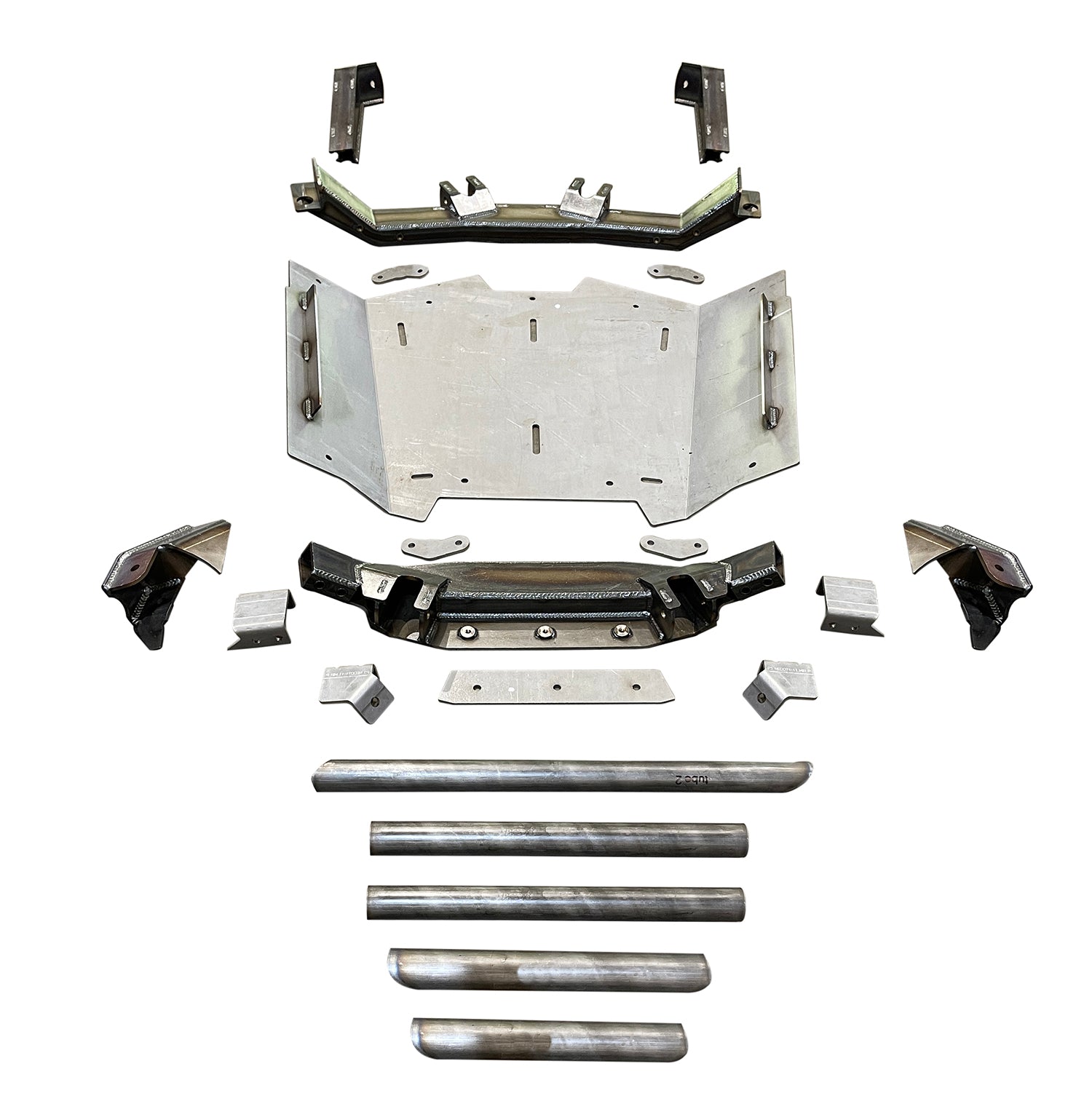

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ kit is laid out showing each and every piece from crossmembers, link mounts, skid plate and tube braces

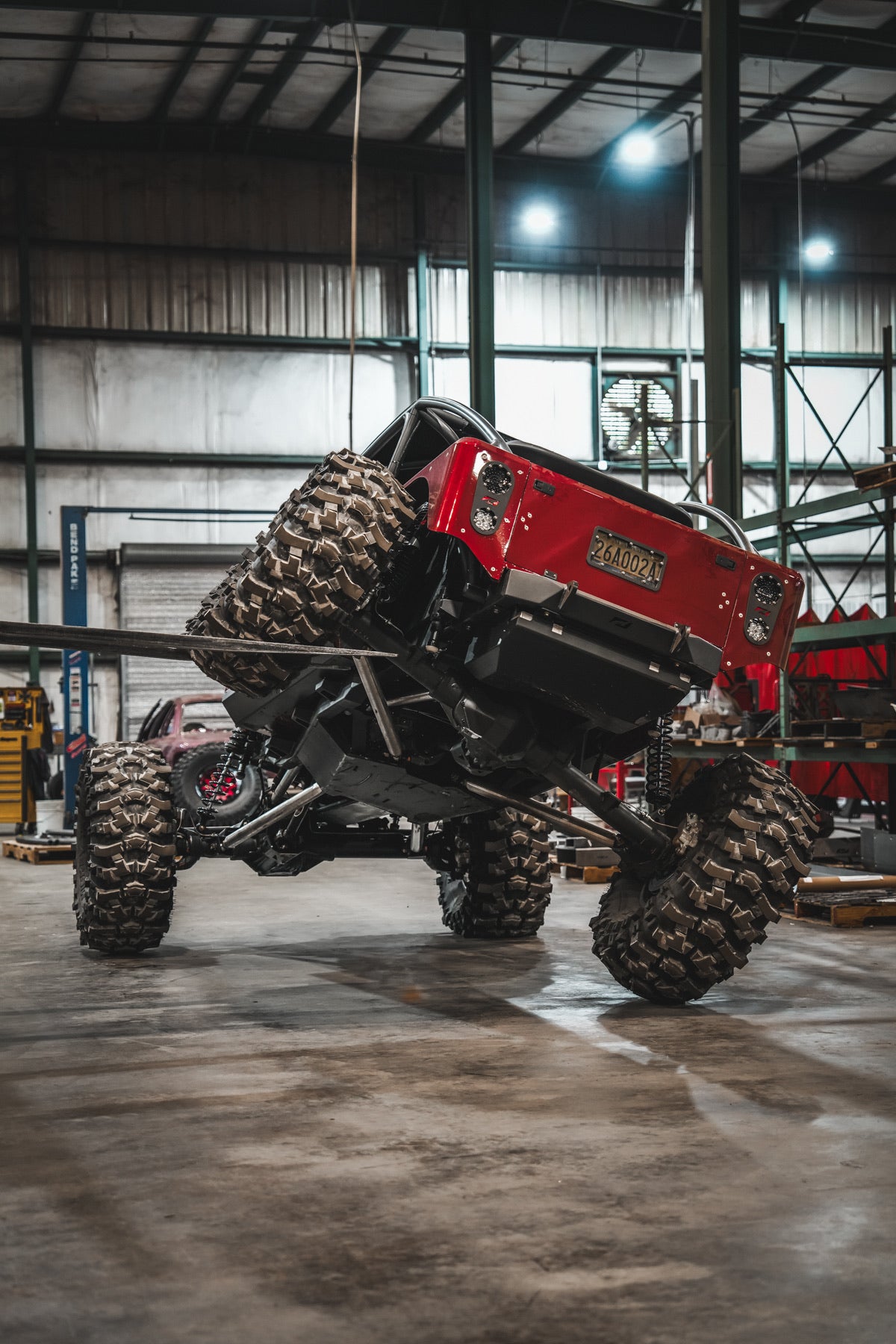

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ is installed on El-Jefe the Red Jeep YJ with 43" mickeythompson tires and 16" rear coil over shocks. the rear tire is lifted way up in the air via a forklift showing off its articulation or flex

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows a top view showing the kit installed

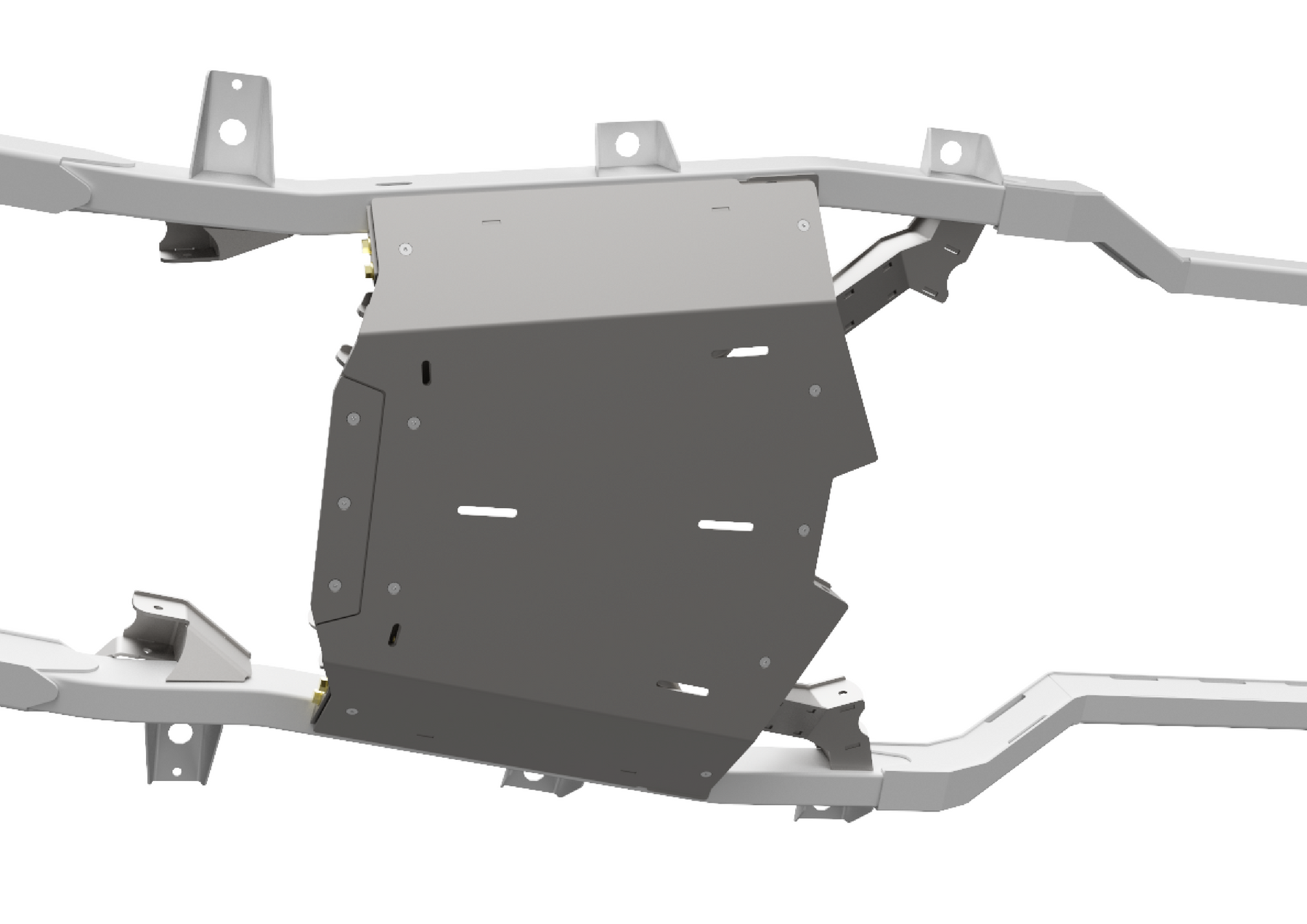

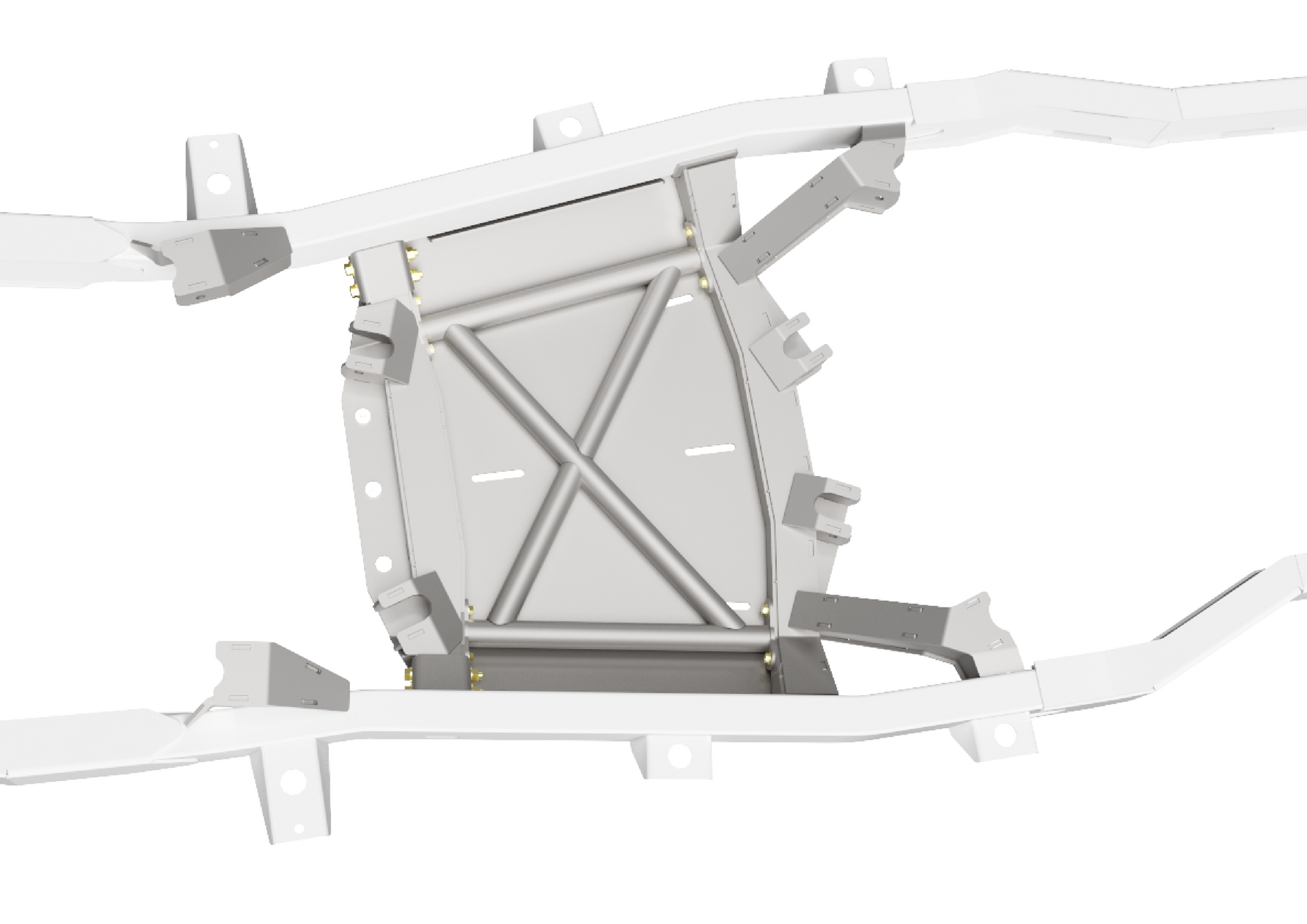

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows view from the bottom showing the skid plate and link mounts

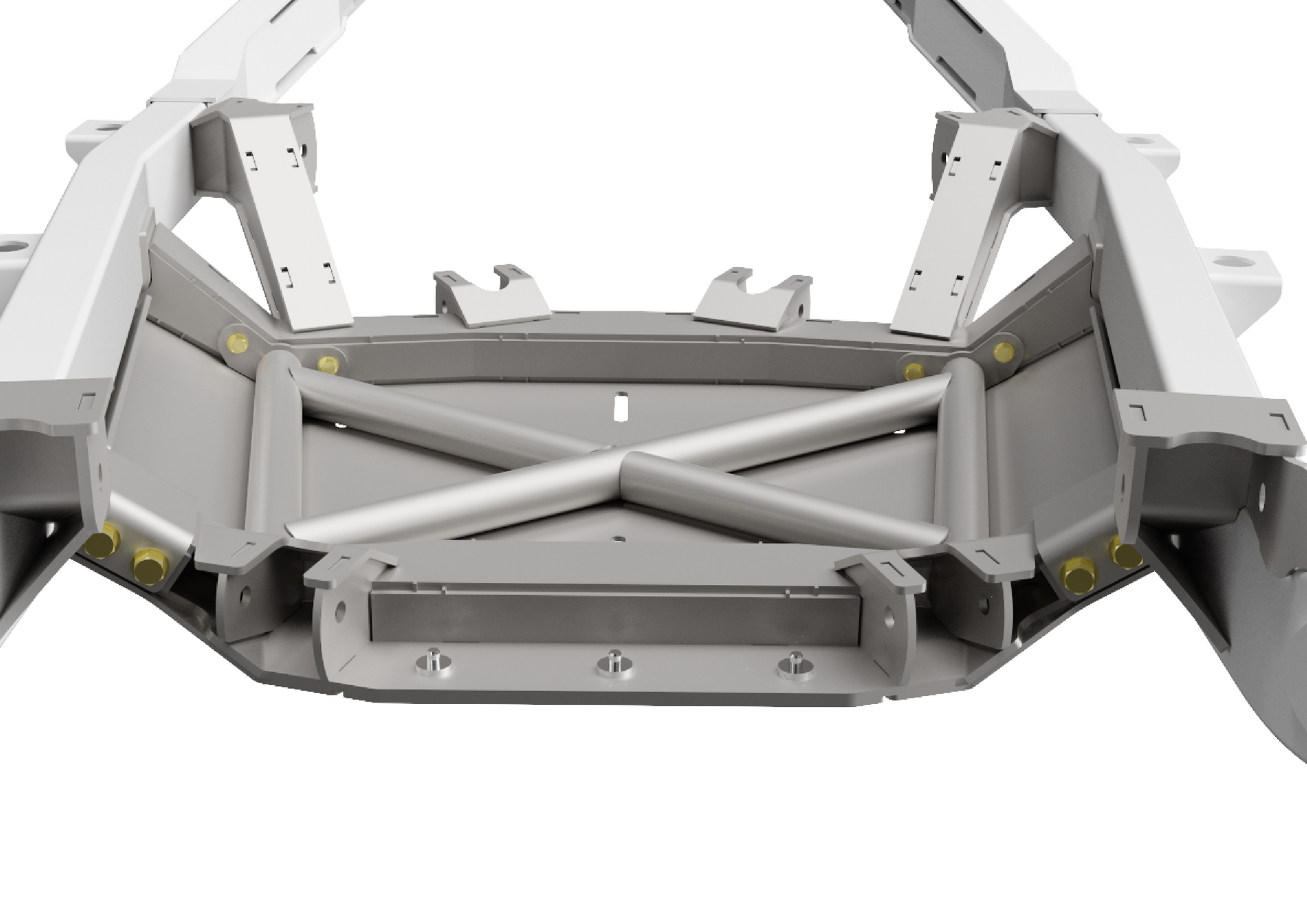

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows inside view from the front you can see the tubes used as an x brace to tie the front and rear cross member together

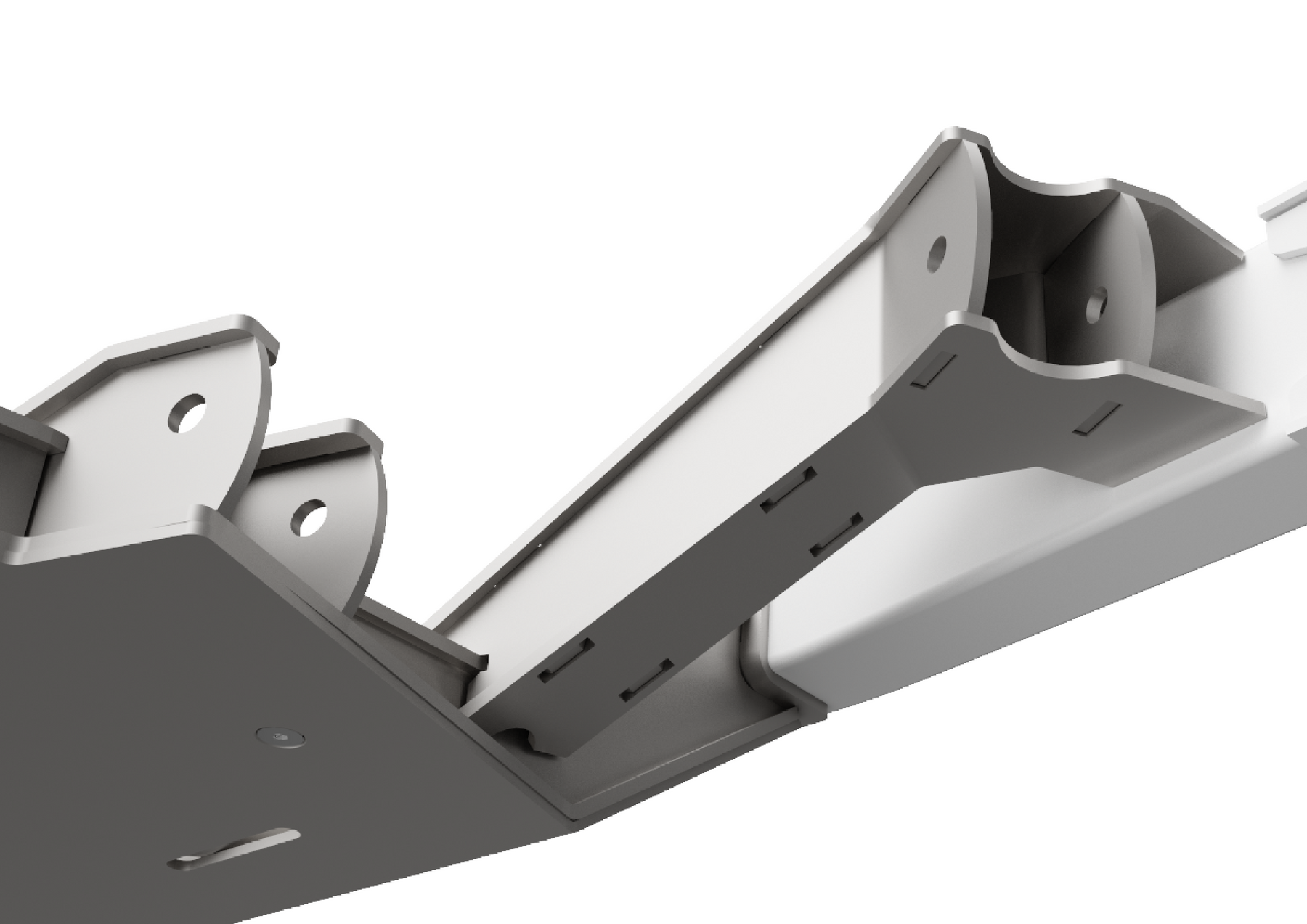

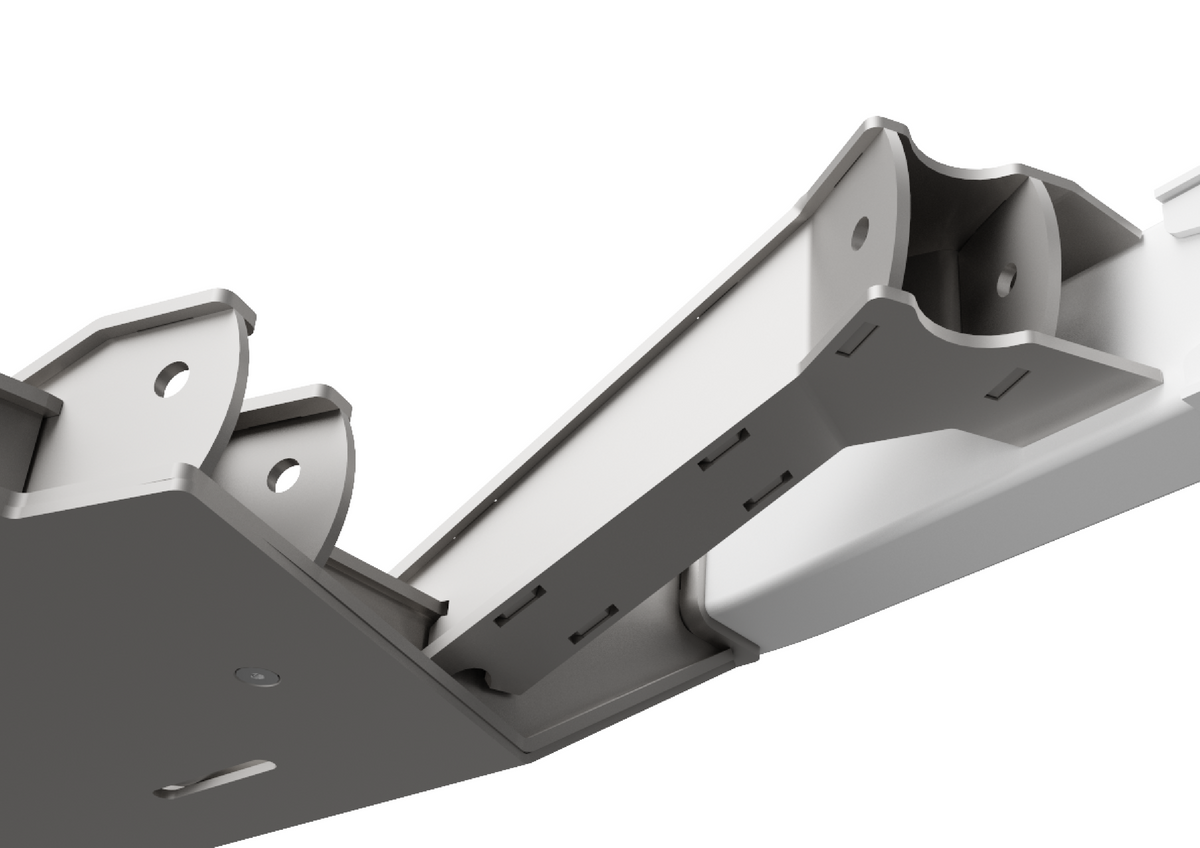

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows n up close view of the rear passenger side upper and lower link mount

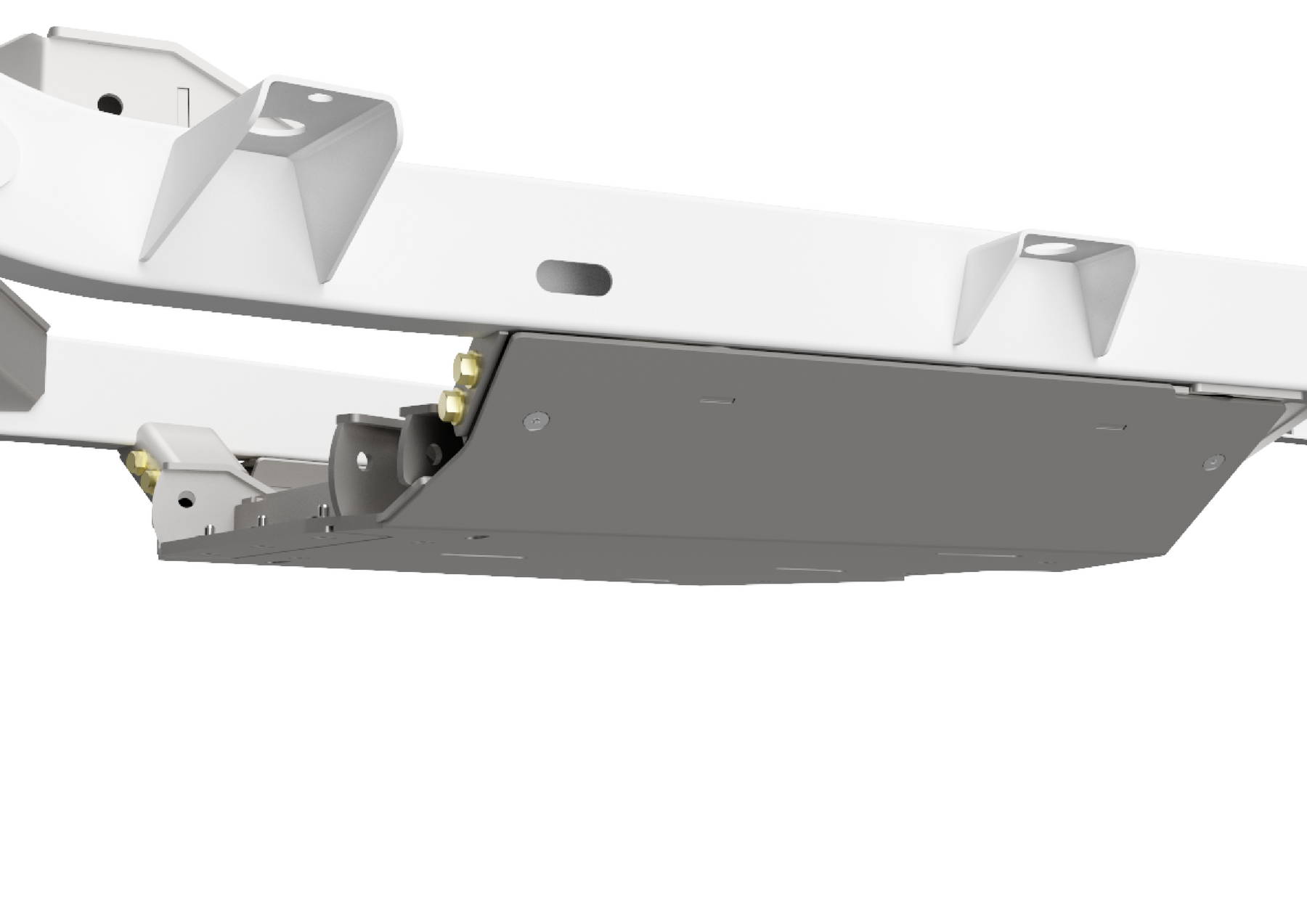

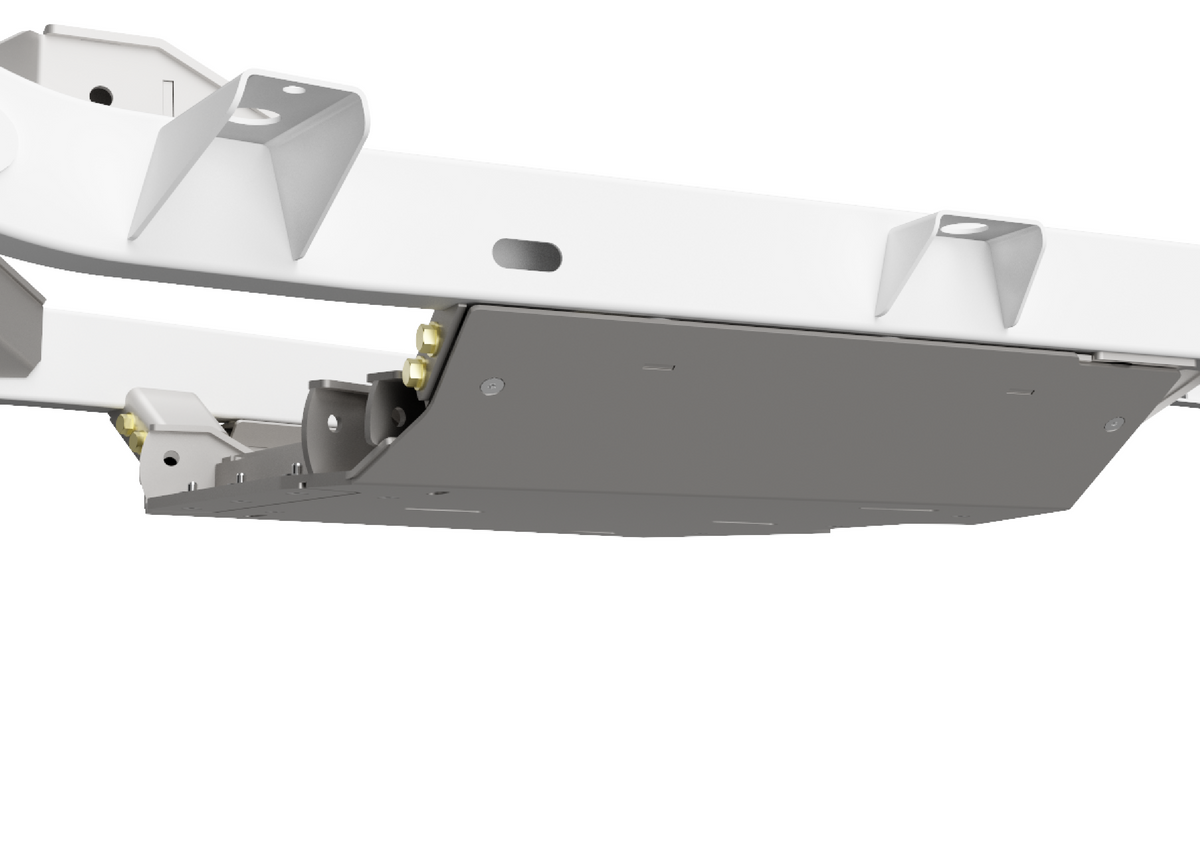

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing showst the skid plate installed from the side show casing the boat side shape

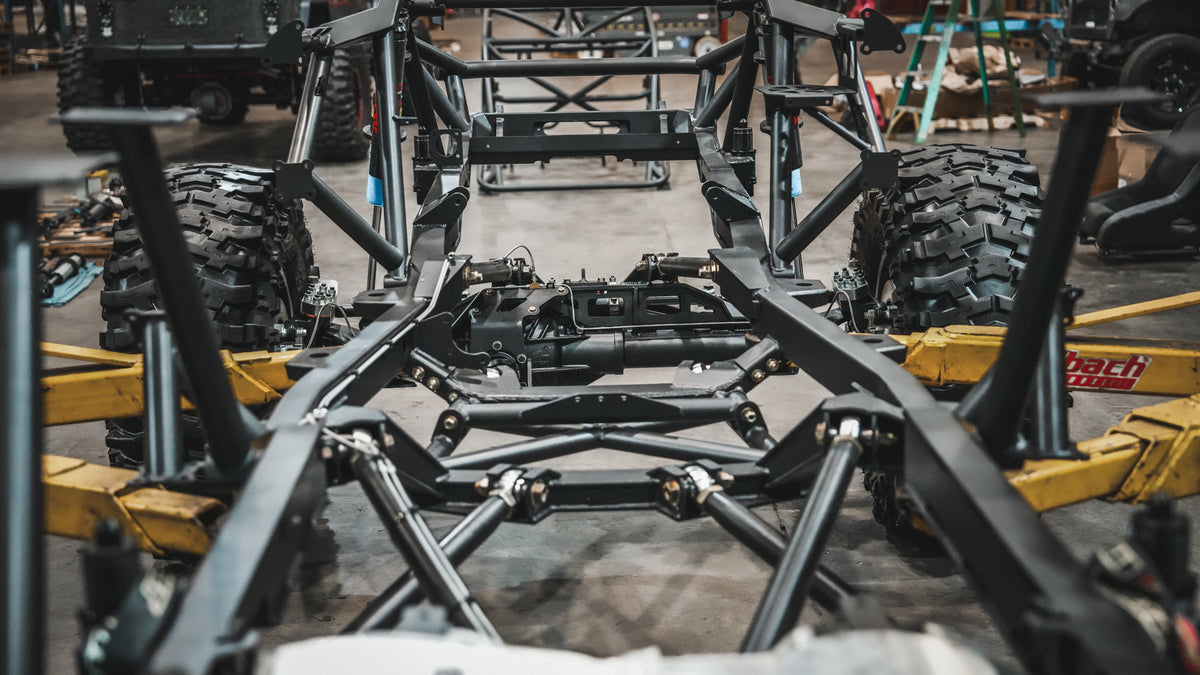

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ is installed on El-Jefe the Red Jeep YJ This is shown on the frame with the body removed and no drive train installed so you can see everything

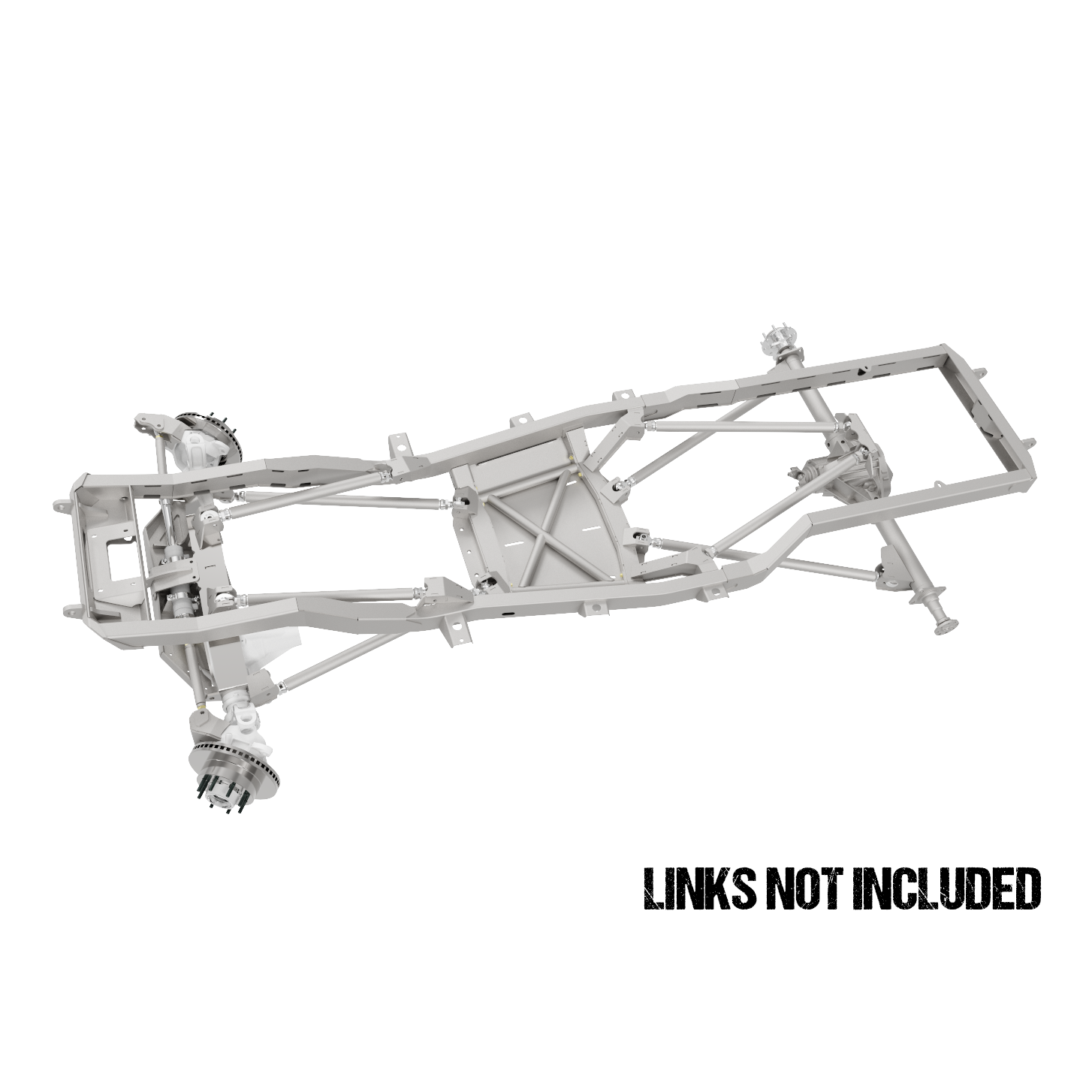

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing showing how the links look when installed with axles.

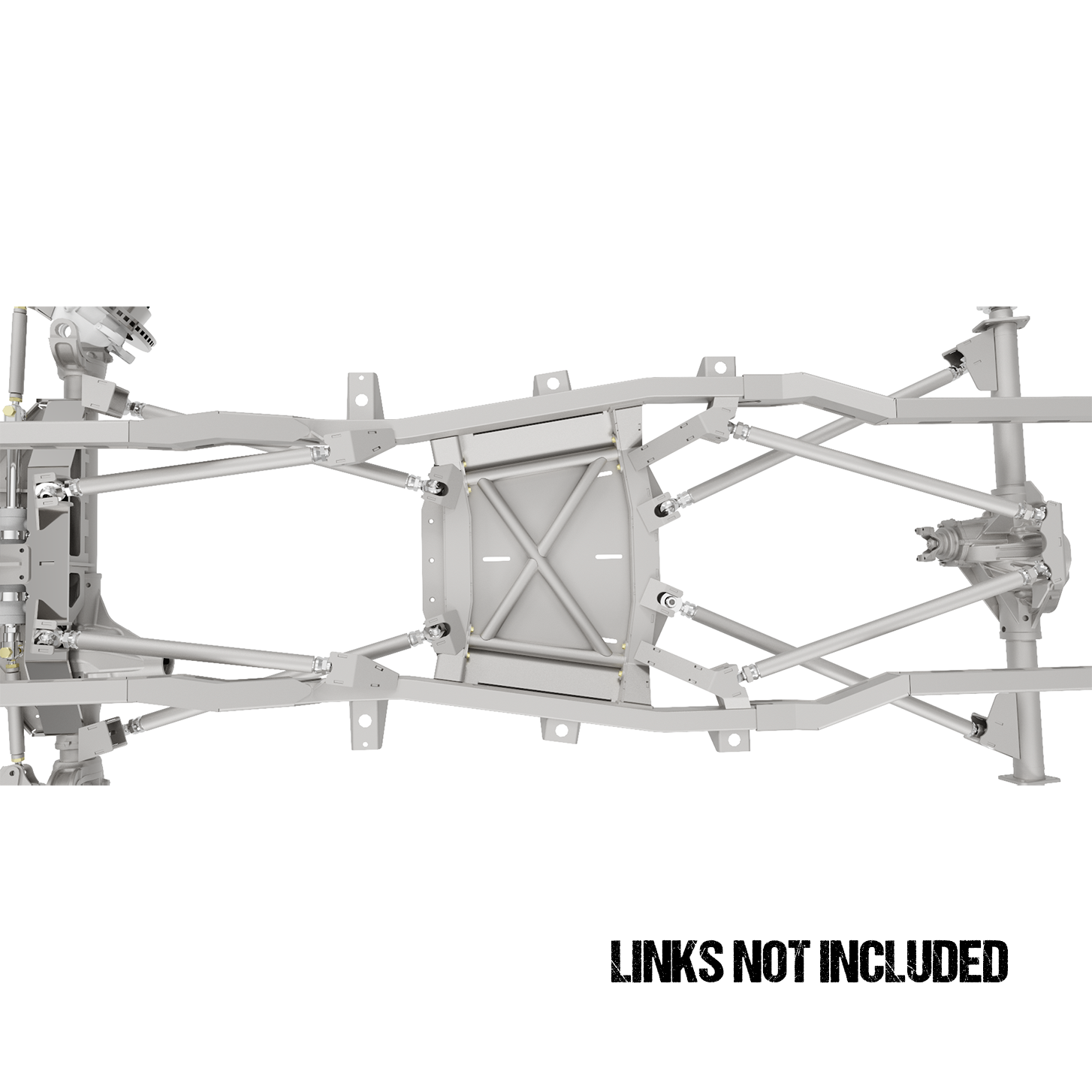

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows a bottm view showing how the links look when installed with axles. you can see how the skid plate looks

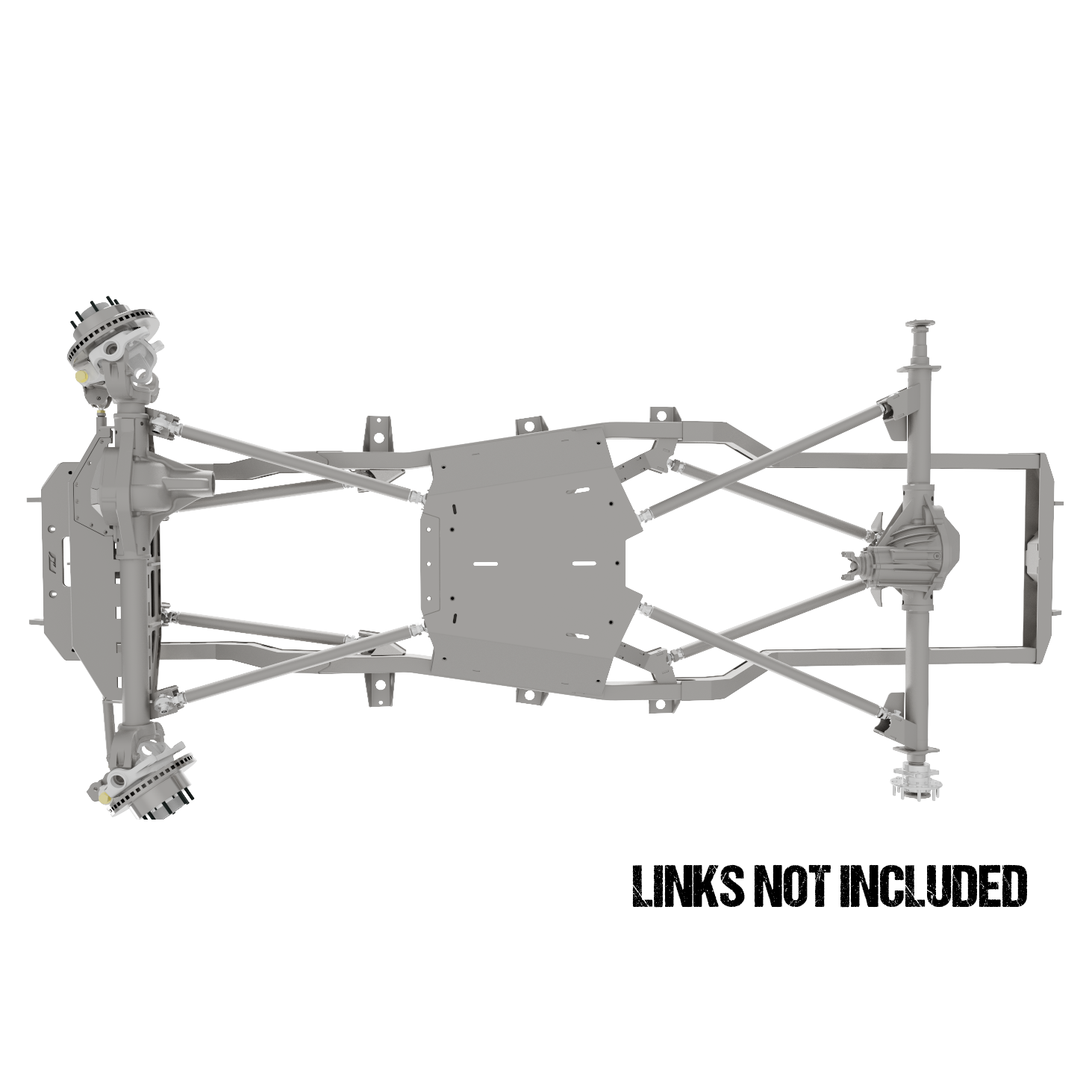

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ Cad drawing shows a top view showing how the links look when installed with axles.

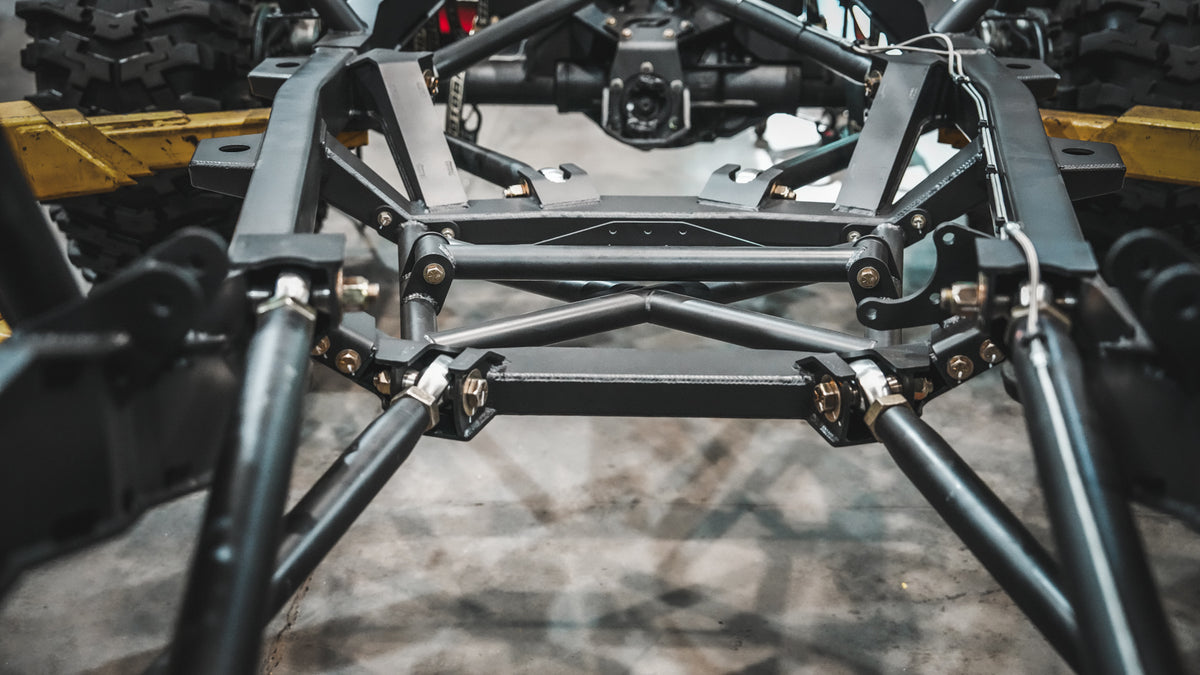

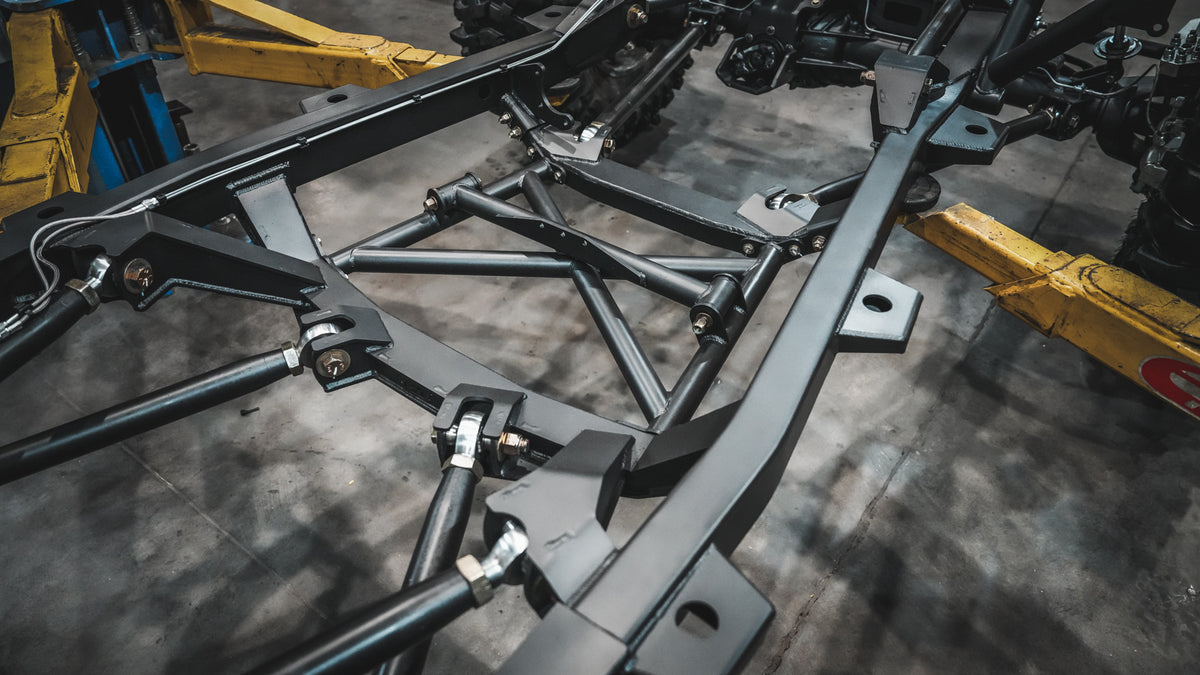

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ is installed on El-Jefe the Red Jeep YJ frame. shown are the links with heim joints and the kit has been painted black.

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ is installed on a bare frame painted black with front half and back half kits installed. also you can see the transmission cross member mb3077 installed

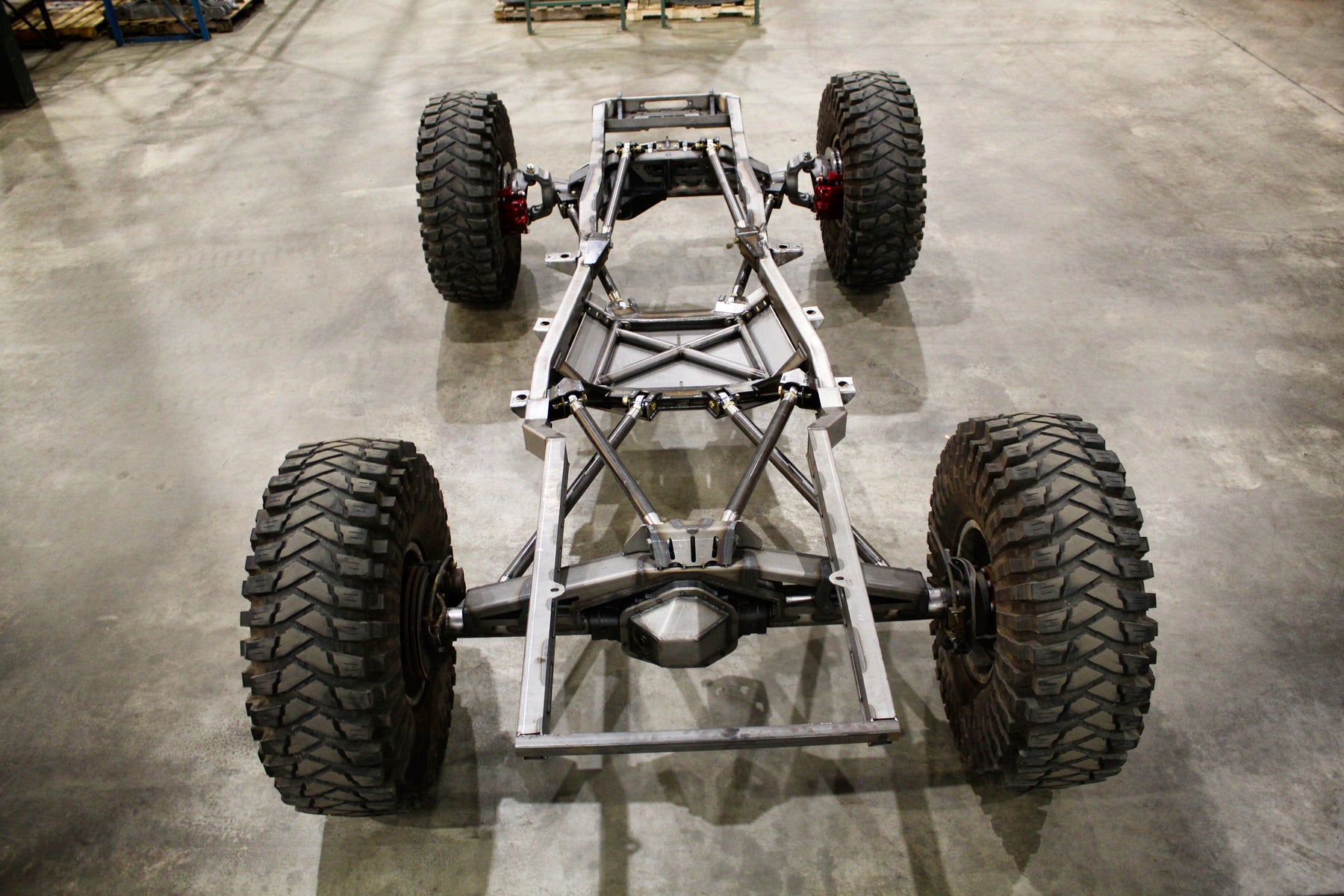

Motobilt Double Triangulated 4 Link Suspension Mounting System MB7009 for Jeep YJ/TJ/LJ is installed with yj 15" stretch back half kit with links installed and just a bare frame painted black

MB7009

Double Triangulated 4 Link Suspension Mounting System for Jeep YJ/TJ/LJ

Name: Double Triangulated 4 Link Suspension Mounting System for Jeep YJ/TJ/LJ
Brand: Motobilt
SKU: MB7009
Price: 2629.00 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$2,629.00

Shipping calculated at checkout.

Compatible With:

LJTJYJ

Product variants

Quantity

Double triangulated 4-link suspension mounting system for Jeep YJ, TJ, and LJ designed to remove the guesswork from suspension geometry and provide a smooth, serviceable underbelly.

Assembly Instructions

One of the hardest parts of building a double triangulated 4-link suspension is determining exactly where to place all the mounting points to get good articulation and the right vertical separation. The Motobilt MB7009 system was built to take that guesswork out. It fits the 1987–1995 Jeep YJ, 1997–2006 Jeep TJ, and 2004–2006 Jeep LJ, and is designed to make it easier to tie into 1-ton axles, clear oil pans, aftermarket engines, aftermarket transfer cases, and driveshafts, while allowing you to build straight upper and lower links without bends.

This system was also designed around serviceability. The one-piece heavy-duty steel skid plate is removable and precision fit around the front and rear crossmembers. All skid plate fasteners are countersunk for a true smooth bottom with no hang-up points, and the skid includes weep holes for drainage. Once the skid plate is removed, the front heavy-duty transmission crossmember and the X-shaped tubular cross bracing can also be removed to provide full access to the transmission and aftermarket transfer case.

Motobilt also addressed a common service issue with front lower links. When the front transmission crossmember needs to come out, most systems require disconnecting the front lower links, which means the vehicle can no longer be moved. This system includes extra brackets that temporarily bolt into place so the front lower links remain attached while the crossmember is removed. That means the vehicle can still be rolled around the shop during maintenance.

All link mounting points use 5/8 inch holes through 1/4 inch thick steel plates, with a 2-5/8 inch inside mounting width that works with a wide range of common joints and high-misalignment spacers. The front and rear upper link brackets are also cut to closely match the factory frame profile so the fit stays tight and the connection stays strong. The underside of the system sits at the same height as the factory skid, so there is no loss of ground clearance.

MB7009 Vs MB1517/MB1503 Comparison Video Click Here

Want To Know More?

Get the Details

Find all the information you need to get the right part for your rig.

Important Information

• Fits 1987–1995 Jeep YJ, 1997–2006 Jeep TJ, and 2004–2006 Jeep LJ.

• Full hydraulic steering is required if running the front as a 4-link.

• If using a steering box, remove one upper link and install a track bar.

• You do not have to remove the body to install.

• Depending on drivetrain and axle choices, a two-piece front driveshaft may be required.

• If using rebuildable or cartridge-style suspension joints, the upper brackets will need to be trimmed for joint body clearance.

• Exhaust routing will need to be planned around the upper links, especially on the driveshaft side.

Product Specifications

• Front link vertical separation at the frame: 7-9/16 inches.

• Rear link vertical separation at the frame: 5-3/16 inches.

• All link mounting points use 5/8 inch holes.

• Link mount material thickness: 1/4 inch steel plates.

• Inside width of all link mounting points: 2-5/8 inches.

• Includes removable one-piece skid plate with countersunk hardware and drainage weep holes.

• Includes removable front transmission crossmember and X-shaped tubular cross bracing.

Notes

• Wheelbase is determined by how long you build the front and rear suspension links, so the system can be used to stretch wheelbase.

• If installing a new engine or building engine mounts, Motobilt recommends doing that after the suspension is installed so the exhaust can be aligned where you want it.

• Suggested related parts not included: MB3077 Universal Transmission Crossmember Kit
