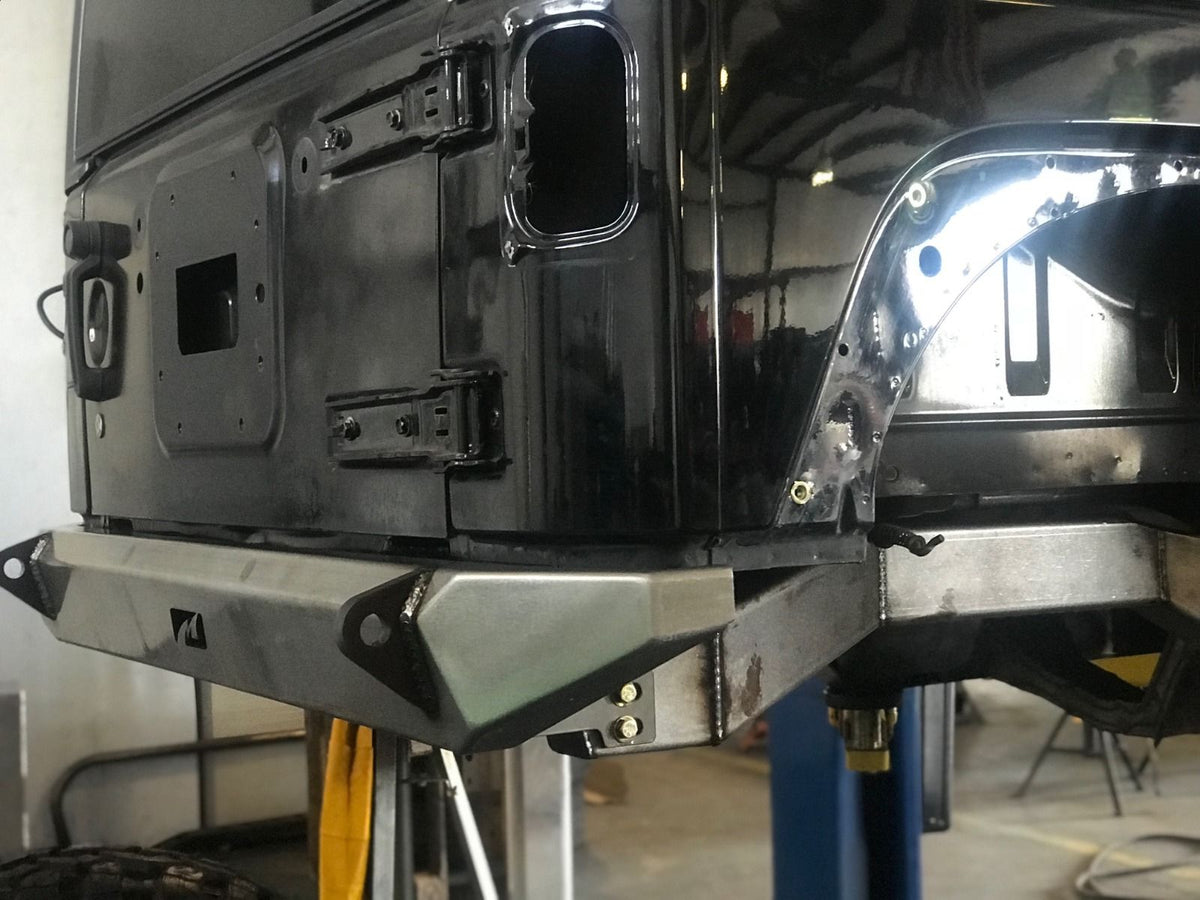

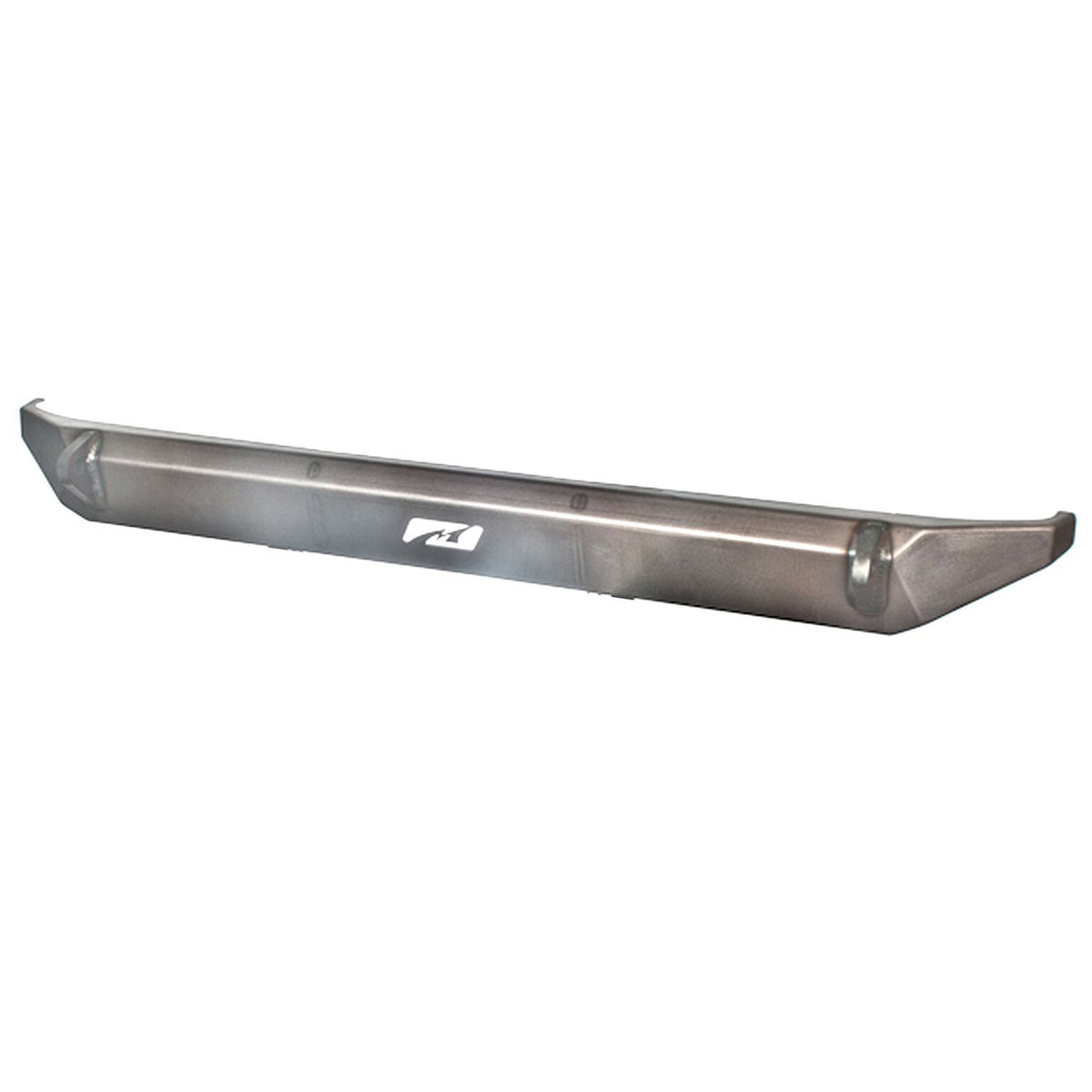

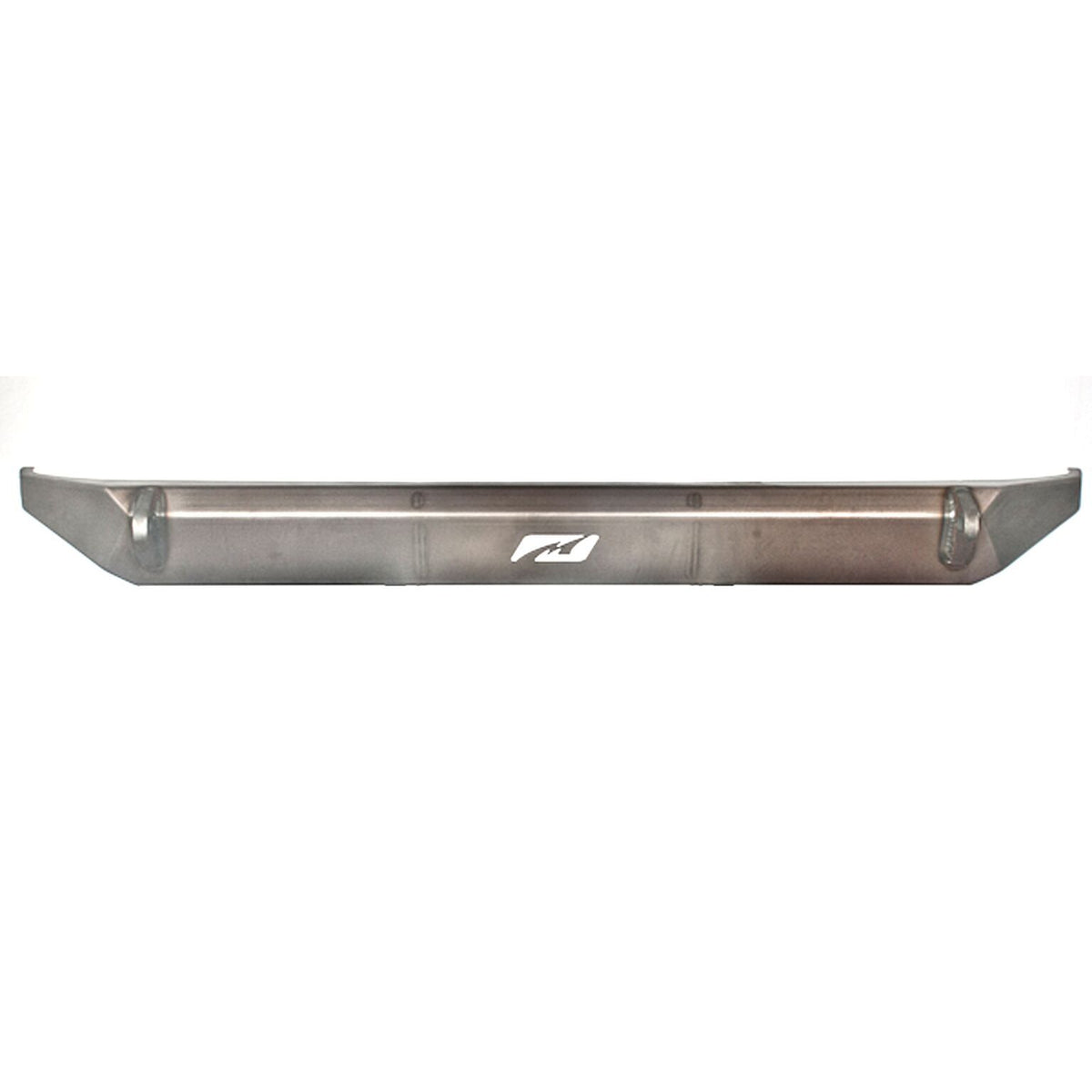

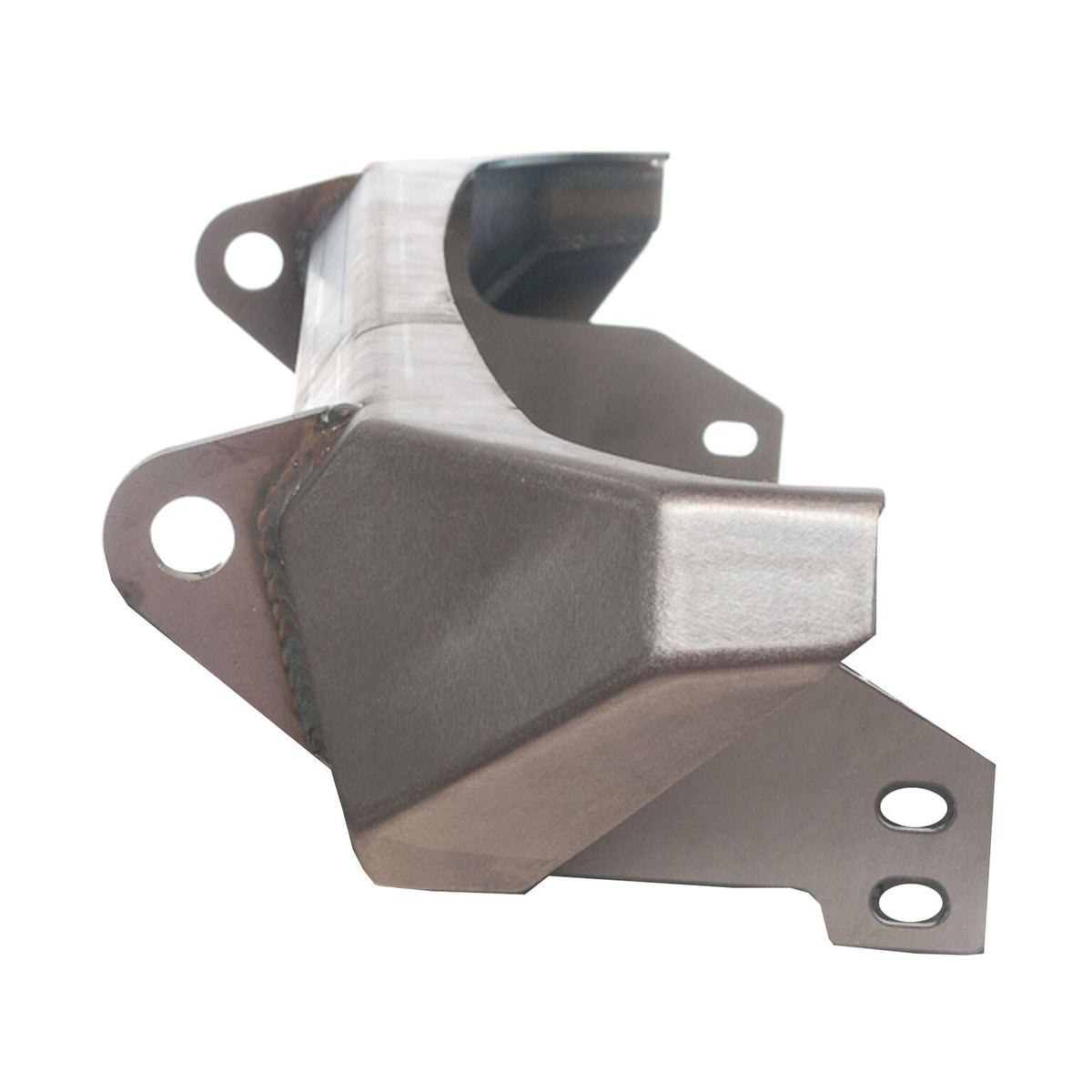

Hatchet Frame Chop Rear Bumper and Cross member for Jeep JK / JKU

Hatchet Frame Chop Rear Bumper and Cross member for Jeep JK / JKU

Name: Hatchet Frame Chop Rear Bumper and Cross member for Jeep JK / JKU
Brand: Motobilt
SKU: MB1081
Price: 749.00 USD
Availability: InStock
Rating: 5.0 (2 reviews)

Regular price $749.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1081

Fits: Jeep Wrangler JK / JKU

Quantity:

View product details & documents

Product details

The Motobilt Jeep JK Hatchet Rear Frame Chop Bumper allows for 5 inches of additional ground clearance over the factory receiver hitch. The additional ground clearance you gain is the same as going from a 35 inch tire to a 40 inch.

Fits:

Jeep JK & JKU Wrangler 2007 to 2018

Specifications

3/16 inch Laser cut and CNC bent steel body

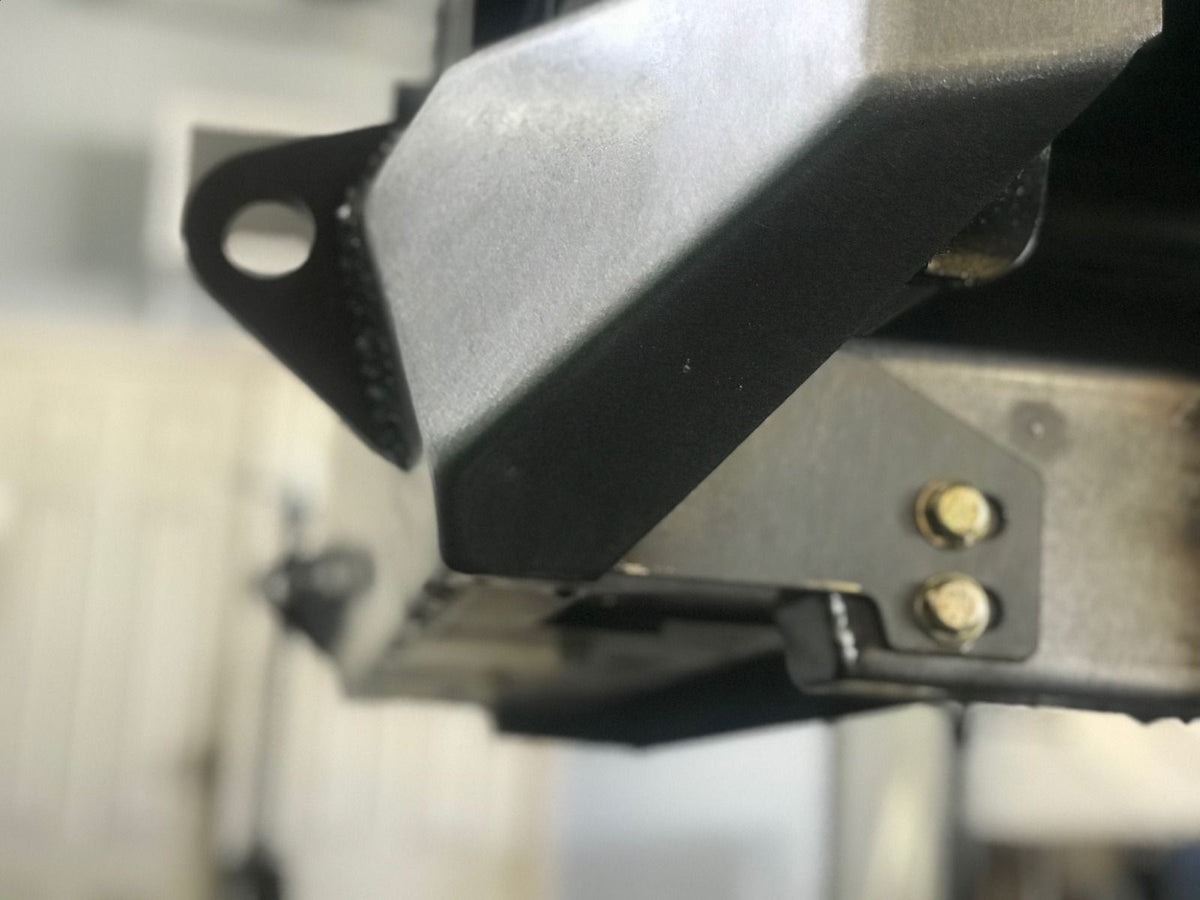

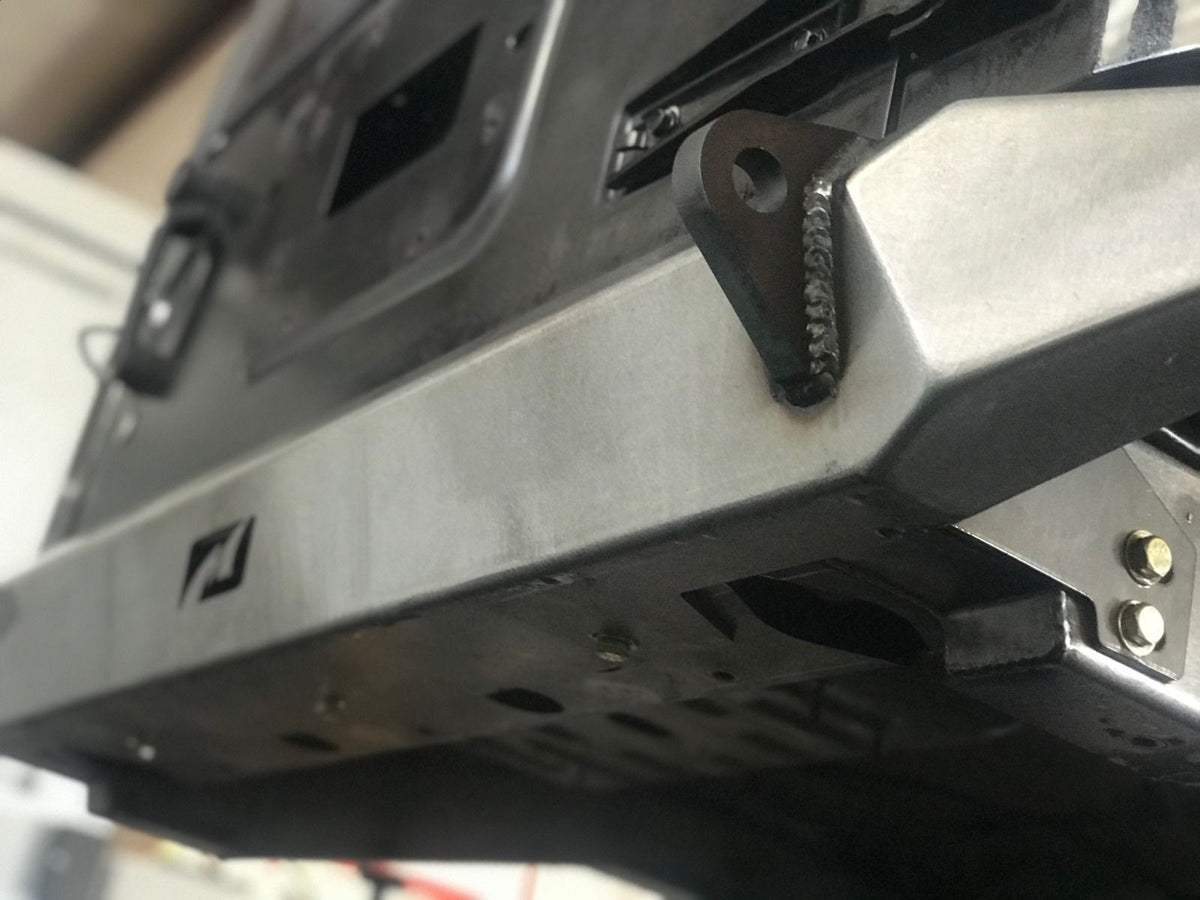

3/4 inch Thick laser cut D-Rings that pass through the bumper and welded inside and out
Gain 2 3/8 inches up and 3 3/8 inches back of ground clearance
5 inches of additional clearance over the factory receiver hitch

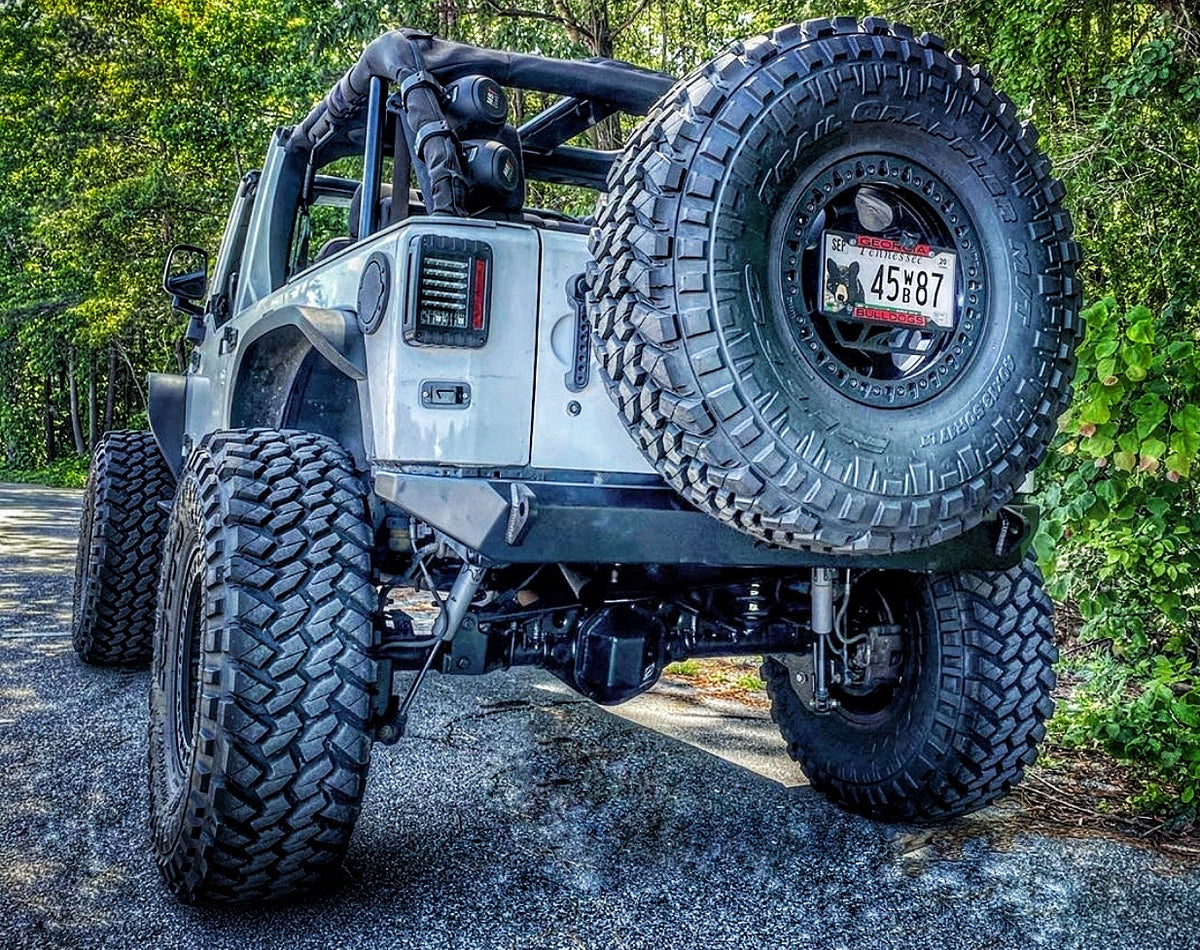

Ultra tight design allows the use of a large spare tire
Full protection from corner to corner

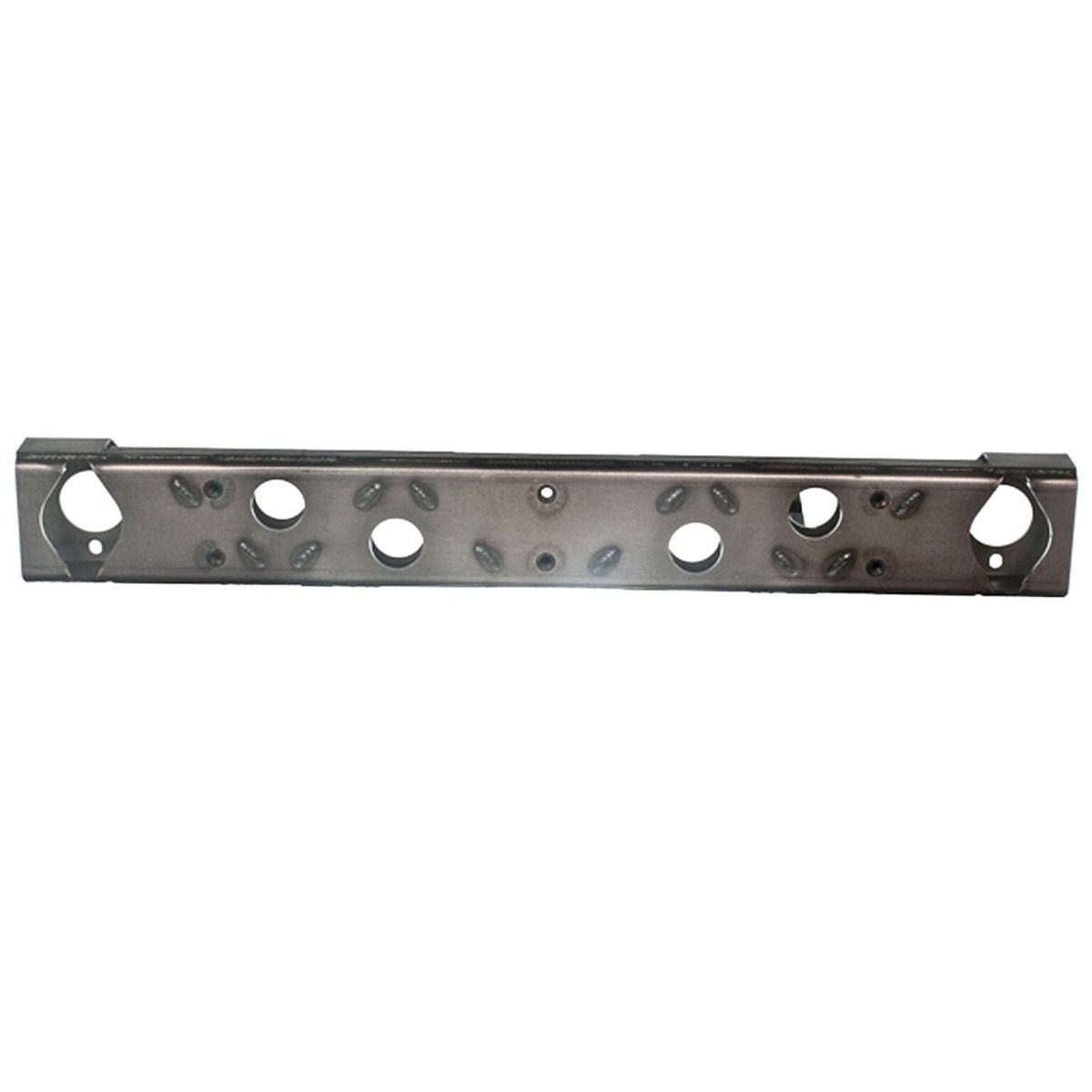

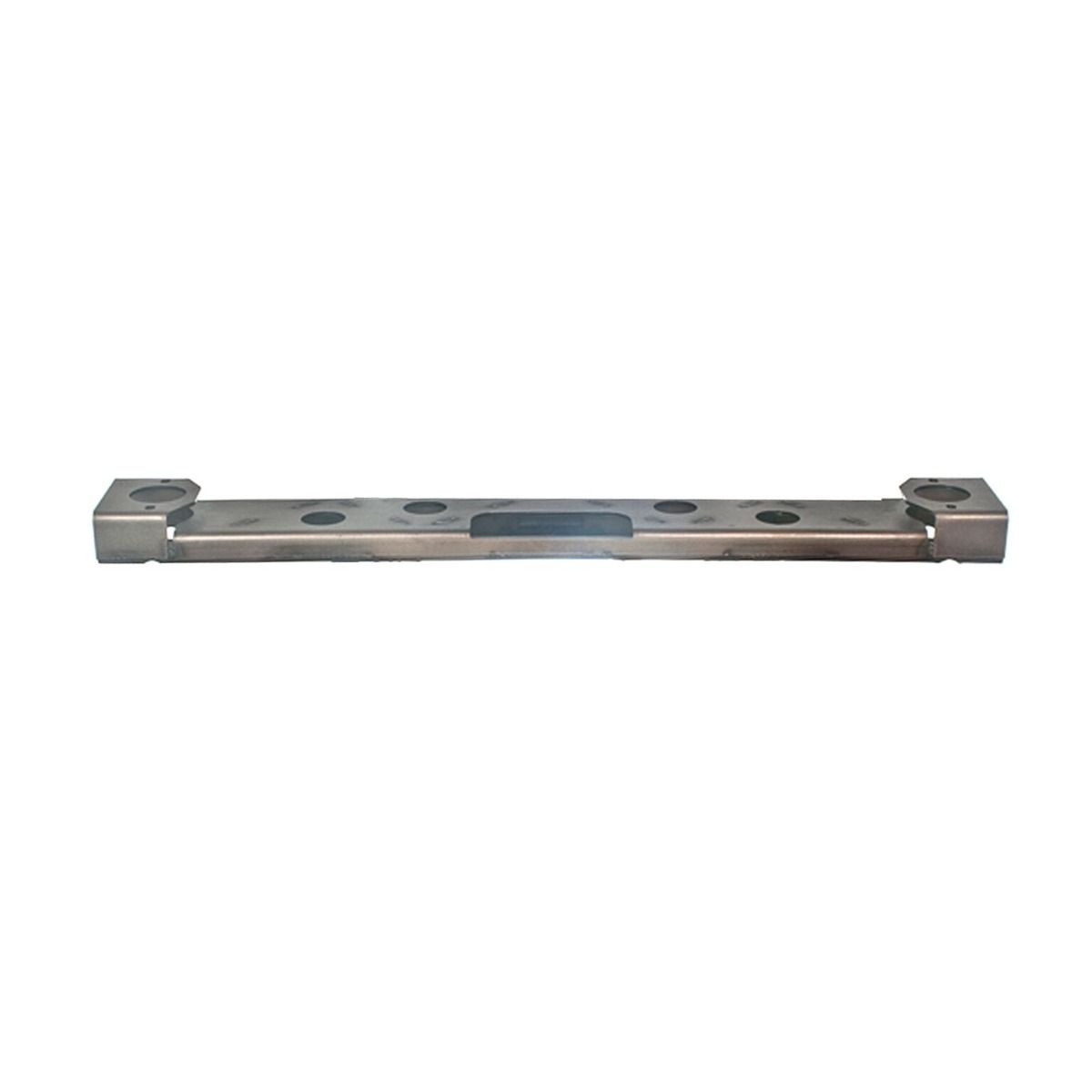

Includes high strength cross member

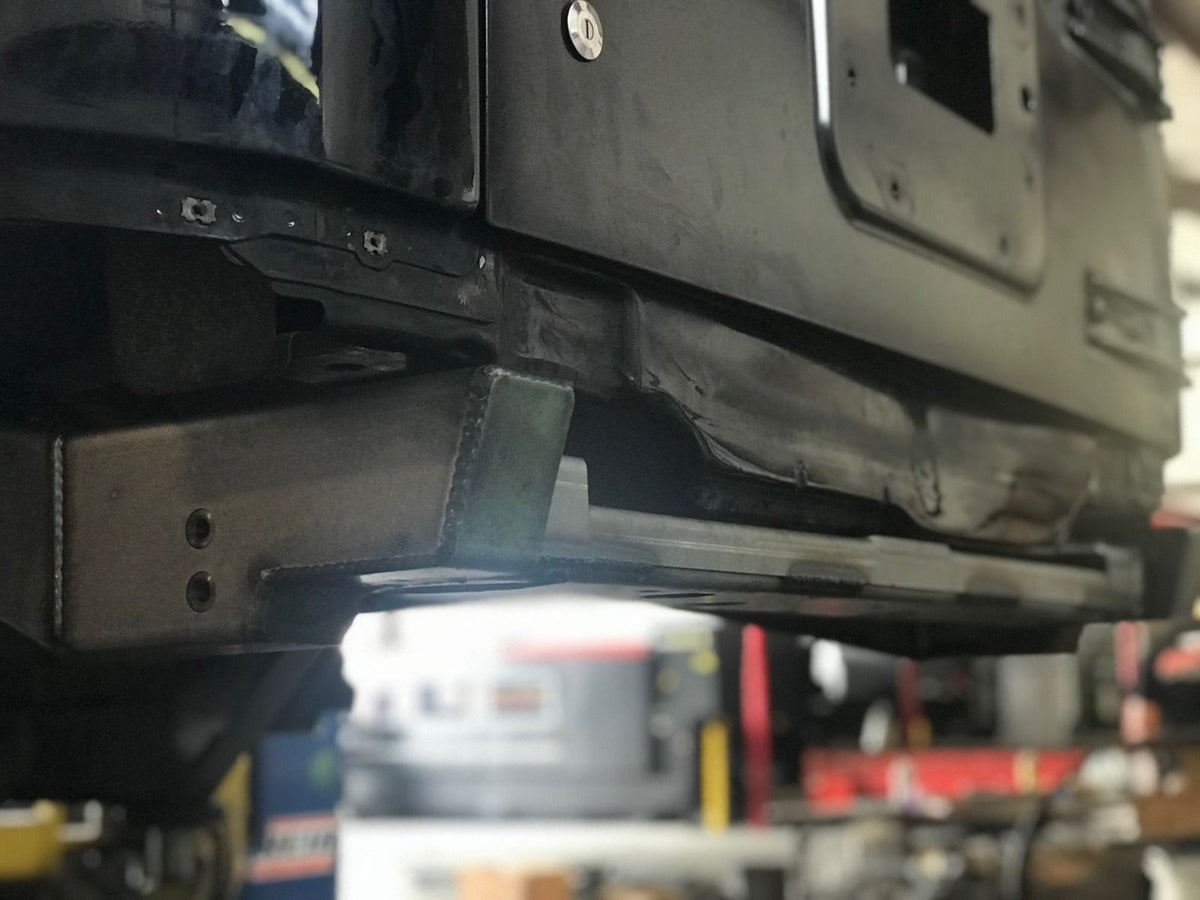

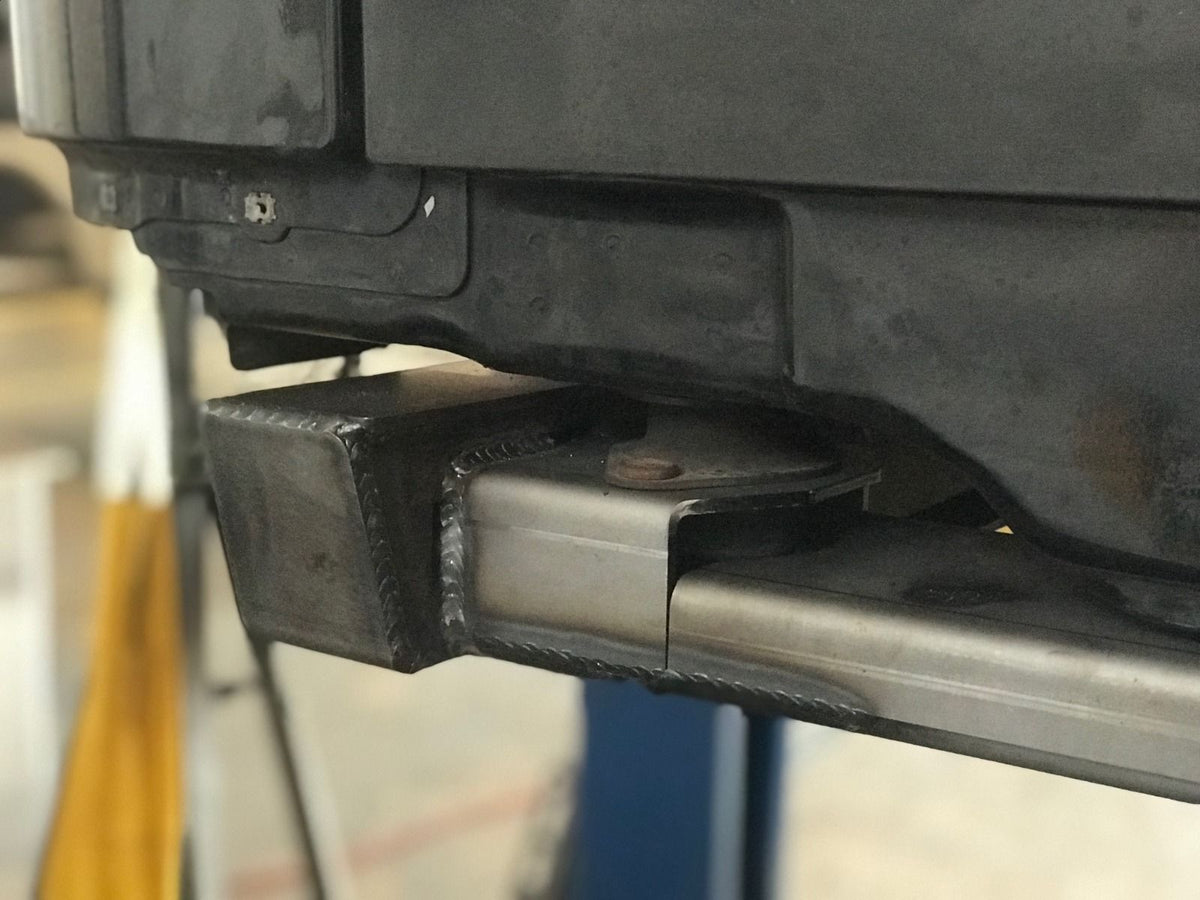

Cross member bolts into factory body mounts then must be welded to the frame
Works with factory frame or Motobilt jeep JK back half kit

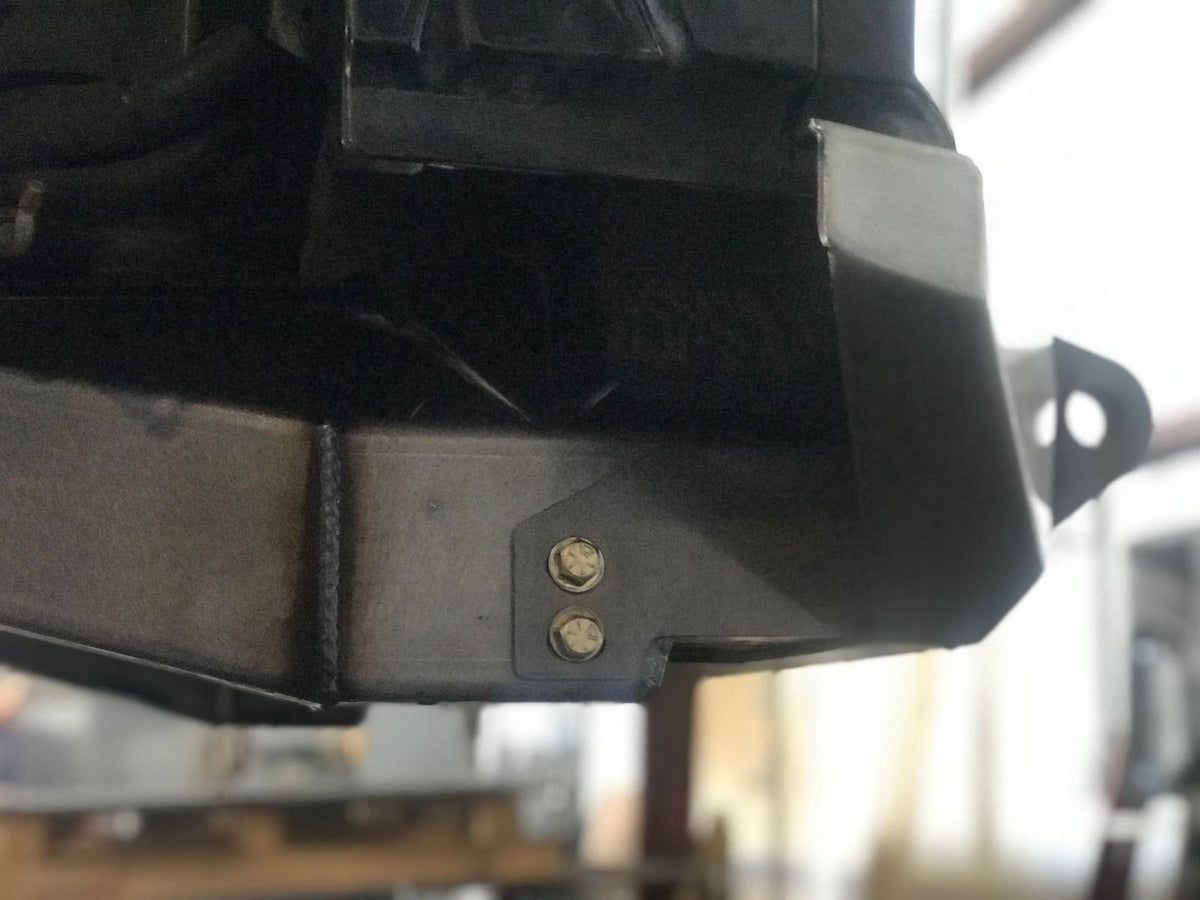

Cross member includes pre-installed threaded inserts for mounting Motobilt Hatchet JK frame chop rear bumper
Threaded mounting holes for JK rear fuel cell skid plate also included
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Installation video can be found under the Instructions tab
Includes necessary hardware
Weight: 80lbs (approx.)

Notes:

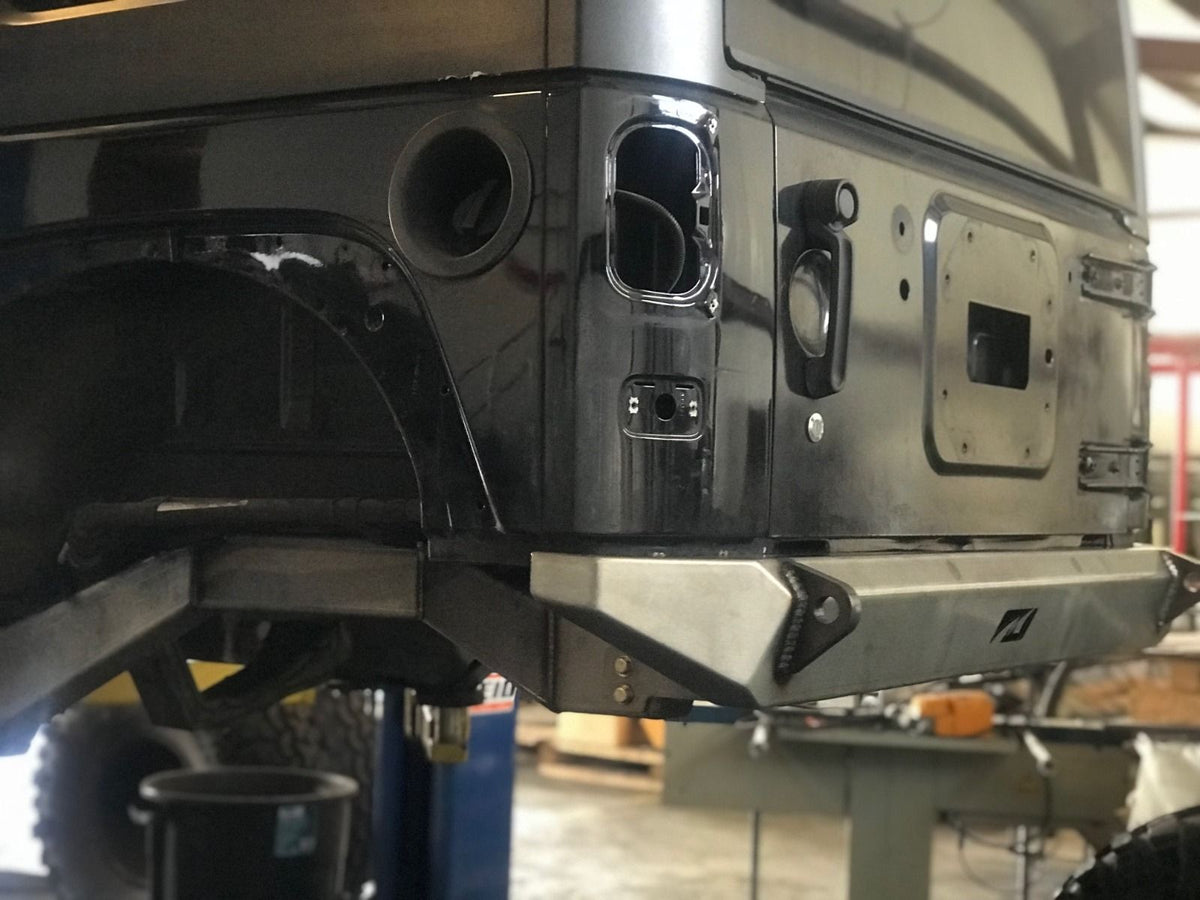

Requires cutting of rear frame rails and removal of factory rear cross member
Cross member must be welded to frame rails.
A receiver hitch will NOT work with this bumper.
