78-79 Ford Dana 60 Axle Truss

Name: 78-79 Ford Dana 60 Axle Truss
Brand: Motobilt
SKU: MB4070
Price: 299.00 USD
Availability: InStock

Regular price $299.00

Shipping calculated at checkout.

Unit Price: / Sku: MB4070

Fits: Jeep CJ · Jeep Wrangler YJ · Jeep Wrangler TJ / LJ

Quantity:

View product details & documents

Product details

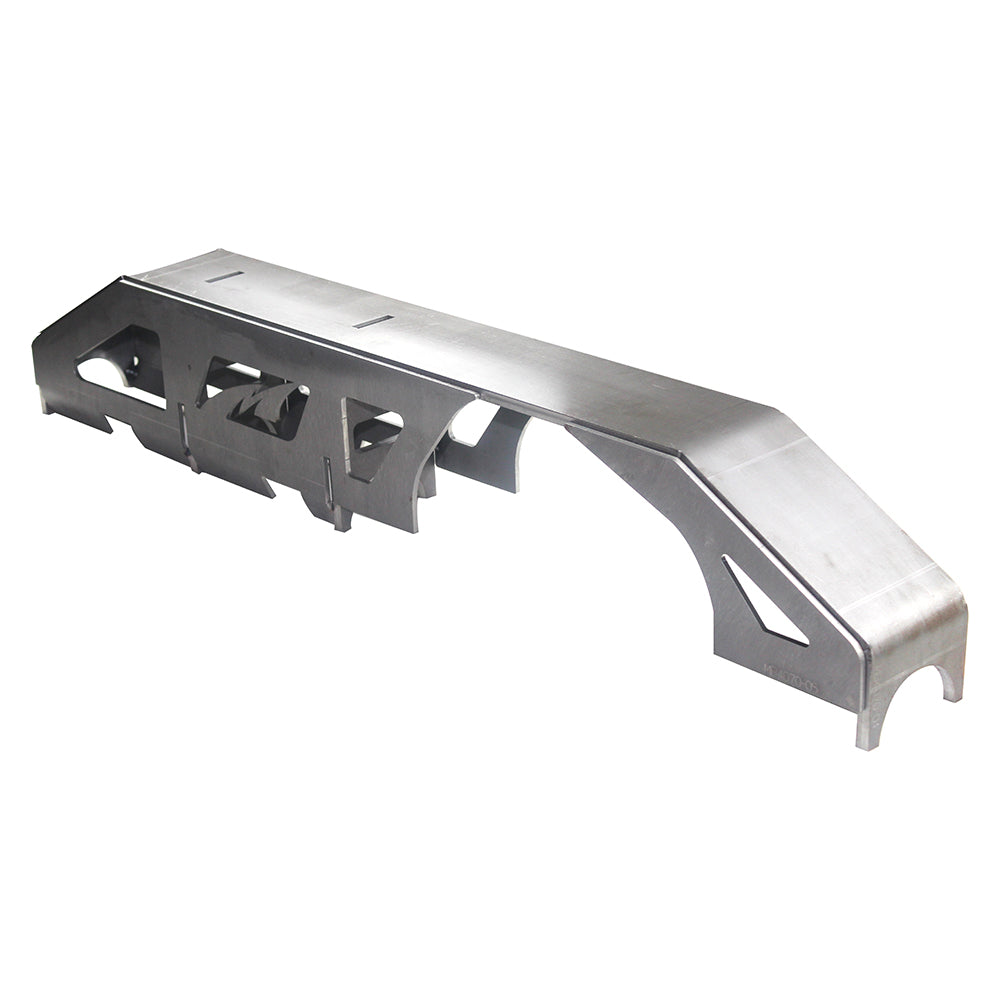

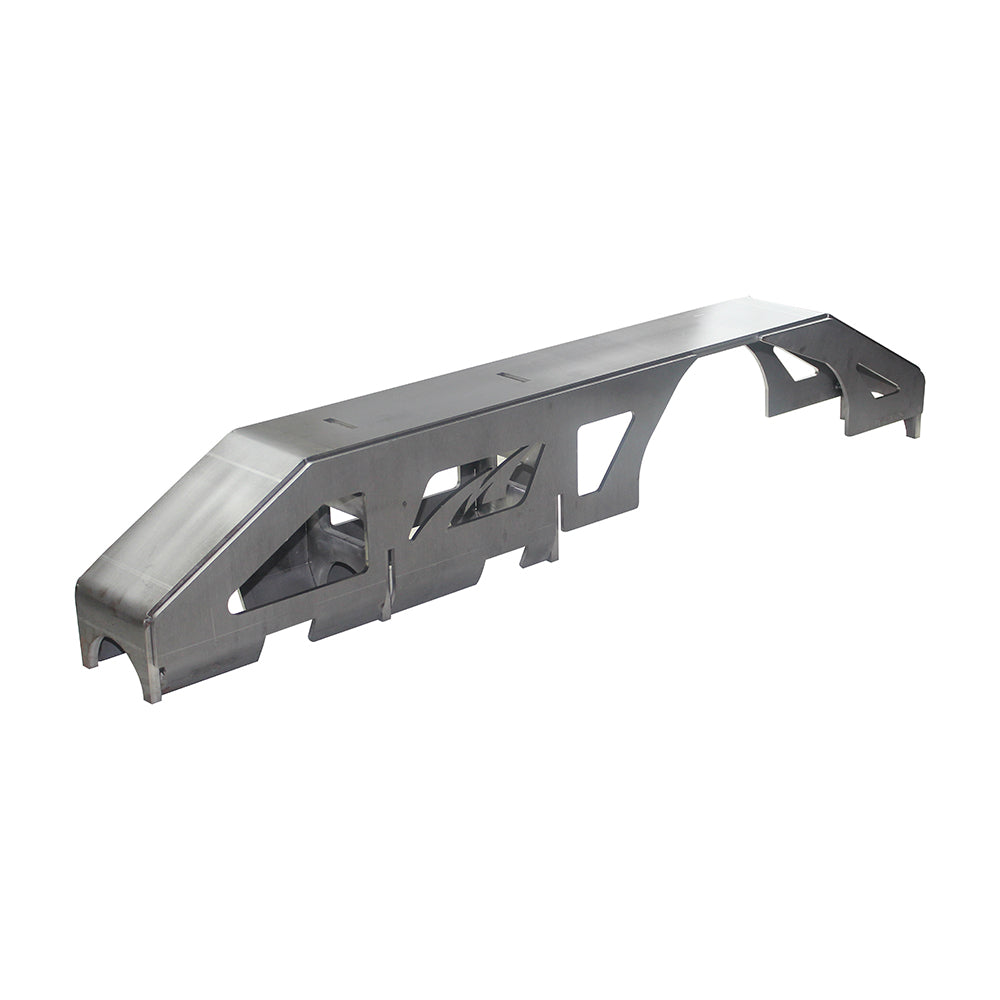

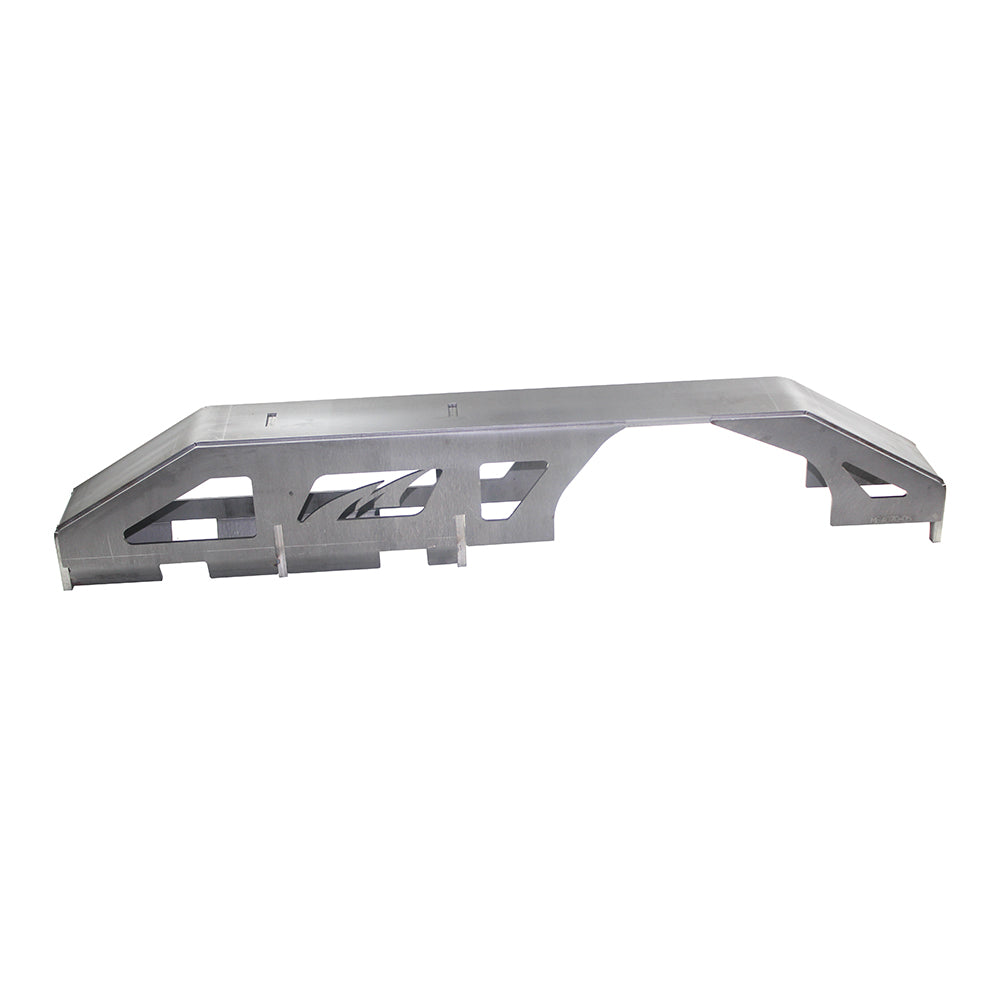

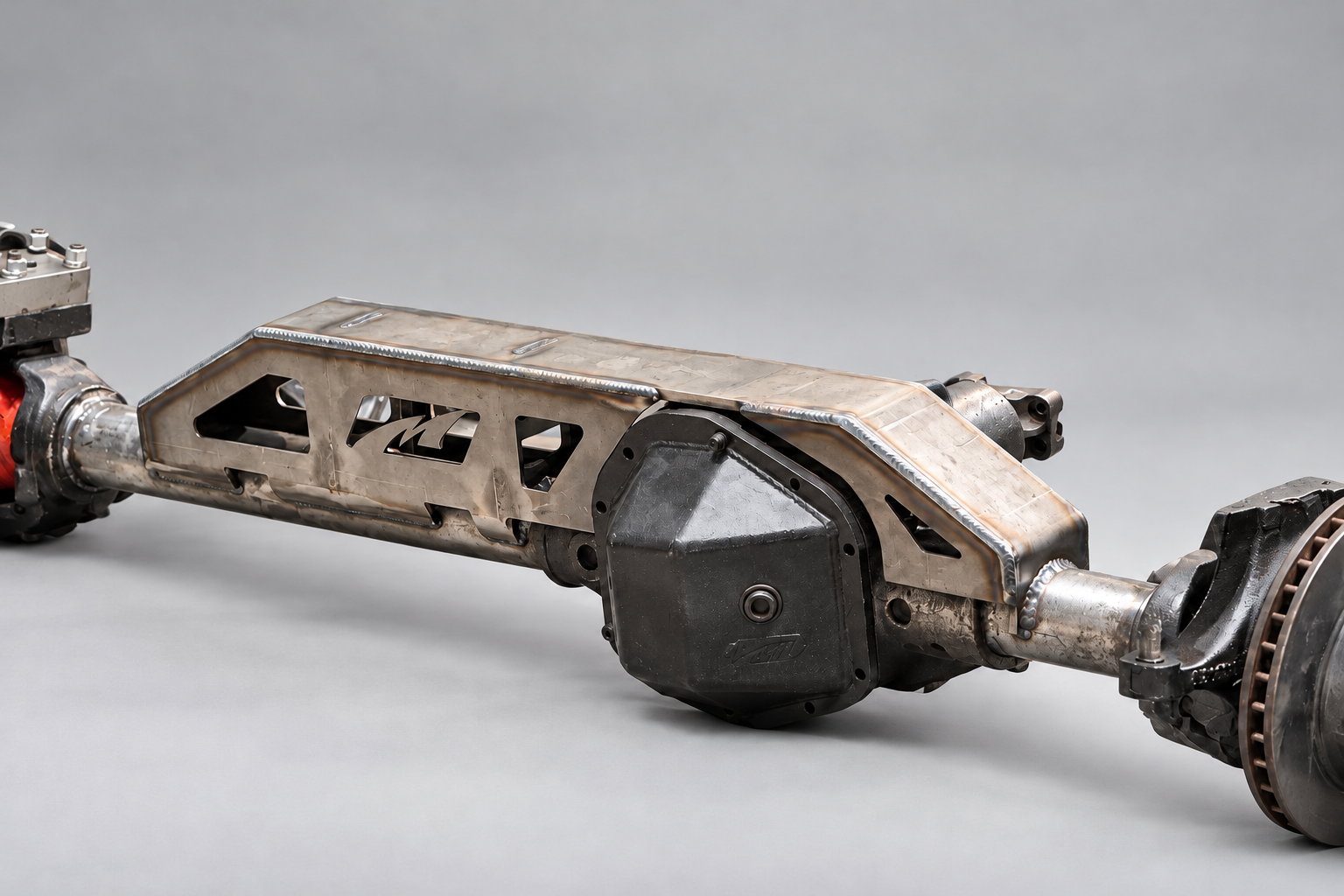

The 78-79 Dana 60 truss from Motobilt will greatly increase the strength of your front axle. The main structure of this axle truss is laser cut and cnc bent from 3/8 inch thick steel plate. Supporting the main truss are 3/8 inch and 3/16 inch structural bracing. The top portion of the truss is approximately 5.5 inches wide and provides ample room for a suspension link mount to be welded onto it. This axle truss can be used for a 3 or 4 link setup.

Specifications

Material: Steel
Thickness: 3/8 Inch
3/8 inch thick laser cut steel plate main truss
3/8 inch and 3/16 inch steel plate support structure
Full length span of axle for increased strength
Large flat mounting surface for link brackets
Weight: 55lbs (approx.)

Suggested Parts:

MB1568 - Universal Upper Triangulated Link Mount - Front Axle
MB4006 - Dana 60 Angled Lower Link Mount Kit
MB4010 - Dana 60 Heavy Duty Diff Cover
MB1542- Track Bar Bracket

Product Components

78-79 Ford Dana 60 Axle Truss

Specifications

Axle Truss Prep
