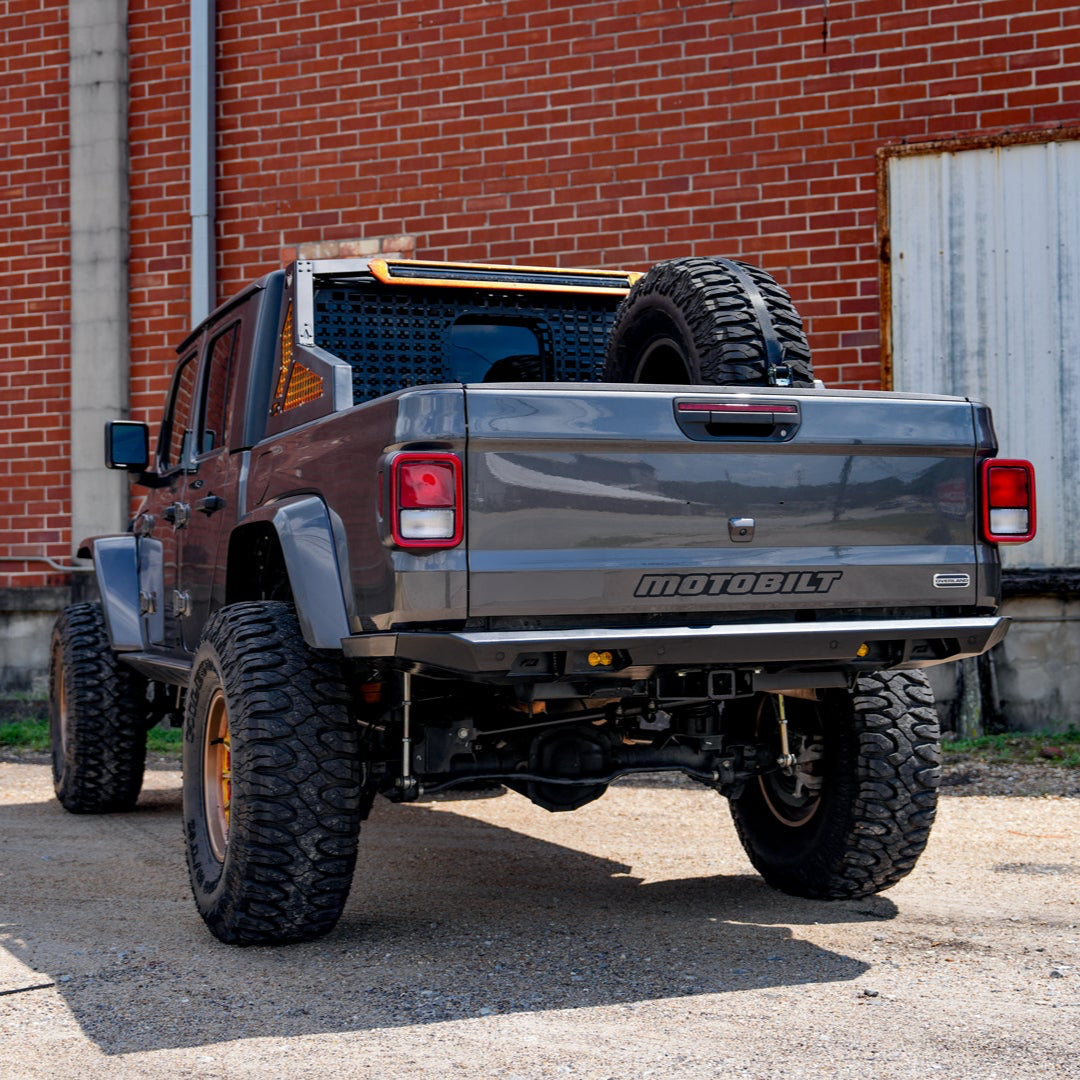

Tomahawk High Clearance Rear Bumper for Jeep JT

Tomahawk High Clearance Rear Bumper for Jeep JT

Name: Tomahawk High Clearance Rear Bumper for Jeep JT
Brand: Motobilt
SKU: MB1262
Price: 1949.00 USD
Availability: InStock

25% OFF Regular price~~$1,949.00~~Sale price$1,461.75

Shipping calculated at checkout.

Unit Price: / Sku: MB1262

Fits: Jeep Gladiator JT

Quantity:

View product details & documents

Product details

The factory rear bumper on the Jeep Gladiator JT hangs low and sits far behind the rear axle, which limits departure angle and exposes the rear of the bed to trail damage. Once you start running ledges or steep obstacles, that extra length becomes a problem. The lower bed corners and bumper are often the first points of contact.

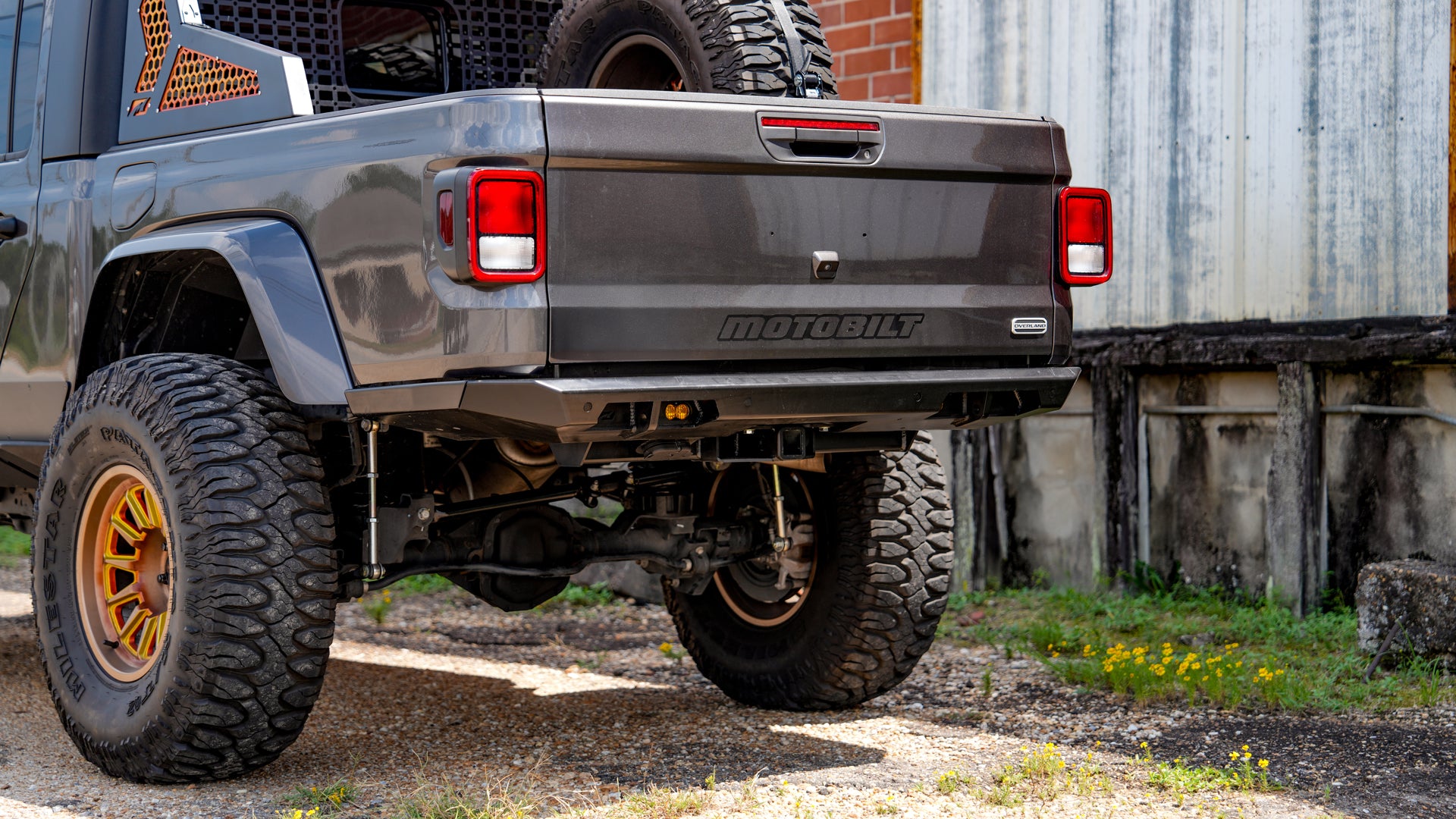

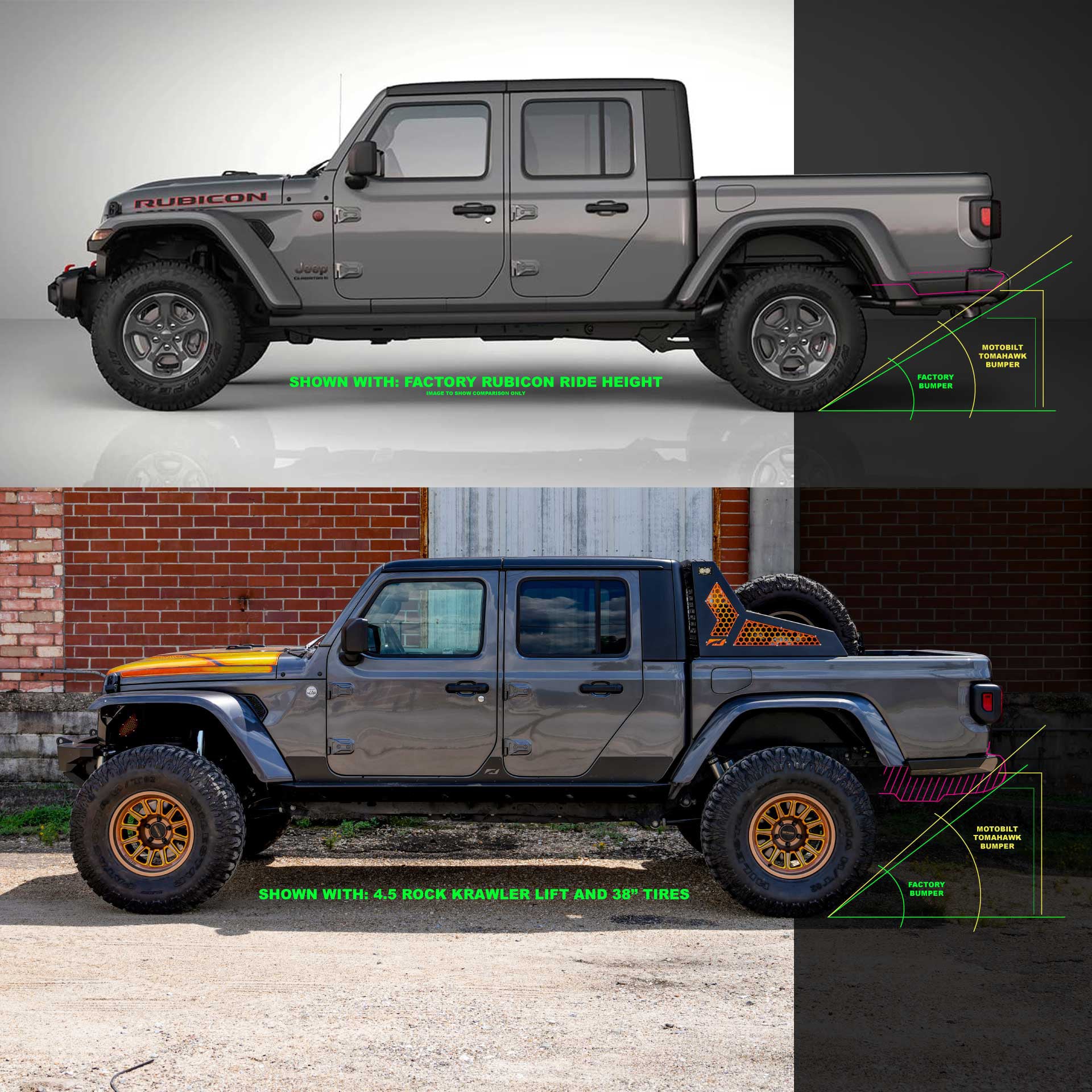

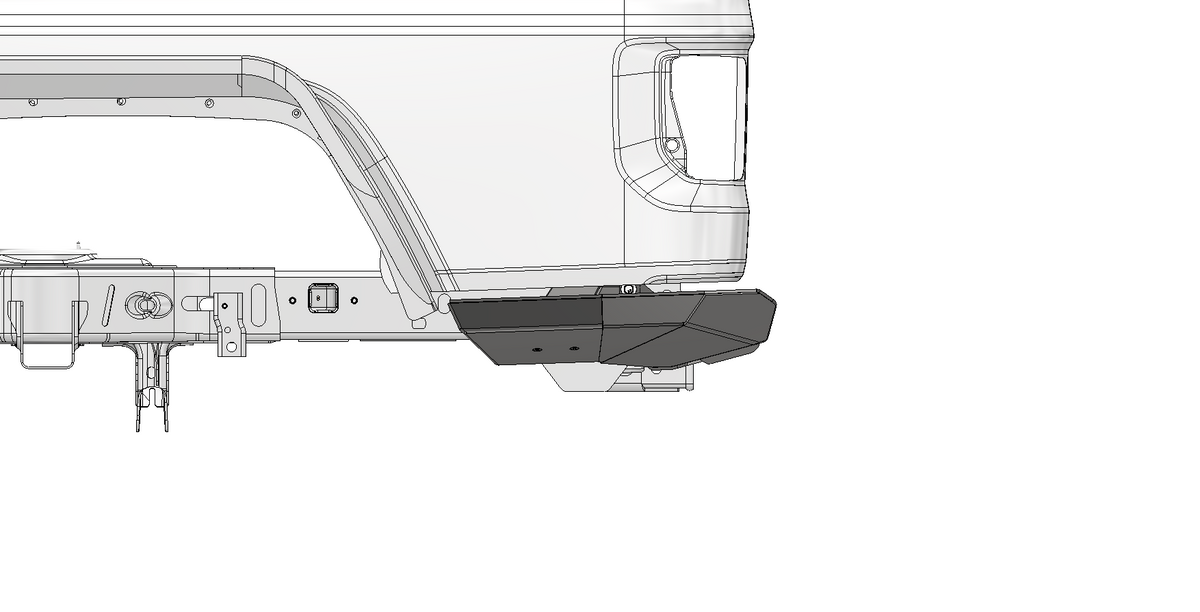

The Motobilt Tomahawk high clearance rear bumper is built to pull everything in tighter and higher. By tucking the bumper closer to the body and raising its position, it improves departure angle and reduces drag when coming off obstacles. This is critical for a Gladiator where the longer wheelbase already works against you in tight terrain.

Another area builders run into issues with is the section of the bed between the wheel opening and the rear bumper. This area takes hits easily. That is why this system includes modular rocker protection to reinforce that section. You can run it for added protection or remove it depending on your build direction.

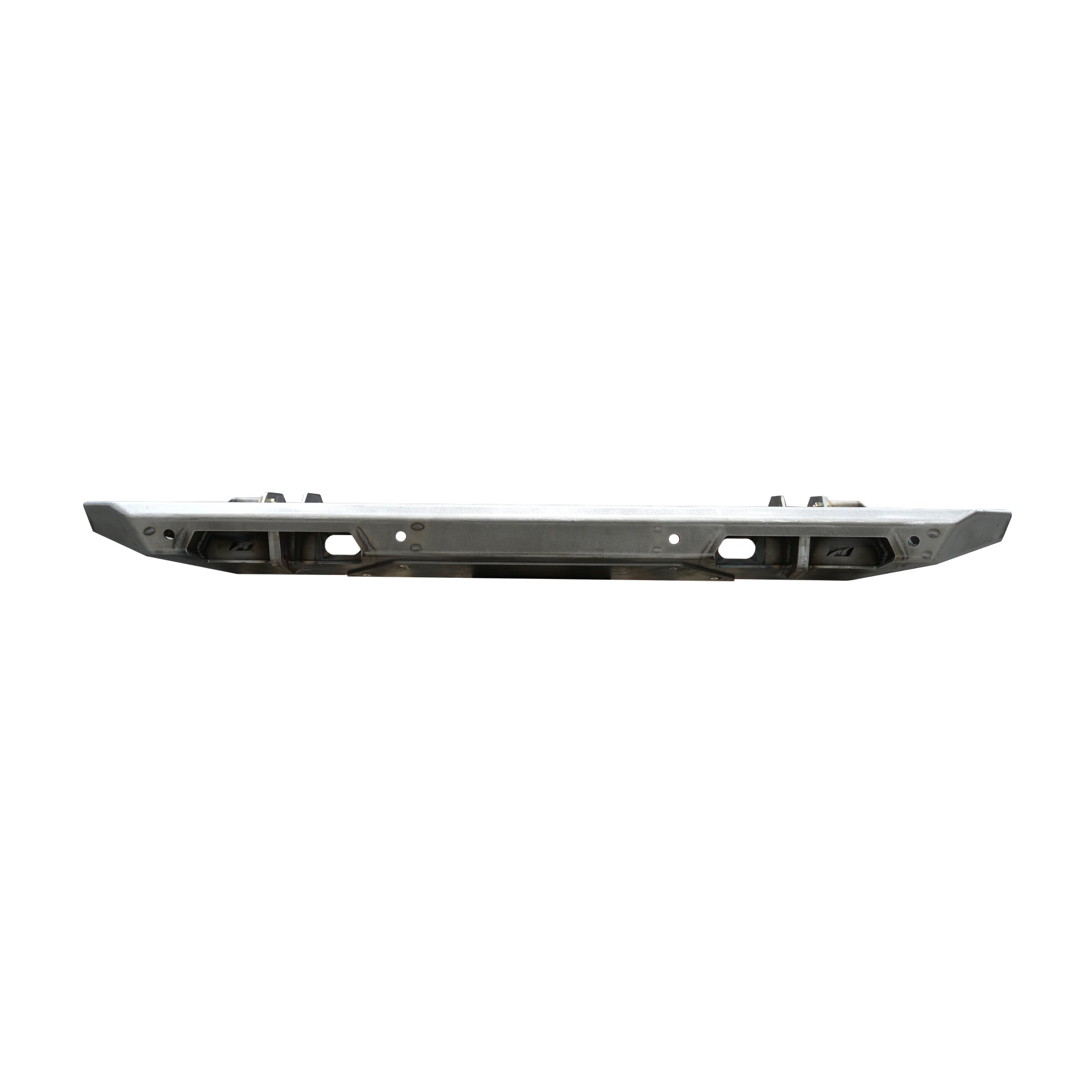

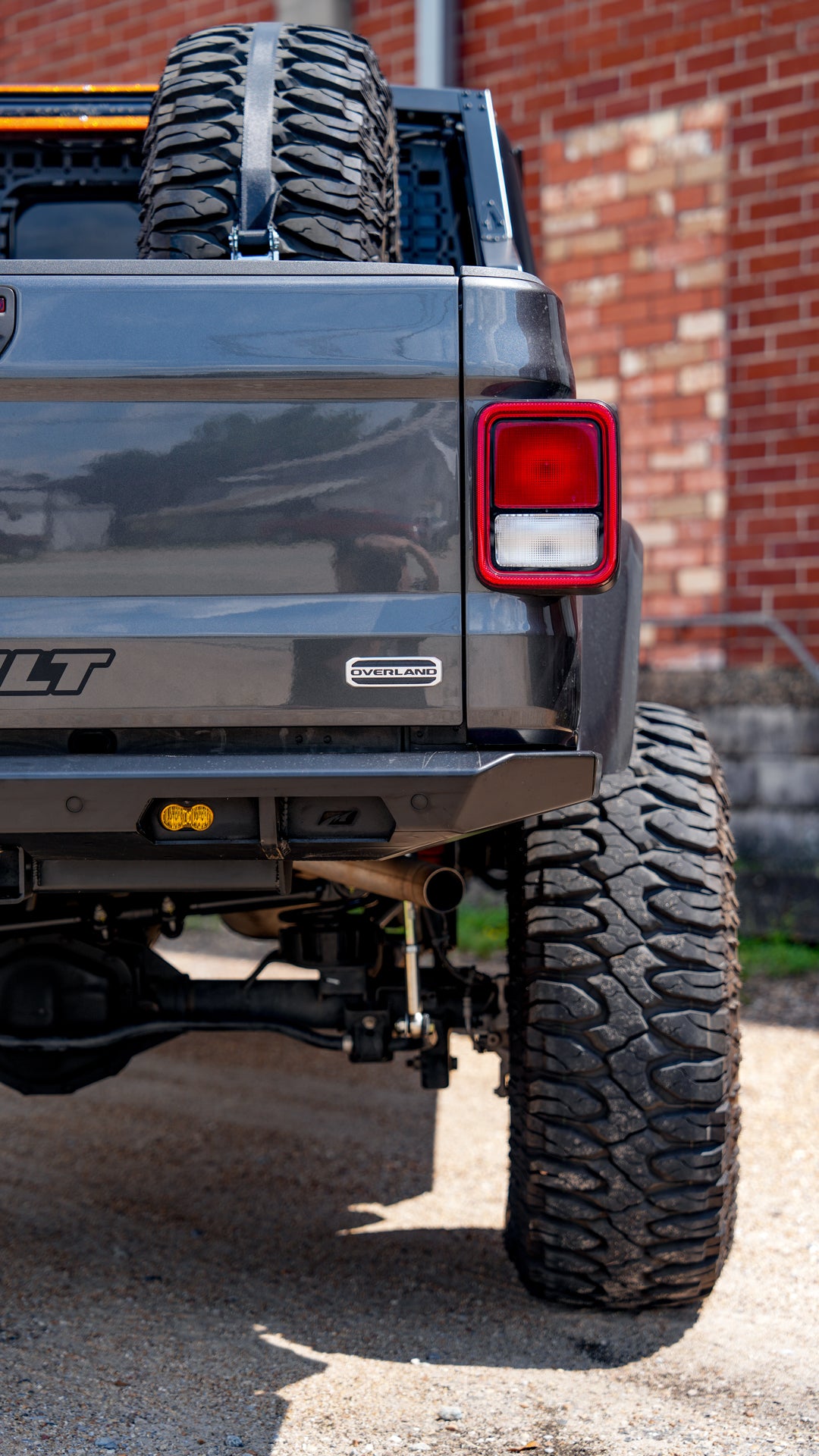

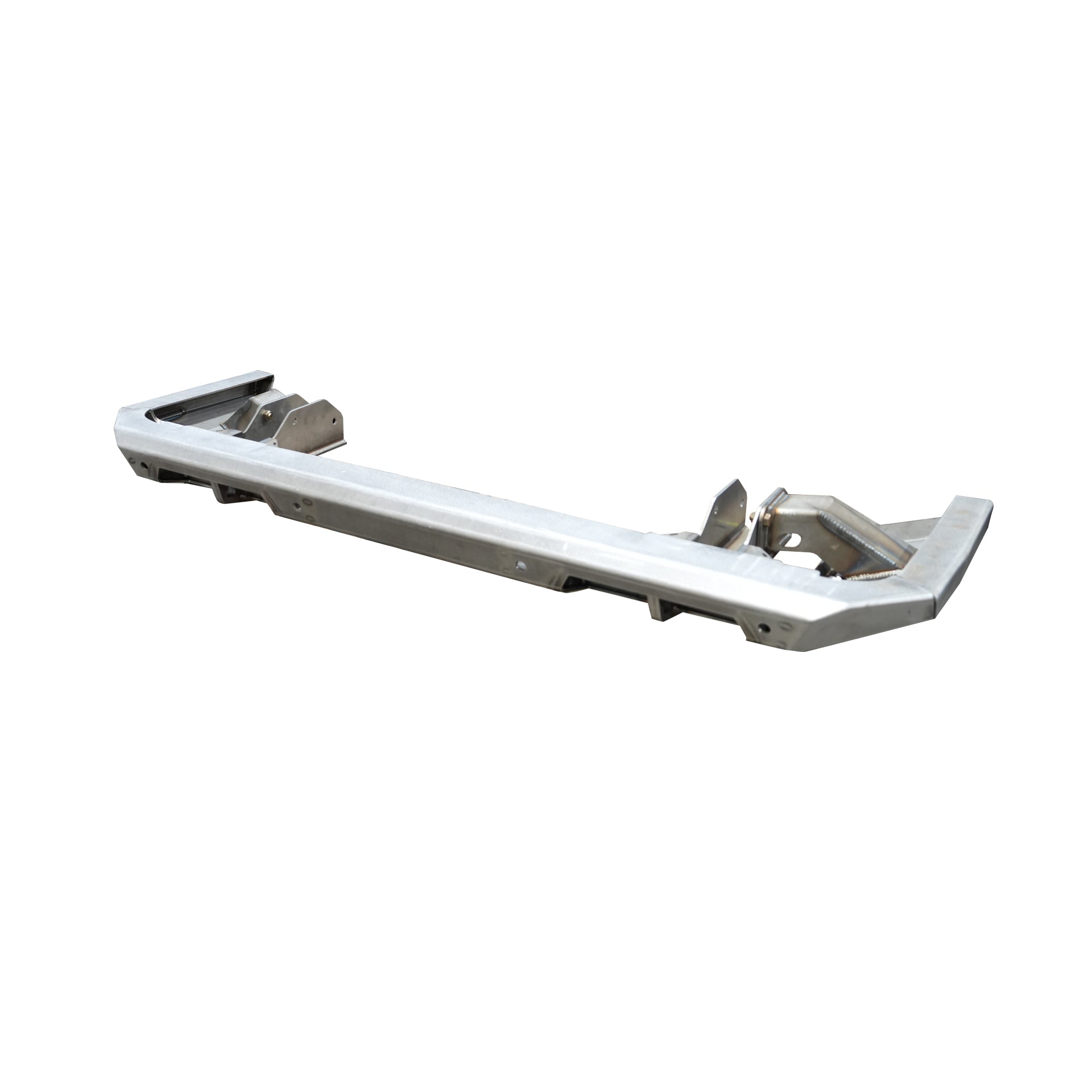

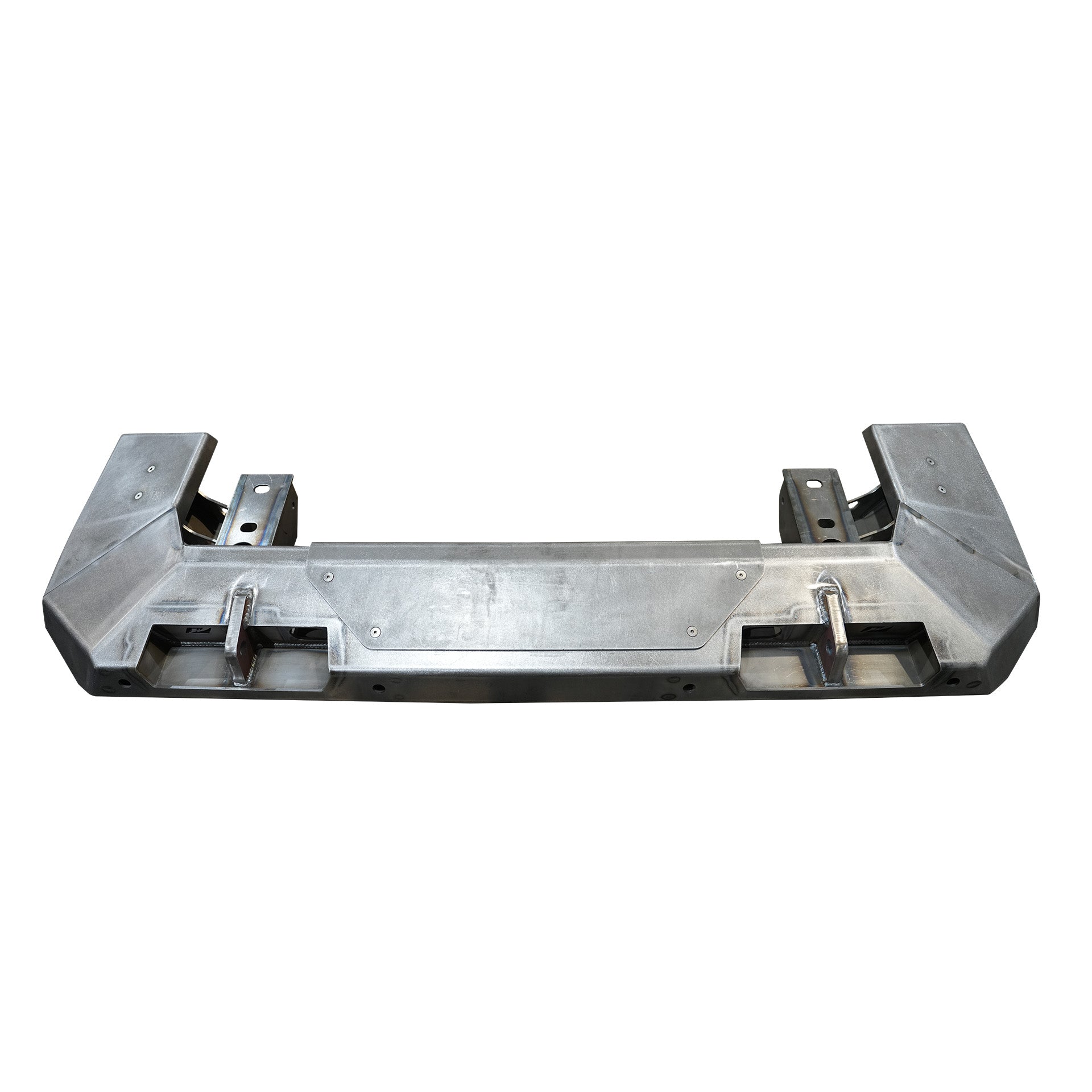

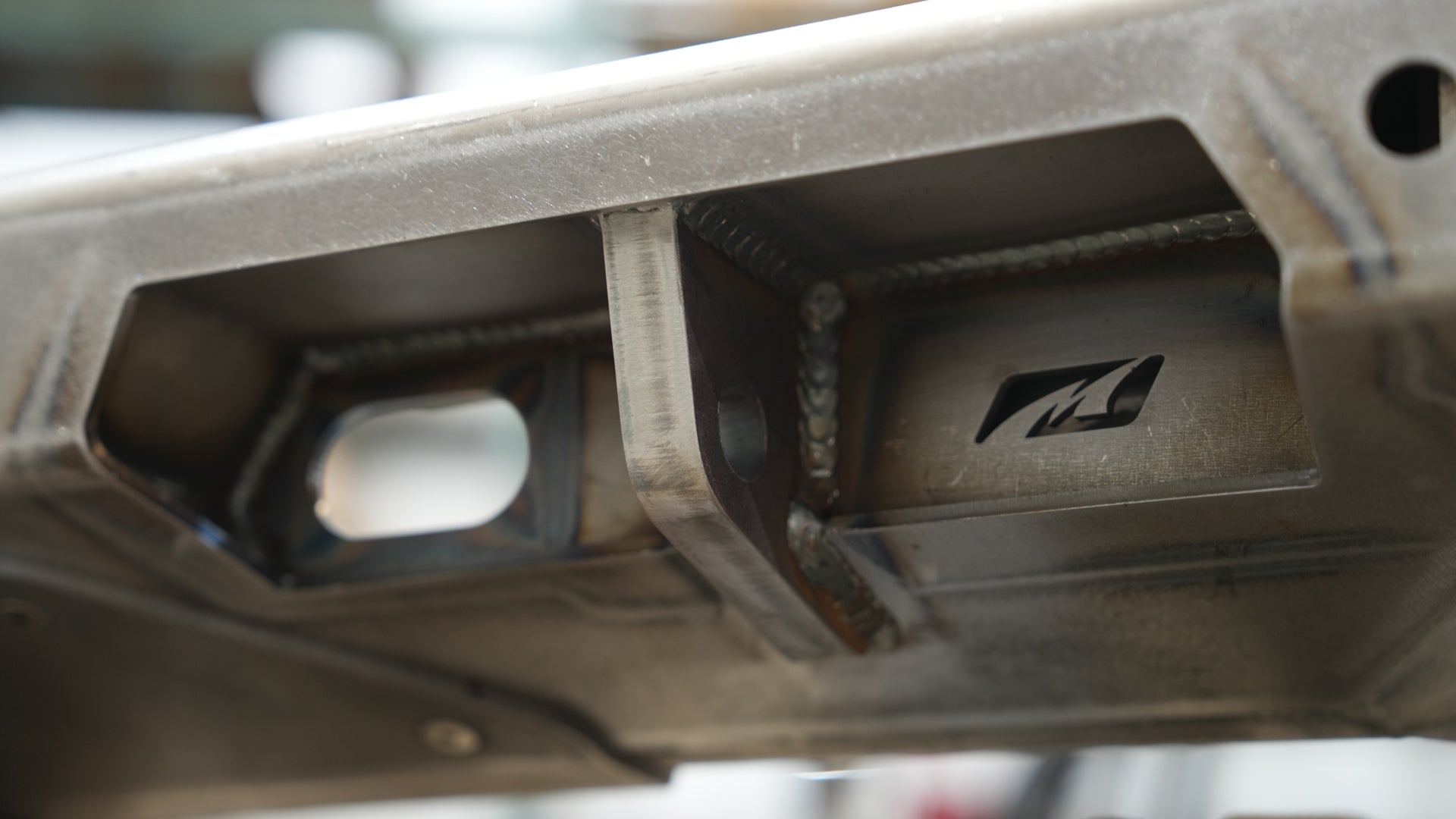

The bumper is constructed from heavy duty steel and uses recessed 3/4 inch thick pass-through D-ring mounts that are tied directly into the structure. These recovery points are positioned to maintain clearance while still being functional. The bumper also includes integrated mounting locations for compact rear lighting. Baja Designs S2 Sport lights, part number 547806, fit cleanly into the design and provide useful rear visibility on the trail.

Like all Tomahawk series components, this bumper reflects real fabrication experience. It is designed around clearance, strength, and how the Gladiator actually gets used off-road.

Important information

Designed for 2020–current Jeep Gladiator JT

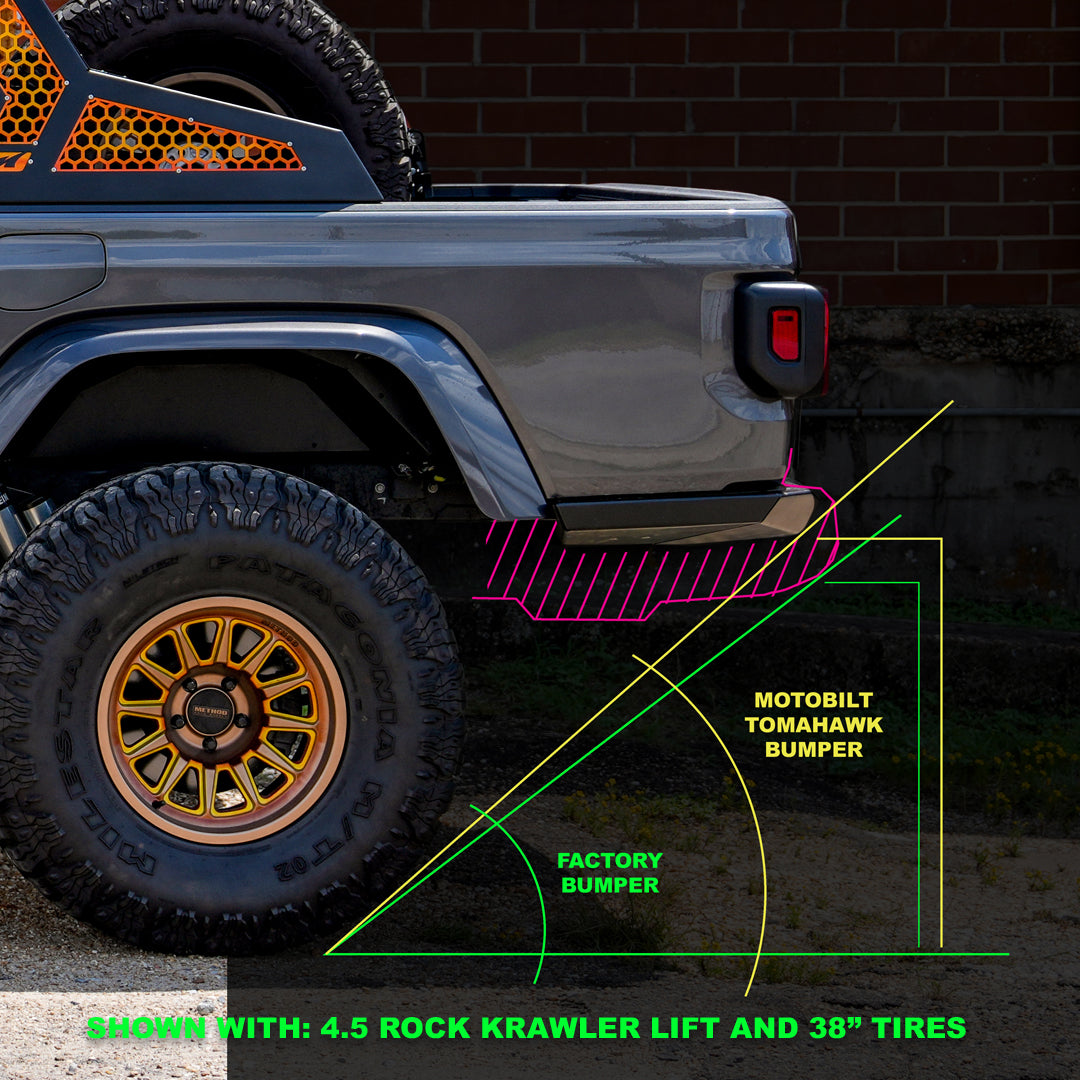

High clearance design improves departure angle

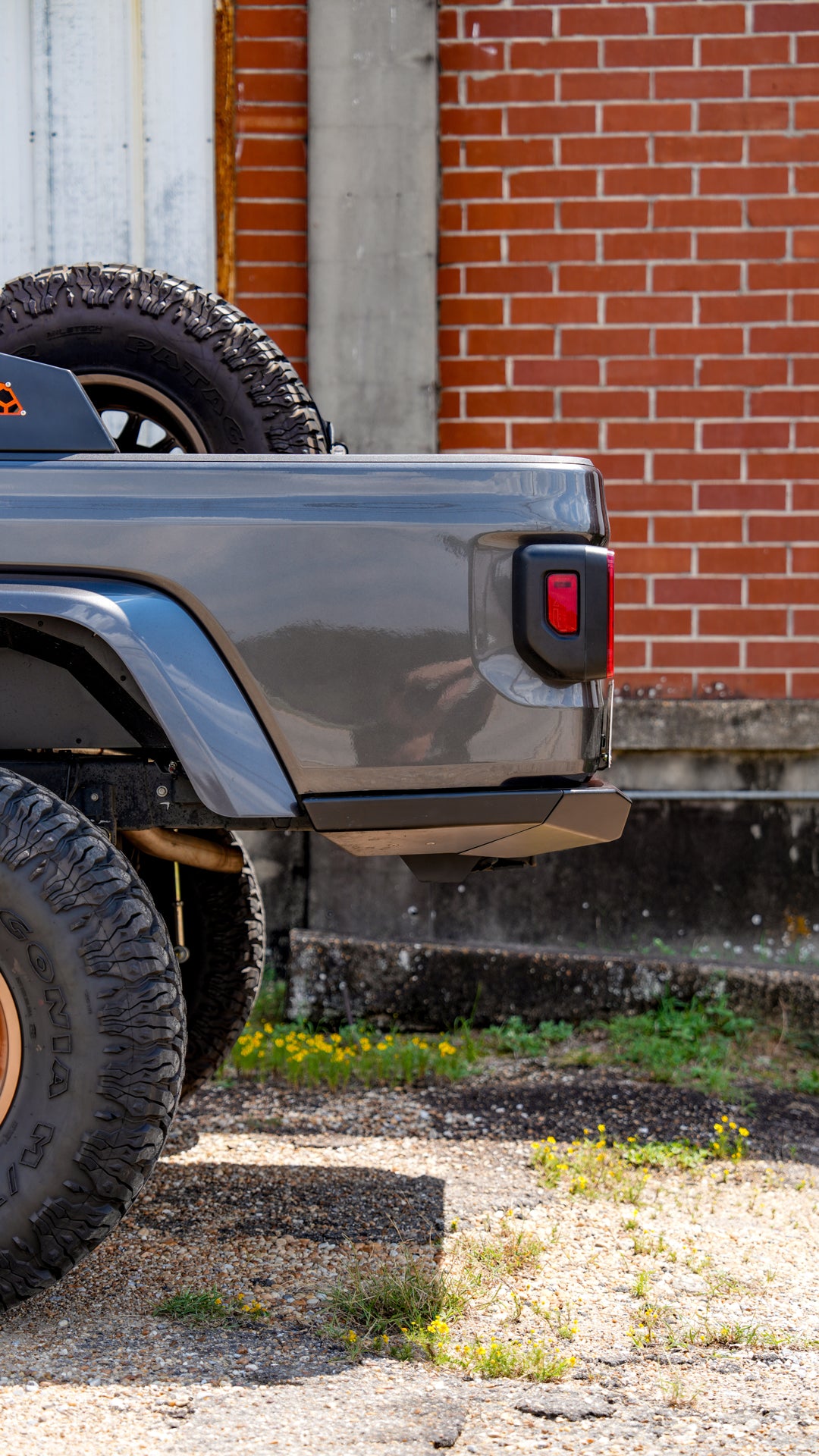

Sits tighter to the body than factory bumper
Includes modular rocker protection for bed corner protection

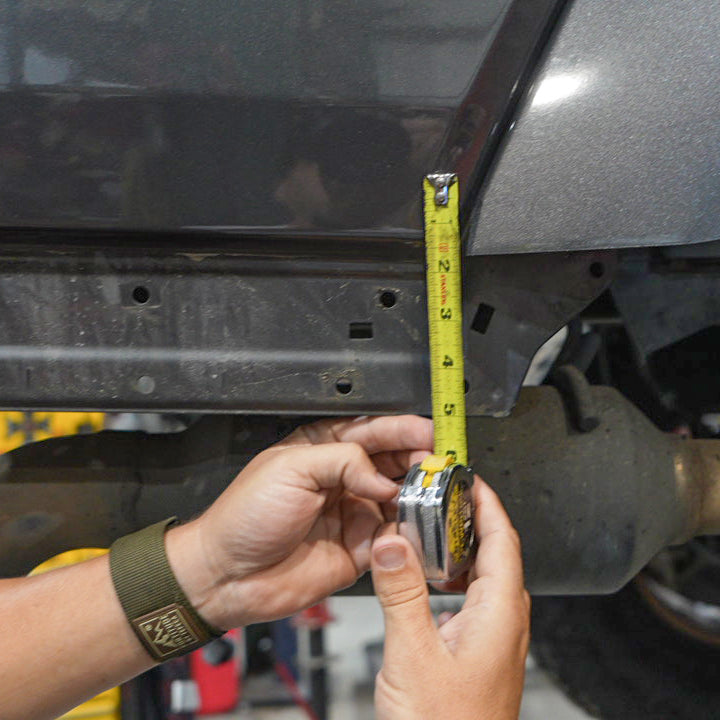

Requires trimming approximately 4 inches from lower bed corners
No frame cutting or drilling required
Constructed from heavy duty steel
Recessed 3/4 inch thick pass-through D-ring mounts
Mounting locations for Baja Designs S2 Sport lights (part number 547806)
Retains factory trailer wiring with included relocation bracket
Includes hitch delete skid plate for smooth center section
Optional Motobilt hitch (MB1186) available, not included
Does not work with factory hitch
Ships bare steel and must be painted or coated before installation

Product specifications

Vehicle Fitment

2020–Current Jeep Gladiator JT

Material

Steel

Dimensions

73 x 13 x 13 inches

Weight

97 lbs

Manufactured

Made in the USA

Notes

Trimming of approximately 4 inches from the lower bed corners is required for proper fitment.
Test fit all components before final coating or installation.
Paint or powder coat the bumper prior to final install.
If running rear lighting, Baja Designs S2 Sport lights (part number 547806) are recommended for proper fitment.
If a receiver hitch is needed, the optional Motobilt MB1186 hitch must be used.
Optional license plate relocation kit sold separately. MB2207

Frequently asked questions

How does a high clearance rear bumper help on a Jeep Gladiator JT?

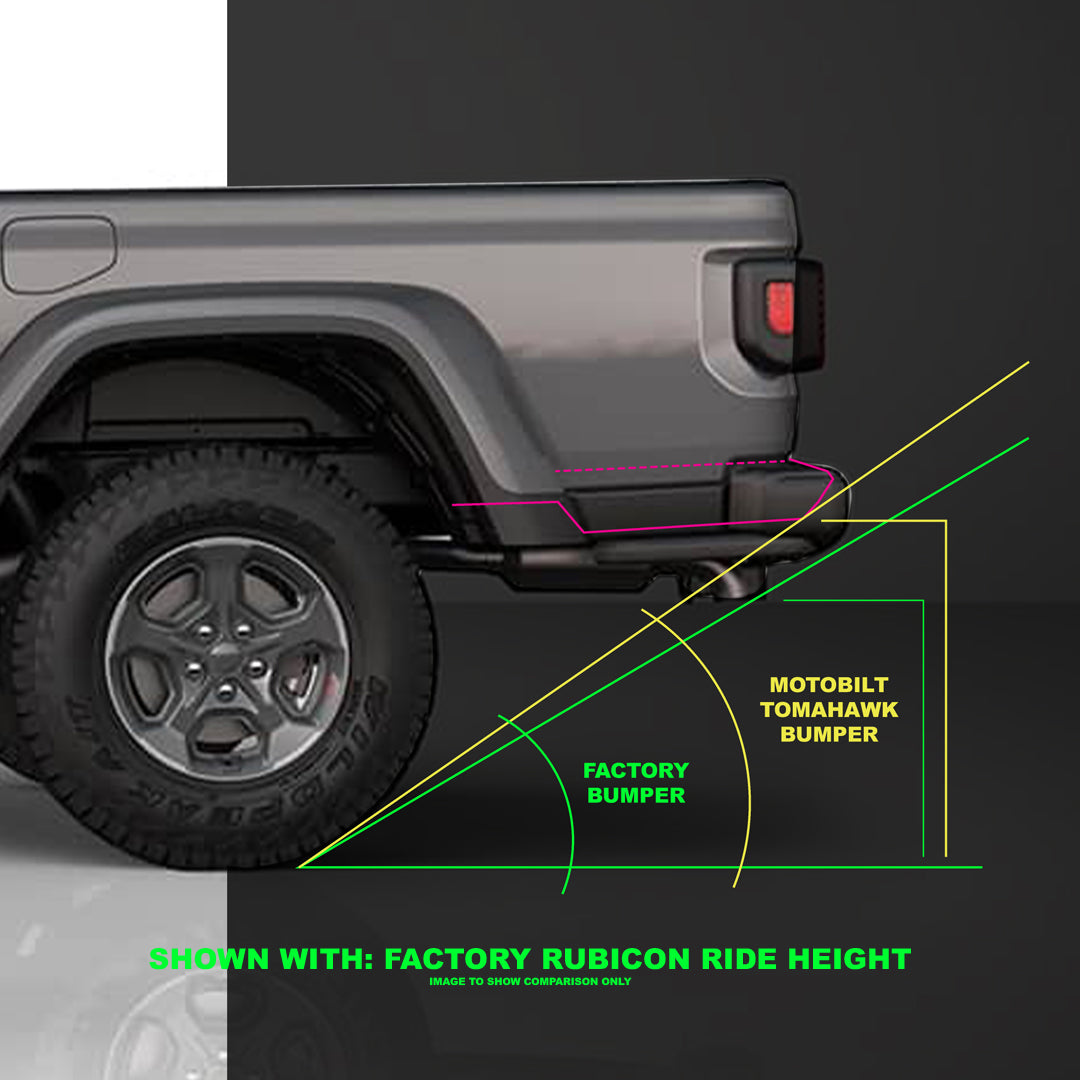

A high clearance bumper improves departure angle by reducing how far the bumper extends below and behind the frame. This helps prevent dragging the rear of the truck on obstacles.

Do I have to cut the frame to install this bumper?

No. This bumper does not require any frame cutting or drilling. Only the lower bed corners need to be trimmed.

What lights fit in this bumper?

The bumper is designed to accept compact cube lights like the Baja Designs S2 Sport, part number 547806.

What is the purpose of the rocker protection?

The rocker protection reinforces the lower bed section between the wheel well and bumper, which is a common impact area during off-road use.

Can I run a hitch with this bumper?

Yes, but you must use the optional Motobilt MB1186 hitch. The factory hitch is not compatible with this bumper.

Additional product details & documents

The Motobilt MB1262 Tomahawk High Clearance Rear Bumper is engineered specifically for the 2020–current Jeep Gladiator JT, delivering unmatched departure angle improvement and off-road performance. Rocker protection is included to protect that vulnerable section of your bed between the wheel well and rear bumper. Designed to sit higher and tighter than the factory bumper, the Tomahawk provides the maximum available clearance possible for a factory bed and added protection for your rig on the trails.

Built in the USA from heavy-duty steel with recessed 3/4-inch thick pass-through D-ring mounts, this Jeep Gladiator rear bumper combines superior strength, rock-solid recovery points, the ability to mount Baja Design S2 lights, and aggressive styling for serious off-roaders.

Built Tough for your Gladiator

Removable modular rocker protection included - gives you flexibility for trail armor or a cleaner look.
Mounting location for Baja Designs S2 lights - add the Baja Designs or similar lights of your choice.
Heavy-Duty 3/4-inch D-rings - built into the bumper for optimal clearance without sacrificing function.
Hitch Delete Skid Plate Included - not looking to run a hitch receiver? The skid cover is included. Adds a smooth transition through the center of your bumper.
8 Mounting Points - get maximum support to your frame.
Retains Factory Trailer Wiring - relocates your factory plugs for added clearance.
Optional Motobilt Hitch (MB1186) - 2-inch square, 1/4-inch wall steel, bolts directly to the frame and bumper, with an integrated trailer wiring mount. Retains your factory receiver plug wiring. Does NOT work with factory hitch.
Optional License Plate Relocation Kit - coming soon.

Easy, Secure Installation

The Tomahawk requires trimming approximately 4 inches from the lower corners of the Gladiator bed for maximum clearance. The frame requires no cutting or drilling. The bumper secures with 8 mounting points for superior strength and rigidity.

Notes:

Requires trimming Gladiator bed corners (~4"), no frame modifications
Fits 2020–current Jeep Gladiator JT
Made in the USA from heavy-duty steel
Includes skid plate for non-hitch setups
Includes trailer wiring plugs relocation bracket
Modular rocker protection — removable as desired
Mounting locations for Baja Designs S2 lights (lights not included)
Optional MB1186 Hitch (not included)
Optional License Plate Relocation Kit (coming soon)
