Bobbed Bed Package w/ Body Armor for Jeep JT Gladiator Gas

Everything you need to begin to build one bad bobbed-bed Gladiator - all in one bundle.

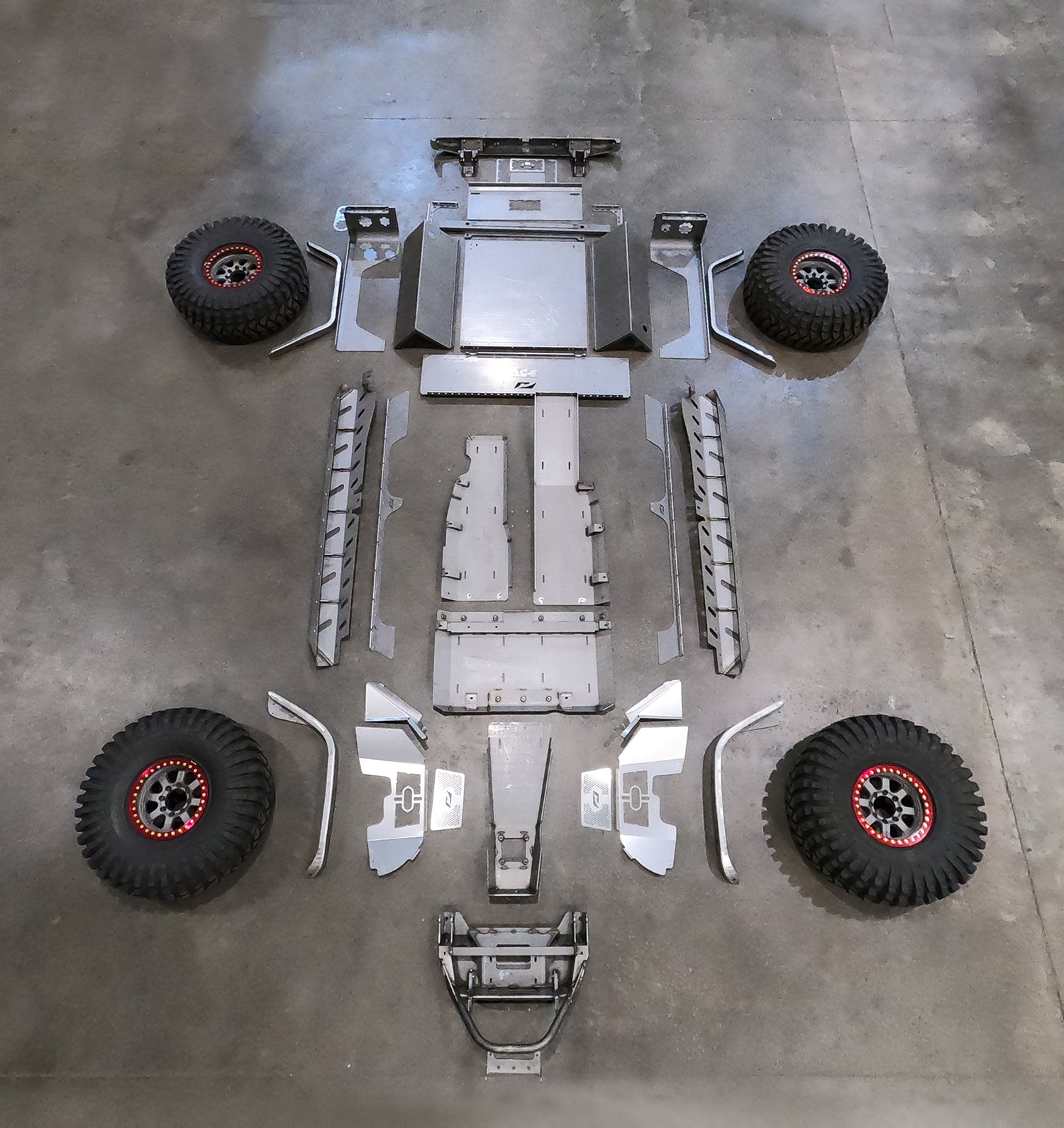

This bundle includes:

• Bobbed Replacement Bed for Jeep Gladiator
• Tomahawk Frame Chop Front Bumper w/Bull Bar for Jeep JK, JL, JT
• Skid Plate System for Jeep JT Gladiator with 3.6L V-6 Gas Engine

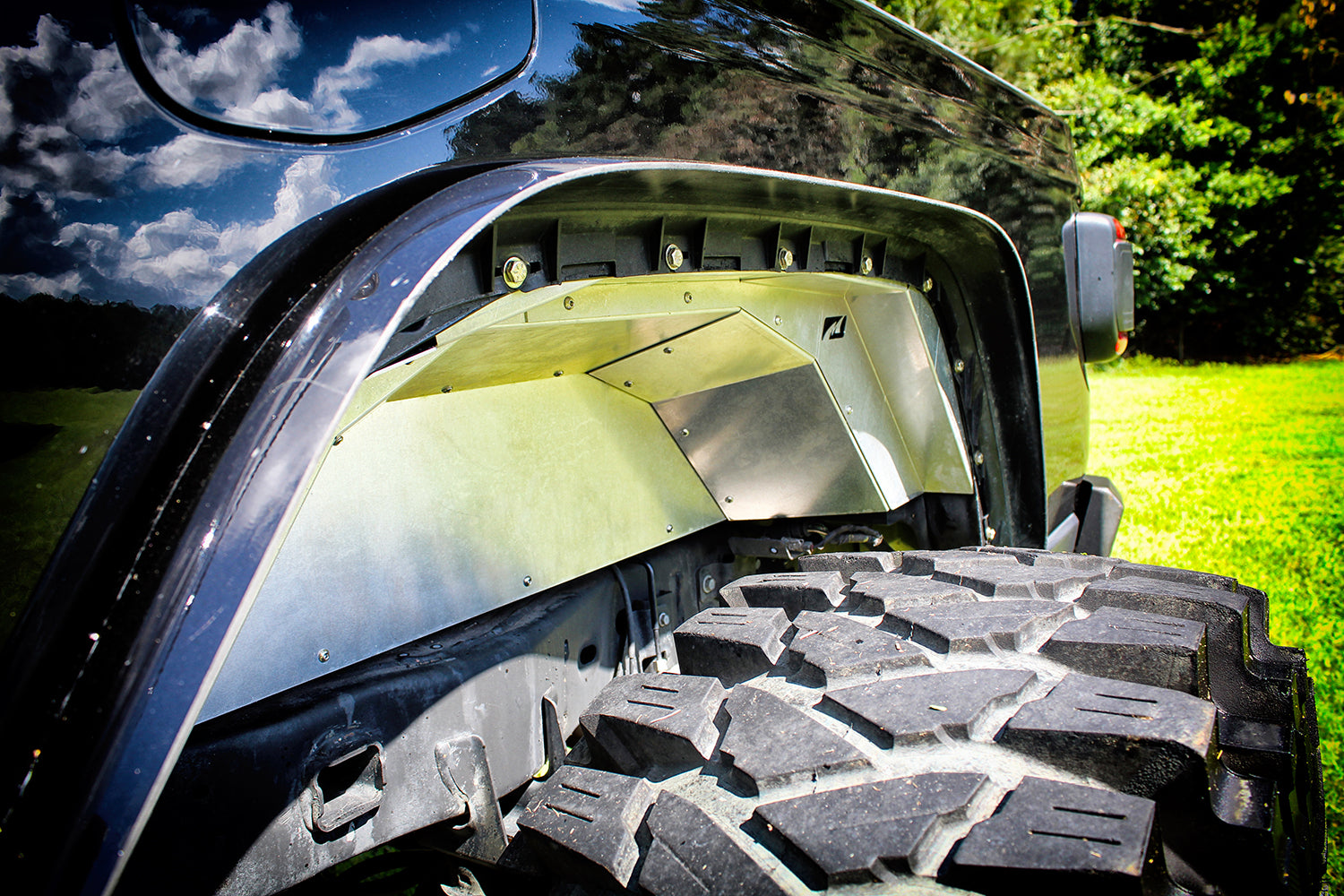

• Front Inner Fenders Aluminum for Jeep JL / JLU / JT Gladiator

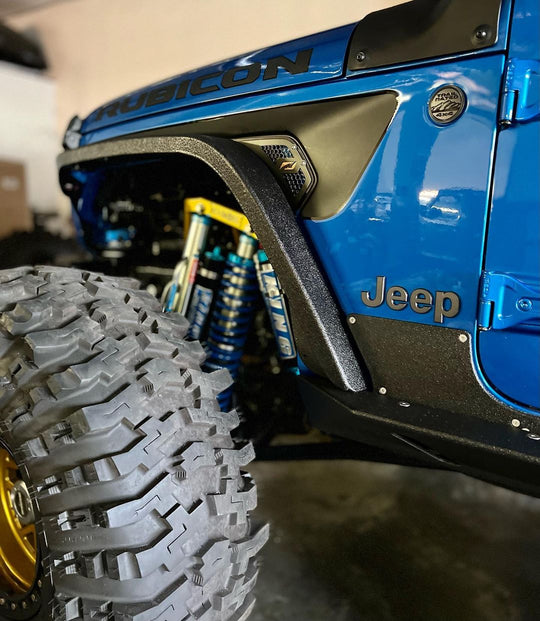

• Front and Rear Fender Flares for Jeep JT Gladiator
• Rocker Guards w/Steps for JT Gladiator
• Motobilt 10" FAIRLEAD LED Single Row Light Bar Mount.

So get started turning that JT Gladiator into a beast with the Motobilt Bobbed Gladiator Bundle!

Bobbed replacement bed notes:

NOTE:  This is a permanent modification to your vehicle.  The factory frame will be shortened.  Check your local laws & insurance company before making modifications.  This system is NOT compatible with optional factory taillight blind spot sensors.  You can turn off the rear taillight blind spot features using a programmable Tazer.  The rear bumper is compatible with the factory rear park assist sensors.  This kit does NOT provide any provisions for towing.

Tomahawk Frame Chop Bumper Notes:

You WILL NOT be able to return your vehicle back to factory bumpers after installation of this product.

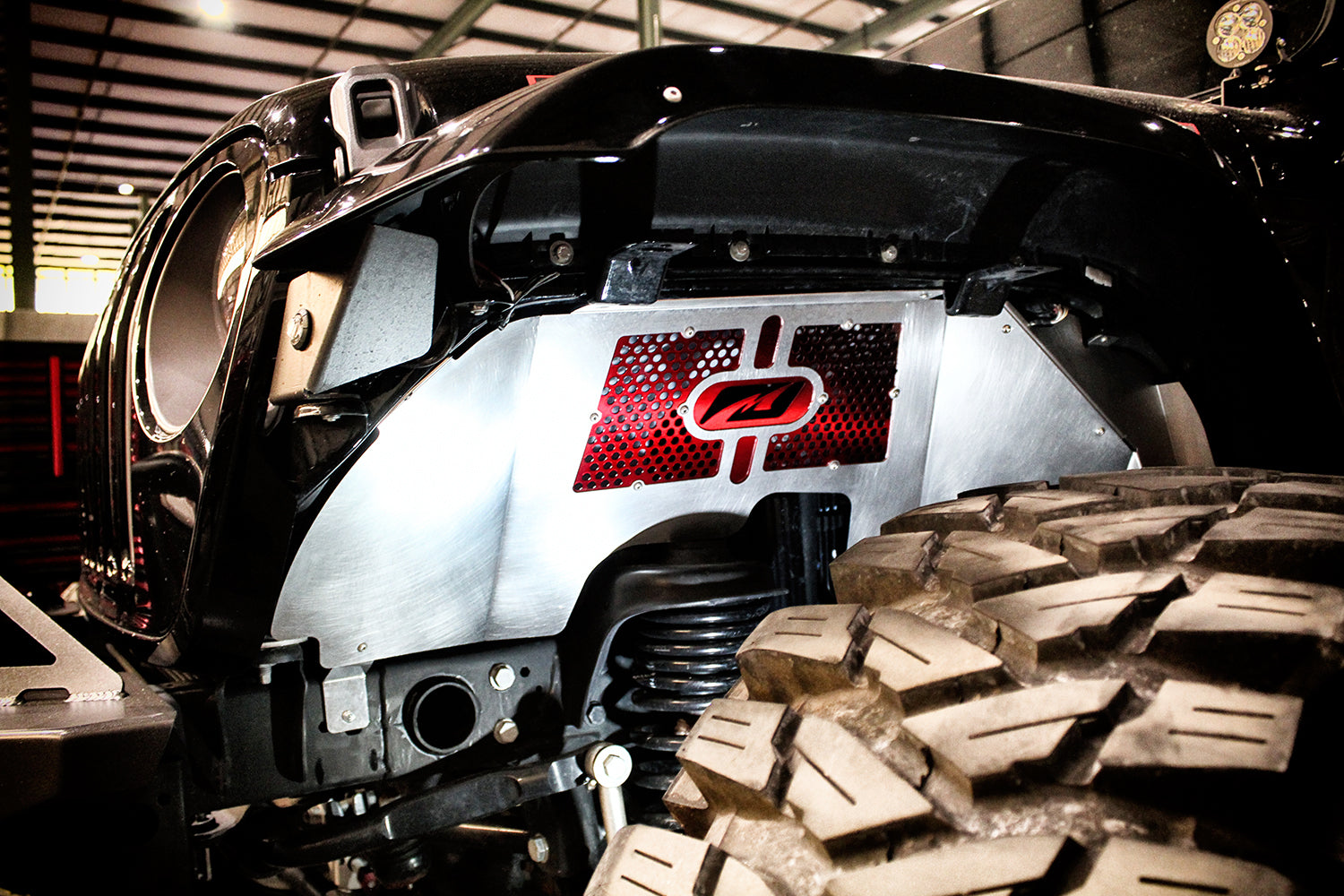

Skid Plate System Notes:

IMPORTANT: On some Gladiator models, you will have to drill into the frame and crossmember in order to install the exhaust skid plate. Please see instructions showing the holes you will need to drill if your Gladiator model does not already have them. Once these holes have been drilled, you will need to install the included weld nuts.

This skid system will NOT work with the 2021-2022 models due to engine mount configuration.

Specifications

Bobbed Bed Replacement Kit

WHAT’S INCLUDED:

• Complete Motobilt Bobbed Bed Kit for Gladiator
• Tailgate Kit including latches, lanyards, hinges and aluminum license plate trim bezel
• Tail Light Mount Kit with aluminum trim bezels
• Round LED pop in tail lights
• Resistors for factory non-LED tail lights
• 3/4” LED Side Marker Lights for those who need them
• Off-road Only License Plate Lights / Third Brake Light
• Relocation Parts for factory fuel filler neck
• Roll Bar Plates for inner fenders
• Bed Stiffeners
• Front Cargo Tie Down Points
• Backing Plate for front Motobilt logo cutout
• Rear Bumper with sensor provisions and backup camera mount
• Rear Bumper Frame Mounts
• Rear Fenders
• Block Off Plate for Gladiators not equipped with 120v bed plug
• All Hardware needed for assembly and install

 FEATURES:

• Bolt-on Installation (no welding required)
• 18” shorter overall (including bumper) than factory
• Drastically increased departure angle
• Heavy duty steel construction
• Fold down tailgate with automotive grade cables
• Rattle free adjustment latches with integrated rubber bumpers
• Recessed LED taillights with reverse lights included
• Mount for rear facing accessory lights
• Recessed License Plate
• Rear Camera Mount
• Uses factory fuel filler neck and cap.  No emissions concerns as the fuel system is not modified.
• Aluminum trim bezels around taillights and license plate for a custom look
• Rear Bed Stiffeners with tie down points
• Forward tie down points to secure your cargo
• Integrated Slots along top bed rail to bolt on accessories
• Larger wheel openings for large diameter tires
• Heavy duty bolt on fenders
• Heavy duty bolt on rear bumper
• Rear bumper integrates rear parking sensors
• Mounting plates for those wanting to fabricate a roll bar or headache rack
• Bolt on zip tie tabs to help arrange wiring
• 19.5 cu ft of storage space under the bed rails
• Complete assembly / install instructions

BENEFITS:

• Minimal rear overhang of body and frame means you can tackle much larger obstacles with substantially less risk of dragging the rear of the vehicle
• Fast and easy bolt on installation
• No modifications to the fuel or emission systems (some tabs will be trimmed from the filler neck)
• Rear bumper park sensor compatible
• Rear camera is located from the tailgate mount inside the rear bumper which provides more protection and will allow you to run without the tailgate
• Recovery points in the rear bumper
• Protected taillights
• Heavy duty steel construction to vastly reduce the chance of trail damage
• Bolts to factory frame mounts
• Easy wiring for LED and non LED Gladiators
• Accepts large diameter tires
• Reuses the factory 120v outlet in the bed

SPECIFICATIONS:

• Weight (Bed) 420 lbs
• Weight (Fenders) 35 lbs
• Weight (Bumper and mounting brackets) 70 lbs
• Dimensions (Bed Exterior) 48.3” L x 64.5” W x 16.6” H
• Dimensions (Bed Interior) = 45.6” L x 40.6” W x 14.9” H
• Cargo Capacity 19.5 cu ft

WHAT’S NOT INCLUDED:

• Tazer programmer to reprogram the factory computer to turn off lane assist sensors if factory equipped
• Rear facing accessory lights (Example: Baja Designs Squadrons)
• Kit is shipped bare metal and will need to be painted or powder coated to the color the installer chooses.

Instructions

Bobbed Bed Assembly Instructions

Tomahawk Installation Instructions

Front Fender Flares Installation Instructions

Rocker Guards w/Steps Installation Instructions

Front Inner Fender Installation Instructions

Skid Plate System Assembly Instructions
