Rollovers and flops are a very real possibility to anyone that uses their Jeep off road. The factory jeep cage is constructed using stamped steel to simulate a cage look, but is no stronger than any other vehicle you see on the road today. The sport cages do increase the stiffness of the factory cage, but still rely on the factory mounting points.

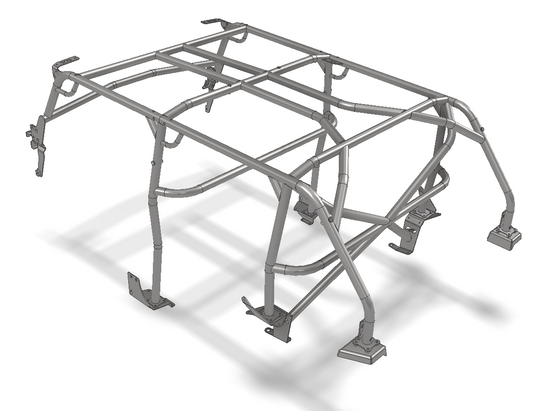

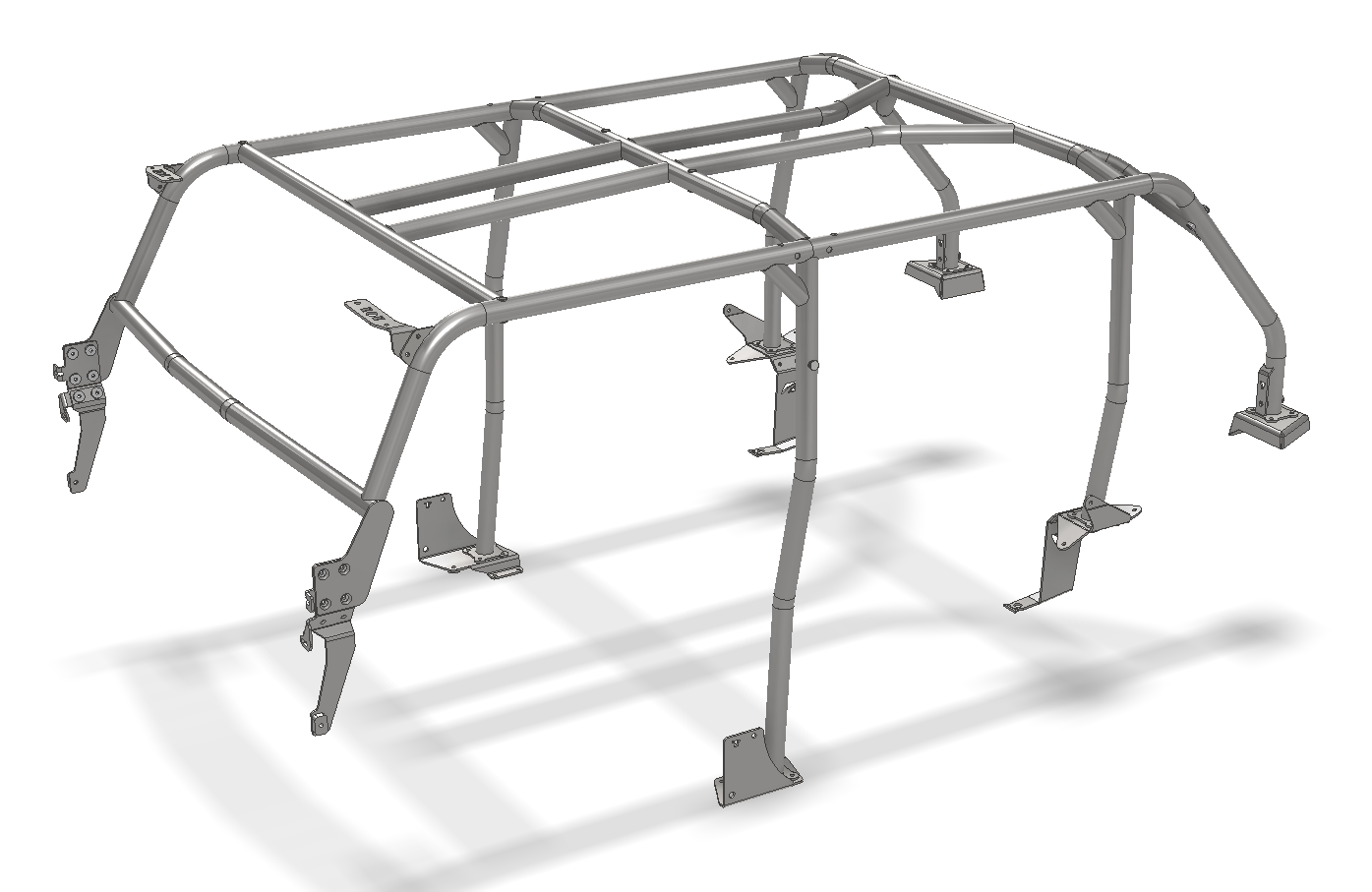

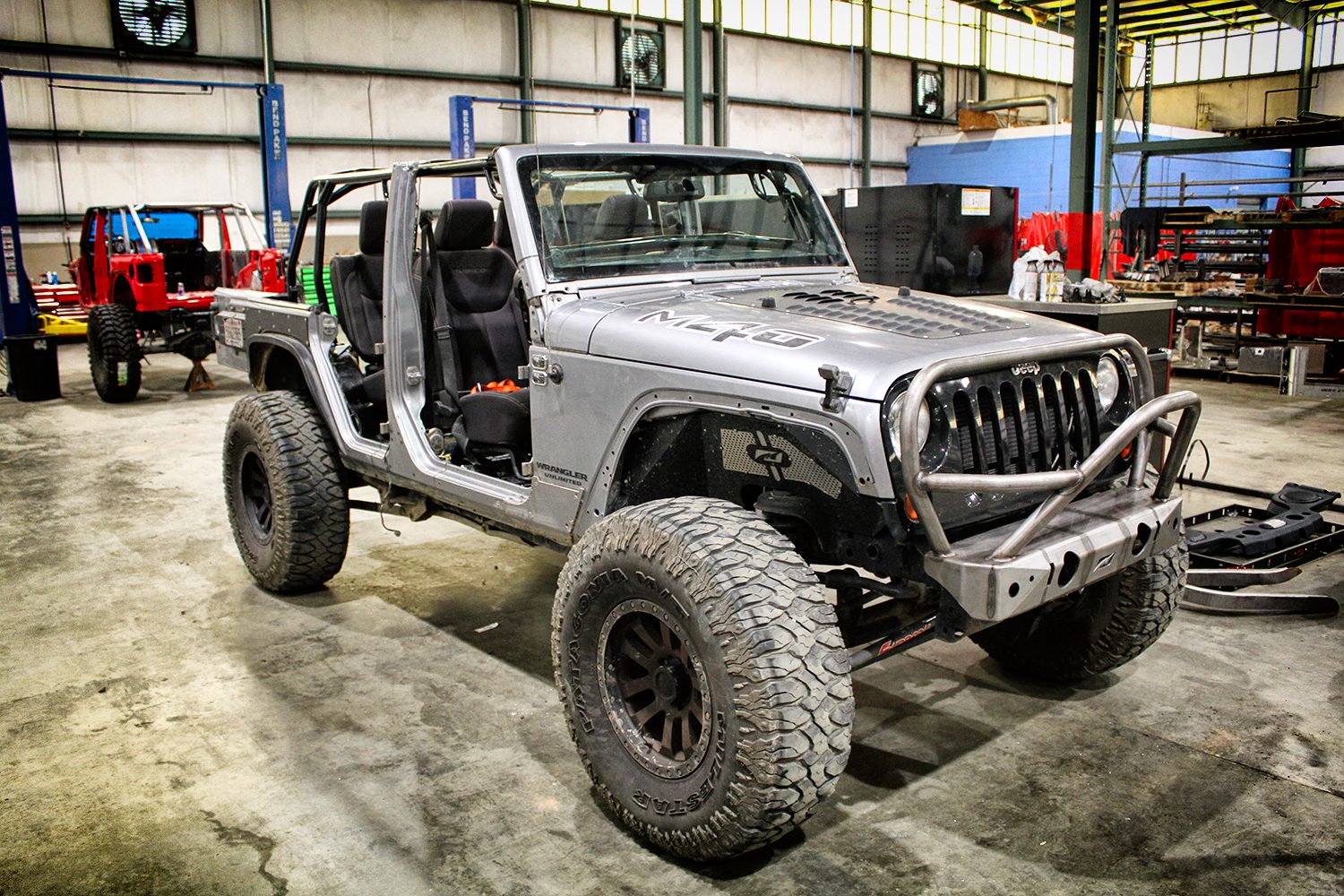

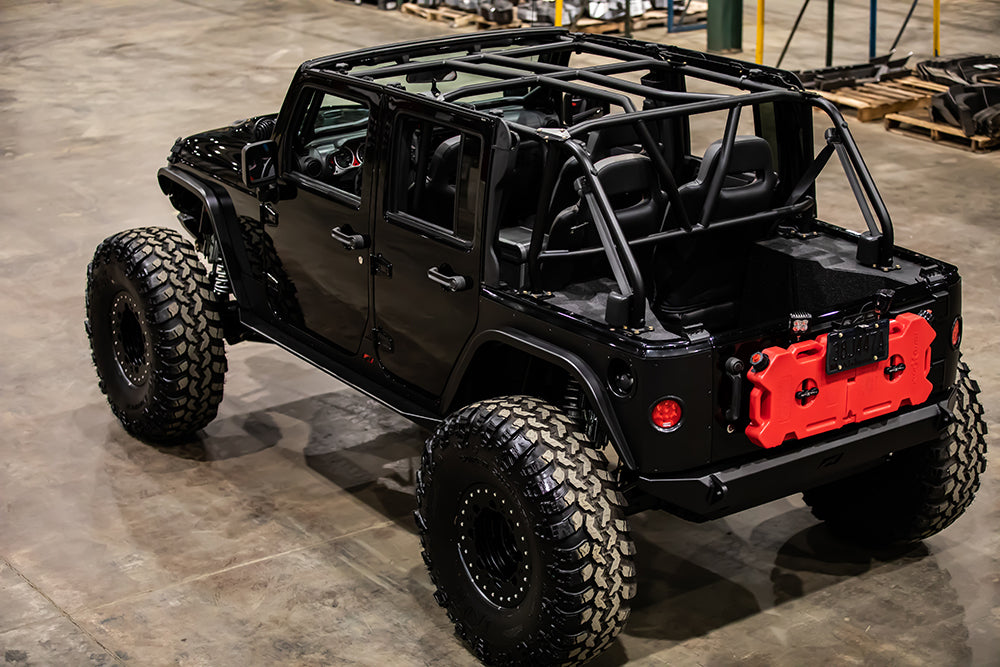

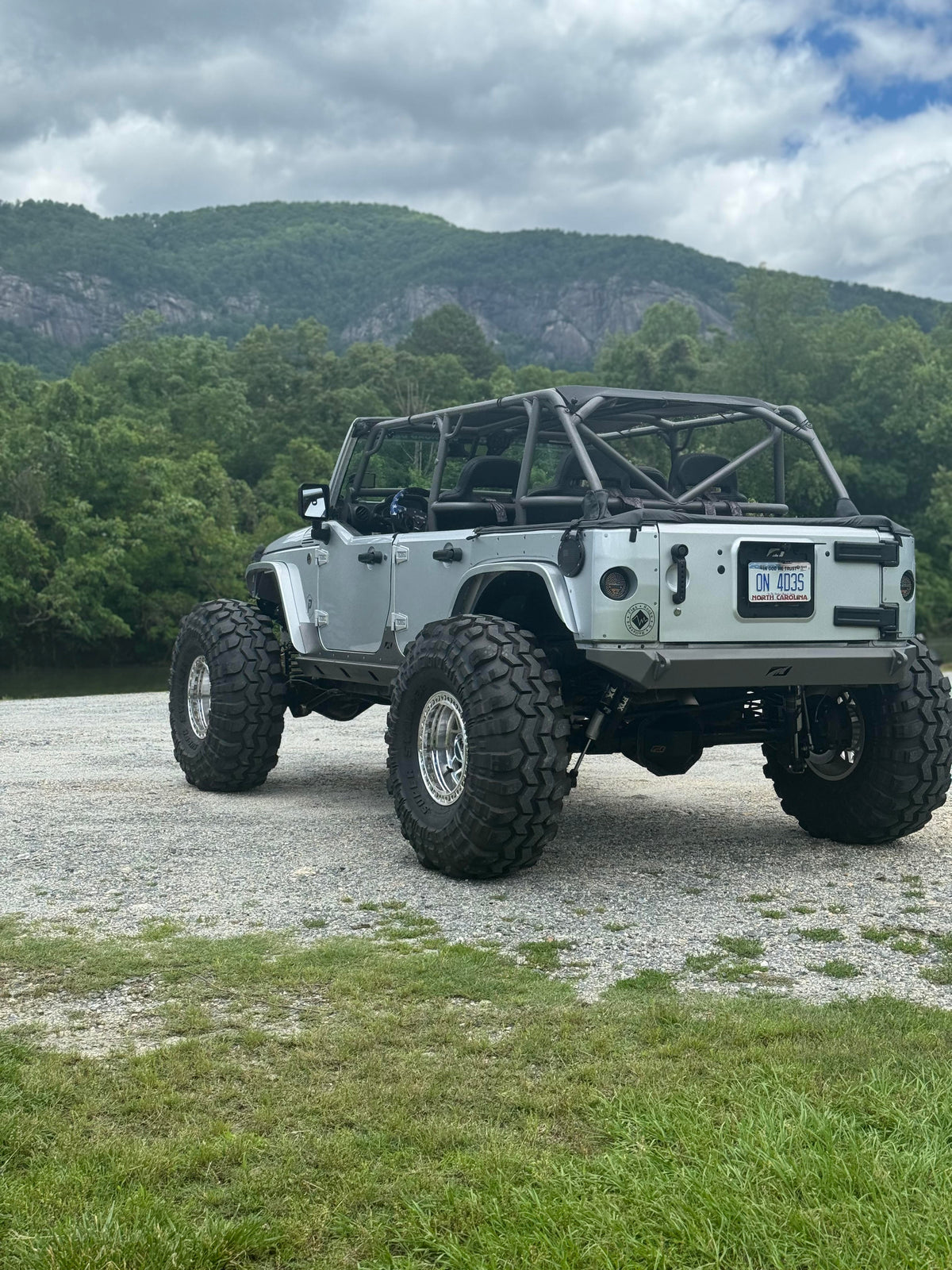

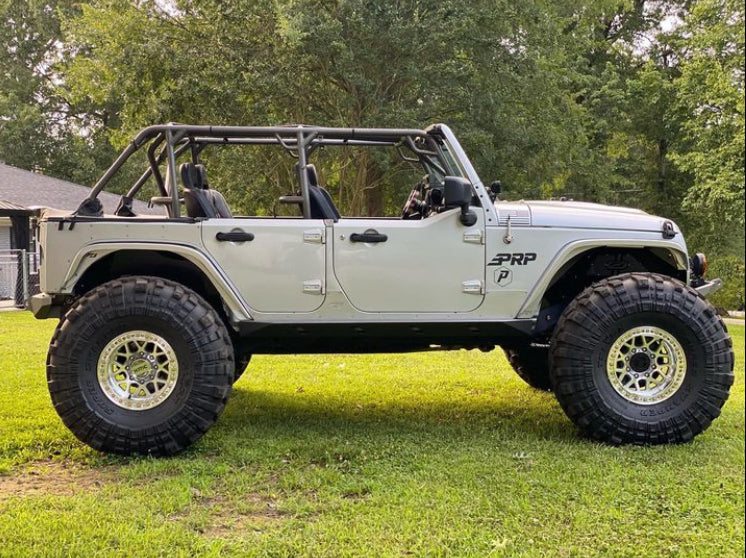

The Motobilt MB3033 JKU cage kit replaces the factory stamped steel cage with 1-3/4” DOM 0.120” wall tubing. The Motobilt cage adds A-pillars where the only support in the front was the windshield. Another set of support is added behind the rear seats that include a C-Pillar and X-bar bracing.

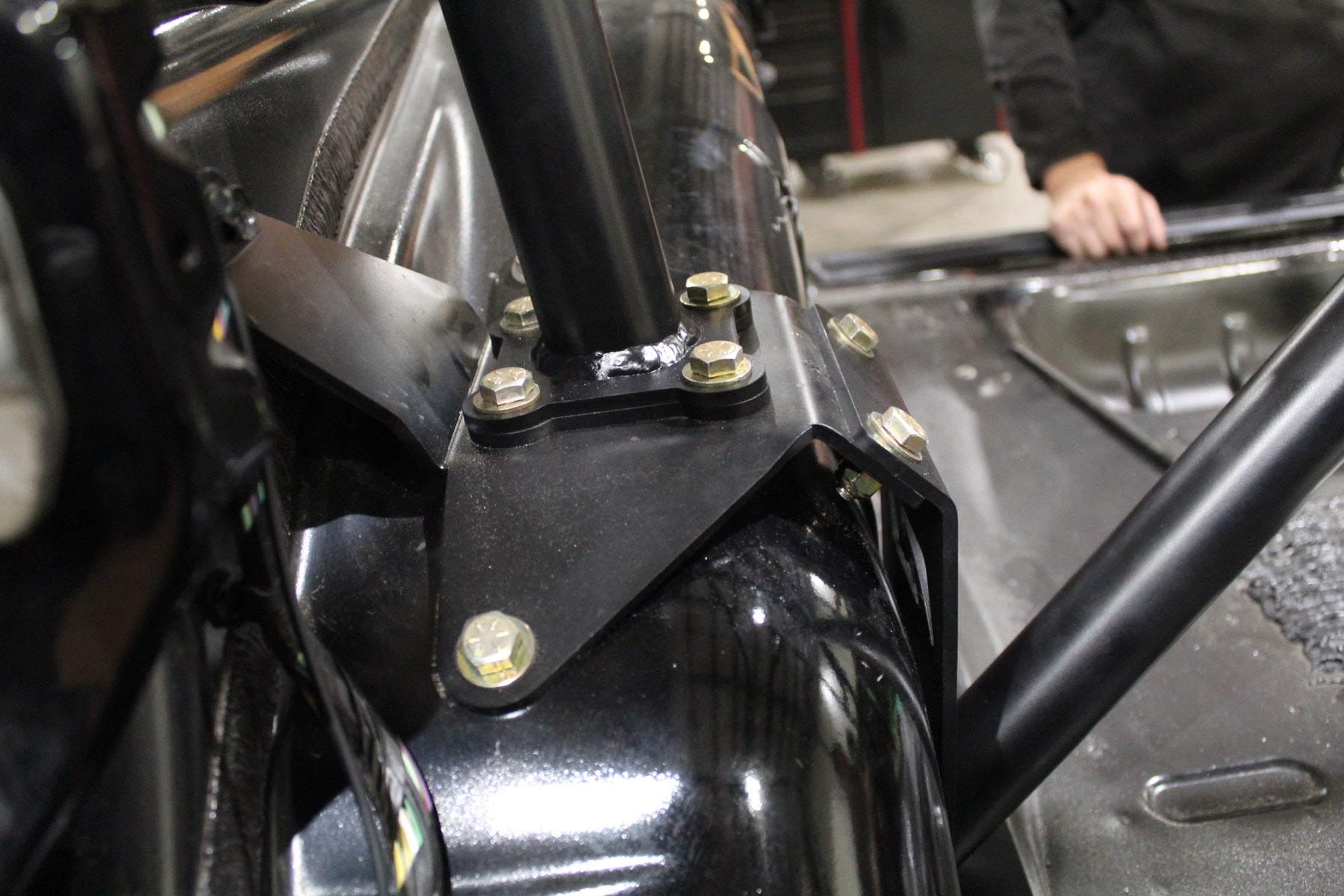

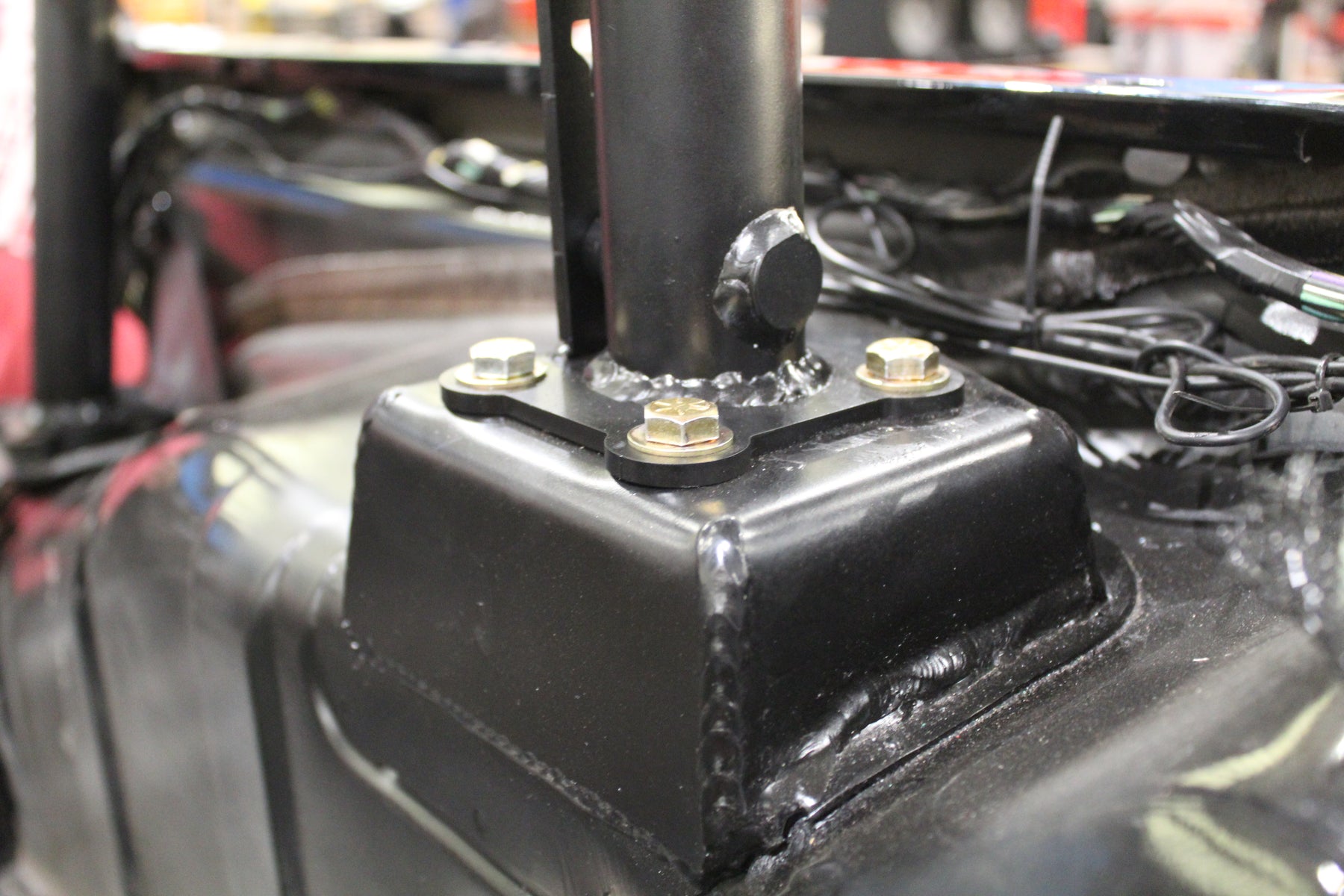

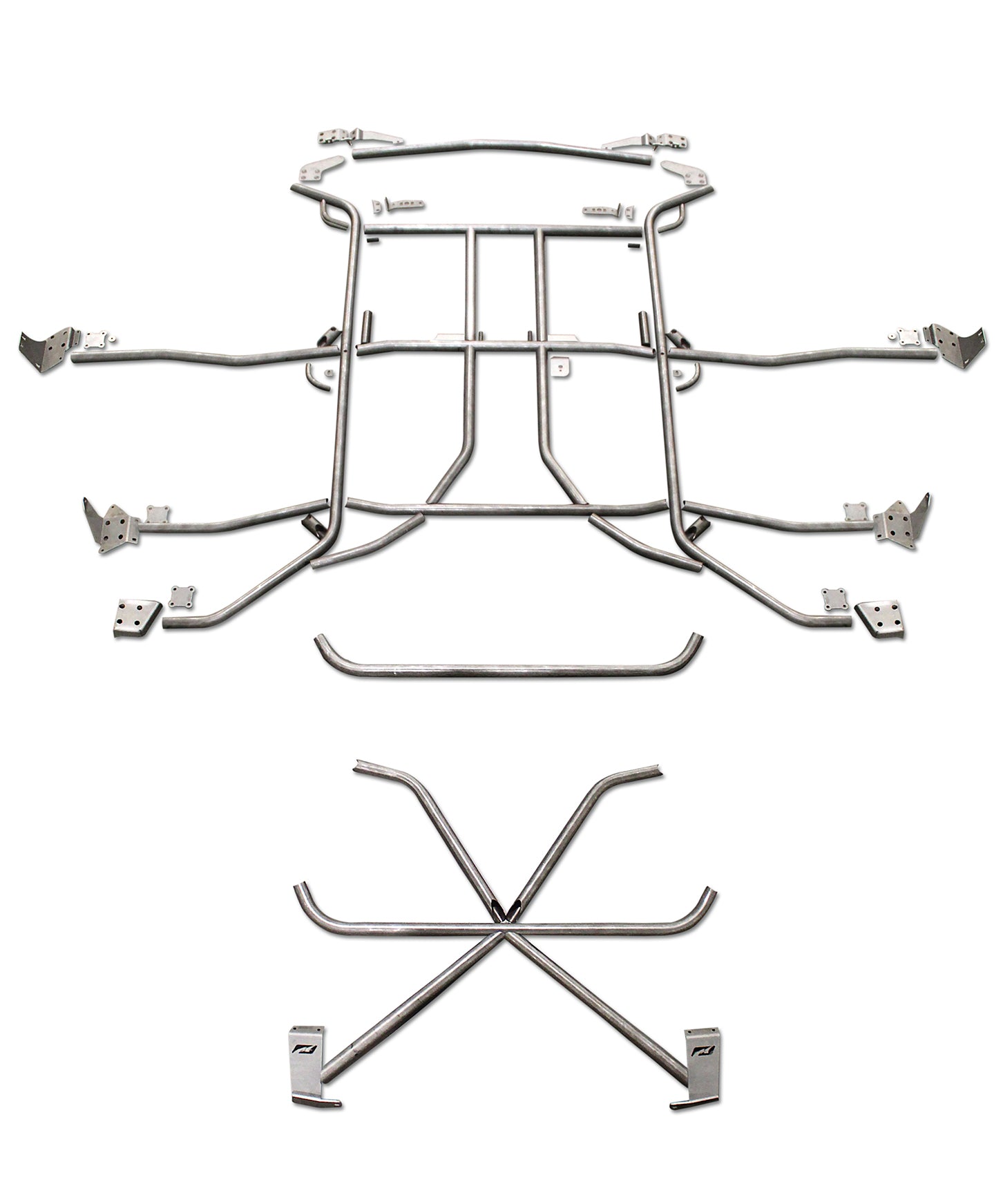

The Motobilt JKU cage is precision cut on a fiber laser then CNC bent to provide a consistent and tight fit to your jeep. All the tubes are 1-3/4” DOM 0.120 wall tubes and come pre-notched and labeled to allow you to fit the cage together. All the cage mounting points are 3/16” steel and are bent and formed to the factory tub and we have doubled the cage mounting points for four to eight allowing the load to be spread out even more in the event of a rollover. All of the hardware necessary to install the cage is grade 8 and is included with the kit.

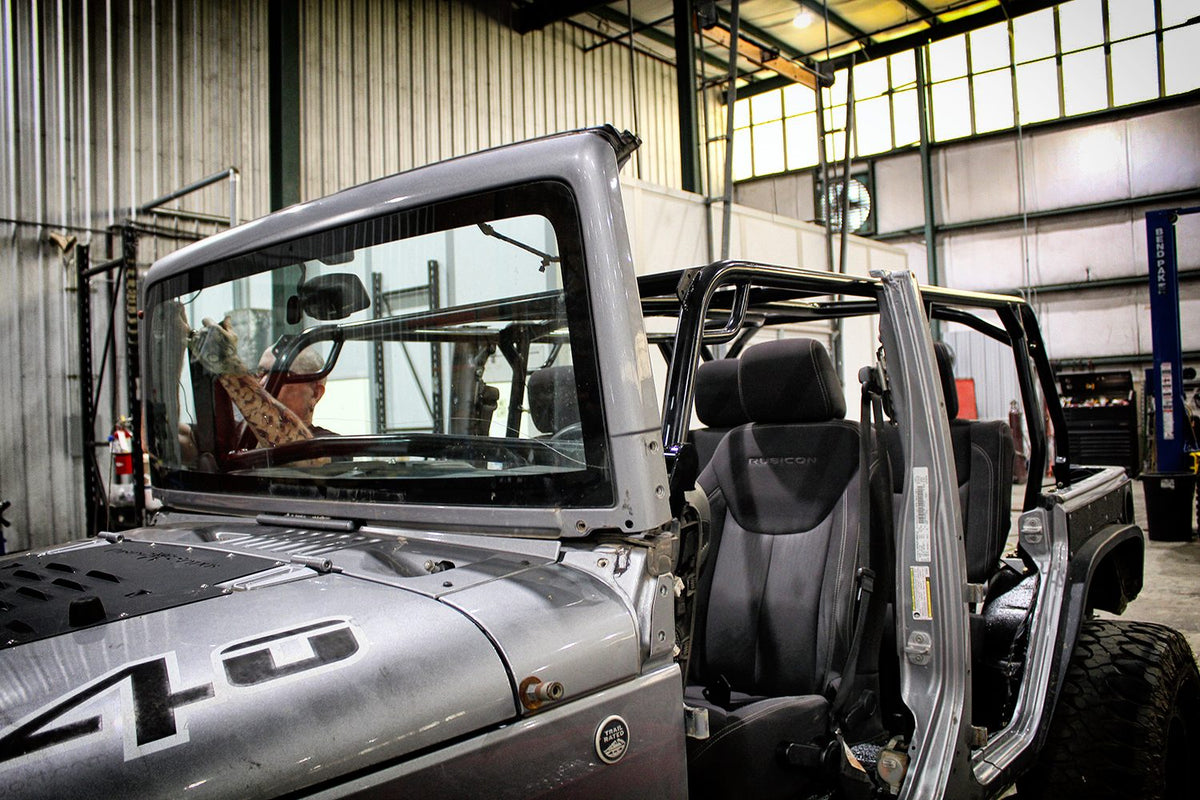

The Motobilt JKU is a replacement of the factory cage. The Motobilt cage requires the removal of the factory cage and the new cage welded in. Every cage comes with a set of assembly instructions that will guide you how to cut out the factory cage and assemble the new Motobilt cage. We recommend assembling the cage inside the jeep then it can be removed after assembly to be powder coated or painted.

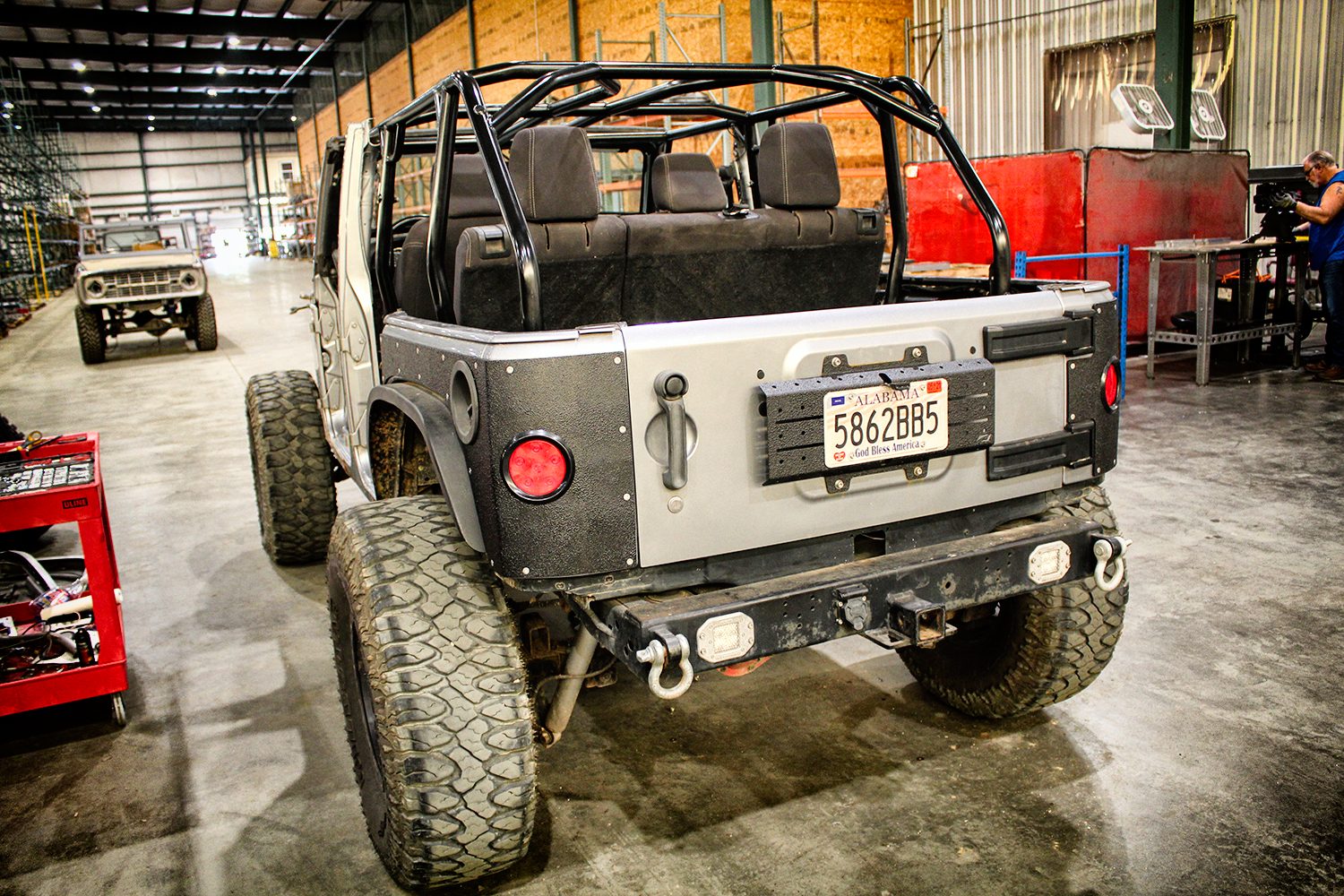

The Motobilt JKU cage was designed for the user to be able to retain all the factory seats and seat belts, while also allowing for the factory hard top to be used. Factory and aftermarket soft tops can still be used with some modification. This cage is also designed to be used with the factory doors or any aftermarket half doors.

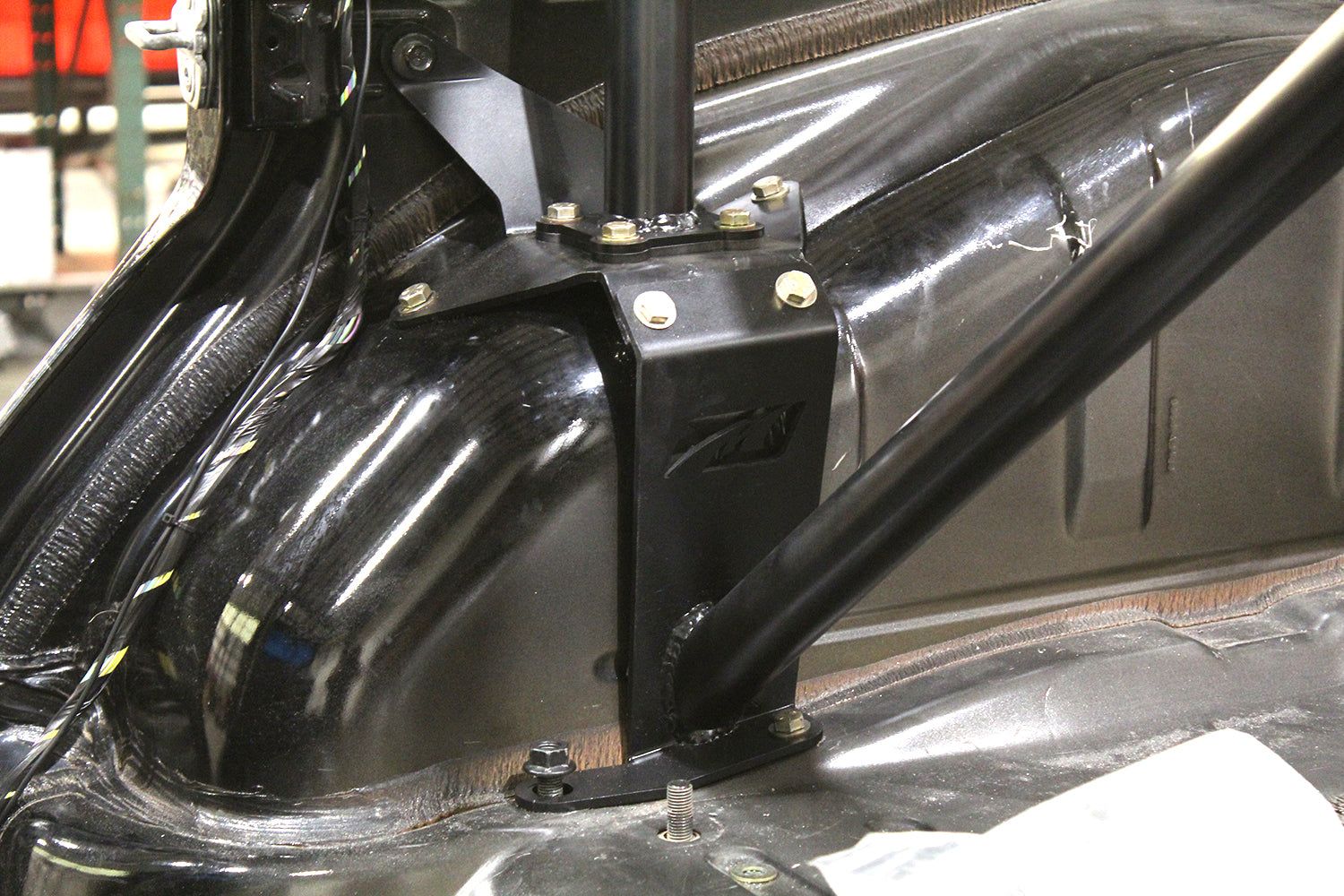

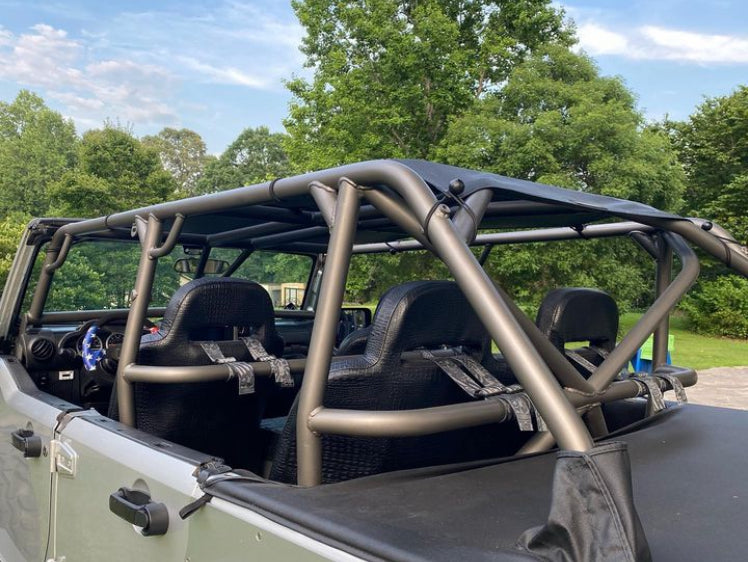

An optional B-pillar harness bar can be added to the cage to add mounting points for a seat belt harness for the front seats. Behind the rear seat passengers, you can add the optional C-pillar harness and X-bar which will add a seat belt harness mounting location for the rear passengers while also significantly increasing the stiffness of the Motobilt JKU cage. The mentioned optional tubes are included with this kit. They are considered optional as the installer could opt to leave them out if needed.
** Does NOT qualify for free shipping
Specifications
Instructions
Important Safety & Liability Notice
-
Off-Road Use Only: This product is engineered exclusively for off-road recreational use. It is not certified or intended for on-road use and may render your vehicle non-compliant with federal, state, or local regulations.
-
No Guarantee of Safety: Adding a roll cage significantly improves structural rigidity, but does not guarantee occupant safety or survival in all rollover or impact scenarios.
-
Not for Racing or Motorsports: This product is not designed, tested, or rated for racing or motorsports use. It should not be used in competitive or high-speed environments.
-
Professional Installation Required: Installation must be performed by a qualified welder/fabricator. Improper installation may compromise the integrity of the cage and vehicle, and could lead to serious injury or death. Some modification of factory panels may be required.
-
Do Not Modify Tubing: Do not drill, notch, or cut into any roll cage tubing to run wires or mount accessories. Any modifications to the tubing compromise its strength and integrity. If modification is necessary, the tube must be reinforced using a welded-in bung or the hole must be fully welded closed.
-
Airbag and Safety System Interference: This product may interfere with or disable factory-installed safety systems such as airbags or crash sensors. The user assumes all responsibility for any required modifications and their consequences.
-
No Warranty or Liability: This product is sold “as is” with no express or implied warranty, including but not limited to any warranty of merchantability or fitness for a particular purpose. Motobilt, Inc. assumes no liabilityfor injury, death, or property damage resulting from the installation or use of this product. The end user assumes all risks and responsibilities.
