Motobilt's Custom
Green YJ
Custom Build

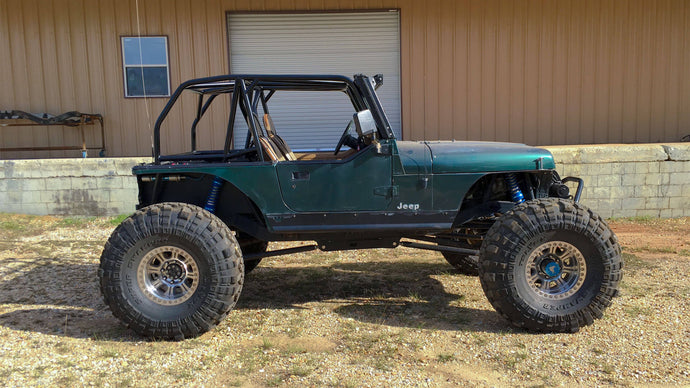

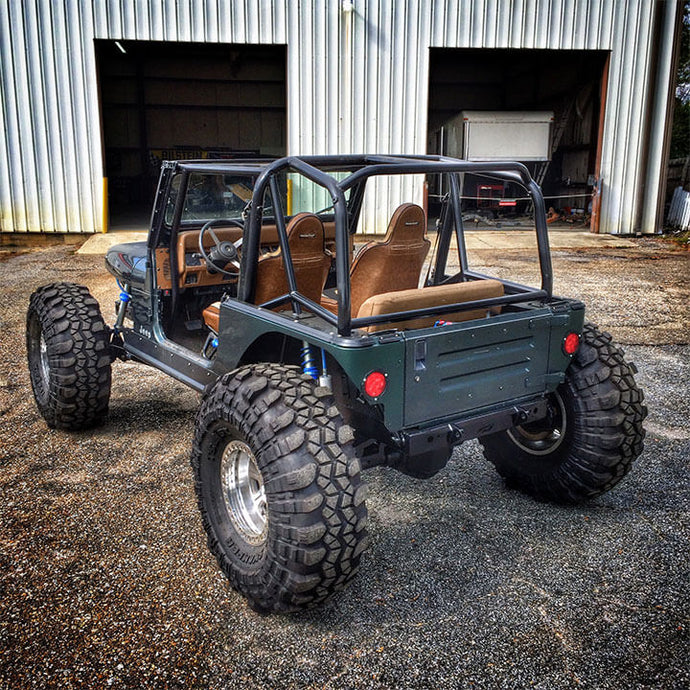

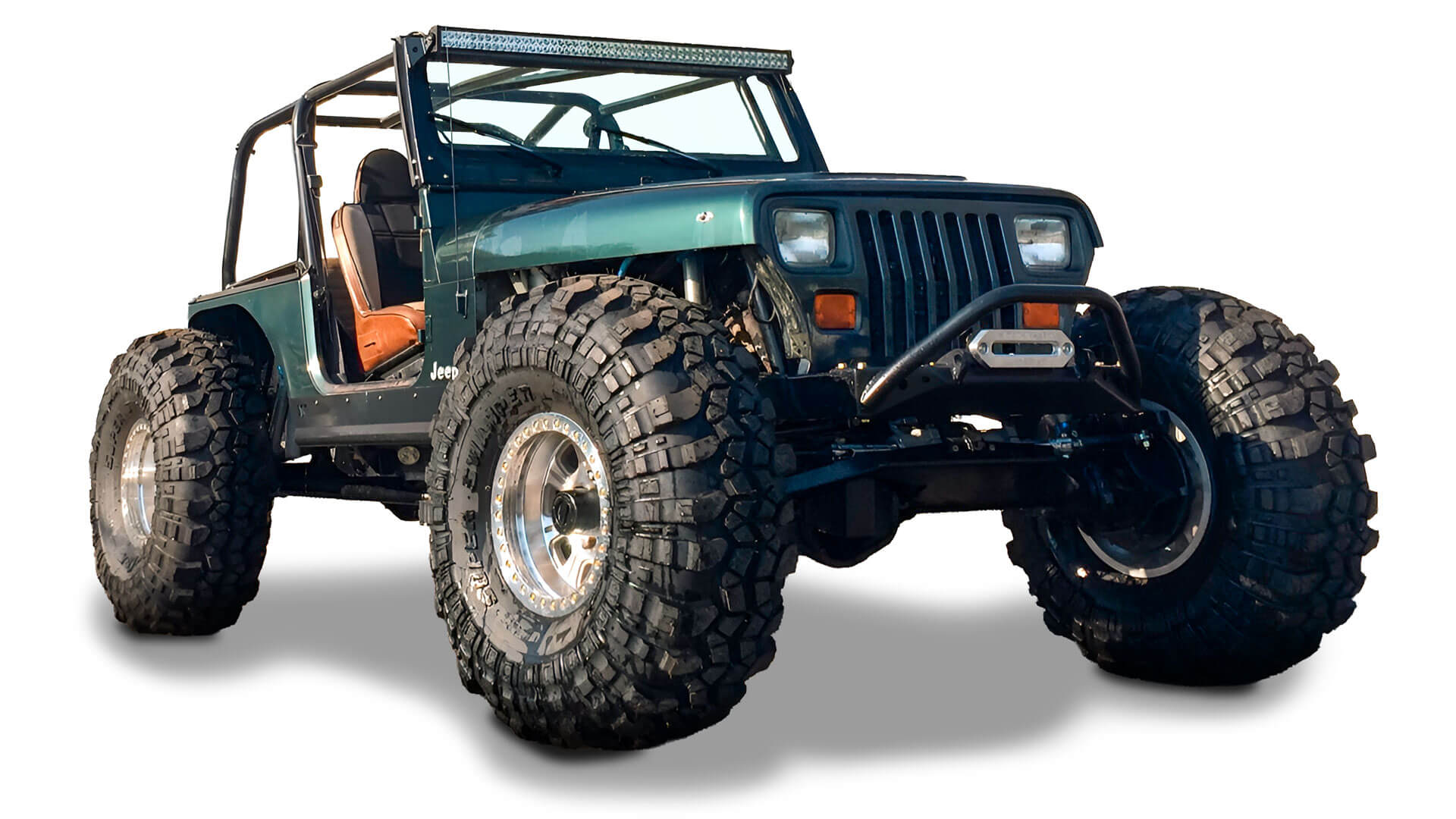

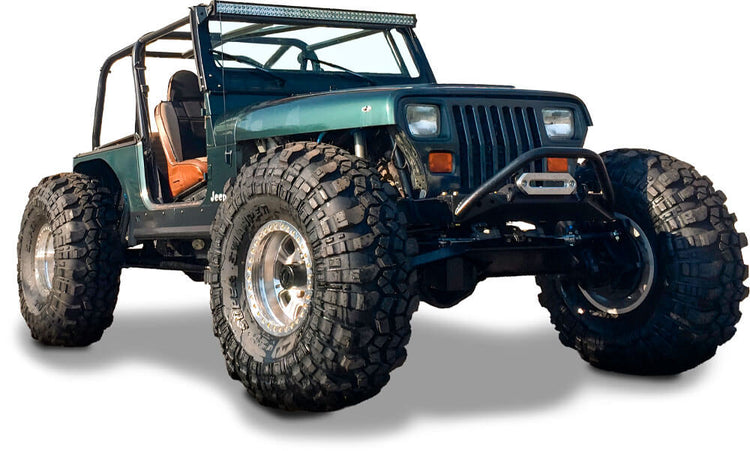

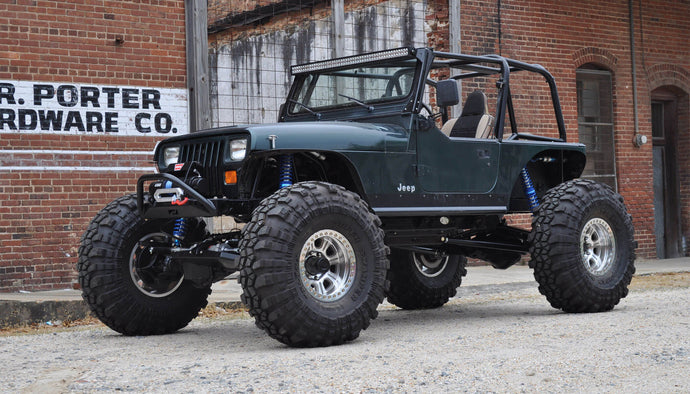

Motobilt's Green YJ
The OG Motobilt Green Jeep YJ reinvigorated the Jeep market by bringing the latest in 4 link and coil over suspension technology to the last leaf sprung era of Jeep Wranglers. The OG Green YJ was the source of many of Motobilt’s innovative and cutting edge designs that you see throughout our lineup today.
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick
Green YJ's Specs
Find out which parts make this rig the trail boss that it is.
Drive Train
• Chevy V-8, Auto, Atlas II
• Chevy Dana 60 front axle 5.13 Gears Detroit Locker

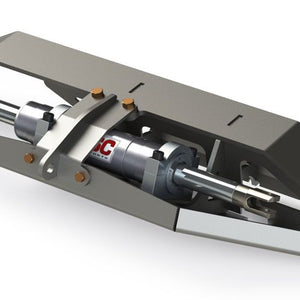

• MB4004-Chevy Dana 60 Front Axle Truss/Steering Ram Mount
• MB4010-Dana 60 Diff Cover
• MB4006-Dana 60 Angled Lower Link Mount Kit
• MB2006-Dana 60 Kinpin Coilover Tab
• MB4005-5/8-Flat Bottom Link Tab

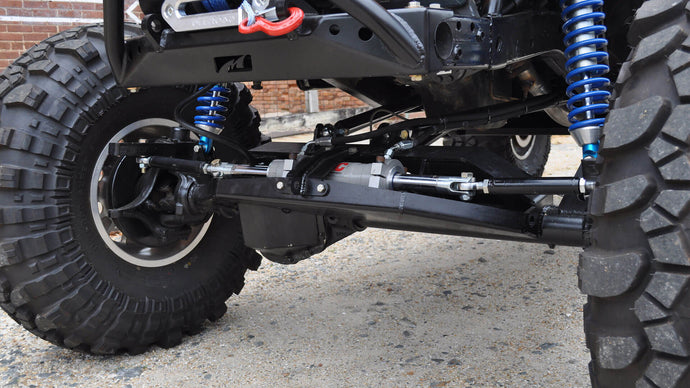

• PSC Full Hydraulic Steering with 2.5" Ram
• GM 14 Bolt rear axle with 5.13 gears and Detroit Locker.

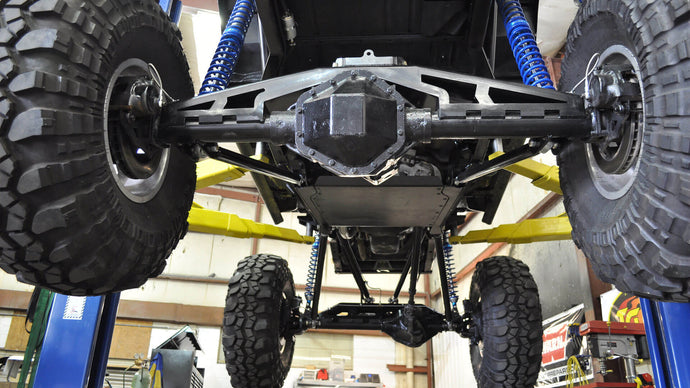

• MB4003-14 Bolt Axle Truss Competition Version
• MB4012- 14 Bolt Diff Cover
• MB4022-14 Bolt Full Float Disc Brake Conversion Brackets
• MB2004-Flat Bottom Coilover Tab Offset
• MB4014-14 Bolt Lower Link Tab Kit for MB1503 or Universal
• MB4005-5/8-Flat Bottom Link Tab
• 1350 CV Drive shafts front and rear.
Accessories
• MB1047-P Spare Tire Delete Tag Mount for Jeep YJ/TJ/LJ
Frame and Suspension

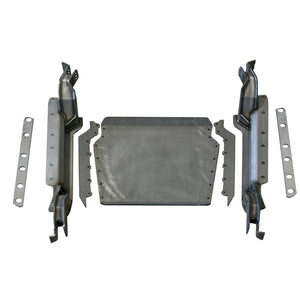

• MB1503-4 Link Suspension Mount Skid System for Jeep YJ
• MB3077-Universal Transmission Crossmember Kit
• 1.25 inch rod ends with 1 inch bolt hole for lower links. 2" x .250" Wall DOM Steel
• 1 inch to 3/4 inch 303 stainless high misalignment spacers measuring 2 5/8 inches in width
• 7/8 inch rod ends with 3/4 inch bolt holes. 1.75" x .250" Wall DOM Steel Uppers
• 3/4 inch to 5/8 inch 303 stainless high misalignment spacers measuring 1 3/4 inches in width
• King 2.0 14" remote reservoir coil overs in front and 16" travel in back.
Front Shock Hoops:
• MB1556-Coil Over Shock Hoops 1-3/4"
Rear Shock mount
• MB1526-Coil Over mount for CJ/YJ/TJ Rear Fender Top used along with MB5501-H High Clearance Rear Fender Top
• Room for rear coil overs and axle stretch are possible due to the back half kit.

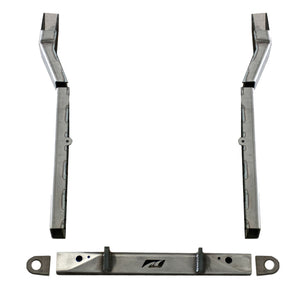

• MB3001-Back Half Frame Kit for Jeep YJ
• Due to running a back half kit the fuel tank must be relocated so a fuel cell is mounted behind the rear seat.
• MB5000-AN-Mount-Behind the Seat Fuel Cell w/AN Fittings and Mount for Jeep YJ

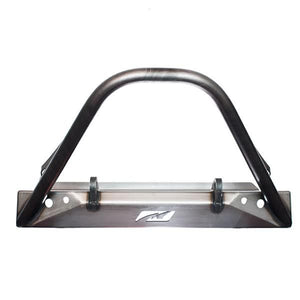

• MB1000-Stubby Front Bumper for Jeep YJ/TJ/LJ
• 43x14.50x17 Interco Super Swamper TSL SX Tires
• 17x9 Race Line Beadlock wheels 8x6.5
Body Armor
• MB3001-Back Half Frame Kit for Jeep YJ
• MB1000-Stubby Front Bumper for Jeep YJ/TJ/LJ
Lighting
• Motobilt 50" Windshield Light Bar Mount
