Motobilt's Custom
Blackout
Custom Build

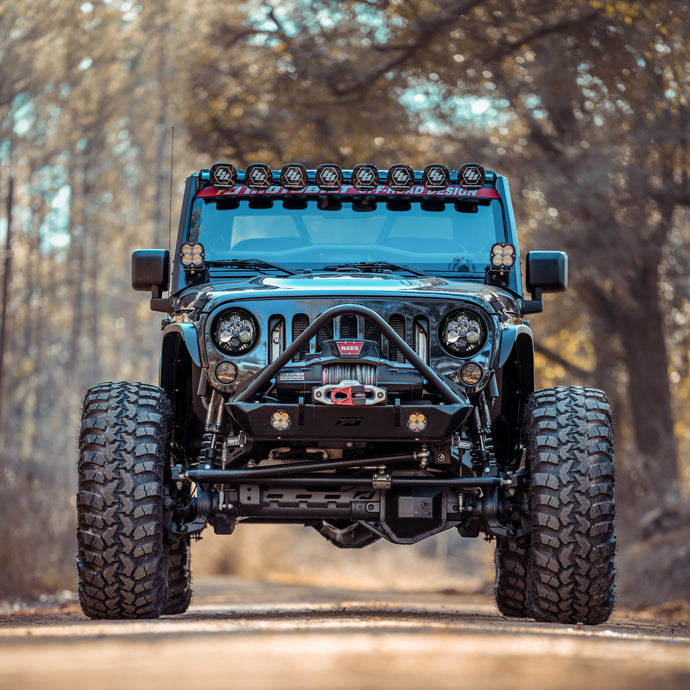

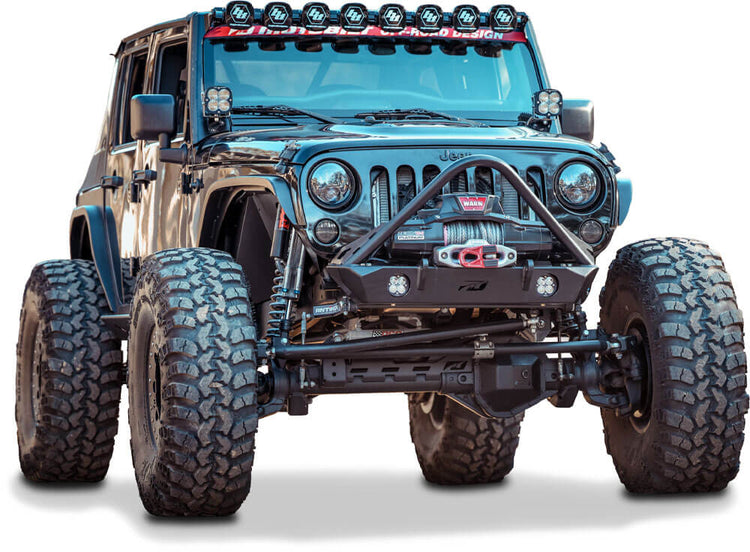

Motobilt's Blackout

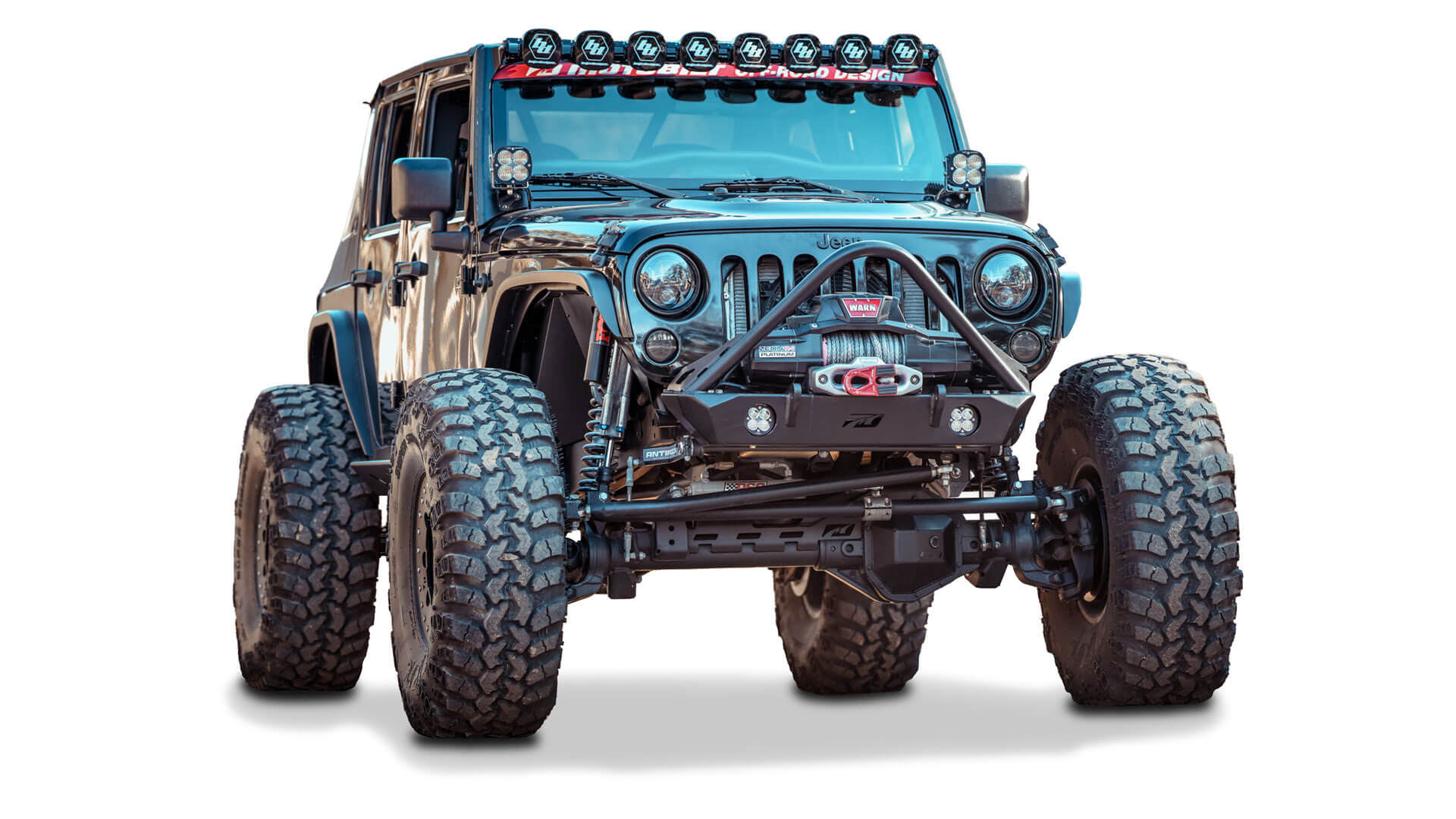

We took a boring, washed up two wheel drive Wrangler and transformed into the Motobilt beast you see now. Featuring an LS V-8 swap, Motobilt 1 ton axle conversion kits, Motobilt double triangulated 4 link suspension with coil overs and triple bypass shocks.
Hatchet Series Front Frame Chop Bumper w/ Stinger and Fog Mounts for Jeep JK / JKU
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick
Blackout's Specs
Find out which parts make this rig the trail boss that it is.

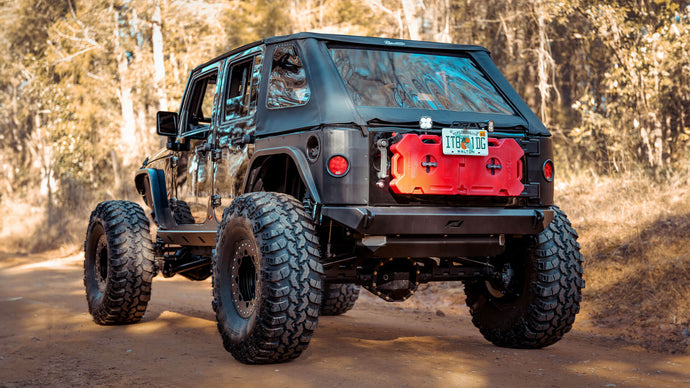

Body Armor
• MB1048F-S HAtchet Series Front Frame Chop Bumper w/Stinger and Fog Mounts for Jeep JK/JKU

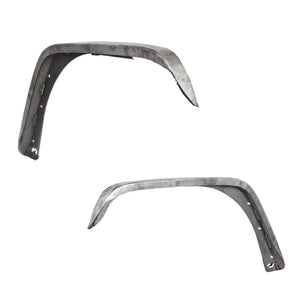

• MB1075-2 Crusher 2" Front Fenders for Jeep JK/JKU

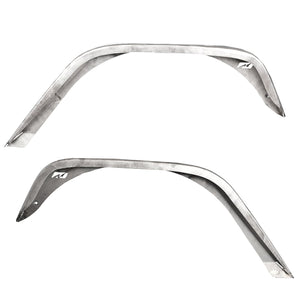

• MB1076-2 Crusher 2" Rear Fenders for Jeep JK/JKU
• MB1125-ST Steel Rear Corner Armor w/Round Tail Light Holes for Jeep JKU
• MB1042 Crusher Series Rocker Guards w/Step for Jeep JKU 4 Door

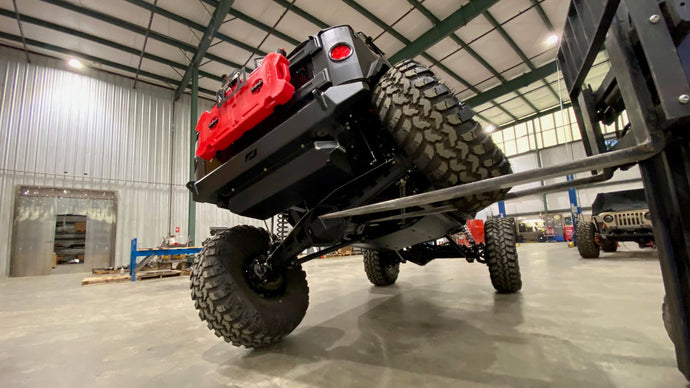

Frame and Suspension
• MB7000 2007-2011 Jeep JKU 4 Link Suspension Bracket & Skid Kit
• MB3025 Back Half Frame Kit for Jeep JK/JKU
• MB1546 Dual Rear Coilover Bypass Shock Towers
• MB5013 Aluminum Fuel Cell w/Skid Plate for MB3025 Back Half Kit fits Jeep JK/JKU
• MB5019 Fuel Cell Access Hatch for Jeep JK/JKU
• MB3033 JKU Roll Cage Kit
• MB3076 Cage C & D Plates for Rear High Line Inner Fenders
• MB5516 High Clearance /Rear Inner Fender Kit for Jeep JKU
• Fox 2.5" DSC 14" travel remote reservoir coil overs with triple bypass coil overs in front and 16" in back.
• RockJock 4x4 Anti Rock Sway bars front and rear.

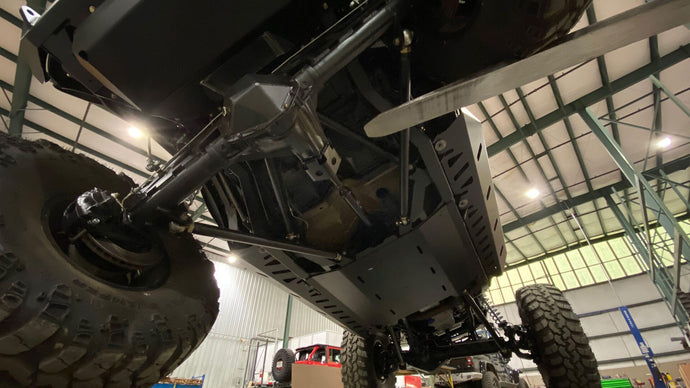

Drive Train
• Th400, Atlas II 3.8 Transfer Case
1350 CV Drive Shafts
• 2005 Ford Super Duty Dana 60 front axle. 5.13 gears with ARB air Locker

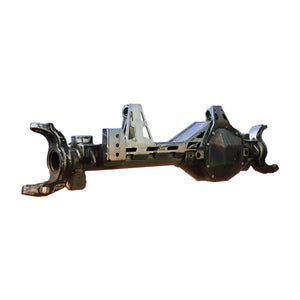

• MB4059 Super Duty Dana 60 Jeep JK 1 Ton Conversion Truss
• MB4043 Super Duty Dana 60 Diff Cover
• MB4082 High Steer Brackets for Super Duty 60
• 1.5" x.250" DOM tie rod/drag link. 7/8" threaded rod ends with a 3/4" bore size that is reduced down to a 5/8" bolt hole and a mounting width of 1.75"s.
• PSC Hydraulic assist steering.
• MB1547 Super Duty Dana 60 Dual Lower Shock Mount Kit
• 1999 GM 13/14 bolt rear axle with 5.13's and ARB air locker.
• MB4003 14 Bolt Axle Truss Competition Version
• MB4022 14 Bolt Full Float Disc Brake Conversion Brackets
• MB4027 13 Bolt Diff cover

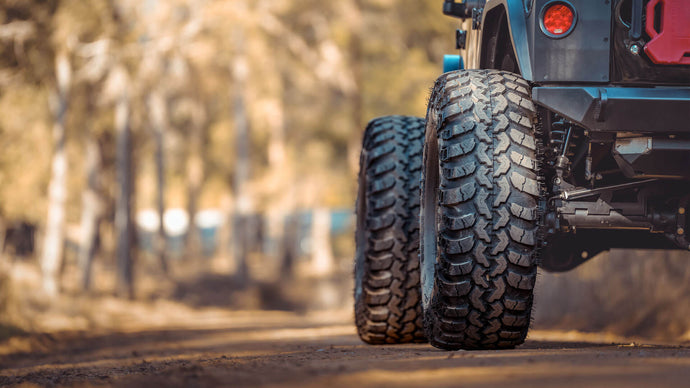

Tires and Wheels
• 41.5" Interco Super Swamper IROK Radials
• 17"x8.5" Trail Ready Aluminum Bead Locks 3.5" Backspacing
Accessories
• Rotopax
• Warn Zeon Winch
• Factor 55 Ultra Hook
• Bestop Trek Top Soft Top

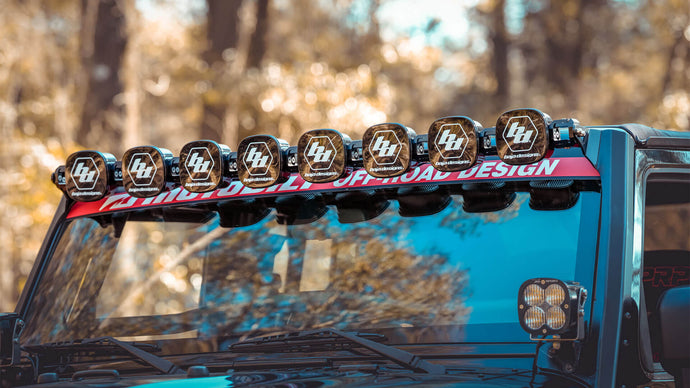

Lighting
• Baja Designs Linkable 8 light bar. Windshield.
• Baja Designs Squadron rear lights.
• Baja Designs Squadron front fog lights bumper.
