High Clearance Rear Inner Fender Kit for Jeep JKU

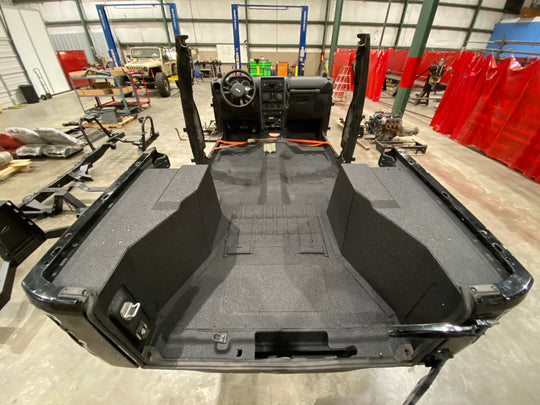

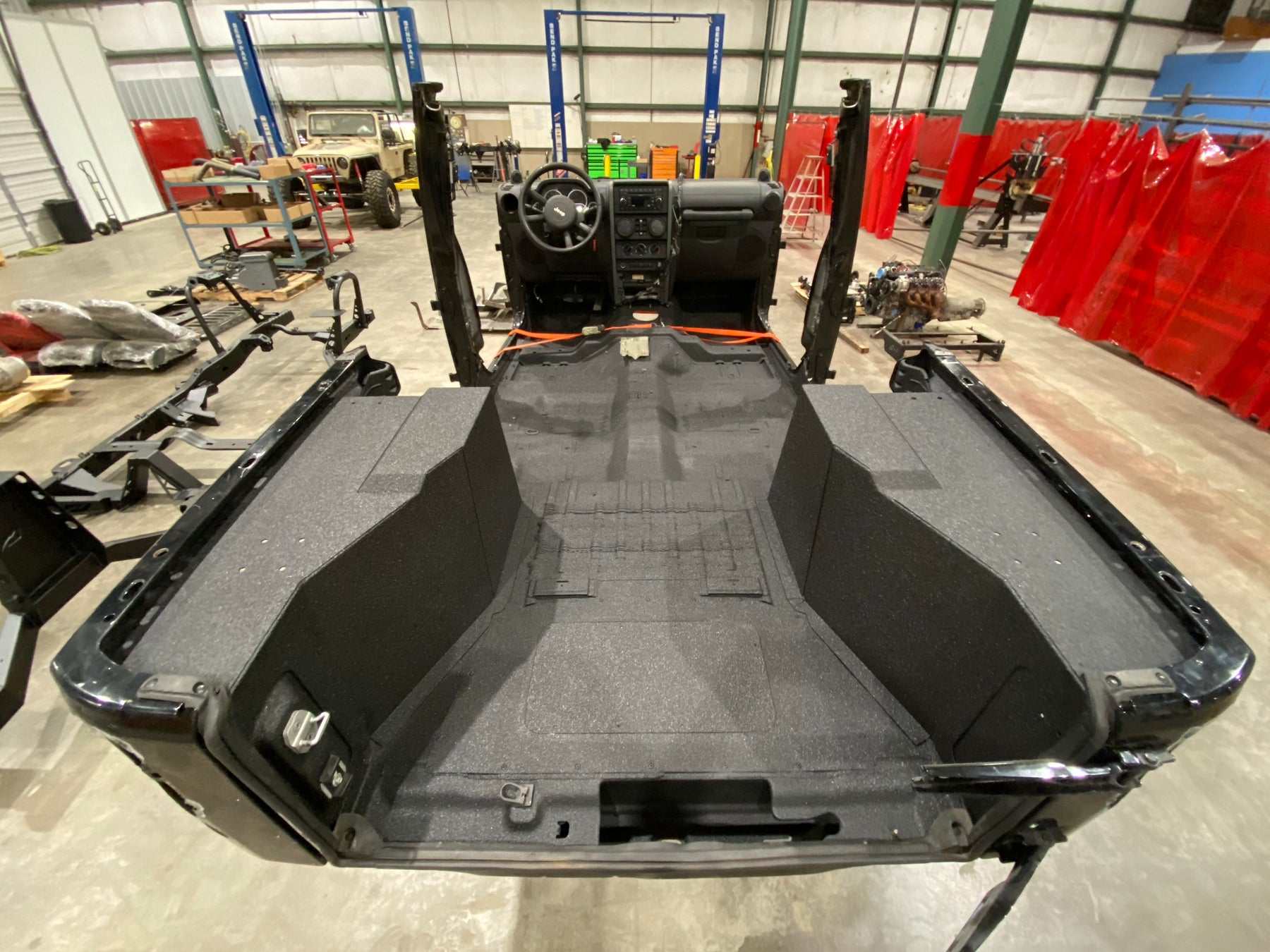

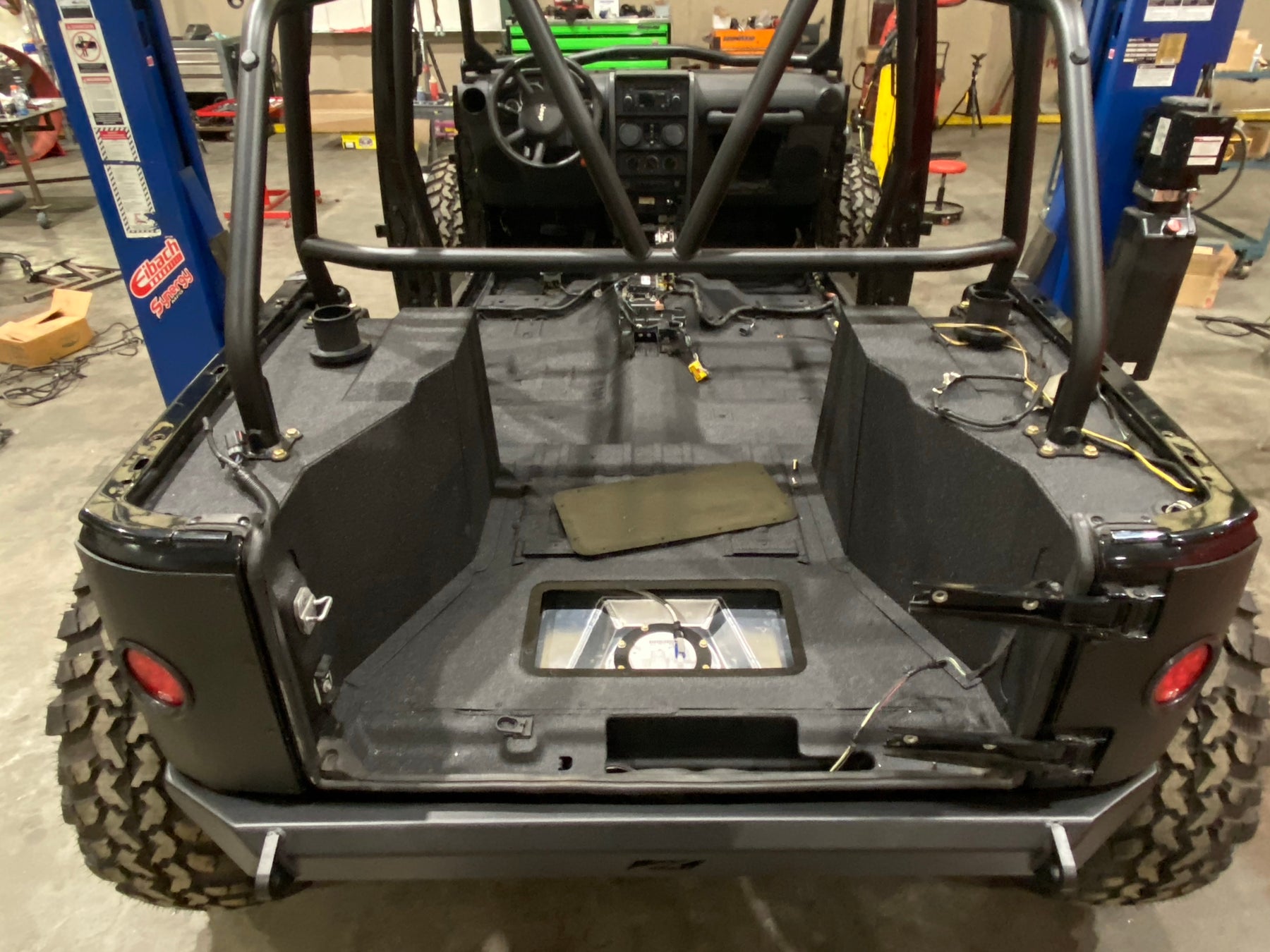

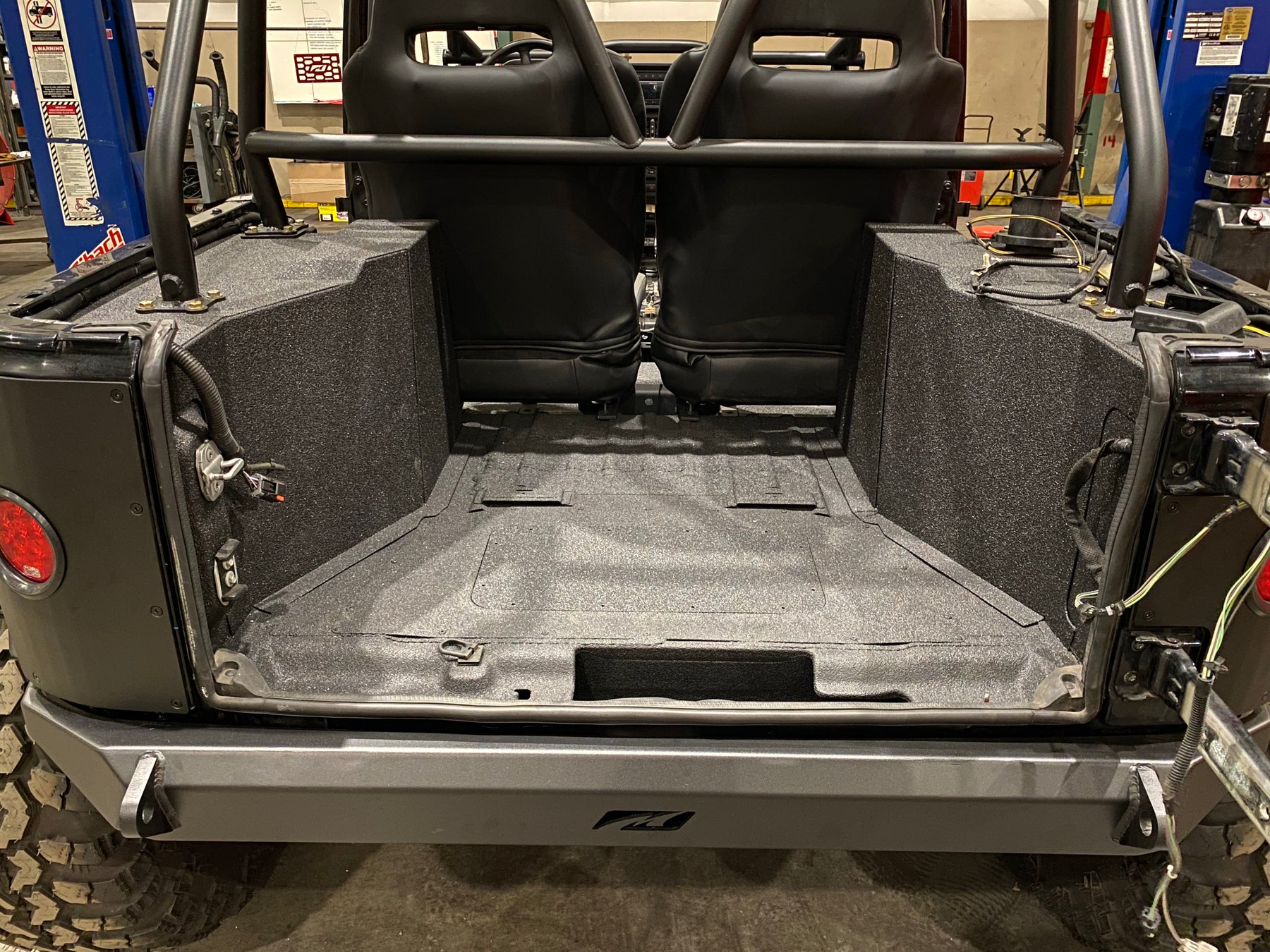

Designed to work seamlessly with our MB3025 Jeep JK-JKU Back Half Kit along with our MB1546 Rear Upper Shock Towers, the Motobilt MB5516 Jeep JK-JKU High Clear Rear Inner Fenders provide a finished & sealed solution in the rear cargo tub area.

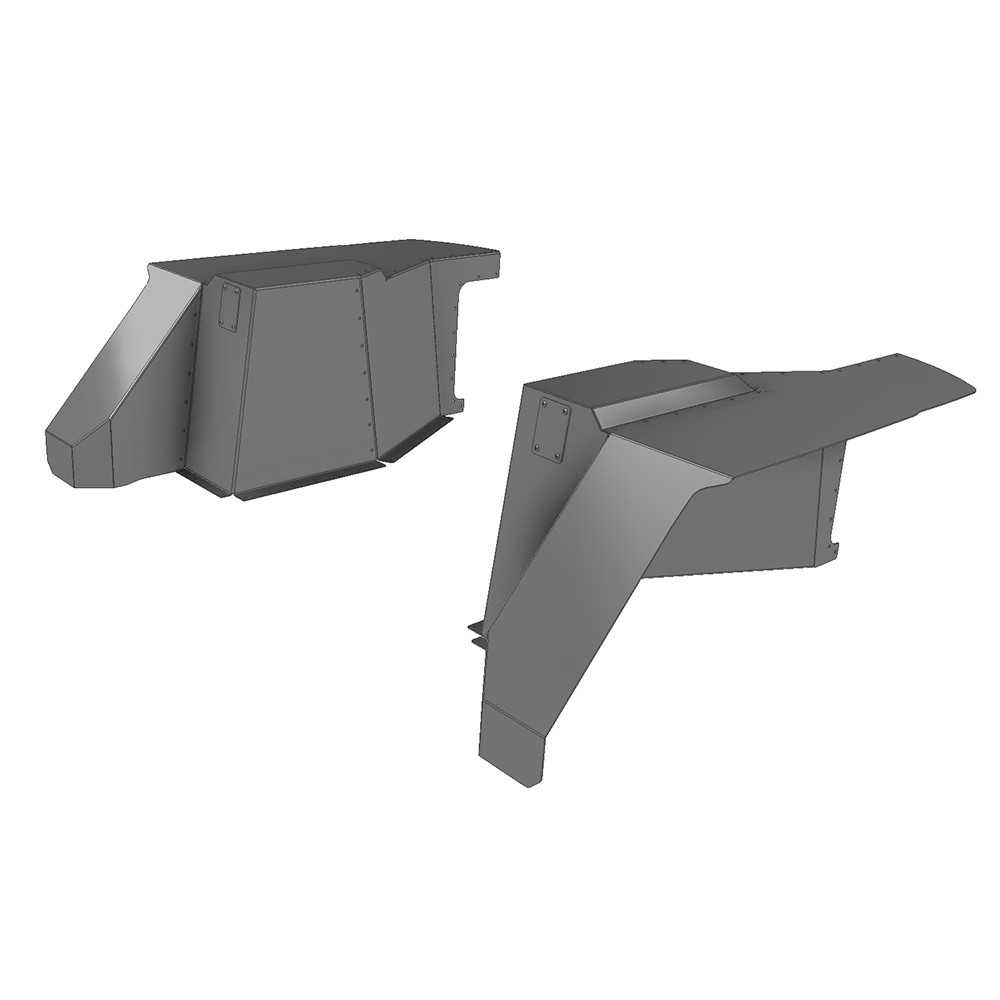

This multi-piece kit is constructed using durable 14 Ga steel that is precision laser cut & accurately CNC press brake formed. We have provided 1/4" diameter holes throughout the formed parts to plug weld the inner fenders in place.

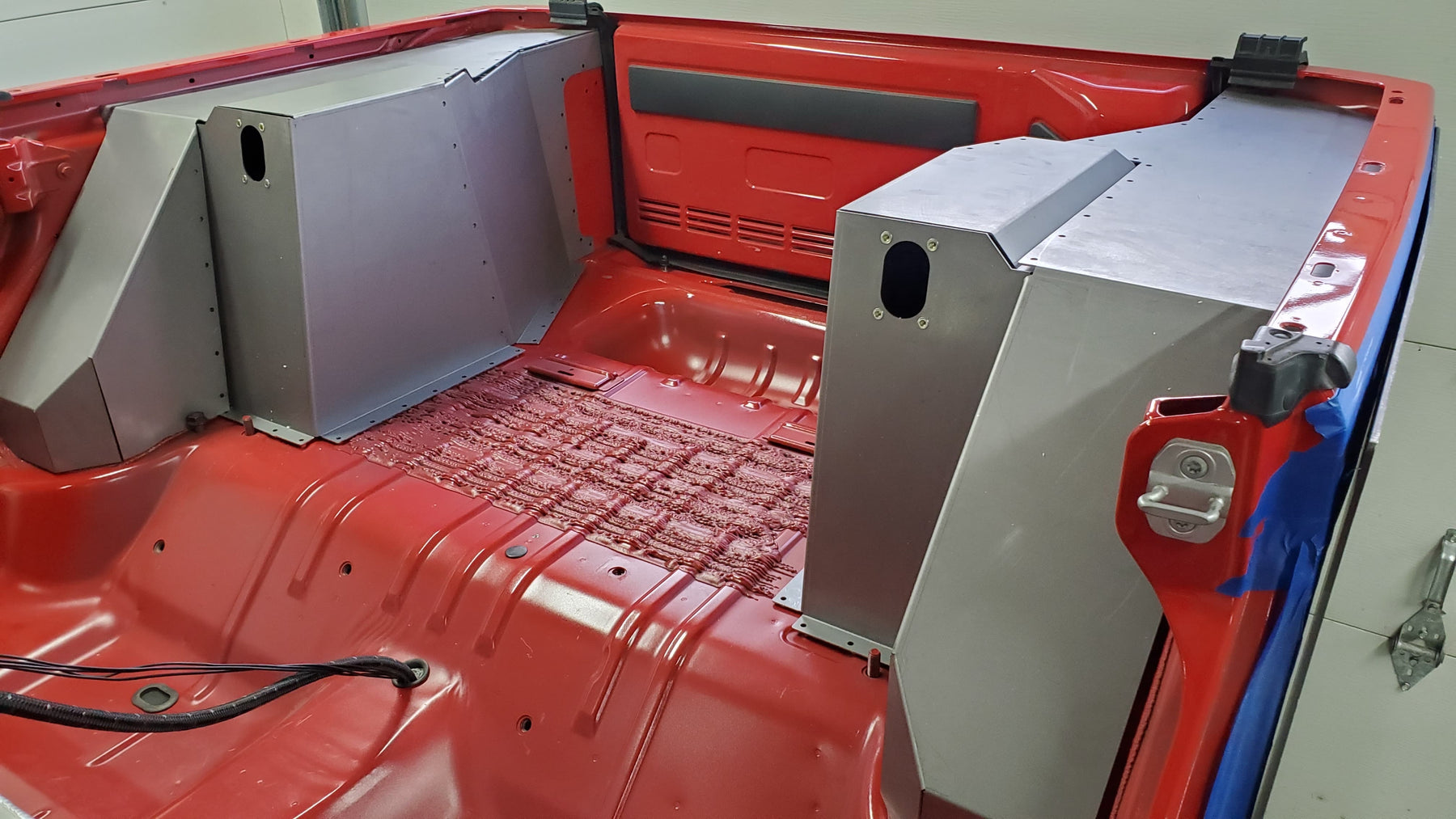

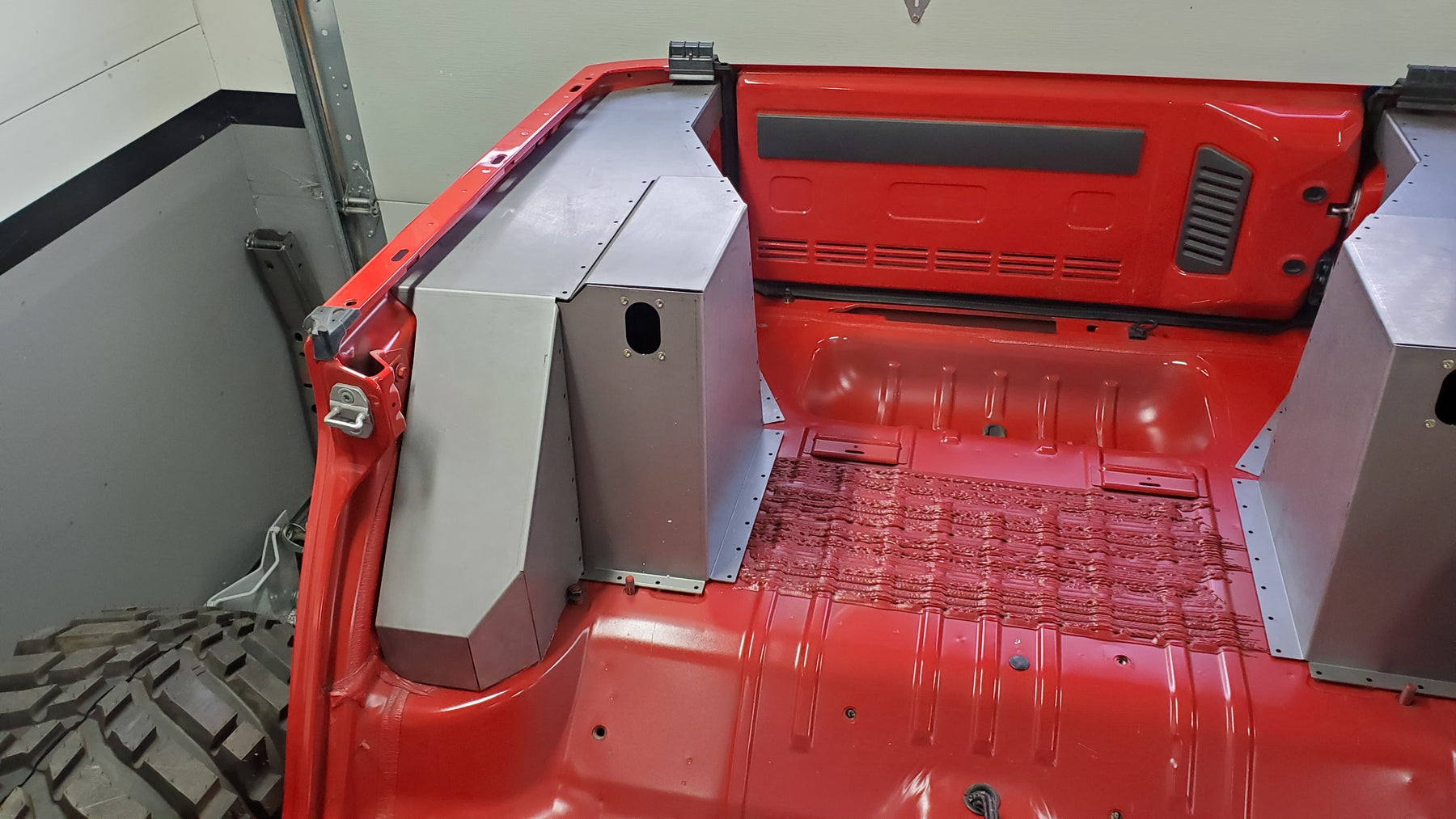

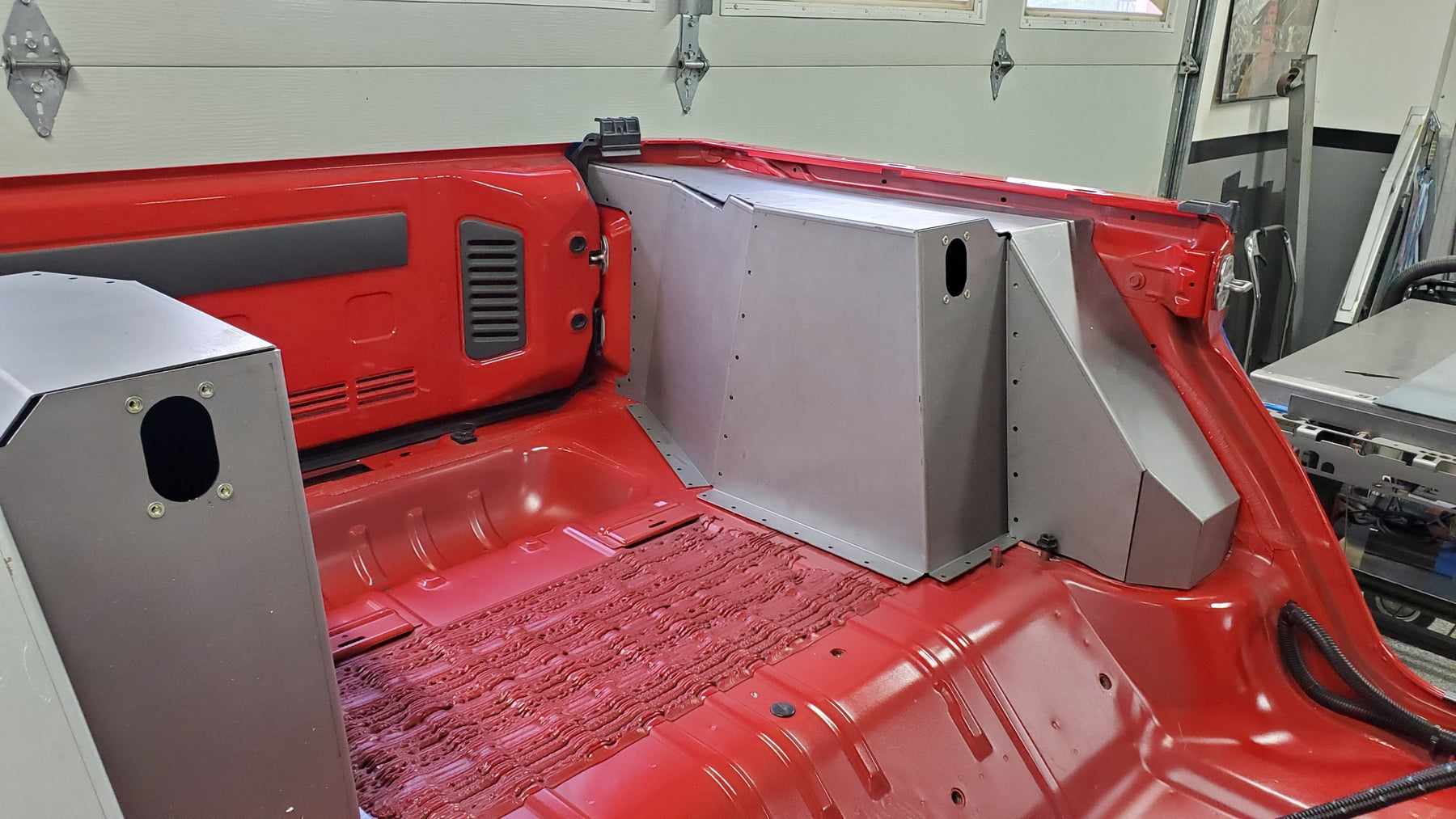

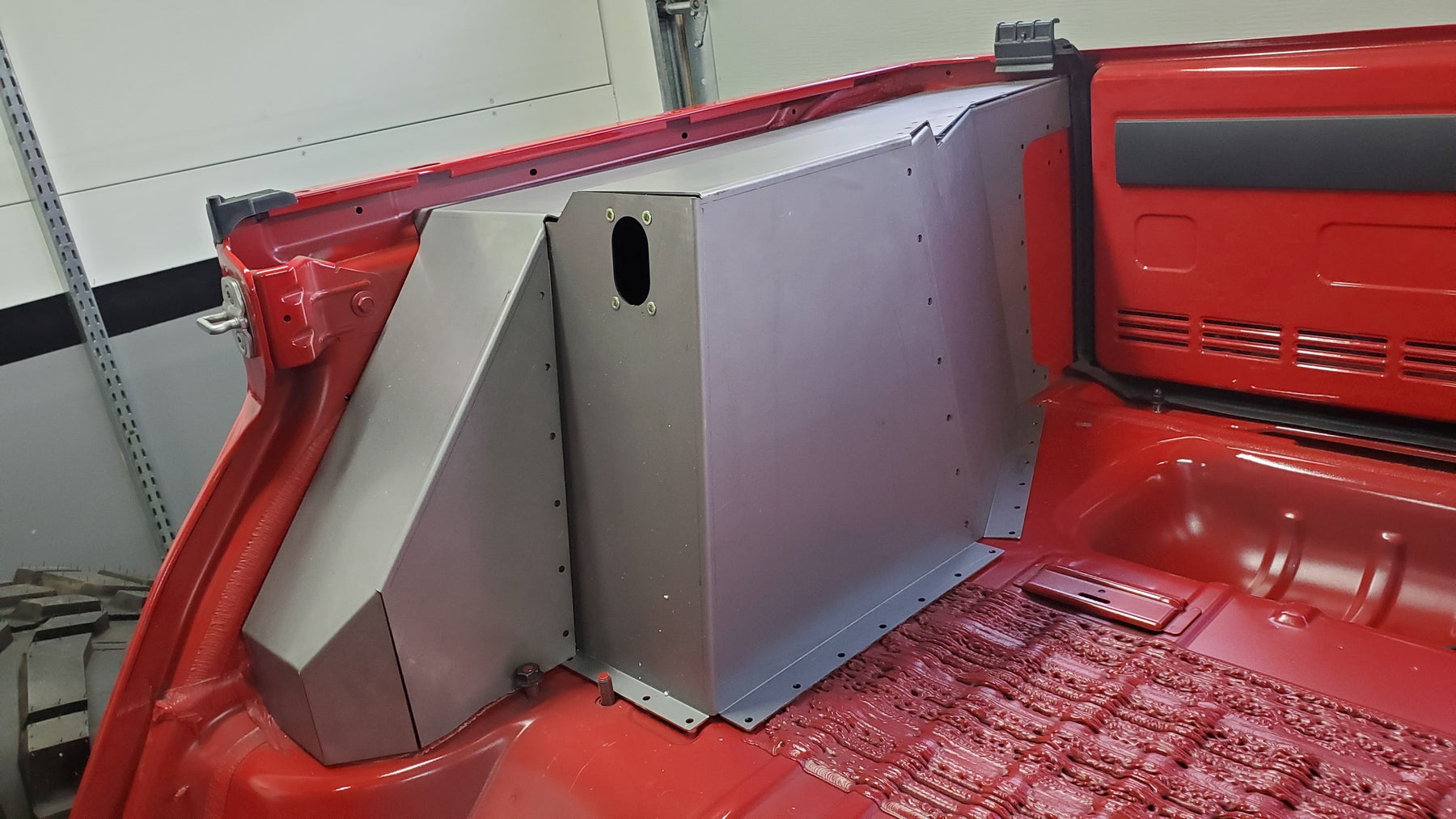

We include removable cover plates to easily access the upper shock mounting holes. These cover plates are fastened using stainless steel button head screws (included). We have even pre-installed rivnuts to mount the cover plates to facilitate initial installation & future access to the shock mounting bolts.

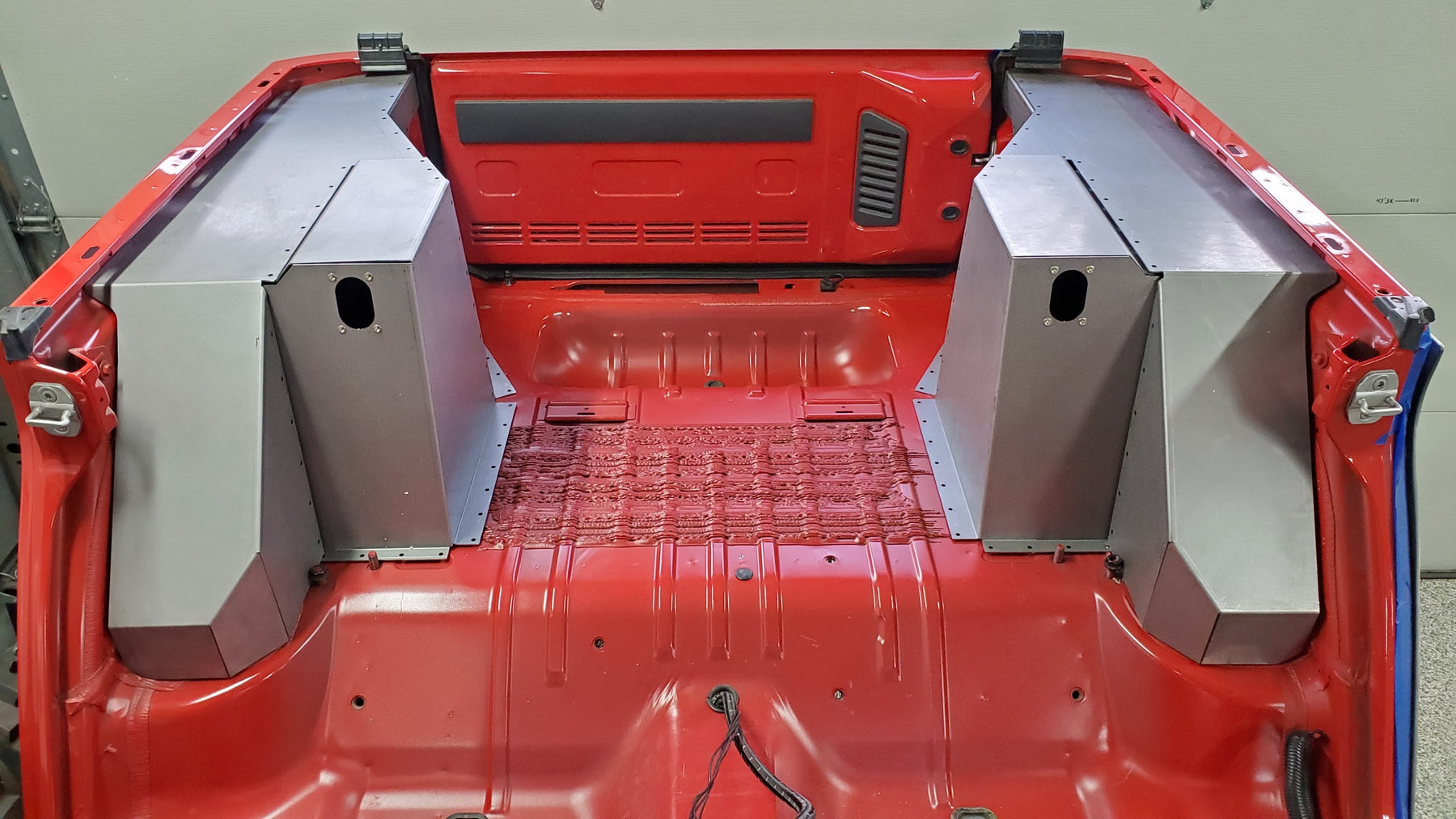

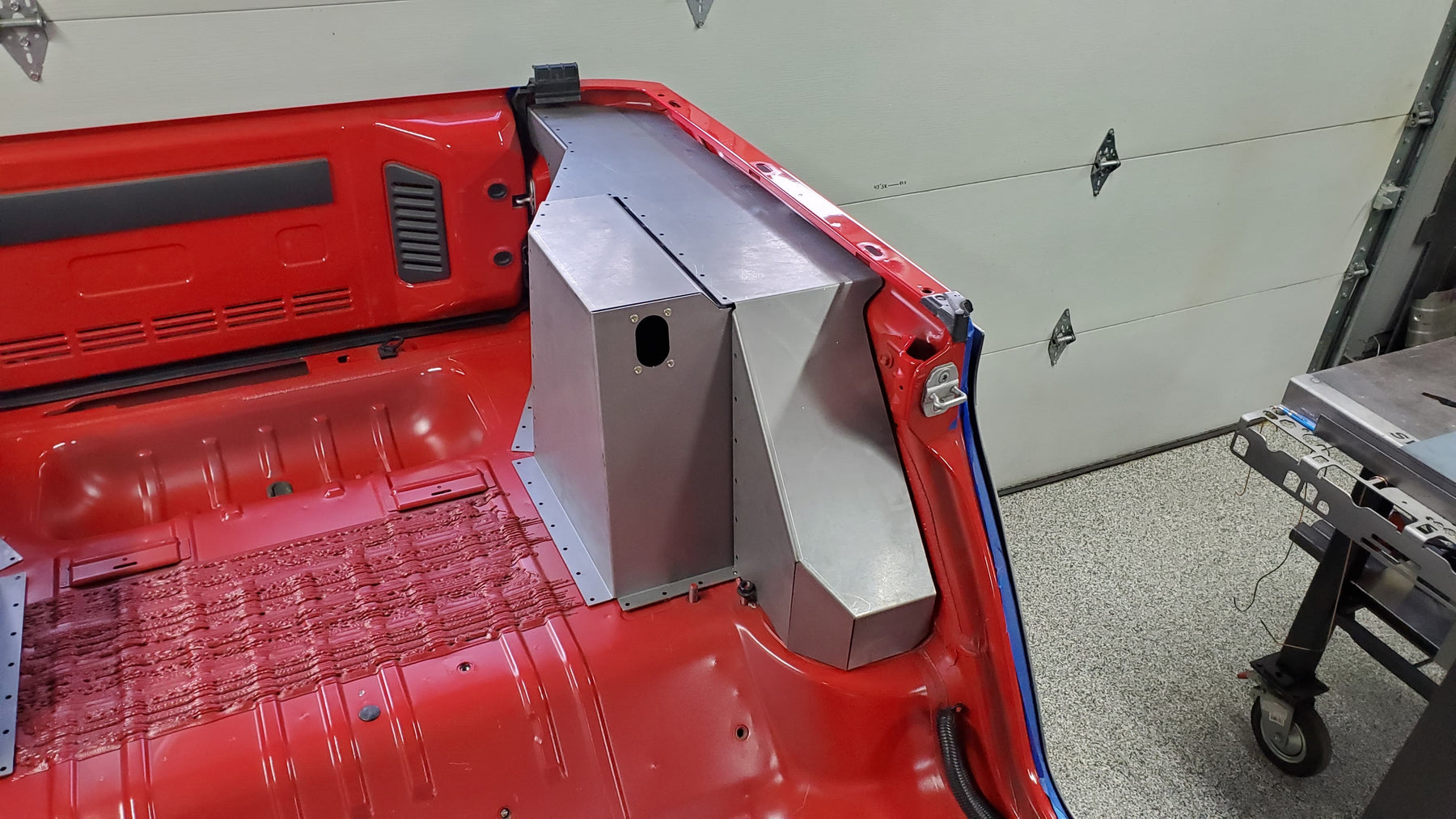

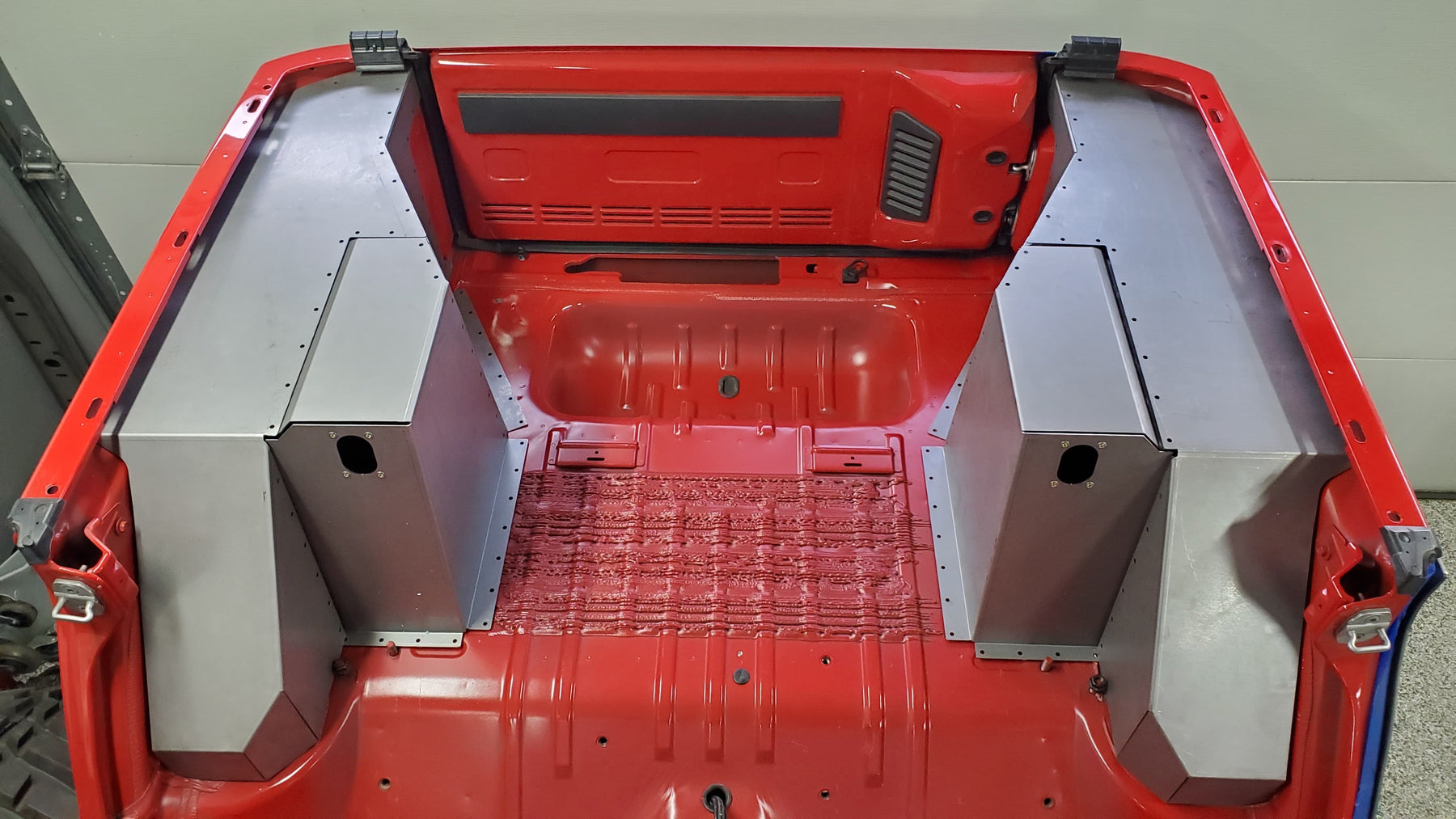

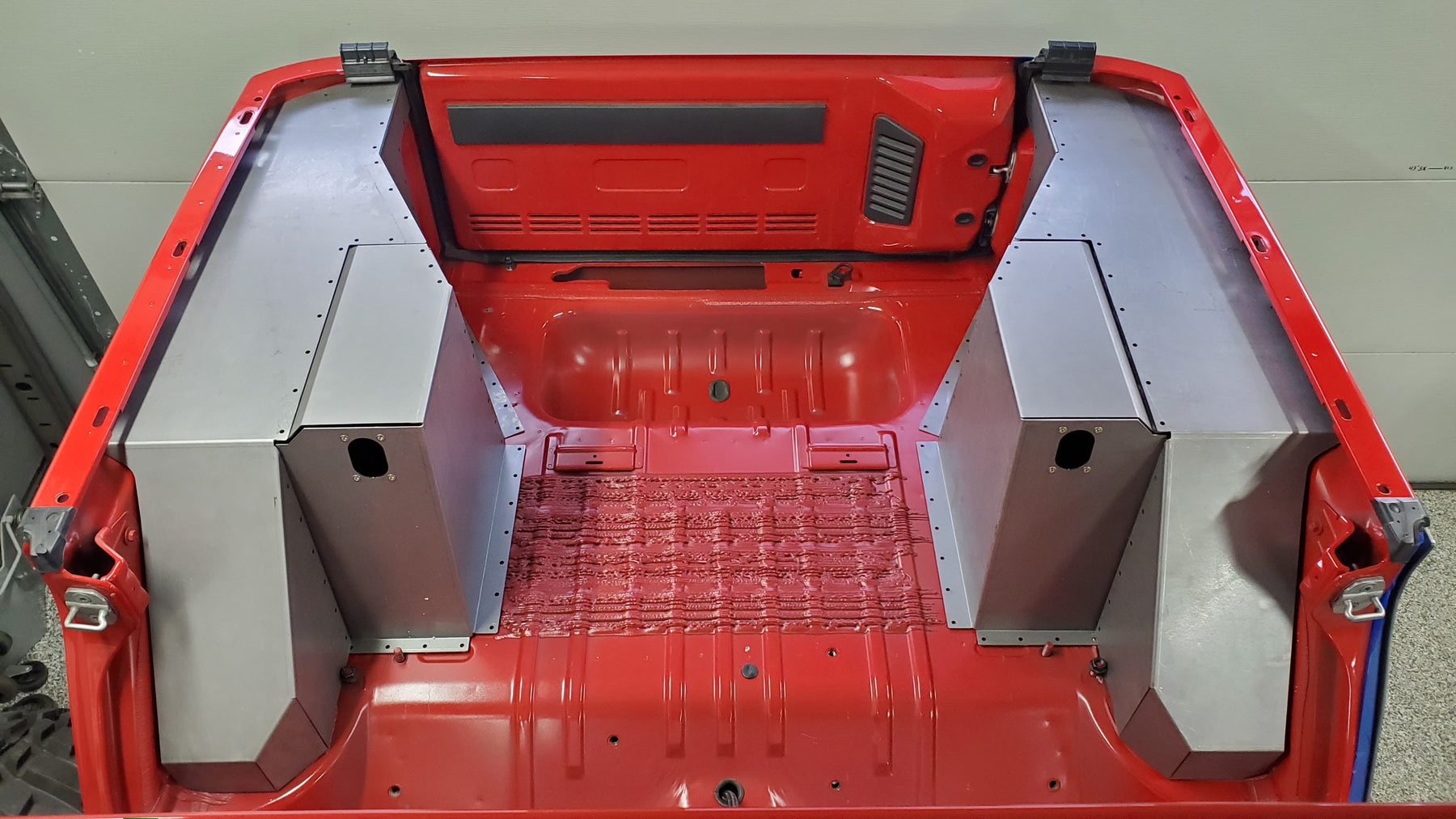

The inner fenders are precisely scribed to accurately fit into the existing Jeep JK-JKU body resulting in a professional & clean looking installation.
This kit requires cutting & removal of sheet metal. Welding is required. Parts ship as bare metal.
Weight: 60 lbs (approx.)
Recommended parts
-
You can adapt your MB3033 JKU Cage Kit to fit our MB1546 Highline Rear Inner Fenders by using this C & D Pillar Plate Kit. Part number MB3076
Specifications
Notes: Stock rear seats on 2013 and newer will not fit with out modifications.
Instructions
