Super Duty Dana 60 Lower Link Mount Kit

Name: Super Duty Dana 60 Lower Link Mount Kit
Brand: Motobilt
SKU: MB4015-563
Price: 49.99 USD
Availability: InStock

Regular price $49.99

Shipping calculated at checkout.

Unit Price: / Sku: MB4015-563

Fits: Jeep Wrangler JK / JKU · Jeep Wrangler JL / JLU

Select Bolt Hole Diameter:

Quantity:

View product details & documents

Product details

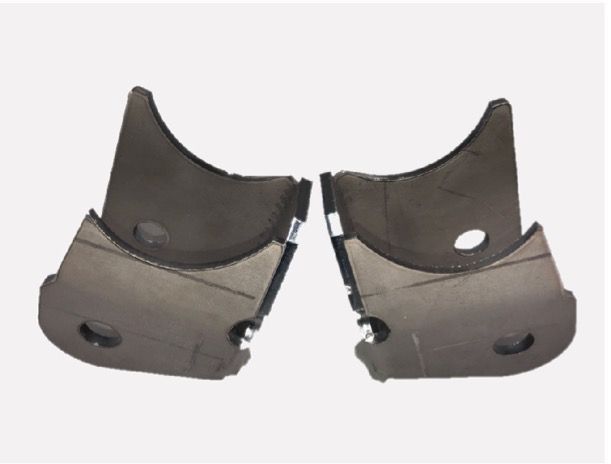

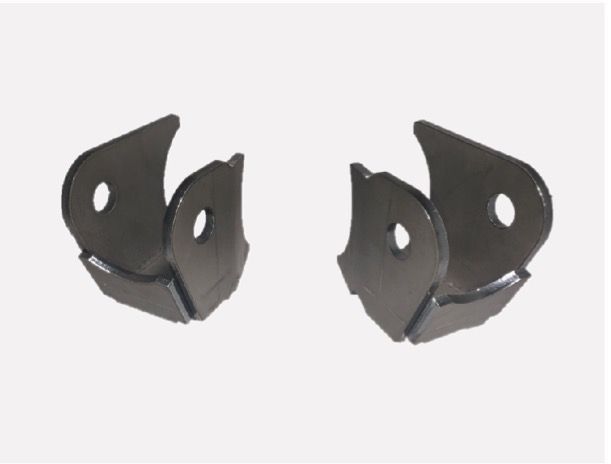

The Motobilt Ford Super Duty Dana 60 lower control arm mounts are just the ticket for that custom suspension setup. This heavy duty 1/4 inch steel brackets are laser cut and cnc formed at the Motobilt headquarters. The will allow you to mount a rod end, flex joint, or other end that has a mounting width of approximately 2.625 inch wide. They are available in either a 9/16 inch bolt hole or a 3/4 inch bolt hole. What makes these brackets unique is there mounting width at the axle tube has been necked down to fit on the small amount of axle tube available. You will still need to cut away much of the brackets and cast housing to make room for the mounts but this is a pretty common procedure when attempting to use the newer 2005 and newer Ford super duty axles. These brackets are sold as a pair and will need to be welded.

Features:

Ford Super Duty Dana 60 lower control arm mounts
Laser cut 1/4 inch steel brackets
Mounting width of approximately 2.625 inch wide
Sold as pair

Note:

Available in a 5/8 (.563"), 9/16 (.625"), or 3/4 (.750") inch bolt hole
You will still need to cut away much of the brackets and cast housing to make room for the mounts
Requires welding
