Motobilt's Custom
Ghost
Custom Build

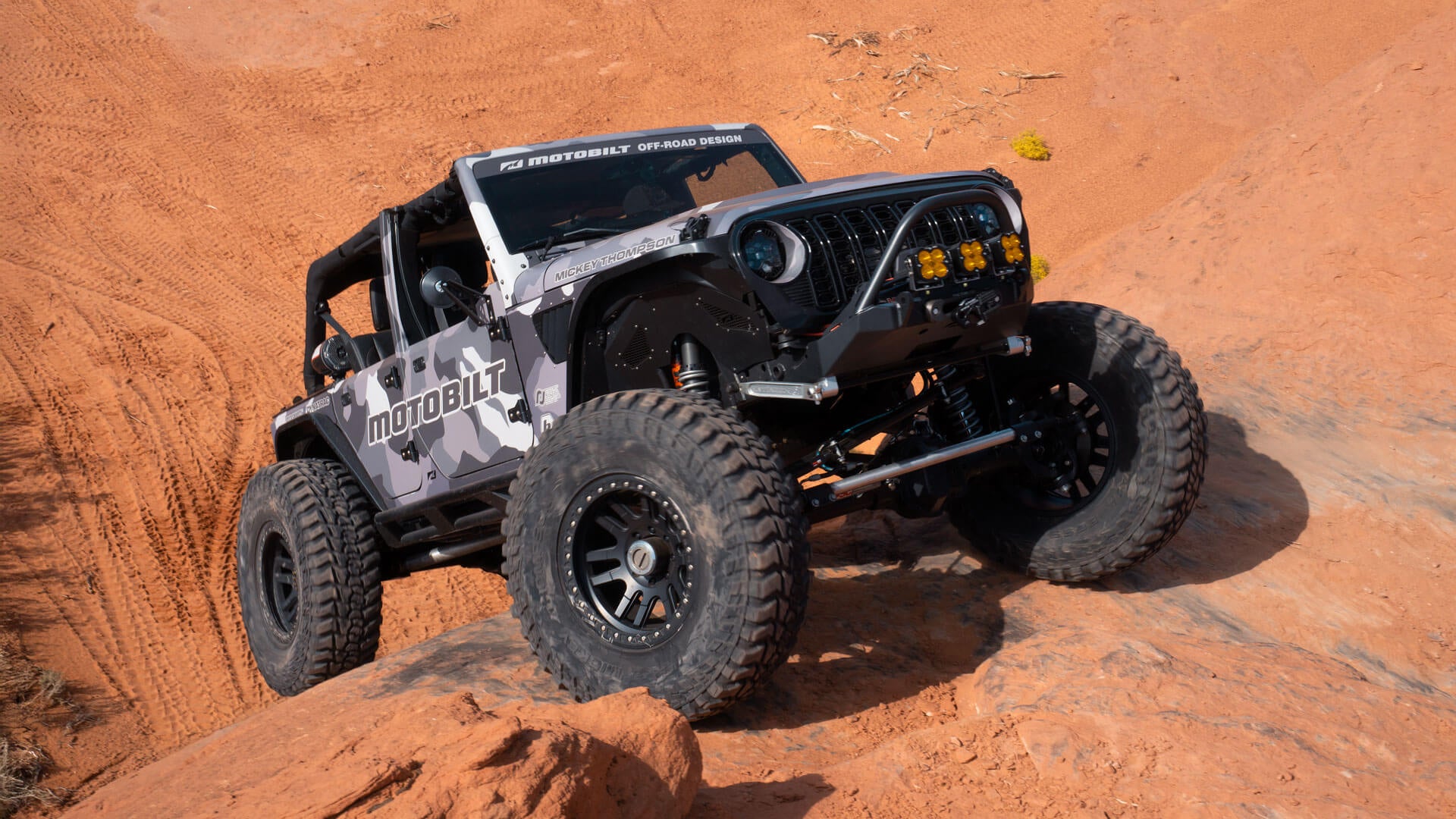

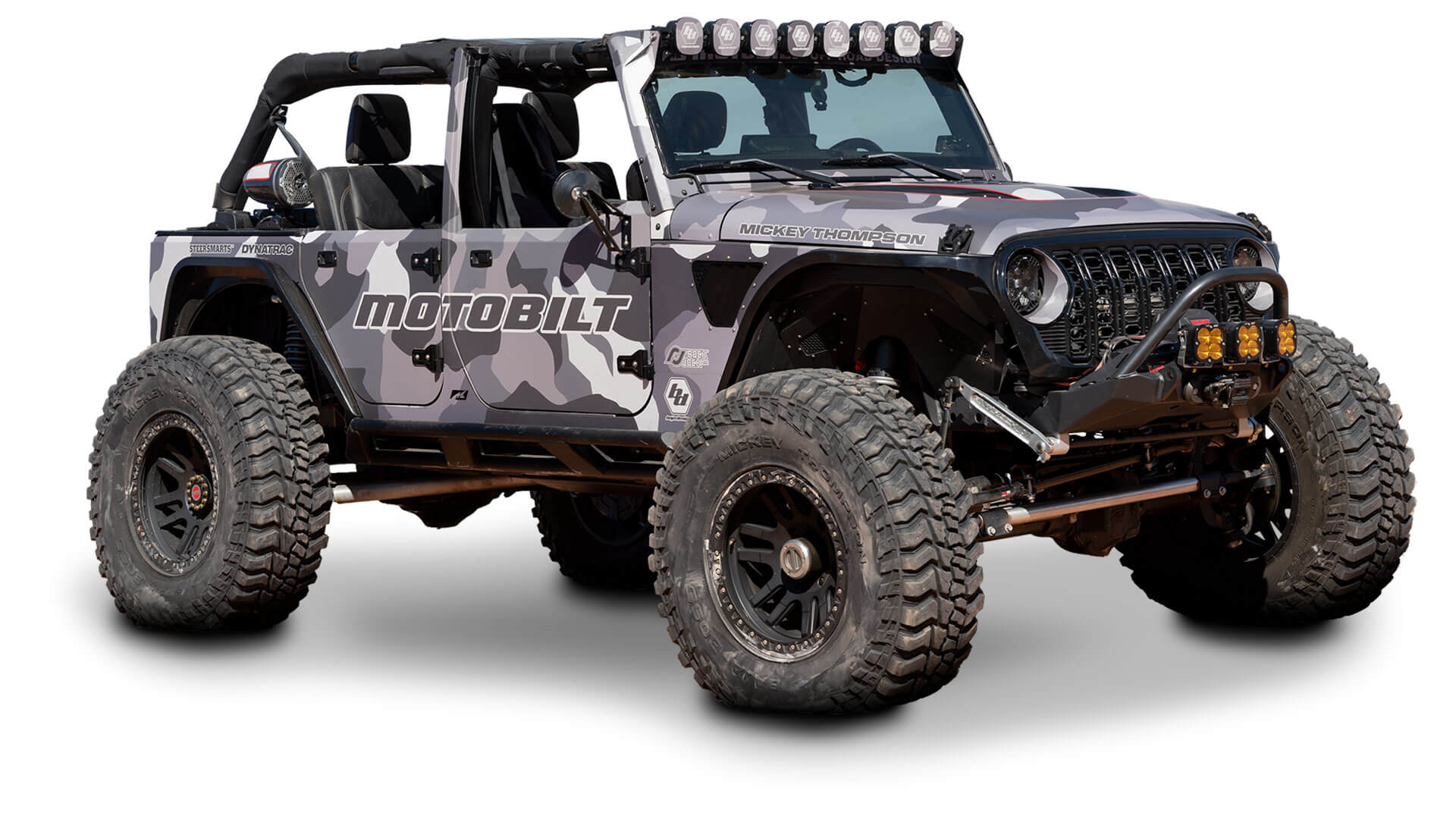

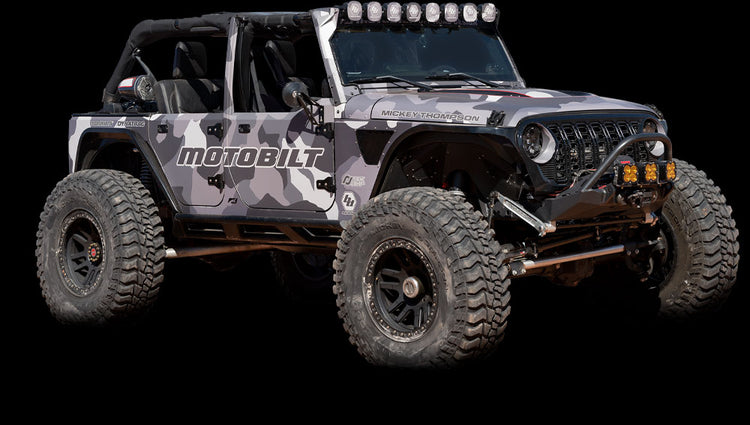

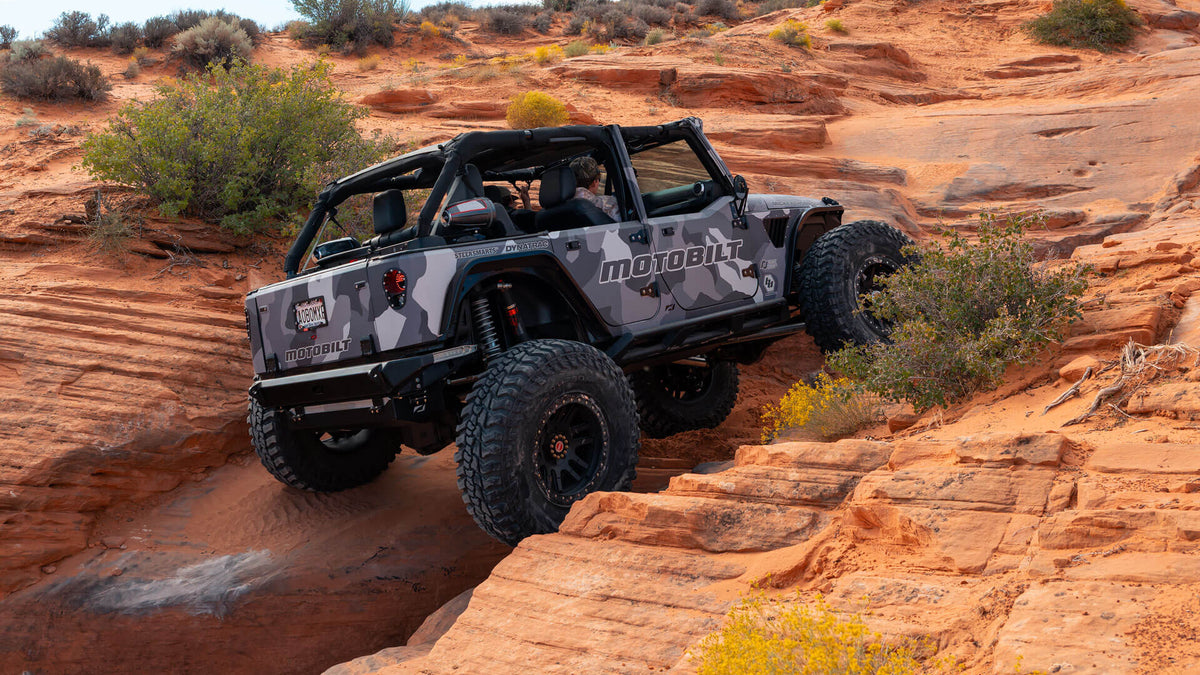

Motobilt's Ghost
The Ghost was built to show off how capable the 4 link can be while remaining capable for every day driving. What really stands out is the new prototype R&D products on the Ghost, such as the complete replacement front fenders, NOT just flares, and the new corner guards with built in Moto tail lights.
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick
Ghost's Specs
Find out which parts make this rig the trail boss that it is.

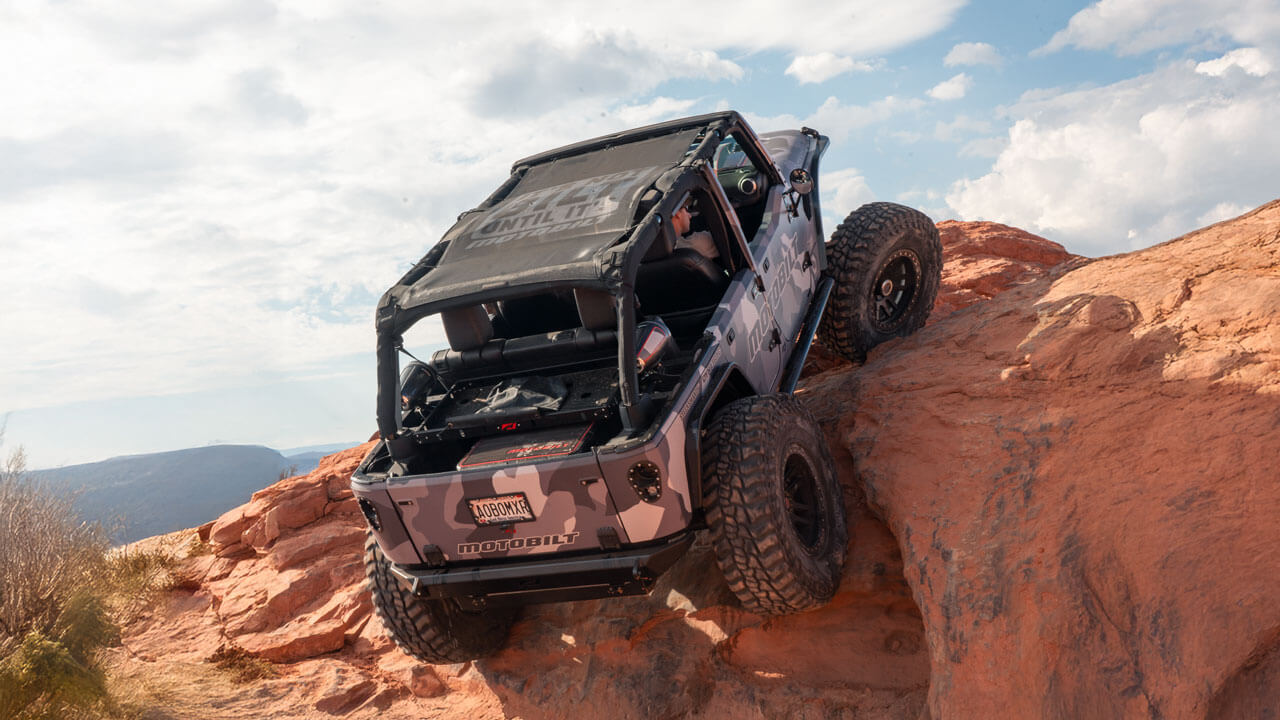

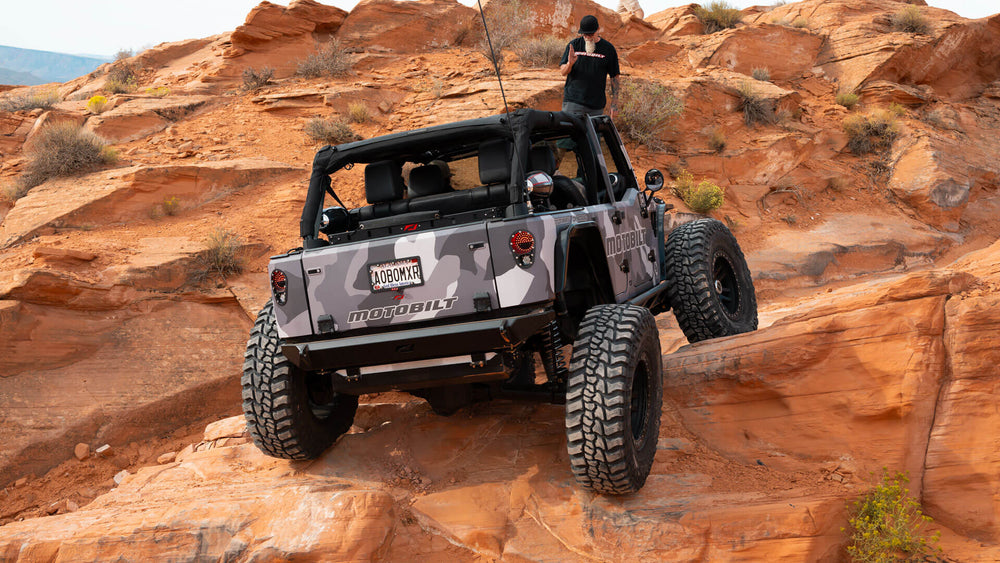

Body Armor
• MB1149 Tomahawk front bumper
• MB1081 rear bumper

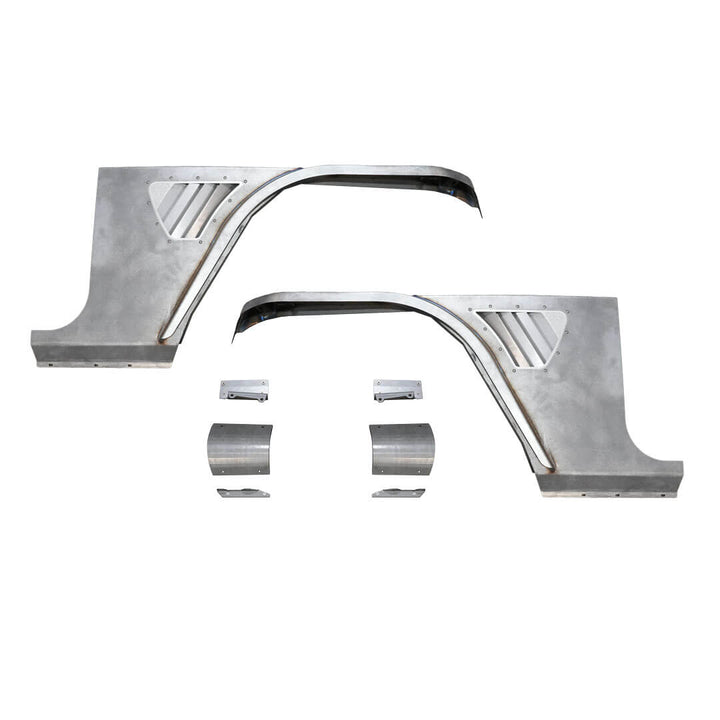

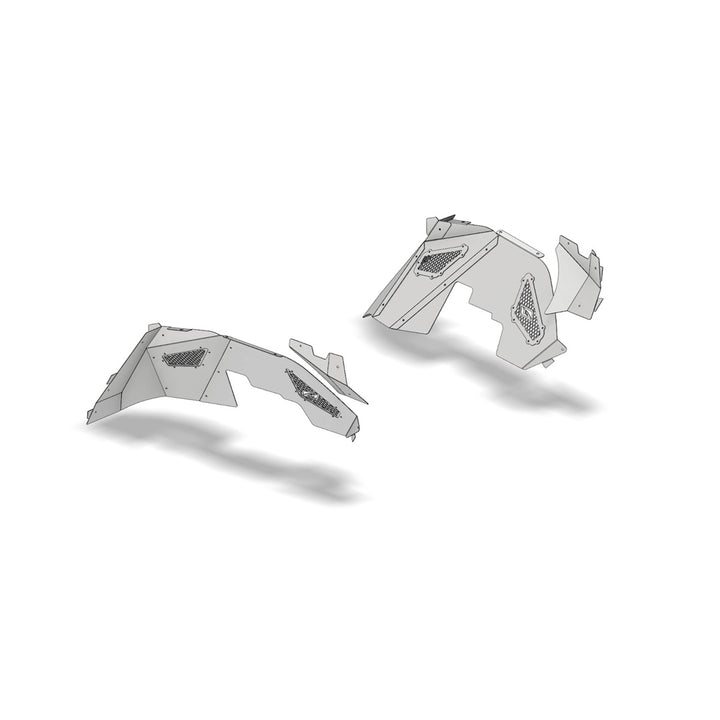

• MB___ new prototype front fenders
• MB___ new prototype corners guards

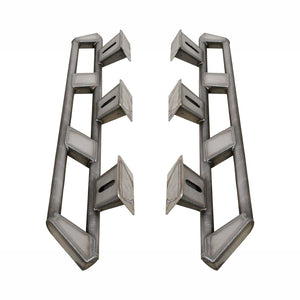

• MB1158 frame mounted rockers
• MB1014-a Rocker Armor

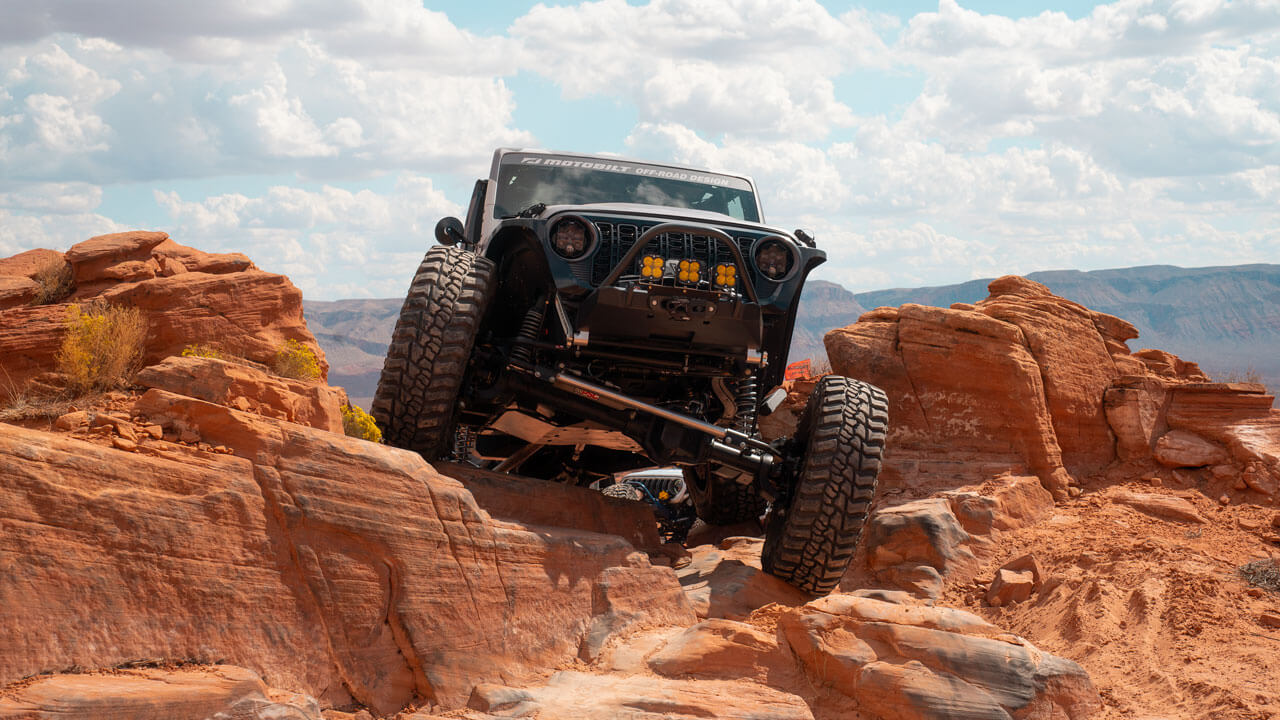

Frame and Suspension

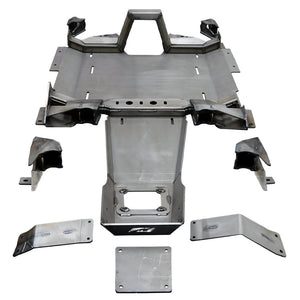

• MB7006 4 linkMB5032 Fuel tank
• MB____ prototype rear shock tower/cross member
• MB____ prototype front shock towers

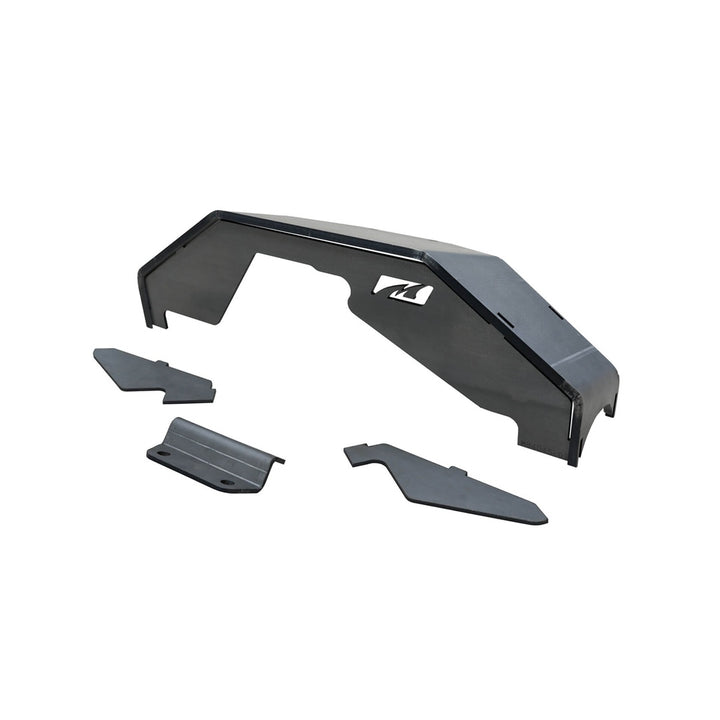

• MB____ Dynatrac Dana 80 truss

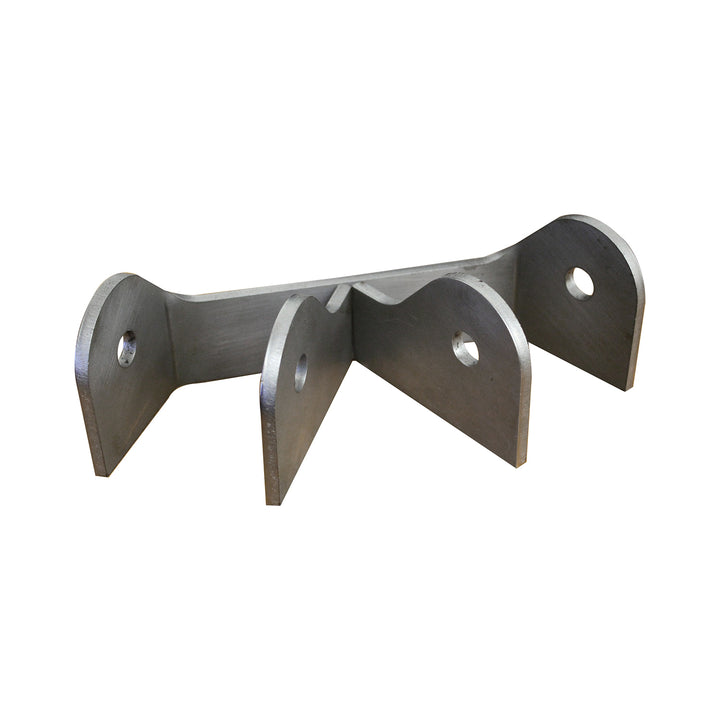

• MB1569 link mount
• MB1570 link mountMB1571 link mount
• MB____ front lower coil over mount for knuckle

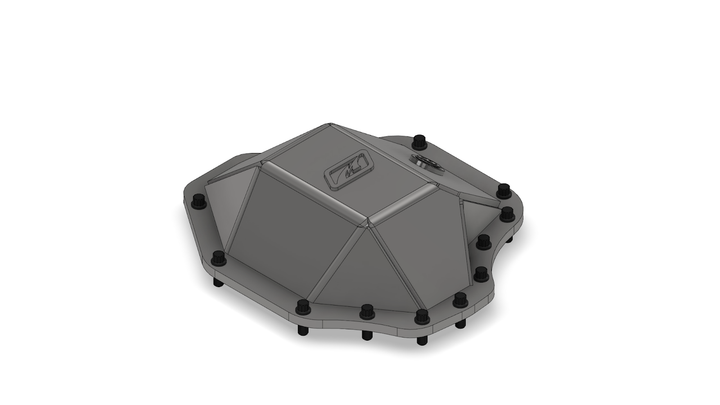

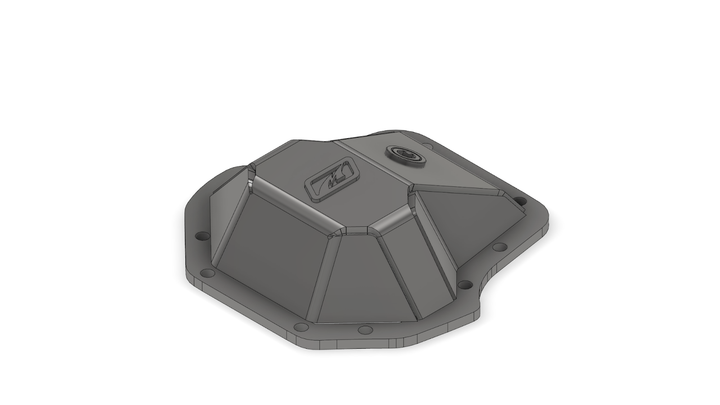

• MB____ Dynatrac steel diff cover

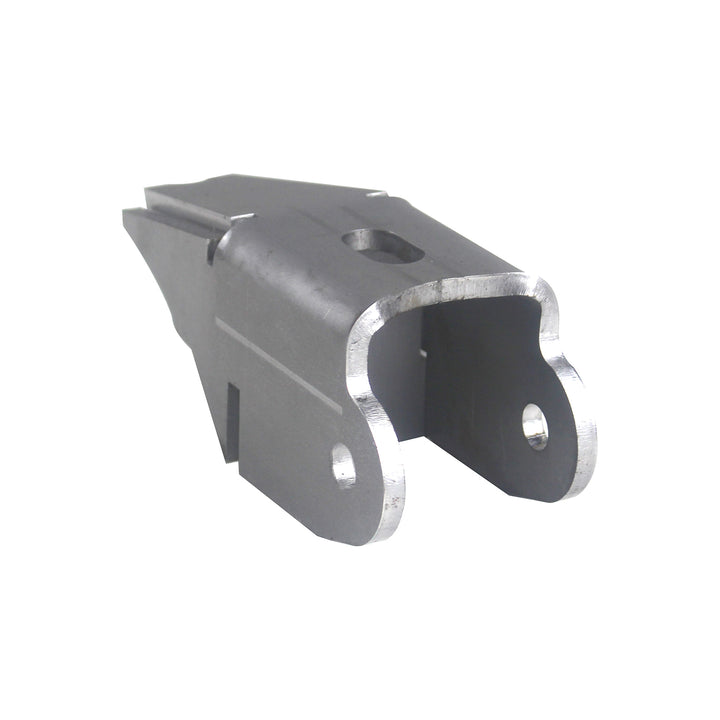

• MB2132 Upper link arm
• Factory Race 2.5x14 front 2.5x16 rear Coil-Over Remote Shock - DSC Adjuster
• Front coil overs FOX-981-25-109-3, Rear coil overs FOX-981-25-110-3
• Summit Machine 2.5” solid aluminum lower links
• Summit Machine 2” upper links with rockjock4x4 Johnny Joints
• Rock Jock 4x4 Narrow Johnny Joints (RH) CE-9114N-28 | (LH) CE-9114NL-28
• SteerSmarts-Yeti XD Drag Link and Tie Rod
• PSC Cylinder Assist Steering Kit w/Big Bore XD Cylinder Assist Steering Gear 7.5" Lock to Lock

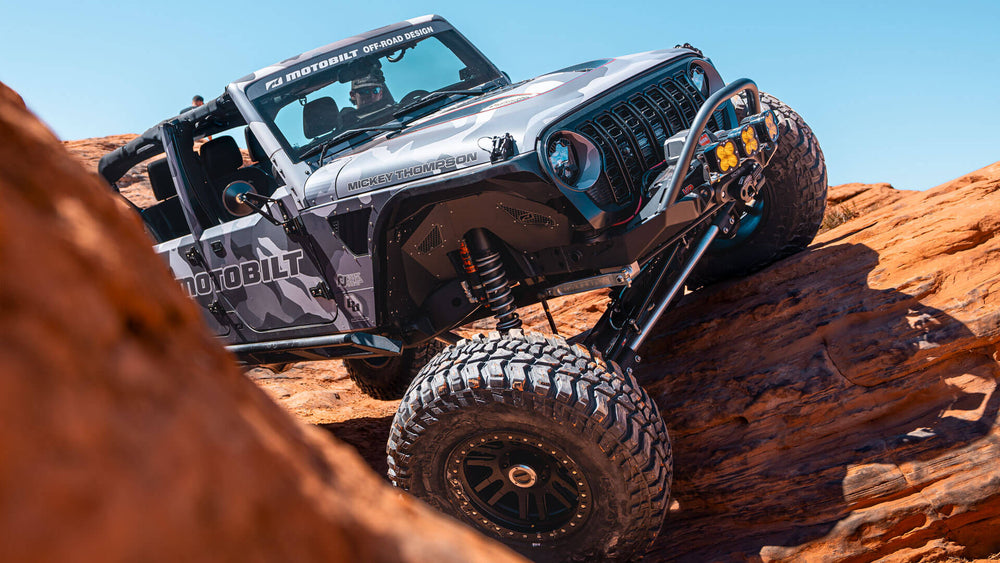

Drive Train
• 6.4L Hemi V-8
• Transmission Nag1 Auto
• Transfer case: Atlas II 4.3:1 twin stick
• Driveshafts: Adams 1350 CV front and rear
• Dynatrac Dana 60 front axle and dana 80 rear. ARB air lockers

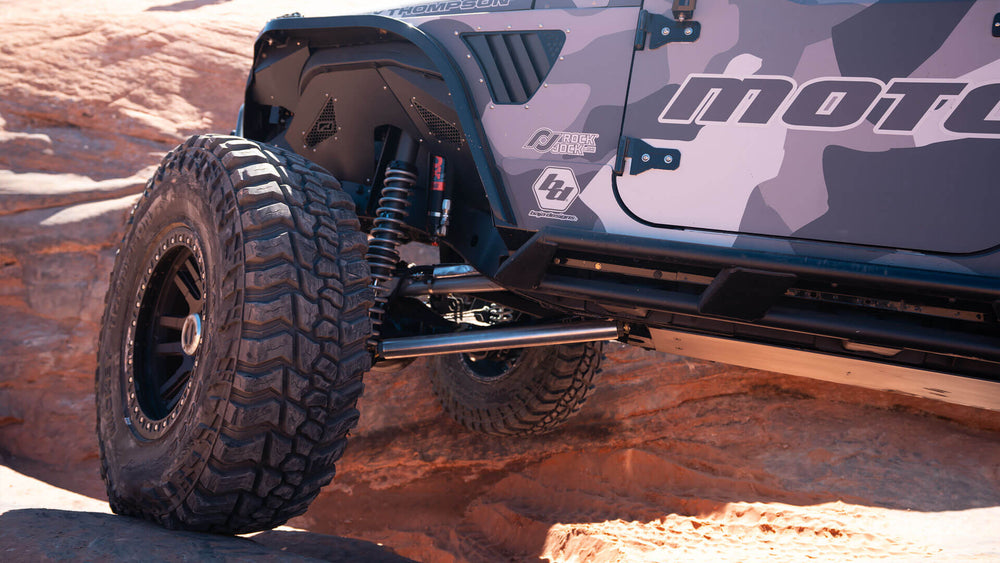

Tires and Wheels
• Mickey Thompson- Baja Boss MT 42x13.50x20
• Dirty Life Canyon Race Bead Locks 20x10 -44 Offset 8x6.5 Bolt Pattern PN#9314-2181MB44
Accessories
• MB1217 drop tailgate
• MB2162 ARB air compressor mount
• ARB hd single compressor
• Stinger Horizon 10 head unit
• Warn VR-1000s Winch with Factor 55 Ultra hook black

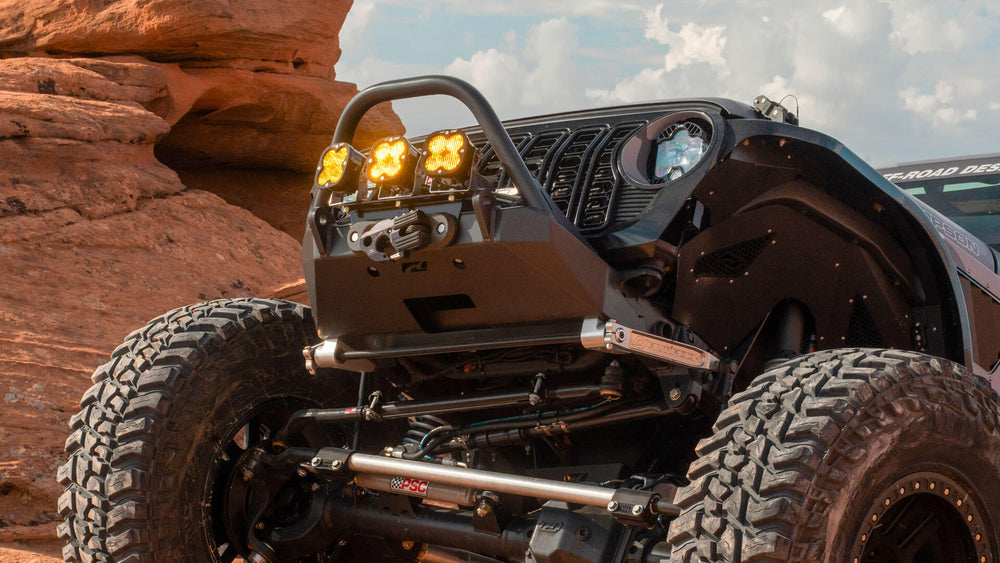

Lighting
• Baja Designs Linkable 8 light bar on windshield
• Baja Desings LP6 DOT head lights

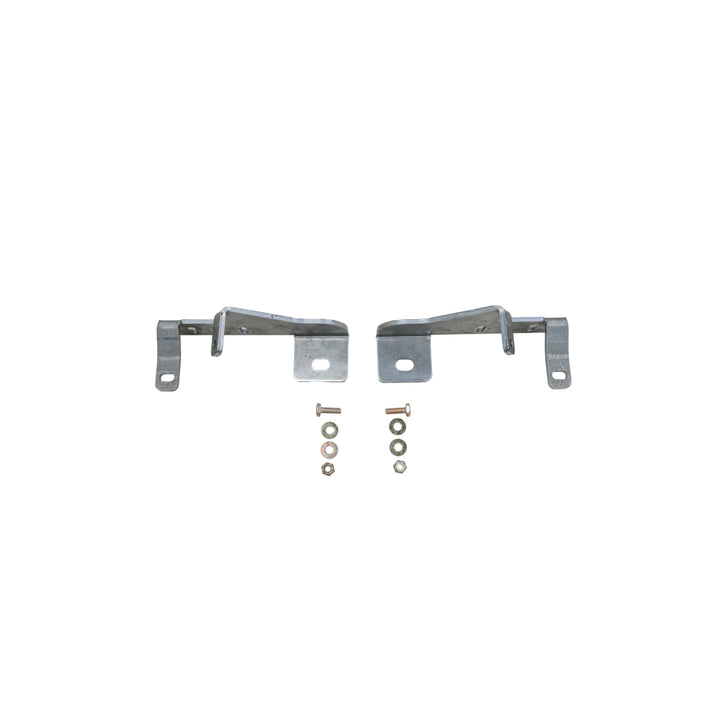

• MB2193 LP6 headlight brackets
• Baja Designs XL lights on winch qty (3)
• Baja Desings S1’s built into Motobilt tail light assembly
• Switch Pro’s controller bank
