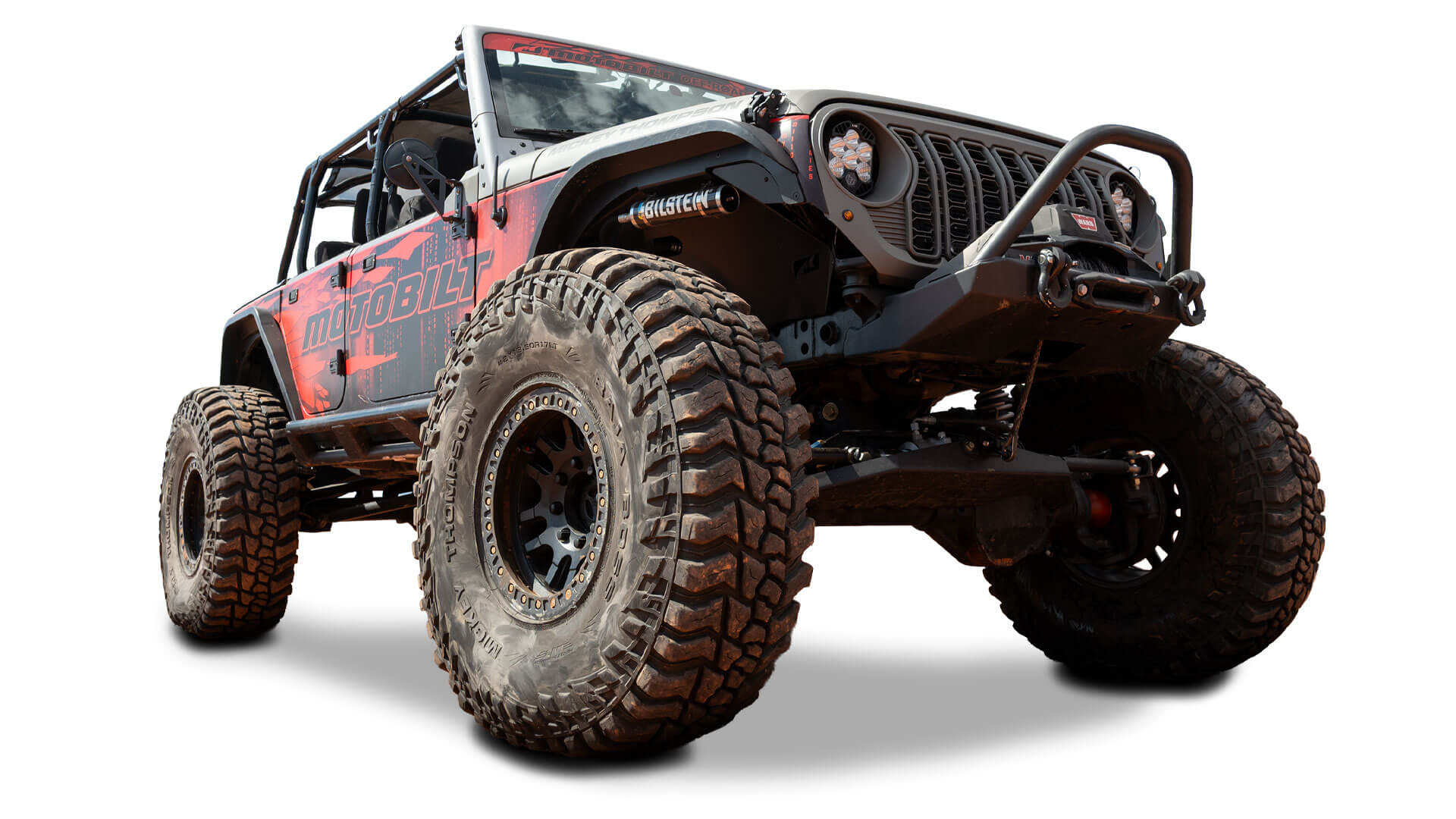

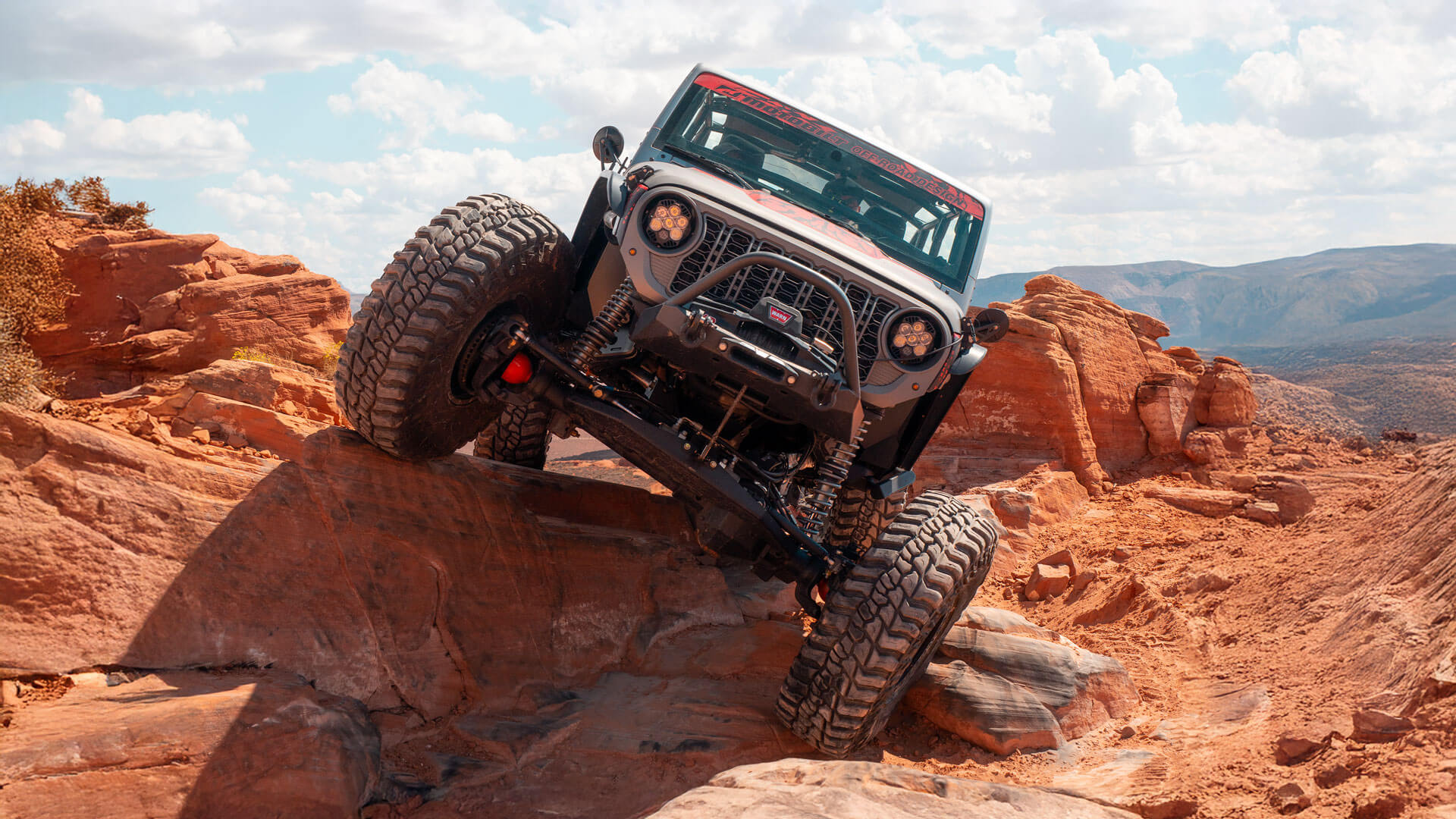

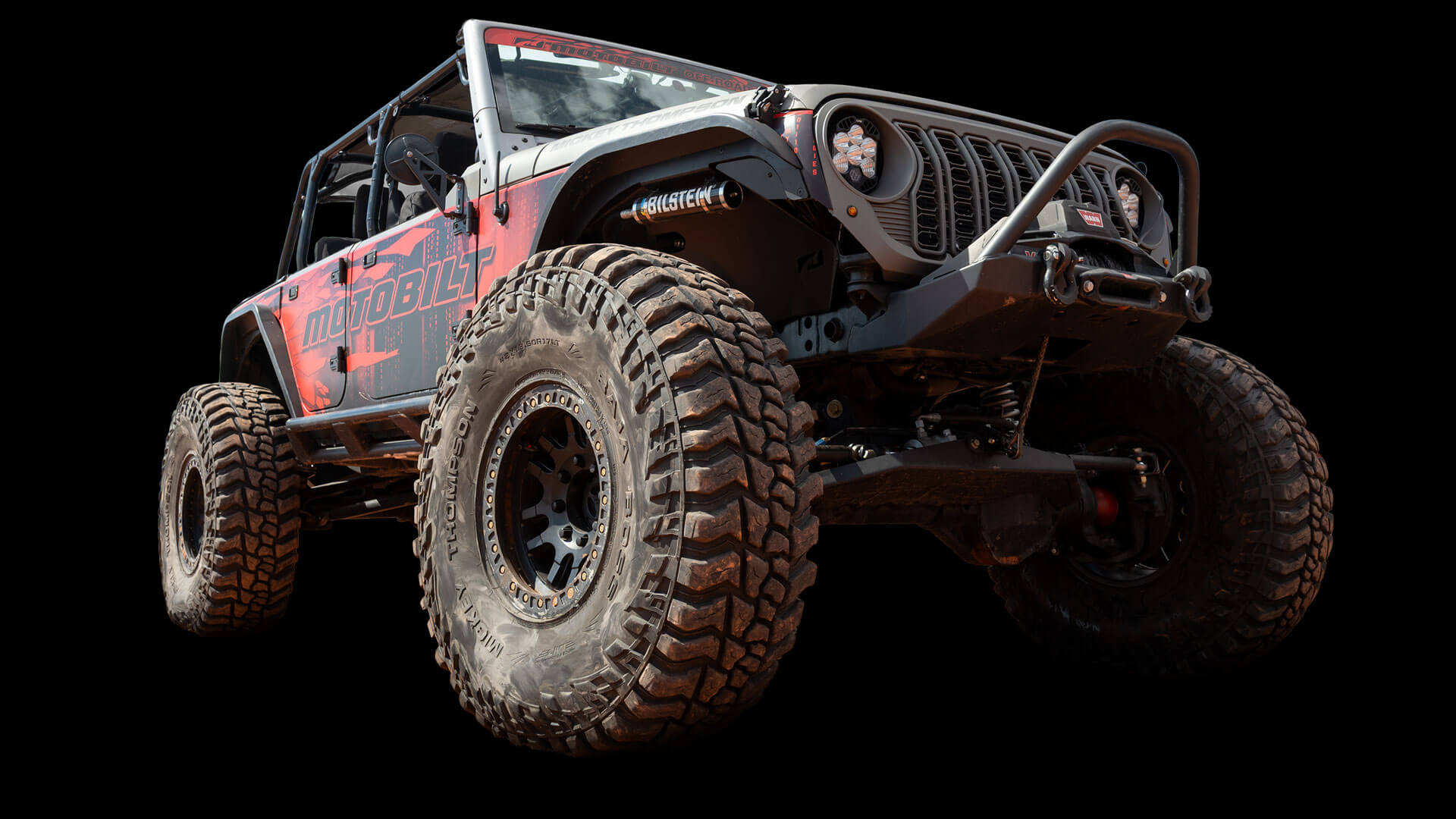

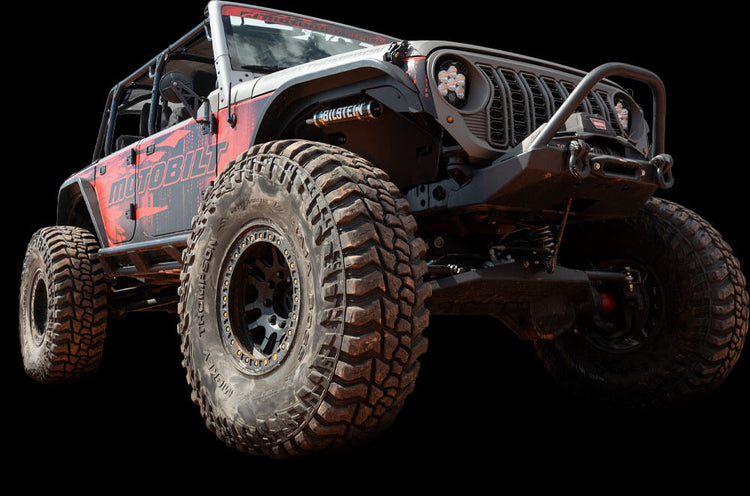

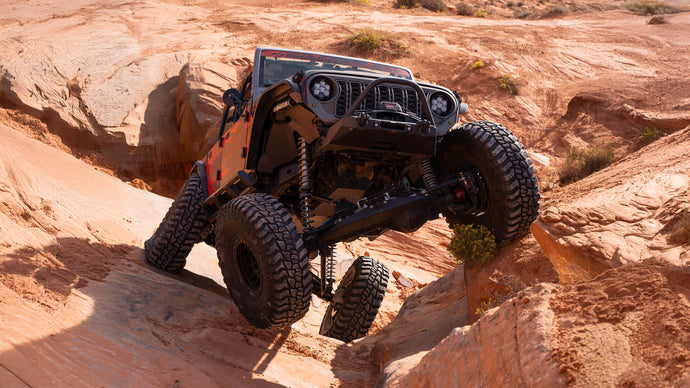

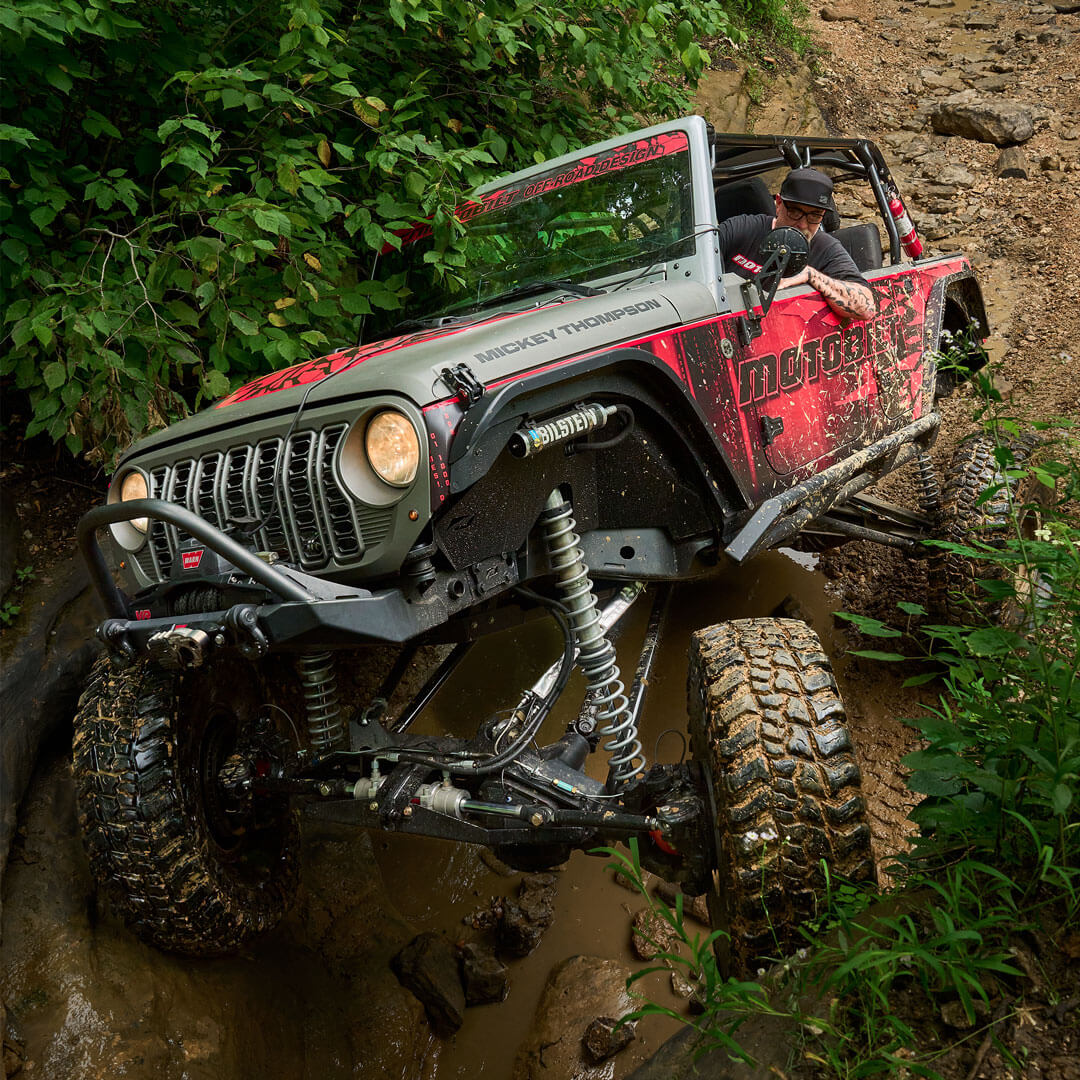

Motobilt's Matrix

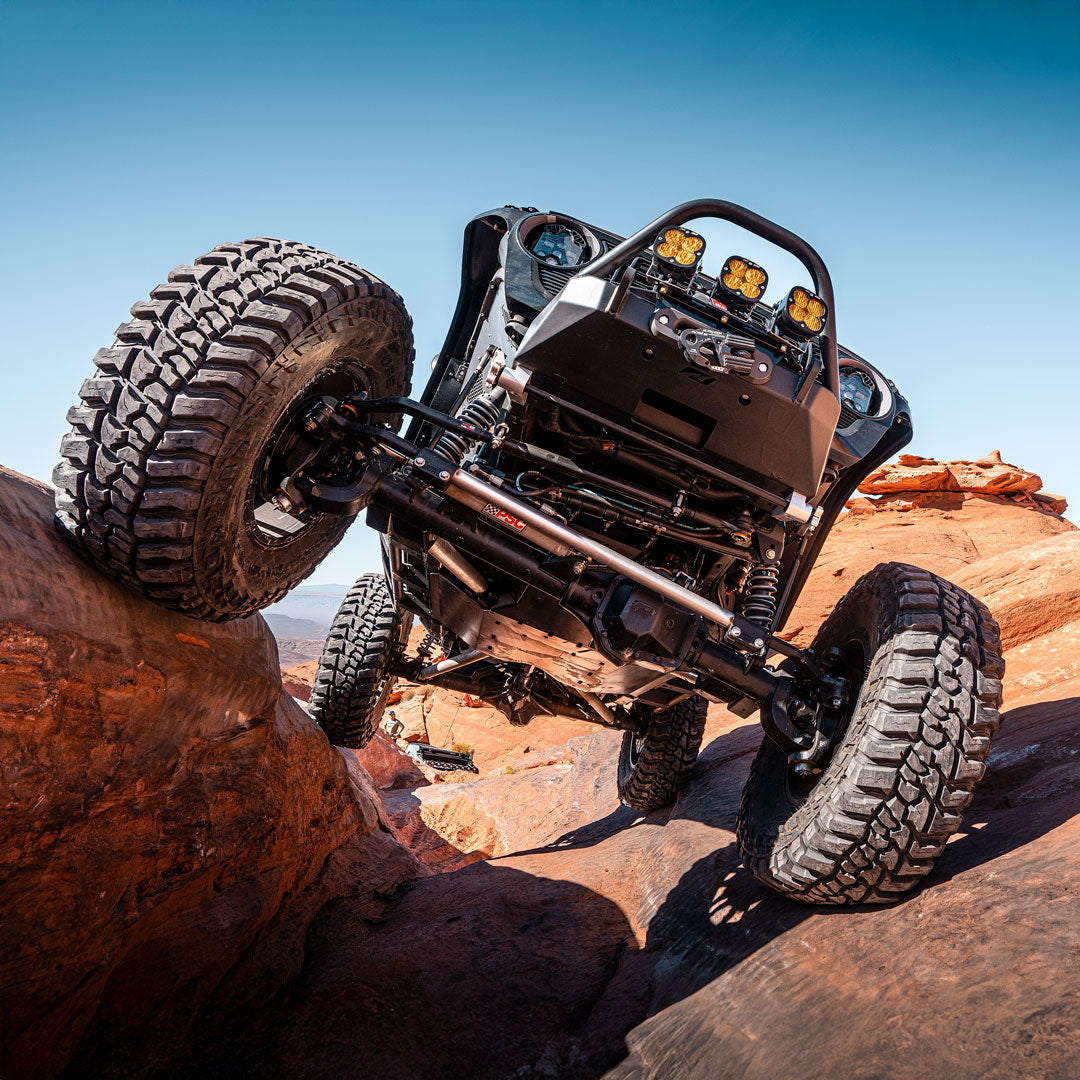

The matrix was built to display that our suspension system can be used like a full on tube buggy. Bender built the front out as a true double triangulated 4 link with full hydraulic steering. This Jeep has a true hardcore off road suspension system.
Build Your Own
Get the Parts
If you're planning a similar build, explore the parts we used on this project and begin upgrading your rig today.
What makes it tick
Matrix's Specs
Find out which parts make this rig the trail boss that it is.
Body Armor
• MB1149-BB tomahawk

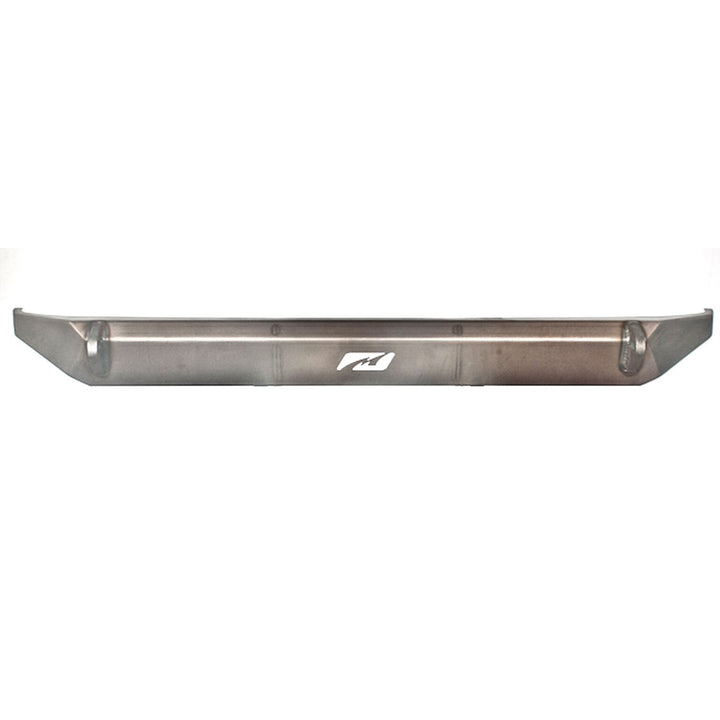

• MB1081 rear bumper
• MB5032 gas tank

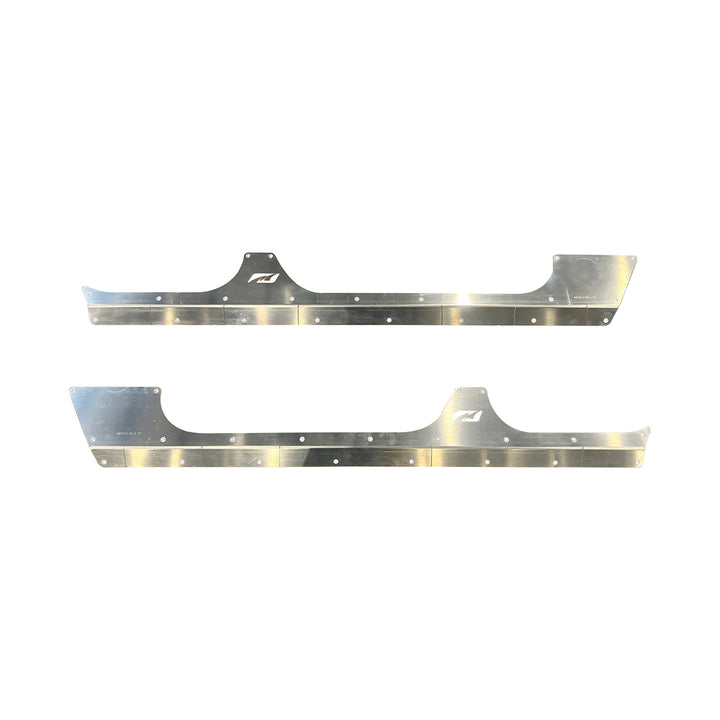

• MB1014-A body armor

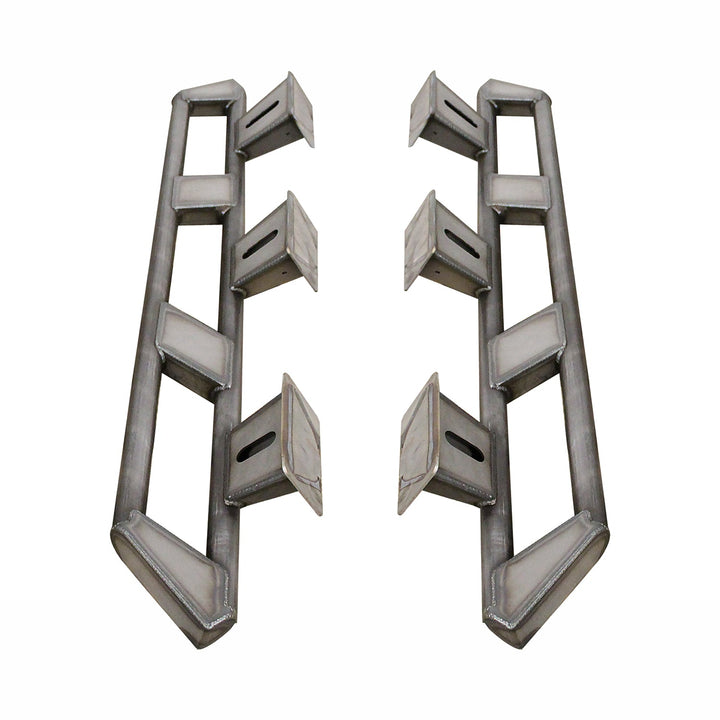

• MB1159 frame mounted rockers

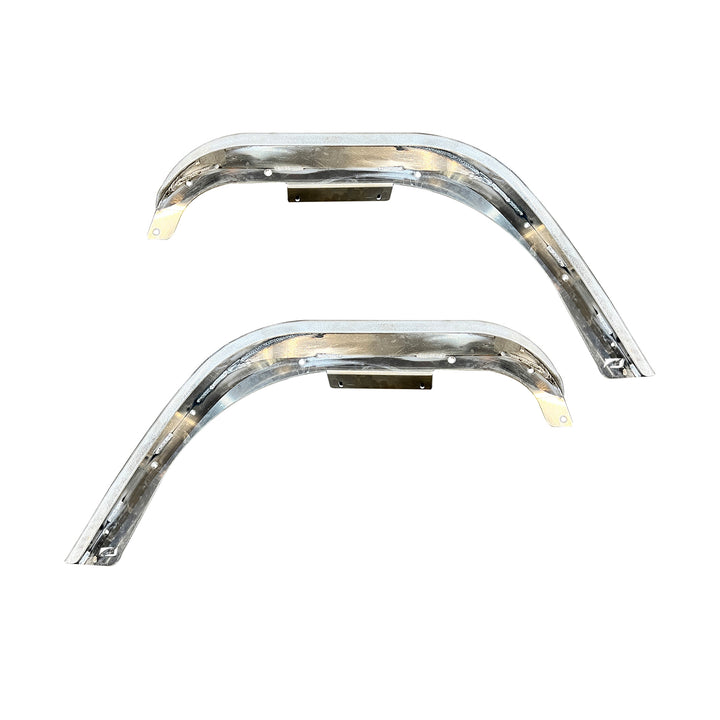

• MB1225-A front fenders

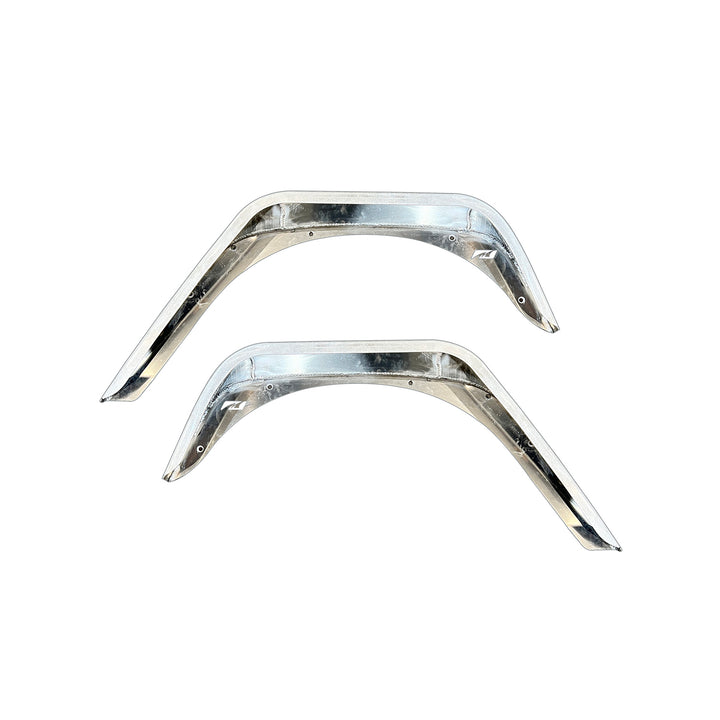

• MB1226-A rear fenders

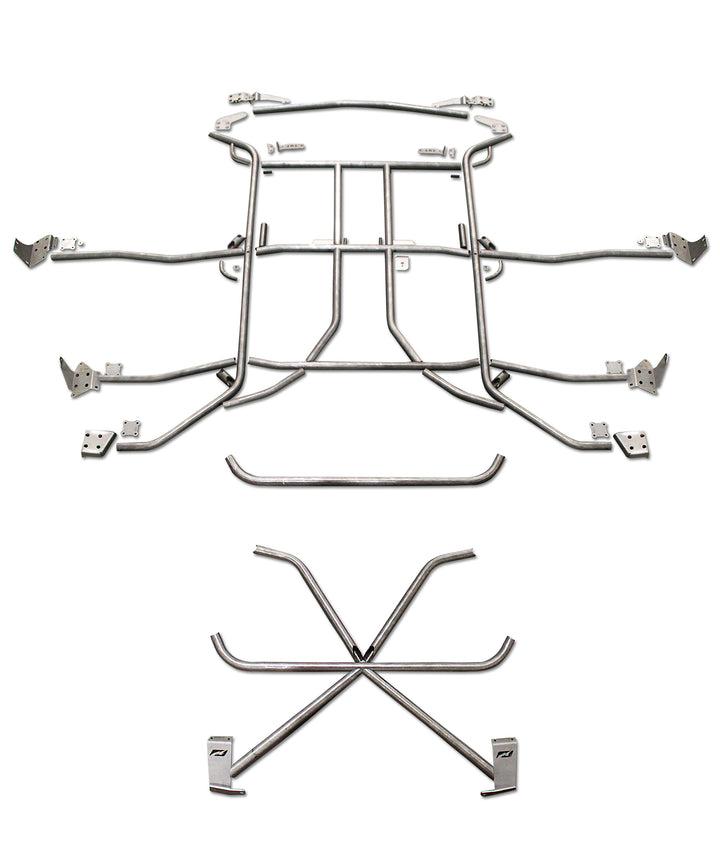

• MB3033 roll cage
Frame and Suspension

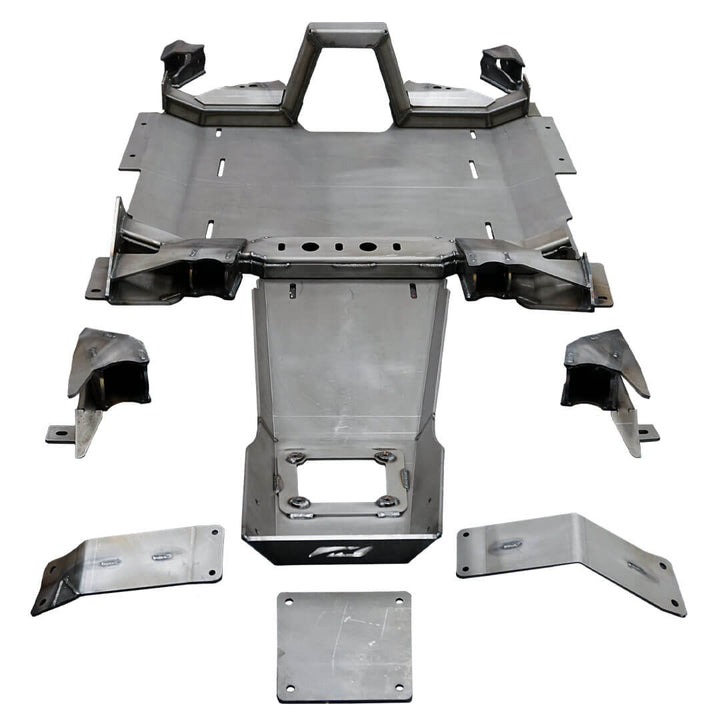

• MB7006 4 link
• MB5032 Fuel tank
• MB5552 - Rear Coilover Tower Cover for JKU

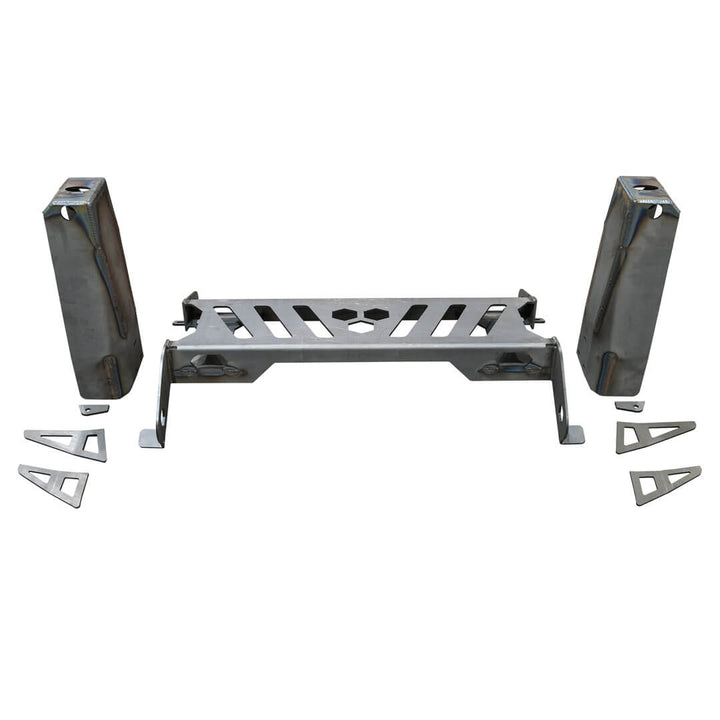

• MB1554 - Rear Coilover Mount for JK

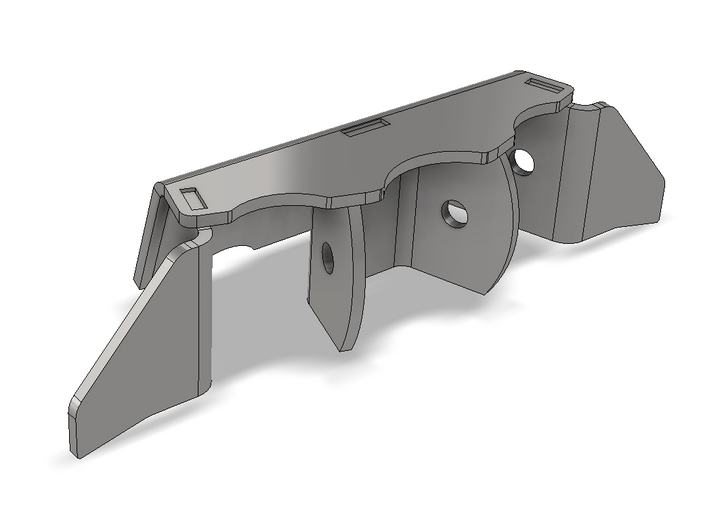

• MB1569 Link Mount

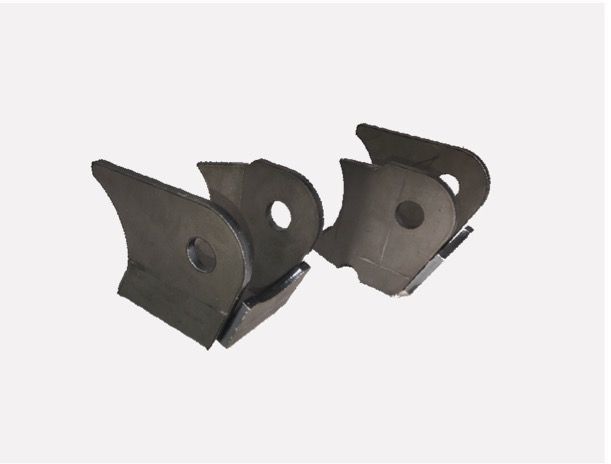

• MB4015 super duty front lower link mounts

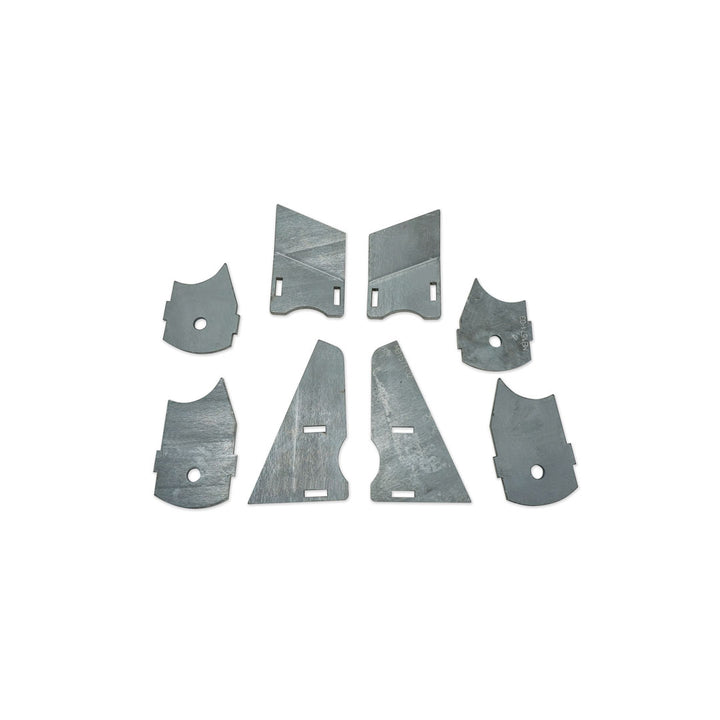

• MB1571 link mount

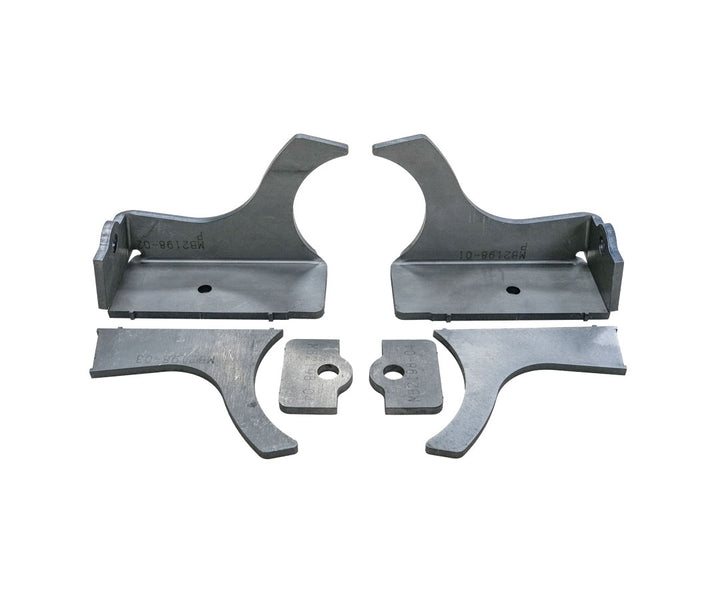

• MB2198 - Dana 60 Coilover Drop Bracket
• 2” x 0.250 Wall DOM tube with RockJock4x4 Johnny joints 2 5/8”
Drive Train
• Engine: Stock 3.6, trans nag 1 auto
• Transfer Case: Stock Rubicon 241
• 2005+ ford dana 60 front axle

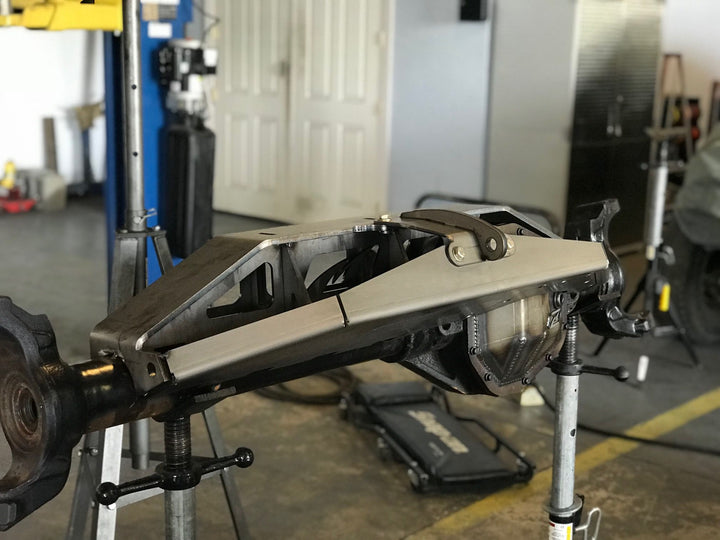

• MB4072 full truss with hydro steer ram mount
• RCV big bell axlesARB air locker5.38 gears
• 1988 + GM 14 bolt rear axle ARB air locker with 5.38 gears
• MB4003 competition truss
• MB4067 13 bolt cover
• Adams Drive shaft 1350 CV with custom AG front shaft
• PSC 2.75” double ended full hydraulic

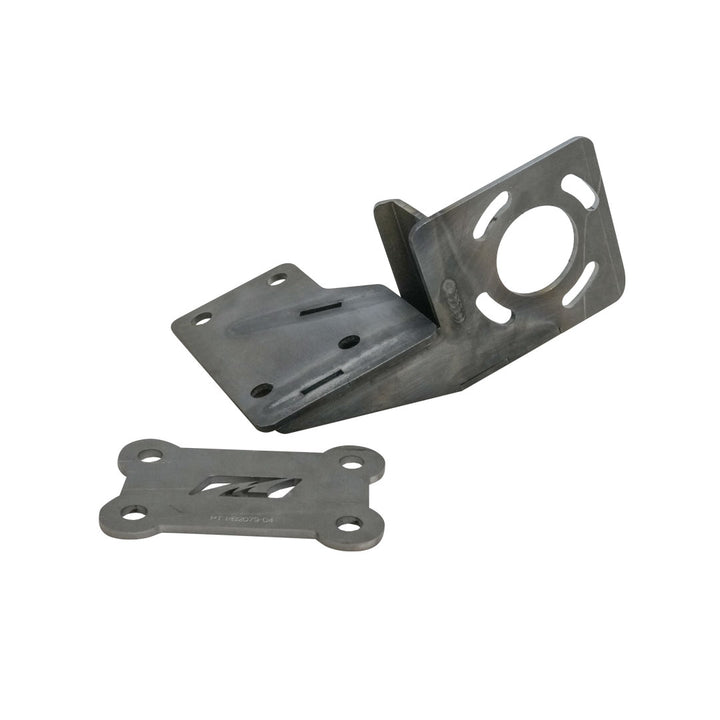

• MB2079 Orbital valve mount for jeep JK/JKU

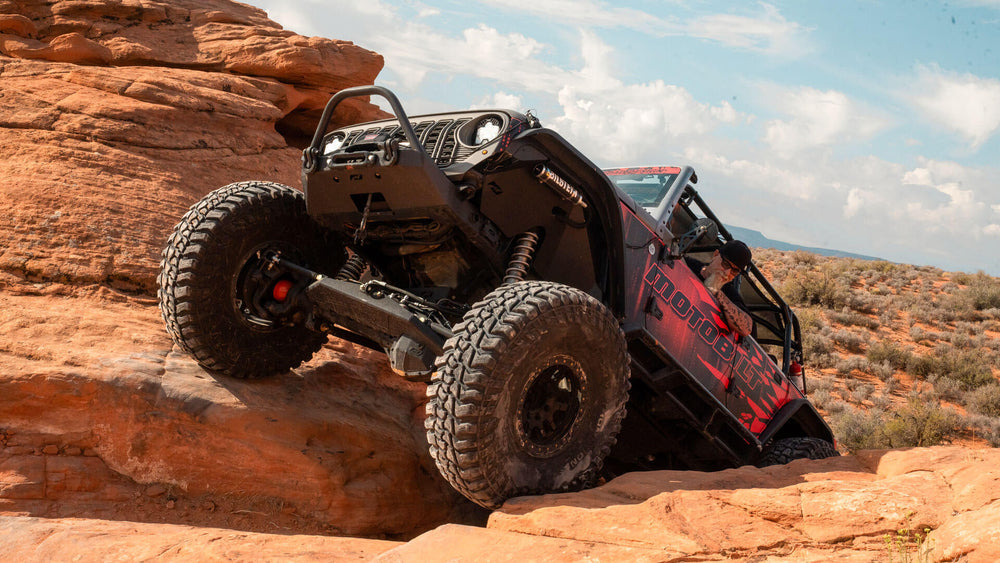

Tires and Wheels
• Mickey Thompson Baja boss MT 42x13.50x17
• Dirty Life 17x9 8x6.5 beadlocks -38 offset

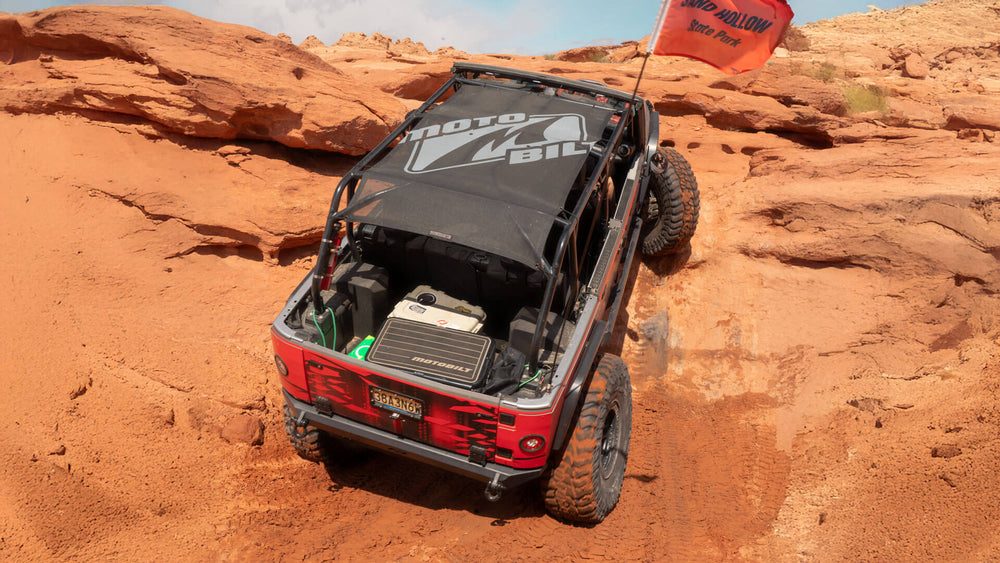

Accessories

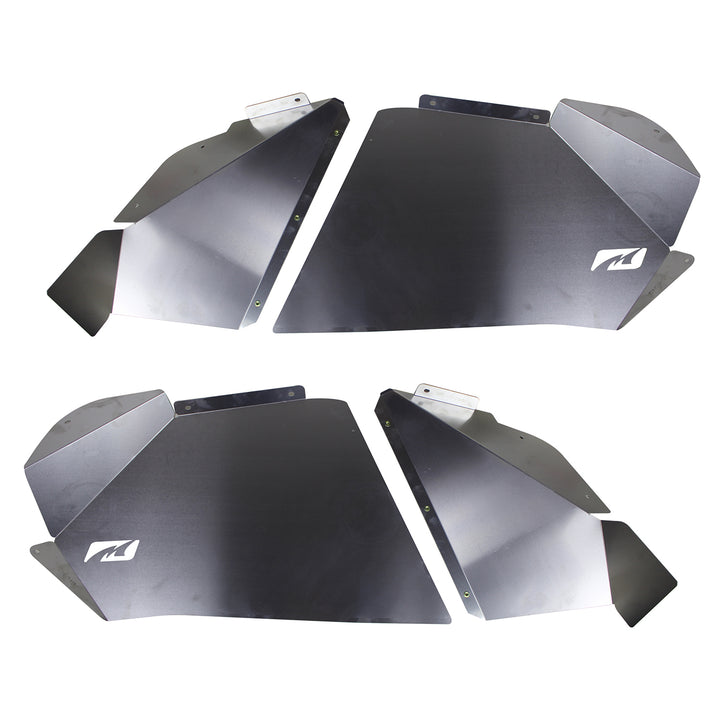

• MB1153 blank front inners

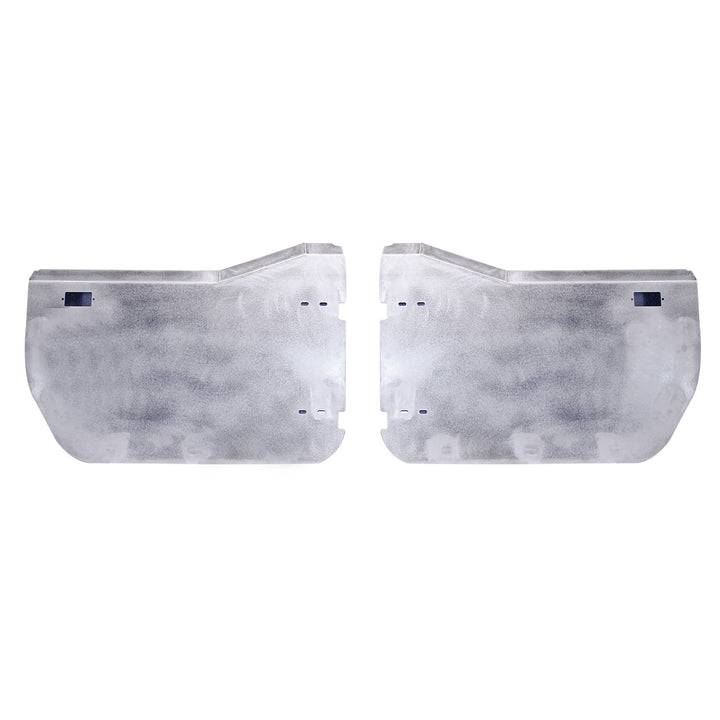

• MB3055 front half doors

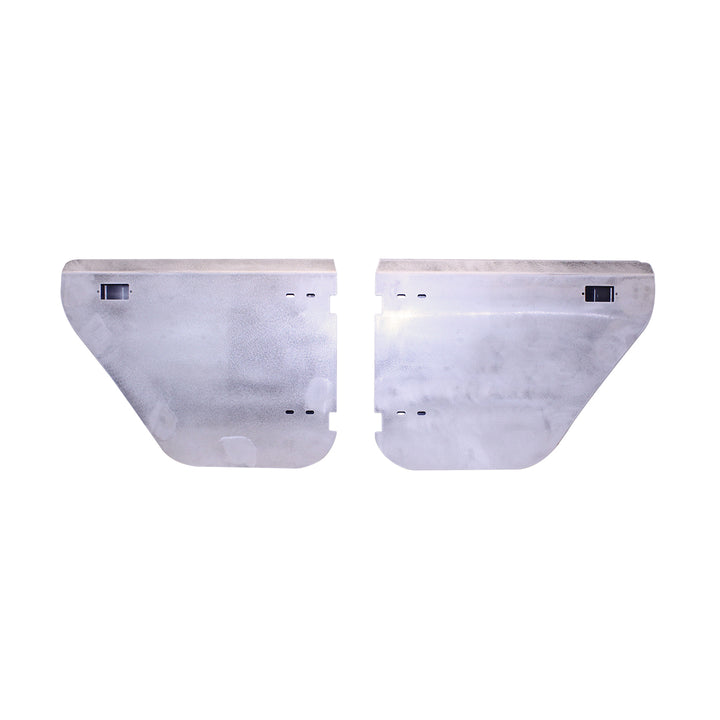

• MB3056 rear half doors

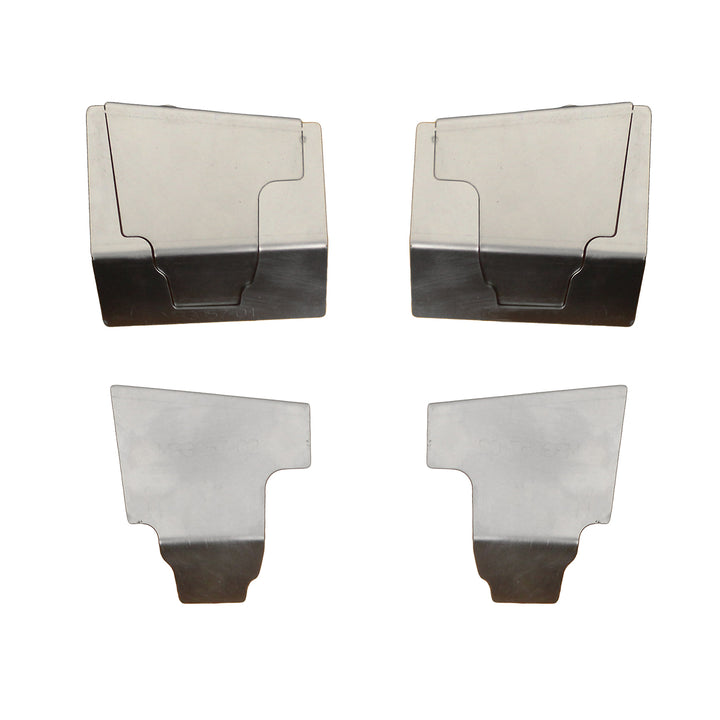

• MB3057 B pillar chop
• MB1217 Drop tail gate

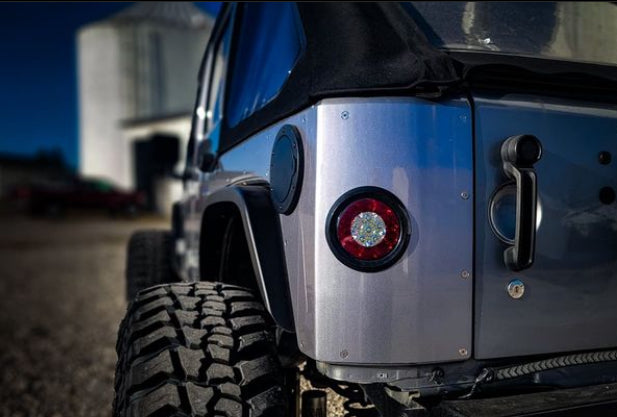

• MB1125-ST corner guards
• Stinger Horizon 10 head unit
• Warn VR-1000s with Factor 55 Ultra hook
• Rockmonster Jk to JL grill and Rubicon hood

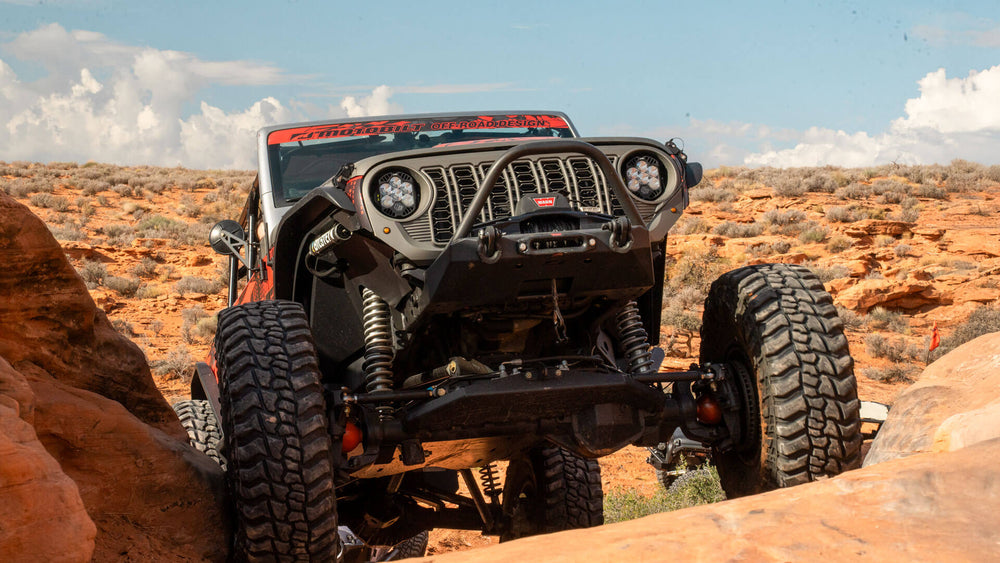

Lighting
• Baja Designs LP6 headlights with MB2193 lp6 headlight brackets.
