MB1090F-MB1094

Hammer Series Front Bumper w/ Fog Mounts and Skid Plate for Jeep JL / JT Gladiator

$788.00
Shipping calculated at checkout.

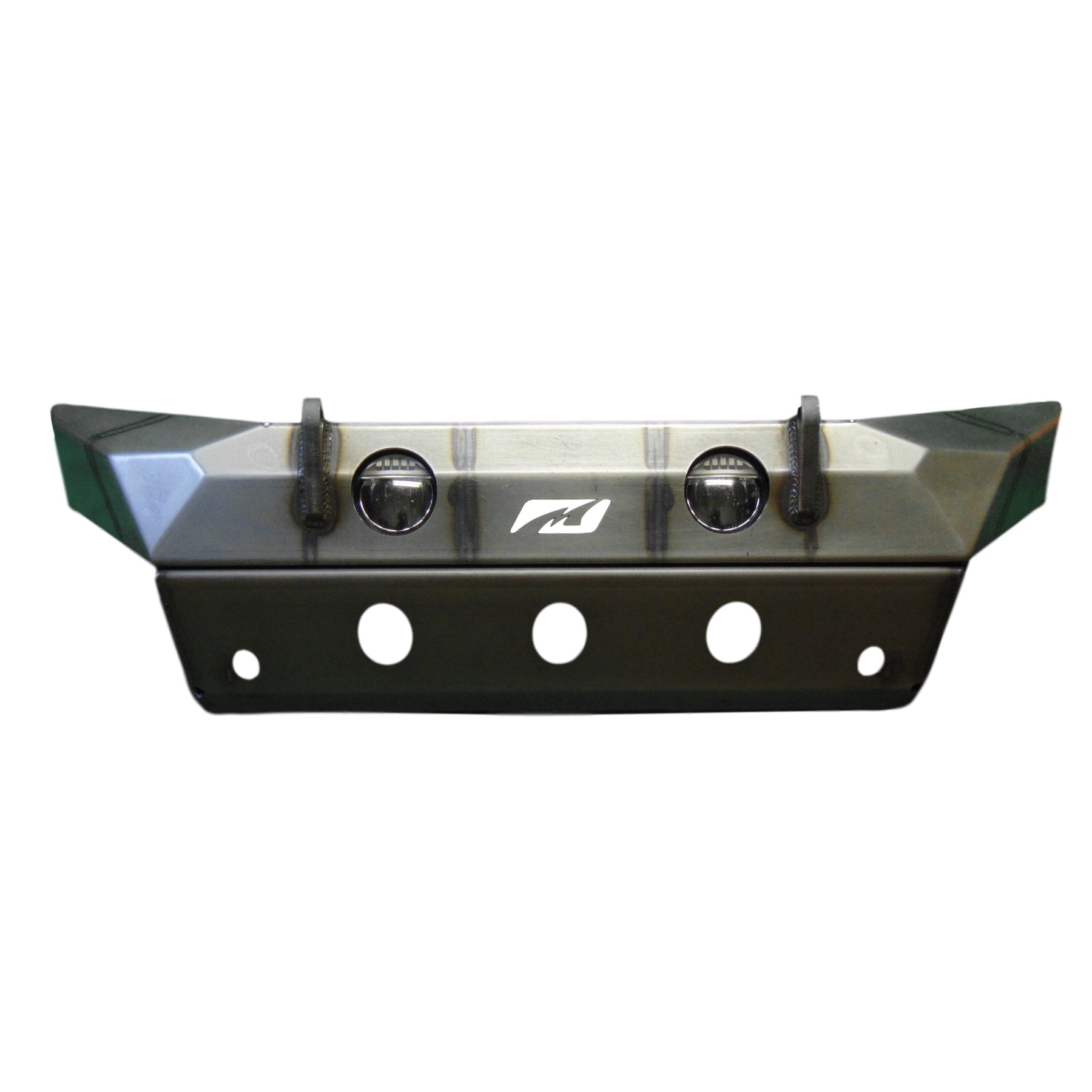

Motobilt now offers the Jeep JL Hammer front bumper with skid plate and LED fog light holes. It features built in provisions for factory style fog lights and the skid plate is laser cut from 3/16-inch P and O steel and formed on a press brake. The Motobilt Jeep JL Front Hammer Bumper is a 48.5-inch wide, sleek, tight-fitting design proudly made in the USA. Our JL Hammer Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JL. The bumper will fit all 2018 and newer models of the Jeep JL 2 door and 4 door JL Unlimited. The front d-ring mounts are CNC cut from 3/4-inch-thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

The Hammer bumper has provisions to mount the factory fog lights or aftermarket LED fog lights. We have pre-installed riv nuts for 10-24 screws in the factory bolt pattern. The ends of the Hammer bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16 inch thick high strength steel plate. The bumper also serves as a winch mount. The top side of the JL Hammer bumper has bolt holes for a recovery winch.

Specifications

  • Jeep JL Hammer 48.5-inch front bumper wth skid plate.
  • Fits 2018 and newer Jeep JL 2 door and 4 door JL Unlimited

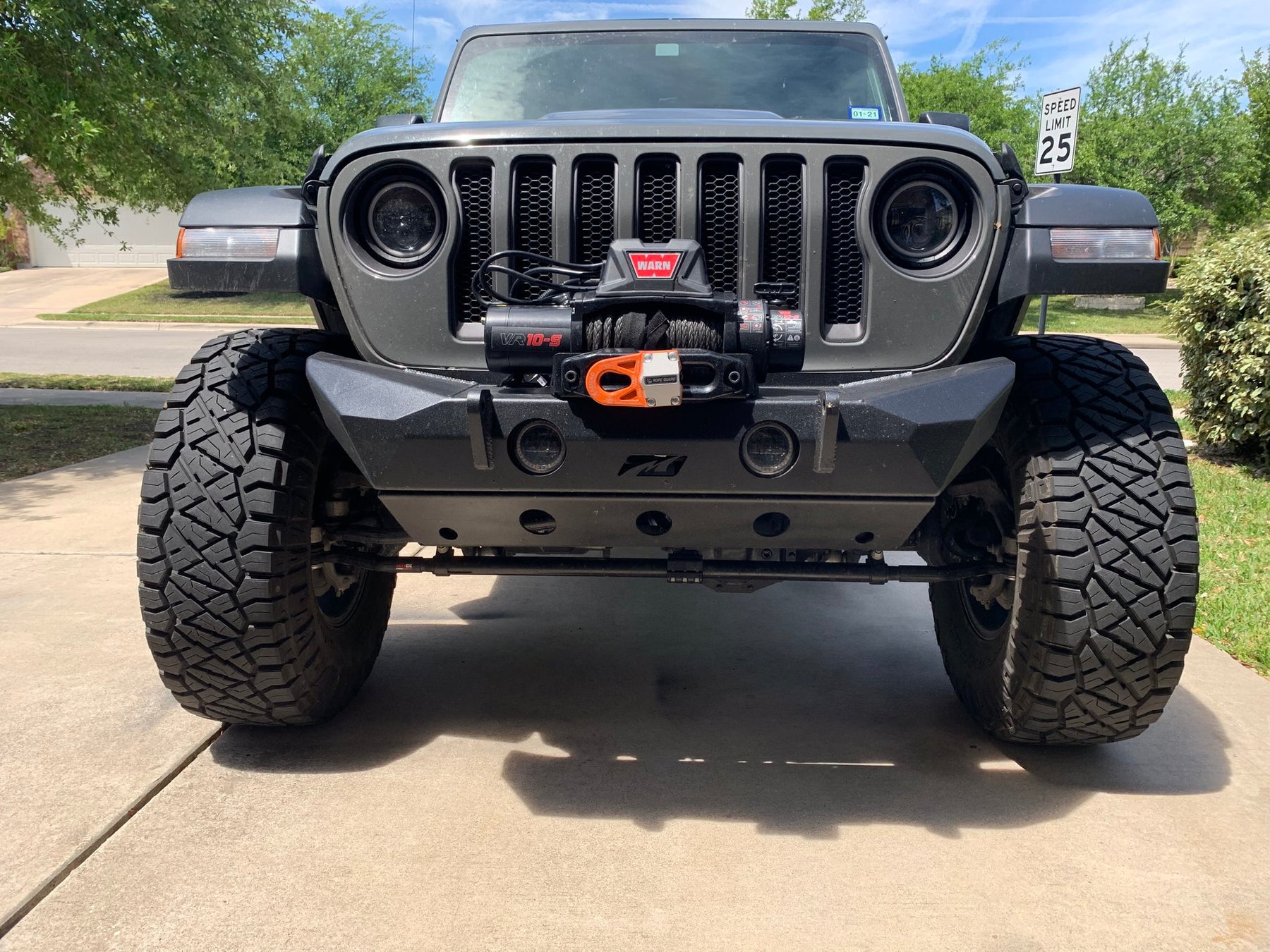

  • Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
  • Fabricated from 3/16 inch thick high strength steel plate.
  • Bolt on design.
  • 3/4-inch-thick steel d-ring mounts
  • Pass through d-ring mounts weld to the bumper.
  • Fog Light Holes for factory 4 bolt design LED fog lights.
  • Pre-installed riv nuts for 10-24 screws for the factory fog lights.
  • Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
  • Sold as each.
  • Weight: 95lbs (approx.)

Note:

  • If installing a winch, MB1002 fairlead mount will also need to purchase. See Related Parts.
  • Ships raw steel. Must be painted or powder coated to prevent rust.  See (Steel-It)
  • No cutting required on the frame rails on your Jeep JL
  • If installing on a Mojave, then the skid plate brackets on the lower crash bar will need to be removed for the skid plate to fit.
  • Only LED fog lights will work
  • Halogen fog lights will NOT work with bumper
  • LED fog light NOT included.
  • If your vehicle is equipped with the fog light design below, your fog lights will not work with this bumper

Product Components

Product Components For Skid Plate

Instructions

If using an Apple device and the instructions link does not work, then click on the link below and hold down to download the link.

Instructions

Instructions For Skid Plate
