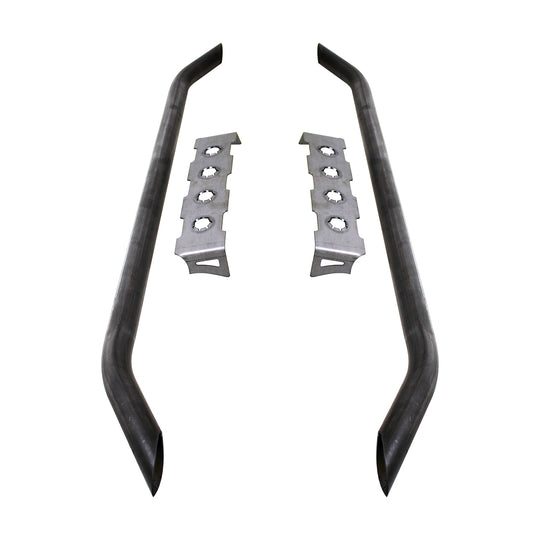

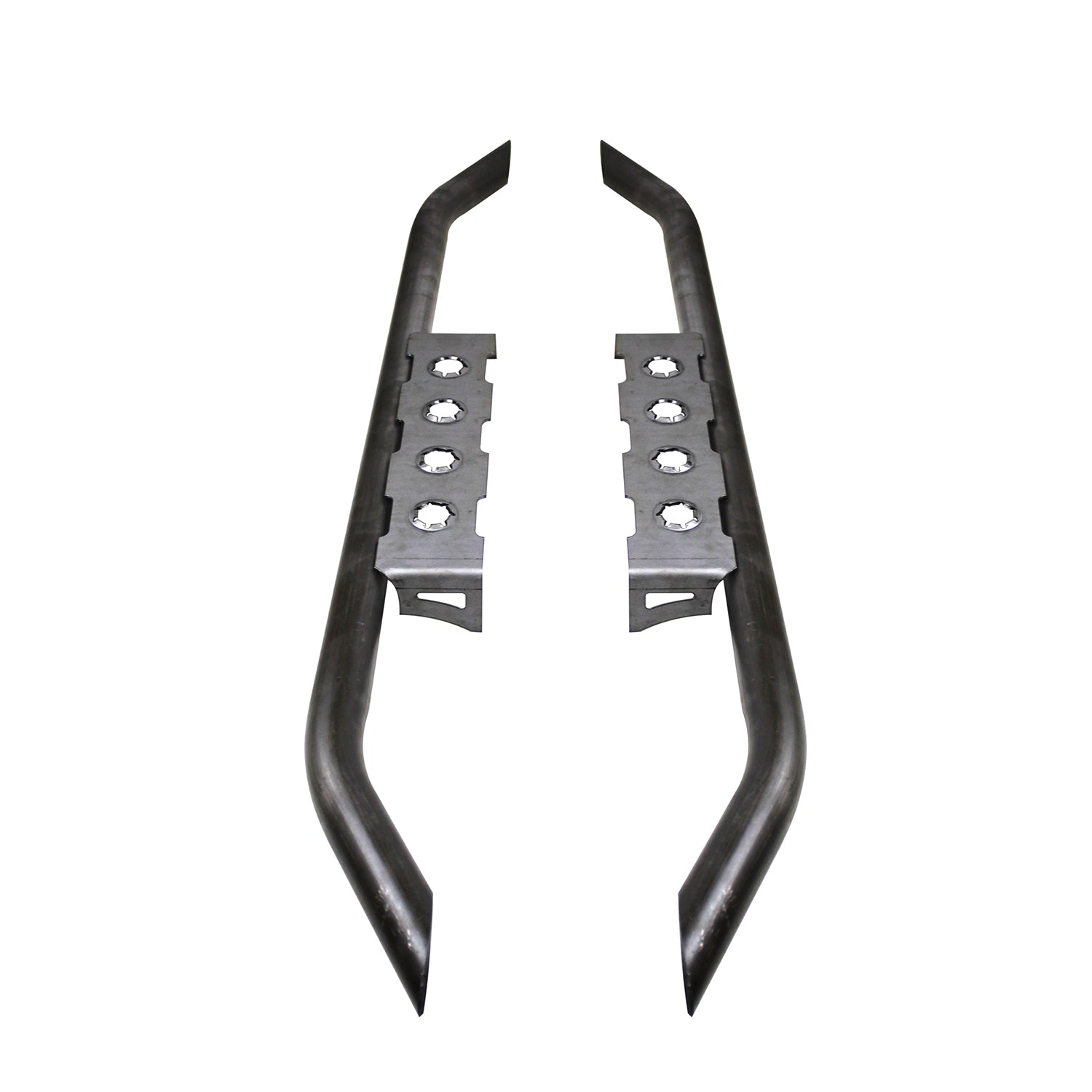

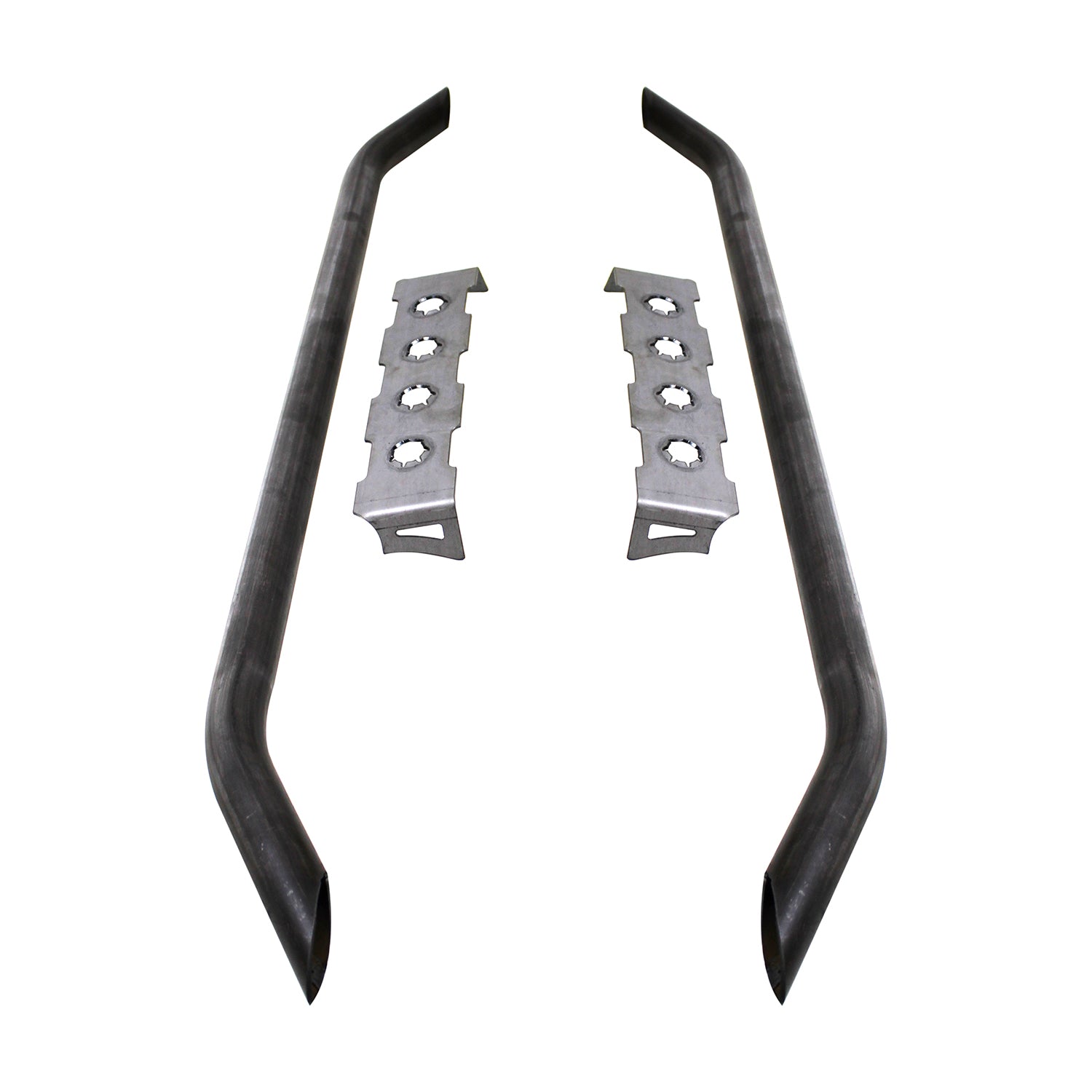

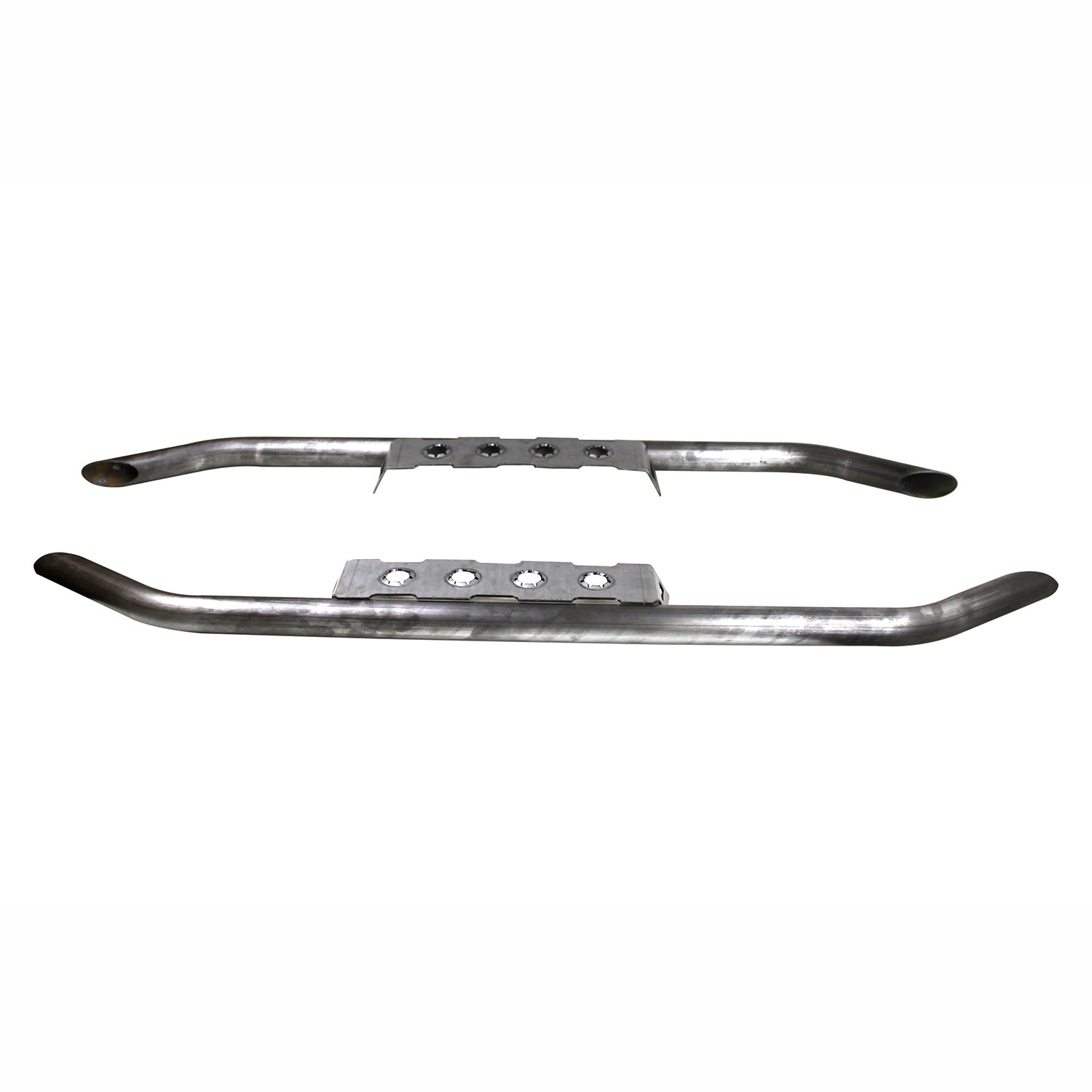

Rocker Guard Tube Kit with Grimple Steps Fits Flat Rockers

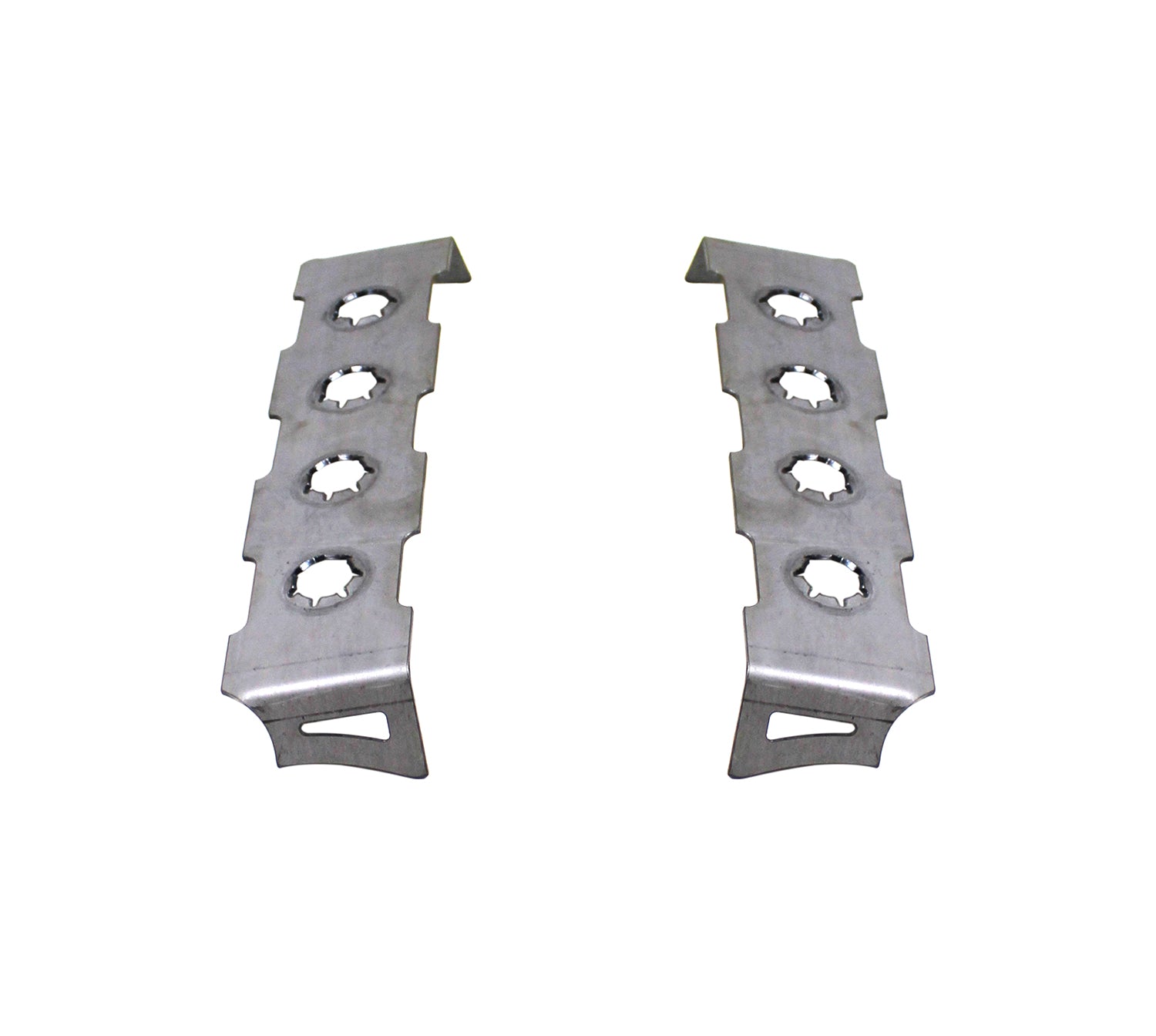

Do it yourself fabrication is a huge part of the offroad industry. We are often asked to offer products to allow people to modify parts at home and the Weld on Tube Steps for flat body mounted rockers is an example of this. The rocker tubes measure 49-3/4” from tip to tip. The tube measure 3-1/4” from the mounting surface to the center of the tube. The tubing is CNC cut and then formed from 1-3/4” x .120” DOM round tubing. The sheet metal step is laser cut and formed from 11GA steel. The top side is reverse dimple die formed for added traction.

Note:

• Dimension from mounting surface where it welds on out to tube center: 3 1/4"
• Tubing Measures Tip to Tip: 49 3/4"
• Weight: 20lbs
