Ready to transform your Jeep JK Unlimited to a whole different level of suspension capabilities? Wanting to upgrade to 1 ton axles?

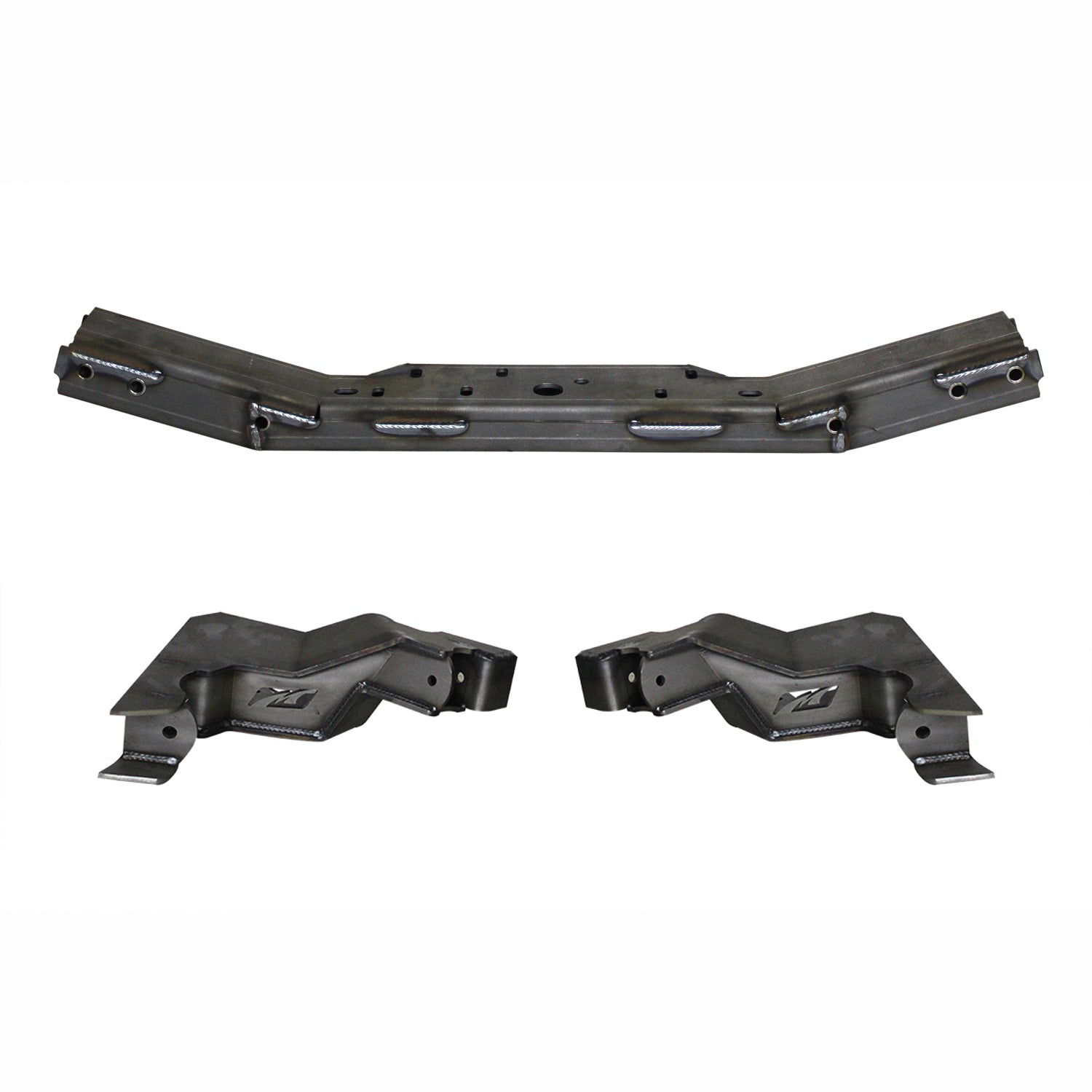

Check out the Motobilt JKU 4-link Front Suspension Brackets w/Transmission crossmember.

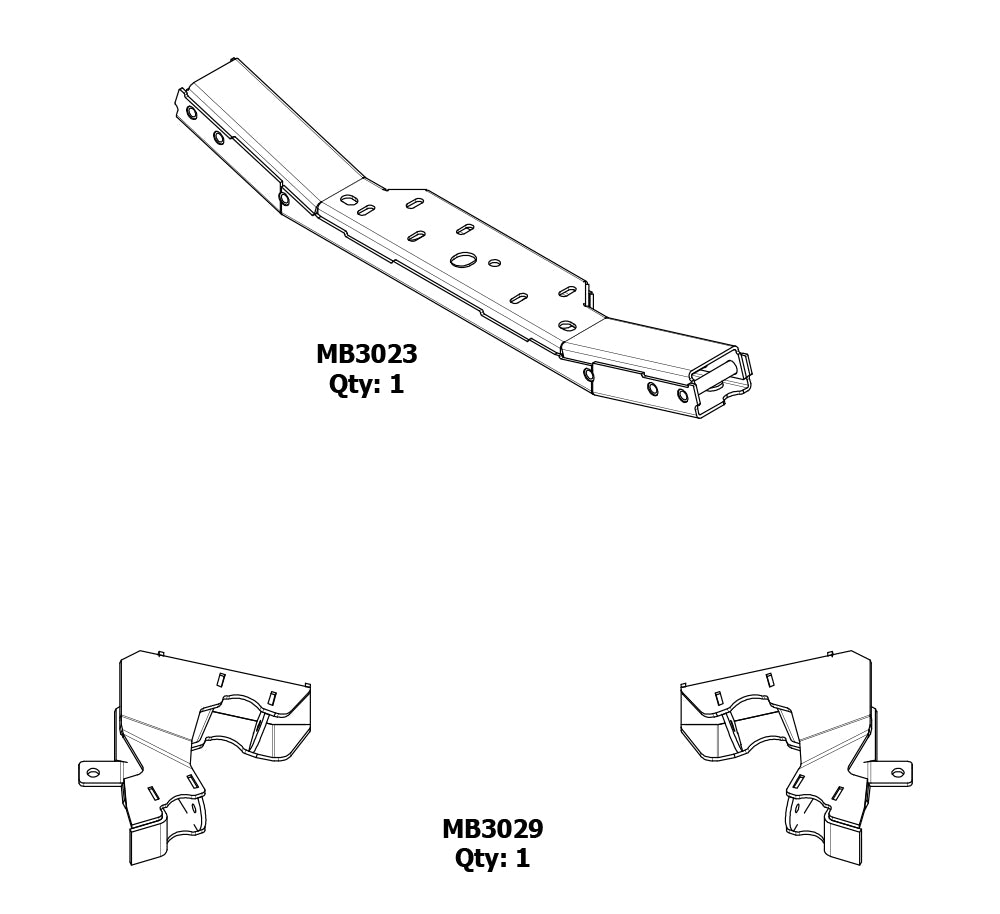

This kit includes a heavy duty removable transmission cross member that replaces your factory cross member, as well as our two front suspension link mount brackets. These front lower brackets are designed to accept 2-5/8” wide joints. The front lower joint holes measure 5/8” diameter which you can drill to a larger diameter, if you choose.

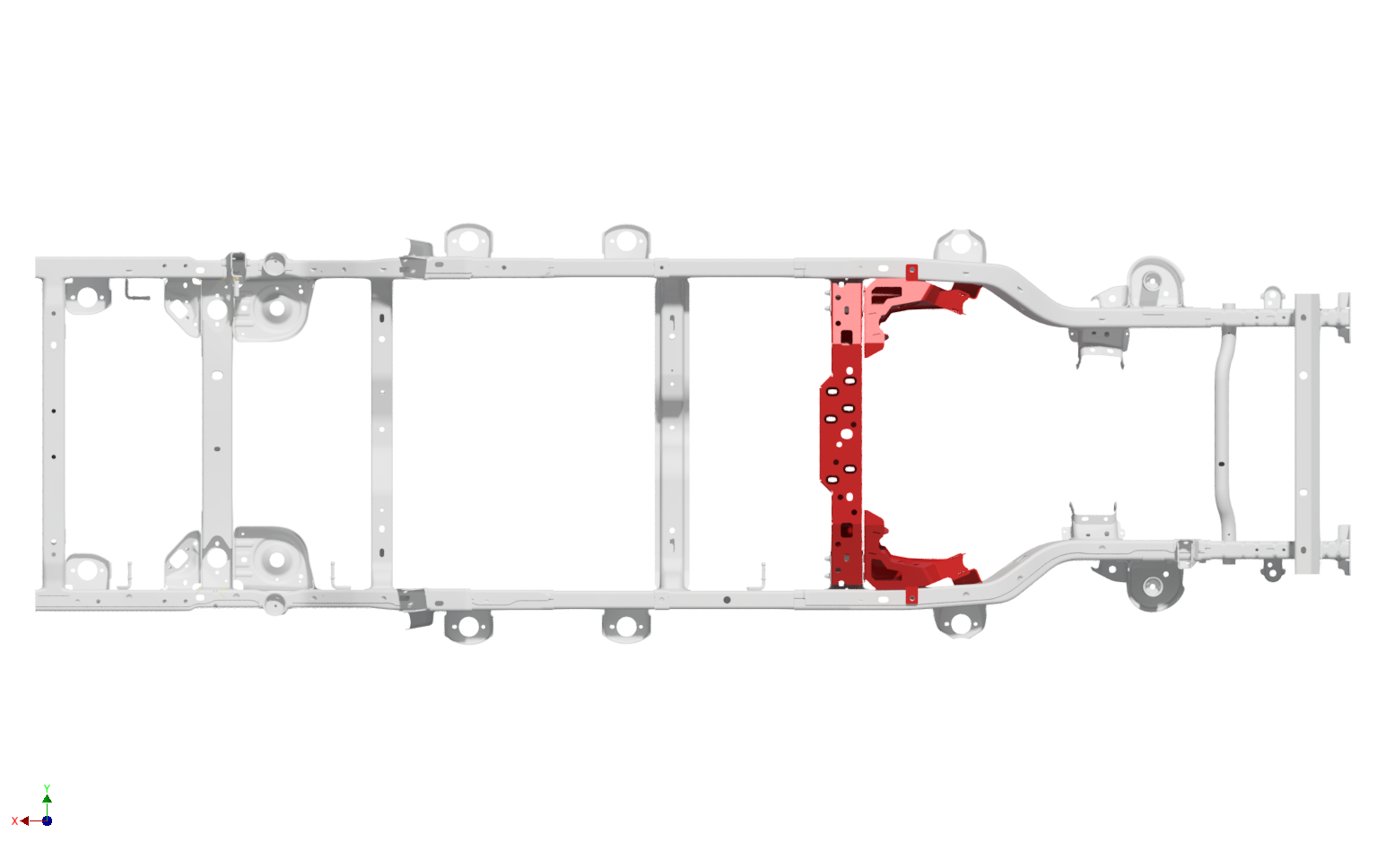

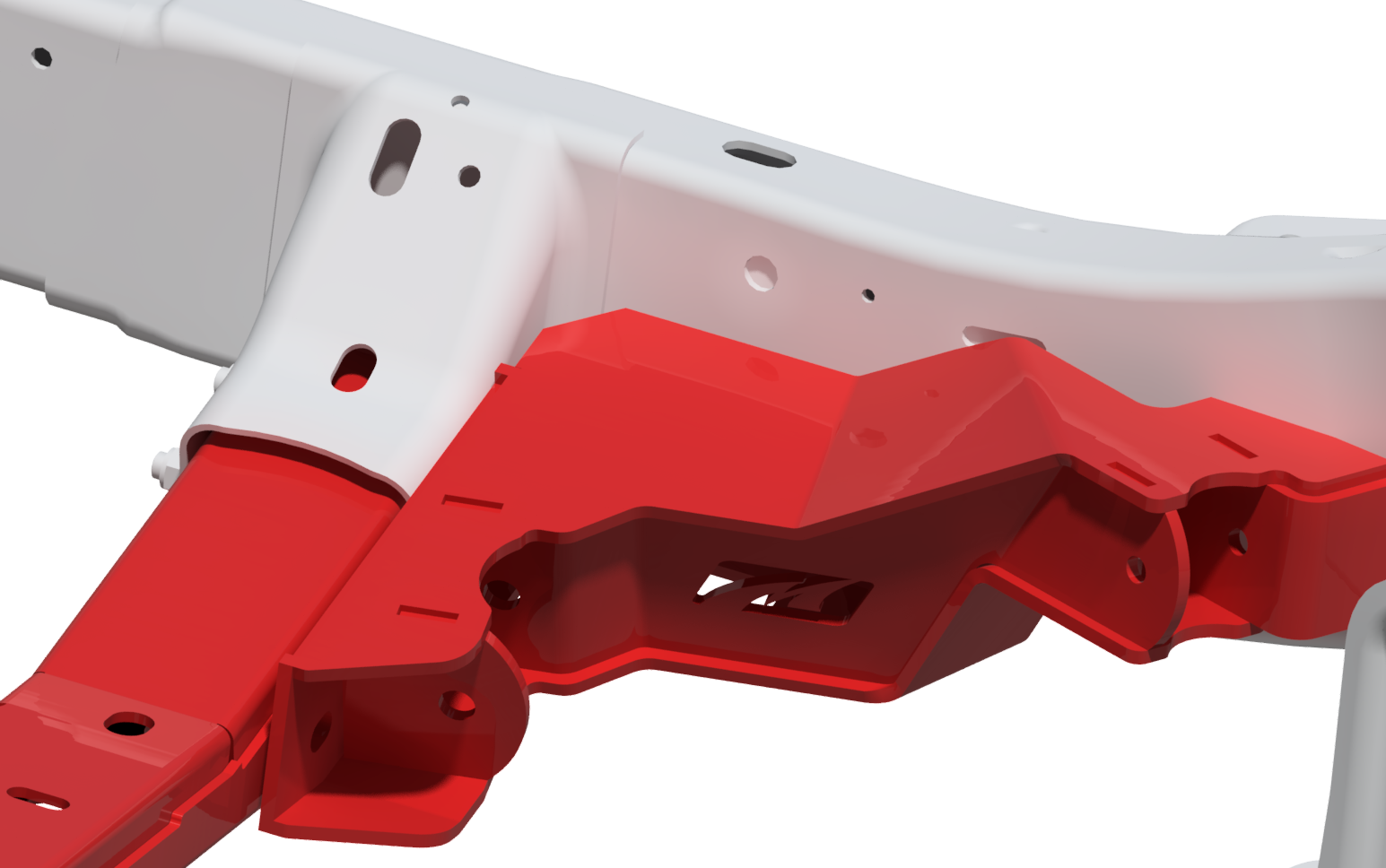

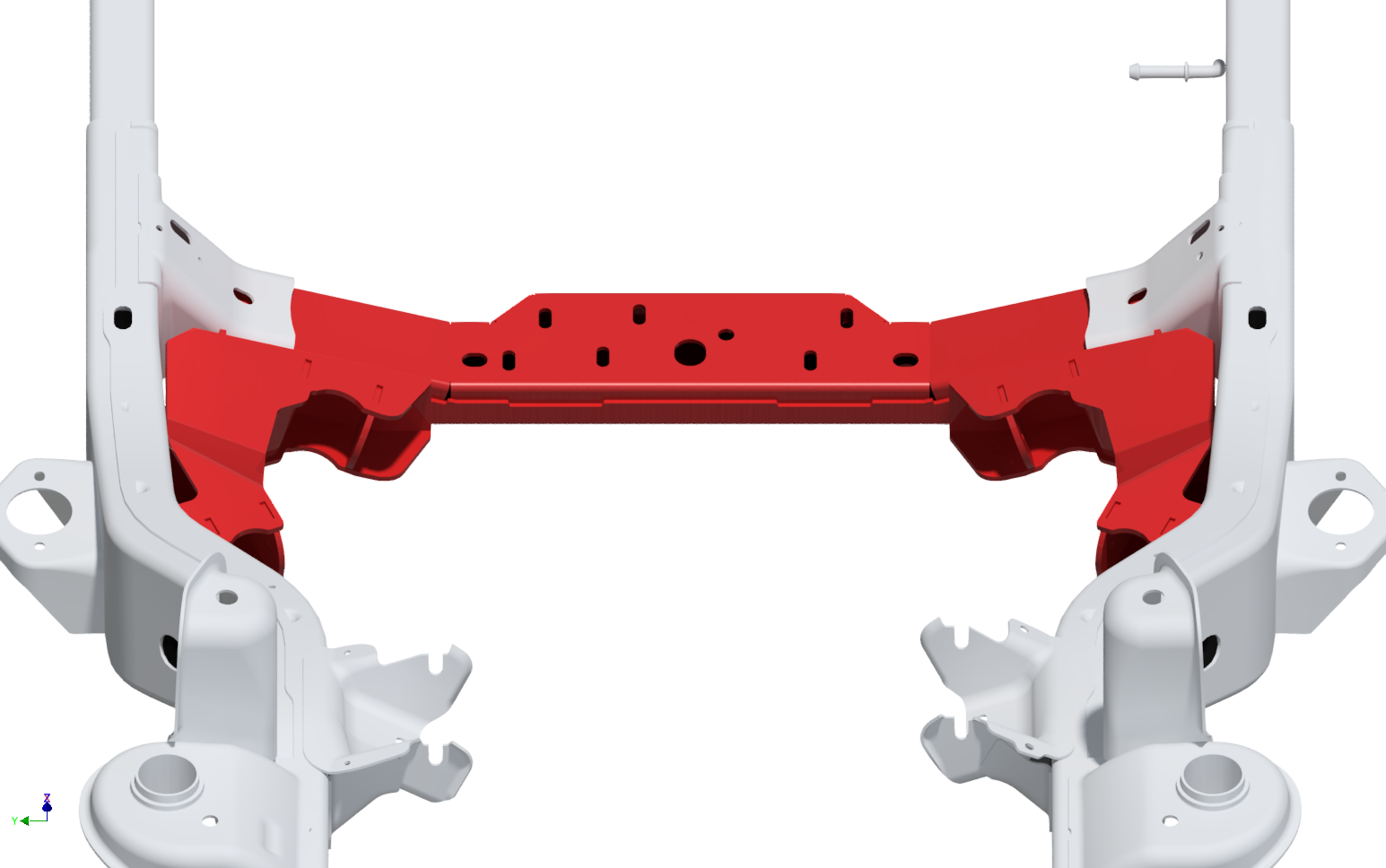

The brackets are designed to accept 2” wide joints. The front upper joint holes measure 12mm diameter which you can also drill to a larger diameter. All front brackets are located using factory frame hole locations for ease of installation.
This kit covers JKU models from 2012-2018.
We also offer a full kit, including these front brackets and transmission crossmember, the a heavy-duty 1/4" steel skid plate, rear crossmember and rear link brackets. You can find this kit here.
WARNING: This product can expose you to chemicals including lead,
which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
2012-2018 4 link Front Suspension Brackets w/Transmission Crossmember for Jeep JKU
