As the Jeep JT Gladiator sees harder use and increased suspension loads, the rear frame and body mount area becomes a known weak point. The factory design was not intended to handle sustained abuse from larger tires, added weight, or aggressive off-road driving. Over time, this area can show signs of stress, deformation, or failure.
The Motobilt Rear Shock Bracket Add-On was designed to reinforce this critical section of the frame while maintaining the factory shock location. This system replaces the rear factory body mount position with a stronger structure that ties into the frame and supports the existing rear suspension layout.
This is not a coilover conversion kit. It is designed for builds that retain the factory-style shock mounting position but need additional strength and durability in the rear frame area. It reinforces the chassis while keeping the suspension configuration simple and predictable.
By strengthening the frame at this known weak point, this bracket helps prevent damage and provides a more solid mounting structure for the rear suspension. It is also a solution for repairing or reinforcing frames that have already experienced stress or damage in this area.
Like all Motobilt components, this part was designed by builders who understand Jeep frame limitations, suspension loads, and real-world trail use.
Important Information
- Designed for Jeep JT Gladiator 2020+
- Reinforces rear frame at factory body mount location
- Retains factory rear shock mounting position
- Not designed for coilover conversion
- Replaces factory body mount location
- Can be used to reinforce or repair damaged frame sections
- Ships bare steel and must be coated before installation
- Requires welding and fabrication
Product Specifications
Vehicle Fitment
Jeep JT Gladiator 2020+
Material
A36 Steel
Dimensions
8.1 inch H / 5.4 inch W / 22.5 inch D
Weight
19.3 lbs
Manufactured
Made in the USA
Installation Notes

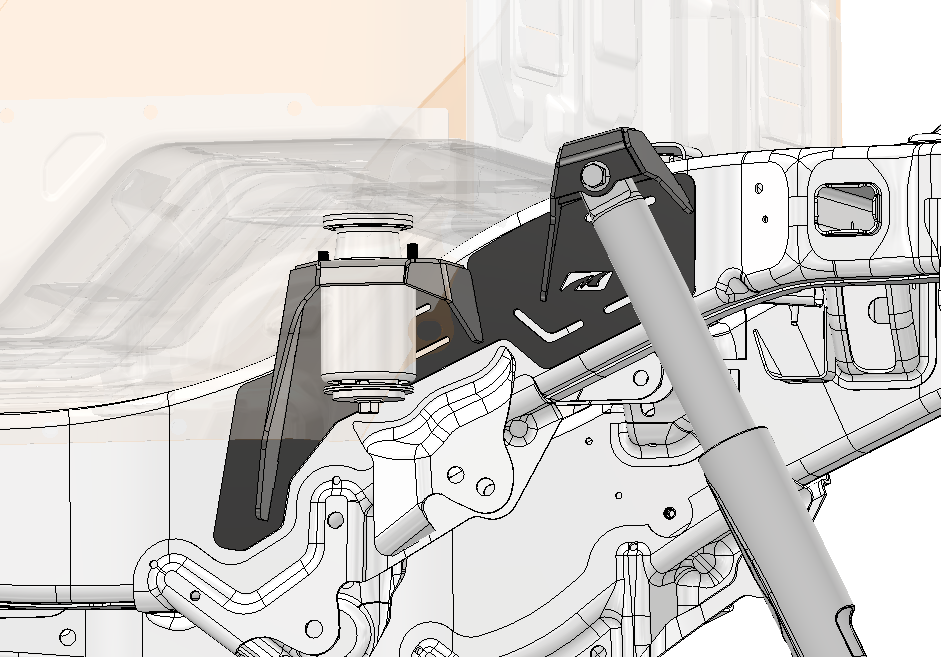

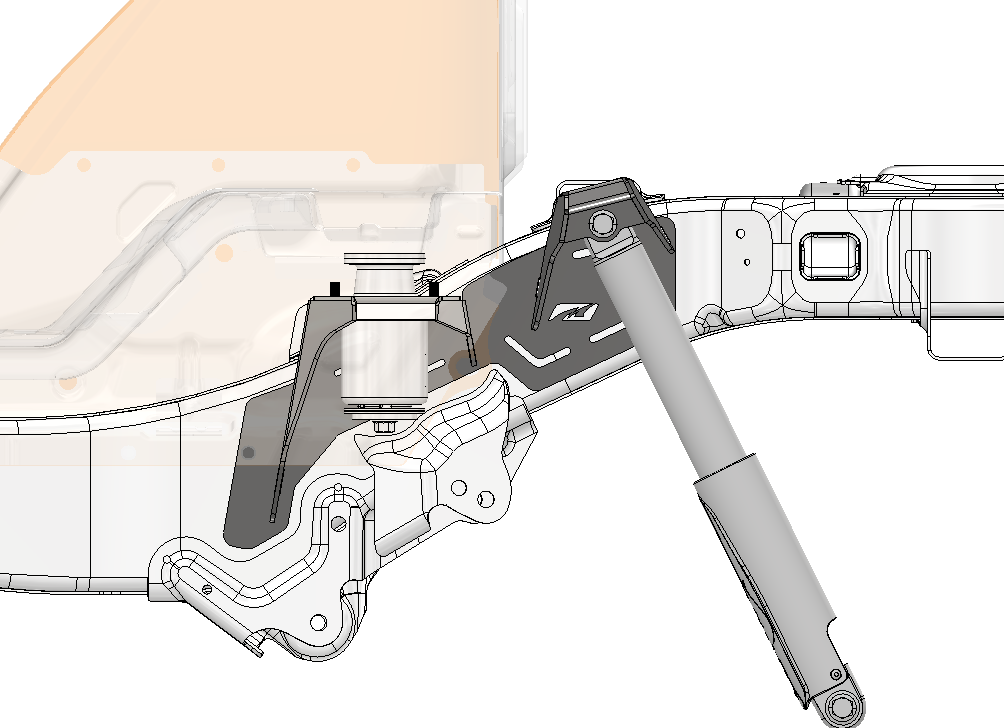

This bracket replaces the factory rear body mount location and requires cutting and welding for installation.
Builders should inspect the frame for existing damage and properly prep the area before installation.
This system is designed to integrate with the factory shock configuration and does not change suspension geometry.
Frequently Asked Questions
What does this bracket do on a JT Gladiator?
It reinforces the rear frame at a known weak point while maintaining the factory shock mounting location.
Does this convert my Jeep to coilovers?
No. This kit is designed to retain the factory-style shock setup.
Can this be used to repair frame damage?
Yes. It can be used to reinforce and address existing damage in the rear frame area.
Do I need to modify my suspension to install this?
No. This kit is designed to work with the factory shock configuration.
Is welding required?
Yes. This is a weld-on component.
