Aluminum 15" Stretch Boat Side Rocker Guards for Jeep YJ

Name: Aluminum 15" Stretch Boat Side Rocker Guards for Jeep YJ
Brand: Motobilt
SKU: MB1171-A
Price: 689.00 USD
Availability: InStock

$689.00

Shipping calculated at checkout.

Compatible With:

Product variants

Quantity

15 inch stretch aluminum boatside rocker armor for Jeep YJ adds major rocker clearance and includes cutting guides, closeout panels, and stretched corner tie-ins.

Assembly Instructions

The lower rocker panels on a Jeep YJ take abuse fast on the trail. Rocks, ledges, and tight obstacles tend to find sheet metal first, and the factory rocker area was never designed for serious rock crawling. Builders have been doing boatside conversions for years for one reason. More clearance and less body hanging on obstacles.

The simplest way to protect vulnerable factory rocker panels is to eliminate them. This 15-inch stretch aluminum boatside rocker armor kit replaces the lower rocker section with a high-clearance armor system that gains approximately 3-3/4 inches of vertical rocker clearance and roughly 3-3/8 inches of horizontal clearance per side. That extra clearance matters when sliding over rocks or working through technical terrain.

One of the biggest hurdles with a boatside conversion is knowing where to cut and how to get a clean, straight result. This kit includes a pair of steel cutting guides that remove the guesswork. Using the supplied guides and detailed instructions, builders can mark the cut lines accurately and complete the conversion with confidence. Interior floor closeout panels are also included to cover the trimmed area and help finish the interior, with the option to rivet or weld them in place.

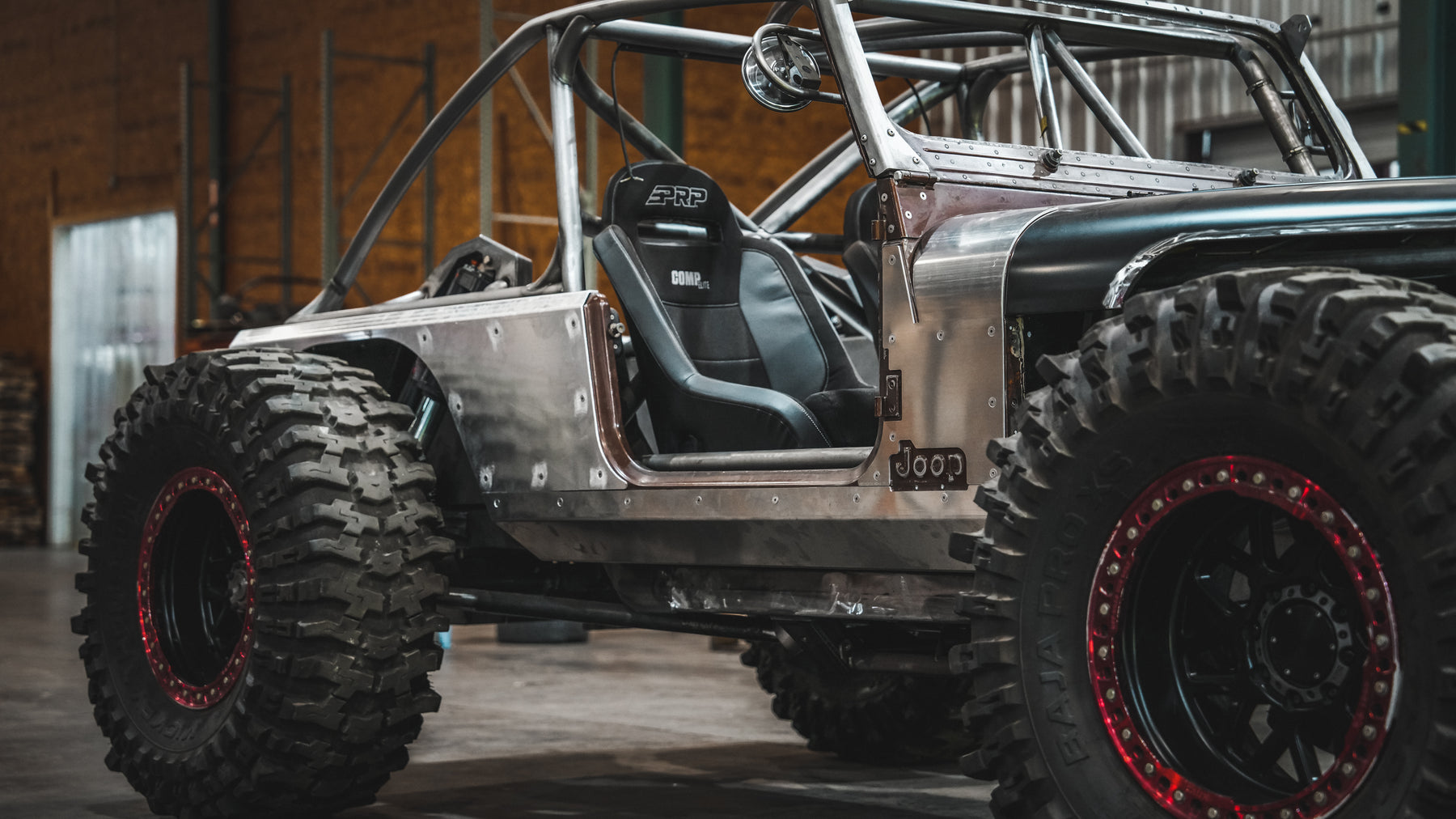

The outer rocker armor is built from 3/16-inch high-quality aluminum and uses countersunk hardware for a smooth outer surface with no exposed bolt heads to hang on obstacles or take damage. End caps are included and can be welded on if desired. The kit also includes bolt plates designed to tie the stretched rocker armor into Motobilt stretched corner armor panels for added integration on larger builds.

Unlike frame-mounted rocker systems, this design stays independent of the frame and sits above the body mounts. That allows the system to work whether you run no body lift or different body lift heights without frame-mounted limitations.

For the 15-inch stretch aluminum boat sides, we highly recommend fabricating additional supports in front of the rear tire for extra support. On our builds, tubing tied from the roll cage into the rear inner fender has worked well and adds strength to the stretched rocker structure.

Built for serious fabrication and serious rock crawling, this system improves clearance, protects the body, and supports stretched YJ builds.

Want To Know More?

Get the Details

Find all the information you need to get the right part for your rig.

Important Information

Designed for Jeep YJ
Does NOT fit Jeep TJ or LJ
15-inch stretch aluminum boatside rocker system
Gains approximately 3-3/4 inches vertical rocker clearance per side
Gains approximately 3-3/8 inches horizontal rocker clearance per side
Includes steel cutting guides for accurate body trimming
Includes interior floor closeout panels
Includes end caps for each rocker panel
Includes bolt plates designed to tie into stretched corner armor
Outer rocker armor constructed from 3/16-inch aluminum
Countersunk holes provide flush hardware installation
Ships raw aluminum
Does not tie into frame and works with varying body lift heights
Factory parking brake cable relocation required if retaining factory parking brake
Additional fabricated support recommended in front of rear tire for stretch applications

Product Specifications

Vehicle Fitment

Jeep YJ

Material

3/16-inch aluminum

Construction

Laser cut and formed aluminum rocker armor

Clearance Gain

Approx. 3-3/4 inch vertical per side

Approx. 3-3/8 inch horizontal per side

Design

15-inch stretch boatside configuration

Hardware Style

Flush countersunk mounting hardware

Finish

Ships raw aluminum

Manufactured

Made in the USA

Notes

Cutting and body modification required
Use supplied steel cutting guides before trimming body panels
Interior closeout panels may be riveted or welded in place
End caps may be welded on if desired
Test fit all components before final finishing
Parking brake cable relocation required if retaining factory parking brake
Additional support fabrication is recommended for 15-inch stretch applications
Builders commonly tie support tubing into rear inner fender and cage structure for reinforcement

Frequently Asked Questions

How much clearance do these boatside rockers add?

This system adds approximately 3-3/4 inches of vertical rocker clearance and about 3-3/8 inches of horizontal clearance per side.

Does this kit include guides for cutting the body?

Yes. A pair of steel cutting guides is included to help mark accurate cut lines and remove guesswork during installation.

Do these rockers tie into the frame?

No. This system is independent of the frame, which allows compatibility with no body lift or varying body lift heights.

Will these boatside rockers fit a Jeep TJ or LJ?

No. These are designed specifically for the Jeep YJ and do not fit TJ or LJ models.

Will these work with factory parking brake cables?

The factory parking brake cable location interferes with the boatside conversion and must be relocated if retaining the factory parking brake.

Is additional support recommended for the 15-inch stretch version?

Yes. Additional fabricated support in front of the rear tire is strongly recommended for added strength on stretched applications.
