Coil Over Shock Towers Notched Pair UNIVERSAL

Coil Over Shock Towers Notched Pair UNIVERSAL

Name: Coil Over Shock Towers Notched Pair UNIVERSAL
Brand: Motobilt
SKU: MB1516-N
Price: 169.00 USD
Availability: InStock

Regular price $169.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1516-N

Fits: Jeep CJ · Jeep Wrangler YJ · Jeep Wrangler TJ / LJ · Jeep Wrangler JK / JKU

Quantity:

View product details & documents

Product details

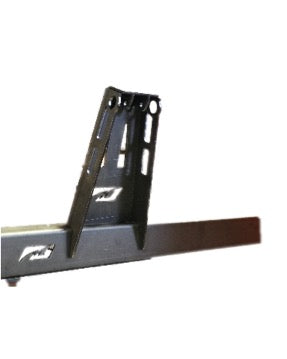

The Motobilt shock towers are made out of thick 1/4 inch steel plate that is CNC cut and bent. These towers have a notch cut into them so that you can sit them on top of your frame rail and weld them in place. They lean out 15 degrees and measure 12 1/4 inches from the top of the frame to the center of the bolt hole. This kit is designed to be used with coil over shocks in the 2.0 size. The mounting hole is 1/2 inch and the mounting width is 1 1/2 inches. The notched design means you can mount them without having to cut or channel your frame. These can be used front or rear. The towers will require professional installation and welding. Comes with 2 shock towers and 4 tabs that are designed with key ways to ensure an exact fit once fully welded. Note: The lower frame rail shown is NOT included.

Important information

Ships bare metal and requires welding.
Does not include lower coil over mounts for axle

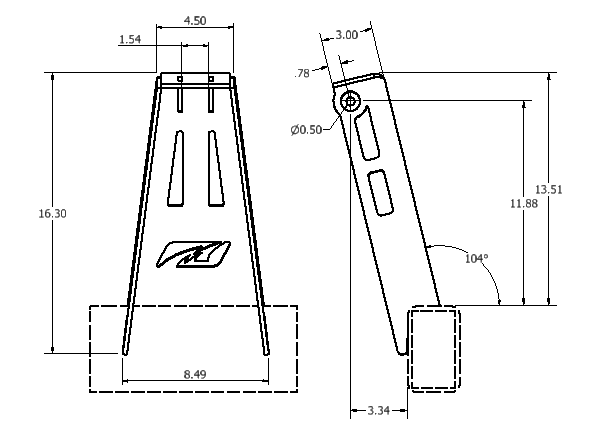

Product specifications

Fits 2.0 coil over shocks with a 1 1/2 inch mounting width
Notched design
15 degree outward lean
12 1/4 inches from the top of the frame to the center of shock mounting hole.
1/4 inch laser cut steel construction
Sold as a pair
Weight: 27lbs (approx.)

Notes

Pre-notched to mount on top of your frame
15 degree slope allows clearance between the coil over and your frame.
12 1/4 inch height allows use of a 12 to 16 inch travel coil over in most cases.
1/4 inch steel construction allows mounts to be installed with out a cross over brace between the towers

Additional product details & documents

Specifications

Fits 2.0 coil over shocks with a 1 1/2 inch mounting width
Notched design
15 degree outward lean
12 1/4 inches from the top of the frame to the center of shock mounting hole.
1/4 inch laser cut steel construction
Sold as a pair
Weight: 27lbs (approx.)

Benefits

Pre-notched to mount on top of your frame
15 degree slope allows clearance between the coil over and your frame.
12 1/4 inch height allows use of a 12 to 16 inch travel coil over in most cases.
1/4 inch steel construction allows mounts to be installed with out a cross over brace between the towers

Notes:

Ships bare metal and requires welding.
Does not include lower coil over mounts for axle

Product Components

Coil Over Shock Towers Notched Pair UNIVERSAL

Specifications
