Compatible With:
JT
There comes a point in a build where factory suspension architecture becomes the limitation. On the Jeep JT Gladiator, that point is underneath the chassis. Once larger tires, heavier axles, and real link geometry enter the plan, the factory crossmembers and belly structure start working against the build instead of supporting it.

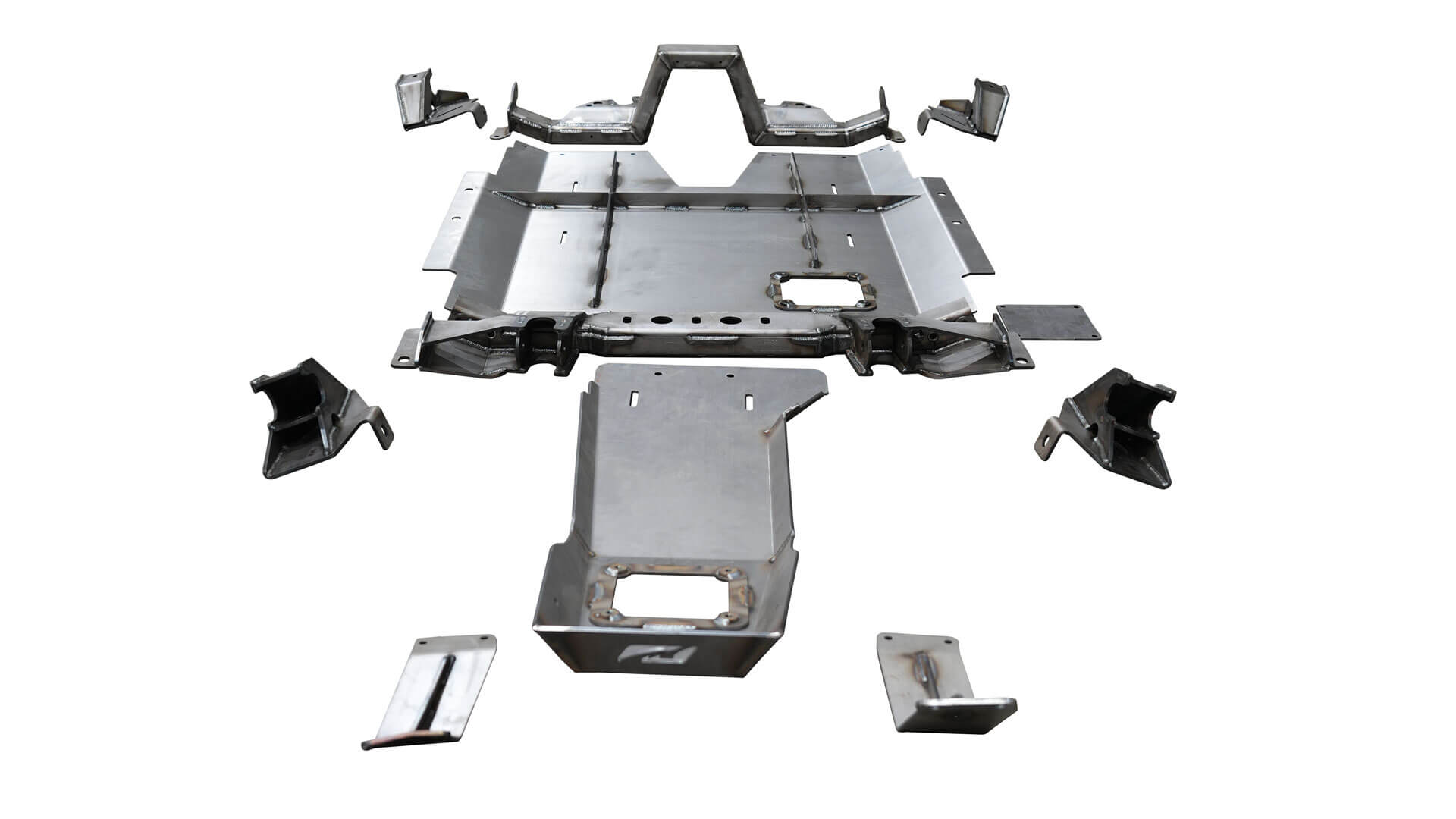

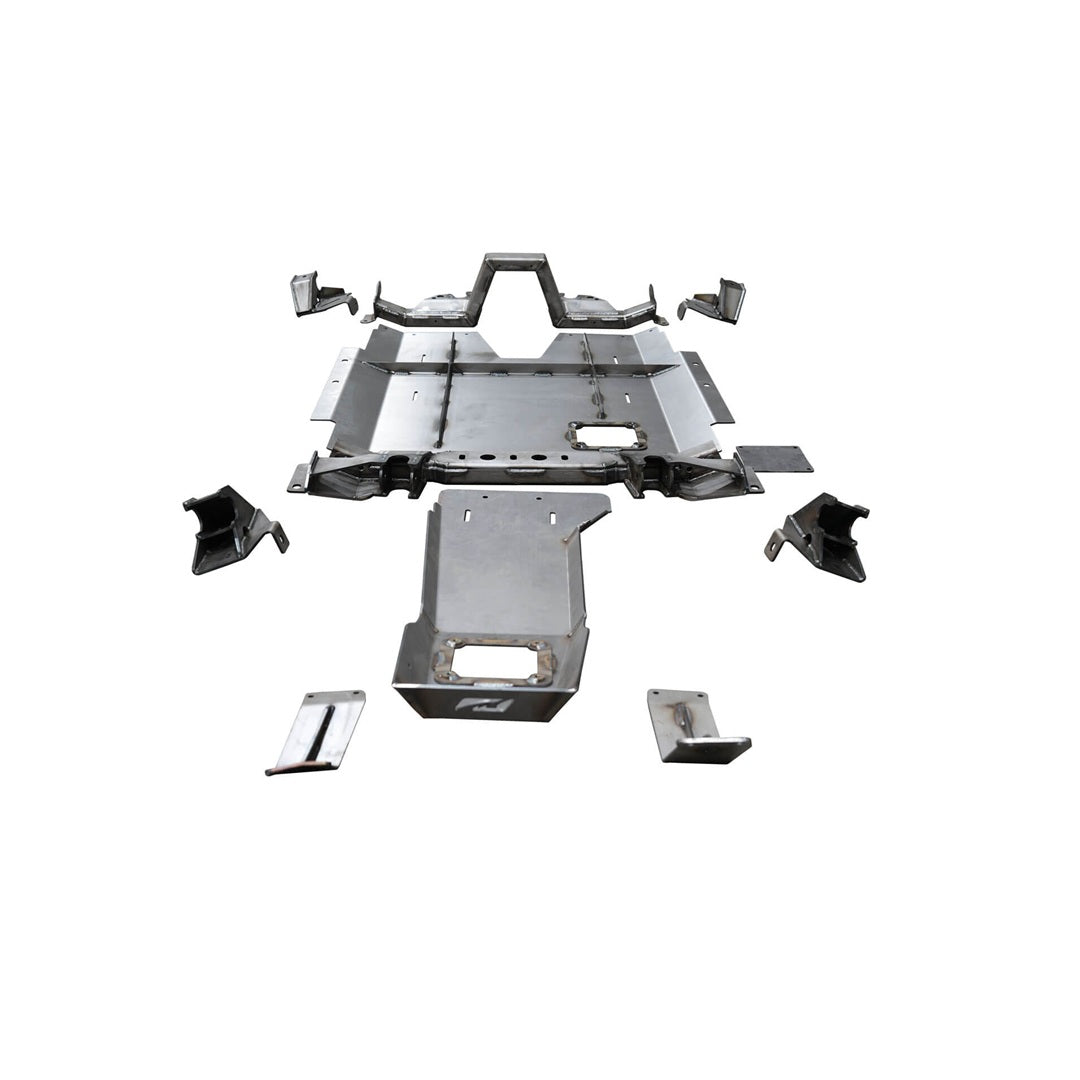

The Motobilt 4 Link Suspension Bracket and Skid System replaces those limitations with a structural foundation designed around suspension packaging, drivetrain protection, and serviceability. This system supports a true double triangulated rear 4 link and gives builders the option of a 3 link front with track bar for mechanical steering or a triangulated front 4 link for full hydraulic steering.

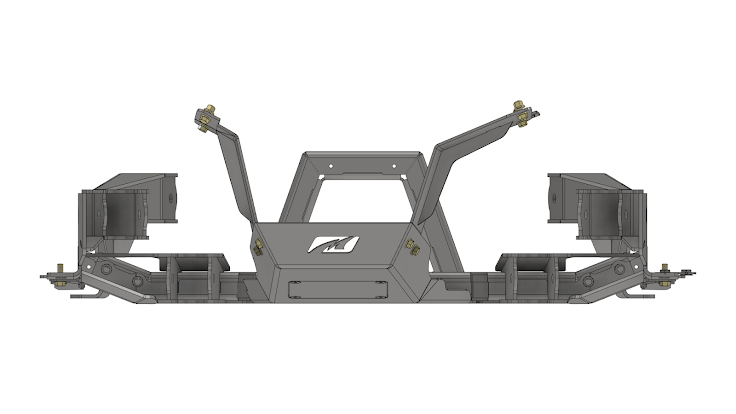

This is not a collection of weld-on brackets. It is a coordinated chassis system built around fixed geometry and proper load paths. A heavy duty removable transmission crossmember carries the front lower link mounts, while the rear structural crossmember supports rear link bracketry and integrates with the skid system. Together they reinforce the chassis where suspension loads actually work.

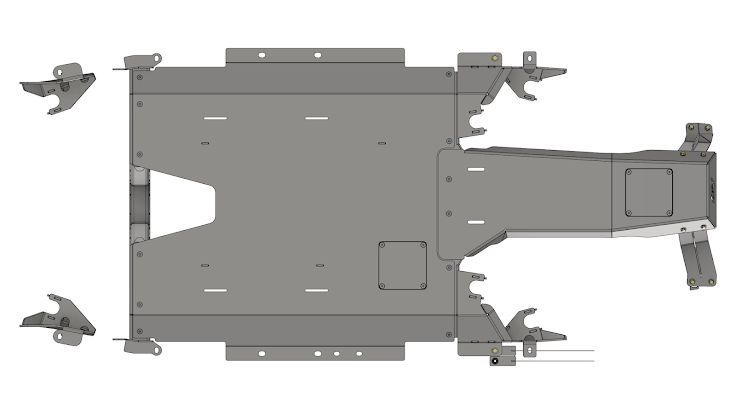

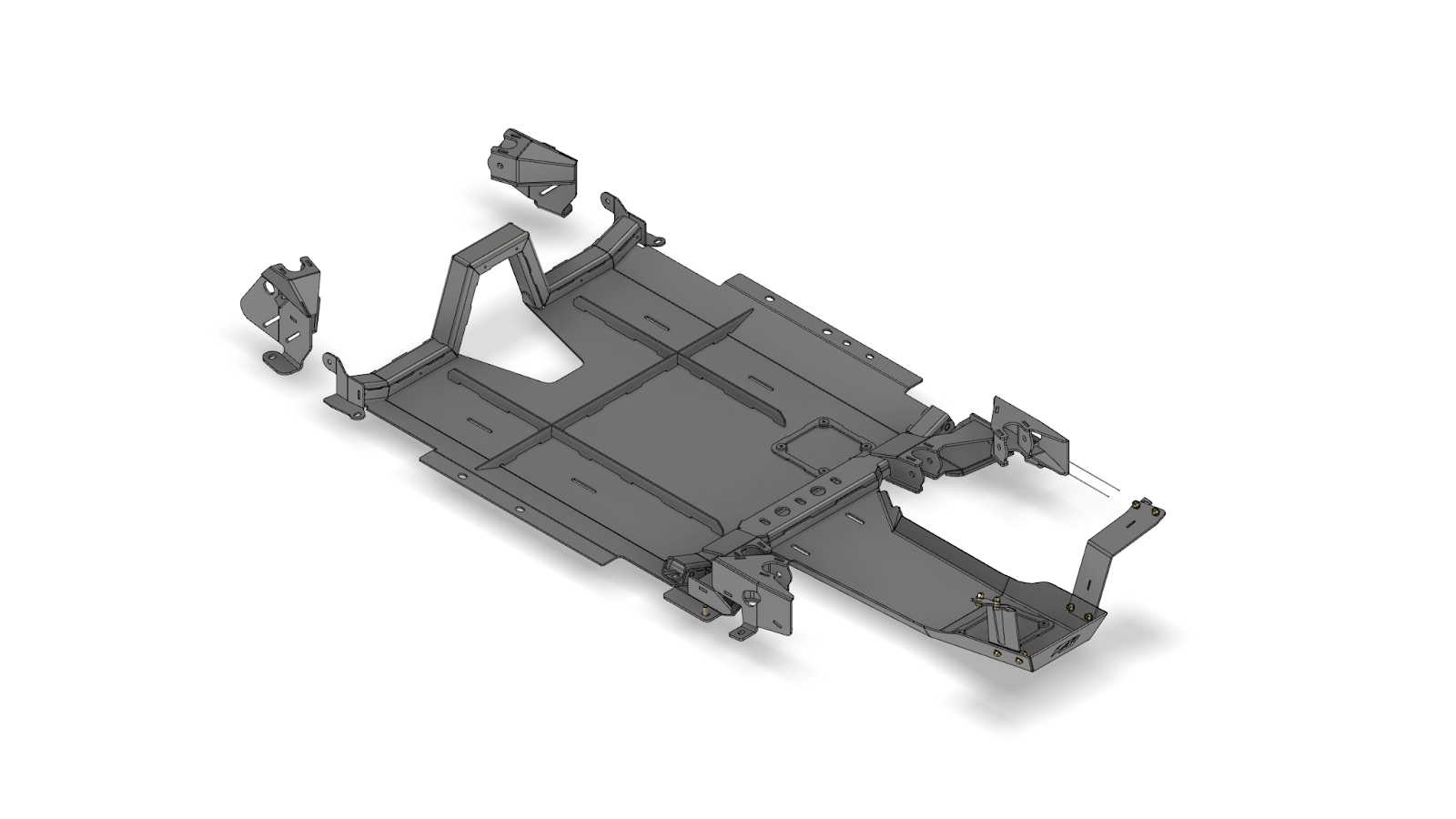

The belly skid system follows the drivetrain tightly for ground clearance and protection without creating hang-up points. Engine, transmission, and transfer case protection are integrated into the chassis layout, while countersunk hardware and service access panels keep maintenance practical.
For builders planning a Jeep JT 4 link suspension, coilover conversion, ORI struts, heavier axles, or Atlas transfer case upgrades, this system creates the foundation to support the next stage of the build. Designed by builders who understand fabrication and rock crawling abuse, this system turns the underside of the Gladiator into something designed for suspension travel, strength, and long-term serviceability.
Want To Know More?
Find all the information you need to get the right part for your rig.
Vehicle Fitment
2021.5 to Current Jeep JT Gladiator 3.6
Material
1/4 inch high grade steel
CNC formed and fully welded assemblies
Suspension Compatibility
Double triangulated rear 4 link
3 link front with track bar
Triangulated front 4 link
Joint Size
Accepts 2-5/8 inch wide joints with 5/8 inch mounting holes
Features
Heavy duty removable transmission crossmember
Rear structural frame crossmember
Integrated engine, transmission, and transfer case skid protection
Built-in service access panels
Countersunk skid hardware
Machined threaded skid mounting points
Weight
265 lbs
Manufactured
Made in the USA
What does a Jeep JT 4 link suspension bracket system do?
It replaces factory suspension mounting architecture with link geometry and structural crossmembers designed to support true linked suspension systems, heavier axles, and increased suspension travel.
Can this system be used with coilovers or ORI struts?
Yes. The system supports factory style coils, coilovers, or ORI struts depending on how the build is configured.
Can I run a 3 link or 4 link front suspension with this system?
Yes. Builders can configure the front as a 3 link with track bar for mechanical steering or a triangulated 4 link for hydraulic steering setups.
Does this include skid plate protection?
Yes. The system includes integrated belly skid protection for the oil pan, transmission, and transfer case, with built-in service access panels.
Is this required for larger axles and serious rock crawling builds?
For builders moving into true link suspension, heavier axles, and large tire packaging, this creates the structural foundation many advanced builds need.
