2021.5+ Jeep Gladiator 3.6
You reach the point where bolt on parts stop solving the problem. The front axle is ready for real link geometry, but the factory crossmember and frame layout will not support it. This is where the build changes direction. The stock structure comes out, and the front of the Gladiator becomes a foundation instead of a limitation.

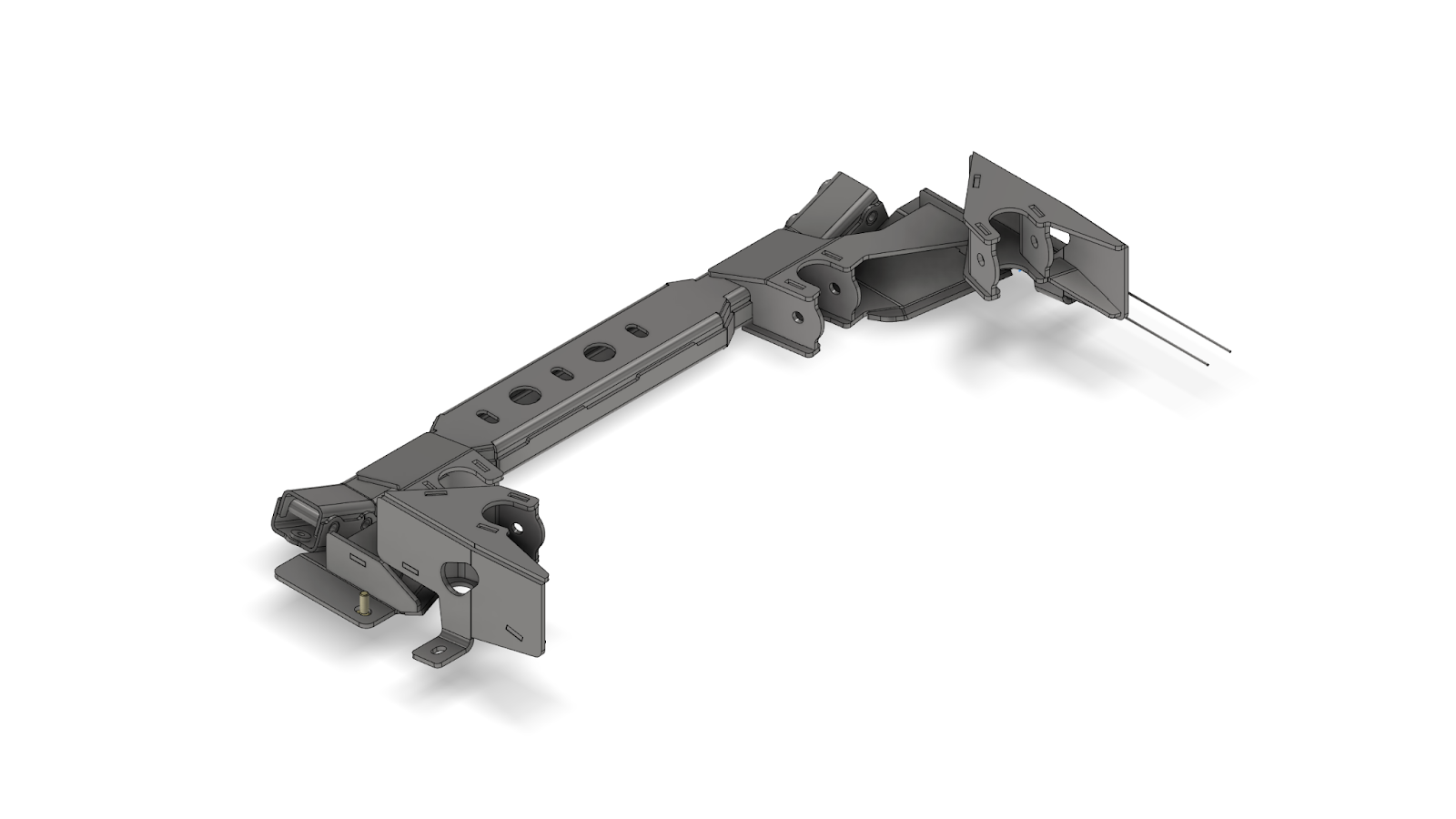

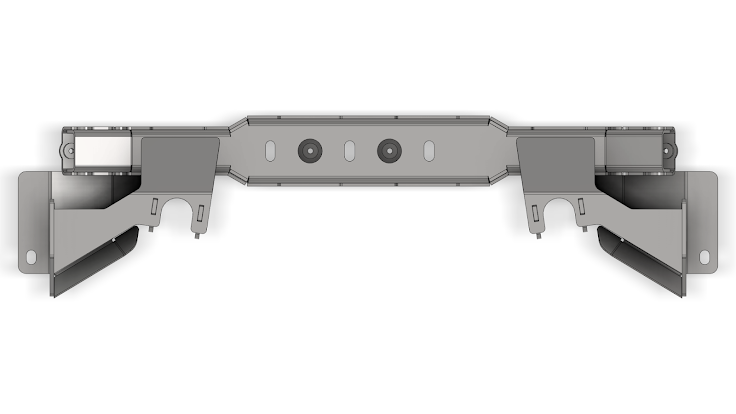

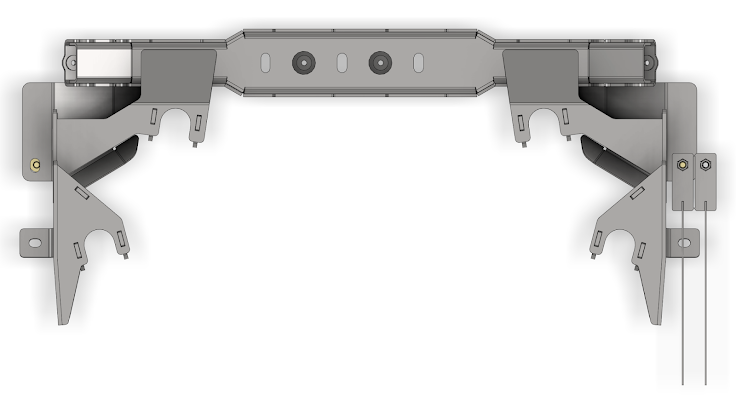

This system exists to replace the factory front suspension mounting points with fixed, reinforced structure that supports true link suspension geometry. It allows the front of the JT to be built as a 3 link with track bar or a triangulated 4 link, while keeping steering options open for mechanical or full hydraulic setups. The crossmember and brackets establish proper link placement so geometry is no longer guessed at or improvised.
Once installed, suspension loads are carried through a heavy duty removable transmission crossmember and frame mounted link brackets instead of thin factory components. The axle cycles cleanly, steering remains consistent, and the underside stays protected. The integrated skid structure sits tight to the drivetrain, eliminating hang points while maintaining access for service and future changes.
Highlights
- Front suspension bracket and crossmember system for Jeep JT
- Supports 3 link front suspension with track bar or triangulated 4 link front suspension
- Heavy duty removable transmission crossmember with integrated front lower link mounts
- Frame mounted front link brackets located from factory frame holes
- Accepts 2-5/8 inch wide joints
- 5/8 inch joint mounting holes, expandable if desired
- All pivot bolts recessed and protected
- Machined threaded mounting points for skid attachment

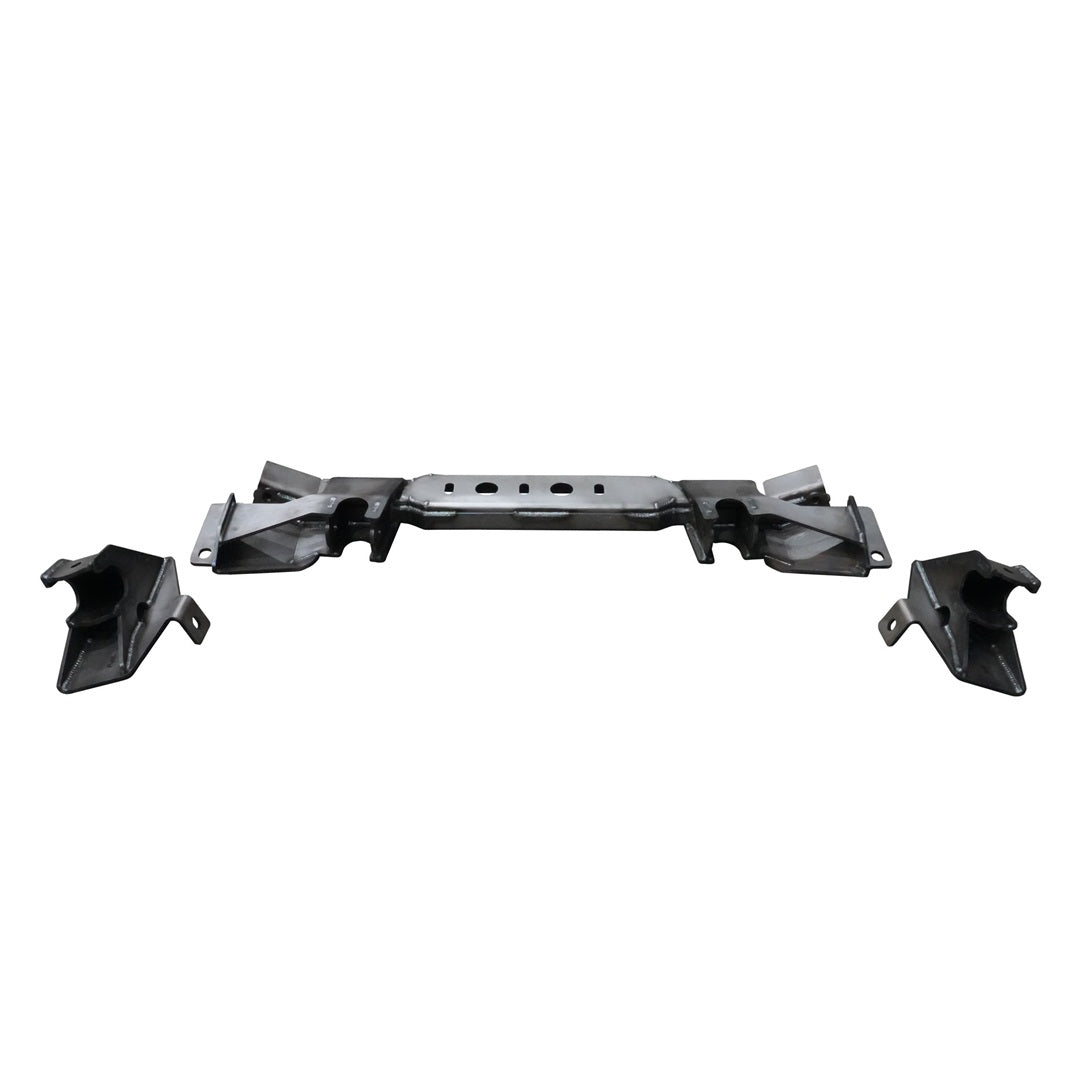

- Supplied as fully welded subassemblies in raw steel
This system requires cutting and welding to the factory frame and is intended for experienced fabricators. The body does not need to be removed. The design prioritizes serviceability, with protected hardware and access that allows maintenance using standard tools once the system is in place.
When the front of the Gladiator is built on real structure instead of factory compromises, the suspension finally does what the rest of the build has been asking for.
