Hatchet Series Front Frame Chop Bumper w/Fog Mounts for Jeep JK / JKU

Hatchet Series Front Frame Chop Bumper w/Fog Mounts for Jeep JK / JKU

Name: Hatchet Series Front Frame Chop Bumper w/Fog Mounts for Jeep JK / JKU
Brand: Motobilt
SKU: MB1048F
Price: 499.00 USD
Availability: InStock

Regular price $499.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1048F

Fits: Jeep Wrangler JK / JKU

Quantity:

View product details & documents

Product details

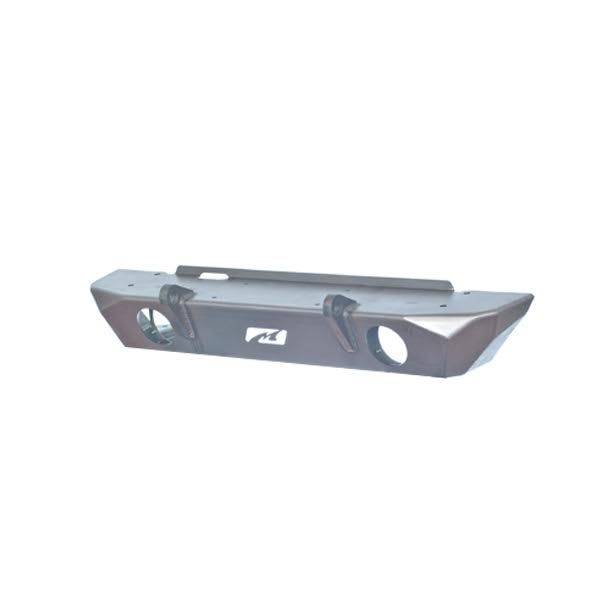

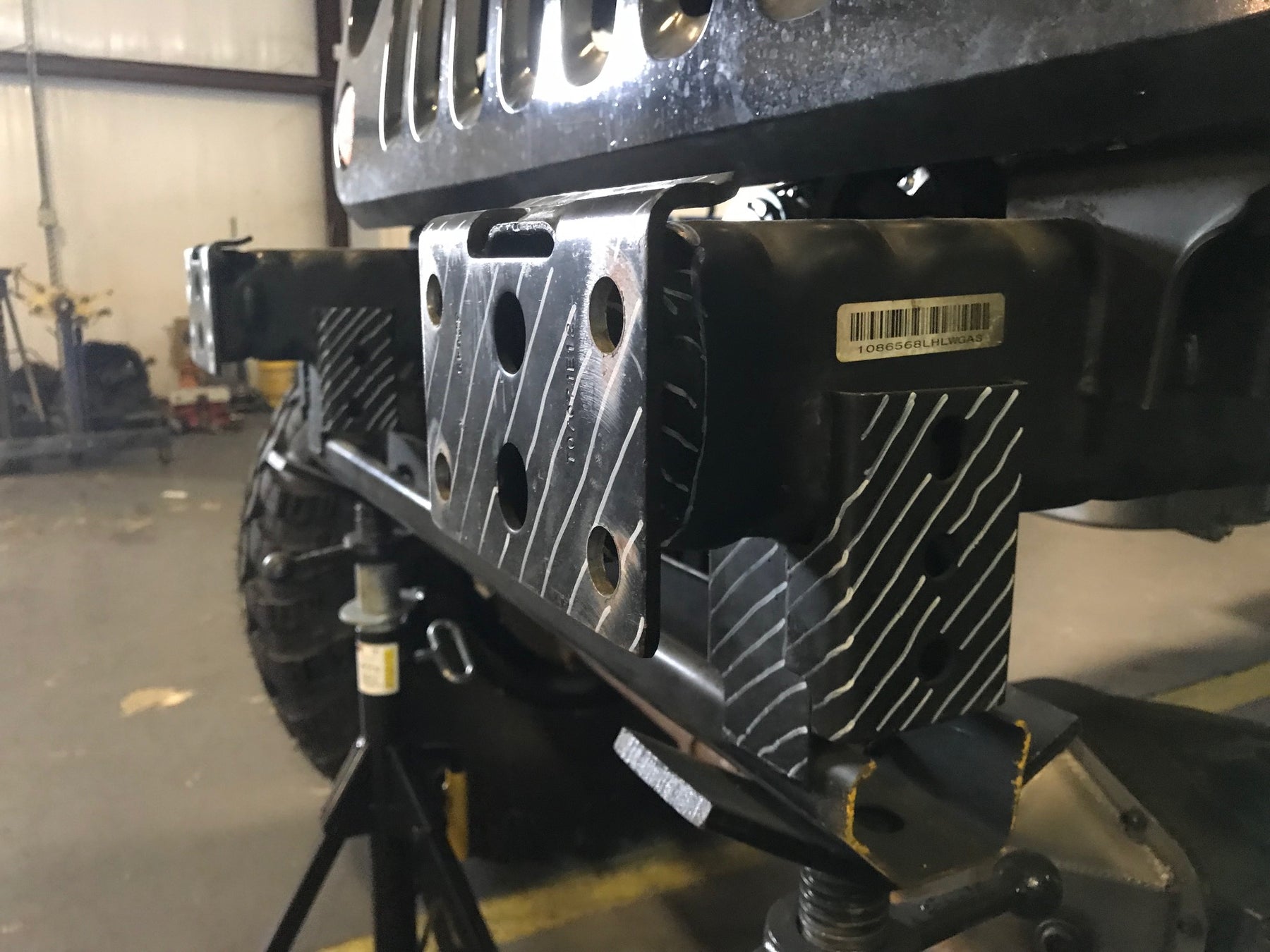

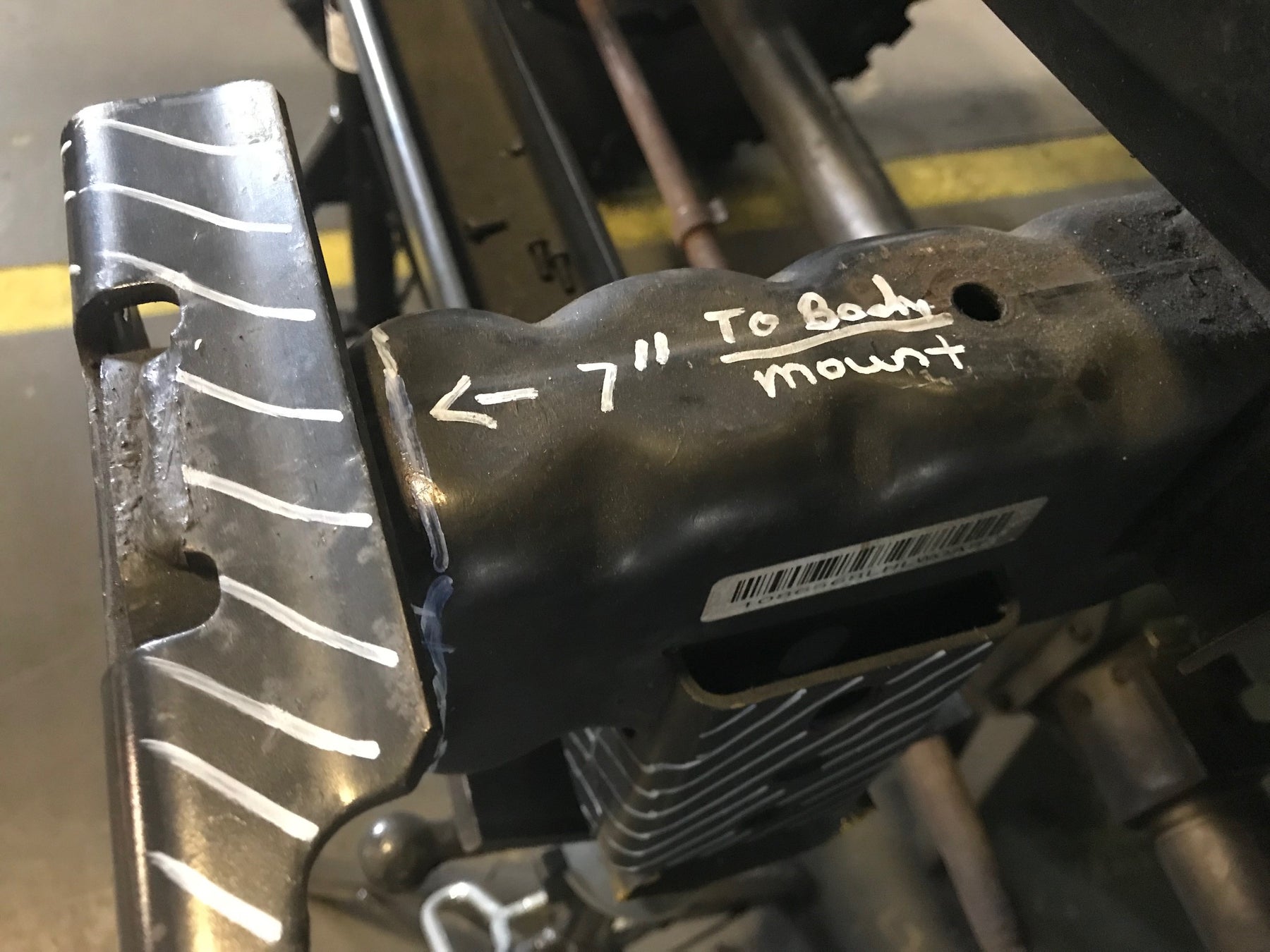

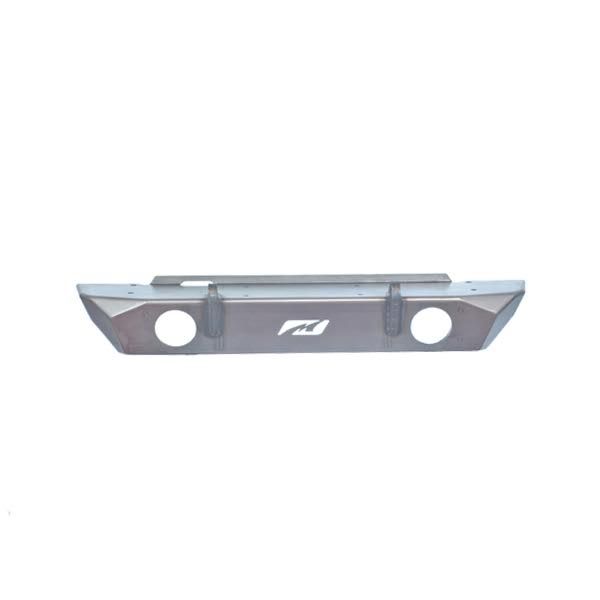

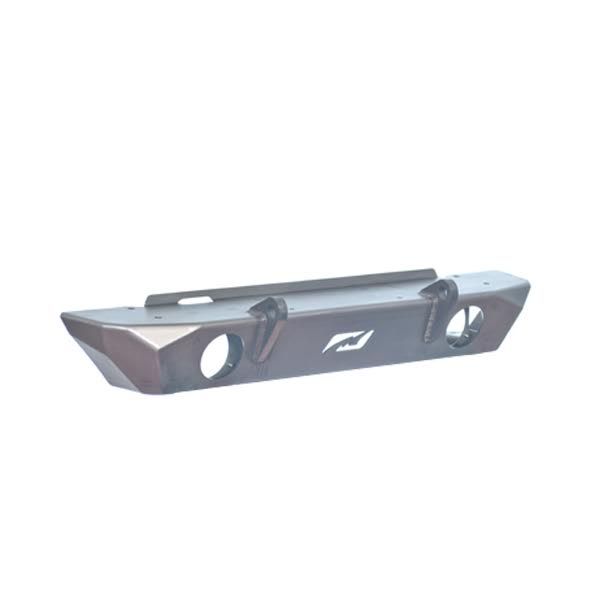

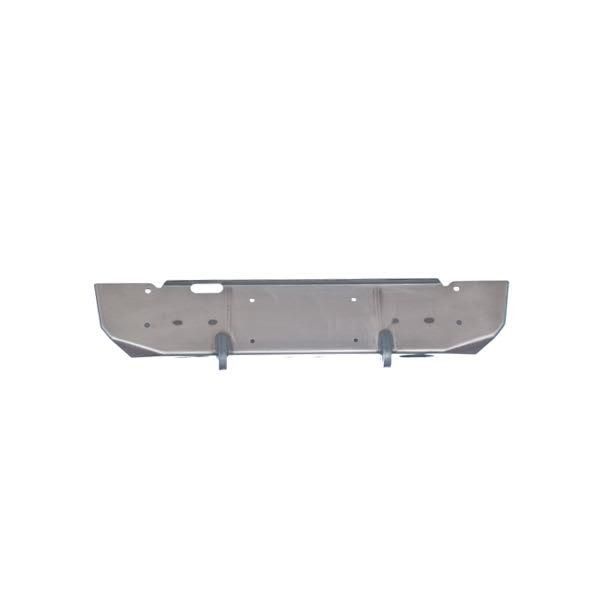

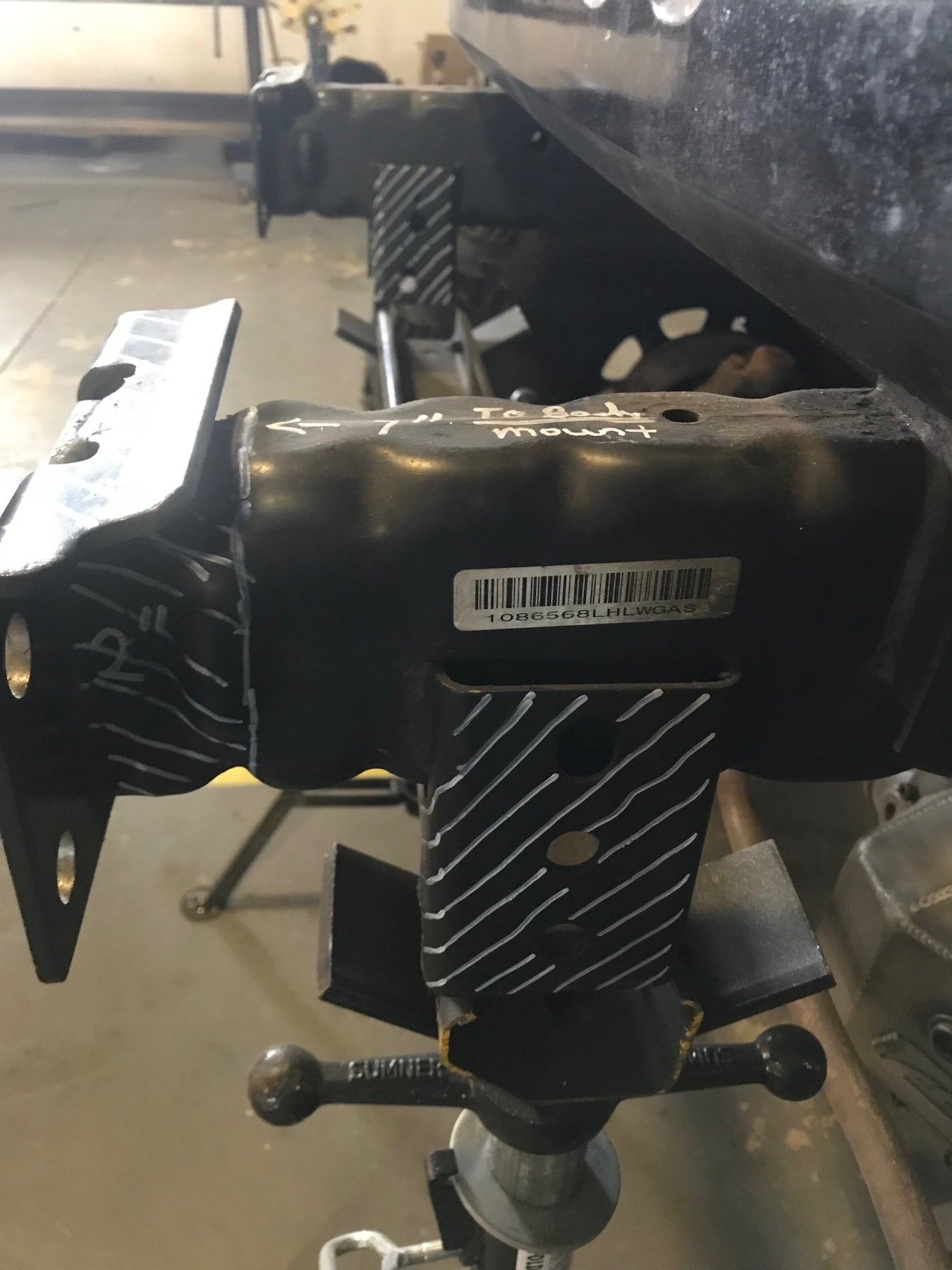

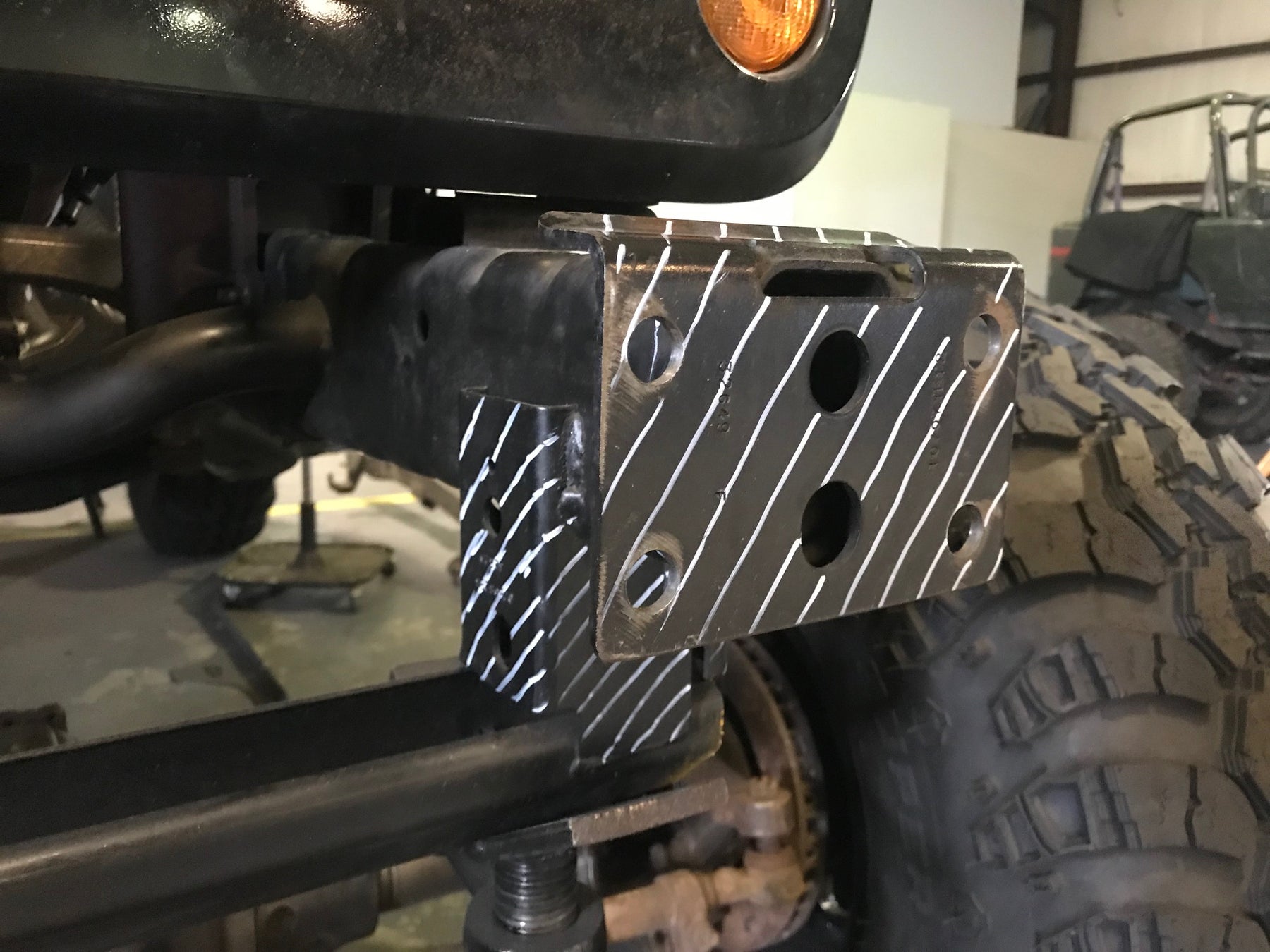

The Motobilt Hatchet Jeep JK Front Bumper with fog light holes is an ultra-slim design for the front of your Jeep JK. The Hatchet is available in a few different configurations. The Hatchet includes 3/4-inch-thick steel d-ring mounts that pass through the bumper and our welded inside and out for superior strength. The Hatchet is a total of 41-inch wide which allows for closer approach angles. This is aframe chop design bumper. The front frame horns have to be cut off approximately 2"s and the bottom crash bar has to be completely cut off and removed from the frame. The areas that need to be cut are shown in the pictures. Also, holes will have to be drilled through the frame rails in order to mount the bumper to the Jeep.

Important information

Frame Modification Required: Installation necessitates cutting of the frame, ensuring a perfect fit and superior performance.
Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
Ships raw metal so you can customize to your needs.
2012 and newer models frame modification required and vacuum pump relocation is required in Jeep JK

Product specifications

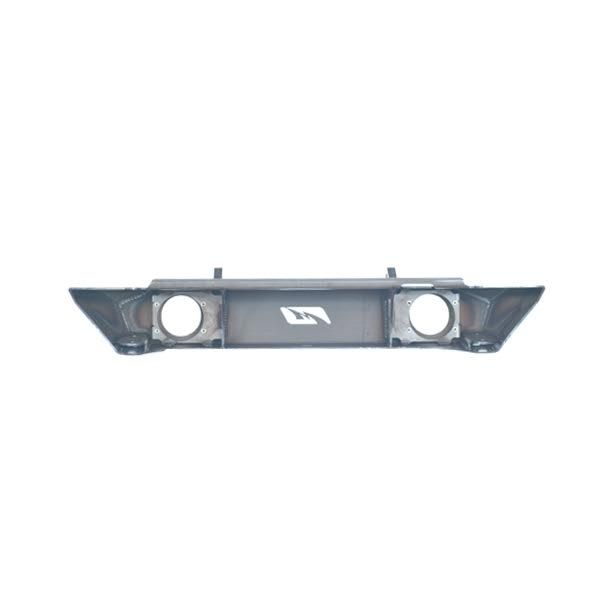

Hatchet Jeep JK front bumper with fog light holes
Fog Light holes for factory lights.
Approach angle increased by moving the bumper in 2 inches.

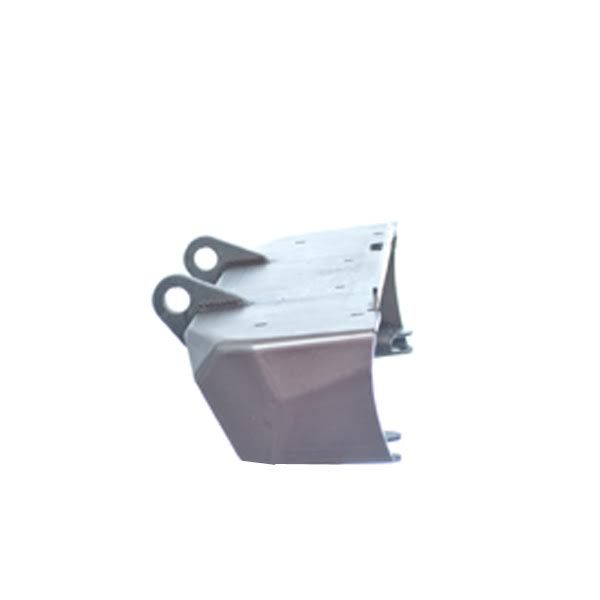

Includes 3/4-inch-thick steel d-ring mounts.

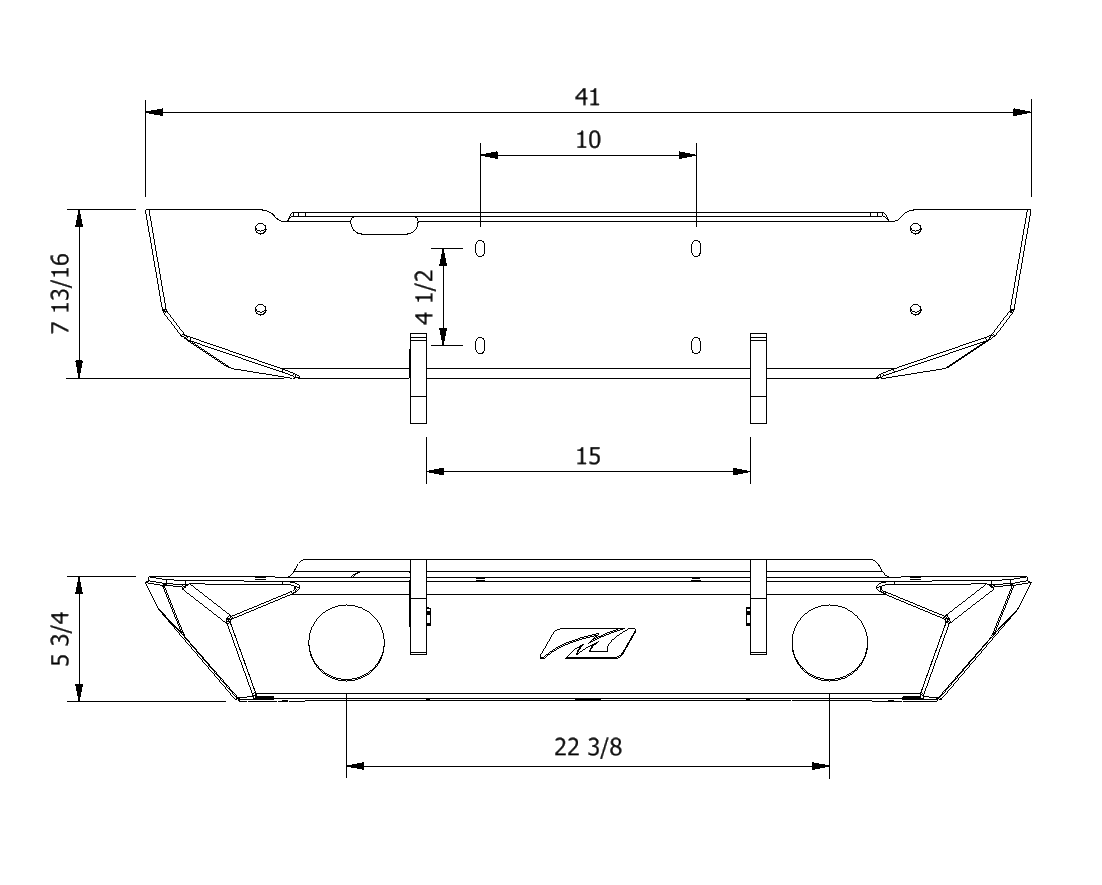

Total of 41 inch wide
Hardware included.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 45lbs (approx.)

Notes

This Hatchet configuration comes with fog light holes and integrated mounts for your factory fog lights.
If installing a winch, MB1002 fairlead mount will also need to purchased.

Additional product details & documents

The Motobilt Hatchet Jeep JK Front Bumper with fog light holes is an ultra-slim design for the front of your Jeep JK. The Hatchet is available in a few different configurations. The Hatchet includes 3/4-inch-thick steel d-ring mounts that pass through the bumper and our welded inside and out for superior strength. The Hatchet is a total of 41-inch wide which allows for closer approach angles. This is a frame chop design bumper. The front frame horns have to be cut off approximately 2"s and the bottom crash bar has to be completely cut off and removed from the frame. The areas that need to be cut are shown in the pictures. Also, holes will have to be drilled through the frame rails in order to mount the bumper to the Jeep.

Specifications

Hatchet Jeep JK front bumper with fog light holes
Frame Modification Required: Installation necessitates cutting of the frame, ensuring a perfect fit and superior performance.
Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Fog Light holes for factory lights.
Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
Approach angle increased by moving the bumper in 2 inches.
Includes 3/4-inch-thick steel d-ring mounts.
Ships raw metal so you can customize to your needs.
Total of 41 inch wide
Hardware included.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 45lbs (approx.)

Fits:

Jeep Wrangler JK / JKU 2007-2018

Note:

This Hatchet configuration comes with fog light holes and integrated mounts for your factory fog lights.
If installing a winch, MB1002 fairlead mount will also need to purchased.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Your frame ends and crash bar must be cut off and holes drilled through the frame rails. Does not use any factory holes.
2012 and newer models frame modification required and vacuum pump relocation is required in Jeep JK
