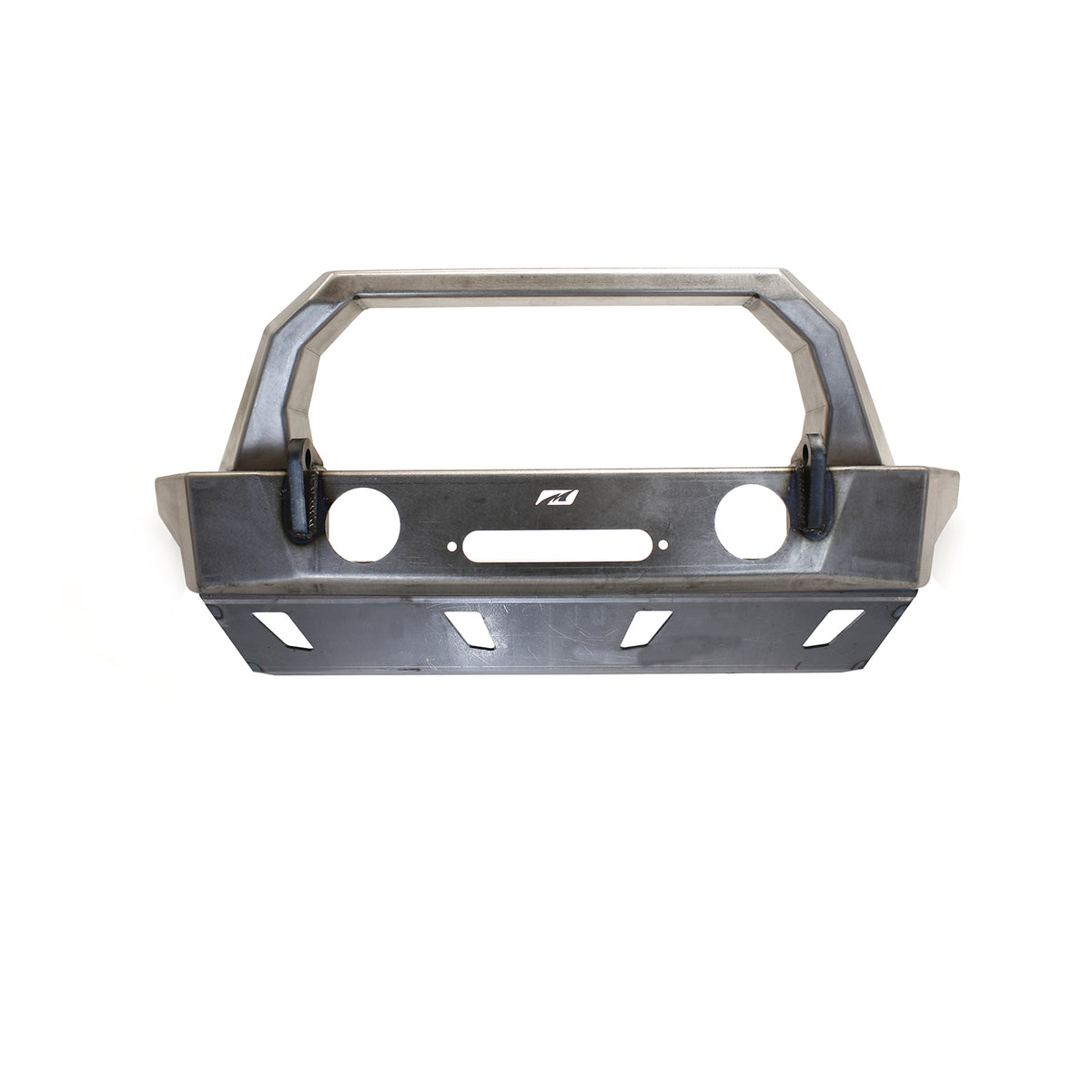

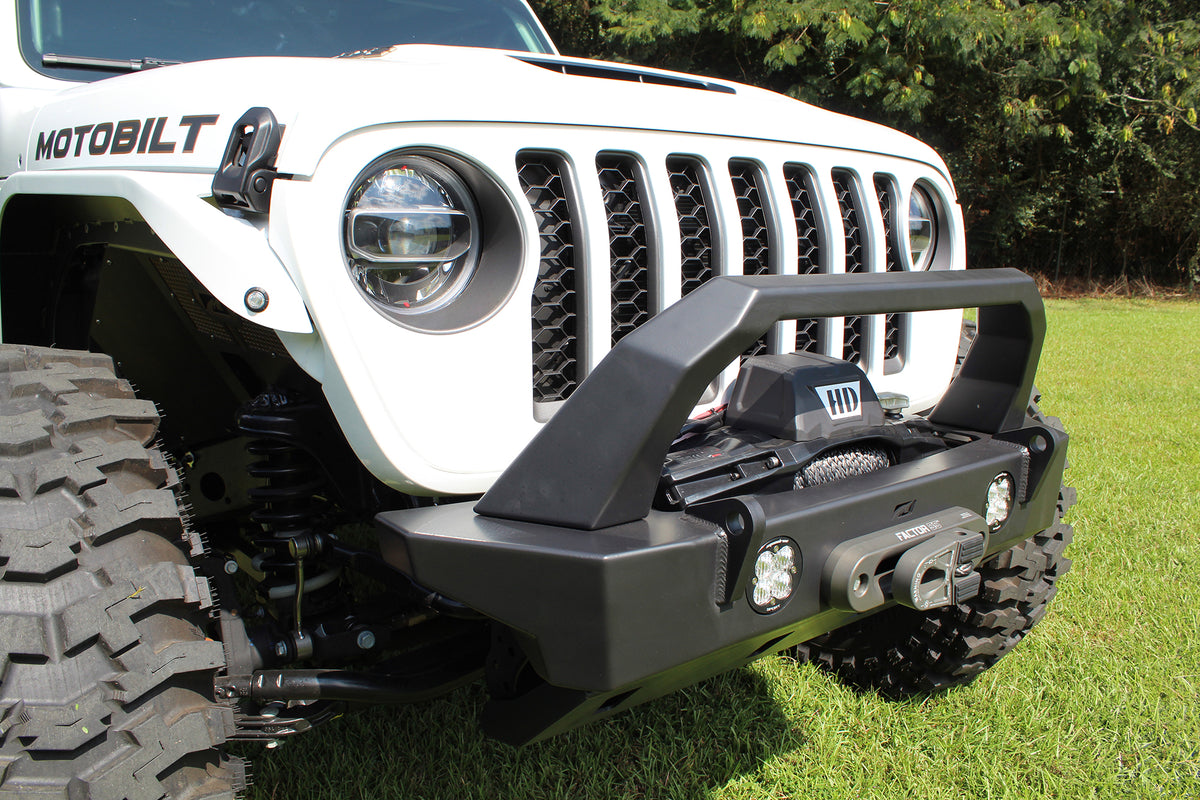

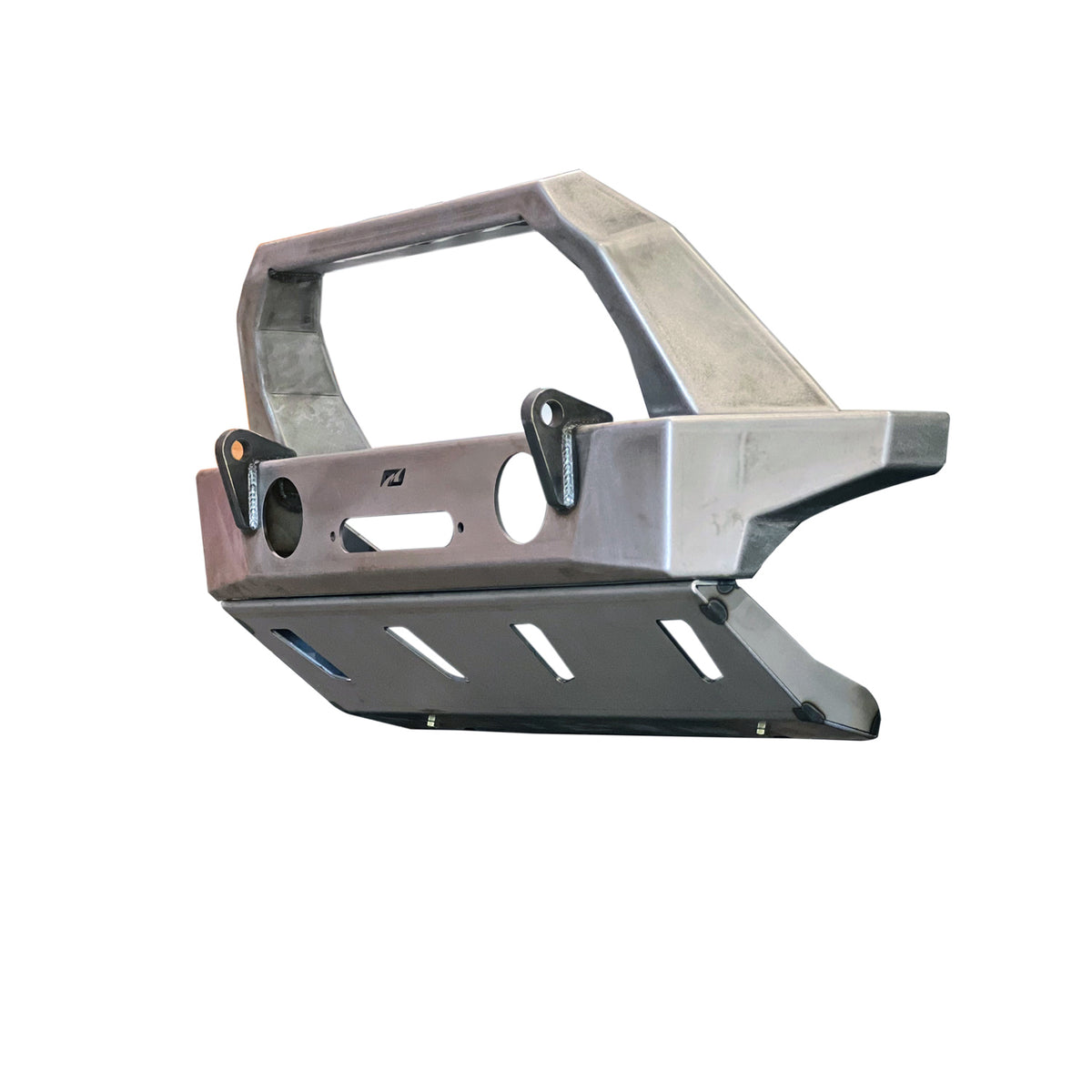

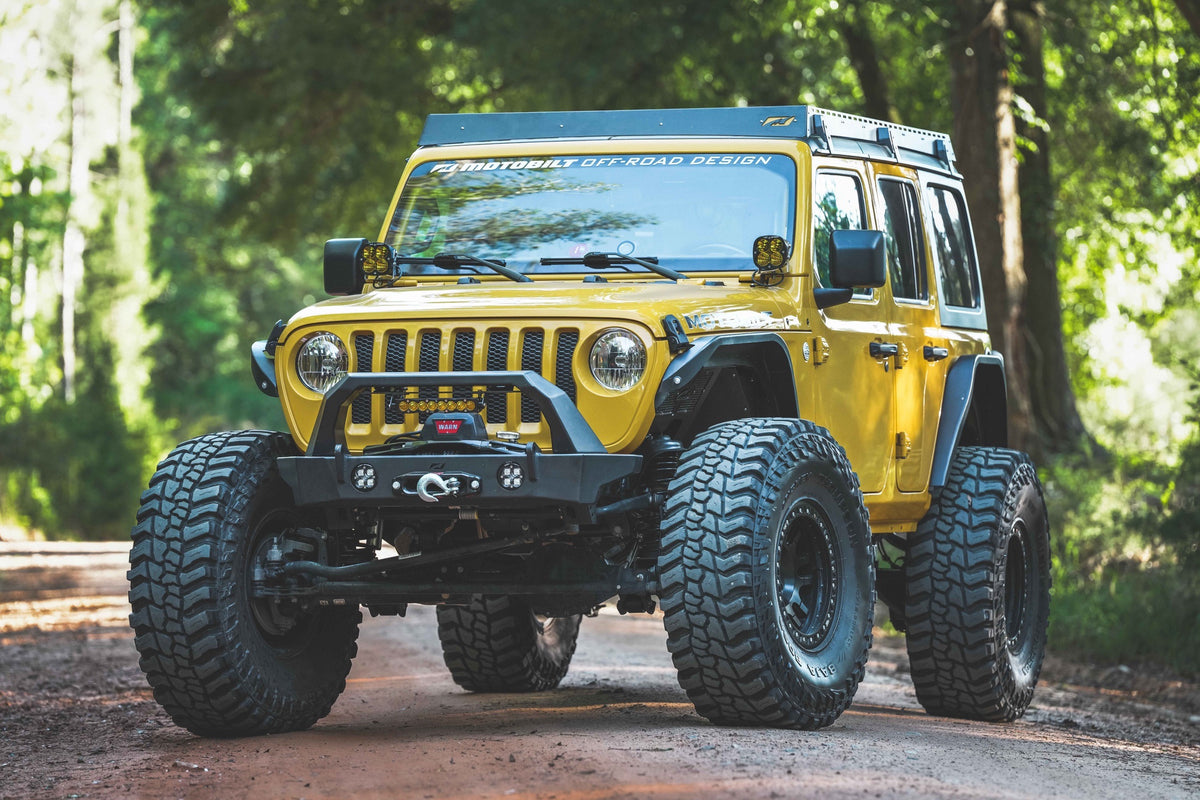

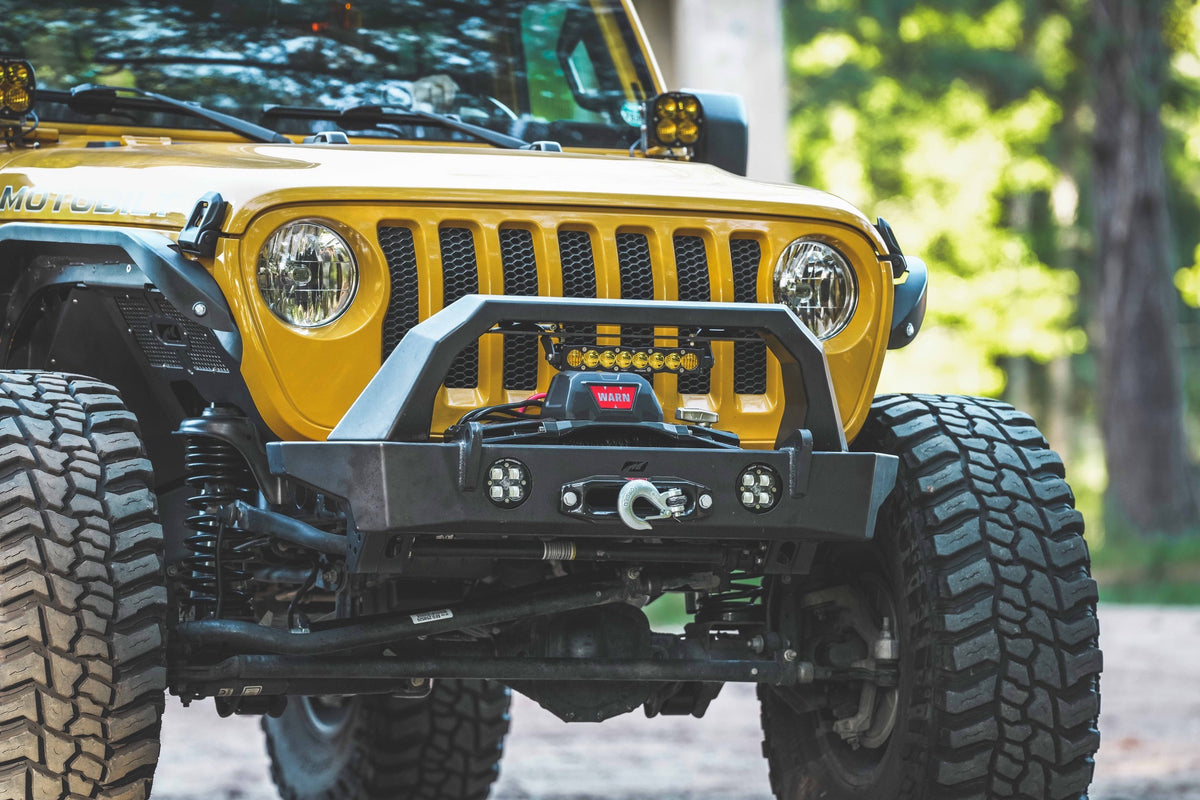

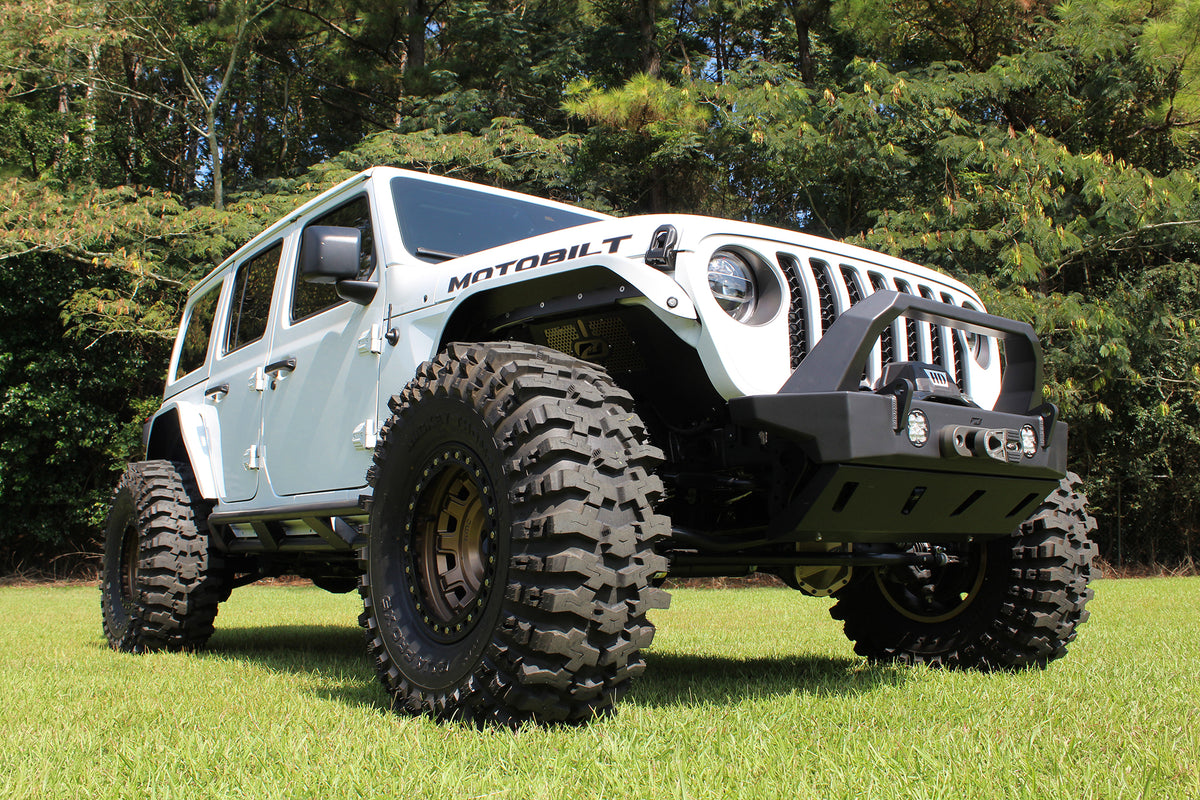

Crusher HD Front Bumper for Jeep JL/JT with Bull bar and Skidplate

Motobilt now offers the Jeep JL/JT Crusher HD front bumper with fog light holes. It features built in provisions for Baja Designs Squadron-R Light Pods. The Motobilt Jeep JL/JT Front Crusher HD Bumper is a 46.25 inch wide, sleek, tight-fitting design proudly made in the USA. Our JL/JT Crusher HD Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JL and JT Gladiator. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The front d-ring mounts are CNC cut from 3/4 inch thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

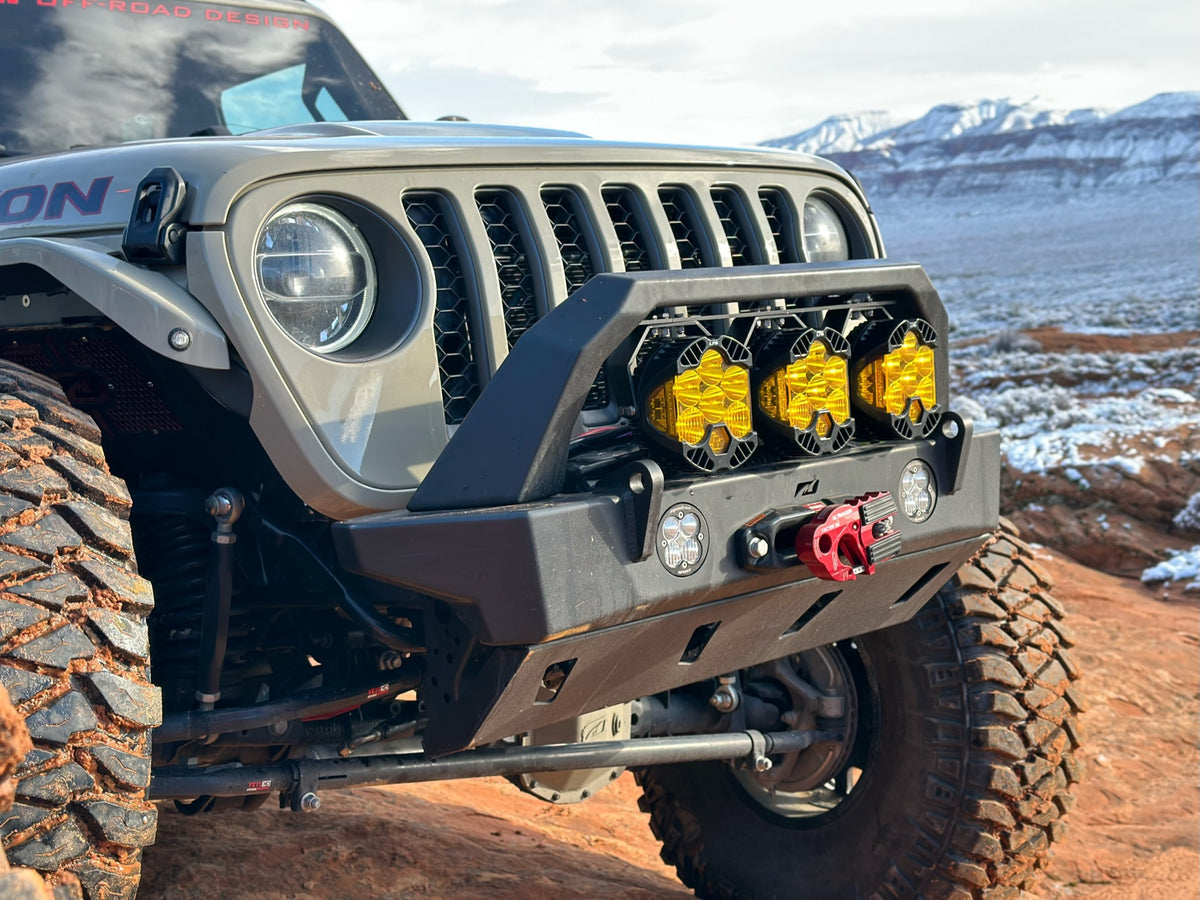

The Crusher HD bumper has provisions to mount Baja Designs Squadron-R Light Pods. The Crusher HD bumper can be run with or without the skid plate. The ends of the Crusher HD bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16 inch thick high strength steel plate.

‌

Features:

• Fits 2018 and Newer Jeep JL 2 door and 4 door JL Unlimited and Jeep JT Gladiator 2020 and up
• Recessed Winch
• Fabricated From 3/16" Thick High Strength Steel Plate
• Bolt-On Design
• 3/4" Thick Steel D-Ring Mounts
• Pass Through D-Ring Mounts Welded to Bumper
• Included Fog Light Holes
• Skid plate and bull bar included
• Made in the USA
• Sold as Each
• Weight: 65lbs (approx.)

Note:

• Ships raw steel
• No cutting required on the frame rails on your Jeep JL/JT
• Baja Designs Squadron-R Light Pods NOT included, but sold separately. See Related Parts
• Your factory frame holes may need to be opened up to 5/8” due to tolerance differences in the factory frame rails.
• Template provided for drilling mounting holes for bull bar.

Included:

• MB1200 Bumper, winch plate, fog light mounts, and all necessary hardware
• MB1201  Skid plate with all necessary brackets and hardware
• MB1203 Bull bar with drill plate template and all necessary hardware.
• The Apex Winch does not fit this bumper.

Specifications:

MB1200 Bumper Components

MB1201 Skid Plate Components

MB1203 Bull Bar Components

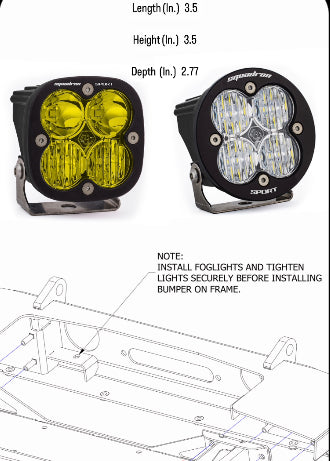

Light Dimensions:

Length (In.)   3.5

Height (In.)   3.5

Depth  (In.)   2.77

Instructions

Bull Bar Assembly

Bumper Assembly

Skid Plate Assembly
