Crusher HD Front Bumper for Jeep JK/JKU

Name: Crusher HD Front Bumper for Jeep JK/JKU
Brand: Motobilt
SKU: MB1209
Price: 779.00 USD
Availability: InStock

Regular price $779.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1209

Fits: Jeep Wrangler JK / JKU

Installation difficulty: 2 / 5

Quantity:

View product details & documents

Product details

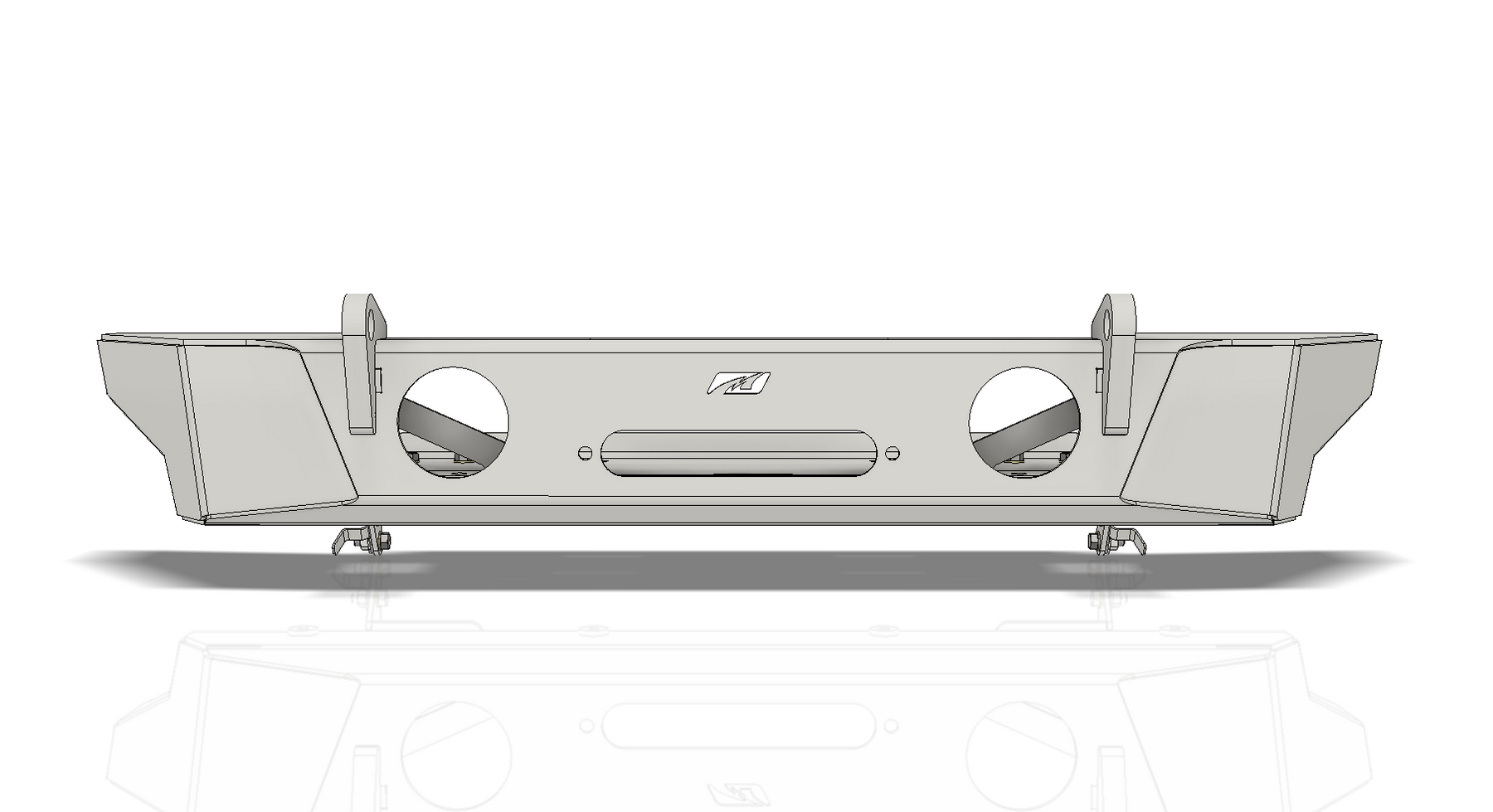

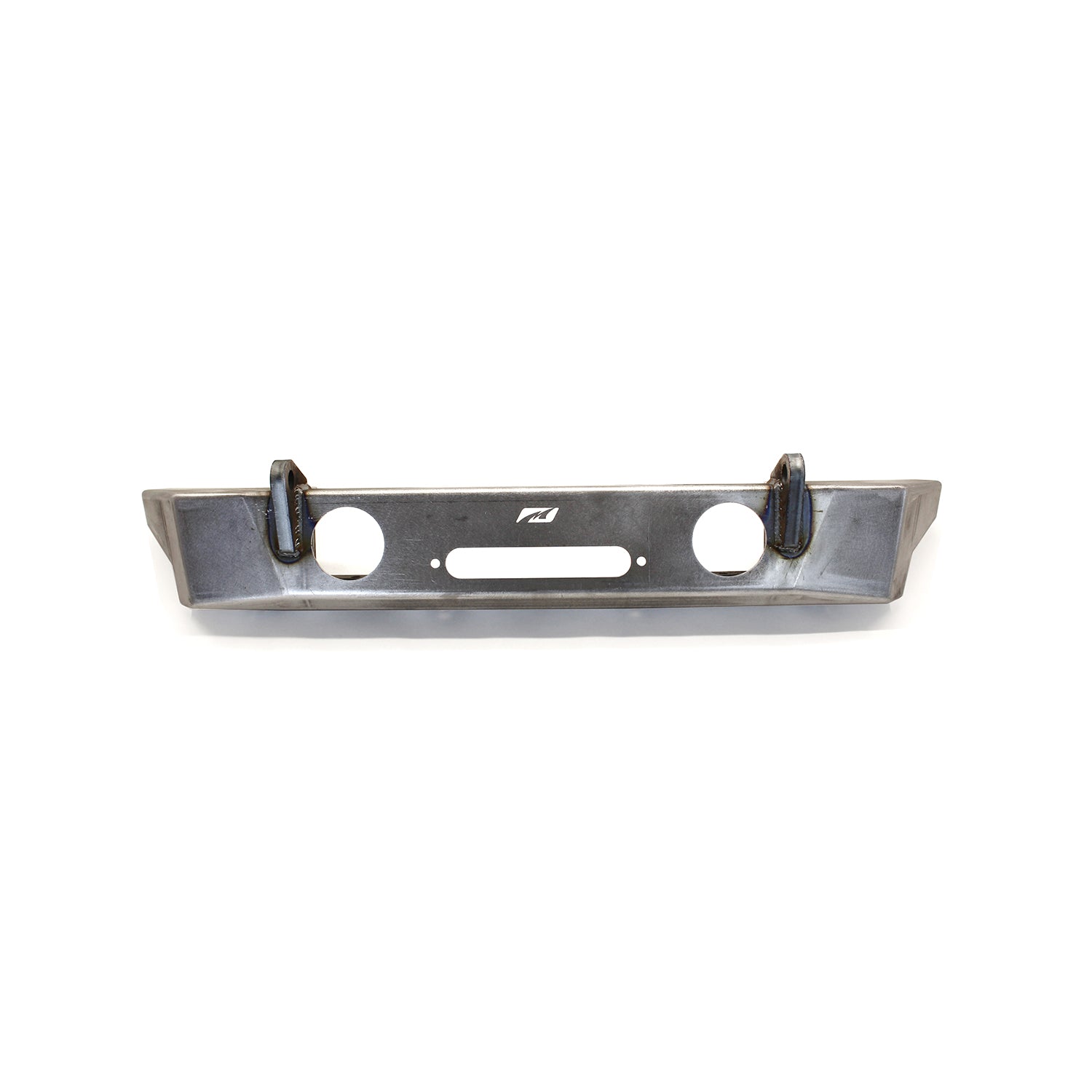

The Motobilt Jeep JK Front Crusher HD Bumper is a 46.25 inch wide, sleek, tight-fitting design proudly made in the USA. Our JK Crusher HD Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JK. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The front d-ring mounts are CNC cut from 3/4 inch thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

The Crusher HD bumper has provisions to mount Baja Designs Squadron-R Light Pods. The Crusher HD bumper can be run with or without the optional skid plate. The ends of the Crusher HD bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16 inch thick high strength steel plate.

Features:

Fits 2007 and Newer Jeep JK2 door and 4 door JK Unlimited
Recessed Winch
Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Fabricated From 3/16" Thick High Strength Steel Plate
Bolt-On Design
3/4" Thick Steel D-Ring Mounts
Pass Through D-Ring Mounts Welded to Bumper
Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
Foglight Provisions: Comes ready to integrate Baja Designs Squadrons, providing exceptional lighting for night-time adventures or low-visibility conditions. NOT for use with Factory fog lights.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as Each
Weight: 65lbs (approx.)

Note:

Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
Skid plate sold separately (#MB1210). NOT included
Does NOT work with factory fog lights.
Baja Designs Squadron-R Light Pods NOT included.
Your factory frame holes may need to be opened up to 5/8” due to tolerance differences in the factory frame rails.
The Apex Winch and other offset winches such as the Warn 9.5TI do NOT fit this bumper.
2012+ will need to relocate the vacuum pump. See MB2060

Specifications:

MB1209 Bumper Components

MB1210 Skid Plate Components

MB1203 Bull Bar Components

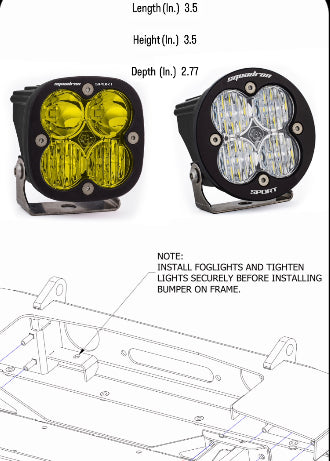

Which Lights to choose?

The Crusher HD is designed to work with a cube light that measures 3.5”s around. While a round light looks best a square light will also fit. You can choose many different light manufacturers but our recommendation is the Baja Designs Squaron R series. They are 3.5”s round and come in many different options such as lens color, light output, and lens optics.

Instructions

Assembly Instructions

Crusher HD Front Bumper for Jeep JK/JKU

Specifications:

Instructions
