Crusher Series HD Front Bumper for Jeep JL/JT

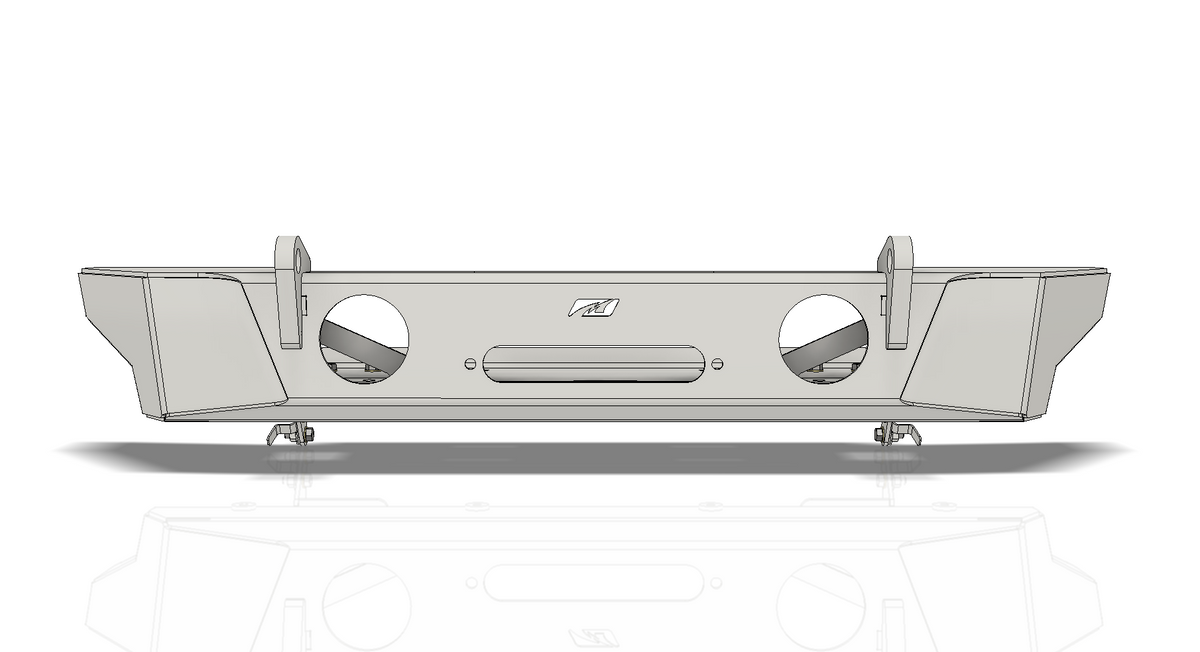

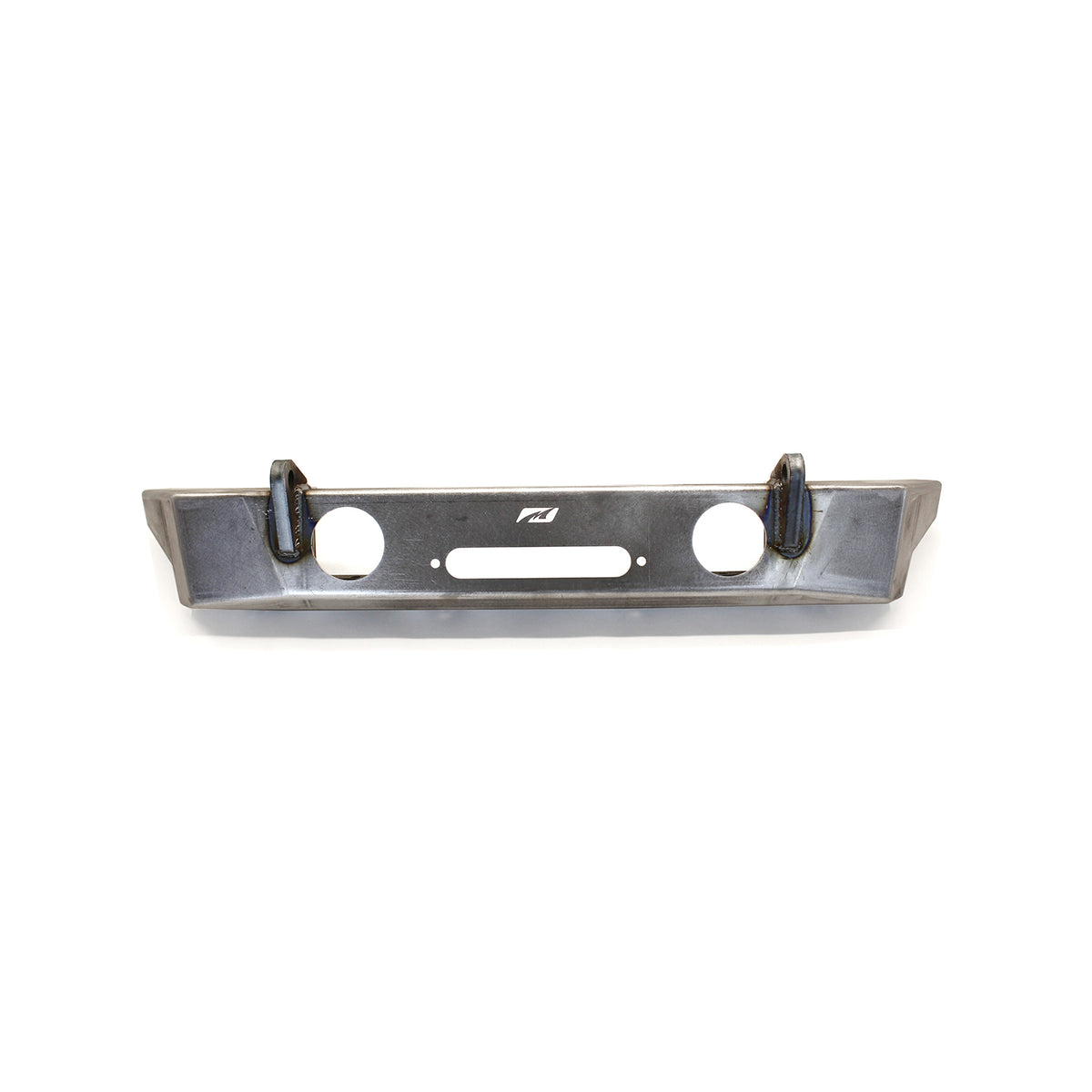

Motobilt now offers the Jeep JL Crusher HD front bumper with fog light holes. It features built in provisions for Baja Designs Squadron-R Light Pods. The Motobilt Jeep JL Front Crusher HD Bumper is a 46.25-inch wide, sleek, tight-fitting design proudly made in the USA. Our JL Crusher HD Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JL and Jeep JT Gladiator. The bumper allows you to secure your winch down low in between the frame rails. The winch bolt pattern will accept multiple style winches up to a Warn Zeon. The front d-ring mounts are CNC cut from 3/4-inch-thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

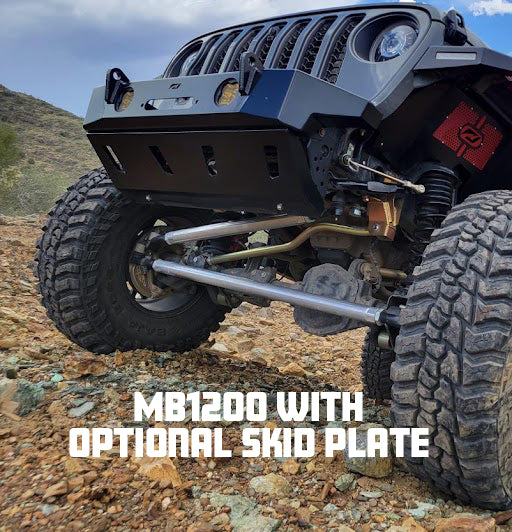

The Crusher HD bumper has provisions to mount Baja Designs Squadron-R Light Pods. The Crusher HD bumper can be run with or without the optional skid plate. The ends of the Crusher HD bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16-inch-thick high strength steel plate.
Features:
- Fits 2018 and Newer Jeep JL 2 door and 4 door JL Unlimited and Jeep JT Gladiator 2020 and up
- Recessed Winch
- Fabricated From 3/16" Thick High Strength Steel Plate
- Bolt-On Design
- 3/4" Thick Steel D-Ring Mounts
- Pass Through D-Ring Mounts Welded to Bumper
- Foglight Provisions: Equipped to house Baja Designs Squadrons, this bumper not only protects your ride but also lights the way forward in the most challenging conditions. NOT for use with Factory fog lights.
- Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
- Sold as Each
- Weight: 65lbs (approx.)
Note:
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
- Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
- The Apex Winch does not fit this bumper.
- No cutting required on the frame rails on your Jeep JL/JT
- Skid plate SOLD SEPARATELY; NOT INCLUDED. See Related Parts.
- Does NOT work with factory fog lights.
- Baja Designs Squadron-R Light Pods NOT included. See specifications for dimensions to check if your cube style lights will fit.
- Your factory frame holes may need to be opened up to 5/8” due to tolerance differences in the factory frame rails.
Fits:
- Jeep Wrangler JL / JLU 2018-Current
- Jeep Gladiator JT 2020-Current
Specifications:
MB1201 Skid Plate Components Optional Not included.
MB1203 Bull Bar Components Optional Not included.
Which Lights to choose?
The Crusher HD is designed to work with a cube light that measures 3.5”s around. While a round light looks best a square light will also fit. You can choose many different light manufacturers but our recommendation is the Baja Designs Squadron R series. They are 3.5”s round and come in many different options such as lens color, light output, and lens optics.
Instructions
