Dana 60 Coilover Strut Drop Bracket

Name: Dana 60 Coilover Strut Drop Bracket
Brand: Motobilt
SKU: MB2198
Price: 59.00 USD
Availability: InStock

25% OFF Regular price~~$59.00~~Sale price$44.25

Shipping calculated at checkout.

Unit Price: / Sku: MB2198

Fits: Jeep Wrangler JK / JKU · Jeep Wrangler JL / JLU · Jeep Gladiator JT

Quantity:

View product details & documents

Product details

Engineered for strength and precision, the Motobilt Dana 60 Coilover / Strut Drop Bracket is built to handle the toughest off-road abuse. Designed for builders and fabricators looking to mount coilovers on a Dana 60 front-steer axle, this bracket positions your shocks perfectly for improved suspension geometry and clearance.

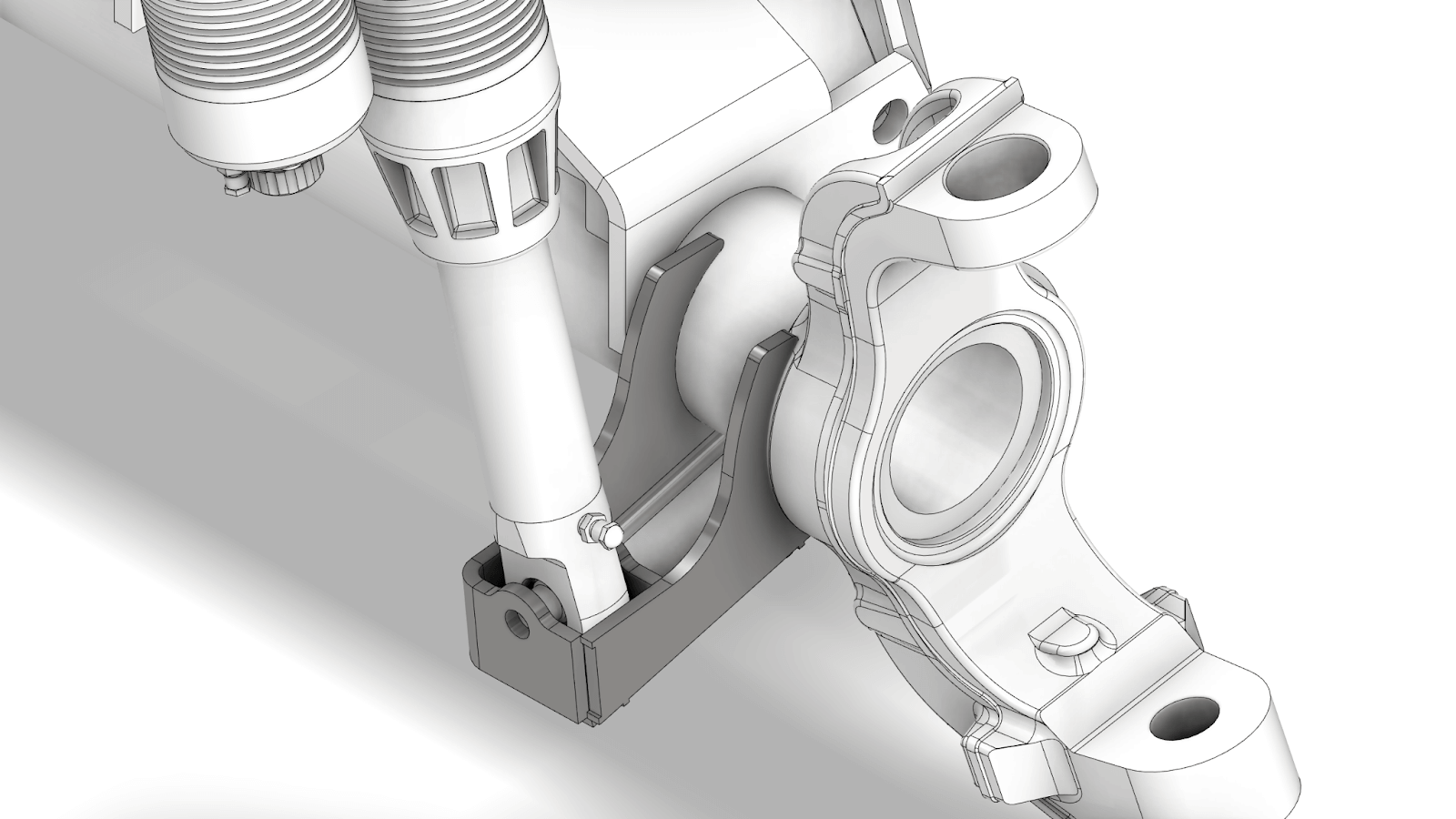

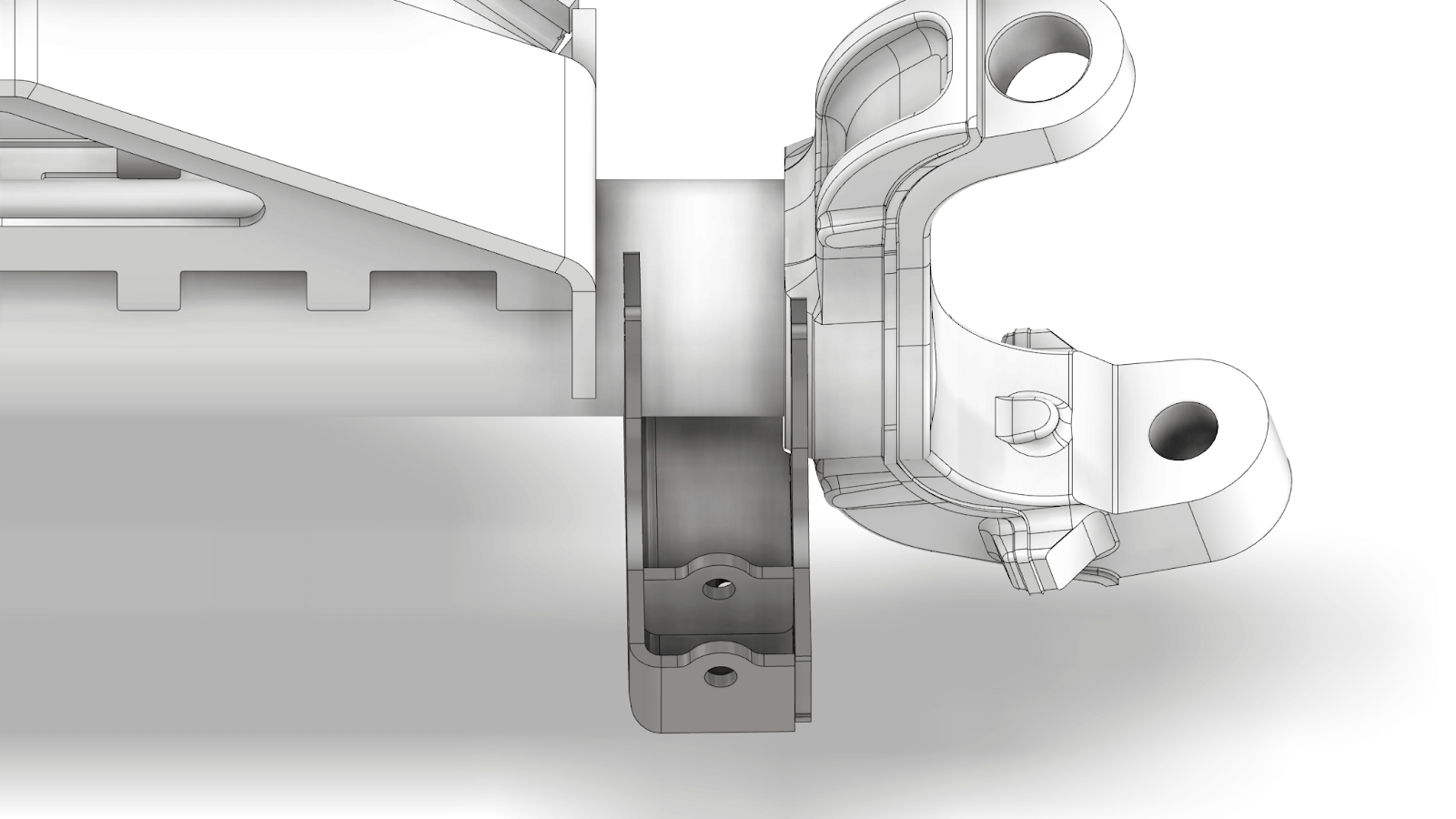

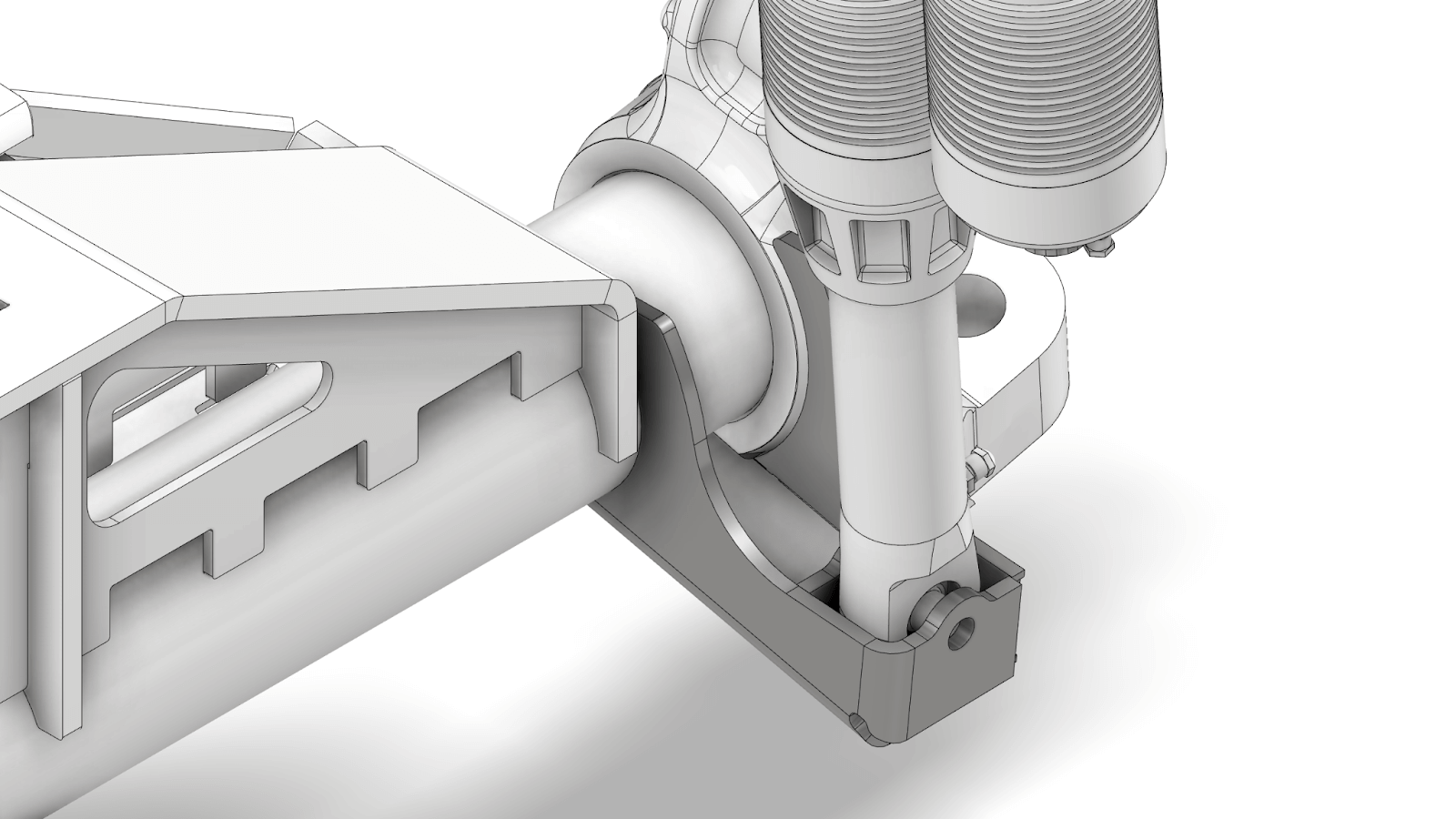

Precision-cut and formed from 1/4" thick American steel, the MB2198 delivers the rigidity and durability serious off-road builds demand. It’s designed to fit 3.75"+ axle tubes and knuckles, providing a secure foundation for your coilover / strut suspension setup. This setup requires welding to the lower Axle “C” which allows the coil over to be moved as far outward as possible. These work great with Motobilt shock towers and 14” travel shocks/struts. Whether you’re building a rock crawler, trail rig, or custom off-road buggy, this bracket offers the reliability and craftsmanship Motobilt is known for.

Highlights:

Made in the USA
1/4" Steel Construction
Adjustable shock mounting width and 1/2” bolt hole
When using the Motobilt front JK or JL shock towers this allows for a 14” travel coil over or ORI strut.
Designed to fit 3.75"+ Axle Tube and Knuckles

Fits:

Dana 60 Front Steer Axle

Notes:

Ships raw steel and will require welding during installation.
Professional fabrication and suspension setup recommended.

Specifications:

Dimensions (H/W/D): 3.3" x 41.5" x 10.5"
Weight: 5.8 lbs

What's Included

Installation Instructions

Dana 60 Coilover Strut Drop Bracket
