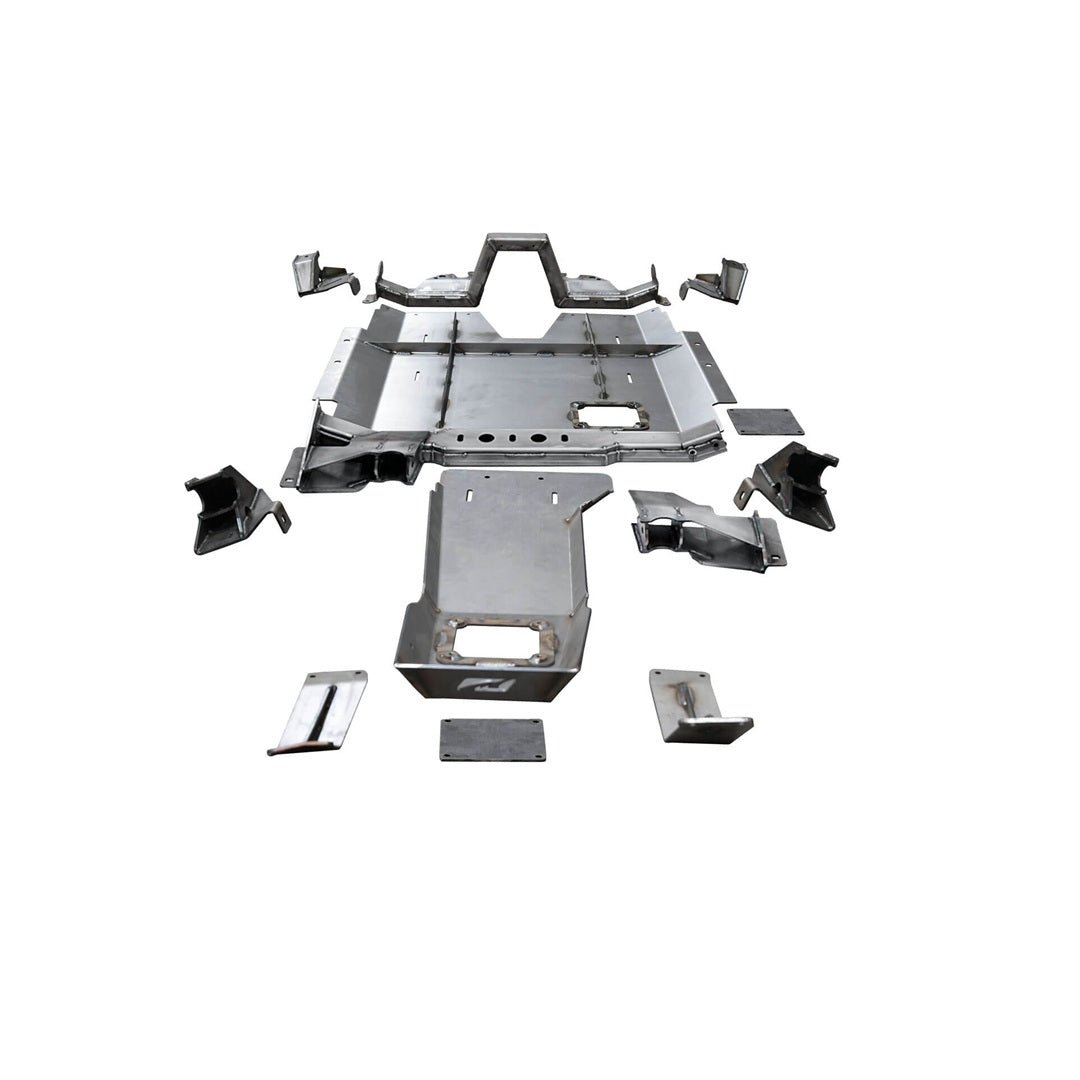

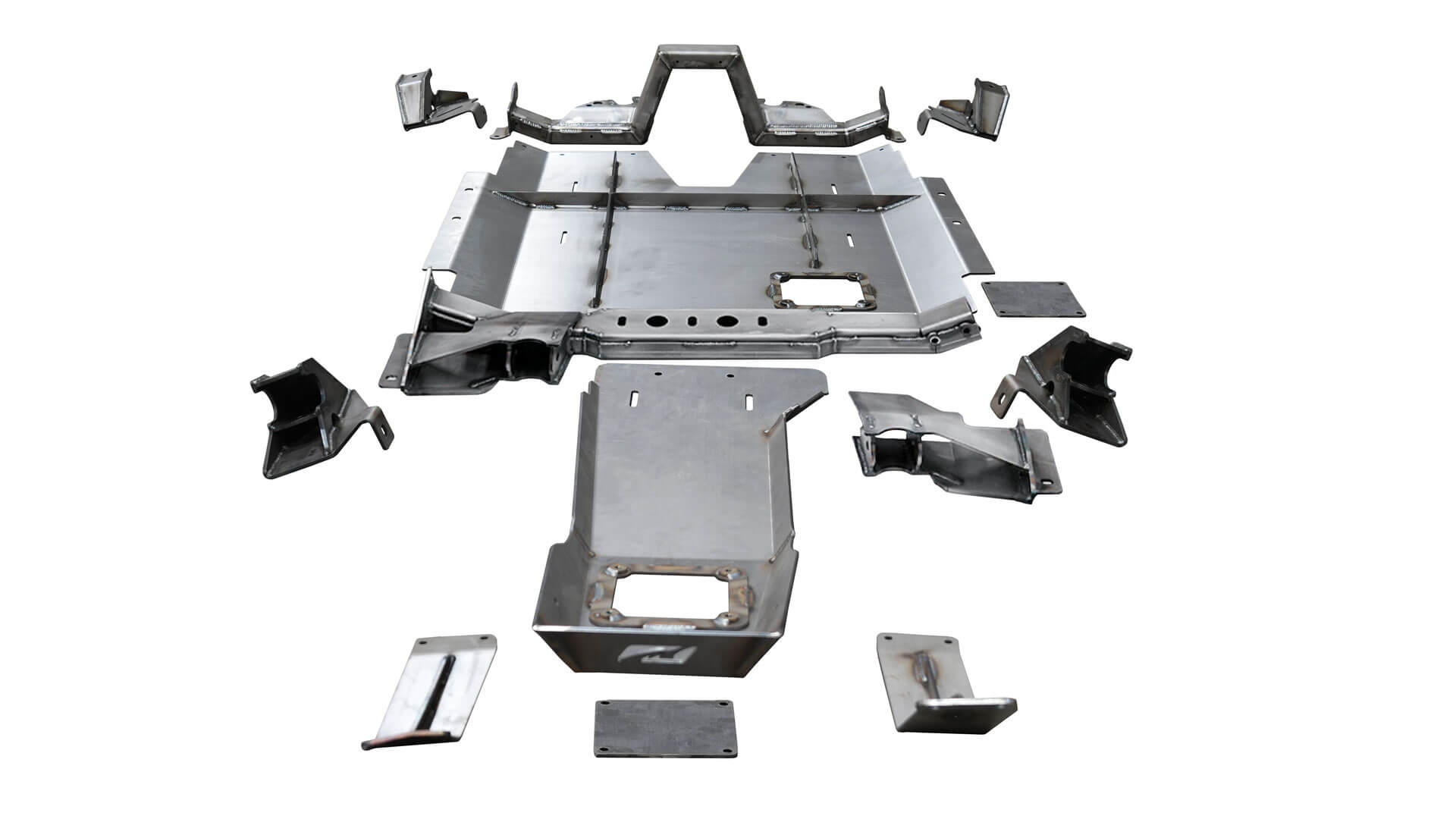

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 all pieces are laid out and shown in bare steel

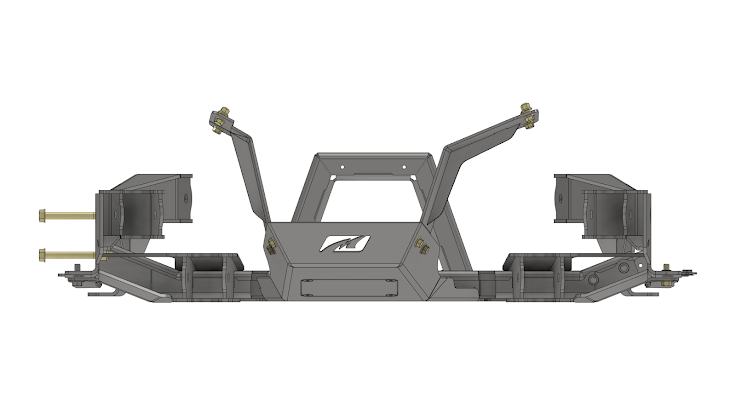

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 cad drawing showing suspension components assembled

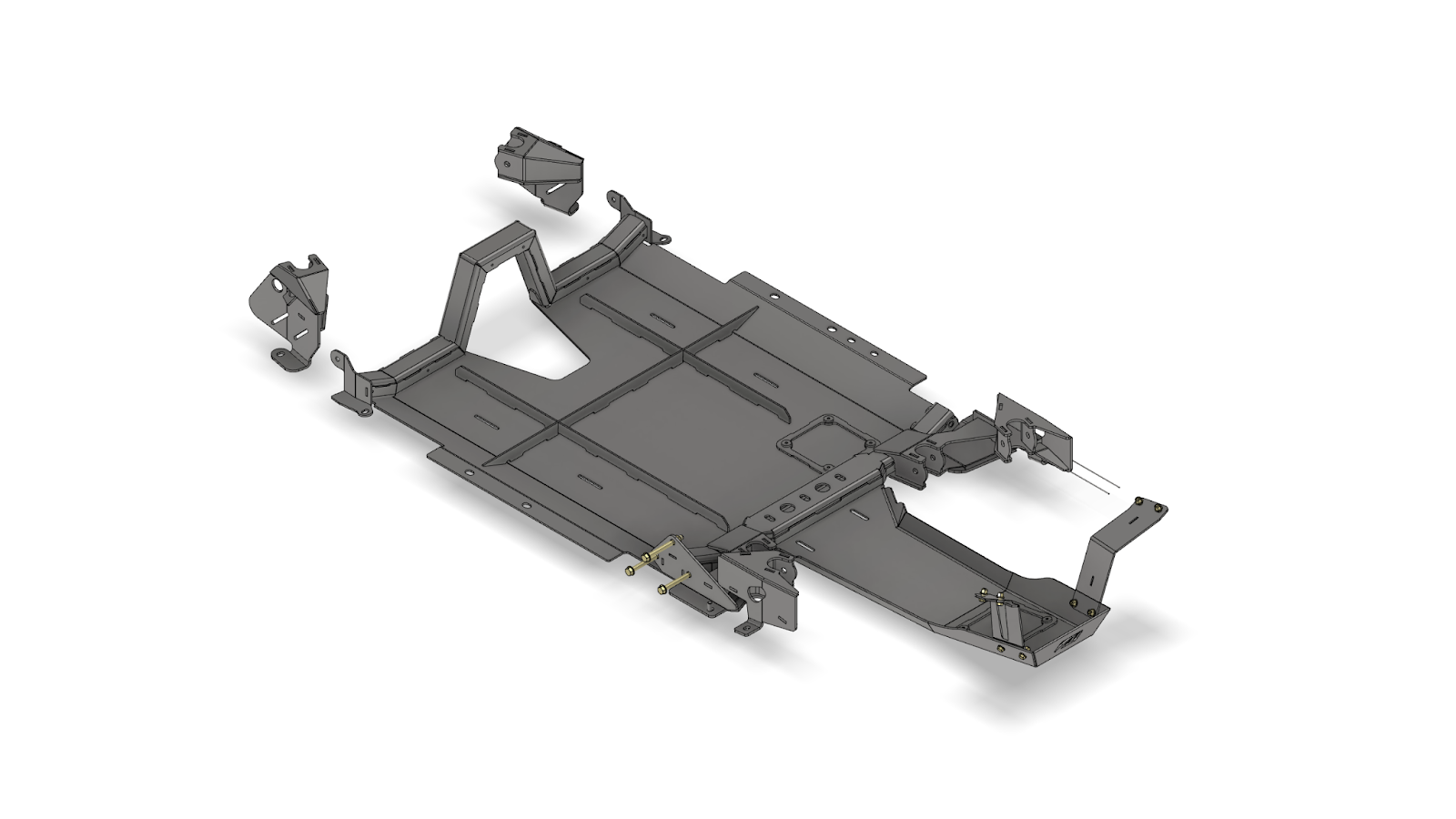

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 cad drawing view from directly in front

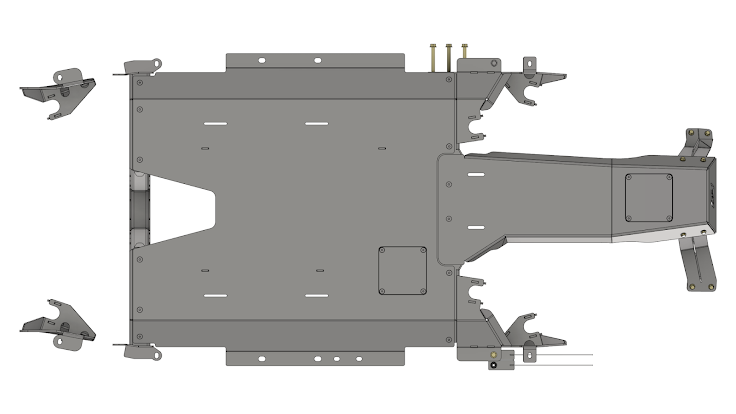

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 cad drawing looking at bottom of kit showing skid plates

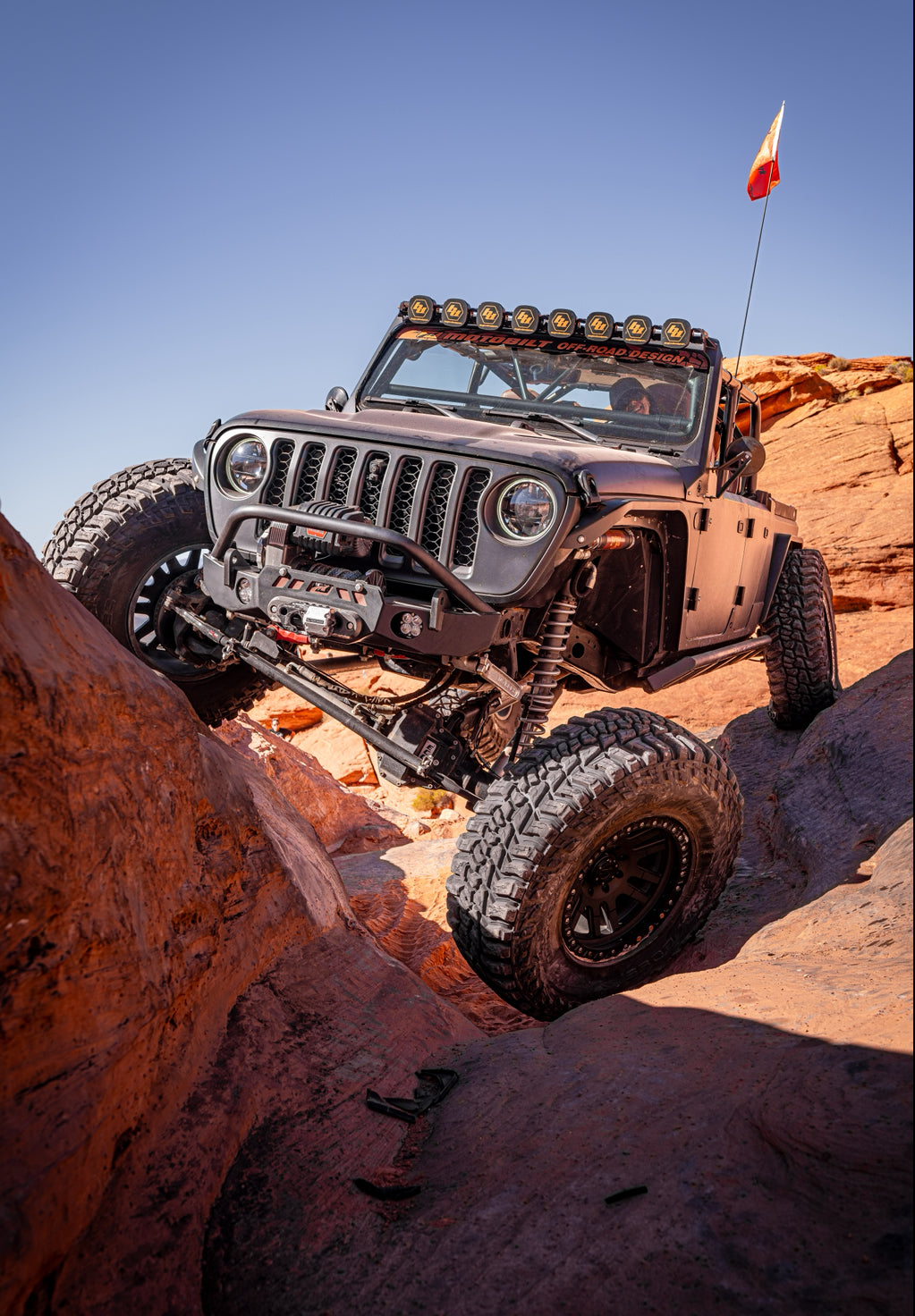

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 shown installed on black gladiator flexed up with 42" tires on the rocks in sand hollow utah

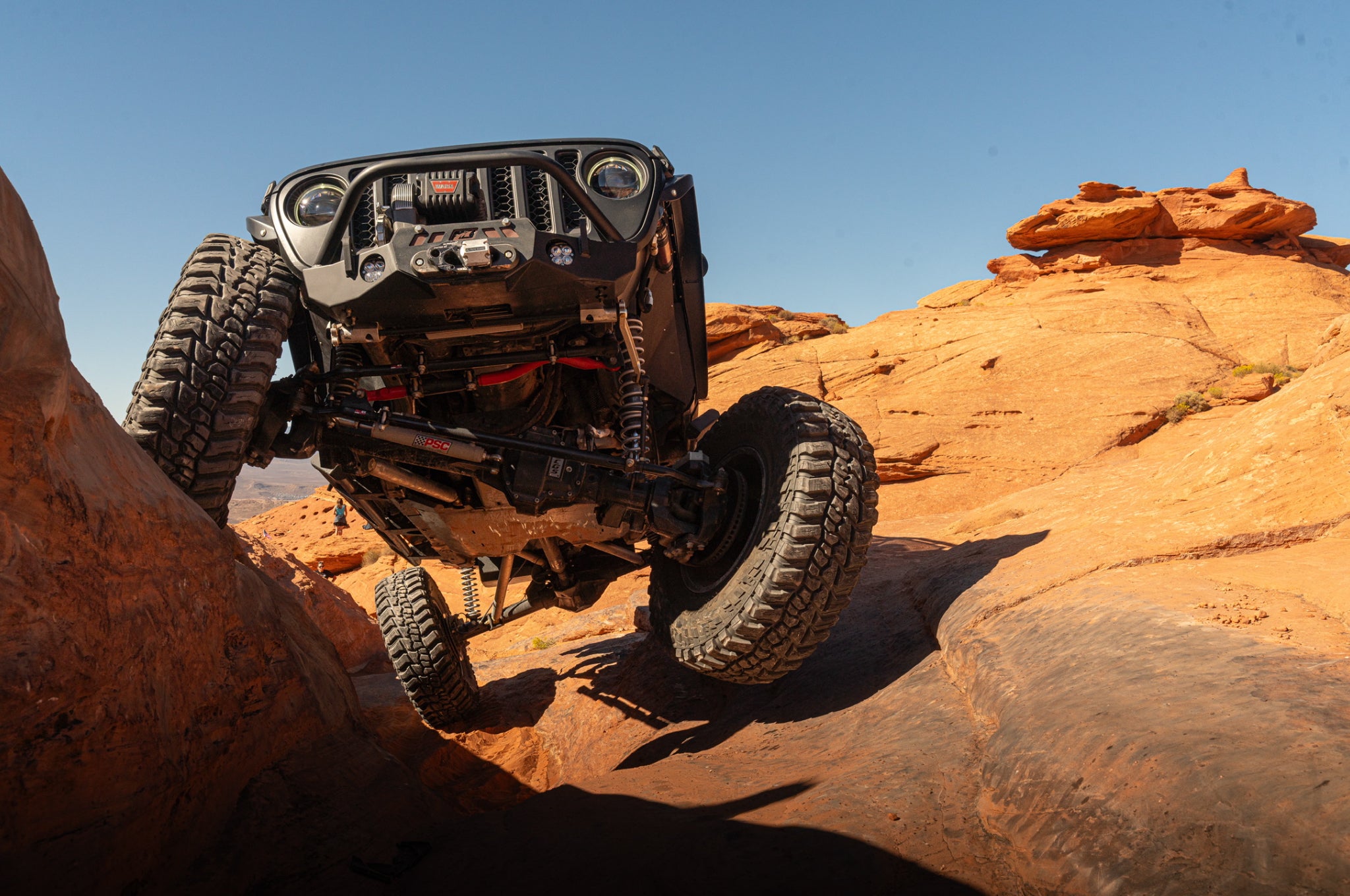

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 view of black gladiator flexed up on rocks where you can see underneath the jeep and see how much flex it has

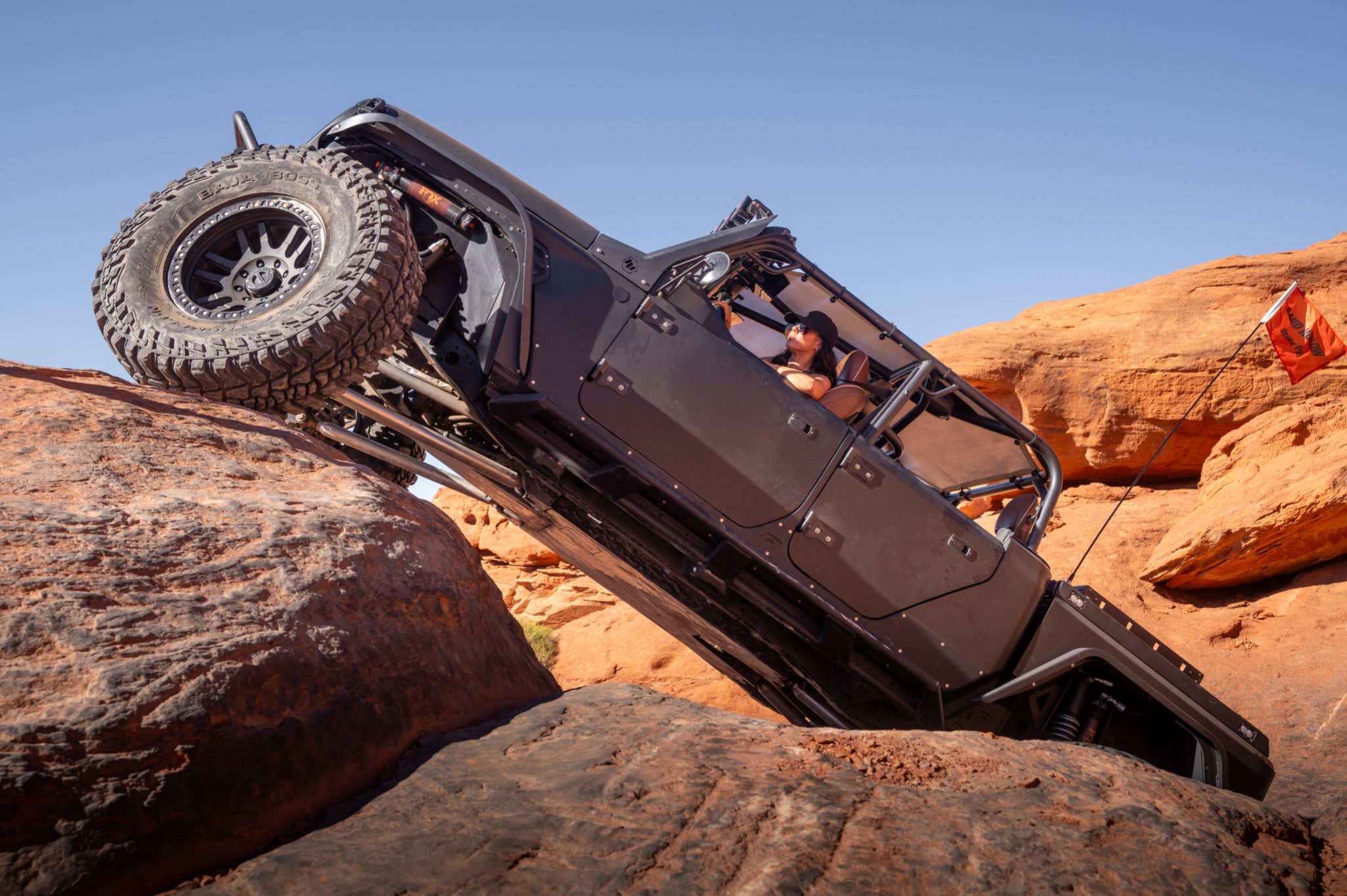

Motobilt Double Triangulated 4 Link Suspension MB7016 for Jeep JT Gladiator 20-21.5 view of it on black jeep gladiator from the drivers side as the jeep crawls up a huge rock face you can see the smooth skid plate

MB7016

Double Triangulated 4 Link Suspension for Jeep JT Gladiator 20-21.5

Name: Double Triangulated 4 Link Suspension for Jeep JT Gladiator 20-21.5
Brand: Motobilt
SKU: MB7016
Price: 3149.00 USD
Availability: InStock

$3,149.00

Shipping calculated at checkout.

Compatible With:

Product variants

Quantity

Double triangulated rear 4-link suspension bracket and skid system for the Jeep Gladiator JT designed to replace factory suspension geometry with a true linked suspension layout.

Assembly Instructions

There is a point in a Jeep Gladiator build where the factory suspension geometry stops making sense. Short control arms and a track bar become limiting factors when larger tires, heavier axles, and increased suspension travel are part of the plan. Builders pushing a Gladiator into serious rock crawling territory often reach a point where the factory rear suspension layout needs to be replaced, not just modified.

The Motobilt MB7016 Double Triangulated 4-Link Suspension Bracket and Skid System was designed to solve that problem with a true linked suspension foundation for serious builds. This system replaces the factory rear suspension layout with a double triangulated 4-link that eliminates the rear track bar and allows the suspension to cycle smoothly through travel while improving axle control and chassis packaging.

The system includes frame mounted bracketry required to build a true double triangulated rear suspension along with the structure needed to support the loads generated by aggressive off-road use. A heavy duty removable transmission crossmember supports the lower front link mounts, while a 1/4 inch thick skid plate follows the contours of the crossmember to create a smooth flush underbelly that slides over obstacles rather than hanging on brackets or hardware.

A rear frame crossmember ties the frame rails together while also serving as the rear suspension bracket mounting structure. An included engine skid protects the oil pan, transmission, and front driveline components. The transmission skid now includes a removable access panel for access to the front driveshaft yoke at the transfer case, a major advantage for driveline maintenance or trail repairs if a u-joint fails.

Designed from a builder’s perspective, this system removes the guesswork from link geometry while integrating suspension brackets, underbody protection, and structural reinforcement into one package for serious Gladiator builds.

Want To Know More?

Get the Details

Find all the information you need to get the right part for your rig.

Important Information

Designed for 2020-2021.5 Jeep Gladiator JT 3.6L
Professional welding required
Designed for experienced fabricators
Factory fuel tank must be removed and replaced with rear mounted fuel cell
Factory exhaust requires modification
Body removal not required for installation
Suspension links and joints sold separately
Designed for coilover or strut suspension systems
Includes removable driveshaft yoke access panel for easier maintenance and trail repairs

Product Specifications

Vehicle Fitment

2020-2021.5 Jeep Gladiator JT 3.6L

Material

3/16 inch steel structure

1/4 inch high-grade steel skid plate

Suspension Design

Double triangulated rear 4-link suspension

Compatible with front 3-link or 4-link suspension setups

No rear track bar required

Bracket Compatibility

Accepts 2-5/8 inch wide joints with 5/8 inch mounting holes

Joint holes can be drilled larger if desired

Included Components

Frame mounted link brackets

Heavy duty removable transmission crossmember

Rear structural crossmember with link mounts

Engine skid plate

Flush belly skid plate system

Flush mounted countersunk skid hardware

Removable front driveshaft yoke access panel

Weight

265 lbs

Recommended Joints

RockJock Johnny Joints CE-9114NL-28

RockJock Johnny Joints CE-9114N-28

Transfer Case Compatibility

Works with factory transfer case

Compatible with aftermarket transfer cases including Atlas II and Atlas IV

Manufactured

Made in the USA

Notes

Professional fabrication and welding required.
Intended for builders familiar with suspension geometry and chassis fabrication.
Test fit all suspension brackets and skid components before final welding.
Removable transmission skid access panel allows service access to the front driveshaft yoke without removing the skid.
All pivot bolts are recessed and protected while remaining serviceable with standard tools.

Frequently Asked Questions

What is a double triangulated 4-link suspension?

A double triangulated 4-link locates the axle using angled upper and lower links rather than relying on a track bar. This improves axle control and allows smoother suspension travel in high articulation environments.

Does this kit eliminate the rear track bar?

Yes. This system is designed around a true double triangulated rear suspension and does not use a rear track bar.

Can this be used with coilovers?

Yes. The system is designed to support coilover or strut suspension setups and is commonly used in advanced suspension builds.

Does this include skid protection or only suspension brackets?

This is both a suspension bracket system and an integrated skid system. It includes a flush belly skid, engine skid, removable transmission crossmember, and structural crossmember.

What is the removable driveshaft access panel for?

The transmission skid includes a removable access panel that provides access to the front driveshaft yoke at the transfer case. This makes maintenance easier and can be extremely useful for trail repairs if a front driveshaft u-joint fails.

Will this work with aftermarket transfer cases like an Atlas?

Yes. The system is designed to work with factory transfer cases as well as aftermarket options such as Atlas II and Atlas IV.
