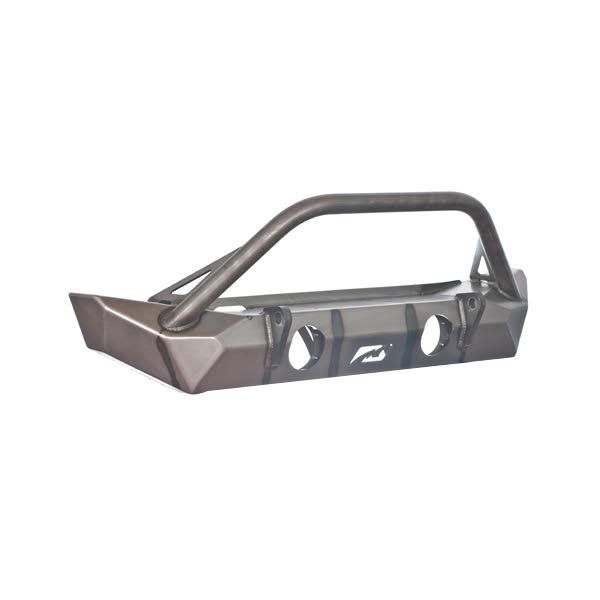

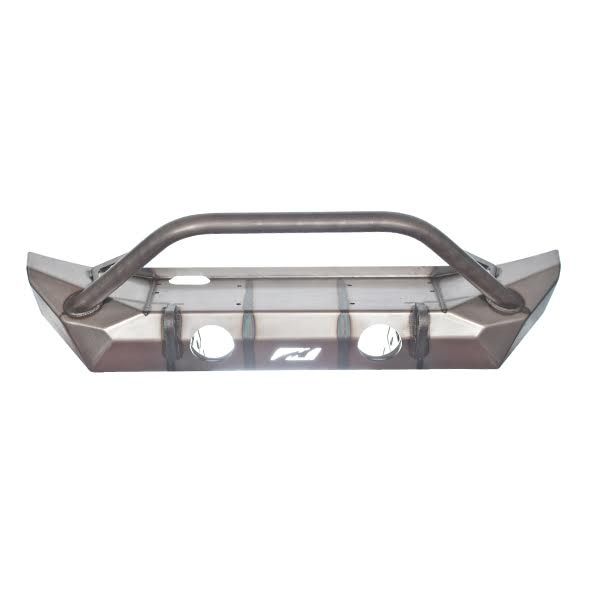

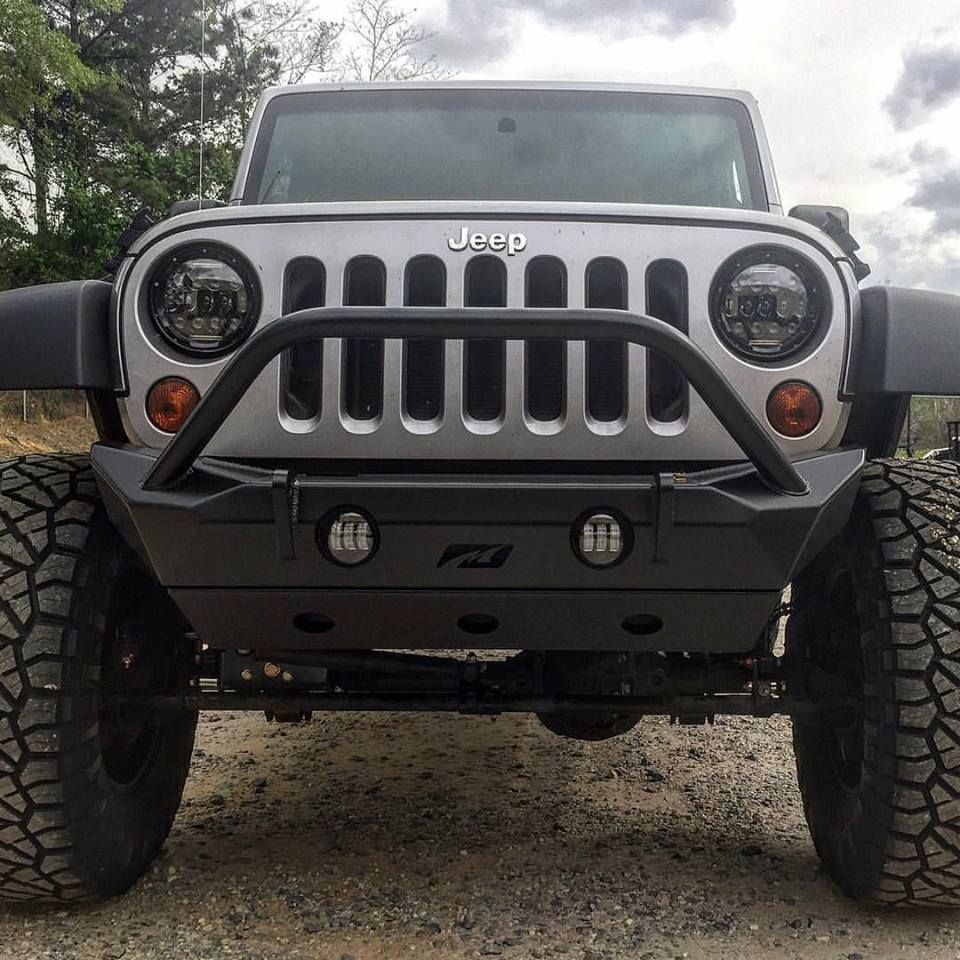

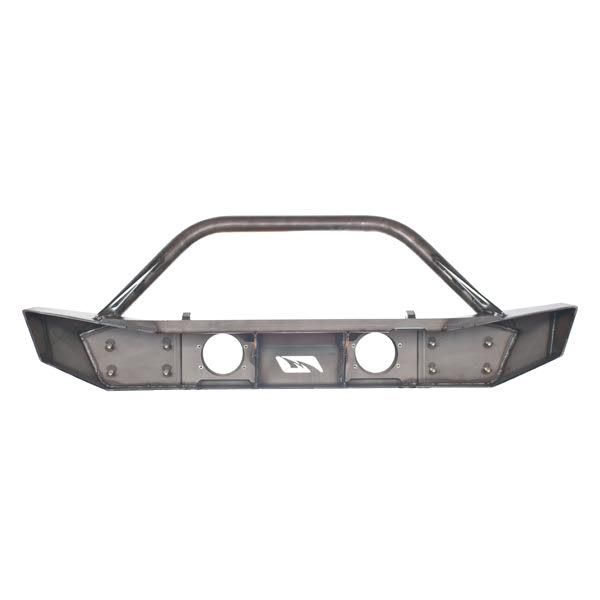

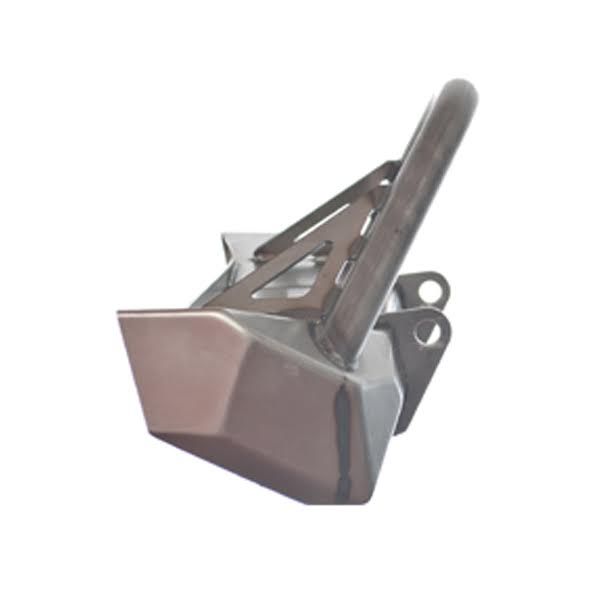

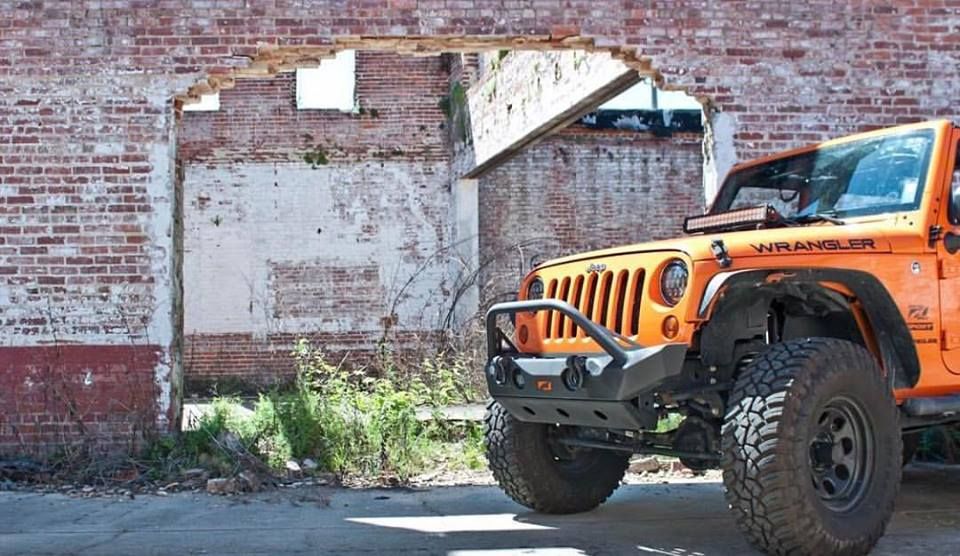

Hammer Series Front Bumper w/stinger and fog lights for Jeep JK / JKU
The Motobilt Jeep JK Front the Hammer Bumper is a 48.5-inch wide, sleek, tight-fitting design proudly made in the USA. Our JK The Hammer Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JK. The bumper will fit all year models of the Jeep JK 2 door and 4 door JK Unlimited. The front d-ring mounts are CNC cut from 3/4-inch-thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.
The Hammer bumper has provisions to mount the factory fog lights or aftermarket LED fog lights. We have pre-installed riv nuts for 10-24 screws in the factory bolt pattern. The Hammer bumper can be run with or without the optional skid plate. To install the skid plate, you have to trim approx. 1 inch off each side of the crash bars. If you remove the skid plate later, the part that you trimmed will not be seen. The ends of the Hammer bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16-inch-thick high strength steel plate. The bumper also serves as a winch mount. The top side of the JK The Hammer Bumper has bolt holes for a recovery winch.
Specifications
- Jeep JK The Hammer 48.5-inch front bumper with stinger
- Fits all year models of the Jeep JK 2 door and 4 door JK Unlimited
- Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
- Fabricated from 3/16-inch-thick high strength steel plate.
- Bolt on design.
- 3/4-inch-thick steel d-ring mounts
- Pass through d-ring mounts weld to the bumper.
-
Fog Light holes for factory fog lights.
- Pre-installed riv nuts for 10-24 screws in the factory bolt pattern.
- Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
- Sold as each.
- Weight: 80lbs (approx.)
Fits:
- Jeep Wrangler JK / JKU 2007-2018
Note:
- If installing a winch, MB1002 fairlead mount will also need to purchase.
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
- No cutting required on the frame rails on your Jeep JK
- The two outside top bolt holes on your frame need to be drilled out to 9/16 inch.
- 2012 and newer models will need a vacuum relocation pump bracket PN MB2060
- Skid plate sold separately.
Instructions
If using an Apple device and the instructions link does not work, then click on the link below and hold down to download the link.
