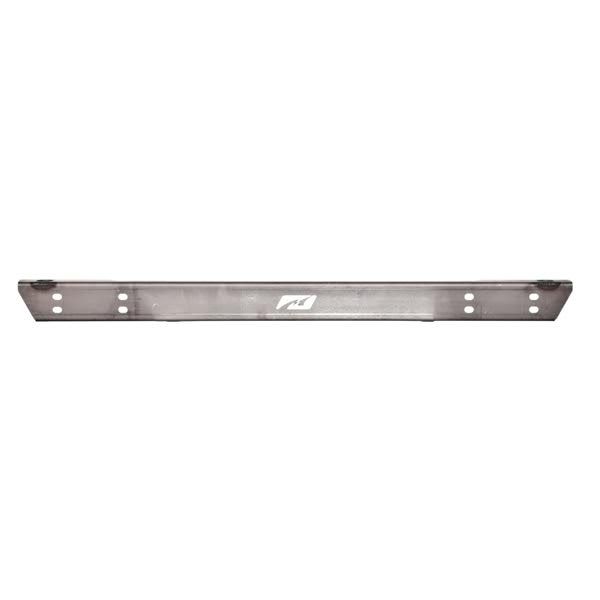

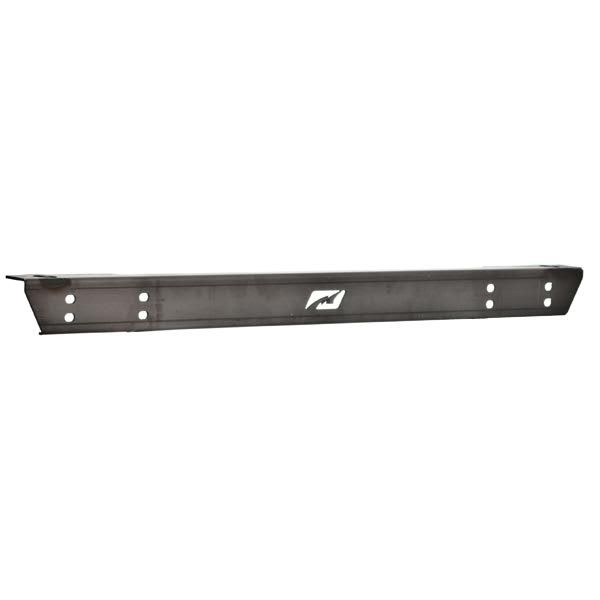

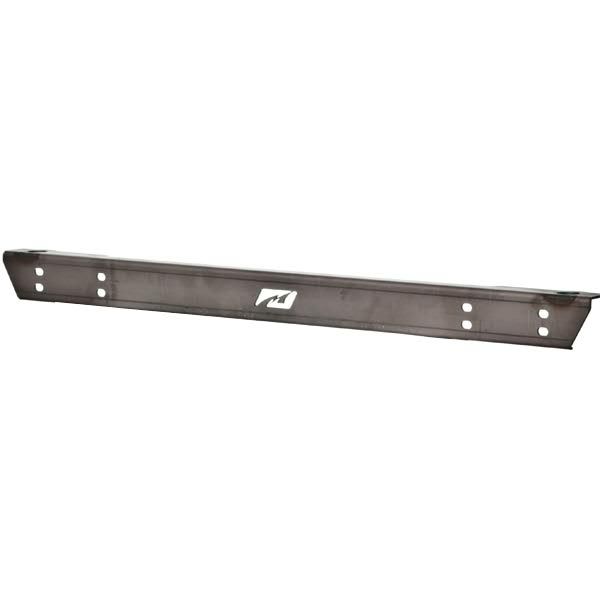

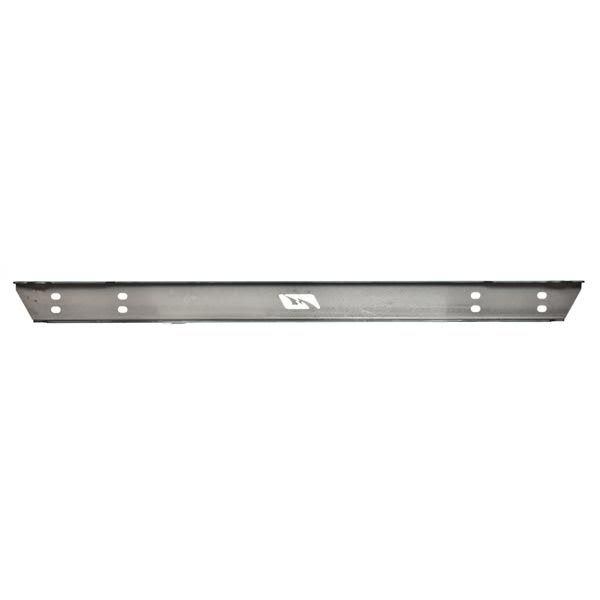

Heavy Duty Rear Cross Member 76-86 for Jeep CJ
Product Code MB3004
BOGO 20% OFF
Have a question?
The Motobilt rear Jeep CJ (1976-1986) cross member is a perfect solution for those wanting to replace a bent or rusted out factory rear cross member. Over the years we have seen many Jeep Wrangler CJ's needing a replacement for the rear cross member. Often times due to someone attaching a snatch strap or chain to the thin factory Jeep cross member.
Other cases have been due to rust. Either way the Motobilt rear cross member is a great alternative to simply installing a factory cross member. The Motobilt cross member is fabricated from heavy duty 3/16 inch steel plate. The rear cross member retains the factory bolt holes for the rear bumper and gas tank skid.
The cross member also provides mounting holes for the factory corner body mount bushings. The cross member ships ready to install. Installation does require welding. It is highly recommended using a professional welder for the installation. The cross member is shipped out bare steel ready to install.
Specifications
- Jeep CJ rear cross member
- Fits 1976-1986 Jeep CJ
- Fabricated from heavy duty 3/16 inch steel plate
- Cross member retains the factory bolt holes for the rear bumper and gas tank skid
- Sold as each
- Weight = 17lbs
Note:
- Ships ready to install
- Requires welding
- Highly recommended using a professional welder for the installation
- Ships bare steel
