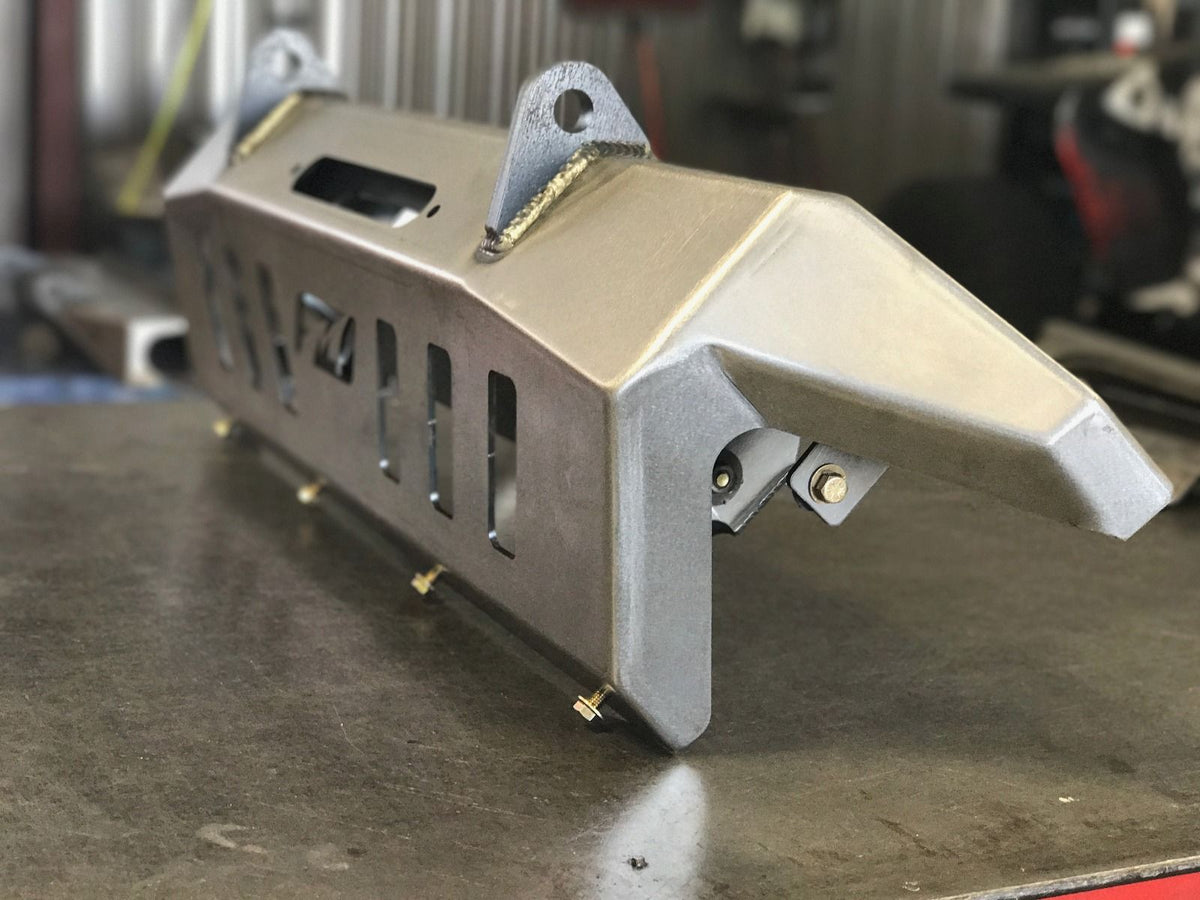

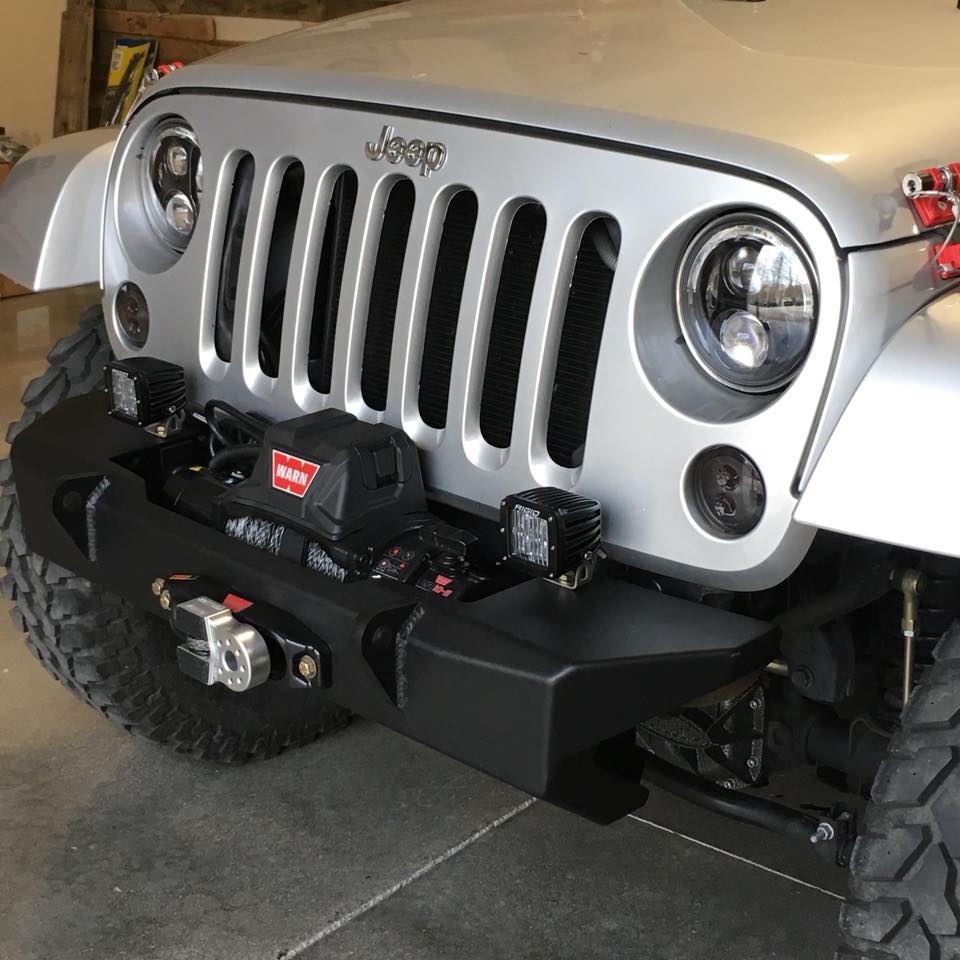

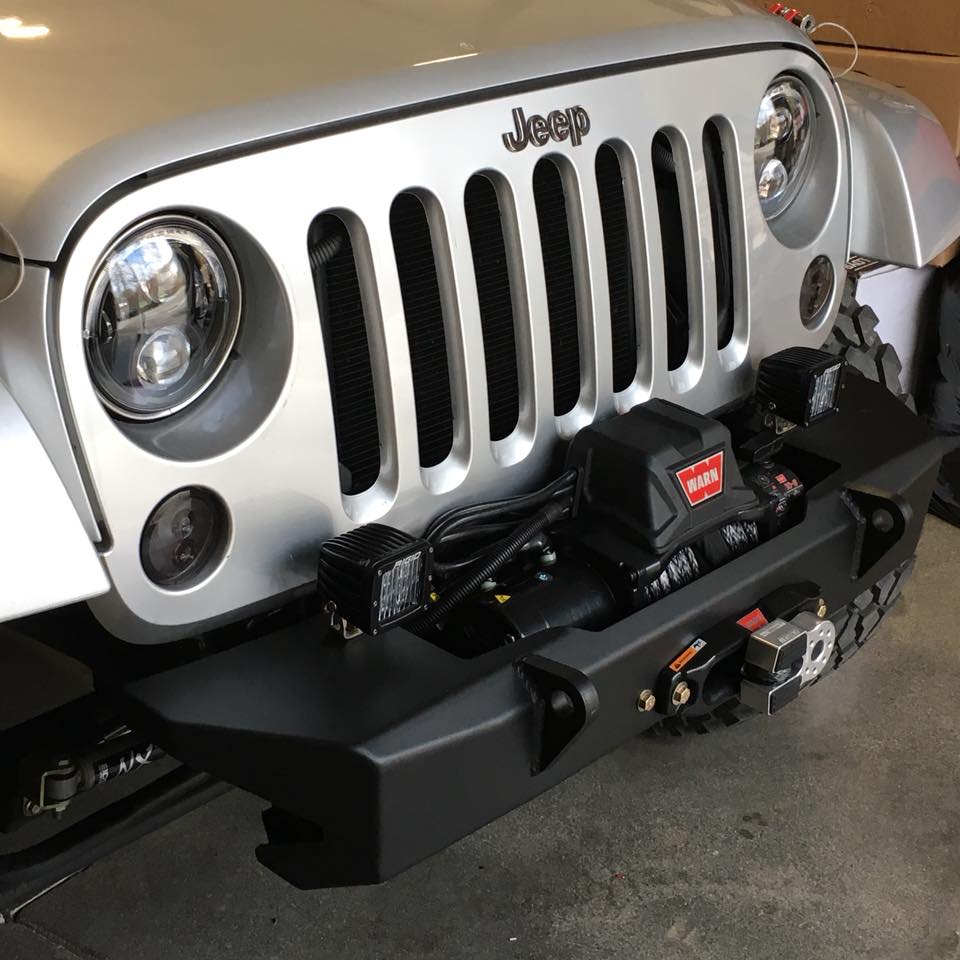

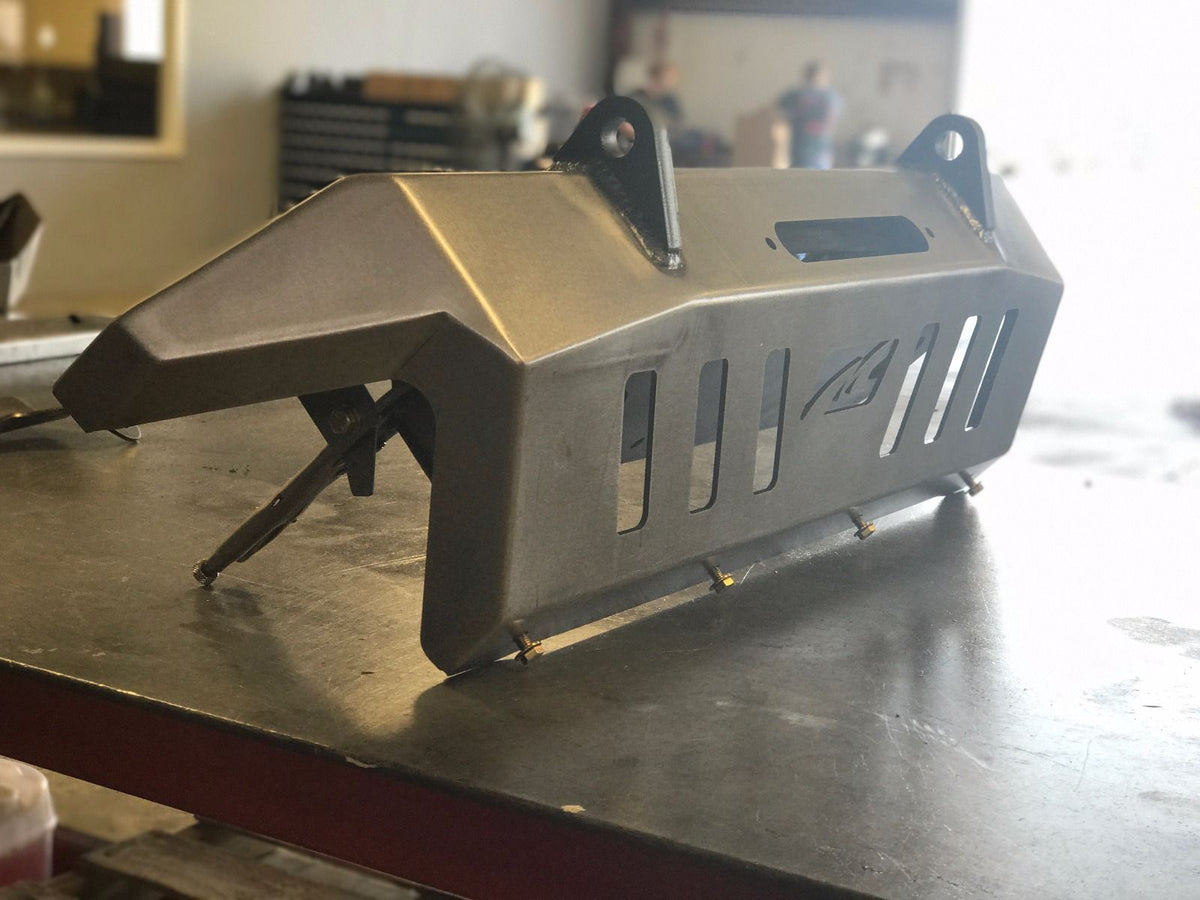

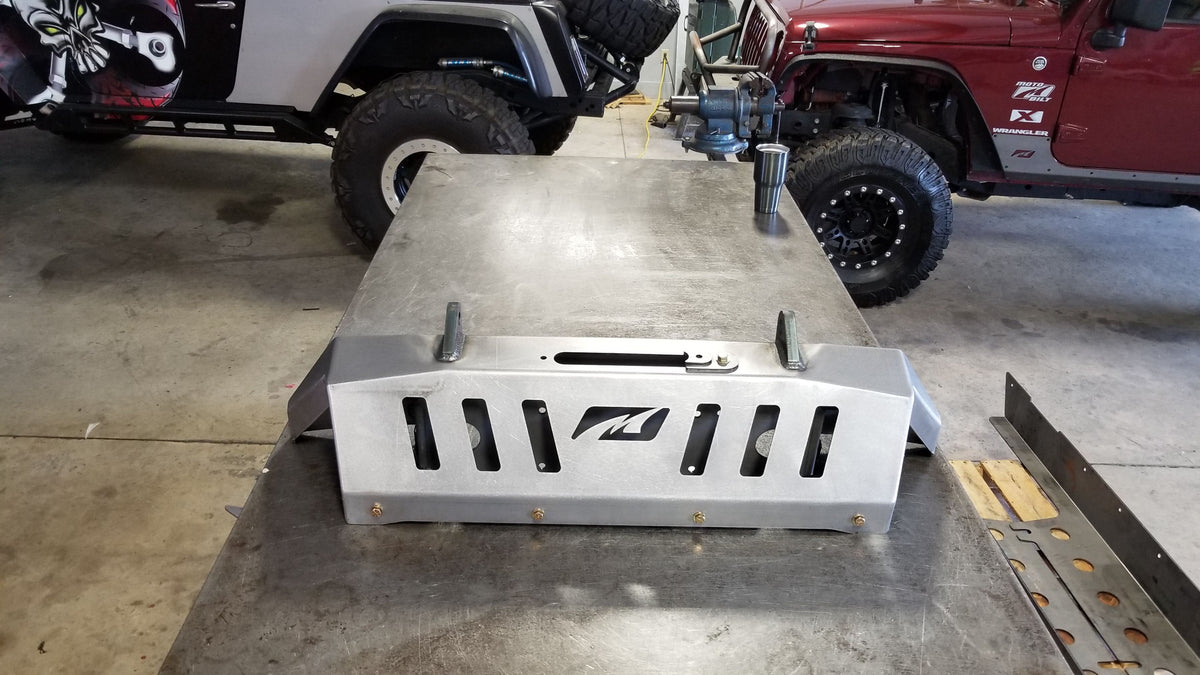

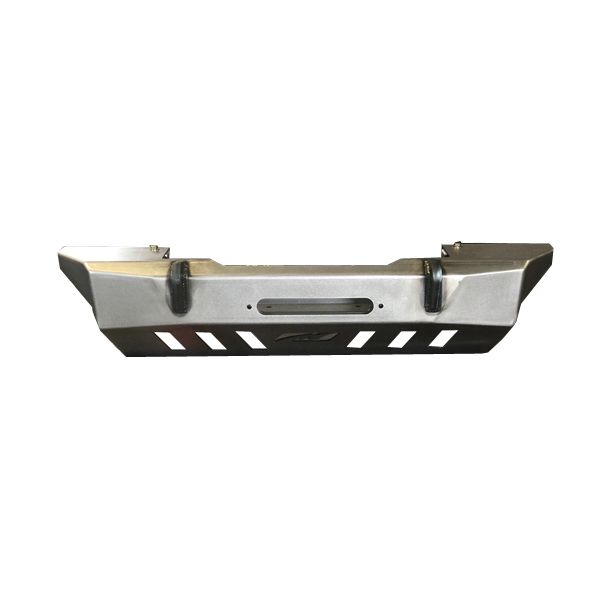

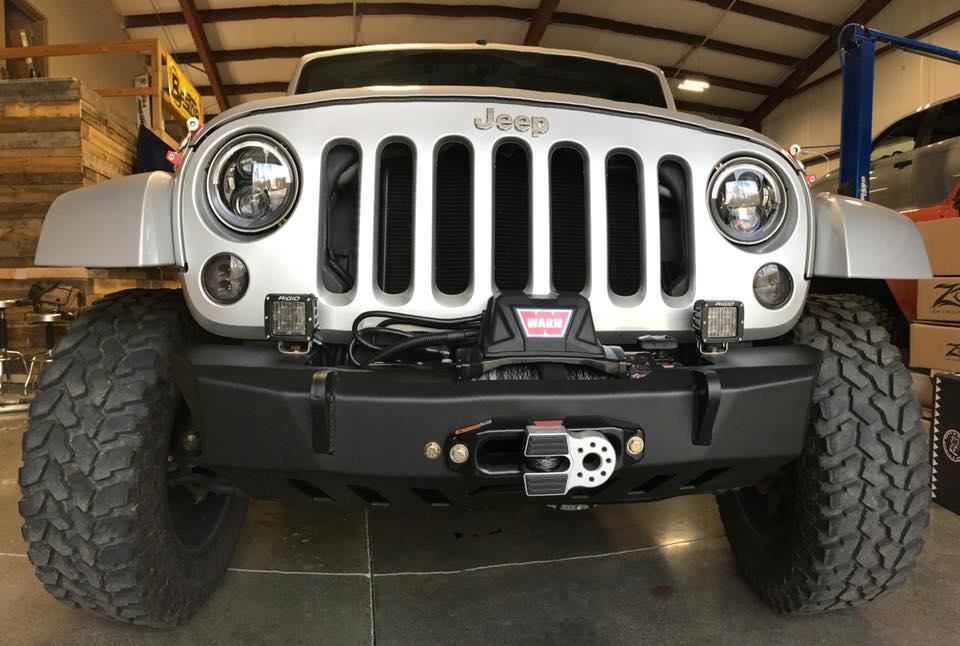

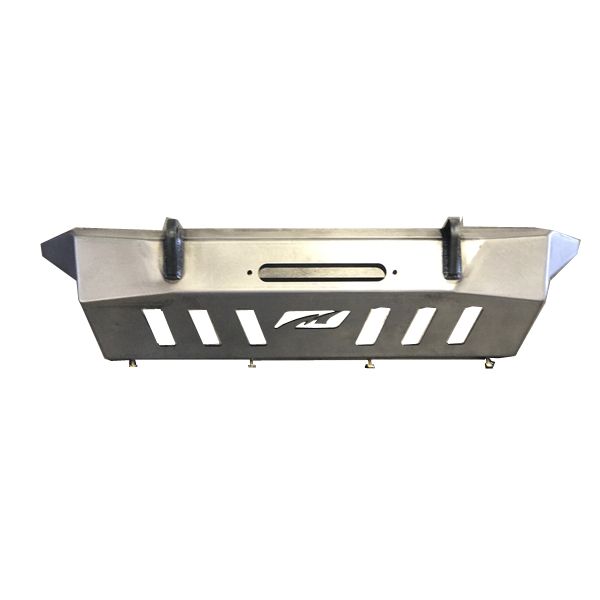

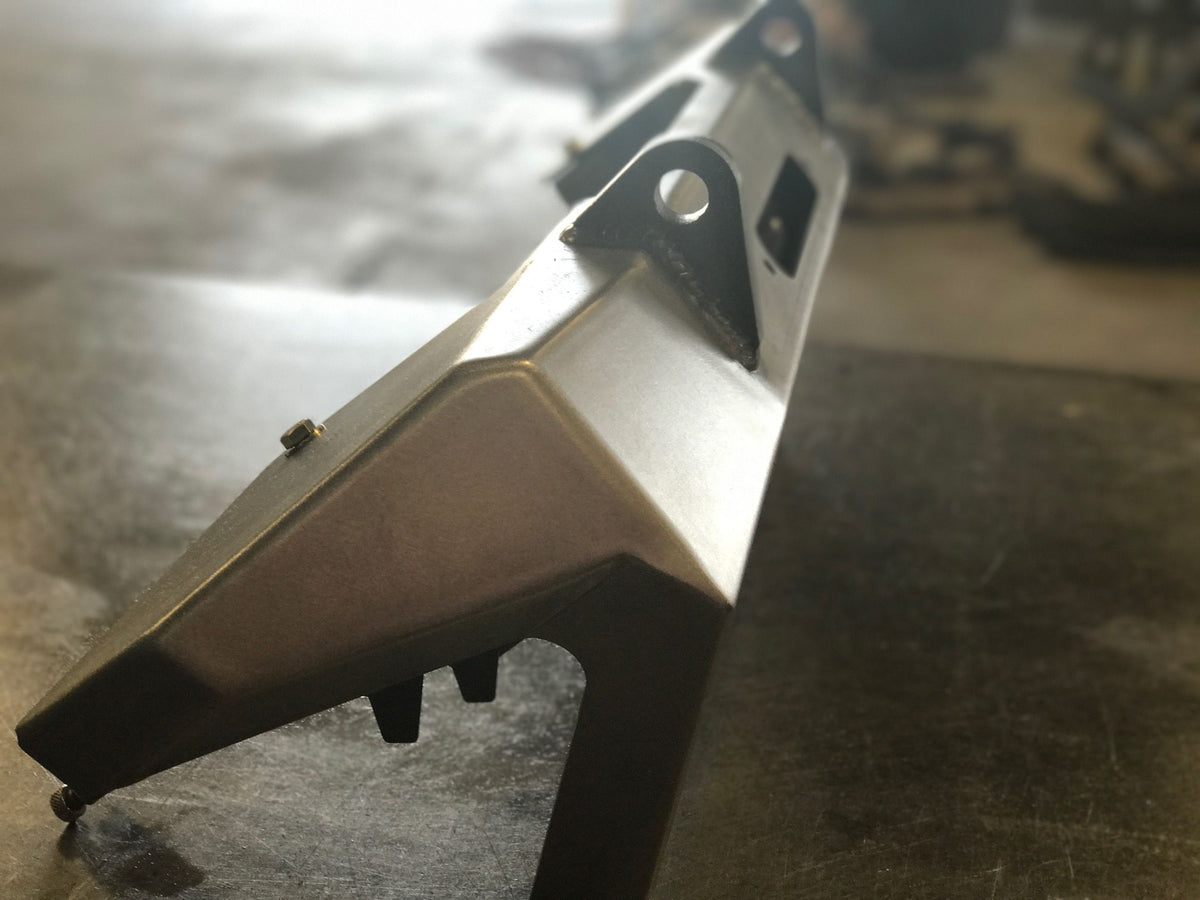

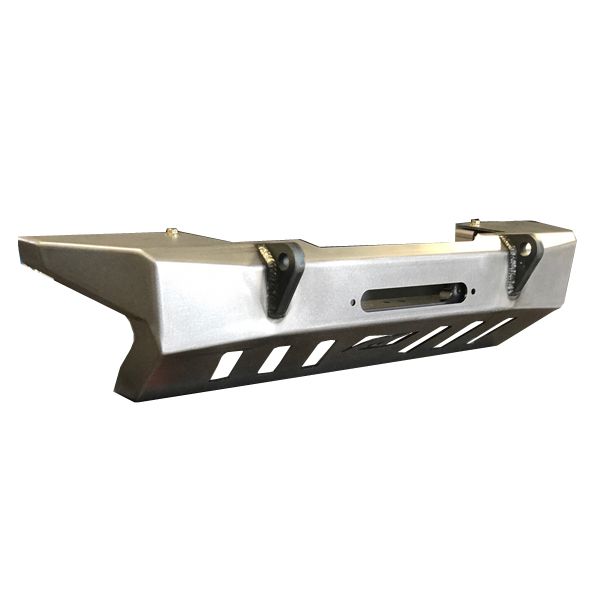

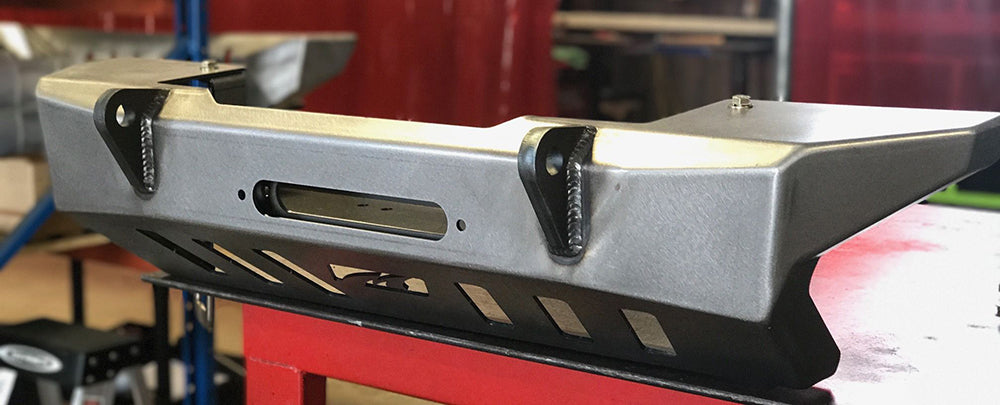

The Motobilt Jeep Wrangler JK Crusher recessed winch bumper will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The high clearance design includes a built-in skid plate also. The bumper is made from 3/16-inch-thick steel plate that is laser cut at Motobilt HQ then cnc bent. The bumper uses 3/4-inch-thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out. This setup provides for superior strength.
Specifications
- Fits 2007 and Newer Jeep JK2 door and 4 door JK Unlimited

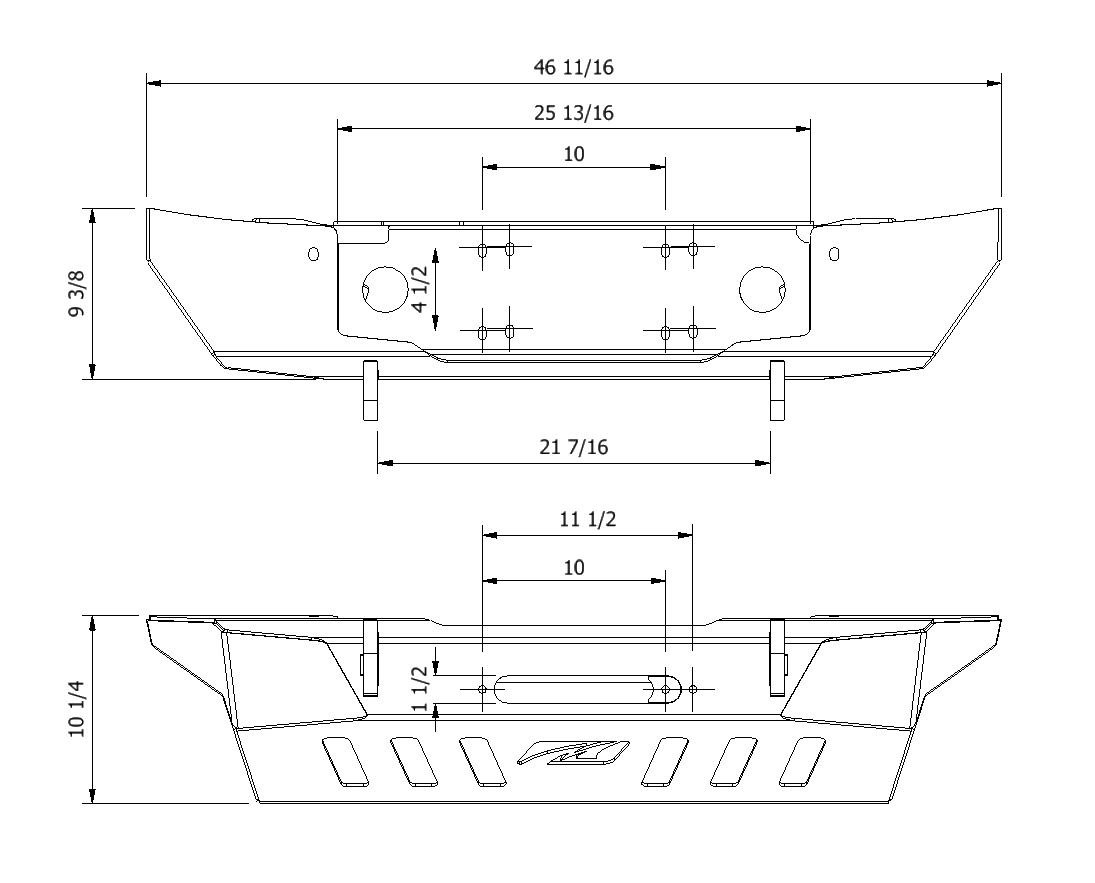

- Measures 46.5"s wide at widest point.
- Recessed Winch
- Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
- Fabricated From 3/16" Thick High Strength Steel Plate
- Bolt-On Design
- 3/4-inch-thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out
- Includes all the necessary mounting hardware.
- Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
- Sold as each.
- Weight: 70lbs (approx.)
Note:
- Will Not work with Teraflex S/T Dual rate front sway bar.
- The outer edge of the crash bar will need to be trimmed to fit where the lower portion of the bumper mounts.
- The 8 factory mounting holes may need to be open up to a 9/16".
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
- 2012 and newer models will need a vacuum relocation pump PN MB2060. The factory bracket must be cut off in order for the winch plate to fit.
- Previous versions of this bumper may ship with fairlead spacer.
- Does NOT work with Super Winch EXP
