Hammer Front Bumper W/Fog Mount for Jeep JK / JKU

Hammer Front Bumper W/Fog Mount for Jeep JK / JKU

Name: Hammer Front Bumper W/Fog Mount for Jeep JK / JKU
Brand: Motobilt
SKU: MB1025F
Price: 739.00 USD
Availability: InStock
Rating: 4.0 (1 reviews)

Regular price $739.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1025F

Fits: Jeep Wrangler JK / JKU

Installation difficulty: 2 / 5

Quantity:

View product details & documents

Product details

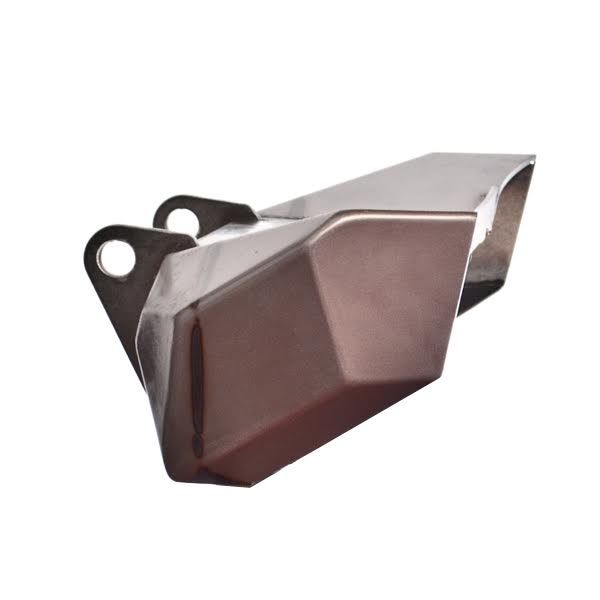

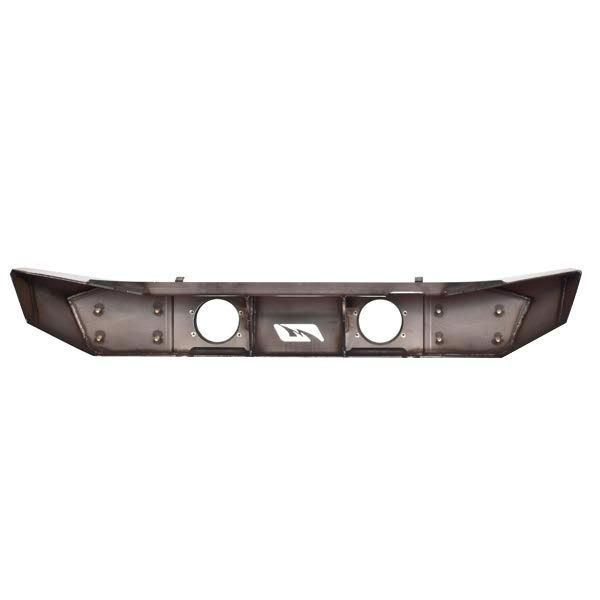

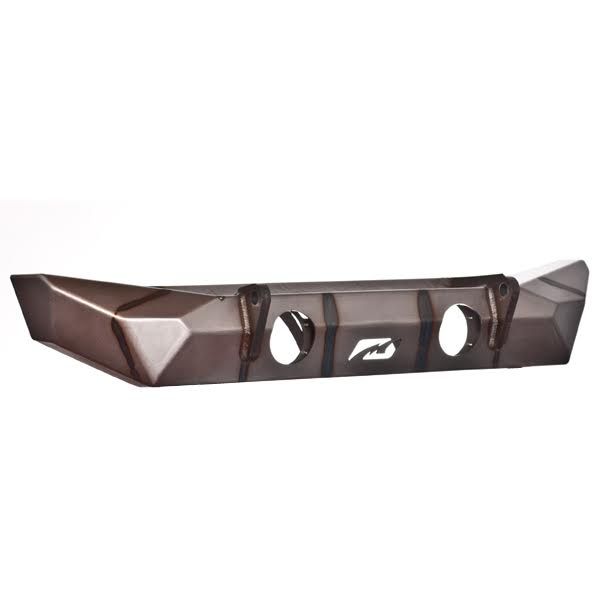

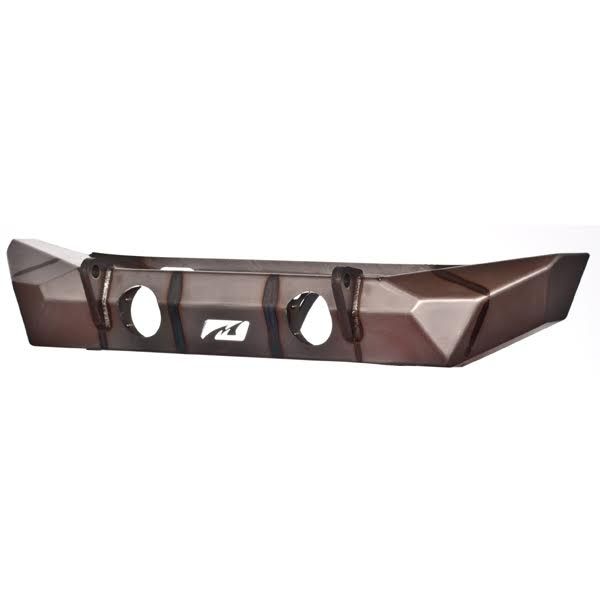

Motobilt now offers the Jeep JK the Hammer front bumper. It features built in provisions for factory style fog lights. The Motobilt Jeep JK Front the Hammer Bumper is a 48.5-inch wide, sleek, tight-fitting design proudly made in the USA. Our JK The Hammer Bumper is 3D CAD designed to ensure the best possible fit to your Jeep JK. The bumper will fit all year models of the Jeep JK 2 door and 4 door JK Unlimited. The front d-ring mounts are CNC cut from 3/4-inch-thick steel plate and pass through the bumper where they weld to the bumper mounting plates in addition to the bumper body. This was done for added strength to the recovery point.

The Hammer bumper has provisions to mount the factory fog lights or aftermarket LED fog lights. We have pre-installed riv nuts for 10-24 screws in the factory bolt pattern. The Hammer bumper can be run with or without the optional skid plate. To install the skid plate, you have to trim approx. 1 inch off each side of the crash bars. If you remove the skid plate later, the part that you trimmed will not be seen. The ends of the Hammer bumper taper up for tire clearance. Each cut in the bumper was intentional to keep it tight to the frame rail for a better approach angle. The main construction of the bumper is fabricated from 3/16-inch-thick high strength steel plate. The bumper also serves as a winch mount. The top side of the JK The Hammer Bumper has bolt holes for a recovery winch.

Important information

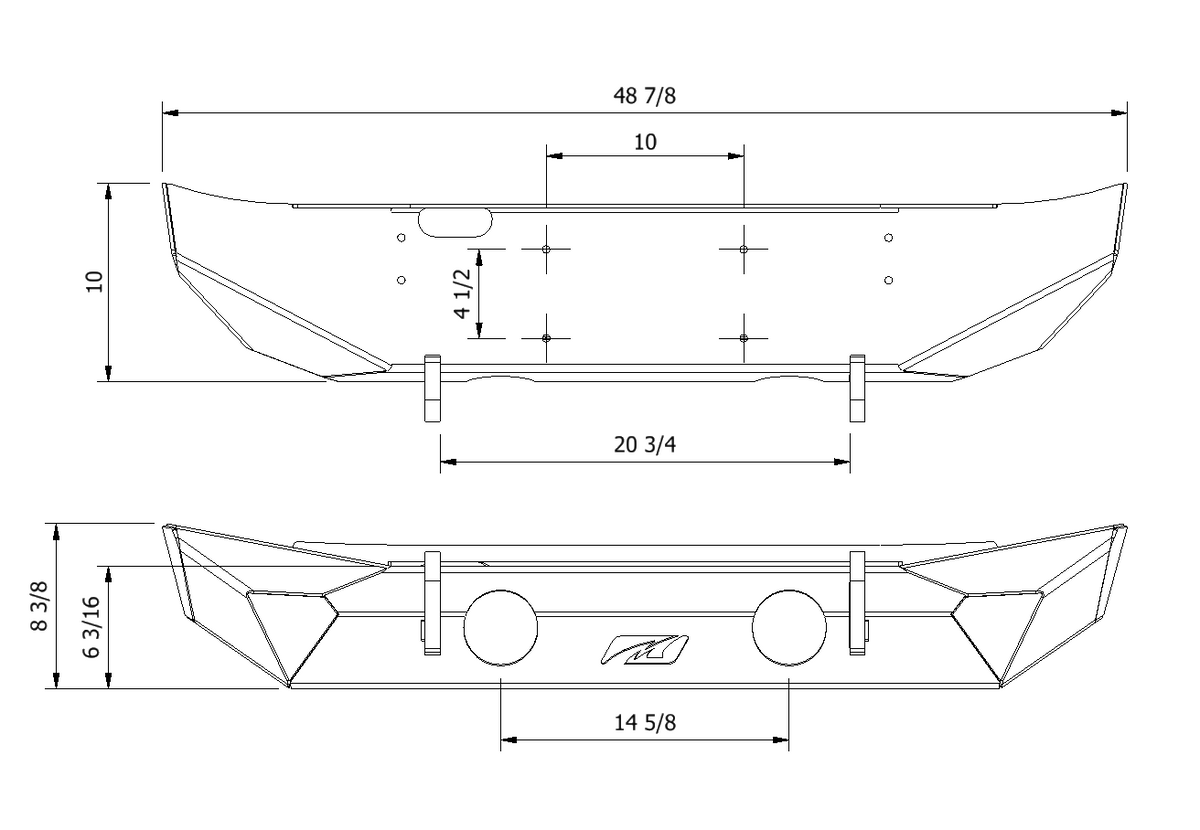

Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
2012 and newer models will need a vacuum relocation pump bracket PN MB2060 The factory bracket will need to be cut off to clear the additional mounting plates.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)

Product specifications

Jeep JK The Hammer 48.5-inch front bumper
Fits all year models of the Jeep JK 2 door and 4 door JK Unlimited
Fabricated from 3/16-inch-thick high strength steel plate.
Bolt on design.
3/4-inch-thick steel d-ring mounts
Pass through d-ring mounts weld to the bumper.
Fog Light Holes for factory fog lights.
Pre-installed riv nuts for 10-24 screws in the factory bolt pattern.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 70lbs (approx.)

Fits:

Jeep Wrangler JK / JKU 2007-2018

Notes

If installing a winch, MB1002 fairlead mount will also need to purchased.
No cutting required on the frame rails on your Jeep JK
The two outside top bolt holes on your frame need to be drilled out to 9/16 inch.
Skid plate sold separately.
LED fog light NOT included.

Additional product details & documents

Specifications

Jeep JK The Hammer 48.5-inch front bumper
Fits all year models of the Jeep JK 2 door and 4 door JK Unlimited
Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Fabricated from 3/16-inch-thick high strength steel plate.
Bolt on design.
3/4-inch-thick steel d-ring mounts
Pass through d-ring mounts weld to the bumper.
Fog Light Holes for factory fog lights.
Pre-installed riv nuts for 10-24 screws in the factory bolt pattern.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 70lbs (approx.)

Fits:

Jeep Wrangler JK / JKU 2007-2018

Note:

If installing a winch, MB1002 fairlead mount will also need to purchased.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
No cutting required on the frame rails on your Jeep JK
The two outside top bolt holes on your frame need to be drilled out to 9/16 inch.
2012 and newer models will need a vacuum relocation pump bracket PN MB2060 The factory bracket will need to be cut off to clear the additional mounting plates.
Skid plate sold separately.
LED fog light NOT included.
