Crusher Front Bumper w/ Stinger for Jeep JK / JKU

Crusher Front Bumper w/ Stinger for Jeep JK / JKU

Name: Crusher Front Bumper w/ Stinger for Jeep JK / JKU
Brand: Motobilt
SKU: MB1011-S
Price: 889.00 USD
Availability: InStock

Regular price $889.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1011-S

Fits: Jeep Wrangler JK / JKU

Installation difficulty: 2 / 5

Quantity:

View product details & documents

Product details

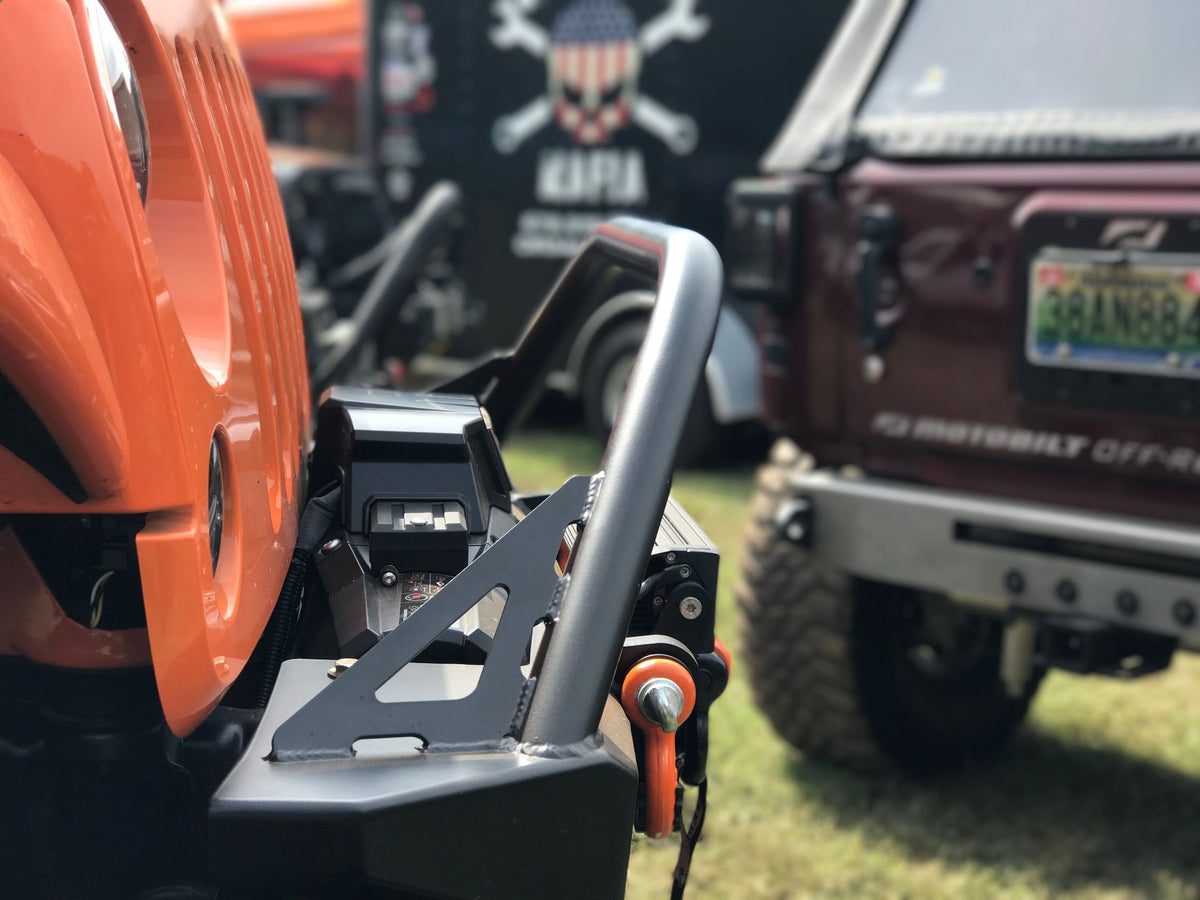

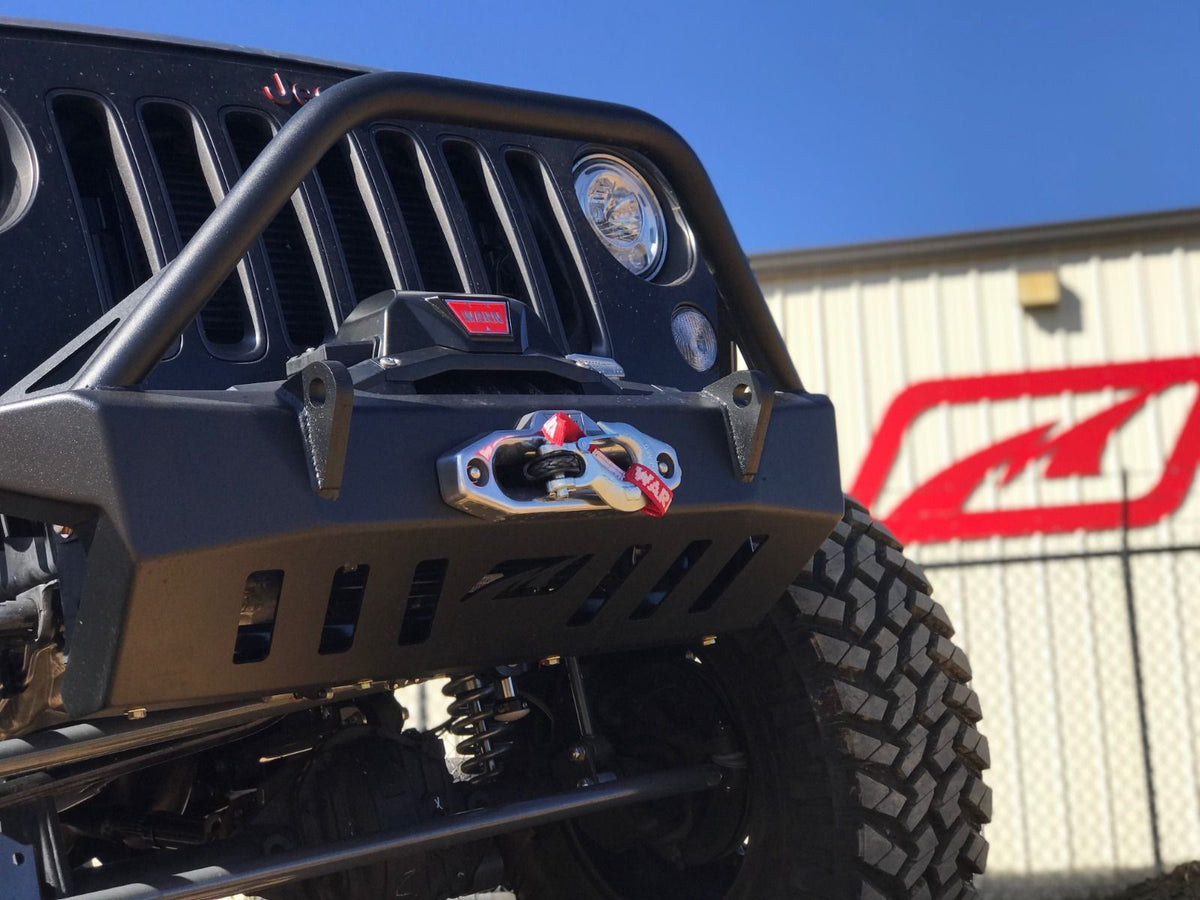

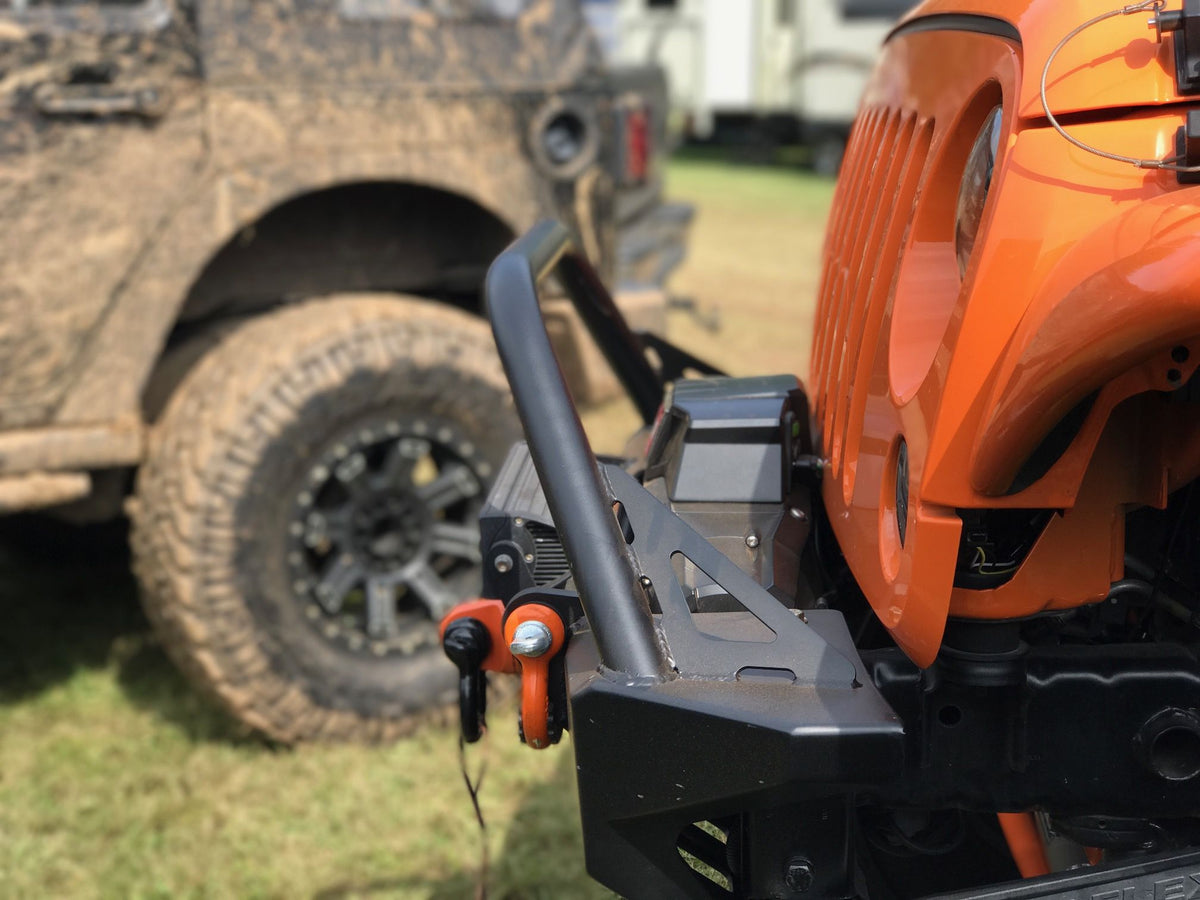

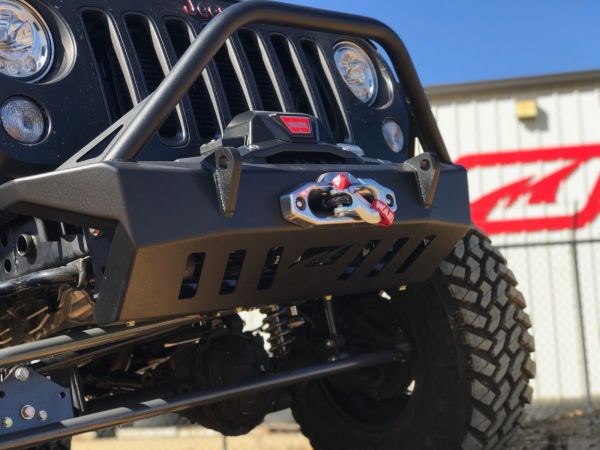

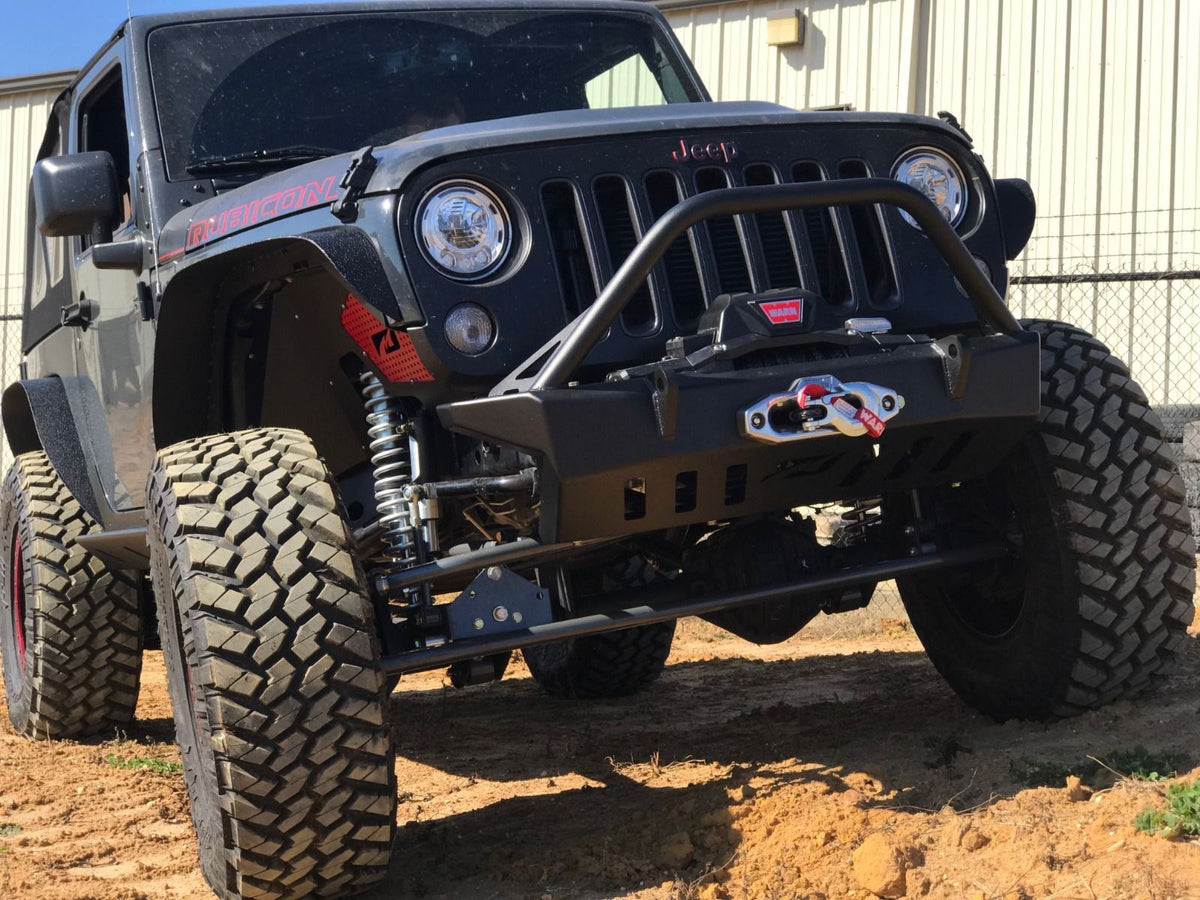

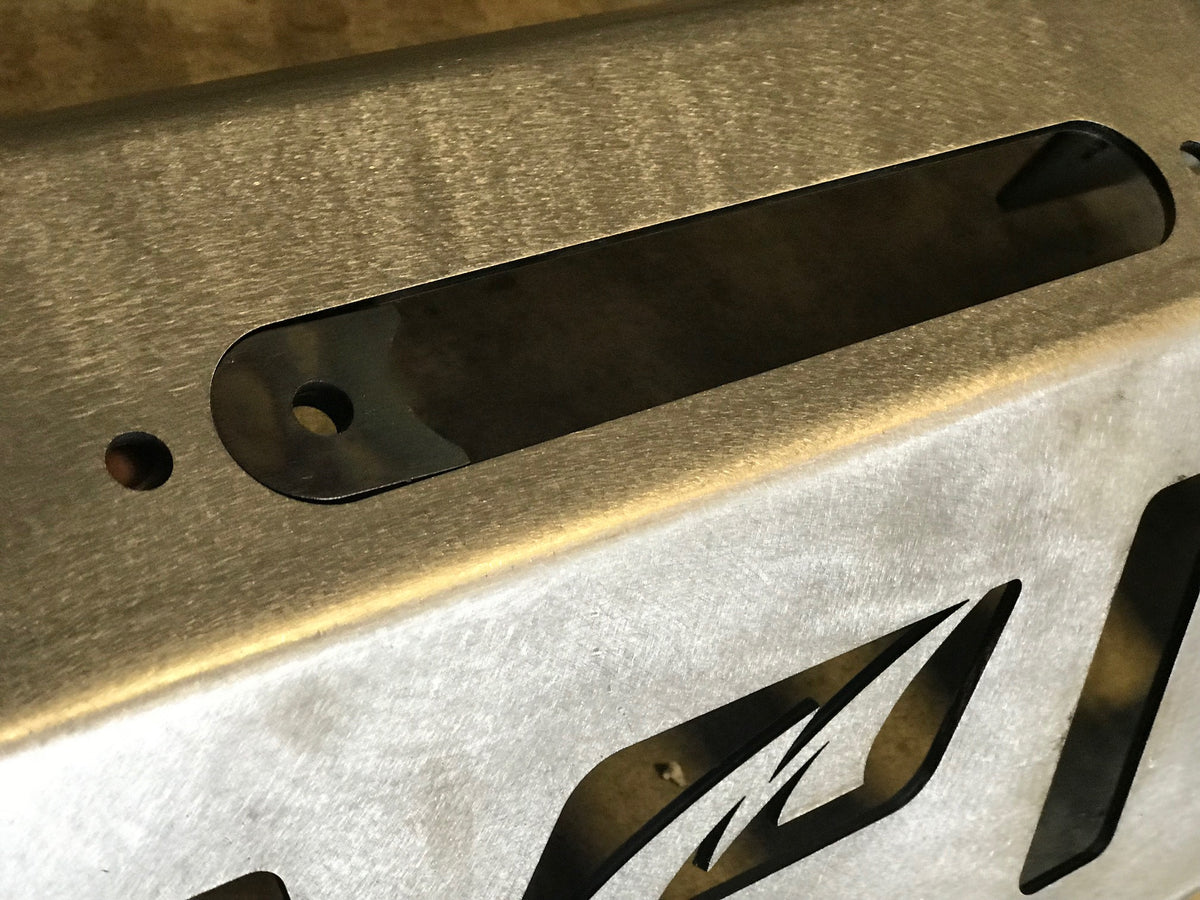

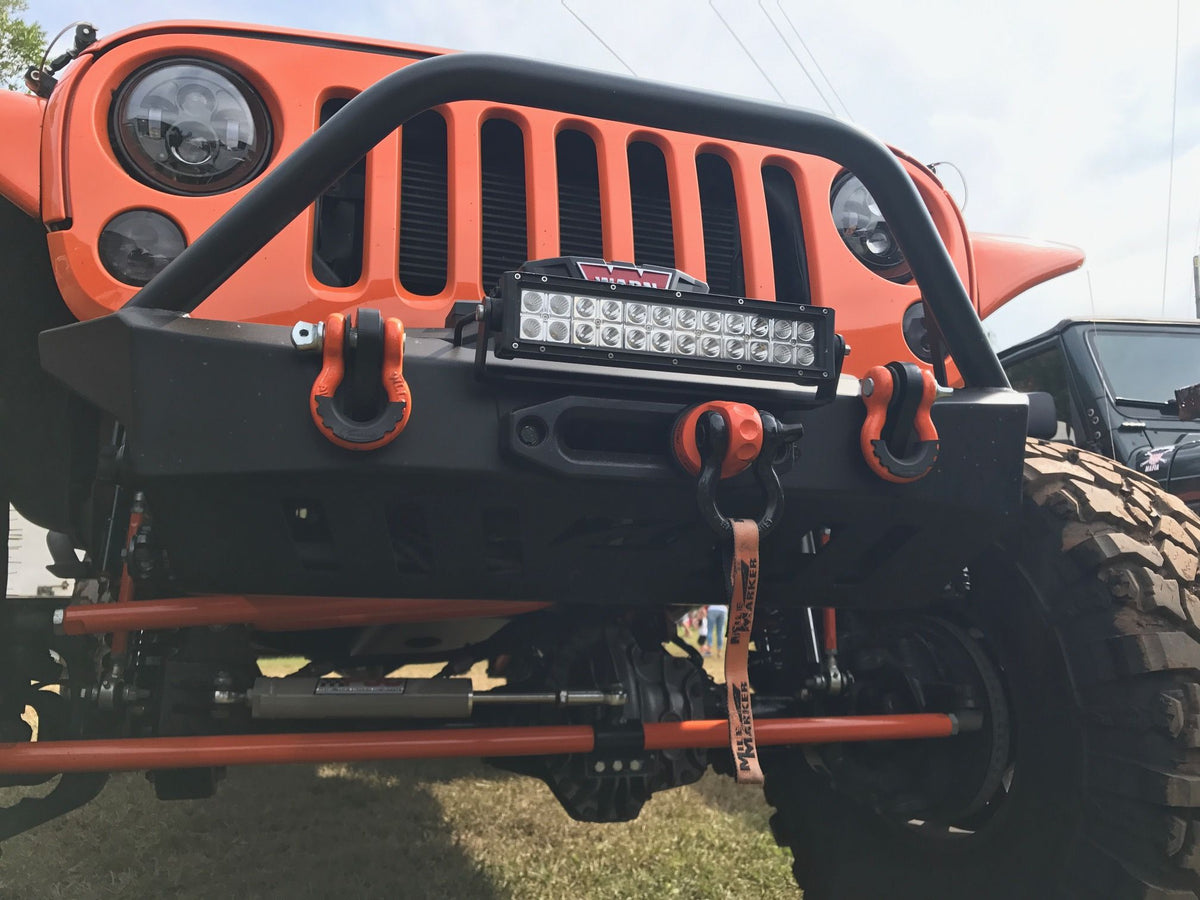

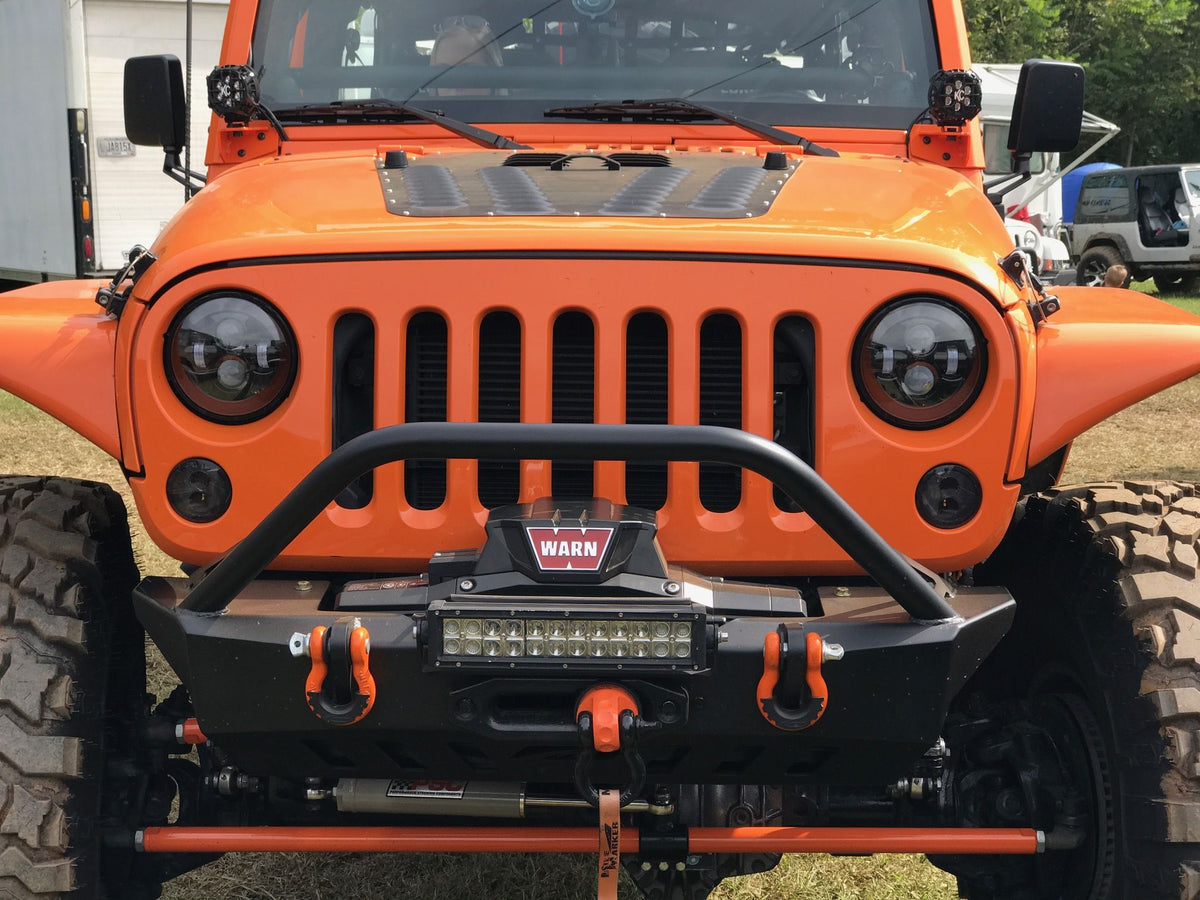

The Motobilt Jeep Wrangler JK Crusher recessed winch bumper with stinger will provide you the ultimate in protection and recovery. The bumper allows you to secure your winch down low in between the frame rails. The stinger bar is made out of 1.75-inch x .120-inch wall DOM tube and is braced with laser cut gussets. The high clearance design includes a built-in skid plate. The bumper is made from 3/16-inch-thick steel plate that is laser cut at Motobilt HQ then CNC bent. The bumper uses 3/4-inch-thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out. This setup provides for superior strength.

Important information

Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
The outer edge of the crash bar will need to be trimmed to fit where the lower portion of the bumper mounts.
The 8 factory mounting holes may need to be open up to a 9/16".
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
2012 and newer models will need a vacuum relocation pump PN MB2060. The factory bracket must be cut off in order for the winch plate to fit.

Product specifications

Jeep Wrangler JK front Crusher recessed winch bumper with stinger
The stinger bar is made out of 1.75-inch x .120-inch wall DOM tube and braced with laser cut gussets.
Measures 46.5"s wide at widest point.
Recessed Winch

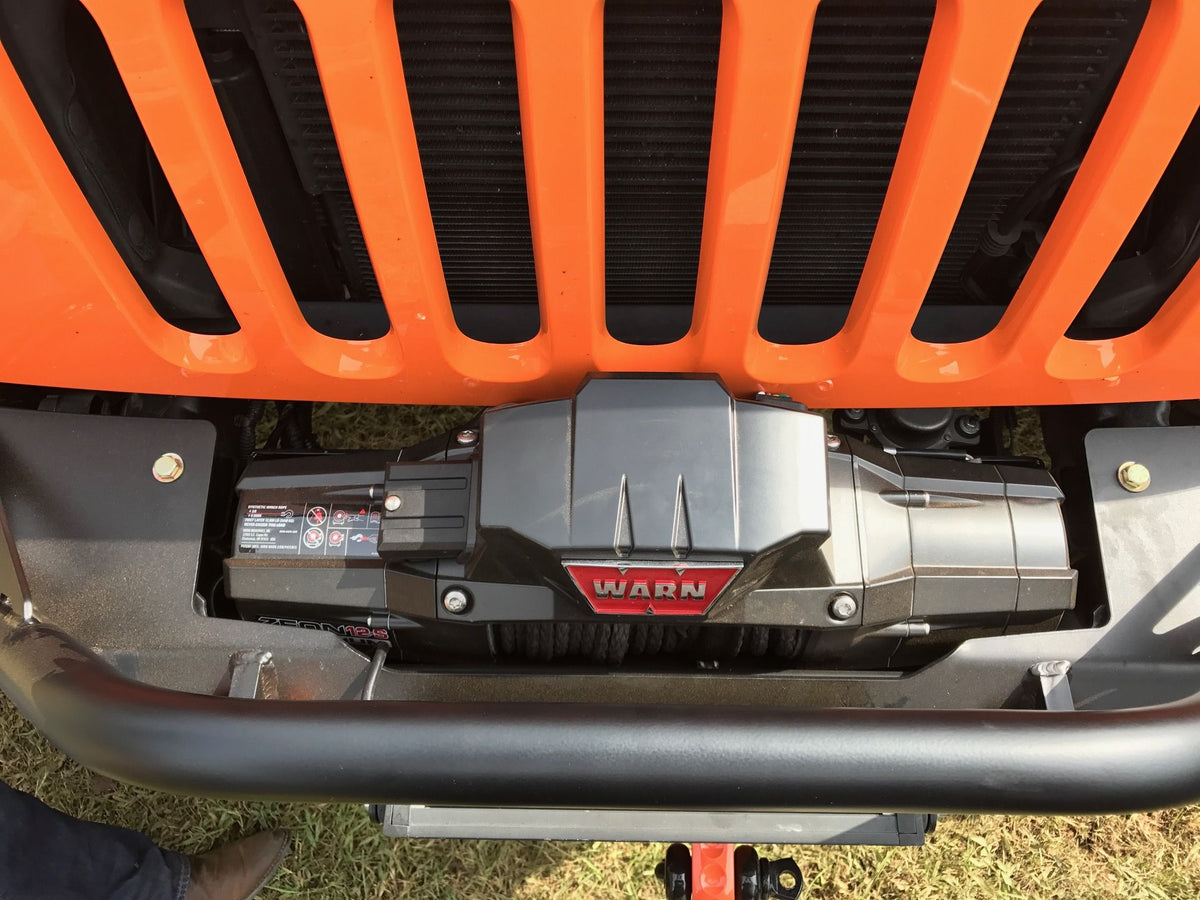

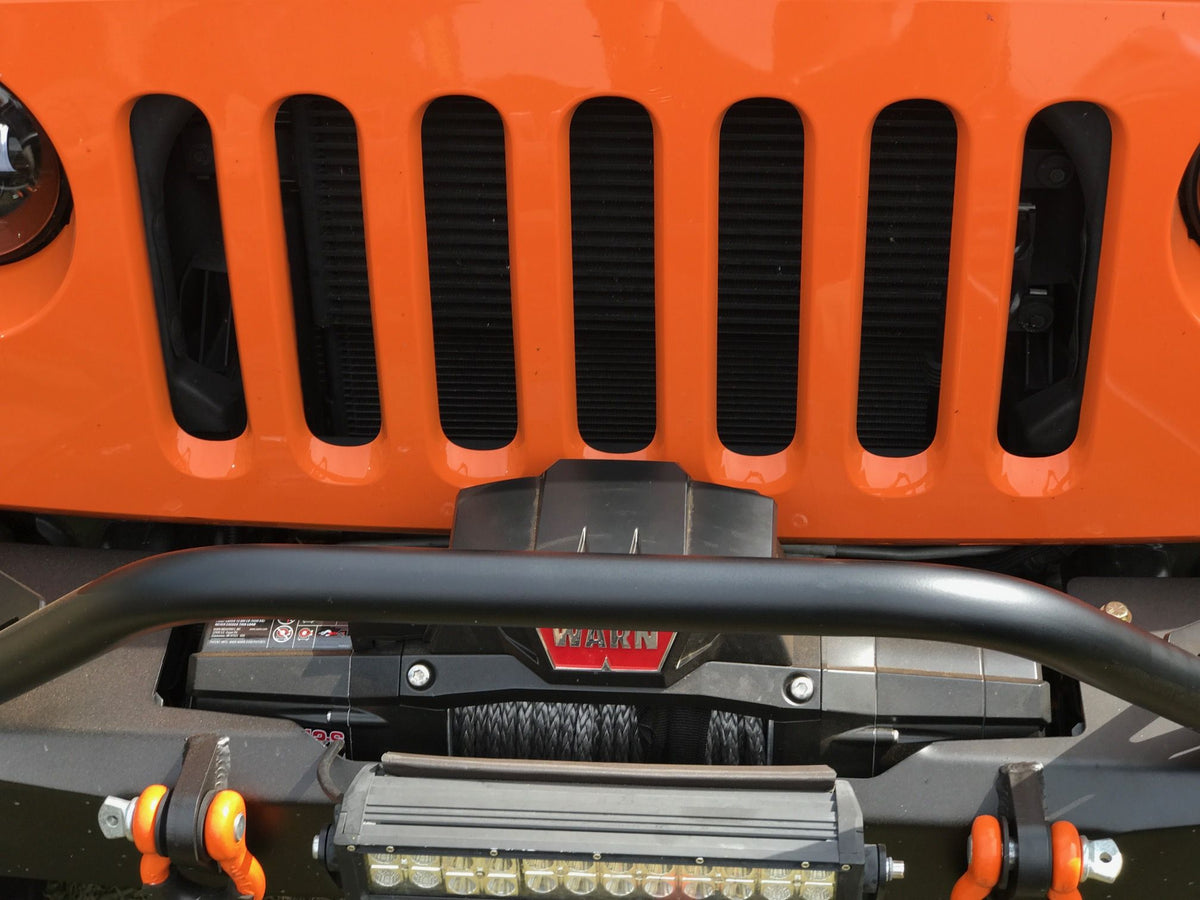

Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Fabricated From 3/16" Thick High Strength Steel Plate
Bolt on design

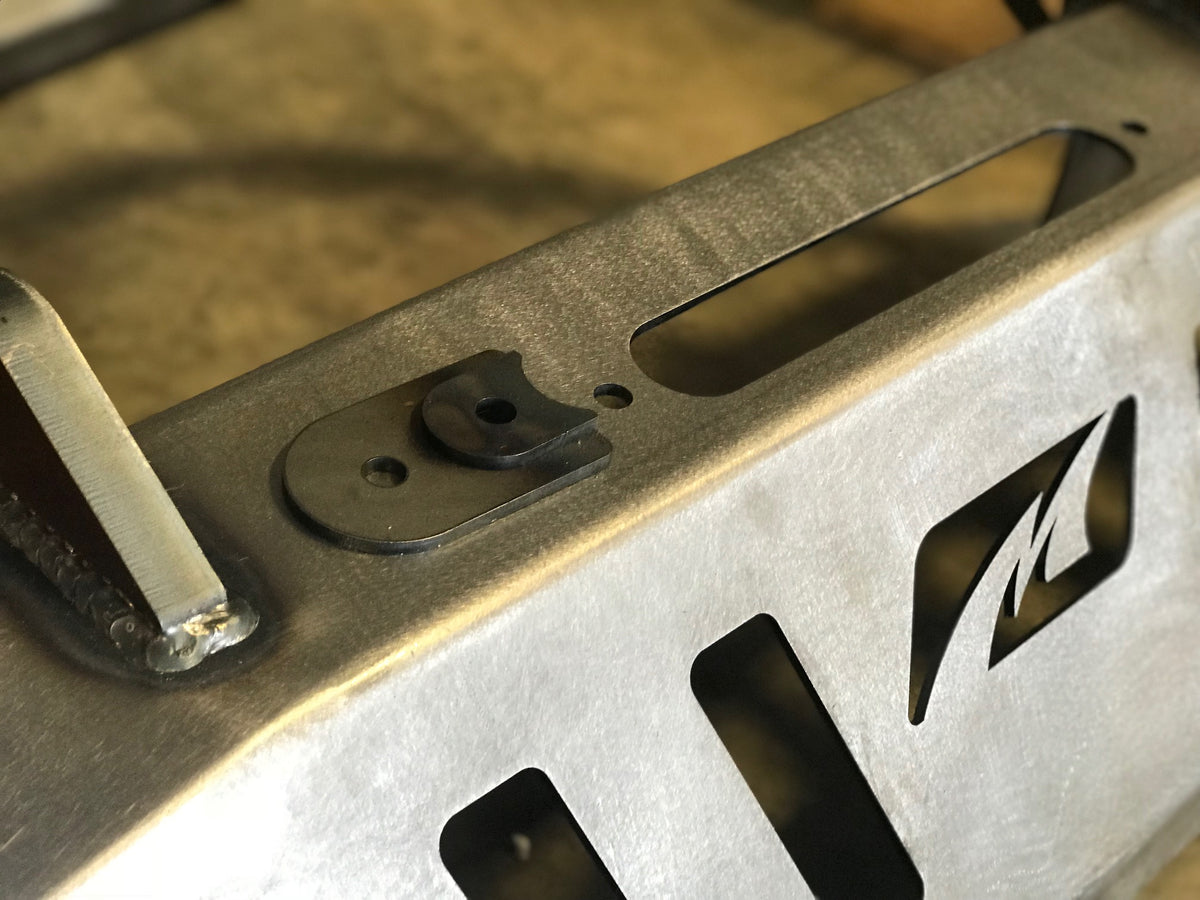

3/4-inch-thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out
Includes all the necessary mounting hardware.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 84lbs (approx.)

Notes

Will Not work with Teraflex S/T Dual rate front sway bar.
Previous versions of this bumper may ship with fairlead spacer.
Does NOT work with Super Winch EXP or Offset winches such as the Warn 9.5 TI series.

Additional product details & documents

Specifications

Fits 2007 and Newer Jeep JK2 door and 4 door JK Unlimited
Jeep Wrangler JK front Crusher recessed winch bumper with stinger
The stinger bar is made out of 1.75-inch x .120-inch wall DOM tube and braced with laser cut gussets.
Measures 46.5"s wide at widest point.
Recessed Winch
Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
Fabricated From 3/16" Thick High Strength Steel Plate
Bolt on design.
Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
3/4-inch-thick laser cut d-ring mounts that pass through the bumper and are welded both inside and out
Includes all the necessary mounting hardware.
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
Sold as each.
Weight: 84lbs (approx.)

Note:

Will Not work with Teraflex S/T Dual rate front sway bar.
The outer edge of the crash bar will need to be trimmed to fit where the lower portion of the bumper mounts.
The 8 factory mounting holes may need to be open up to a 9/16".
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
2012 and newer models will need a vacuum relocation pump PN MB2060. The factory bracket must be cut off in order for the winch plate to fit.
Previous versions of this bumper may ship with fairlead spacer.
Does NOT work with Super Winch EXP or Offset winches such as the Warn 9.5 TI series.

Product Components

Instructions

Installation Instructions
