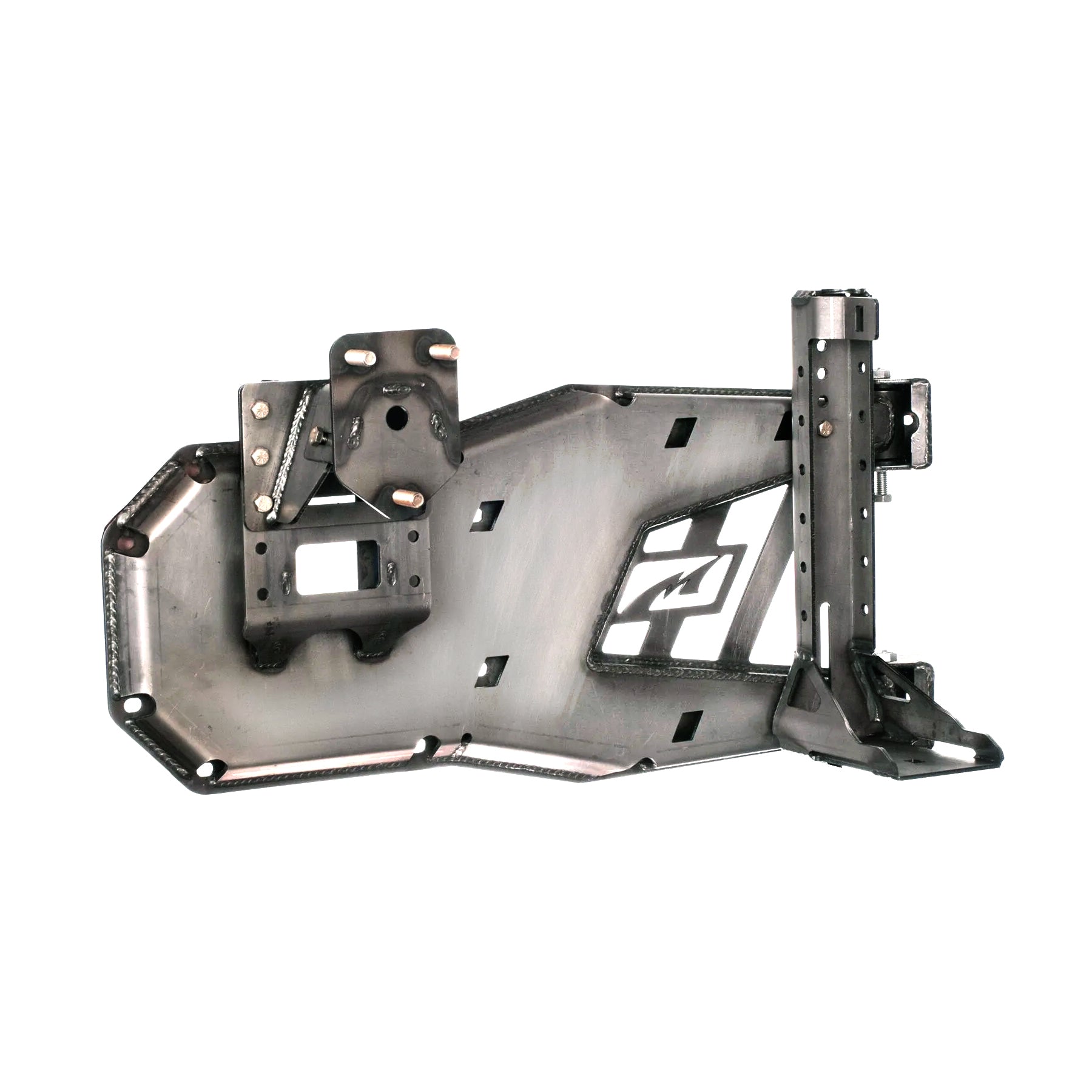

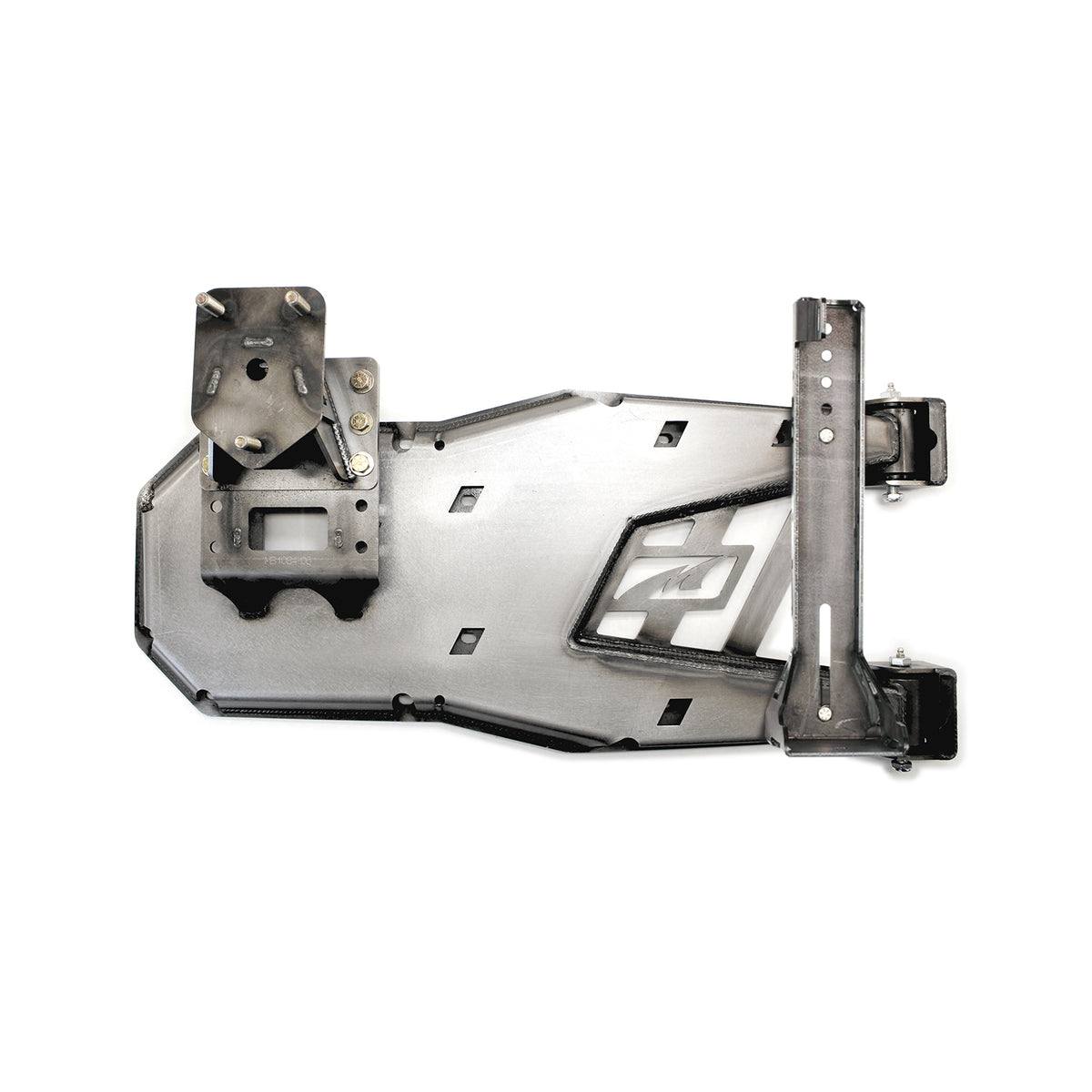

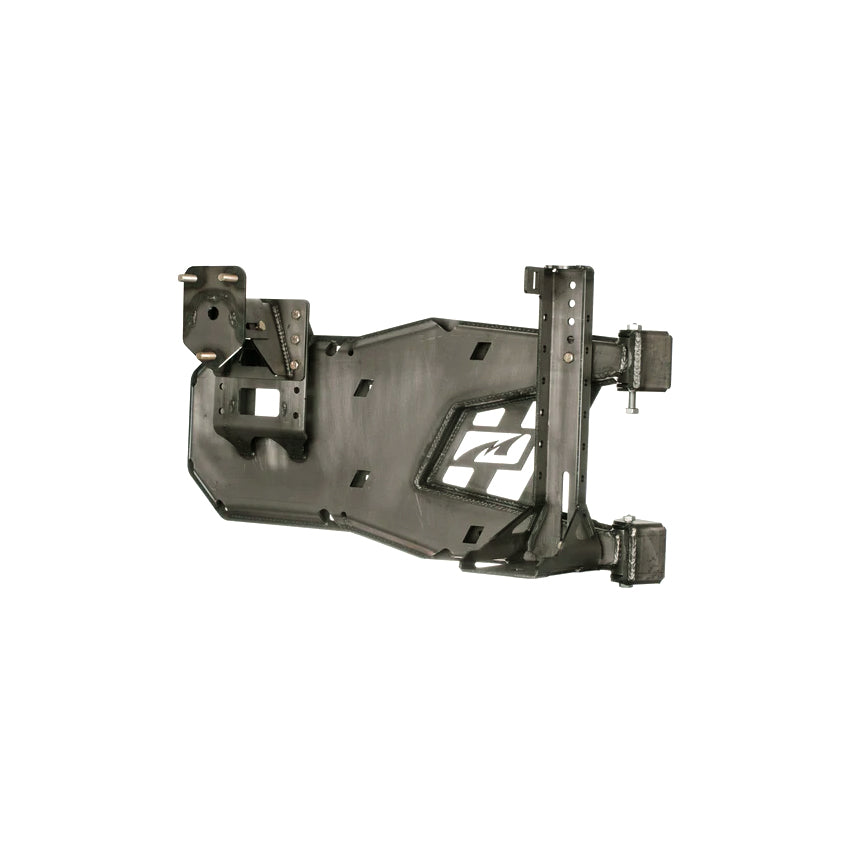

Spare Tire Carrier w/ Hilift jack mount for Jeep JK / JKU
Motobilt introduces the Jeep JK and JKU 2007-2017 spare tire carrier with Hi Lift Jack Mount. This heavy duty tire carrier is a must have if you are running larger tires on your Jeep. The stock setup is not equipped to handle the extra weight of a larger tire and wheel setup. The new JK tire carrier was designed using cutting edge computer modeling software. We laser cut, cnc form, and hand weld each unit to ensure it is perfect. We also engineered it to install easily with basic hand tools. Included are our provisions for our aftermarket high lift jack mount part number MB1085.
Specifications
- Weight: 60lbs (approx.)
- 3/16 inch laser cut and cnc formed steel
- CAD designed for perfect fit
- Will hold up to a 37 inch tire and high lift jack together if equipped. Will hold a 40 inch tire w/out jack mount.
- CNC machine threaded inserts for Hi Lift Jack pre-installed.
- High Lift Jack Mount Part number MB1085 included
- 12 mounting points vs the factory 4 mounting points
- Multiple adjustments both vertically and front to back for optimal tire position.
- Same wheel lug size and thread as stock sizes
- License plate relocation kit MB2025 works perfectly with the mount.
- Integrated design allows you to open and close easily with factory door handle.
- Will work with factory bumper or aftermarket bumpers.
- Greasable mounting bolts at pivot points on hinges
- Delrin hinge bushings with steel inner liners
- Includes necessary mounting hardware for tire carrier only.
- Jack hardware NOT included. See thread size below.
- 3/8"-16 UNC Threads in the weld nuts
- Our tires carriers are designed to fit a wheel backspacing of 4.25" to 5.5" with tires larger than stock. If you need a larger wheel backspacing, you can add a wheel spacer (not included).
Benefits:
Easy to open and close
Easy to bolt on Motobilt accessories
Increased load capacity through additional mounting points.
Adjustable tire position allows clearance for up to a 37 inch tire with jack mount installed and up to a 40 inch tire without jack mount installed.
Related Parts-NOT included
- Spare Tire Tag Relocation Mount PN# MB2025
- Tag Delete Plug for Jeep JK/JKU PN# MB8003
- Crusher Rear Bumper for JK/JKU PN# MB1072
Notes:
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
- After market tail light covers may interfere when fully opened.
- Wheel studs are 1/2” - 20
