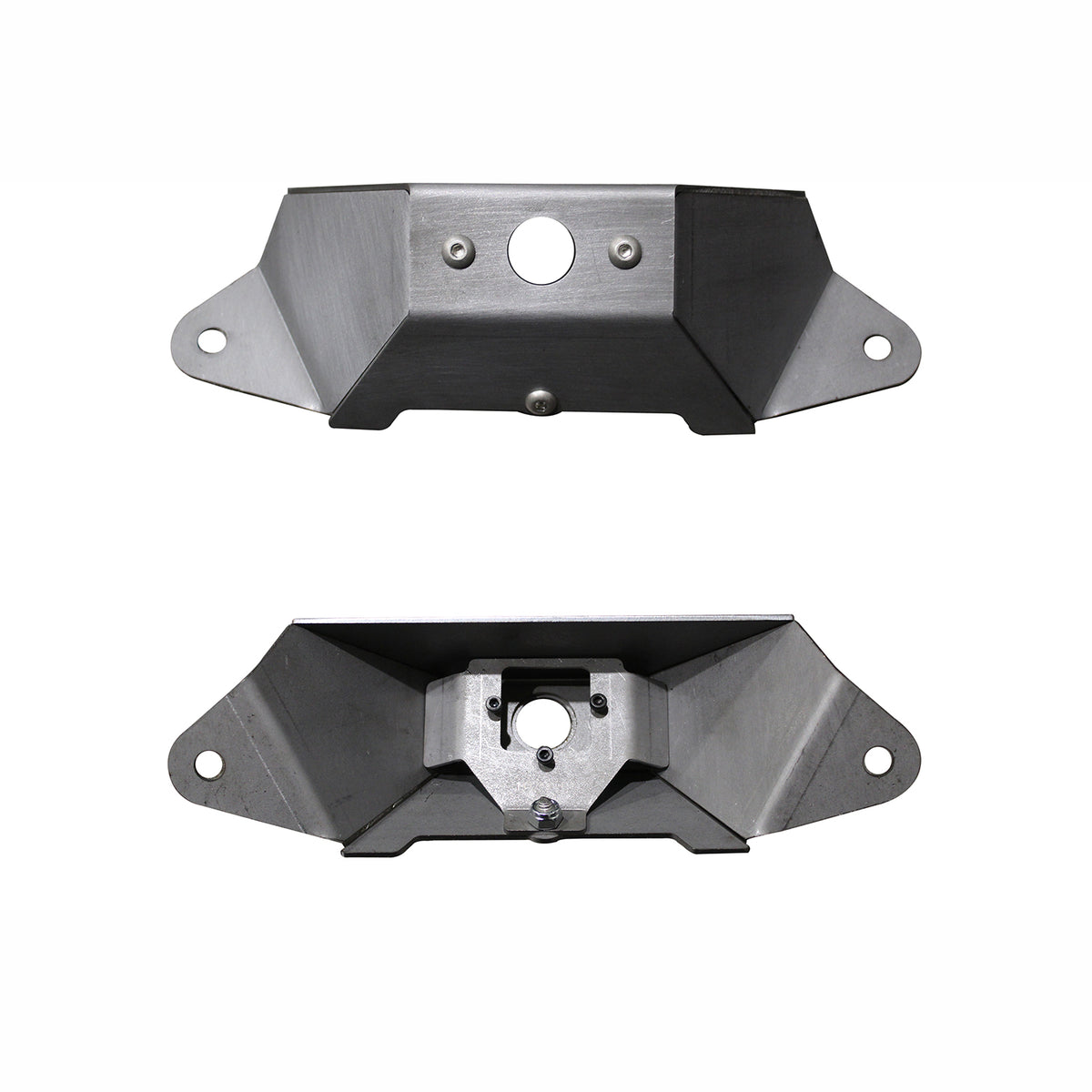

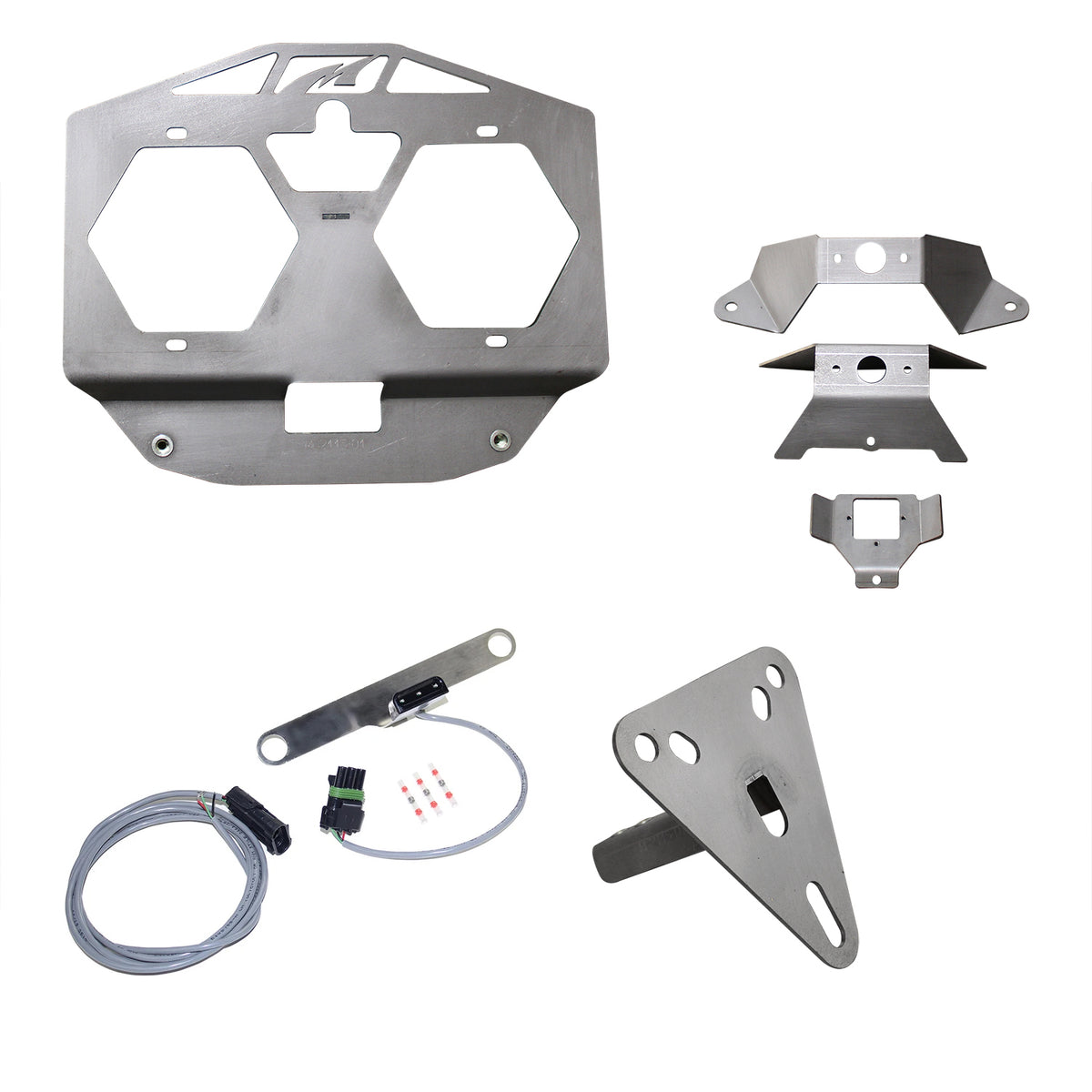

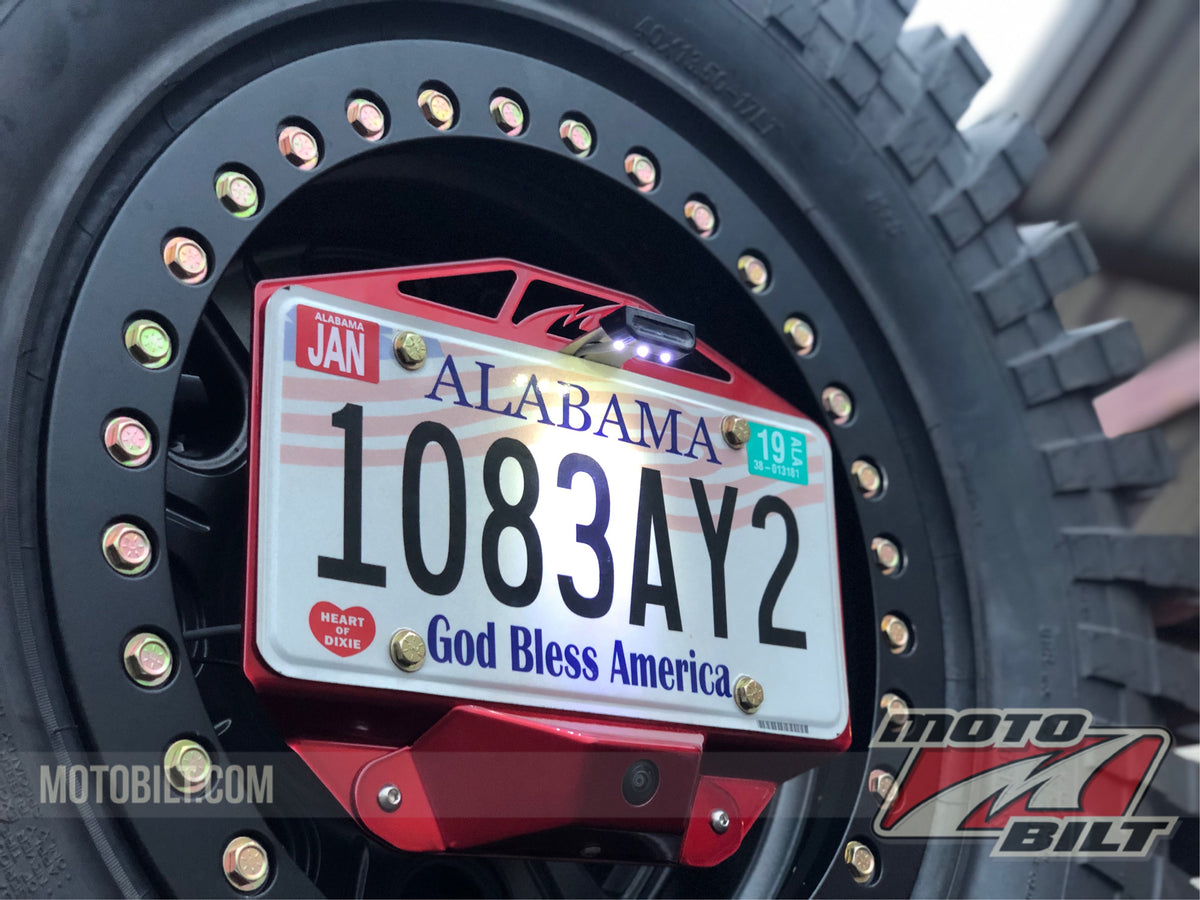

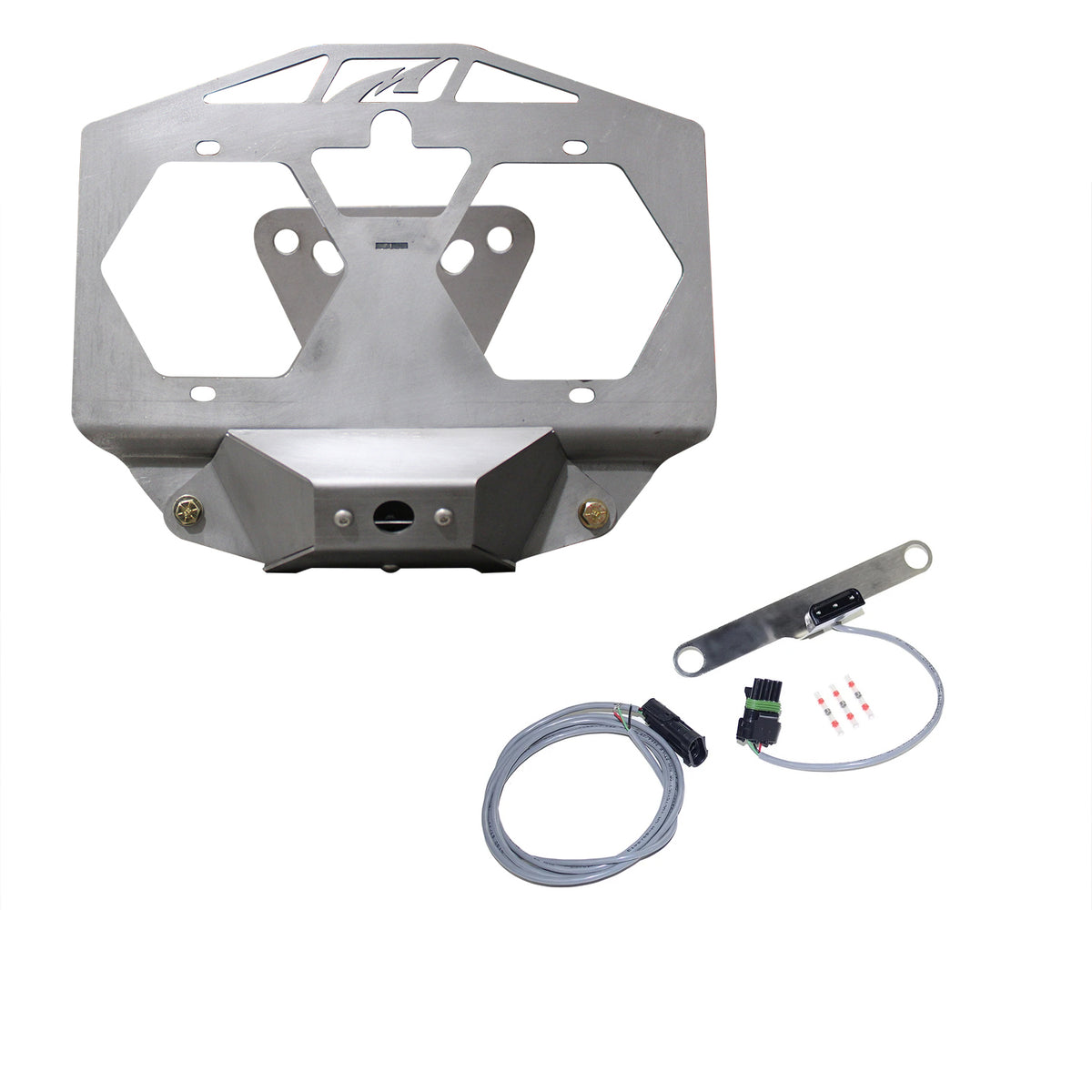

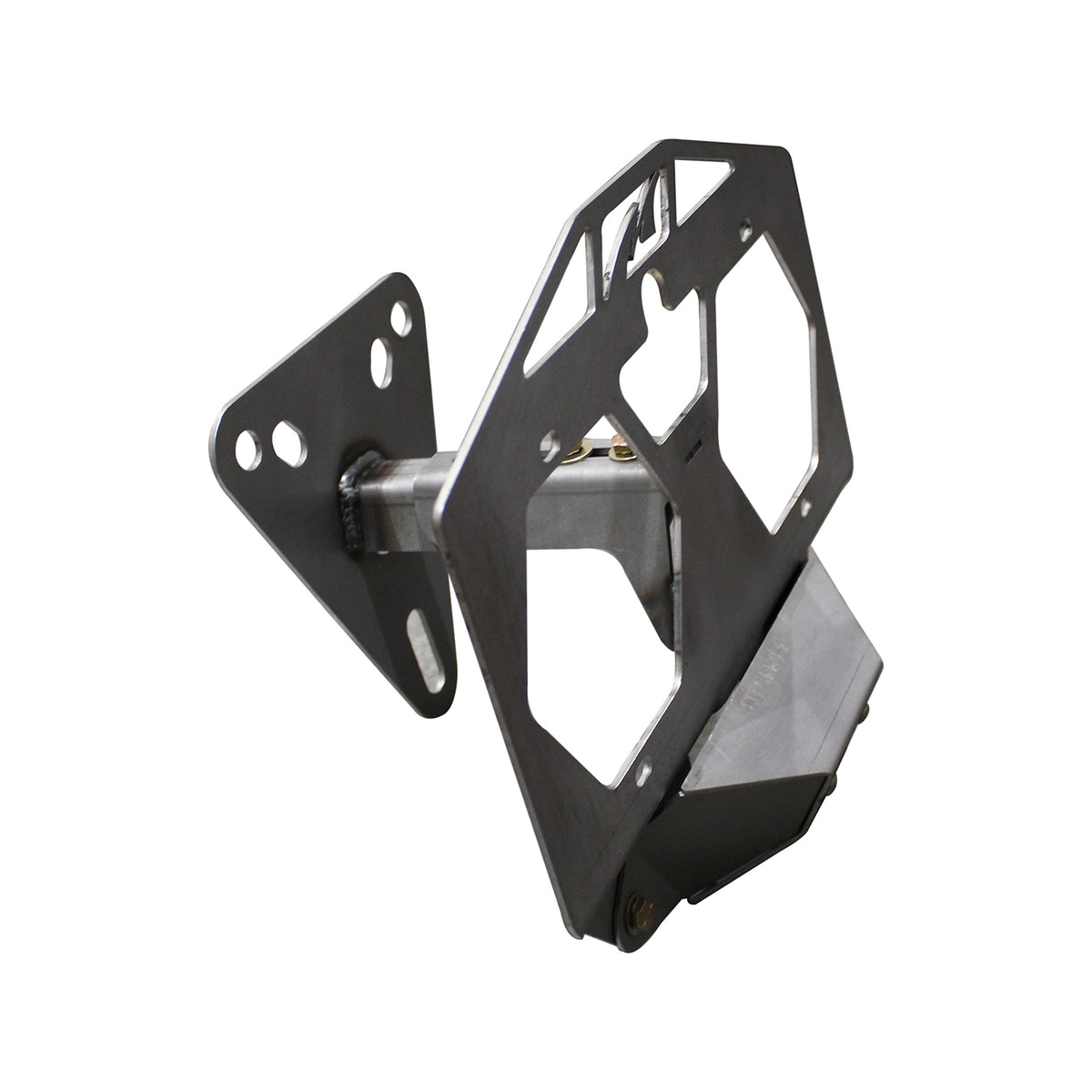

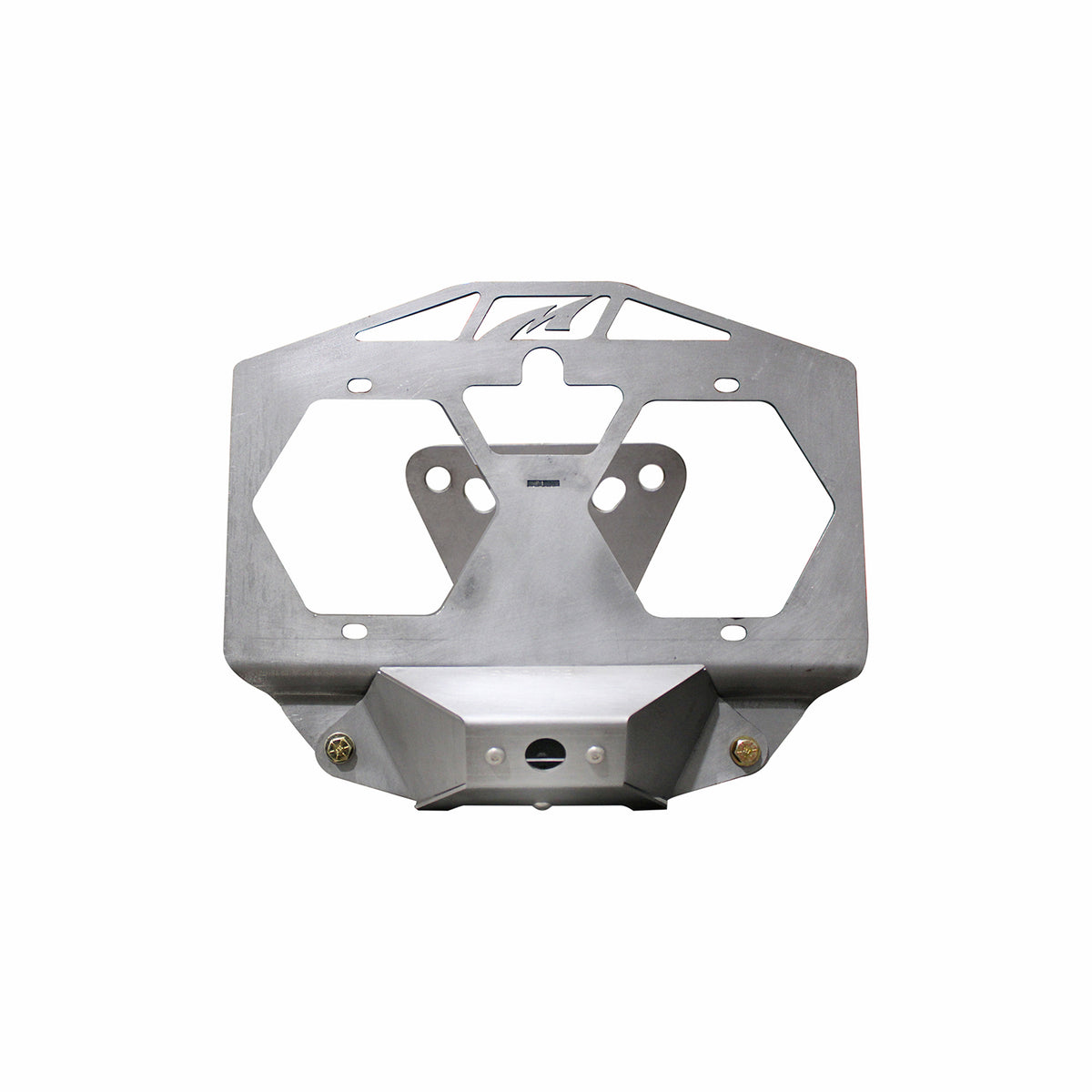

The Motobilt Jeep JL Spare Tire Relocation Bracket Kit With Camera Mount is used to relocate your license plate and back up camera to the center of your spare tire. The Jeep JL factory tag mount is located on the bumper and is subject to damange and has to be relocated if your running an aftermarket bumper. The kit is laser cut from 1/8" steel and consists of 3 main pieces. The first part slips over the studs on your tire carrier with the spare tire removed. Then place your spare tire back on and secure the lug nuts holding the inner bracket in place. Next simply attach the outer part of the tag relocation bracket with the one bolt provided in the kit. The outer bracket is slotted so you can adjust for different wheel widths. The third piece is the camera mount which mounts underneath the tag. We changed the angle of the mount so that your view from the camera is unchanged from the factory. The bracket kit ships bare metal. You can simply spray paint with a rattle can to the color of your choice or have it powdercoated.
The ORO Led Tag/Third Brake Light kit is included in this package.
Off Road Only LiteDOT Plate Light with 6 foot disconnect able harness Please see below for more information. This is a LiteDOT™ Plate Light with a six foot disconnectable harness and solder seal connectors for splicing into the wiring harness.
The LiteDOT™ Plate Light's rugged design is completely sealed, vibration and water proof. It is ideal for an off road vehicle, trailer, motor home or any other rugged use vehicle, such as a dump truck.
It mounts on any license plate with mounting holes 7" on center. The stainless steel bracket mounts directly behind the license plate. The polycarbonate housing extends out over the edge about two inches.
Ultra-bright white LED's are used to illuminate the license plate. The housing also has three rear facing red LED's that can be wired as a third brake light when the license plate is mounted in the center of the vehicle.
Specifications
- Jeep JL Spare Tire Tag Relocation Bracket Kit With Camera Mount
- Includes mount for factory back up camera.
- Includes Tag/Third Brake Light Kit
- CNC cut from 1/8" high strength steel plate
- Adjustable for different size wheels and off sets.
- Sold as kit
Note:
- Ships bare metal. Paint or powdercoat the color of your choice
- If using a factory tire carrier, then the factory camera housing must be cut off flush to allow installation.
Instructions
Installation Instructions
2021 JLU Model Camera Installation
