Factory Wheel Opening Corner Guards for Jeep LJ 04-06

Factory Wheel Opening Corner Guards for Jeep LJ 04-06

Name: Factory Wheel Opening Corner Guards for Jeep LJ 04-06
Brand: Motobilt
SKU: MB1063
Price: 449.00 USD
Availability: InStock

Regular price $449.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1063

Fits: Jeep Wrangler LJ

Quantity:

View product details & documents

Product details

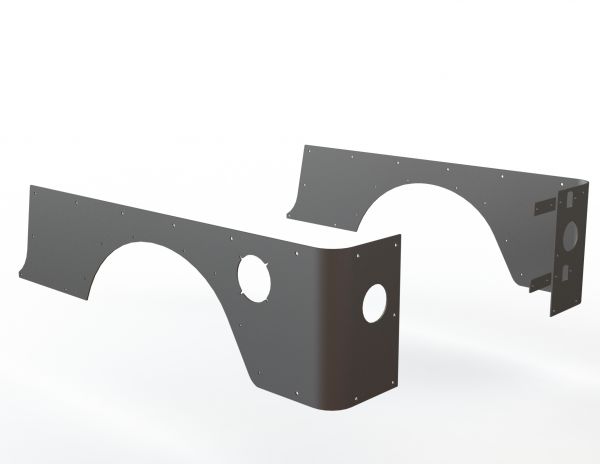

Motobilt rear corner guards reinforce the vulnerable rear corners of the Jeep LJ while maintaining the factory wheel opening shape. Each panel is laser cut and CNC formed from heavy steel plate to follow the body lines while adding significant strength compared to the factory sheet metal. Countersunk mounting holes allow the supplied hardware to sit flush with the outer surface for a clean installation.

Important information

Drilling required for installation.

Ships raw steel and must be painted or powder coated.

Product specifications

Fits 2004‑2006 Jeep LJ Unlimited

3/16" Steel plate construction

Countersunk mounting holes

Hardware included

Made in the USA

Sold as pair.

Notes

Test fit before painting or powder coating.

Additional product details & documents

The Motobilt Jeep LJ factory wheel well opening corner guards protect the entire corner of your Jeep. They maintain the factory wheel well position and do not require any fender trimming. These corners were designed for the Jeeper who wants to keep the factory look of their Jeep but also protect it with some heavy duty Motobilt steel armor. You will need to cut a hole in the back of the tub to match the corners. Thesse low profile led lights will stay out of harms way, are super bright, and inexpensive. The mounting holes are counter sunk and all of the hardware to mount these is included.

Specifications

Jeep LJ factory wheel well opening corner guards
Corners have all of the mounting holes laser cut for your fender flares, fuel filler neck, tail gate hinges, and mounting holes
The only modification to the corners are the 4.5 inch hole laser cut in back for a flush mount led taillight
Hardware included
Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
5/16 inch bolts with a combination of nyloc nuts and nut serts
Sold as pair
Weight: 97lbs (approx.)

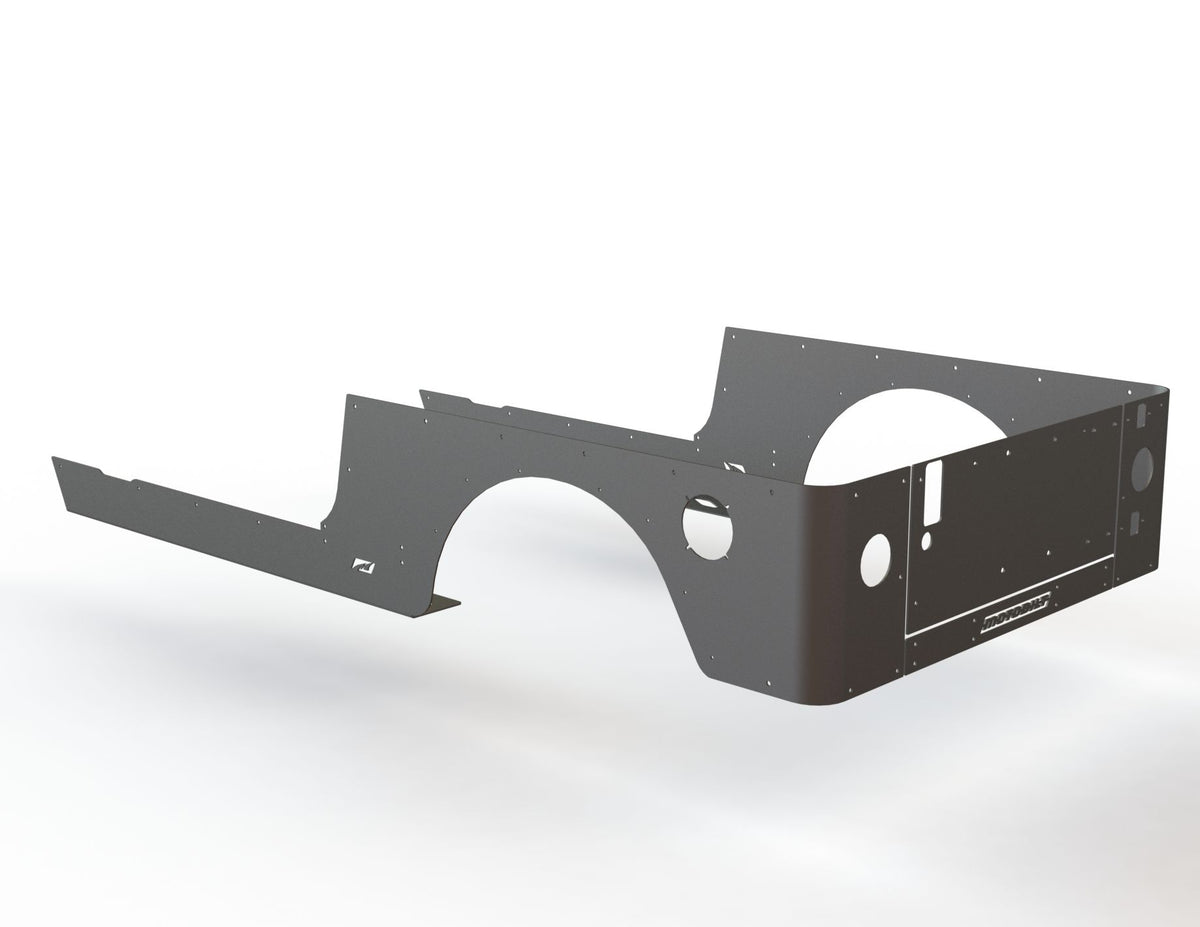

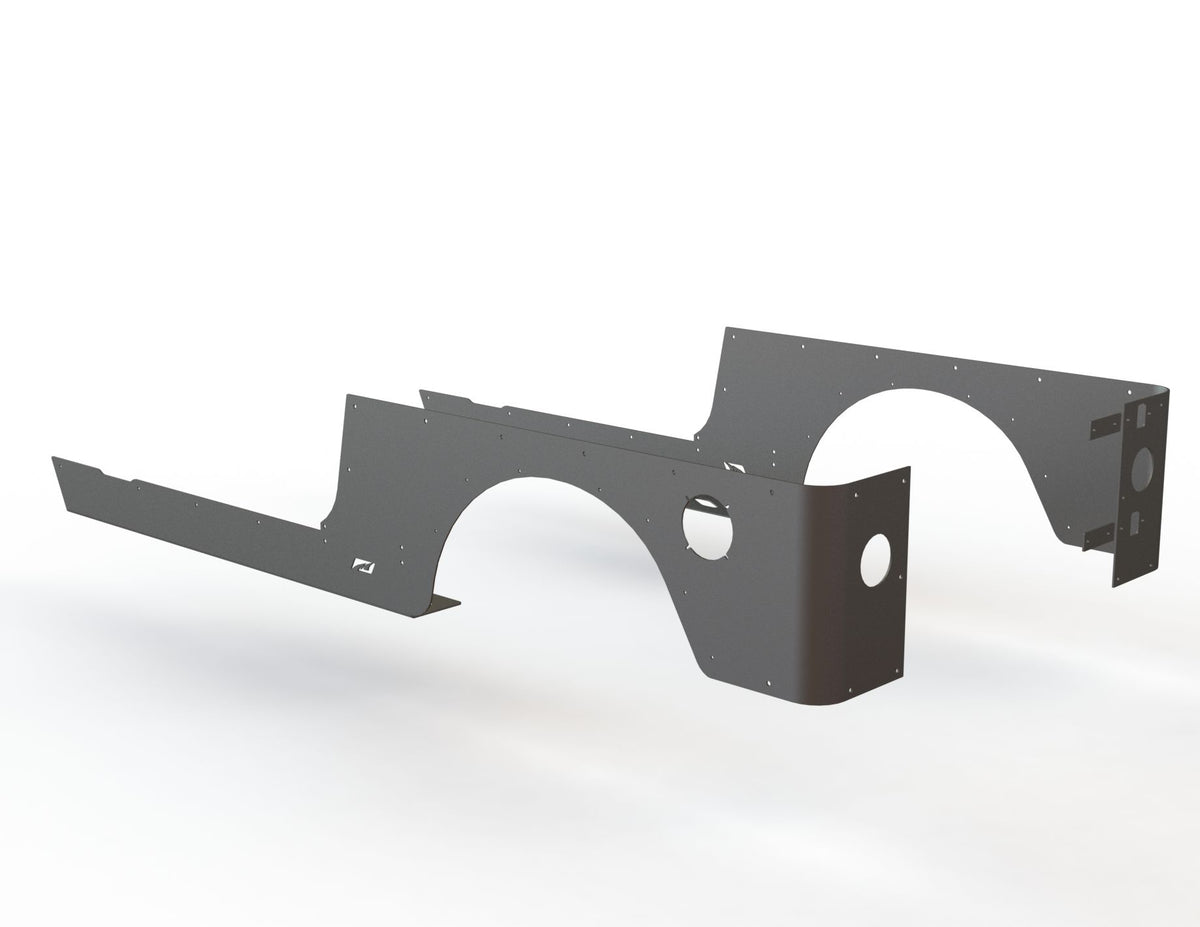

Compatible Rocker Guards:

MB1064 Full Length Rocker Guards
MB1064-S Full Length Rocker Guards with step

Note:

Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
There are a few locations where the back side cannot be accessed so a nut sert is provided and will be used in these locations
You will need to cut a hole in the back of the tub to match the corners
Nut serts are only installed where a bolt cannot be accessed from the backside of the body.
Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Please test fit all of your Motobilt products before you paint or powdercoat these corners

Product Components

Instructions

See MB1055 Jeep TJ Instructions
