Full Length Rocker Guards for Jeep TJ

Name: Full Length Rocker Guards for Jeep TJ
Brand: Motobilt
SKU: MB1056
Price: 299.00 USD
Availability: InStock

Regular price $299.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1056-FND

Fits: Jeep Wrangler TJ

Select Option:

Quantity:

View product details & documents

Product details

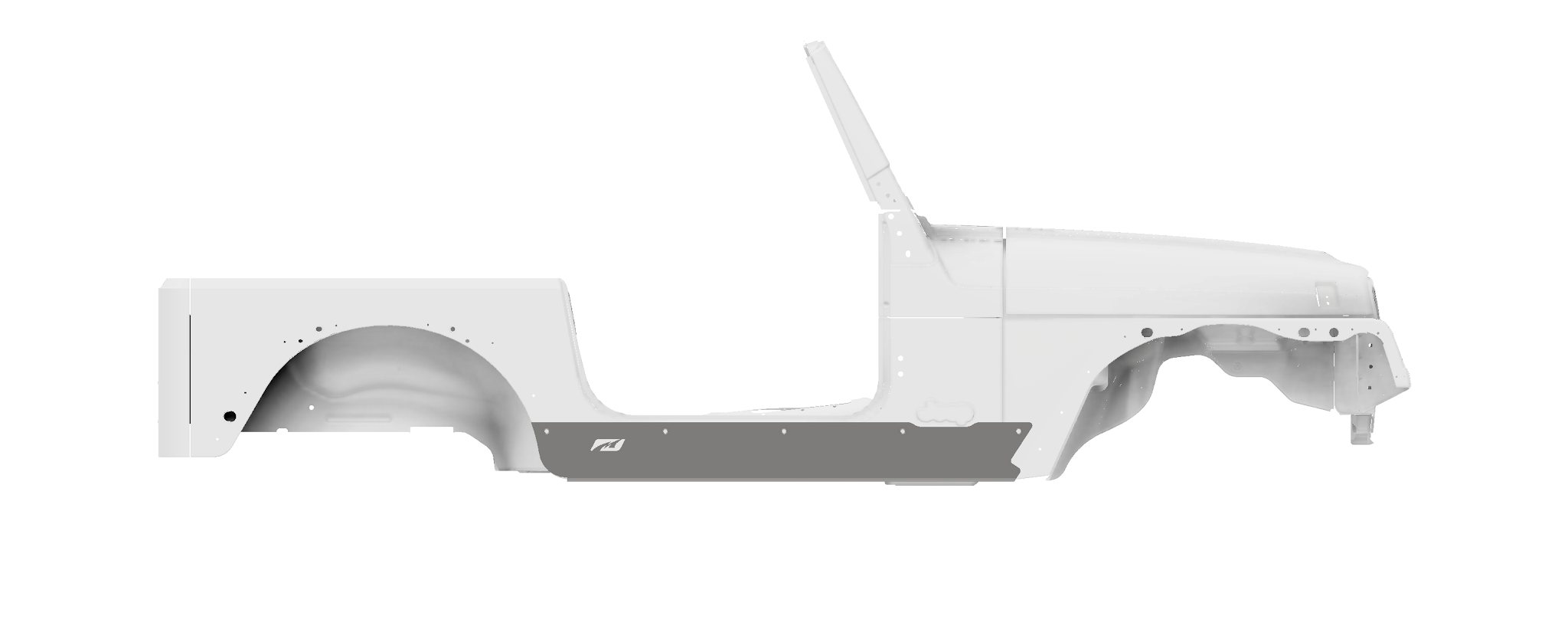

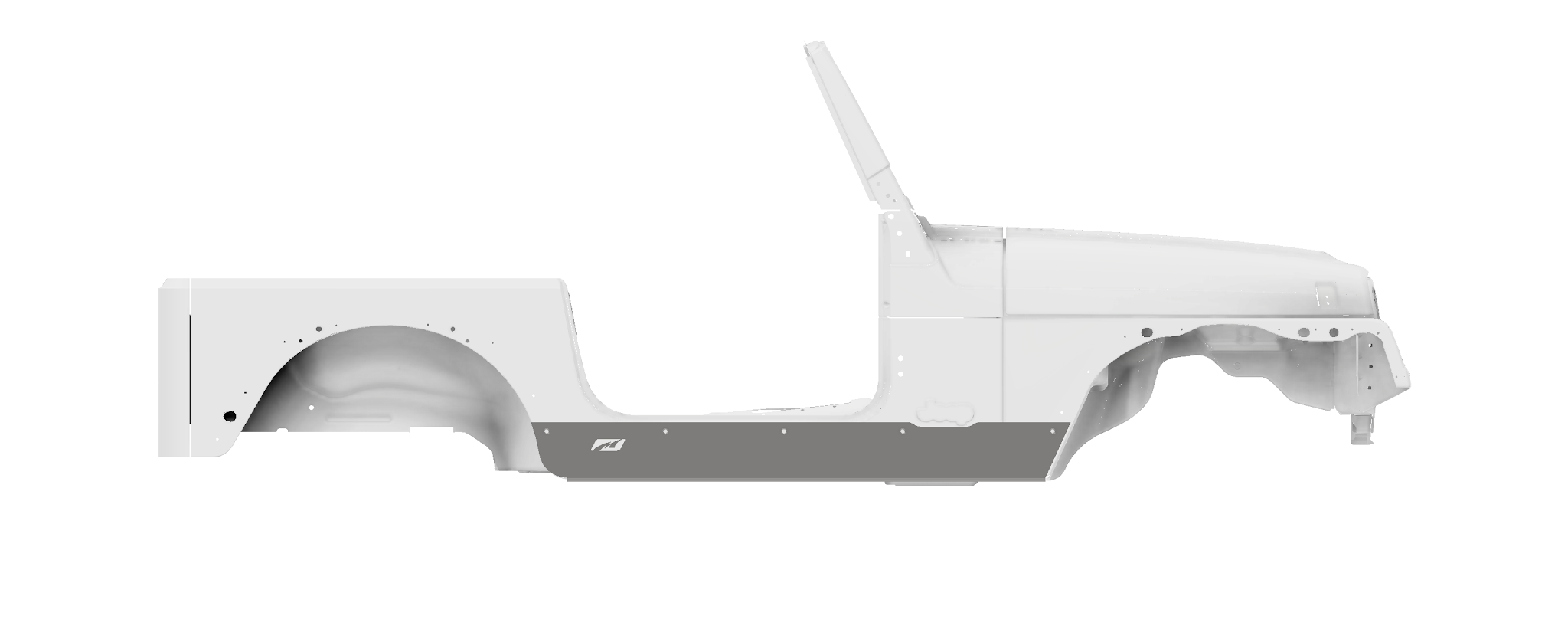

The Motobilt Jeep TJ full length rocker guards made in the USA extend from the front fender all the way to the rear wheel well opening. We laser cut the rocker guards from 3/16 inch high strength steel. Our rocker guards are formed so that they wrap underneath the body of your jeep and tie into the factory body mounts. This setup allows for use with the Motobilt Jeep TJ factory cut corners. (MB1055) We also slot the lower portion of the rocker guards to make it easy to clean out your rockers after a hard day of wheeling.

Compatible Corner Guards:

MB1055 Factory Cut Corner Guards
MB1057 Blank Corner Guards

Important information

Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
The proper drill size for the 5/16 inch Rivnuts is 17/32”.
Works with or without a body lift.

Product specifications

Motobilt Jeep TJ Rocker Guards are countersunk
Hardware included. Nutserts are only used where the bolt is not accessible from the backside. Re-uses factory body mount bolts.
Laser cut also CNC form 3/16 inch thick steel plate
Sold as pair
Weight: 68lbs (approx.)

Additional product details & documents

Compatible Corner Guards:

MB1055 Factory Cut Corner Guards
MB1057 Blank Corner Guards

Notes:

Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)

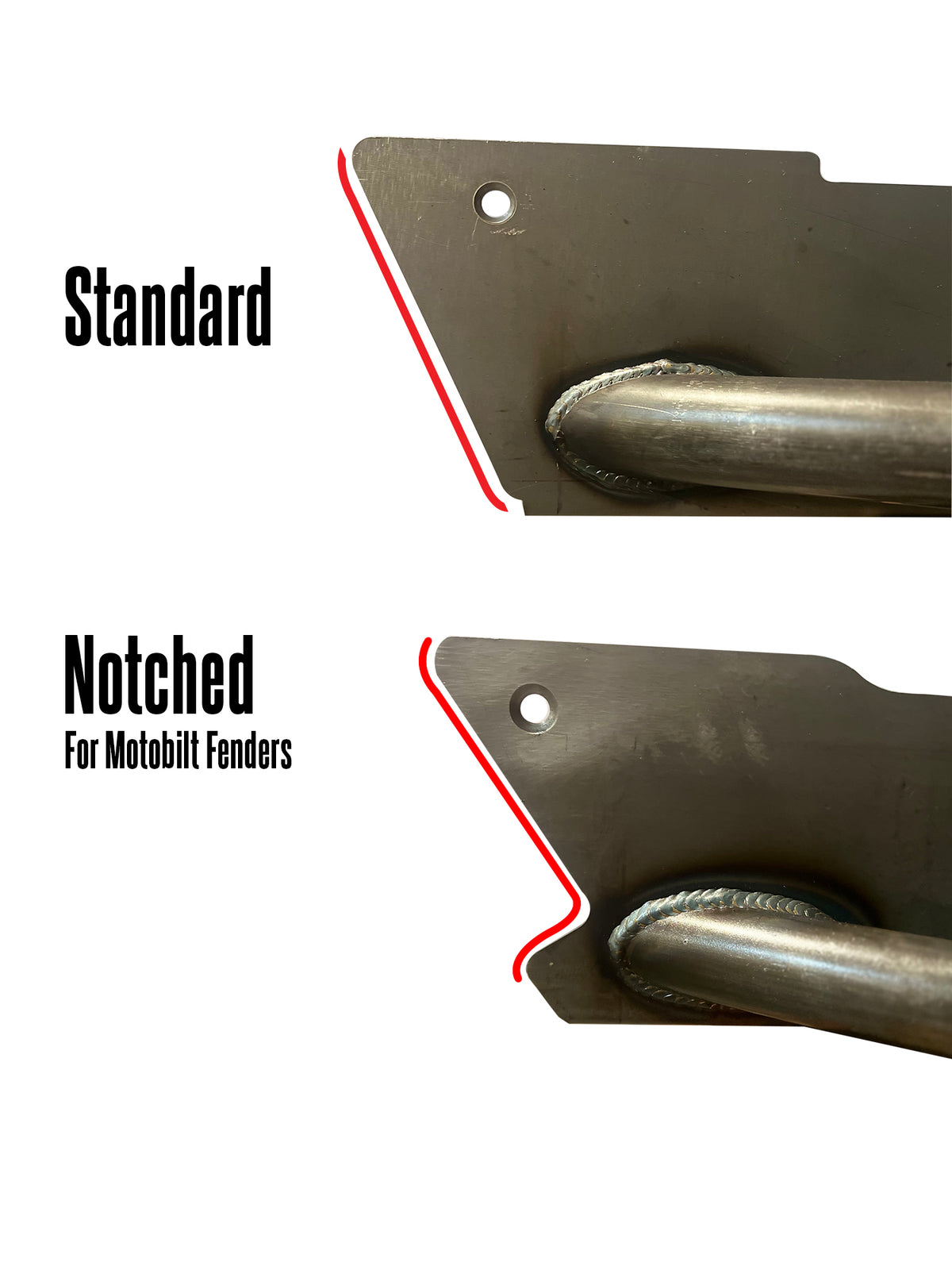

If running the Motobilt front fenders, then choose the drop down menu option for our fenders. They are shorter and have a notch cut out to clear the Motobilt fenders.
Full length rockers extend to the rear fender well opening and match the curve of the wheel well. See photos.

Specifications

Motobilt Jeep TJ Rocker Guards are countersunk
Hardware included. Nutserts are only used where the bolt is not accessible from the backside. Re-uses factory body mount bolts.
Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
The proper drill size for the 5/16 inch Rivnuts is 17/32”.
Works with or without a body lift.
Laser cut also CNC form 3/16 inch thick steel plate
Sold as pair
Weight: 68lbs (approx.)

Product Components

Full Length Rocker Guards for Jeep TJ

Notes:

Specifications
