Motobilt Rocker Guards Fits Comp/Stretch Cut Corner Guards MB1054 for Jeep TJ 3/16" steel

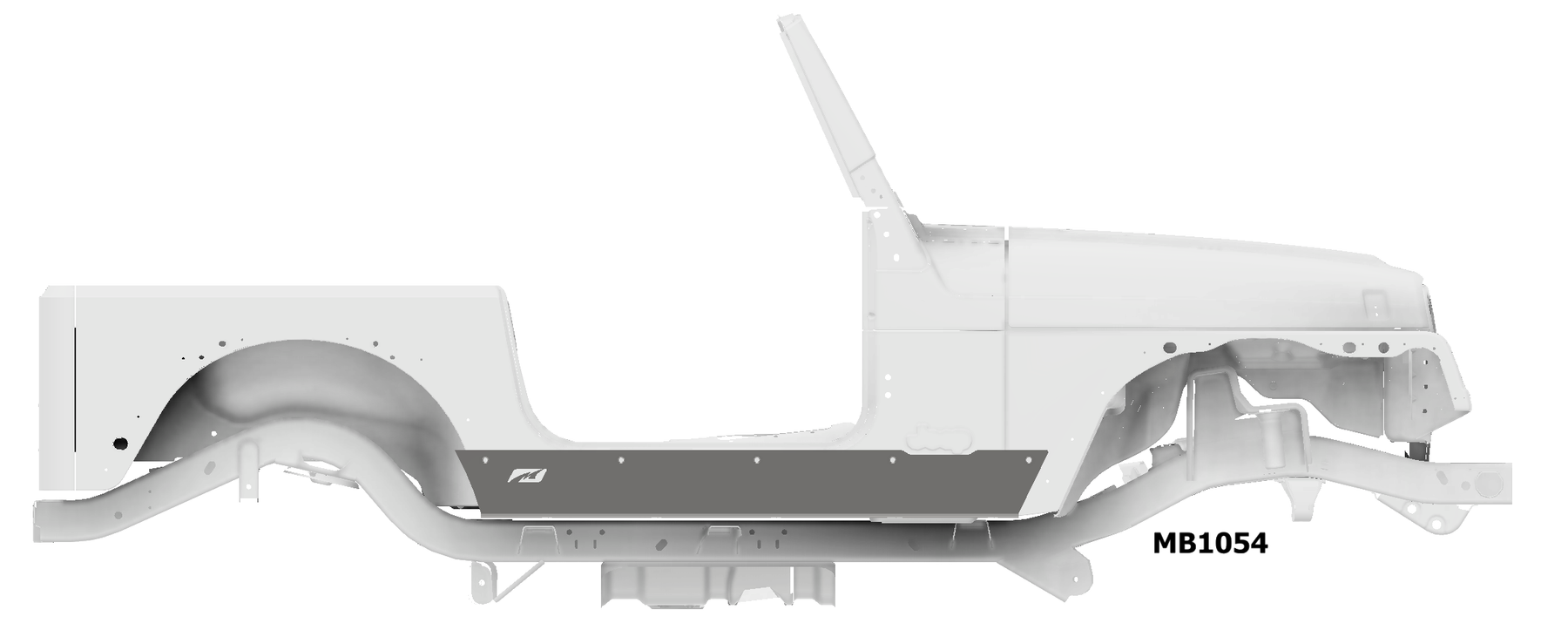

Motobilt Rocker Guards Fits Comp/Stretch Cut Corner Guards MB1054 for Jeep TJ 3/16" steel shown installed on CAD drawing of jeep tub so you can see how far past the wheel well opening it mounts

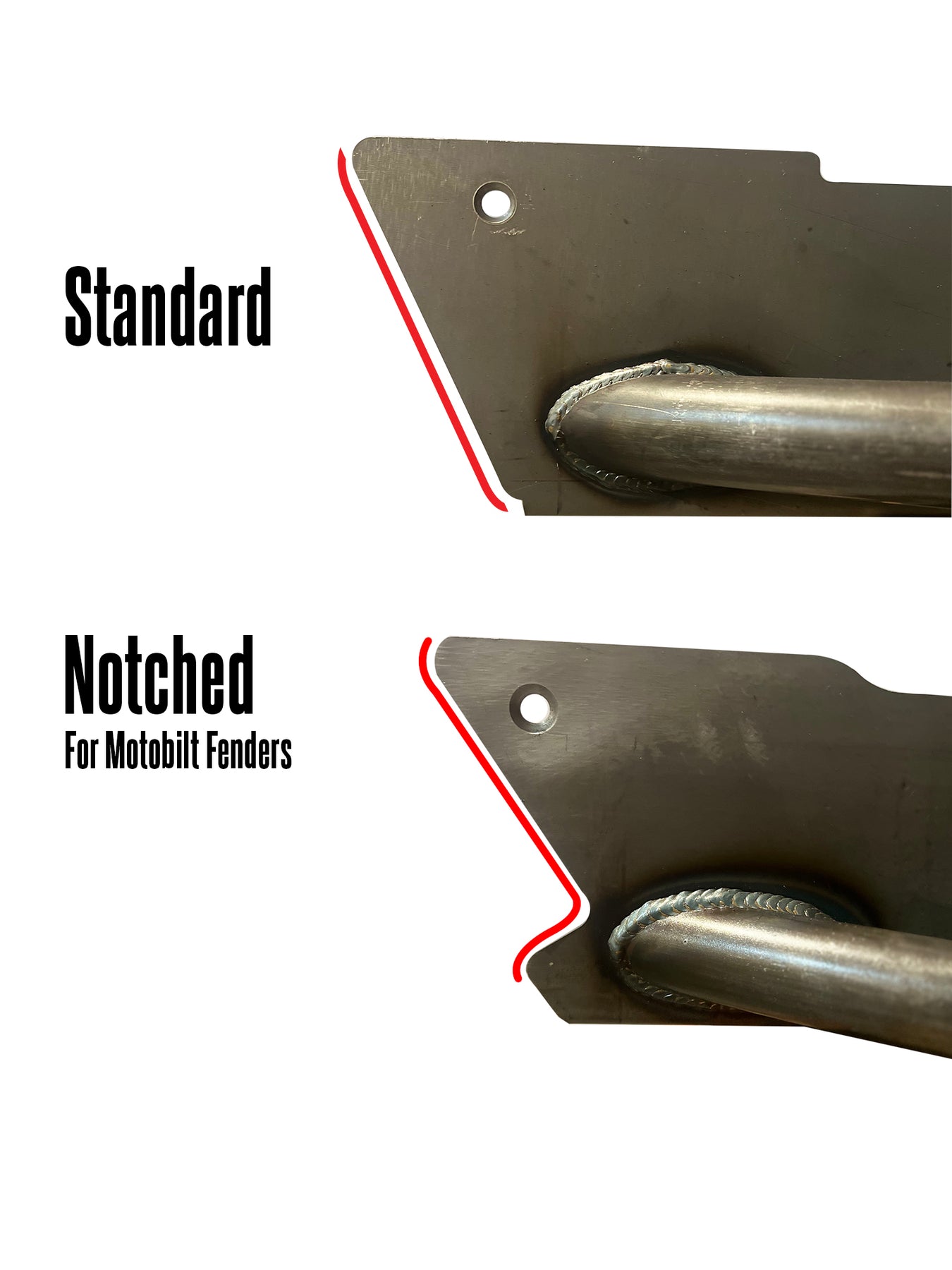

Motobilt Rocker Guards Fits Comp/Stretch Cut Corner Guards MB1054 for Jeep TJ 3/16" steel shows the difference between this and the notched version mb1054-FND as this rocker is shorter also and not just notched

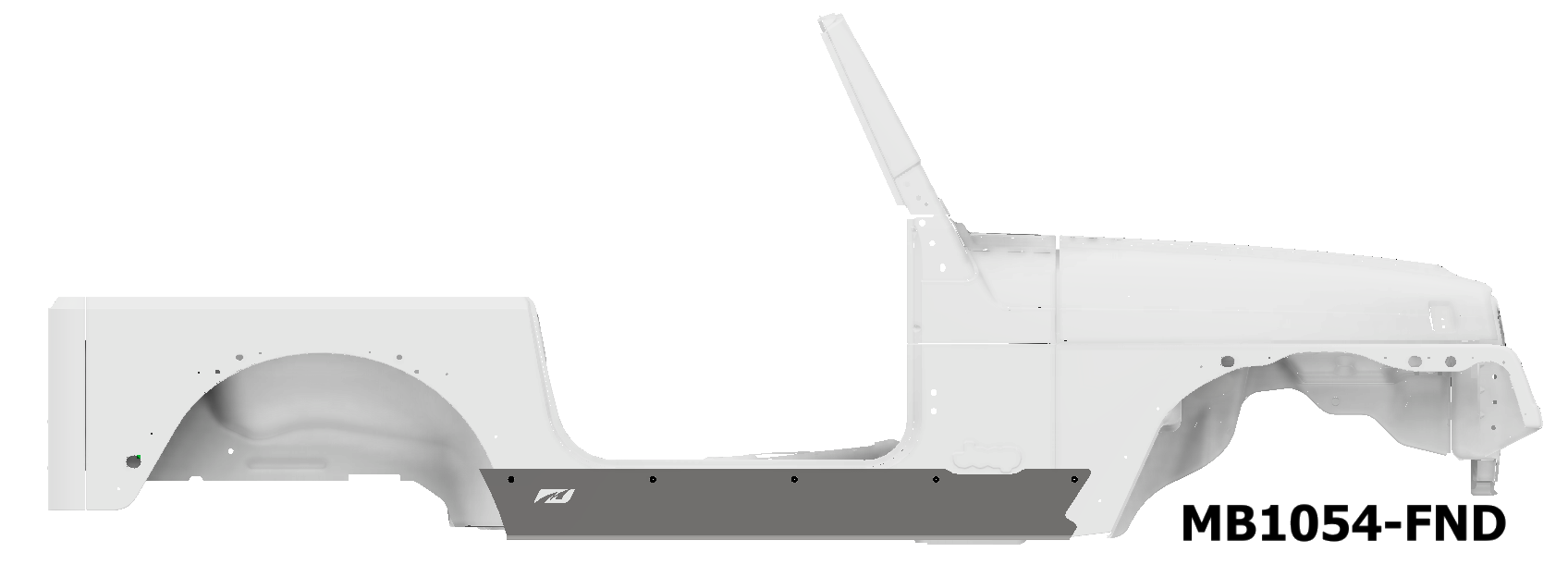

Motobilt Rocker Guards Fits Comp/Stretch Cut Corner Guards MB1054-FND for Jeep TJ 3/16" steel shown on CAD drawing of jeep tub to show how the front is shorter and the rear is longer

MB1054

Rocker Guards Fits Comp/Stretch Cut Corner Guards for Jeep TJ

Name: Rocker Guards Fits Comp/Stretch Cut Corner Guards for Jeep TJ
Brand: Motobilt
SKU: MB1054
Price: 299.00 USD
Availability: InStock

~~$299.00~~ $254.15 Save 15%

Shipping calculated at checkout.

Compatible With:

Select Option: Standard

Standard Notched for Motobilt TJ Front Fenders

Product variants

Quantity

Select Option: Standard

Standard Notched for Motobilt TJ Front Fenders

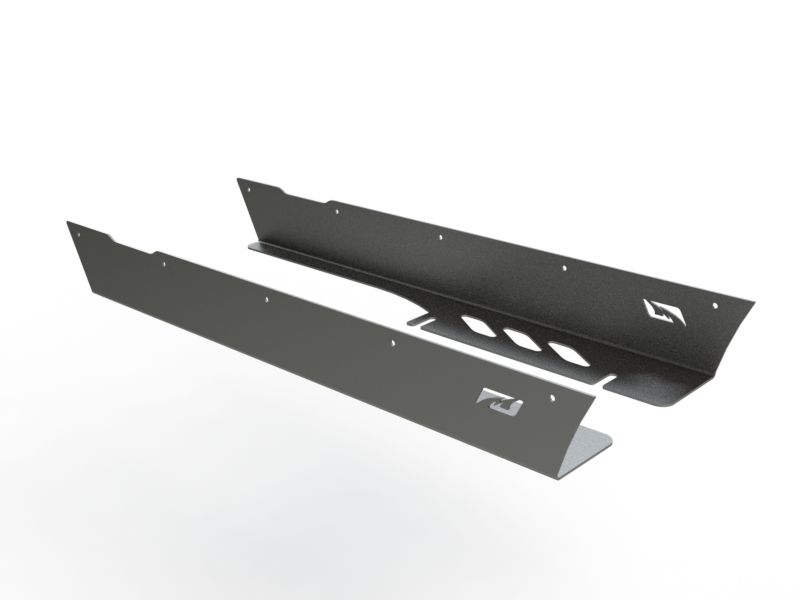

The Motobilt Jeep TJ Rocker Guards for competition or stretch cut corners are in-house laser cut from 3/16 inch high strength steel.Our rocker guards are formed so that they wrap under neath the body of your jeep and tie into the factory body mounts. They completely cover the front and the back past the wheel well opening. We also slot the lower portion of the rocker guards to make it easy to clean out your rockers after a hard day of wheeling. Motobilt Jeep TJ Rocker Guards are countersunk and ship bare metal with hardware included.

If running the Motobilt front fenders, then choose the drop down menu option for our fenders. They are shorter and have a notch cut out to clear the Motobilt fenders.

Compatible Corner Guards:

MB1057 Blank Corner Guards
MB1051 Comp Cut Corner Guards
MB1051-A Aluminum Comp Cut Corner Guards
MB1127 Comp Cut Highline Corner Guards
MB1058 4” Stretch Corner Guards

Want To Know More?

Get the Details

Find all the information you need to get the right part for your rig.

Important Information

Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)

Product Specifications

Jeep TJ Rocker Guards for competition or stretch cut corners.
Extends past the factory wheel well opening 1 3/4 inches.
2” wheelbase stretch or more required.
Laser cut from 3/16 inch high strength steel
Hardware 12 5/16 inch counter sunk bolts with flat washers and nyloc nuts.
The proper drill size for the 5/16 inch Rivnuts is 17/32”.
Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts. Nut serts are only used where the nut is not accessible from the backside. Reuses factory body mount bolts. The factory hardware is 7/16”-14
Works with or without a body lift.
Sold as pair
Weight: 65lbs

Notes

This extra length when used with the Motobilt comp cut (MB1051) or stretch cut corners (MB1058) allows for a more proportional look and additional protection
Please test fit all of your Motobilt products before you paint them
