Comp Cut Corner Guards for Jeep TJ

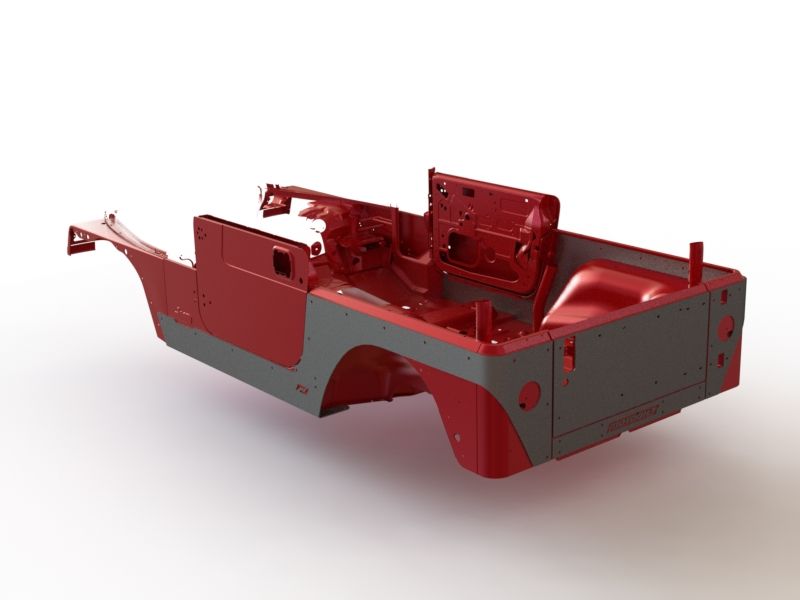

The Motobilt Jeep TJ competition cut corner guards are designed for serious off roading. They provide complete protection from your door to your tailgate keeping your Jeep's body safe no matter the terrain. These corners were engineered utilizing the latest in technology. First they are modeled in the most advanced software to ensure the best possible fit. Next, an in house Motobilt CNC laser cuts the 3/16 inch thick high strength steel plate. Finally using specially made tooling they are cnc formed to precise tolerances. These process in design and fabrication allows for a great fit on your Jeep TJ. Every aspect of production from design, fabrication, to shipping is all done in house at Motobilt. This allows us to ensure the best in American made quality.
The competition cut allows you to run much larger tires and gives room to stretch your wheel base. These corners are perfect with our Jeep TJ back half kit. You can really move the rear axle back to get the wheel base you need and provide a great departure angle for those really big rocks! When installing these corner guards you will need to cut much of the factory sheet metal away including the boxed in portion on the interior of your stock corners. Usually this requires the factory body mount to be removed also. A good way to reinforce this area is to tie the roll cage into the rear section of the frame.
-
The corners have a 4.5 inch hole laser cut in back for a flush mount led taillight. All of the mounting locations are countersunk to keep the side of your Jeep clean and slick. Flush mount hardware is included. Most of the hardware uses a through hole with a nyloc nut on the back side. There are a few locations where the back side cannot be accessed so a nut sert is provided and will be used in these locations. These corners are designed to work with the Motobilt rocker guards MB1054 and MB1054s. They work perfectly together to keep your Jeep's body completely protected.
Specifications

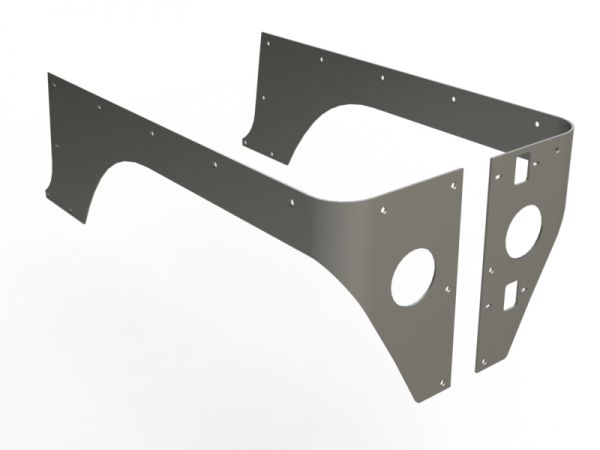

- Jeep TJ competition cut corner guards
- CNC laser cut from 3/16 inch thick high strength steel plate
- Corners have a 4.5 inch hole laser cut in back for a flush mount led taillight
- Flush mount hardware included
- Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
- Sold as pair
- Weight: 55lbs (approx.)
Compatible Motobilt Rocker Guards:
- MB1054 Comp/Stretch Rocker Guards
- MB1054-S Comp/Stretch Rocker Guards with step
- MB1136 Boat Side Rocker Guards.
Note:
- There are a few locations where the back side cannot be accessed so a nut sert is provided and will be used in these locations
- Requires a 2” or more wheel base stretch.
- The two rear body mounts need to be cut off for clearance. We suggest tying your roll cage C Pillar into the the rear of the frame to strengthen this area.
- Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install.
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
- Please test fit all of your Motobilt products before you paint them
