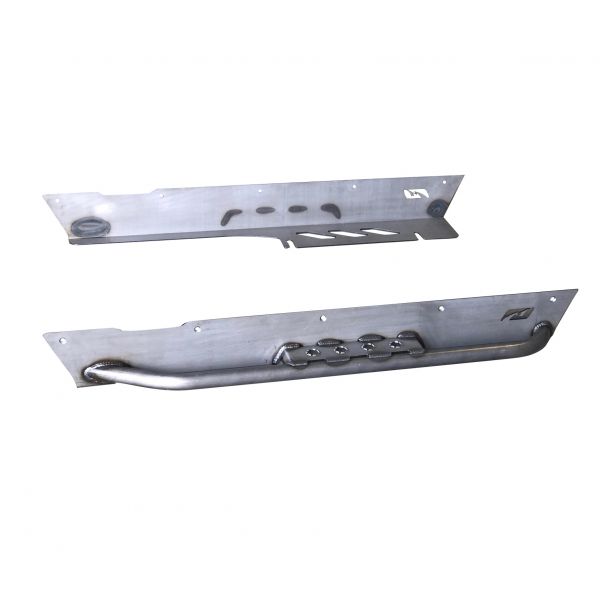

The Motobilt YJ Rocker Guards for Competition Corners with tube step are in-house laser cut from 3/16 inch high strength steel. The Rocker Guards extend up to the bottom edge of the door and bend underneath the jeep to protect it. They completely cover the front and the back of the Jeep. The holes in the bottom make it easier to wash mud and debris out. Motobilt YJ Rocker Guards are countersunk and ship bare metal with hardware included.

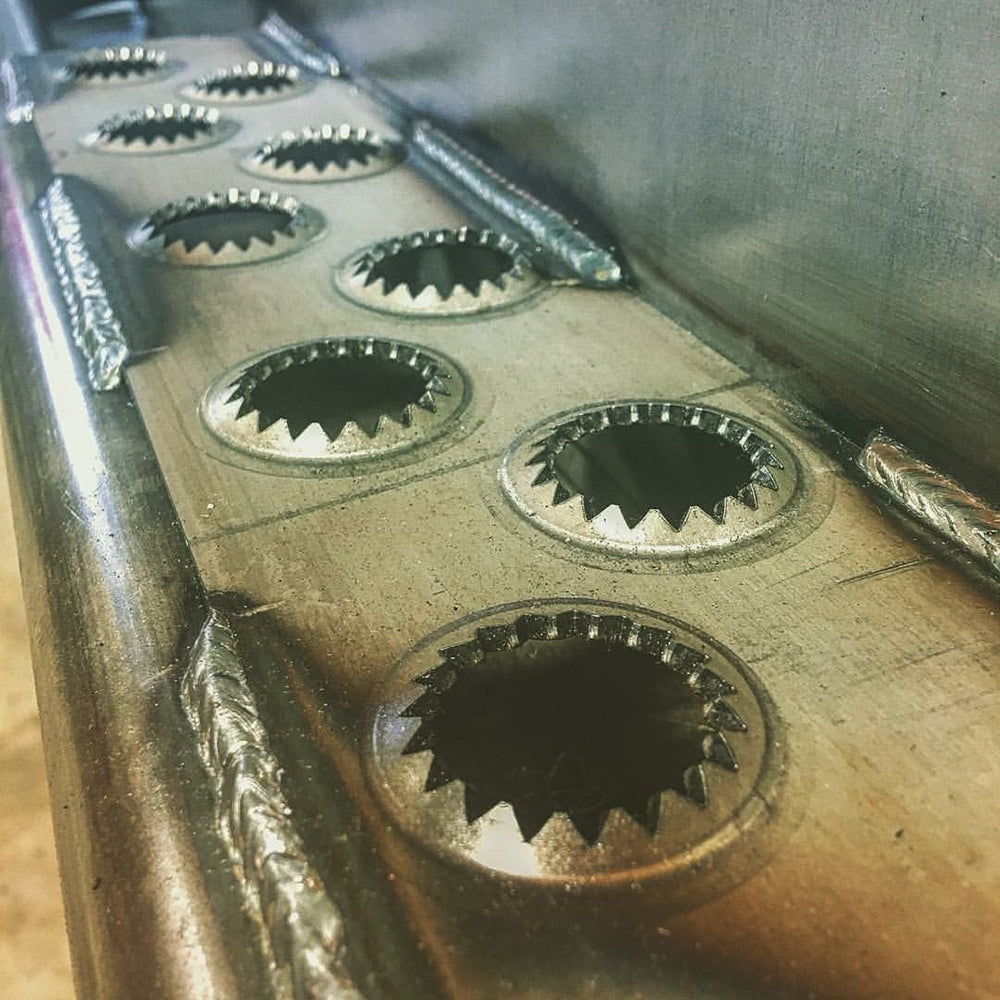

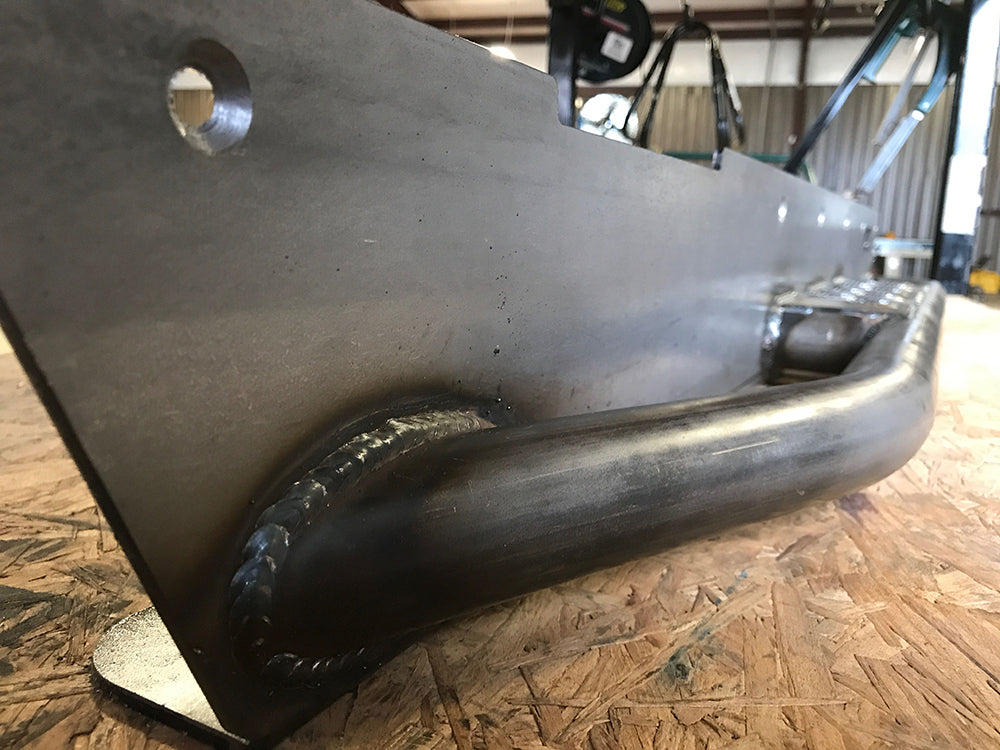

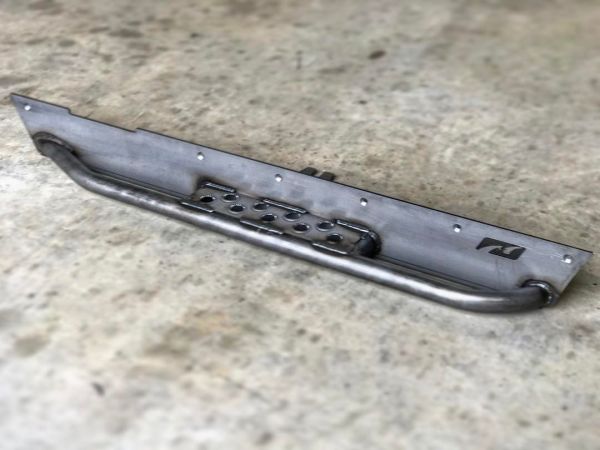

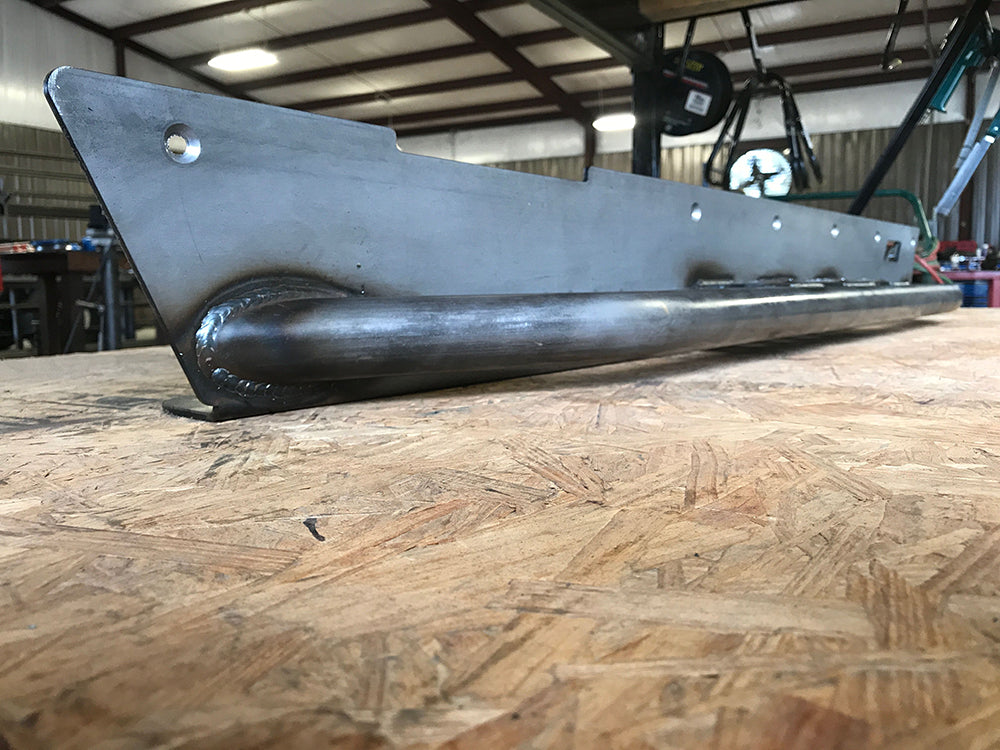

The tube steps are made out of 1.75 inch x 0.120 inch thick steel DOM tubing and include a HD Motobilt Grimple plate for added grip. The steps give you roughly 3.5 inch of space to step on while maintaining the maximum amount of clearance for off road use!
Specifications
- Motobilt YJ Rocker Guards for Competition Corners with tube step
- Cut from 3/16 inch high strength steel
- Tube steps are made out of 1.75 inch x 0.120 inch thick steel DOM tubing and include a HD Motobilt Grimple plate for added grip.
- Hardware included. Nut serts only used where the nuts are not accessible from the back side.
- Hardware 12- 5/16 inch counter sunk bolts with flat washers and nyloc nuts
- Proudly Made in the USA: Crafted with precision and pride in the United States, ensuring the highest quality and supporting American manufacturing.
- Works with or without a body lift.
- Sold as a pair.
- Weight: 100lbs (approx.)
Compatible with Motobilt Corner Guards:
- MB1049 Competition cut corner guards
- MB1057 Blank Corner Guards
- MB1127 Comp Cut Highline Corner Guards
Notes:
- Drill Bit Size: 5/16” nut serts use a 17/32” drill bit to install
- Extends past the factory wheel well opening 1 3/4 inches.
- 2” wheelbase stretch or more required.
- If running the Motobilt Highline fenders with a 2” or 4” flare the rocker will have to be trimmed at the front for fitment.
- Ships raw steel. Must be painted or powder coated to prevent rust. See (Steel-It)
