Rear Coilover Mounts for Jeep JKU

Name: Rear Coilover Mounts for Jeep JKU
Brand: Motobilt
SKU: MB1554
Price: 1579.00 USD
Availability: InStock

25% OFF Regular price~~$1,579.00~~Sale price$1,184.25

Shipping calculated at checkout.

Unit Price: / Sku: MB1554

Fits: Jeep Wrangler JKU

Quantity:

View product details & documents

Product details

As rear suspension travel increases, the factory Jeep JKU shock mounts and crossmember quickly become the limiting factor. The factory layout was never designed around long-travel coilovers or ORI struts, which often forces builders to compromise shock placement, travel, or packaging.

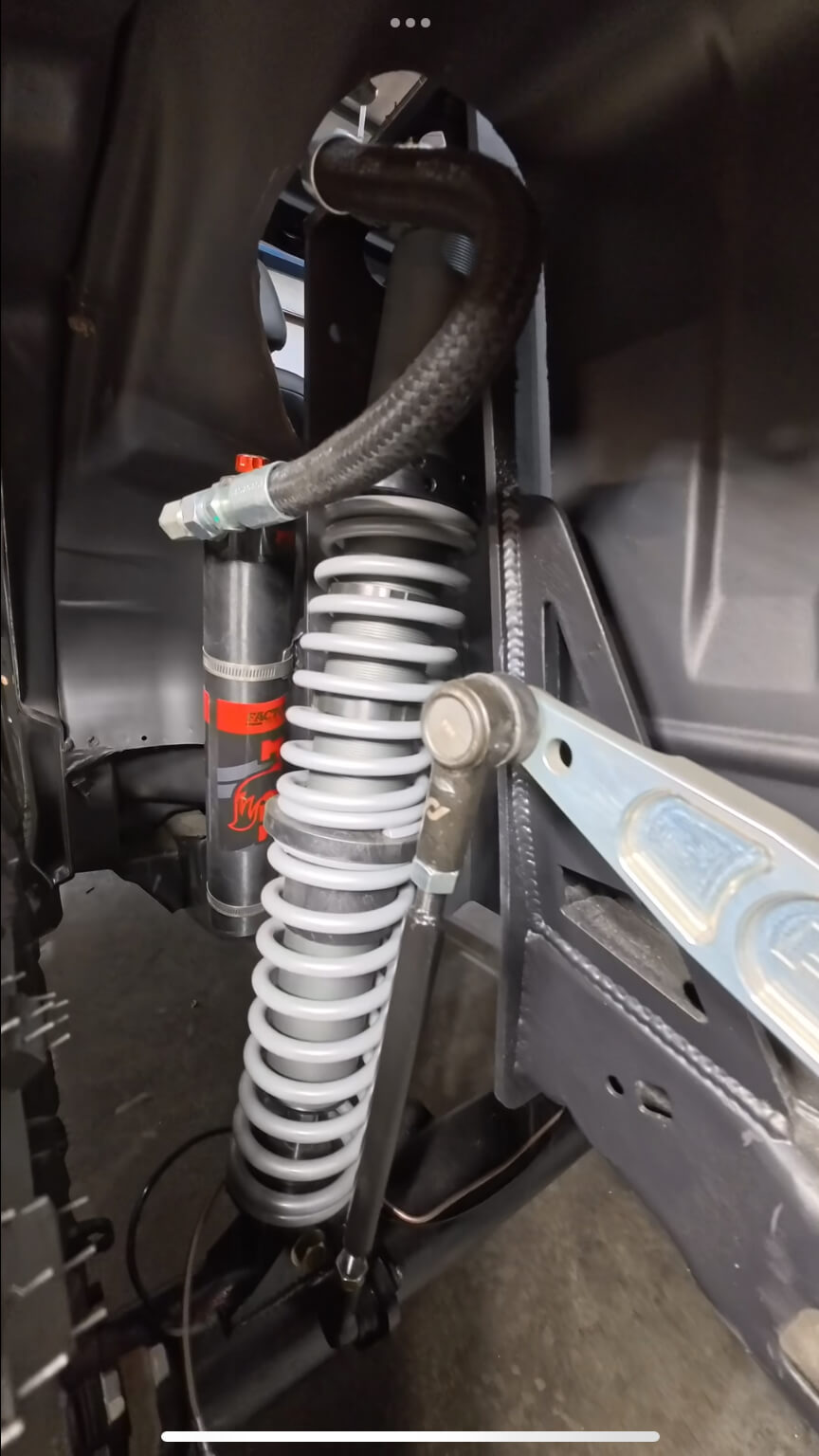

The Motobilt Rear Coilover Mount System replaces the factory rear shock mounting structure with a system designed around proper shock positioning and suspension travel. At the center of the system is a heavy-duty 1/4-inch steel crossmember that replaces the factory unit and ties directly into fabricated shock towers. This creates a stronger mounting structure while providing the space needed for longer shocks and improved suspension packaging.

Designed for 14-inch and 16-inch coilovers or ORI struts mounted on top of the axle, the system allows the suspension to cycle through its travel without the constraints of the factory rear shock arrangement. The result is improved shock placement, more usable suspension travel, and a cleaner rear chassis layout.

The design works with both the factory fuel tank and the Motobilt rear-mounted fuel cell, making it adaptable to a variety of Jeep JKU suspension builds. Integrated pass-throughs help simplify wiring and fuel routing, keeping the rear chassis organized and serviceable.

Like many Motobilt suspension components, this system was developed by builders who understand the packaging challenges that come with long-travel suspension systems. Whether you're building a trail Jeep, rock crawler, or rear suspension conversion, this system provides the structure required to support a properly designed rear suspension.

Important information

Fits 2008-2018 Jeep Wrangler JKU
Designed for 14-inch and 16-inch coilovers
Compatible with ORI struts
Shocks or struts must be mounted on top of the axle
Includes fabricated shock towers
Replaces factory rear crossmember
Features 1/4-inch steel crossmember
Compatible with factory fuel tank
Compatible with Motobilt rear-mounted fuel cell
Works with standard Jeep JK 3-link rear suspension systems
Integrated pass-throughs for wiring and fuel management
Cutting and welding required
Detailed instructions included
Made in the USA

Product specifications

Vehicle Fitment
2008-2018 Jeep Wrangler JKU

Shock Compatibility
14-inch Coilovers

16-inch Coilovers

ORI Struts

Mounting Configuration
Top-of-Axle Shock Mounting

Crossmember Material
1/4-Inch Steel

Dimensions
18.6" H x 46.02" W x 18.5" D

Weight
121 lbs

Related Motobilt Systems

Motobilt Rear Mounted Fuel Cell
Jeep JK 4-Link Rear Suspension Systems
Rear Stretch and Long Travel Suspension Builds

Manufactured
Made in the USA

Notes

Cutting and welding are required.
Designed for builders performing rear suspension modifications.
Can be installed using common fabrication tools including a sawzall, cutoff wheel, and welder.
Verify shock length, axle position, and suspension geometry before final welding.
Test fit all components before final coating or paint.
Routing provisions are included for wiring and fuel management.

Frequently asked questions

Why replace the factory rear shock mounts and crossmember?

The factory rear suspension layout limits shock length and mounting position. Replacing the factory structure allows proper placement of longer coilovers or ORI struts while improving suspension packaging and travel.

What size coilovers will this system support?

The system is designed around 14-inch and 16-inch coilovers mounted on top of the axle.

Will this work with ORI struts?

Yes. The shock towers are compatible with ORI struts when mounted on top of the axle.

Do I need a Motobilt fuel cell to use this system?

No. The system is designed to work with either the factory fuel tank or the Motobilt rear-mounted fuel cell.

What rear suspension configurations is this designed for?

This system is designed to work with standard Jeep JK and JKU 3 or 4-link rear suspension setups and is commonly used on long-travel suspension builds.

Is welding required?

Yes. This is a fabrication component that requires cutting and welding during installation.

Additional product details & documents

You notice it when the rear suspension finally clears its own path. The shocks stand where they should, travel is usable, and nothing feels forced as the axle moves.

The factory rear shock layout and crossmember limit what the suspension can do. This kit replaces those limits with structure that supports real shock length and proper placement without redesigning the entire rear of the Jeep.

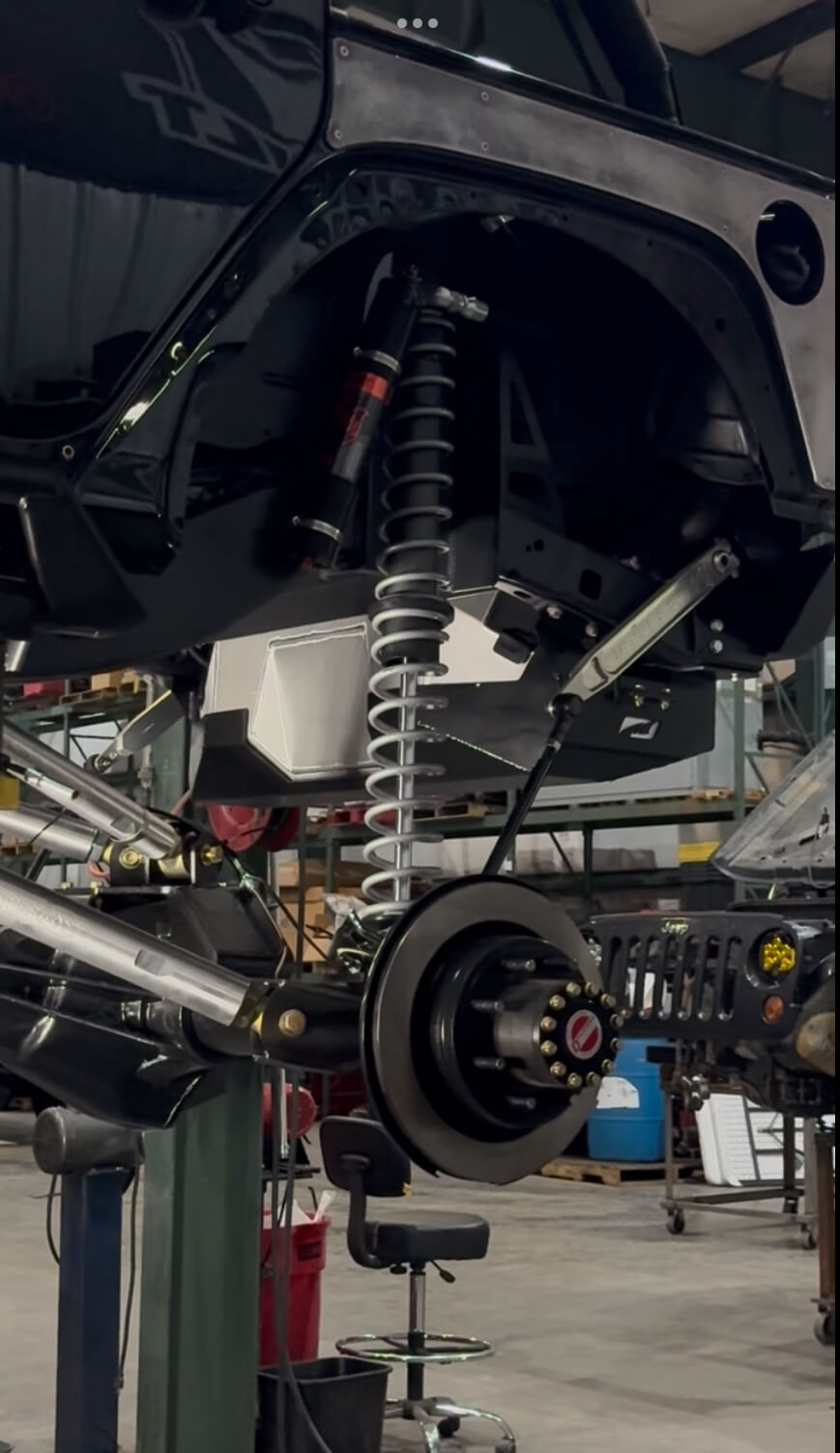

Fabricated steel shock towers are tied together with a larger 1/4 inch steel crossmember that replaces the factory unit. Shocks mount on top of the axle and cycle cleanly through their travel. The result is consistent motion, better control, and room for the suspension to work the way it was intended.

Rear coilover mount system for Jeep JKU
Works with 14 inch or 16 inch coilovers or ORI struts when mounted on top of the axle
Replaces the factory crossmember with a 1/4 inch steel crossmember tied into the shock towers
Compatible with Motobilt rear mounted fuel cell or factory fuel tank
Works with standard Jeep JK 3 link rear suspension setups
Pass throughs for clean wiring and fuel management

Cutting and welding are required. The builder friendly design allows installation with basic power tools including a sawzall, cutoff wheel, and welder. Detailed instructions are included to guide placement and fitment.

When the rear suspension has the structure to support real travel, the Jeep stops working around limitations and starts working as a system.

Fits:

2008-2018 Jeep Wrangler JKU

Specifications:

Dimensions (H/W/D): 18.6/46.02/18.5
Weight: 121 lbs

Specifications

Product Components

Instructions

Assembly Instructions

Rear Coilover Mounts for Jeep JKU

Specifications:

Specifications

Instructions
