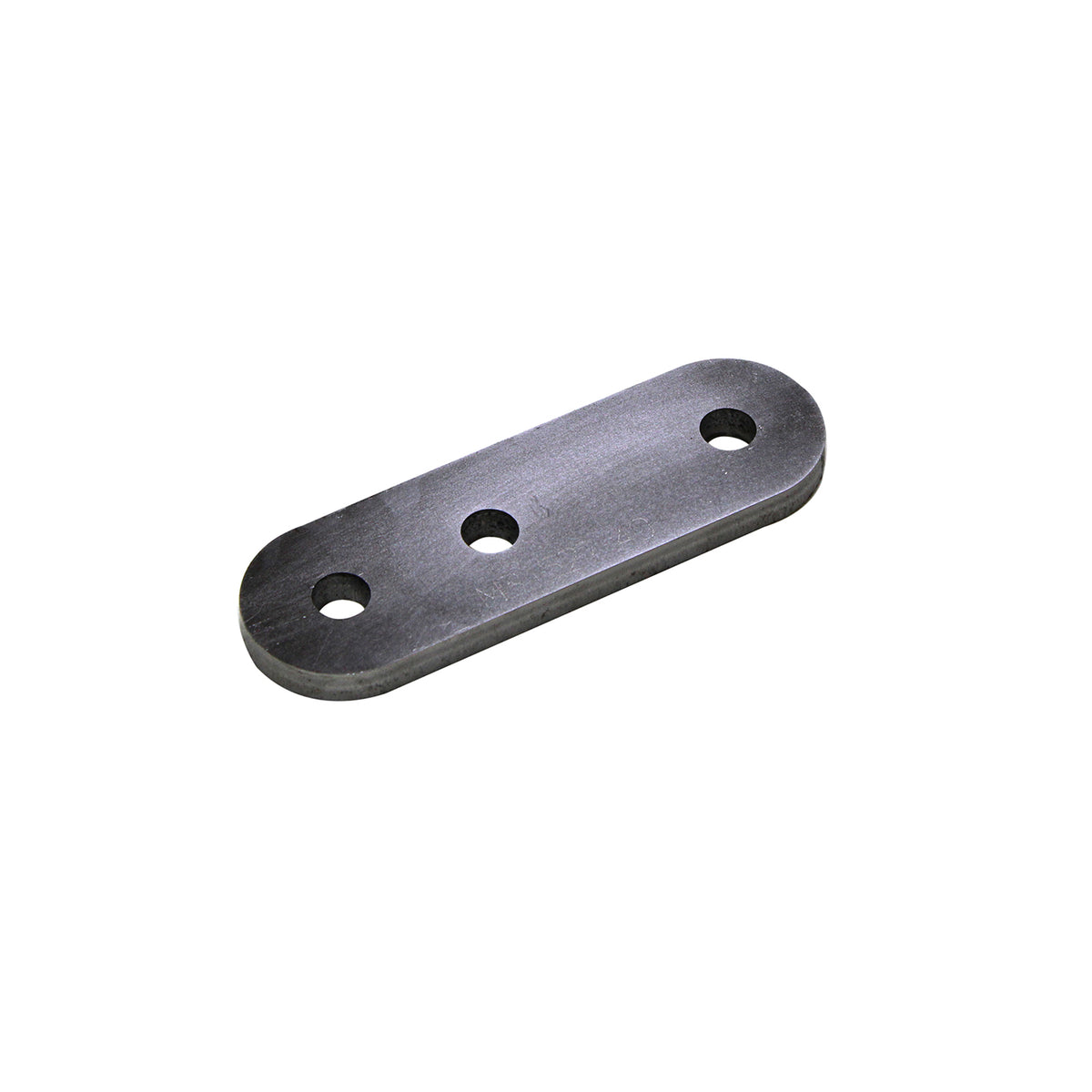

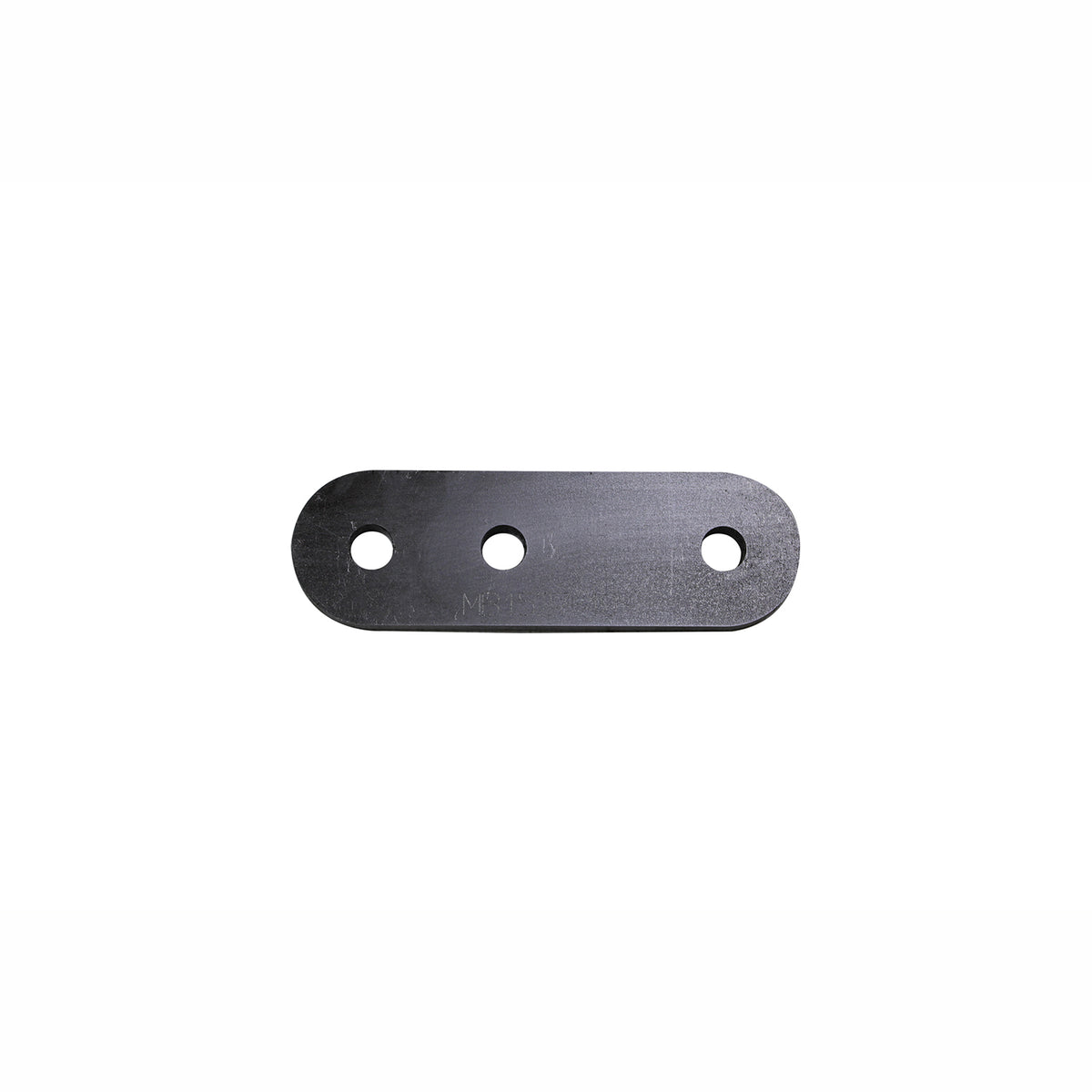

4" Straight Leaf Spring Shackle

Name: 4" Straight Leaf Spring Shackle
Brand: Motobilt
SKU: MB1527-40
Price: 9.00 USD
Availability: InStock

Regular price $9.00

Shipping calculated at checkout.

Unit Price: / Sku: MB1527-40

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is CNC laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate.

View product details & documents

Quantity: $9.00

Product details

The Motobilt shackle plates are made out of 3/8 inch thick steel plate that is CNC laser cut. Each shackle plate uses 1/2 inch holes and a 3rd middle hole that can be used as a tie plate. A small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications. Measurements are the span from centers on each hole.

Product specifications

Straight long shackle 4 inch
3/8 inch thick steel plate
Shackle plate uses 1/2 inch holes and a 3rd middle hole
Sold as a pair (2 plates)

Notes

Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
Measurements are the span from centers on each hole

Additional product details & documents

Specifications

Straight long shackle 4 inch
3/8 inch thick steel plate
Shackle plate uses 1/2 inch holes and a 3rd middle hole
Sold as a pair (2 plates)

Note:

Small tube would be cut to length and installed in the middle hole with a 1/2 inch bolt to increase the rigidity in some applications
Measurements are the span from centers on each hole
